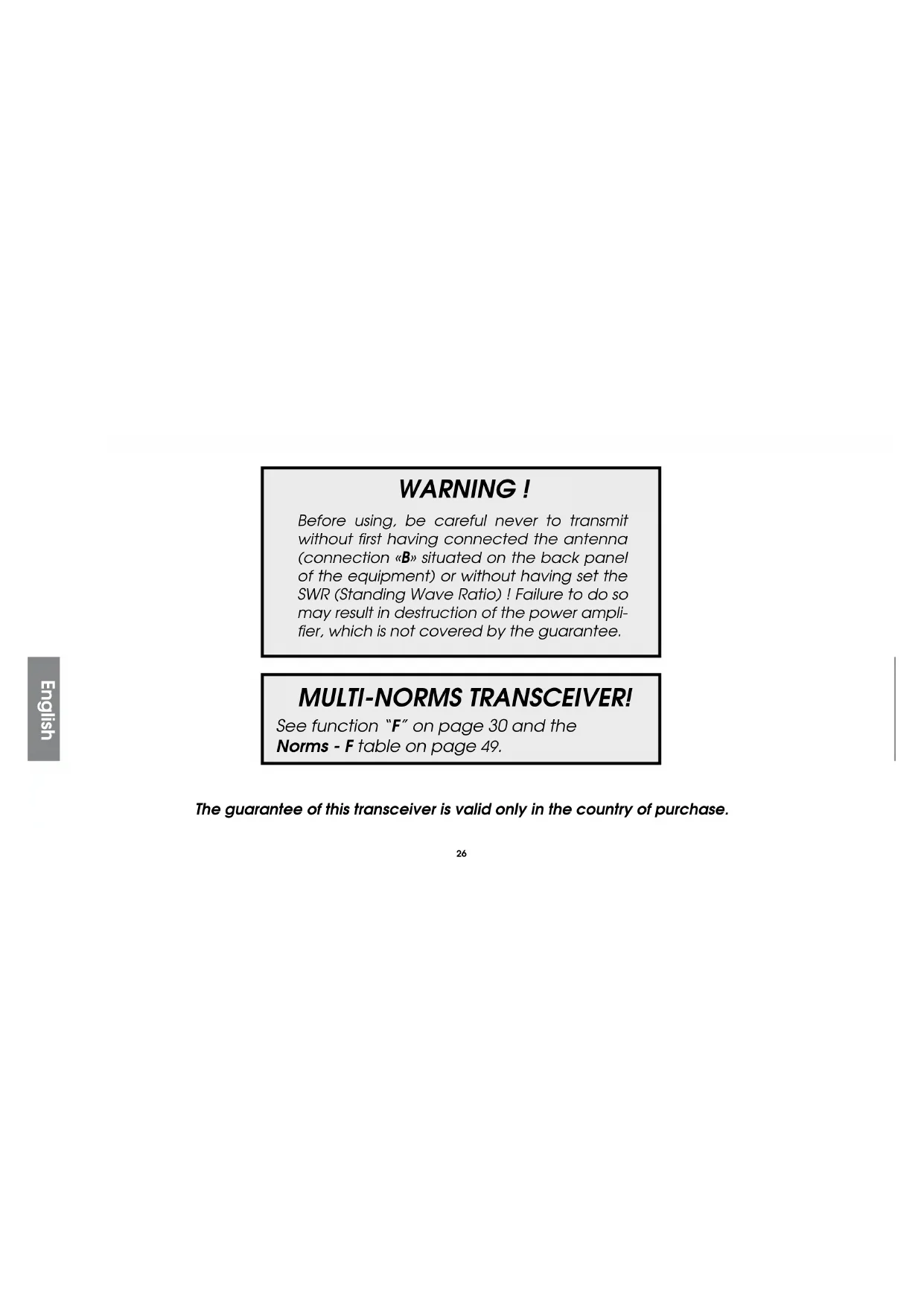

Before using, be careful never to transmit without first having connected the antenna (connection «B» situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio)! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.

MULTI-NORMS TRANSCEIVER!

See function "F" on page 30 and the

Norms - F table on page 49.

The guarantee of this transceiver is valid only in the country of purchase.

Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT JIMMY II ASC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT JIMMY II ASC.

A) INSTALLATION

1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO

a) You should choose the most appropriate setting from a simple and practical point of view.
b) Your CB radio should not interfere with the driver or the passengers.
c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle.

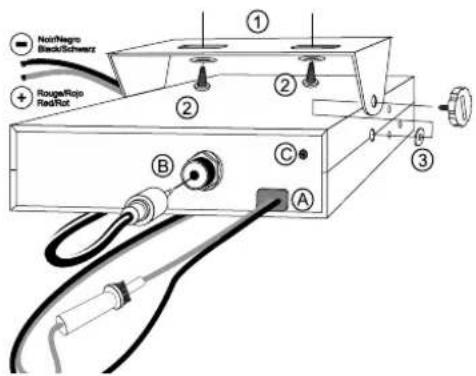

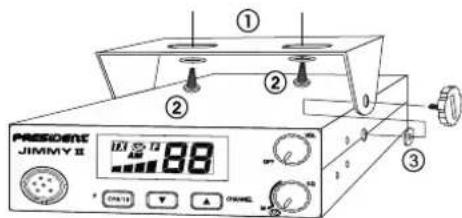

MOUNTING DIAGRAM

PRESIDENTE JIMMY II 88 ON/OFF ON/OFF ① ② ③

NonNegro Back/Schwarz Rouge/Rajo RedHot ① ② ③ A B C

d) To install your equipment, use the cradle (1) and the self-tapping screws (2) provided (drilling diameter 3.2 mm). Take care not to damage the vehicle's electrical system while drilling the dash board.
e) Do not forget to Insert the rubber joints (3) between the CB and Its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set.
f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle.
- N.B.: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio.

2) ANTENNA INSTALLATION

a) Choosing your antenna

- For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna.

b) Mobile antenna

• Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings.
• If you already have a radio-telephone antenna installed, the CB antenna should be higher than this.
• There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 5, Adjustment of SWR).
• For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed.
• Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting).
• Connect the antenna (B).

c) Fixed antenna

- A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, according to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give maximum efficiency to each CB radio within the range.

OUTPUT RADIUS PATTERN

Six identical diagrams showing a car with top-down views, each containing a line drawing of its roof or side profile (no text or symbols)

3) POWER CONNECTION

Your PRESIDENT JIMMY II ASC is protected against an inversion of polarities. However, before switching it on, you are advised to check all the connections. Your equipment must be supplied with a continued current of 12 volts (A). Today, most cars and lorries are negative earth. You can check this by making sure that the negative terminal of the battery is connected either to the engine block or to the chassis. If this is not the case, you should consult your dealer.

WARNING: Lorries generally have two batteries and an electrical installation of 24 volts, in which case it will be necessary to insert a 24/12 volt converter (type CV 24/12 PRESIDENT) into the electrical circuit. The following connection steps should be carried out with the power cable disconnected from the set.

a) Check that the battery is of 12 volts.
b) Locate the positive and negative terminals of the battery (+ is red and - is black). Should it be necessary to lengthen the power cable, you should use the same or a superior type of cable.
c) It is necessary to connect your CB to a permanent (+) and (-). We advise you to connect the power cable directly to the battery (as the connection of the CB cable to the wiring of the car-radio or other parts of the electrical circuit may, in some cases, increase the likelihood of interference).
d) Connect the red wire (+) to the positive terminal of the battery and the black (-) wire to the negative terminal of the battery.
e) Connect the power cable to your CB radio.

WARNING: Never replace the original fuse (2 A) by one of a different value.

Towards starter Connected to chassis

4) BASIC OPERATIONS TO BE CARRIED OUT BEFORE USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the "push-to-talk" switch on the microphone)

a) Connect the microphone

b) Check the antenna connections

c) Turn the set on by turning the volume knob (1) clockwise.

d) Turn the squelch SQ knob (2) to minimum (M position).

e) Adjust the volume to a comfortable level.

f) Go to channel 20 by using the ▲ and ▼ keys(3).

5) ADJUSTMENT OF SWR (Standing wave ratio)

WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area.

* Adjustment with external SWR-meter (e.g. TOS-1 PRESIDENT)

a) To connect the SWR meter :

- Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 40 cm cable, type President CA 2C).

b) To adjust the SWR meter:

- Set the CB to channel 20.

- put the switch on the SWR-meter to position FWD (calibration).

- Press the «push-to-talk» switch on the microphone to transmit.

- Bring the Index needle to ▼ by using the calibration key.

- Change the switch to position REF (reading of the SWR level). The reading on the Meter should be as near as possible to 1. If this is not the case, re-adjust your antenna to obtain a reading as close as possible to 1. (An SWR reading between 1 and 1.8 is acceptable).

- It will be necessary to re-calibrate the SWR meter after each adjustment of the antenna.

WARNING: In order to avoid any losses and attenuations in cables used for connection between the radio and its accessories, PRESIDENT recommends to use a cable with a length inferior to 3m.

Your CB is now ready for use.

a) To turn the set on, turn the knob (1) clockwise.
b) To increase the sound level, turn the same knob further clockwise.

2) ASC (Automatic Squelch Control) / SQUELCH

Suppresses undesirable background noises when there is no communication. Squelch does not affect neither sound nor transmission power, but allows a considerable improvement in listening comfort.

a) ASC: AUTOMATIC SQUELCH CONTROL

Worldwide patent, a PRESIDENT exclusivity.

Turn the SQL knob (2) anti-clockwise into ASC position. «ASC» appears on the display. No repetitive manual adjustment and a permanent improvement between the sensitivity and the listening comfort when ASC is active. This function can be disconnected by turning the switch clockwise. In this case the squelch adjustment becomes manual again. «ASC» disappears from the display.

b) MANUAL SQUELCH

Turn the SQ knob clockwise to the exact point where all background noise disappears. This adjustment should be done with precision as, if set to maximum (fully clockwise), only the strongest signals will be received.

3) CHANNEL SELECTOR \~ BEEP

CHANNEL SELECTOR: ▲ and ▼ on front panel

These buttons allow increasing or decreasing a channel. A «beep» sounds each time the channel changes if the BEEP function is activated.

BEEP Beep on changing the channel, buttons etc.

Beep function enable : turn on the power while pressing the ▲ (up) button.

Beep function disable : turn on the power while pressing the ▼ (down) button.

4) CH9/19 \~ F

CH9/19 BUTTON

Channels 9 and 19 are automatically selected by pressing this button. A push activates channel 9. A second push activates channel 19. A new push returns to the previous channel.

F - FREQUENCY BAND SELECTION

(configuration: EU ; PL ; In).

The frequency bands have to be chosen according to the country of use. Don't use any other configuration. Some countries need a user's licence. See table page 50.

Proceeding: switch off the transceiver. Keep the key F pressed and switch on again. F and the letter corresponding to the configuration are blinking.

- In order to change the configuration, use the ▲ and ▼ keys on front panel.

- When the configuration is selected, press 1 second on the F key. F and the letter corresponding to the configuration are continuously displayed, a beep sounds. At this point, confirm the selection by switching off the transceiver and then switching it on again. See the configurations / frequency bands fable at page 47 to 48.

5) DISPLAY

It shows all functions:

The BARGRAPH shows the reception level and the output power level.

The plug is located on the front panel of the transceiver and makes the setting of the equipment into the dashboard easier. See cabling diagram page 48.

7) PTT

Transmission key, press to transmit a message. Displayed and release to listen to an incoming communication.

TOT (Time Out Timer)

If the PTT key (8) is pressed for more than 5 minutes, channel and TTX blink, the transmission ends until the PTT key (8) is released.

ANL FILTER (Automatic Noise Limiter)

The transceiver is equipped with an automatic filter which reduces back ground noises and some reception Interferences.

- Frequency ranges : from 26.965 MHz to 27.405 MHz

- Antenna impedance : 50 ohms

- Power supply : 13.2 V

- Dimensions (in mm) : 125 (W) x 170 (D) x 45 (H)

- Weight

- Accessories supplied : Electret microphone with support,

mounting cradle, screws.

- Filter : ANL (Automatic Noise Limiter) built-in

2) TRANSMISSION

- Frequency allowance

- Carrier power

- Transmission interference

- Audio response

- Emitted power in the adj. channel

- Microphone sensitivity

- Drain

- Modulated signal distortion

+/- 200 Hz

4 W AM

inferior to 4 nW (-54 dBm)

300 Hz to 3 KHz

: Inferior to 20 μW

7mV

1,8 A (with modulation)

2%

3) RECEPTION

- Maxi. sensitivity at 20 dB sinad

- Frequency response

- Adjacent channel selectivity

- Maximum audio power

- Squelch sensitivity

maximum 1 mV - 47 dBm

- Frequency image rejection rate

- Inter modulation rejection

- Drain

: 0.5 μV - 113 dBm

: 300 Hz to 3 kHz

: 60 dB

: 2 W

: minimum 0.2 μV - 120 dBm

: 60 dB

: 48 dB

: 600 mA nominal / 950 mA maximum

D) TROUBLE SHOOTING

1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION IS OF POOR QUALITY

- Check that the antenna is correctly connected and that the SWR is properly adjusted.

- Check that the microphone is properly plugged in.

- Check that the programmed configuration is the correct one (see table page 49).

2) YOUR CB RADIO WILL NOT RECEIVE OR RECEPTION IS POOR

- Check that the squelch level is properly adjusted.

- Check that the programmed configuration is the correct one (see table page 49).

- Check that the volume is set to a comfortable listening level.

- Check that the microphone is properly plugged in.

- Check that the antenna is correctly connected and that the SWR is properly adjusted.

- Check that you are using the same modulation mode as your correspondent.

3) YOUR CB WILL NOT LIGHT UP

• Check the power supply.
• Check the connection wiring
• Check the fuse.

E) HOW TO TRANSMIT OR RECEIVE A MESSAGE

Now that you have read the manual, make sure that your CB Radio is ready for use (i.e. check that your antenna is connected).

Choose your channel (19, 27).

Press the «push-to-talk» switch and announce your message «Attention stations, transmission testing» which will allow you to check the clearness and the power of your signal. Release the switch and wait for a reply. You should receive a reply like, «Strong and clear».

If you use a calling channel (19, 27) and you have established communication with someone, it is common practice to choose another available channel so as not to block the calling channel.

F) GLOSSARY

Below you will find some of the most frequently used CB radio expressions. Remember this is meant for fun and that you are by no means obliged to use them. In an emergency, you should be as clear as possible.

INTERNATIONAL PHONETIC ALPHABET

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

TECHNICAL VOCABULARY

AM	: Amplitude Modulation
CB:	Citizen's Band
CH	: Channel
CW	: Continuous Wave
DX:	Long Distance Liaison
DW	: Dual Watch
FM:	Frequency Modulation
GMT	: Greenwich Meantime
HF :	High Frequency
LF	: Low Frequency
LSB	: Lower Side Band
RX :	Receiver
SSB	: Single Side Band
SWR	: Standing Wave Ratio
SWL	: Short Wave Listening
SW	: Short Wave
TX	: CB Transceiver
UHF	: Ultra High Frequency
USB	: Upper Side Band
VHF	: Very High Frequency

CB LANGUAGE

Advertising : Flashing lights of police car

Back off : Slow down

Basement : Channel I

Base station : A CB set in fixed location

Bear : Policeman

Bear bite : Speeding fine

Bear cage : Police station

Big slab : Motorway

Big 10-4 : Absolutely

Bleeding : Signal from an adjacent channel interfering with the

transmission

Blocking the channel : Pressing the PTT switch without talking

Blue boys : Police

Break : Used to ask permission to join a conversation

Breaker : A CBer wishing to join a channel

Clean and green : Clear of police

Cleaner channel : Channel with less Interference

Coming in loud and proud : Good reception

Doughnut : Tyre

Down and gone : Turning CB off

Down one : Go to a lower channel

Do you copy? : Understand?

DX : Long distance

Elghty elghts : Love and kisses

Eye ball : CBers meeting together

Good buddy : Fellow CBer

Hammer : Accelerator

Handle : CBer's nickname

Harvey wall banger : Dangerous driver

How am I hitting you? : How are you receiving me?

Keying the mike	: Pressing the PTT switch without talking
Kojac with a kodak	: Police radar
Land line : Telephone
Lunch box	: CB set
Man with a gun	: Police radar
Mayday	: SOS
Meat wagon	: Ambulance
Midnight shopper	: Thlef
Modulation	: Conversation
Negative copy	: No reply
Over your shoulder	: Right behind you
Part your hair	: Behave yourself - police ahead
Pull your hammer back	: Slow down
Rat race : Congested traffic
Rubberbander	: New CBer
Sail boat fuel	: Wind
Smokey dozing	: Parked police car
Smokey with a camera	: Police radar
Spaghetti bowl	: Interchange
Stinger : Antenna
Turkey	: Dumb CBer
Up one	: Go up one channel
Wall to wall	: All over/everywhere
What am I putting to you?	: Please give me an S-meter reading

CERTIFICATE OF CONFORMITY

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 – 34540 Balaruc – FRANCE, declare, on our own responsibility that the CB radio-communication transceiver

Brand : PRESIDENT Model : JIMMY II

is in conformity with the essential requirements of the Directive 1999/5/CE (Article 3) adapted to the national law, as well as with the following European Standards:

EN 300 433-1 V1.3.1 (2011-07) EN 300 433-2 V1.3.1 (2011-07) EN 301 489-1 V1.8.1 (2010-1) EN 301 489-13 V1.2.1 (2002-8) EN 60215 (1996)

and is in conformity with Directive RoHS2: 2011/65/EU (2011/06/08).

Balaruc, the 2014-01-30

GENERAL WARRANTY CONDITIONS

This device is guaranteed 2 years parts and labour in its country of purchase against any manufacturing defects validated by our technical department. *The After-sales Service of PRESIDENT reserves the right not to apply the warranty if a breakdown is caused by an antenna other than those distributed by PRESIDENT, and if said antenna is at the origin of the breakdown. An extension of 3 years warranty is proposed systematically for the purchase and use of a PRESIDENT antenna, bringing the total duration of the warranty to 5 years. In order to be valid, the warranty certificate must be returned within a period of 30 days after the purchase date to the After-sales Service of the company Groupe President Electronics, or any foreign subsidiary.

It is recommended to carefully read the following conditions and to respect them under penalty of losing their benefit. To be valid the warranty certificate must be returned to us at the latest 1 month after the purchase.

- Please duly complete the warranty certificate on the right hand side of the page, detach it (portion to be removed marked by dotted line) and send it back.

- Any repair under warranty will be free and the return delivery costs will be borne by our company.

- A purchase proof must be necessarily included with the device to be repaired.

• The dates listed on the warranty certificate and proof of purchase must match

- Do not proceed with the installation of the device without reading the user manual.

- No spare part will be sent nor exchanged by our services under warranty.

The warranty is only valid in the country of purchase.

Exclusions (are not covered):

- Damages caused by accident, shock or inadequate packaging.

- Power transistors, microphones, lights, fuses and the non respect of the installation and use of specifications (including but not limited to antenna used with too high power, final output power transistors (SWR), inversion of polarities, bad connections, overvoltage,...)

- The warranty cannot be extended due to the non-availability of the device while it is being serviced at our technical services location, nor by a change of one or more components or spare parts.

• Transceivers which have been modified. The warranty application is excluded in case of modification or poor maintenance done by a third party not approved by our company.

If you note malfunctions:

- Check the power supply of your device and the quality of the fuse.

- Check that the antenna, the microphone.... are correctly connected.

- Check that the squelch level is properly adjusted; the programmed configuration is the correct one..

- In case the device is not under warranty, the repair and return of the device will be charged.

- All related documents must be preserved even after the end of the warranty period and if you resell your device, given to the new owner for the After-sales follow-up.

• In case of real malfunction, please contact your dealer first; they will decide action to be taken.

• In case of an intervention not covered by the warranty, an estimate will be established before any repair.

Thank you for your trust in the PRESIDENT quality and experience. We recommend that you read this manual carefully so that you are completely satisfied with your purchase. Do not forget to return the detachable warranty certificate on the right hand side of this page; it is very important for the identification of your device during a possible rendering of our services.

and

Technical Manager
Quality Manager

Date of the purchase:

Type: CB Radio JIMMY II ASC

Serial Number:

NOT COVERED BY THE WARRANTY WITHOUT THE DEALER STAMP

UWAGA!

ZANIM ZACZNIESZ UŻYTKOWAĆ RADIO, UWAŻAJ, ABY NIE NADAWAĆ BEZ PODŁĄCZONEJ ANTENY (PRZYŁĄCZE „B” NA TYLNEJ ŚCIANCE URZĄDZENIA), ANI BEZ SPRAW-DZENIA SWR ANTENY (WSPÓŁCZYNNIK FALI STOJĄCEJ), W PRZECIWNYM RAZIE RYZYKUJESZ ZNISZCZENIEM WZMACNIACZA MOCY, CO NIE JEST OBJĘTE GWARANCJA

URZĄDZENIE SPEŁNIA WYMAGANE PRAWEM NORMY!

Six identical top-down diagrams of a car showing various front, side, and perspective views (no text or labels)

A	Alpha	H	Hotel	O	Oscar	V	Victor
B	Bravo	I	India	P	Papa	W	Whiskey
C	Charlie	J	Juliett	Q	Quebec	X	X-ray
D	Delta	K	Kilo	R	Romeo	Y	Yankee
E	Echo	L	Lima	S	Sierra	Z	Zulu
F	Foxtrott	M	Mike	T	Tango
G	Golf	N	November	U	Uniform

SŁOWNIK TECHNICZNY

FREQUENCY TABLE for In

TABELA CZESTOTLIWOŚCI DLA In

N° du canal Fréquences N° du canal Fréquences N° Canal Frecuencia N° Canal Frecuencia Channel Kanał Częstotliwość Kanał Częstotliwość			Frequency
1	26,965 MHz	21	27,215 MHz
2	26,975 MHz	22	27,225 MHz
3	26,985 MHz	23	27,255 MHz
4	27,005 MHz	24	27,235 MHz
5	27,015 MHz	25	27,245 MHz
6	27,025 MHz	26	27,265 MHz
7	27,035 MHz	27	27,275 MHz
8	27,055 MHz
9	27,065 MHz
10	27,075 MHz
11	27,085 MHz
12	27,105 MHz
13	27,115 MHz
14	27,125 MHz
15	27,135 MHz
16	27,155 MHz
17	27,165 MHz
18	27,175 MHz
19	27,185 MHz
20	27,205 MHz

PRISE MICRO 6 BROCHES

Countries in which there are particular restrictions (Licence ^1 / Register ^2 )

PRRESIDENT
