Sicherheit

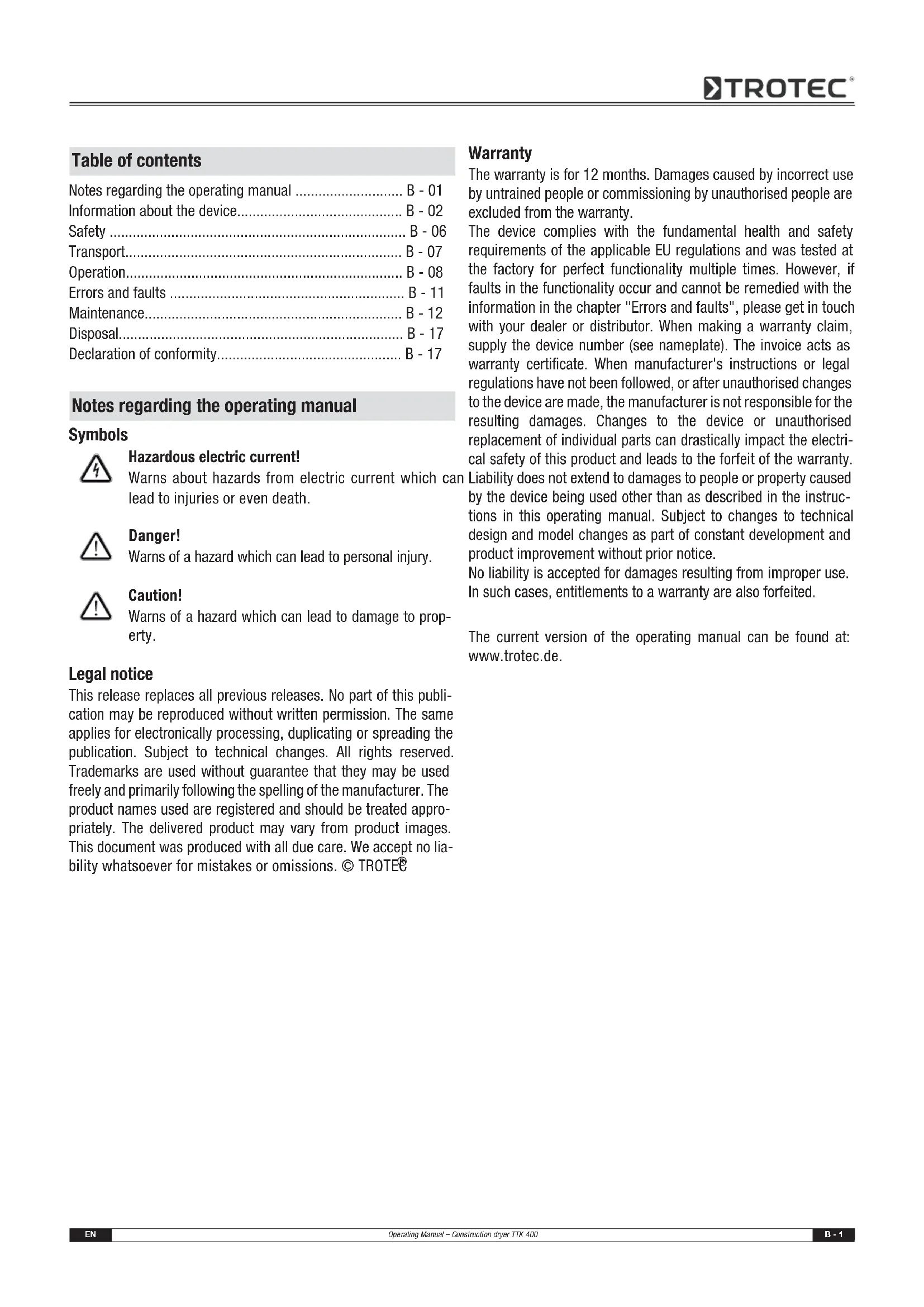

Notes regarding the operating manual B-01

Information about the device. B-02

Safety B-06

Transport. B-07

Operation. B-08

Errors and faults B-11

Maintenance. B-12

Disposal. B-17

Declaration of conformity. B-17

Notes regarding the operating manual

Symbols

Hazardous electric current!

Warns about hazards from electric current which can lead to injuries or even death.

Danger!

Warns of a hazard which can lead to personal injury.

Caution!

Warns of a hazard which can lead to damage to property.

Legal notice

This release replaces all previous releases. No part of this publication may be reproduced without written permission. The same applies for electronically processing, duplicating or spreading the publication. Subject to technical changes. All rights reserved. Trademarks are used without guarantee that they may be used freely and primarily following the spelling of the manufacturer. The product names used are registered and should be treated appropriately. The delivered product may vary from product images. This document was produced with all due care. We accept no liability whatsoever for mistakes or omissions. © TROTEC

Warranty

The warranty is for 12 months. Damages caused by incorrect use by untrained people or commissioning by unauthorised people are excluded from the warranty.

The device complies with the fundamental health and safety requirements of the applicable EU regulations and was tested at the factory for perfect functionality multiple times. However, if faults in the functionality occur and cannot be remedied with the information in the chapter "Errors and faults", please get in touch with your dealer or distributor. When making a warranty claim, supply the device number (see nameplate). The invoice acts as warranty certificate. When manufacturer's instructions or legal regulations have not been followed, or after unauthorised changes to the device are made, the manufacturer is not responsible for the resulting damages. Changes to the device or unauthorised replacement of individual parts can drastically impact the electrical safety of this product and leads to the forfeiture of the warranty. Liability does not extend to damages to people or property caused by the device being used other than as described in the instructions in this operating manual. Subject to changes to technical design and model changes as part of constant development and product improvement without prior notice.

No liability is accepted for damages resulting from improper use. In such cases, entitlements to a warranty are also forfeited.

The current version of the operating manual can be found at: www.trotec.de.

Information about the device

Description of the device

This device uses the principle of condensation to automatically dehumidify rooms. To do so, the device can be used in continuous operation.

The fan sucks damp room air through the air inlet (2), the air filter (5), the evaporator and to the condenser located behind it. The air is cooled at the cold evaporator until it is below the dew point. Water vapour contained in the room air precipitates on the evaporator fins as either condensation or frost. The dehumidified, cooled air is warmed again and blown out from the air outlet (8). The drier air which is prepared in this way mixes with the air in the room. The humidity in the room where the device is positioned is reduced as air constantly circulates through the device. Depending on the air temperature and the relative humidity, the condensed water either drops continuously or only during the defrost phase into the condensation tray. The condensation is fed through a pressure-resistant pipe connection and out of the device at a preinstalled condensation drain hose (7).

The condensed water can be diverted by retrofitting a condensation pump.

For easy operation and transport, the device is fitted with a mains switch (10), an operating hours counter (3), a bar handle (1) and wheels (4). Two rubber feet (6) prevent the device from rolling away.

The device can reduce the relative humidity of a room by up to approx. 35% . Because of the heat radiation which is tied up in operation, the room temperature can rise by approx. 1 - 3^

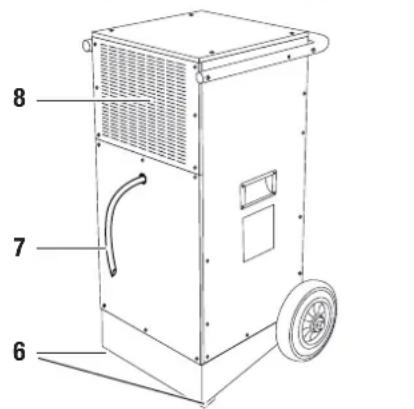

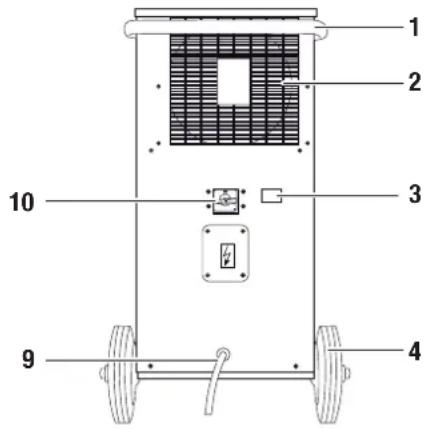

Device depiction and operating elements

No.	Operating element
1	bar handle
2	air inlet
3	operating hours counter
4	w h e e l s
5	air filter
6	rubber feet
7	condensation drain hose
8	air outlet
9	mains power cable
10	mains switch

Scope of supply (standard)

• construction dryer TTK 400 with bar handle
  air filter
• condensation drain hose
  operating manual

Optional accessories

• humidistat
• condensation pump
  energy cost gauge

Technical data

Parameters Values
Model TTK 400
Dehumidifying capacity, max. 75 l / 24 h
Dehumidifying capacity (20 °C / 60 % relative humidity) 30 l / 24 h
Suitable for room dimensions up to: construction drying or clearing water damages maintaining dryness	400 m³800 m³
Operating temperature 0-40 °C
Working range for relative humidity 35-100 %
Volume of airflow, max. 420 m³/h
Electric connection 230 V / 50 Hz / 6.2 A
Power consumption, max. 1.4 kW
Power consumption, average 1 kW
Fuse (home) 10 A
Compressor	Rotary
Refrigerant	R407c
Amount of refrigerant	0.45 kg
Weight	42 kg
Dimensions (HxDxW)	854 x 480 x 510 mm
Minimum distance from walls of other objects	A: Above: 50 cmB: Behind: 50 cmC: Side: 50 cmD: Front: 50 cm
Sound pressure level LpA (3 m; complies with DIN 45635-01-KL3)	56 dB(A)

Power consumption

The device's power consumption depends on the current room temperature and relative humidity.

Multiply the operating hours (see operating hours counter (3)) by a consumption value of one kilowatt per hour to determine the approximate power consumption.

To determine the precise power consumption, a separate energy cost gauge can be set between the construction dryer and the power source. Contact TROTEC ^® customer service if you want this alternative version.

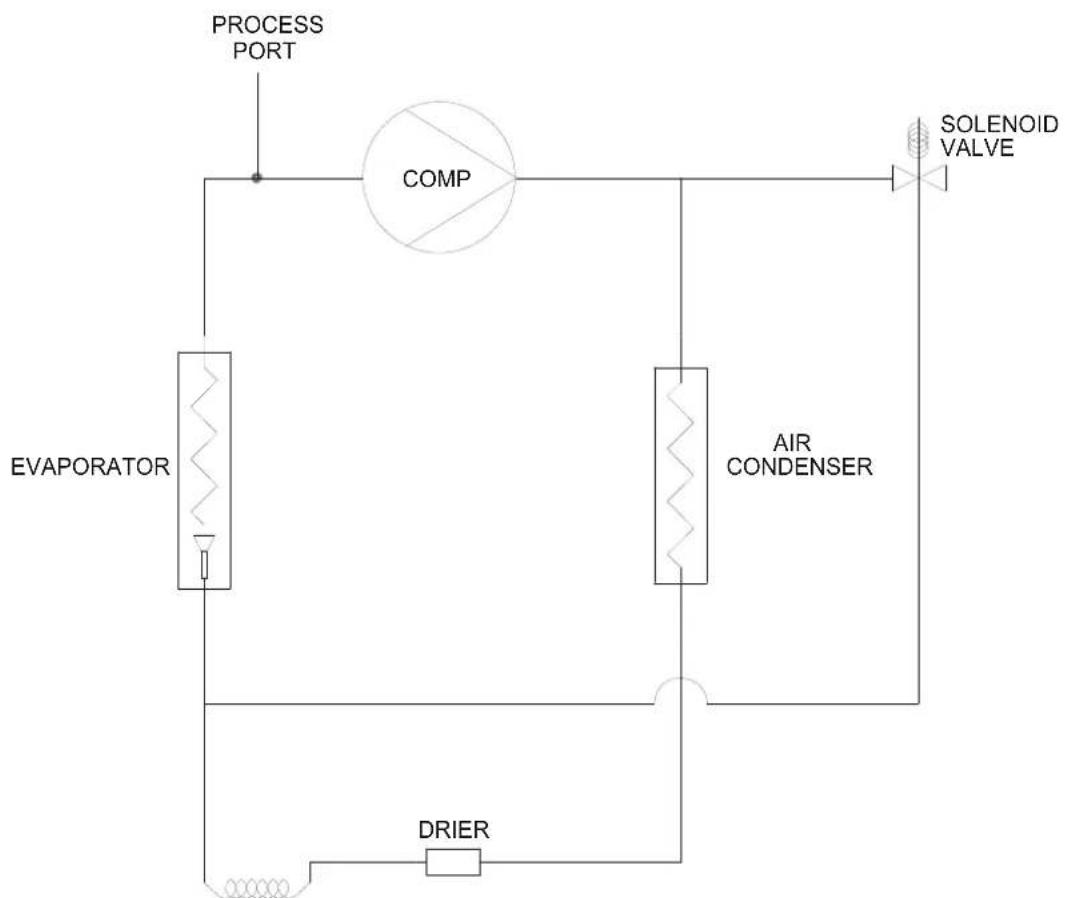

Cooling circuit diagram

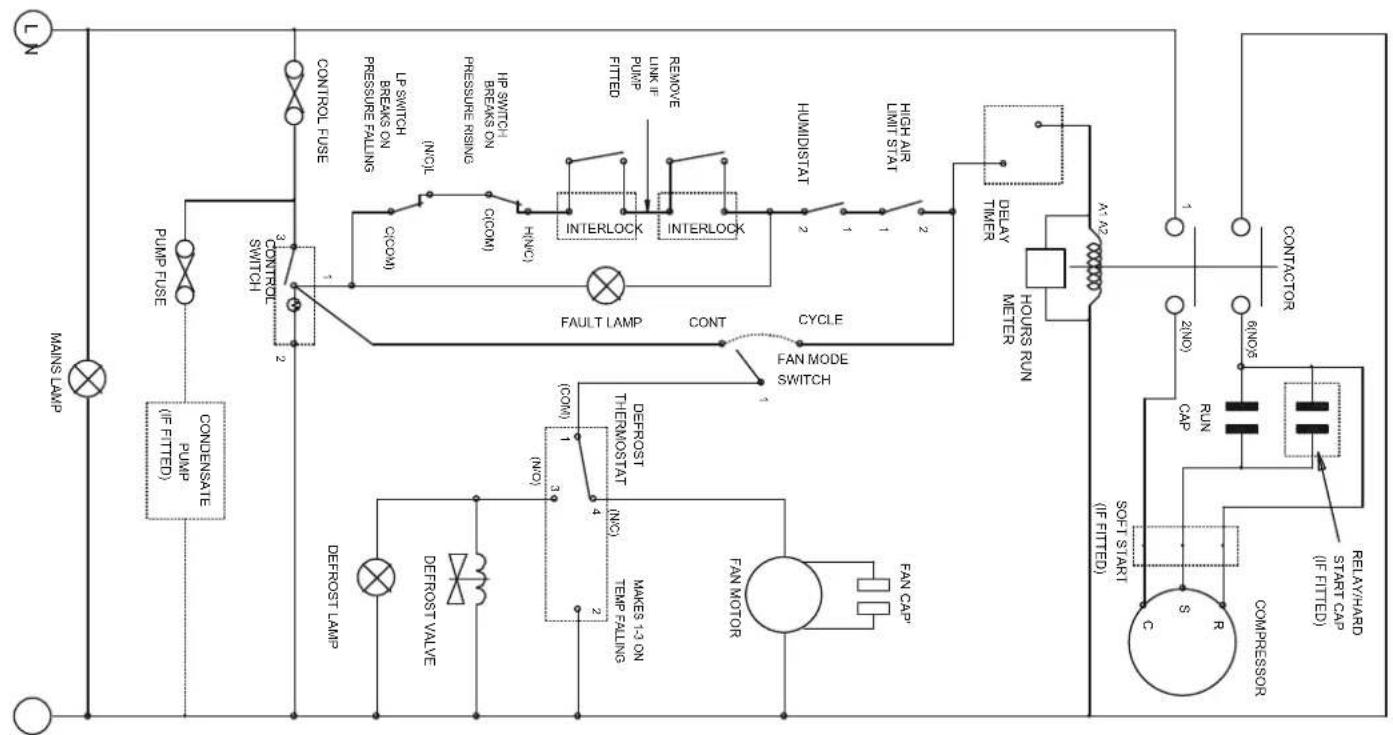

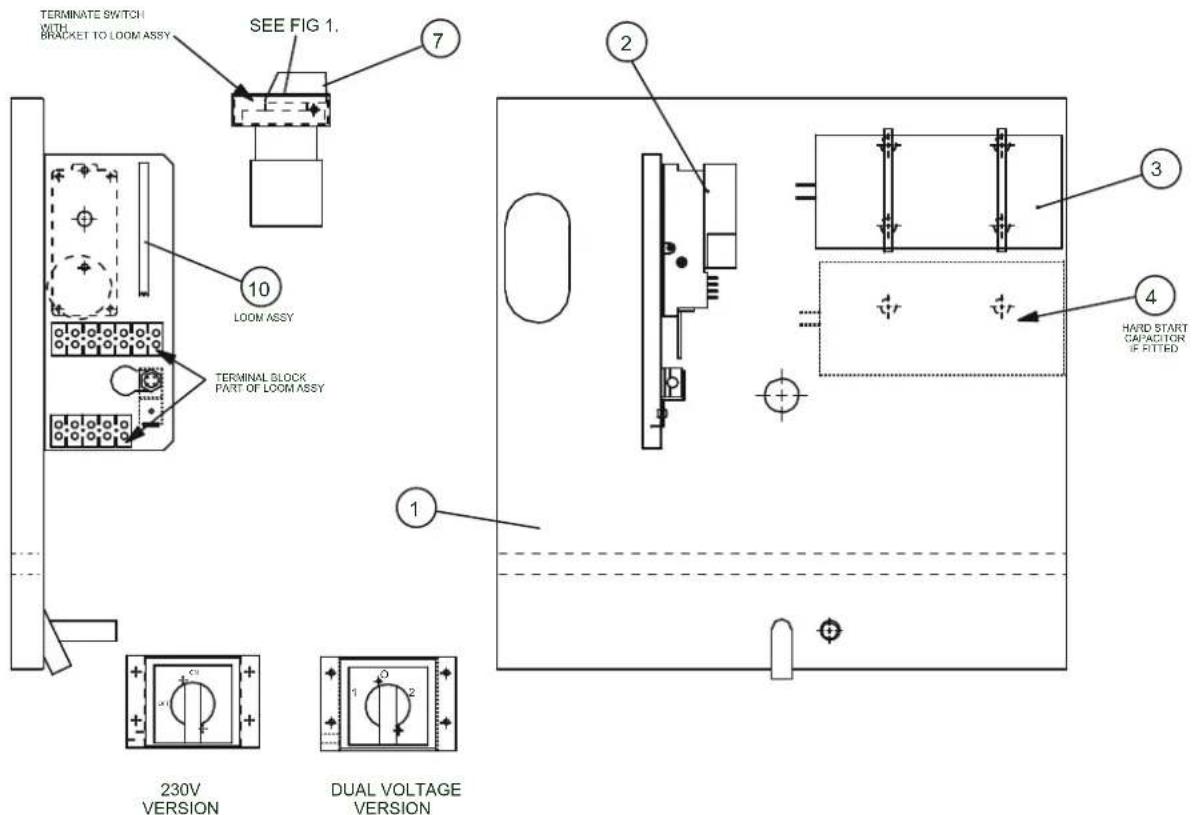

Circuit diagram

1	PARTICULARS
	TITLE/UNLESS/PARTS
	MATERIAL			TITLE
	HOLE TO B/S NEW 12			WIRING DIAGRAM
	INSPECTION LEVEL DMI			DRG No. D353153

Safety

Read this manual carefully before starting or using the device. Store the manual near the device or its site of use!

• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur, chlorine, acid or salt.
• Do not operate the device in rooms which are pressurised with acetone, undiluted acids or solvents.
• Set the device in an upright and stable position.
• Do not expose the device to directly squirting water during operation.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found is kept free of dirt and loose objects.
• Never insert objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• Ensure that all electric cables outside of the device are protected from damage (e.g. from animals).
• Only use extensions to the electric cable which are appropriate to the device power consumption, the length of its cable and its use. Avoid electrical overload.
• Only transport the device in an upright position with an emptied condensation pump and tray.
• Dispose of the collected condensation. Do not drink it. There is a risk of infection!

Intended use

Only use the device TTK 400 as a mobile industrial dryer for drying and dehumidifying room air, while adhering to and following the technical data.

Intended use encapsulates:

• drying and dehumidifying:

production plants, underground rooms
- store rooms, archives, laboratories
- rooms and areas after water damages from burst pipes or flooding

• maintaining the dryness of:

instruments, devices and files
- electric control devices, boiler plants, turbines and pipe systems in power plants
- moisture-sensitive loads etc.

Improper use

Do not place the device on flooded ground. Do not use the device outdoors. Do not lay any objects, e.g. wet clothing, on the device for drying. Any changes, modifications or alterations to the device which have not been authorised by TROTEC are forbidden.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with electric devices in damp areas.
• take measures to protect themselves from direct contact with live parts.
  have read and understood the operating manual, especially the "Safety" chapter.

Maintenance tasks at the electrical equipment or the air-conditioning technology must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC.

Residual risks

Hazardous electric current!

Work on the electrical components must only be carried out by an authorised specialist company!

Hazardous electric current!

Before any work on the device, remove the mains plug from the mains socket!

Caution!

To avoid damages to the device, never operate the device without an air filter inserted!

Danger!

Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!

Danger!

A toppling device can cause you injuries! Only slightly tilt the device and move it carefully. If necessary, ask another person to help. For longer distances, transport the device with a fork lift or elevating truck. Never stand below the device when suspended in the air.

Behaviour in the event of an emergency

1. Disconnect the device from the mains power in an emergency.
2. Do not reconnect a defective device to the mains power.

Transport

To make the device easier to transport, it is fitted with wheels and a bar handle. If necessary, transport the device with the help of another person. To lift the device, use a fork lift or an elevating truck.

Before transporting the device, proceed as follows:

1. Switch off the device at the mains switch (see chapter "Operating elements").
2. Remove the mains plug from the mains socket. Do not use the power cable to drag the device!
3. Empty the condensation drain hose or the condensation pump (optional). Check for dripping condensation.
4. Hold the bar handle in both hands and carefully tilt the device.
5. Transport the device on its wheels.

After transporting the device, proceed as follows:

1. Set the device in an upright position after transport.
2. Ensure that both rubber feet lie flat on the floor. The rubber feet lock the device and prevent it from rolling away.

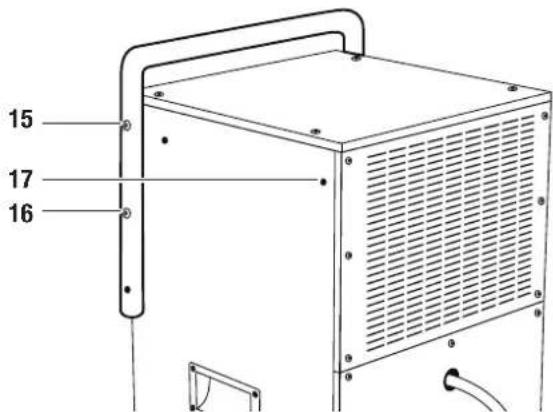

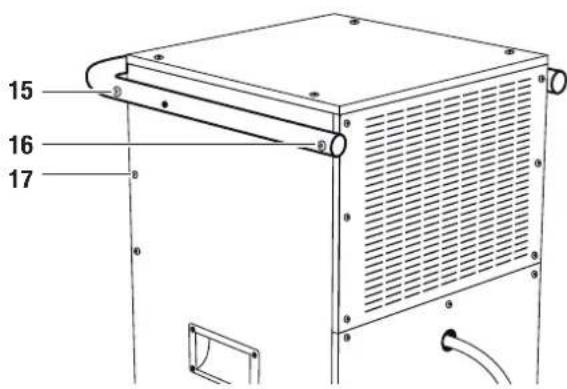

Adjusting the bar handle

Depending on your requirements, the bar handle can be installed horizontally or vertically. To adjust the bar handle, carry out the following steps on both sides of the device:

1. Loosen screw (15).
2. Unscrew screws (16) and (17).
3. Turn the bar handle by 90^ .
4. Insert and fasten screws (16) and (17) in the other position.
5. Tighten all screws (15, 16, 17).

A.

B.

Storage

When out of use, store the device as follows:

·dry，
with a roof overhead,
- in an upright position where it is protected from dust and direct sunlight.
with a plastic cover to protect it from invasive dust, if necessary.
- The storage temperature is the same as the range given for the operating temperature in the chapter "Technical data".

Operation

After being switched on, the device operates fully automatically.
- Avoid open doors and windows.

Positioning

When positioning the device, observe the minimum distance from walls of other objects as described in chapter "Technical data".

• Set the device in a level and stable position.
• When positioning the device, keep a sufficient distance away from sources of heat.
• If possible, set the device in the middle of a room. If using multiple devices, ensure that the spaces between devices is equal.
• When positioning the device in wet areas, secure the device locally with an RCD (Residual Current protective Device) which complies with the appropriate regulations.
• Ensure that extension cords are completely unrolled.
• Ensure that power supply's voltage and current comply with the specifications on the device's nameplate.
• When using a generator, ensure that the generator supplies at least 4kW of power (device starting current can exceed the nominal current by four or five times. Also note this fact when using several devices at one generator).

Notes regarding the dehumidifying capacity

The dehumidifying capacity depends on:

• the spatial composition of the room
• the room temperature
  the relative humidity

The higher the room temperature and relative humidity, the higher the dehumidifying capacity.

For using in living rooms, a relative humidity of approx. 50 - 60% is sufficient. In store rooms and archives, the humidity should not exceed approx. 50% .

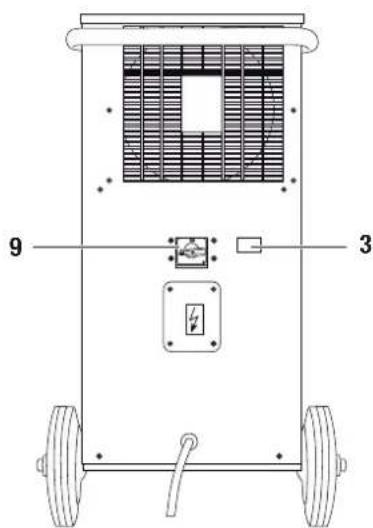

Operating elements

No.	Operating element
3	Operating hours counter
10	Mains switch: "ON": Device is switched on. "OFF": Device is switched off.

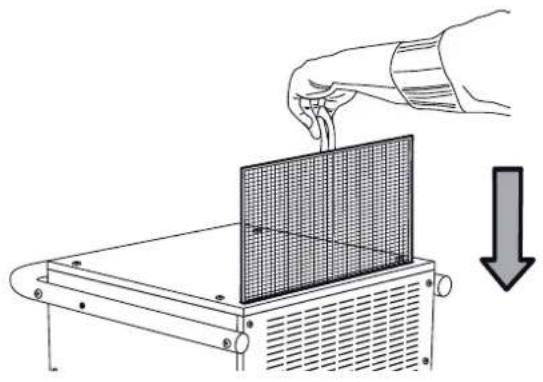

Start procedure Insert air filter

Positioning the condensation drain hose

Note:

The condensation drain hose is already installed when the device is delivered.

1. Ensure that the condensation drain hose is properly connected to the device and is free of damage.

2. Depending on use, position the end of the condensation drain hose as follows:

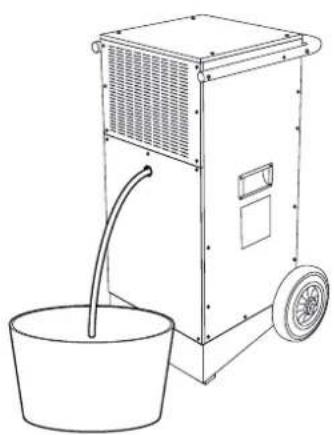

3. Position a sufficiently large container (at least 90 litres) beside the device and insert the hose end. Check the fill level of the container regularly.

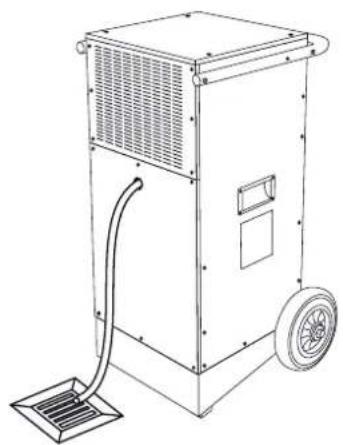

• Position the end of the condensation drain hose above a water drain. For larger distances, a longer hose of the same type can also be used.

• The device can also be operated with a condensation pump. Contact TROTEC® customer service if you want this alternative version.

• Ensure that the condensation drain hose always descends.

Switching on the device

1. Ensure that the condensation drain hose (7) has been laid and connected properly. Do not create tripping hazards.
2. Ensure that the condensation drain hose (7) is not bent or jammed and that there are no objects on the condensation drain hose (7).
3. Ensure that the condensation can run off properly.
4. Insert the mains plug into a properly secured mains power socket. Do not create tripping hazards.
5. Empty any condensation from the device by pressing the button for draining residual water from the condensation pump (optional).
6. Switch on the device at the mains switch (10).

"Continuous" operation mode

In continuous operation mode, the device dehumidifies the air constantly, regardless of the humidity in the air.

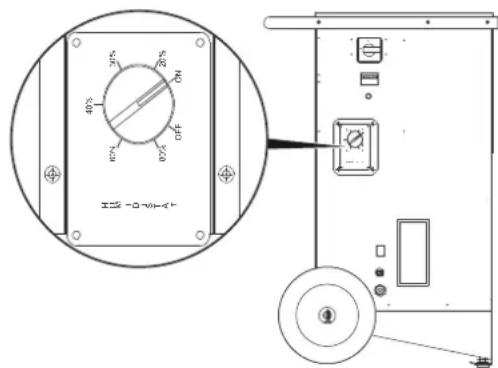

"Humidistat" operation mode (optional)

The device can also be operated with a humidistat.

The humidistat switches the device on or off depending on the humidity.

If you choose to operate the device with an optional humidistat, set the desired humidity at the humidistat (see operating manual of the optional humidistat).

Automatic defrost

Depending on the air temperature and the relative humidity, the evaporator fins may become covered in frost. The hot gas automatic defrost which is installed in the device switches back on as needed. Dehumidify mode is briefly interrupted during defrosting.

Shut down procedure

1. Switch off the device at the mains switch (10).
2. Empty any condensation from the device by pressing the button for draining residual water from the condensation pump (optional).
3. Do not touch the mains plug with wet or damp hands.
4. Remove the mains plug from the mains socket.
5. Remove the condensation drain hose (7) and any residual fluid from it.
6. Clean the device, and especially the air filter, according to chapter "Maintenance".
7. Store the device according to chapter "Storage".

Errors and faults

The accurate functionality of the device was tested during production a number of times. However, if functionality faults do occur, then check the device according to the following list.

Caution!

To prevent damages to the device and to prevent the fuse or motor protection switch from tripping, ensure the device is switched off and wait at least 5 minutes before switching the device back on.

The device does not start:

• Check the mains power (230 V/1~/50 Hz).
• Check the mains plug for damages.
• Check whether the mains switch (10) is in the "ON" position.
• Check the fuse (home).
• If you operate the device with a humidistat, check the desired humidity. The humidity in the room must be above the selected range. Reduce that the selected humidity.
• Have the electrics checked by a specialist company for cooling and air-conditioning or by TROTEC®.

The device runs but forms no condensation:

• Check the condensation drain hose is positioned correctly.
• Check that the condensation pump (optional) functions properly. Check for abnormal vibrations and sounds. Remove external dirt.
• Check the room temperature. Check the device's permissible working range complies with the technical data.
• Ensure that the relative humidity complies with the technical data.
• If you operate the device with a humidistat, check the desired humidity. The humidity in the room must be above the selected range. Reduce that the selected humidity.
• Check the air filter is not dirty. If necessary, clean or replace the air filter.

The device is loud or vibrates; condensation leaks:

• Check whether the device is standing upright and on an even surface.

The device gets very warm, is loud or is losing performance:

• Check the air inlets and air filter are not dirty. Remove external dirt.

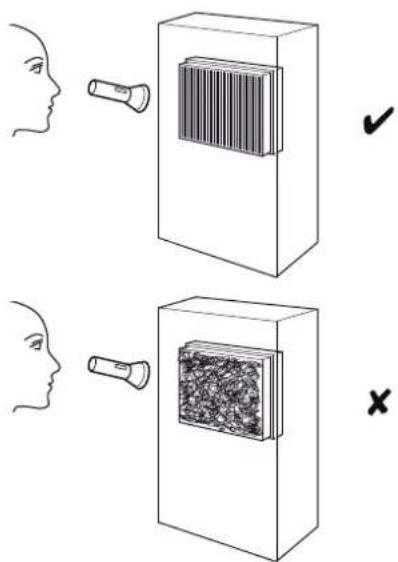

• Check the inside of the device for dirt (see chapter "Maintenance"). Clean the inside of the device as described in the chapter "Cleaning the inside with compressed air".

Does your device still not operate correctly after these checks?

Bring the device to a specialist company for cooling and air-conditioning or to TROTEC® for repairs.

Maintenance

Maintenance intervals
Maintenance and care log

Maintenance and care interval before every start		when neces- sary	at least every 2 weeks	at least every 4 weeks	at least every 6 months	at least annu- ally
empty the condensation pump, condensation tray and/or construction dryer		X
check air inlets and outlets for dirt and foreign objects and clean if necessary	X	X		X
visually check whether the inside of the device is dirty X X
clean the inside with compressed air X X
check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary	X		X
replace air filter X
check for damages X
check attachment screws X X
carry out a test run X

Device type: Device number:

Maintenance and care interval	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
check air inlets and outlets for dirt and foreign objects and clean if necessary
clean housing
visually check whether the inside of the device is dirty
clean the inside with compressed air
check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary
replace air filter
check for damages
check attachment screws
carry out a test run
Remarks:

1. Date: Signature:	2. Date: Signature:	3. Date: Signature:	4. Date: Signature:
5. Date: Signature:	6. Date: Signature:	7. Date: Signature:	8. Date: Signature:
9. Date: Signature:	10. Date: Signature:	11. Date: Signature:	12. Date: Signature:
13. Date: Signature:	14. Date: Signature:	15. Date: Signature:	16. Date: Signature:

Activities for before the start of maintenance

1. Do not touch the mains plug with wet or damp hands.
2. Before any work, detach the mains plug!

Maintenance tasks at the electrical equipment or the air-conditioning technology must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC.

Visual check for dirt in the inside of the device

1. Remove the air filter (see chapter "Cleaning the air inlets and the air filter").
2. Shine a torch through the opening of the device.
3. Check the inside of the device for dirt.
4. If you find dirt, use a high pressure cleaner to clean the device according to "Cleaning the air inlets and the air filter".
5. Put the air filter back in.

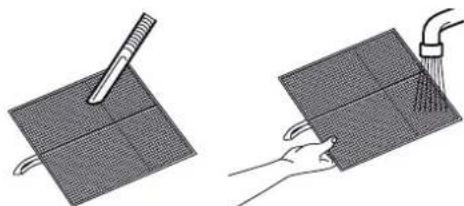

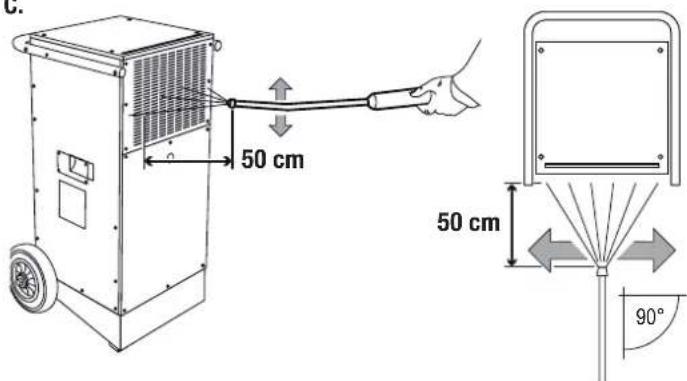

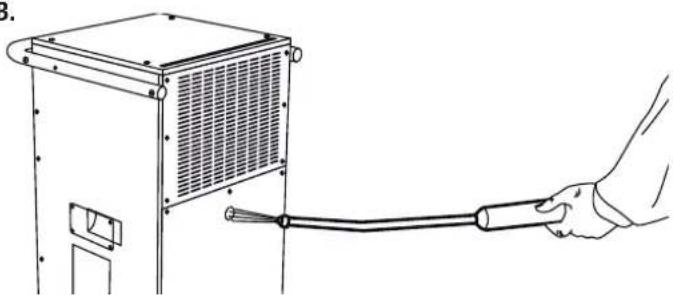

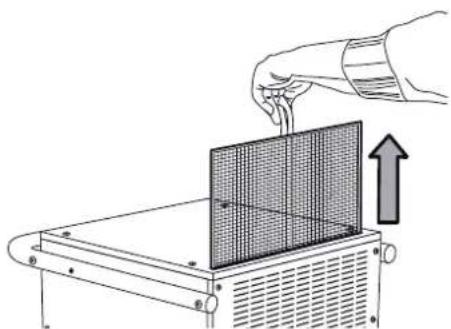

Cleaning the air inlets and the air filter

A.

B.

C.
D.

Caution!

After you have cleaned the device with a high pressure cleaner, check the air filter, which you have already removed, for damages. The corners and edges must not be rounded or misshaped.

Before reinserting the air filter, ensure that it is dry and is not damaged!

Read the chapter "Maintenance intervals" and replace the air filter punctually!

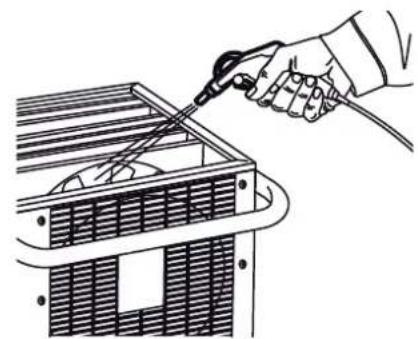

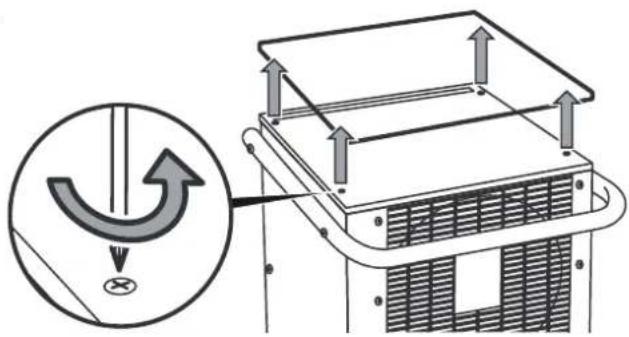

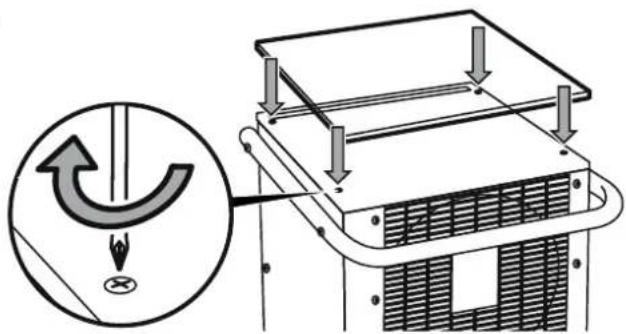

Cleaning the inside with compressed air

A.
B.

C.

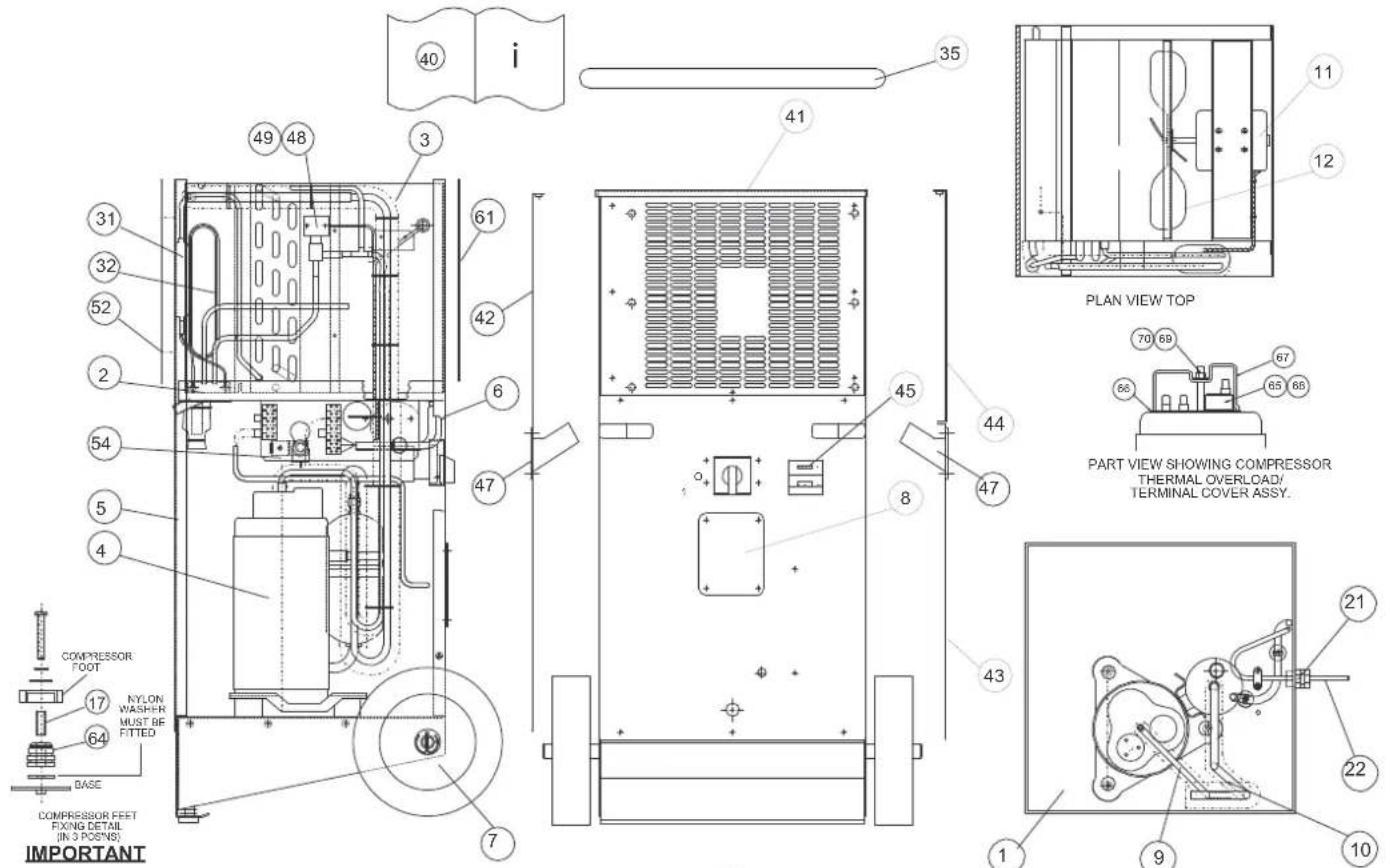

Overview and list of spare parts

Main components

Note!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

REFRIGERANT
PLAN VIEW BASE

No. Item number Spare part No. Item number Spare part
1 7242000915 base plate C/W spindle 42 7242000925 side panel
2 SA5221903 drip tray assembly 43 7242000927 side panel (bottom)
3 7162000193 evaporator/condenser assembly 44 7242000926 side panel (top)
4 7161000197 rotary compressor QXC-19k 45 7140000900 operating hours counter and energy meter
5 7242000924 side panel (air in) 46 SP182554 refrigerant R407c
6 7242000922 side panel (air out) 47 SD314650
7 7600000081 wheel 200 mm diameter 48 7140001337 defrost valve body
8 SD356350 cover plate 49 7420001338 solenoid coil
9 SD519406 pipe run (discharge) 52 7242000923 inlet grille
10 SD519405 pipe run (suction) 54 SD476250 plug securing bracket
11 7110000919 fan motor 34 61 7242000921 outlet grille
12 7241000917 fan blade 10 1/2" 5 blade 64 7300001250 compressor rubber mount
17 SD520852 spacer 37 mm LG 10 mm O/D 8.20 mm I/D 65 7140001298 thermal overload
21 7310000005 M20 plastic gland back nut 66 SD622952 compressor terminal gasket
22 7333000378 plug/lead assembly 67 SD622953 terminal cover
31 7220000195 dryer molecular sieve 68 SD622954 spring (thermal overload)
32 7220000358 capillary tubes 0.090" OD x 0.052 ID x 64" 69 SD622955 nut and bolt set
35 SD364151 handle 70 SD622956 rubber washer
40 SD533251 user manual
41 7242000920 top cover

Condensation tray

Note!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

No. Item number Spare part
1 SD512050 drip tray
2 7140000928 defrost control stat
3 7140000353 run capacitor 30 μF 440 V
4 SD073150 hard start cap/relay
7 7130000918 rotary switch 2 pole on/off
9 SA356403 loom assembly AX
17 SD869350 pipe insert bung

Disposal Declaration of conformity

In the European Union, electronic equipment must not be treated as domestic waste, but must be disposed of professionally in accordance with Directive 2002/96/EC of the European Parliament and Council of 27th

January 2003 concerning old electrical and electronic equipment. At the end of its life, please dispose of this instrument in a manner appropriate to the relevant legal requirements.

The device uses an environmentally friendly and ozone-neutral refrigerant (see chapter "Technical data"). Dispose of the refrigerant/oil mixture appropriately and according to the national regulations.

in accordance with the EC Low Voltage Directive 2006/95/EC and the EC Directive 2004/108/EC about electromagnetic compatibility.

Herewith, we declare that the condenser dryer TTK 400 was developed, constructed and produced in compliance with the named EC directives.

Applied harmonised standards:

IEC 60335-1:2001/A2:2006

IEC 60335-2-40:2002/A1:2005

IEC 62233:2005

The marking is found on the device nameplate.

Manufacturer:

Furniture (standard)

1	NTAL ISSUE	1386	K07	FANUC
ISSUED APPO DATE

Sécurité

1	PARTICULARS
	TITLE/UNLESS/PARTS
	MATERIAL			TITLE
	HOLE TO B/S NEW 12			GUT No. L#T DRAWN
	INSPECTION LEVEL DMI			K#T
	DRG No. D353153

Sicurezza

1	NTAL ISSUE	1386	K07	FANUC
ISSUED APPO DATE

Veiligheid

Parametre Değer
Model TTK 400
Nem alma kapasitesi, maks. 75 l / 24 saat
Nem alma kapasitesi (20 °C / % 60®, nim) 30 l / 24 saat
Uygun oldugu maks. oda��klikleri: Yapı kurutmasi veya su hasarlarinin giderilmesi Kuru tutma	400 m³ 800 m³
Çalışma sıcalıkı 0-40 °C
Bağil nem calışma aralıkı % 35-100
Hava kapasitesi, maks. 420 m³/saat
Elektrik böglantı 230 V / 50 Hz / 6,2 A
Güç tüketimi, maks. 1,4 kW
Güç tüketimi, ortalam 1 kW
Yapı tarafindaki®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®
Kompresör	Makaraltı piston
Klima gazı	R407c
Klima gazı miktaşı	0,45 kg
A®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®
Ölcüler (YxDxG)	854 x 480 x 510 mm
Duvarlarla/nesnelerle aradaki minimum mesafe	A: Üst: 50 cm B: Arka: 50 cm C: Yan: 50 cm D: Ön: 50 cm
Ses basınç seviyesi LpA (3 m; DIN 45635-01-KL3 uyandinca)	56 dB(A)

Güç tüketimi

1	PARTICULARS
	TITLE/UNLESS/PARTS
	MATERIAL			TITLE
	HOLE TO B/S NEW 12			GUT No. L#T DRAWN
	INSPECTION LEVEL DMI			K#T
	DRG No. D353153
