USER MANUAL NX5800 KENWOOD

This User Guide covers only the basic operations of your radio. Ask your dealer for information on any customized features they may have added to your radio. For using details User Manual, refer to the following URL.

http://manual2.jvckenwood.com/en_contents/search/

Bluetooth®

• SD™ and microSD™ are trademarks of SD-3C, LLC in the United States. and/or other countries.
• The Bluetoothword mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

NOTIFICATION

This equipment complies with the essential requirements of Directive 1999/5/EC.

The use of the warning symbol ⚠ means the equipment is subject to restrictions of use in certain countries.

This equipment requires a licence and is intended for use in the countries as below.

AT BE DK F	FR DE	GR IS	IE IT LI	LU
NL NO PT ES	SE CH	GB CY	CZ EE	HU LV
LT MT PL SK	SI BG	RO HR	TR

THANK YOU

We are grateful you have chosen KENWOOD for your Digital Transceiver applications.

CONTENTS

NOTICES TO THE USER 3

PRECAUTIONS 4

UNPACKING AND CHECKING EQUIPMENT 5

SUPPLIED ACCESSORIES 5

PREPARATION 6

ORIENTATION 8

OPERATION PANEL (ATTACHED PANEL OR KCH-19) 8

DISPLAY....9

BASIC OPERATION 12

SWITCHING POWER ON/ OFF 12

ADJUSTING THE VOLUME 12

SELECTING A ZONE AND CHANNEL 12

TRANSMITTING....12

RECEIVING 12

INFORMATION ON SOFTWARE LICENSE 13

NOTICES TO THE USER

• Government law prohibits the operation of unlicensed radio transmitters within the territories under government control.
• Illegal operation is punishable by fi ne and/or imprisonment.
  • Refer service to qualified technicians only.

Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver.

WARNING

• EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)

Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. Do not carry spare fuel containers in the trunk of your vehicle if your transceiver is mounted in the trunk area.

• INJURY FROM RADIO FREQUENCY TRANSMISSIONS

Do not operate your transceiver when somebody is either standing near to or touching the antenna, to avoid the possibility of radio frequency burns or related physical injury.

• DYNAMITE BLASTING CAPS

Operating the transceiver within 500 feet (150 m) of dynamite blasting caps may cause them to explode. Turn OFF your transceiver when in an area where blasting is in progress, or where "TURN OFF TWO-WAY RADIO" signs have been posted. If you are transporting blasting caps in your vehicle, make sure they are carried in a closed metal box with a padded interior. Do not transmit while the caps are being placed into or removed from the container.

The AMBE+2 ^™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #6,199,037, #6,912,495, #8,200,497, #7,970,606, and #8,359,197.

Firmware Copyrights

The title to and ownership of copyrights for firmware embedded in KENWOOD product memories are reserved for JVC KENWOOD Corporation.

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you.

Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

PRECAUTIONS

Observe the following precautions to prevent fire, personal injury, and transceiver damage.

• Do not attempt to confi gure the transceiver while driving; it is too dangerous.
• Do not disassemble or modify the transceiver for any reason.
• Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances.
• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power off immediately, and contact your KENWOOD dealer.
• Use of the transceiver while you are driving may be against traffic laws. Please check and observe the vehicle regulations in your area.
• Do not use options not specified by KENWOOD.
• Do not put the plastic bag used for packing of this equipment on the place which reaches a small child's hand. It will become a cause of suffocation if it wears flatly.
• Do not place the transceiver on unstable surfaces.
• Keep the volume as low as possible to protect your hearing.
• Always switch the transceiver power off before installing optional accessories.
• To dispose of batteries, be sure to comply with the laws and regulations in your country or region.

CAUTION

• The transceiver operates in 12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver.
• Use only the supplied DC power cable or a KENWOOD optional DC power cable.
• Do not cut and/or remove the fuse holder on the DC power cable.
• Do not place the microphone cable around your neck while near machinery that may catch the cable.

WARNING

For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set so the transceiver will not break loose in the event of a collision.

When using the Transceiver, refer to the “NOTICES TO THE USER” and “PRECAUTIONS”. If the warnings are not observed, there may be the possibility to have any malfunction. In this case, press and hold the Power Switch for 5 seconds or more. If the malfunction persists, ask your dealer.

UNPACKING AND CHECKING EQUIPMENT

Note:

- The following instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory.

Carefully unpack the transceiver. We recommend that you identify the items listed below before discarding the packing material. If any items are missing or have been damaged during shipment, fi le a claim with the carrier immediately.

SUPPLIED ACCESSORIES

DC power cable (with fuses) 1

- 15 A fuse....2

Mounting bracket.... 1

Screw set

• 5 x 16 mm self-tapping screw....4
• M4 x 6 mm hex-headed screw with washer .... 4
• Spring washer....4
• Flat washer....4

Microphone (with cable)

• KMC-35....1
• Microphone hanger (with 4 x 16 mm self-tapping screws) .... 1

User guide.... 1

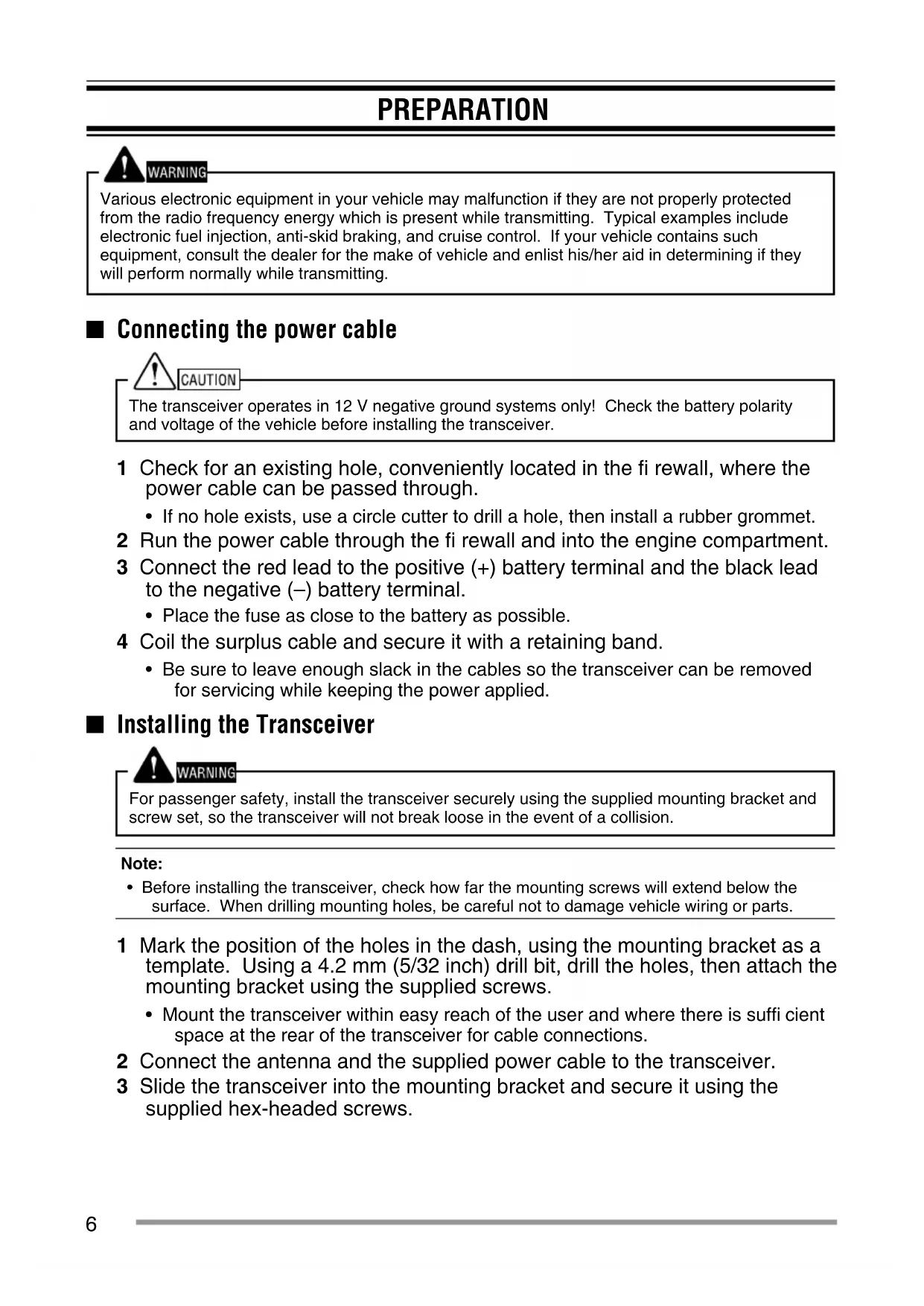

PREPARATION

WARNING

Various electronic equipment in your vehicle may malfunction if they are not properly protected from the radio frequency energy which is present while transmitting. Typical examples include electronic fuel injection, anti-skid braking, and cruise control. If your vehicle contains such equipment, consult the dealer for the make of vehicle and enlist his/her aid in determining if they will perform normally while transmitting.

■ Connecting the power cable

CAUTION

The transceiver operates in 12 V negative ground systems only! Check the battery polarity and voltage of the vehicle before installing the transceiver.

1 Check for an existing hole, conveniently located in the fi rewall, where the power cable can be passed through.
- If no hole exists, use a circle cutter to drill a hole, then install a rubber grommet.
2 Run the power cable through the fi rewall and into the engine compartment.
3 Connect the red lead to the positive (+) battery terminal and the black lead to the negative (−) battery terminal.
- Place the fuse as close to the battery as possible.
4 Coil the surplus cable and secure it with a retaining band.
- Be sure to leave enough slack in the cables so the transceiver can be removed for servicing while keeping the power applied.

■ Installing the Transceiver

WARNING

For passenger safety, install the transceiver securely using the supplied mounting bracket and screw set, so the transceiver will not break loose in the event of a collision.

Note:

- Before installing the transceiver, check how far the mounting screws will extend below the surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts.

1 Mark the position of the holes in the dash, using the mounting bracket as a template. Using a 4.2 mm (5/32 inch) drill bit, drill the holes, then attach the mounting bracket using the supplied screws.
- Mount the transceiver within easy reach of the user and where there is sufficient space at the rear of the transceiver for cable connections.
2 Connect the antenna and the supplied power cable to the transceiver.
3 Slide the transceiver into the mounting bracket and secure it using the supplied hex-headed screws.

4 Mount the microphone hanger in a location where it will be within easy reach of the user.

- The microphone and microphone cable should be mounted in a place where they will not interfere with the safe operation of the vehicle.

CAUTION

When replacing the fuse in the DC power cable, be sure to replace it with a fuse of the same value. Never replace a fuse with one that is rated with a higher value.

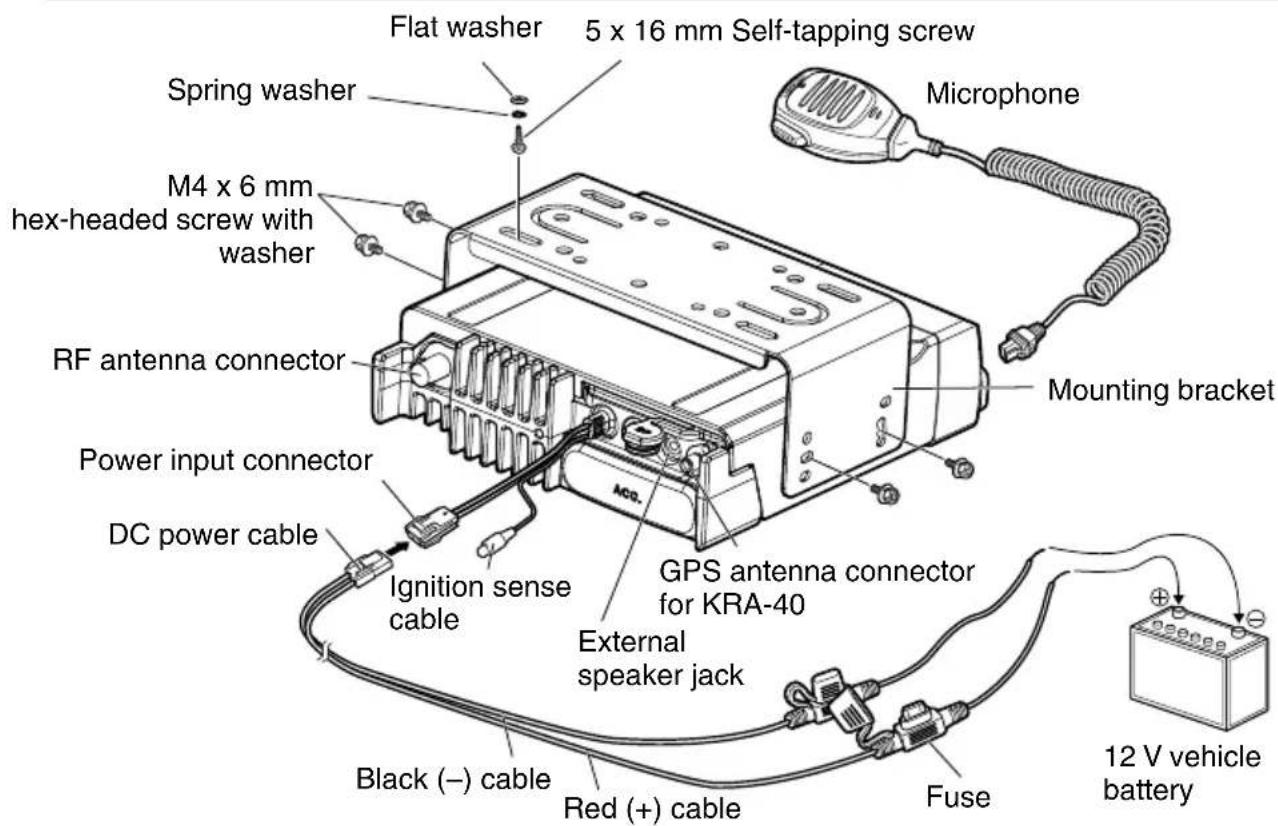

Flat washer 5 x 16 mm Self-tapping screw Spring washer M4 x 6 mm hex-headed screw with washer RF antenna connector Mounting bracket Power input connector DC power cable Ignition sense cable GPS antenna connector for KRA-40 External speaker jack Black (−) cable Red (+) cable Fuse 12 V vehicle battery

■ Using the microSD memory card

To install a microSD memory card on this transceiver, please consult your dealer.

• microSD memory cards (Class 2 or higher) and microSDHC memory cards (Class 2 or higher) can be used.
• SDXC memory cards cannot be used.
• This transceiver is not guaranteed to operate with all microSD memory cards. (Operations are confirmed on memory cards for the following brands: SanDisk, TOSHIBA and Panasonic.)

Compensation Disclaimer

Data stored on the microSD memory card may be altered or lost due to problems with this transceiver. We do not accept liability in respect of the data stored on your microSD memory card, failure to save the data properly, loss of data, and any direct or indirect damages.

ORIENTATION

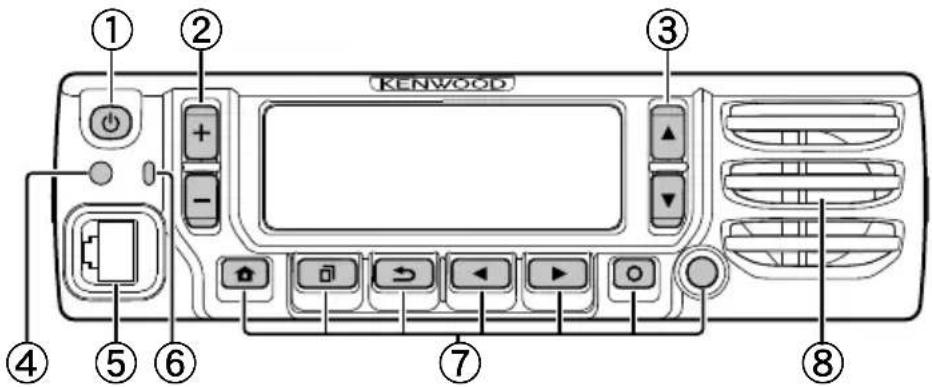

OPERATION PANEL (ATTACHED PANEL OR KCH-19)

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① [⏻] (Power) switch

Press to switch the transceiver ON or OFF.

② [+]/[+] keys

Press to activate its programmable function. The default key setting is [Volume Up]/ [Volume Down].

③ [▲/ [ ]▼keys

Press to activate its programmable function. The default key setting is [Channel Up]/ [Channel Down].

④ Illumination sensor

Sensor for Auto Dimmer Function.

⑤ Microphone jack

Insert the microphone plug into this jack.

⑥ TX/RX Indicator

The indicator lights in different colors to indicate the current status of the transceiver.

Lights red while transmitting and green while receiving.

⑦ [ ] / [ ] / [ ] / [ ] / Auxiliary (orange) keys

Press to activate their programmable functions.

[ ] The default key setting is [Clear].

[ ] ☐: The default key setting is [Menu].

[→] : The default key setting is [Squelch Off Momentary].

[ ]◀: The default key setting is [Zone Down].

[ ]▶: The default key setting is [Zone Up].

[O] : The default key setting is [Function].

Auxiliary (orange) : The default key setting is [None].

⑧ Speaker

Internal speaker.

For details on programming functions to the keys on your transceiver, please contact your dealer or refer to the "User Manual" available from the following URL.

http://manual2.jvckenwood.com/en_contents/search/

DISPLAY

Basic Frame

YillH 12:34M Zone 1 Channel 1 Menu SQ_Off Zone- Zone+ Function Indicator Area Main Area Key Guide Area

Display Area Description
Function Indicator Area	Displays the various function indicators, signal strength indicator and clock.
Main Area	Display the information of the transceiver such as Channel number and Zone number.
Key Guide Area	Display the key functions for [☐], [→], [◀] and [▶] keys.

Function Indicator

Indicator Description
Yill	Displays the signal strength.
H	The channel is using high transmit power.
M	The channel is using medium transmit power.
L	The channel is using low transmit power.
	In Digital mode (Digital Channel)
	In Analog mode (Analog Channel)
	In Digital mode (Mixed Channel)
	In Analog mode (Mixed Channel)
	The Bluetooth function is activated. Blinks in the process of turning on Bluetooth.
	Connected to Bluetooth device.
×	The GPS position is determined. Blinks when the GPS is unable to determine the position.
[STHG]	Non-priority Scan or Voting/Site Roaming is in progress. Blinks when the scan is paused. (green icon)
	Priority Scan is in progress. Blinks when the scan is paused. (red icon)
[BZKX]	Indicates Priority channel 1 or Priority Monitor ID 1.
[SICD]	Indicates Priority channel 2 or Priority Monitor ID 2.
[3245]	Indicates Priority Monitor ID 3.
[DK4K]	Indicates Priority Monitor ID 4.
[CW07]	The current channel is added to the scanning sequence.
	The current Zone is added to the Multi-Zone scanning sequence.
[IGY5]	The Scrambler function is activated.
[CC23]	The Encryption function is activated. Blinks when receiving an encrypted carrier.
	The Encryption (AES) function is activated. Blinks when receiving an encrypted carrier.
[3HZ8]	The Encryption (DES) function is activated. Blinks when receiving an encrypted carrier.
[AS47]	The Talk Around function is activated.
	The Monitor or Squelch Off is activated.
[4GYW]	The External Speaker is activated.
	The External Speaker (Internal + External) is activated.
	The Noise Reduction function is activated. Blinks when Noise Reduction is functioning.
	Blinks when an incoming call matches your Optional Signaling.
[TR3C]	A message is stored in the memory. Blinks when a new message is received.
[17X8]	The microSD memory card is recognized.
[6427]	The microSD memory card is not recognized.
[0047]	The VOX function is activated.The Site Lock function is activated.
	The Broadcast Call function is activated.
[4C4S]	The Surveillance function is activated.
[DZYX]	The selected group is programmed as telephone IDs. Blinks during Auto Telephone search.
[ETWG]	The Tactical Zone is activated.
[20KK]	The Horn Alert function is activated.
[DTTK]	The Public Address function is activated.
	The Intercom function is activated.
	AUX A is activated.
[28D0]	AUX B is activated.
[2D7X]	AUX C is activated.
[5804]	The Lone Worker function is activated.
[5W0D]	The Compander function is activated.
	The Operator Selectable Tone function is activated.
	Blinks during Auto Recording.
	The Key Lock function is activated.

BASIC OPERATION

SWITCHING POWER ON/OFF

Press [∅] to switch the transceiver ON.

Press [⏻] again to switch the transceiver OFF.

ADJUSTING THE VOLUME

Press the key programmed as [Volume Up] to increase the volume. Press the key programmed as [Volume Down] to decrease the volume.

SELECTING A ZONE AND CHANNEL

Select the desired zone and channel using the keys programmed as [Zone Up]/[Zone Down] and [Channel Up]/[Channel Down].

- The transceivers may have names programmed for zones and channels. The zone name and channel name can contain up to 16 and 14 characters respectively. While selecting a zone, the zone name will appear above the channel name.

- If programmed by your dealer, your transceiver will announce the zone and channel numbers as you change them.

TRANSMITTING

1 Select the desired zone and channel.
2 Press the PTT switch and speak into the microphone. Release the PTT switch to receive.

- The LED indicator lights red while transmitting and green while receiving a signal. This indicator can also be disabled by your dealer.

- For best sound quality at the receiving station, hold the microphone approximately 1.5 inches (3 cm to 4 cm) from your mouth.

RECEIVING

Select the desired zone and channel. If signaling has been programmed on the selected channel, you will hear a call only if the received signal matches your transceiver settings.

INFORMATION ON SOFTWARE LICENSE

This unit uses a software based on the license below.

\*zlib LICENSE

Copyright (C) 1995-2013 Jean-loup Gailly and Mark Adler

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly ([e-mail])

Mark Adler ([e-mail])

\*Libpng LICENSE

This copy of the libpng notices is provided for your convenience. In case of any discrepancy between this copy and the notices in the file png.h that is included in the libpng distribution, the latter shall prevail.

COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:

If you modify libpng you may insert additional notices immediately following this sentence.

This code is released under the libpng license.

libpng versions 1.2.6, August 15, 2004, through 1.6.8, December 19, 2013, are Copyright (c) 2004,

2006-2013 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1.2.5

with the following individual added to the list of Contributing Authors

Cosmin Truta

libpng versions 1.0.7, July 1, 2000, through 1.2.5 - October 3, 2002, are Copyright (c) 2000-2002 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of Contributing Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with your enjoyment of the library or against infringement. There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of satisfactory quality, performance, accuracy, and effort is with the user.

libpng versions 0.97, January 1998, through 1.0.6, March 20, 2000, are Copyright (c) 1998, 1999 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-0.96, with the following individuals added to the list of Contributing Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96, May 1997, are Copyright (c) 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng-0.88, with the following individuals added to the list of Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright (c) 1995, 1996 Guy Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied "AS IS". The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG

Reference Library, even if advised of the possibility of such damage.

Permission is hereby granted to use, copy, modify, and distribute this source code, or portions hereof, for any purpose, without fee, subject to the following restrictions:

1. The origin of this source code must not be misrepresented.
2. Altered versions must be plainly marked as such and must not be misrepresented as being the original source.
3. This Copyright notice may not be removed or altered from any source or altered source distribution.

The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment is not required but would be appreciated.

A "png_get_copyright" function is available, for convenient use in "about" boxes and the like:

printf("%s", png_get_copyright(NULL));

Also, the PNG logo (in PNG format, of course) is supplied in the files "pngbar.png" and "pngbar.jpg (88x31) and "pngnow.png" (98x31).

Libpng is OSI Certified Open Source Software. OSI Certified Open Source is a certification mark of the Open Source Initiative.

Glenn Randers-Pehrson

glennrp at users.sourceforge.net

December 19, 2013

\*Md5

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages rising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

L. Peter Deutsch

[e-mail]

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF

NX-5700

ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF

NX-5800

GUIDE DE L'UTILISATEUR

MISE SOUS/ HORS TENSION 12

RÉGLAGE DU VOLUME 12

SÉLECTION D'UNE ZONE ET D'UN CANAL 12

TRANSMISSION 12

RÉCEPTION 12

AVIS AUX UTILISATEURS

4 Coil the surplus cable and secure it with a retaining band.

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① Commutateur [∅] (d'alimentation)

MISE SOUS/ HORS TENSION

TRANSCEPTOR DIGITAL VHF

NX-5700

TRANSCEPTOR DIGITAL UHF

NX-5800

GUÍA DEL USUARIO

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① [◀] (Ein/Aus)-Schalter

• EXPLOSIEVE ATMOSFEER (GAS, STOF, ROOK enz.)

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① [∅] (Stroom)-schakelaar

- Before installing the transceiver, check how far the mounting screws will extend below the surface. When drilling mounting holes, be careful not to damage vehicle wiring or parts.

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① [Ğ] (Güç) düğmesi

SES SEVIYESINI AYARLAMA

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

• ATMOSFERAS EXPLOSIVAS (GASES, POEIRA, FUMOS, etc.)

KENWOOD ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

© 2015 JVCKENWOOD Corporation

CE 0168 Ⓞ

Hereby, JVCKENWOOD Nederland B.V. declares that the radio equipment types in this USER GUIDE are in compliance with Directive 1999/5/EC.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.kenwood.com/cs/com/ecdoc/

(Note: The detail type designations are described in the EU declaration of conformity.)
