Product Type	Air Bed
Brand	JILONG
Model	JL027296N
Power Supply	220-240 V ~ 50 Hz, 130 W
Built-in Pump	Yes, electric
Functions	Inflation, deflation, firmness adjustment
Inflation Capacity	Approximately 5 minutes (do not exceed 5 minutes continuously)
Recommended Pause Time	20 minutes between each inflation/deflation cycle
Thermal Protection	Automatic shutdown in case of overheating
Material	PVC (estimated)
Usage	Indoor only, household use
Care	Clean with clear water, dry in shade, do not use acidic or alkaline detergents
Storage	In a dry and temperate place, indoors, in the storage bag
Repairability	Patch kit included for small punctures (< 2.5 cm)
Accessories Included	Storage bag, repair patch
Safety	Do not use near water, keep away from fire, do not block air opening
Maximum Supported Weight	Not specified (estimated: 150-200 kg based on similar models)

Frequently Asked Questions - JL027296N JILONG

How to inflate the JILONG JL027296N air bed?

Open the pump cord cover and ensure the optional valve is closed. Plug the cord into a mains socket (220-240V). Turn the control knob to the inflation position (arrow pointing to the inflation symbol). Wait about 5 minutes until the desired firmness, then turn the knob to 'OFF'. Unplug and store the cord.

How to deflate the air bed?

Open the cord cover, plug in the pump. Turn the knob to the deflation position (arrow pointing to the deflation symbol). Once all air is evacuated, turn to 'OFF'. Unplug and roll the bed from the foot to the head to expel remaining air.

Can I use a manual or foot pump?

Yes, if the electric pump is not available, you can use a manual or foot pump. Remove the valve completely from its insert, then pull on the plug to inflate. Do not use a high-pressure compressor to avoid damaging the seams.

How long can I run the pump continuously?

Do not run the pump for more than 5 minutes at a time. Let it cool down for at least 20 minutes between each use to avoid overheating and automatic shutdown.

How to clean and maintain the air bed?

Clean with clear water only, without alkaline or acidic detergents. Let dry in a cool, shaded place. Store it in the storage bag in a dry, temperate place away from extreme temperatures.

What to do in case of a leak or puncture?

Deflate the bed and clean the area. Use the provided repair patch: cut it larger than the leak, apply it and press firmly. Let it dry for 24 hours before reuse. For damages larger than 2.5 cm, use silicone or rubber glue.

Can the air bed be used on water?

No, this product is not a raft or flotation device. Do not use it near or on water to avoid any risk of drowning.

What are the essential safety precautions?

Always plug into a grounded socket with residual current circuit breaker. Do not handle the cord with wet hands. Do not place the bed near a flame, heater, or hot object. Supervise children at all times and do not let them jump on the bed.

Can I use the air bed outdoors?

No, the bed is designed for indoor household use only. Do not expose it to rain or humidity to avoid electrical risks.

How to adjust the firmness of the mattress?

Lie down on the bed to test. If too hard, gradually turn the knob counterclockwise to release some air, then stop when the firmness is right. If too soft, repeat the inflation steps 3 to 5 from the manual.

User questions about JL027296N JILONG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Air bed in PDF format for free! Find your manual JL027296N - JILONG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JL027296N by JILONG.

USER MANUAL JL027296N JILONG

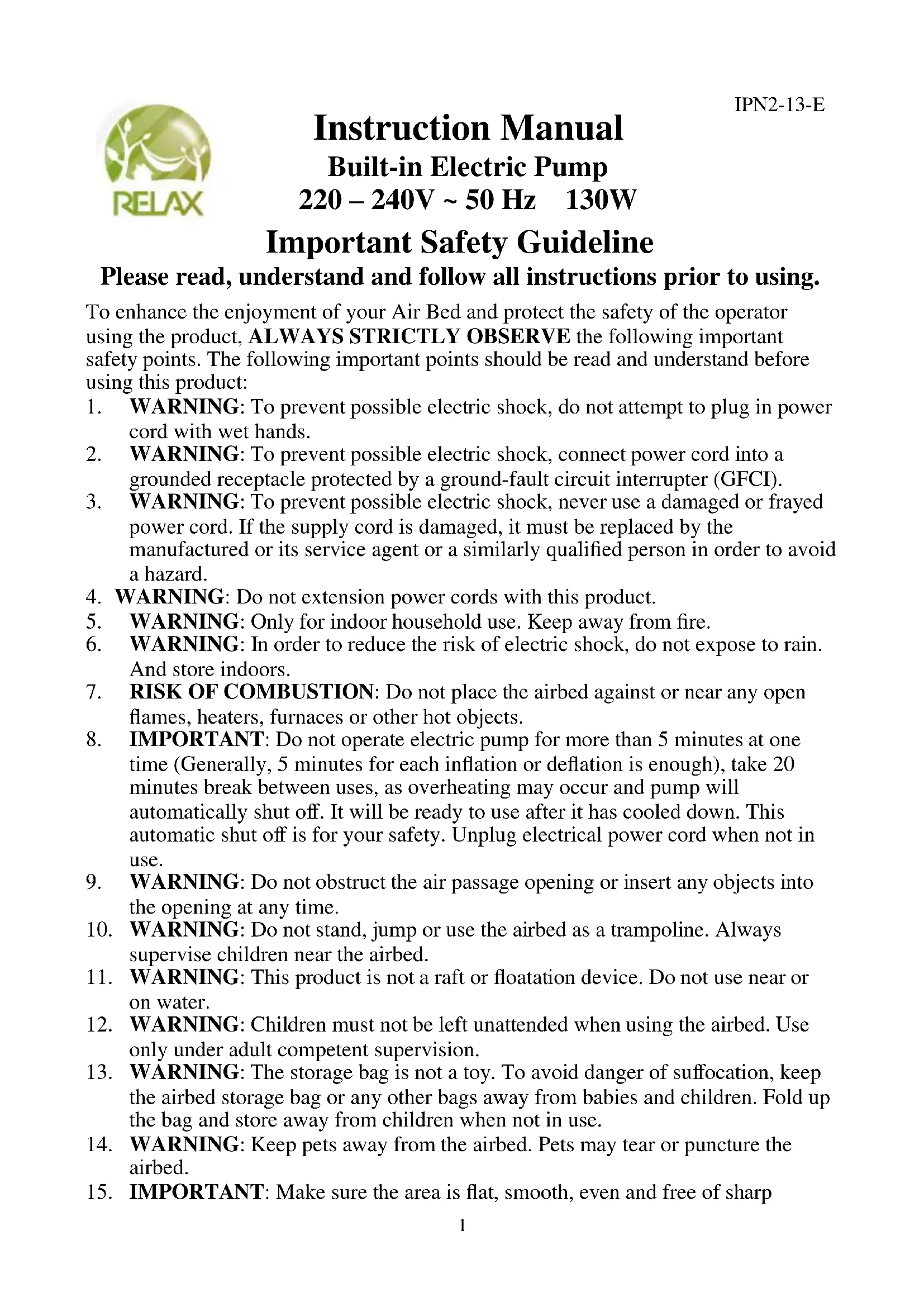

Instruction Manual Built-in Electric Pump 220 - 240V ~ 50 Hz 130W

Important Safety Guideline

Please read, understand and follow all instructions prior to using.

To enhance the enjoyment of your Air Bed and protect the safety of the operator using the product, ALWAYS STRICTLY OBSERVE the following important safety points. The following important points should be read and understand before using this product:

WARNING: To prevent possible electric shock, do not attempt to plug in power cord with wet hands.
WARNING: To prevent possible electric shock, connect power cord into a grounded receptacle protected by a ground-fault circuit interrupter (GFCI).
WARNING: To prevent possible electric shock, never use a damaged or frayed power cord. If the supply cord is damaged, it must be replaced by the manufactured or its service agent or a similarly qualified person in order to avoid a hazard.
WARNING: Do not extension power cords with this product.
WARNING: Only for indoor household use. Keep away from fire.
WARNING: In order to reduce the risk of electric shock, do not expose to rain. And store indoors.
RISK OF COMBUSTION: Do not place the airbed against or near any open flames, heaters, furnaces or other hot objects.
IMPORTANT: Do not operate electric pump for more than 5 minutes at one time (Generally, 5 minutes for each inflation or deflation is enough), take 20 minutes break between uses, as overheating may occur and pump will automatically shut off. It will be ready to use after it has cooled down. This automatic shut off is for your safety. Unplug electrical power cord when not in use.
WARNING: Do not obstruct the air passage opening or insert any objects into the opening at any time.
WARNING: Do not stand, jump or use the airbed as a trampoline. Always supervise children near the airbed.
WARNING: This product is not a raft or floatation device. Do not use near or on water.
WARNING: Children must not be left unattended when using the airbed. Use only under adult competent supervision.
WARNING: The storage bag is not a toy. To avoid danger of suffocation, keep the airbed storage bag or any other bags away from babies and children. Fold up the bag and store away from children when not in use.
WARNING: Keep pets away from the airbed. Pets may tear or puncture the airbed.
IMPORTANT: Make sure the area is flat, smooth, even and free of sharp

objects that can puncture the airbed. Do not set up the airbed nearby stairs, doors, drops, sharp edges or breakables.

IMPORANT: To minimize any chance of rolling, tipping or swaying, avoid sleeping on the edge of the airbed. Edges provide less support than the middle of the airbed.
IMPORTANT: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
IMPORTANT: Children should be supervised to ensure that they do not play with the appliance.

Inflation instructions

Open the cord cover of pump first and make sure the optional inflation air valve is securely closed.

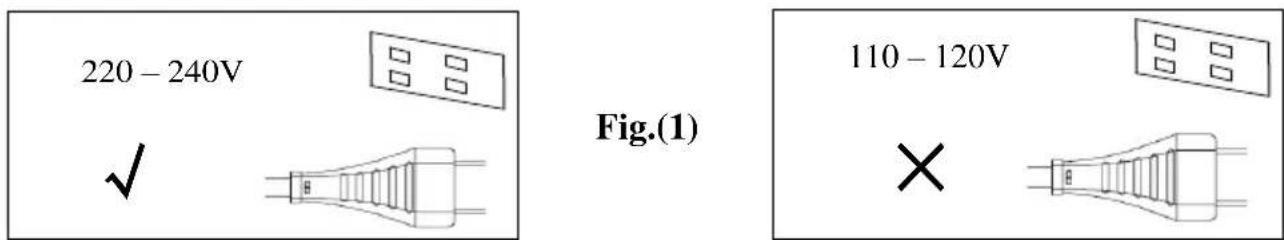

Plug the AC electrical line cord into an AC electrical outlet (ground fault circuit interrupter outlet). Please check the correct voltage! See Fig. (1)

JILONG JL027296N - Inflation instructions - 1

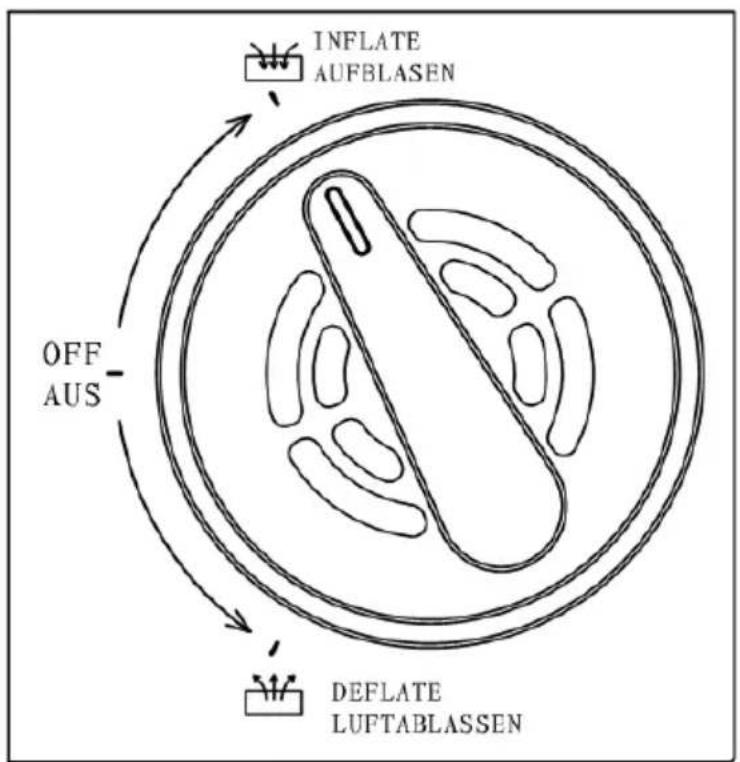

Turn the control dial clockwise until arrow points to the inflation mark (↓↓). See Fig. (2)

JILONG JL027296N - Inflation instructions - 2
Fig.(2)

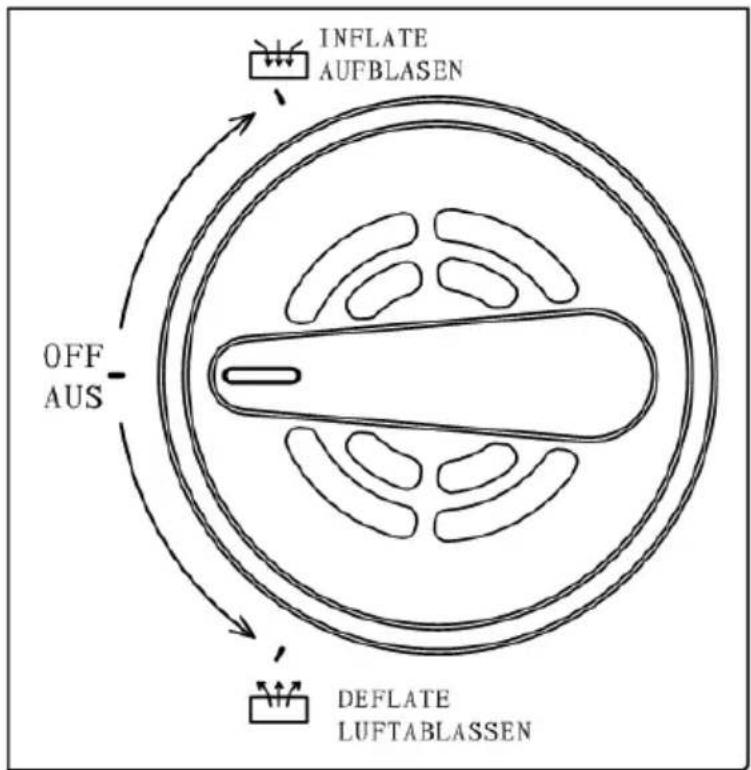

When the airbed is fully inflated to the desired firmness, turn the control dial counter-clockwise until arrow points to the "OFF". See Fig. (3)

JILONG JL027296N - Inflation instructions - 3
Fig.(3)

Lie down on the airbed to test the firmness.
If the sleeping surface is too hard, adjust the firmness by continuously turning the control dial counter-clockwise gradually until air starts to exit through the air passage. Then turn the control dial clockwise until arrow points to the "OFF" when the desired firmness is achieved. If the airbed becomes too soft, please repeat step 3 thru 5 as necessary.
Disconnect the AC line cord from the wall socket and place it inside the cord compartment.

Deflation instructions

Open the cord cover of pump first and make sure the optional inflation air valve is securely closed.
Plug the AC electrical line cord into an AC electrical outlet (ground fault circuit interrupter outlet). Please check the correct voltage! See Fig. (1)

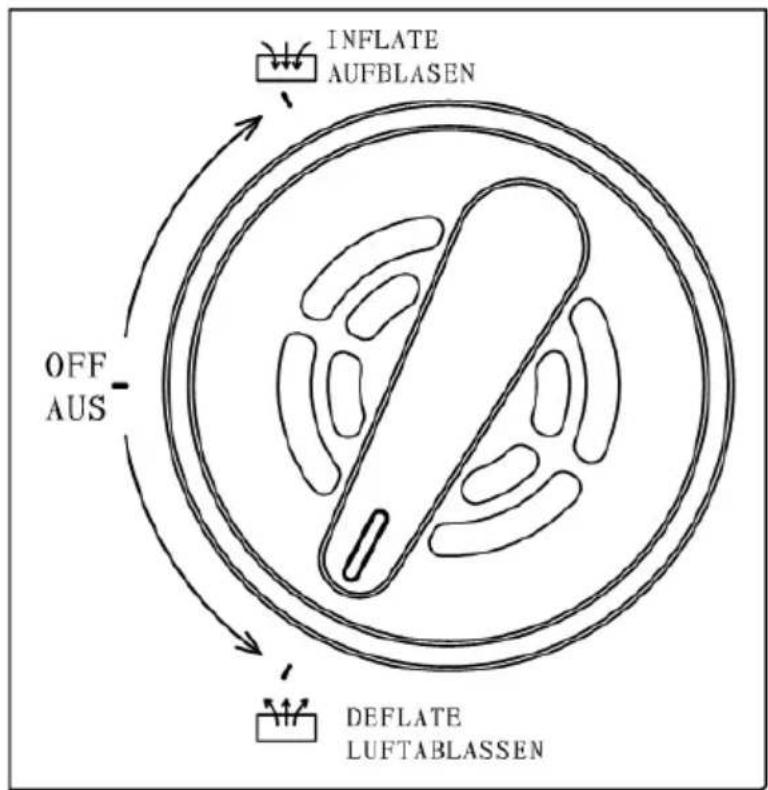

Turn the control dial counter-clockwise until arrow points to the deflation mark ( ). See below Fig. (4)
When all air is removed from the airbed, turn the control dial clockwise until arrow points to the "OFF". See below Fig. (3)
When the airbed is completely deflated, begin rolling the airbed from the foot of the airbed towards the head of the airbed where the pump is located. To ensure the airbed is fully deflated, repeat steps 3 thru 4.
Disconnect the AC line cord from the wall socket and place it inside the cord compartment.

JILONG JL027296N - Deflation instructions - 1
Fig.(4)

Inflation option

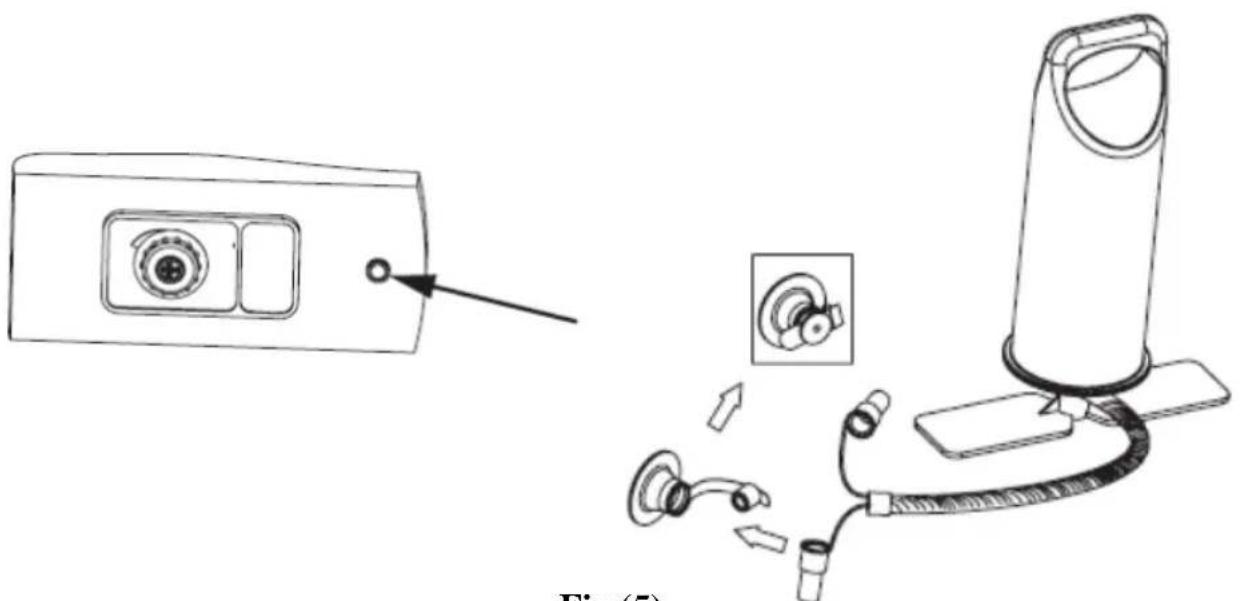

If the electric pump is not available then a conventional foot or manually operated air pump can be connected to the optional inflation valve for inflation. See below fig (6).

Remove the valve totally from out of the valve insertion, and then pull the stopper out of the valve extension. Inflate the product by air pumps. Blow in sufficient air in order to fill up the chamber to the full extent. Do not use air compressor or high pressure pumps. Do not over inflate: excessive inflation of the air chambers can cause the chamber to burst or cause damage to the welding seams.
Close the valve by firmly inserting the stopper and press the valve into the chamber until the valve sits flush with the chamber.

JILONG JL027296N - Inflation option - 1
Fig.(5)

Storage and Maintain

1) Clean the product with clear water, then leave it in shady and cool place for airing, fold it into original package and place it indoor for next use. Caution: Do not use the alkali or acid detergent to clean product! Do not leave product exposed under sunlight directly because it will shorten the using-life of product.
2) Fold the airbed loosely and avoid sharp bends, corners and creases which can damage the airbed.
3)No specific maintenance is required for the built-in electric pump.
4) Place the airbed inside the storage bag and store in a dry and room temperature location indoors. Do not store in an area where it is likely to be exposed to extreme temperature.

Repair Patch Instructions

(Small pinhole and small puncture leaks can be repaired with the included repair patch)

a)Locate the leak place.
b) Deflate and drain the water.
c) Clean the area surrounding the leakage and wipe up all water from the surface.
d) Take out the repair patch, cut it into required shape and size, which should be litter larger than the leaking area, put the patch on leaking area and press firmly.
e) You can use it again after 24 hours drying of the repaired position. If the damage is bigger than 1^ (2.5cm), we recommend using a Silicone or rubber based glue for repair. Please read warning statement on glue prior to use.
