Product Type	Inflatable Air Bed
Brand	JILONG
Model	JL027293N
Main Material	Velvet (top) and PVC (air chamber)
Usage	Indoor only
Inflation Method	Manual (hand or foot pump, not included)
Valve Type	2-in-1 valve (inflation and deflation)
Deflation	Open the cap to release air
Included Accessories	Repair patch, storage bag
Repairability	Patch for small leaks; silicone glue for large holes
Cleaning	Clean water only, no alkaline or acidic detergent
Storage	Fold without creases, store in a dry place away from sunlight
Safety - Fire	Do not place near an open flame, heater, or stove
Safety - Children	Adult supervision required, do not jump on the mattress
Warning	Do not use as a flotation device
Pump Maintenance	No specific maintenance required
Inflation Precautions	Do not use an air compressor or high-pressure pump; do not overinflate

Frequently Asked Questions - JL027293N JILONG

How to inflate the mattress?

Unfold the mattress with the velvet side up. Use a hand or foot pump (not included). Insert the inflation tube into the 2-in-1 valve, then close the cap after inflation. Do not overinflate to avoid damaging the seams.

Can an electric pump be used?

No, the instructions advise against using an air compressor or high-pressure pump. Only use a manual pump (hand or foot). An electric pump may overinflate and cause bursting.

How to deflate the mattress?

Remove the base valve, open the cover, and take out the cap to release air. Do not force the air out abruptly: let it escape slowly and naturally. Then fold carefully.

How to repair a small leak?

Locate the leak, deflate the mattress, clean the area. Cut the provided patch into a shape larger than the leak, apply it and press firmly. Let dry for 24 hours before reuse. For holes larger than 2.5 cm, use silicone glue.

How to clean the mattress?

Clean with clean water only. Do not use alkaline or acidic detergent. Let dry in a cool, shaded place before storing.

Where to store the mattress after use?

Fold it without sharp creases, place it in the provided storage bag. Store in a dry place at room temperature, away from extreme temperatures and sunlight.

Can I use this mattress for a baby or child?

Children should not use this mattress without adult supervision. It is not designed as a baby bed. Always supervise children and do not let them jump on the mattress.

Is it suitable for outdoor use?

No, the mattress is designed for indoor use only. Do not expose it to direct sunlight, as this reduces its lifespan. Also avoid using it near water as it is not a flotation device.

What to do in case of overinflation?

If the mattress is overinflated, open the valve to release some air. Overinflation can cause bursting of the air chambers or damage the welded seams. The mattress should be firm but not taut.

Is the repair patch reusable?

No, the provided patch is single-use. For each new leak, use a new patch. If you run out, you can purchase a standard repair kit for inflatable mattresses.

User questions about JL027293N JILONG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Air bed in PDF format for free! Find your manual JL027293N - JILONG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JL027293N by JILONG.

USER MANUAL JL027293N JILONG

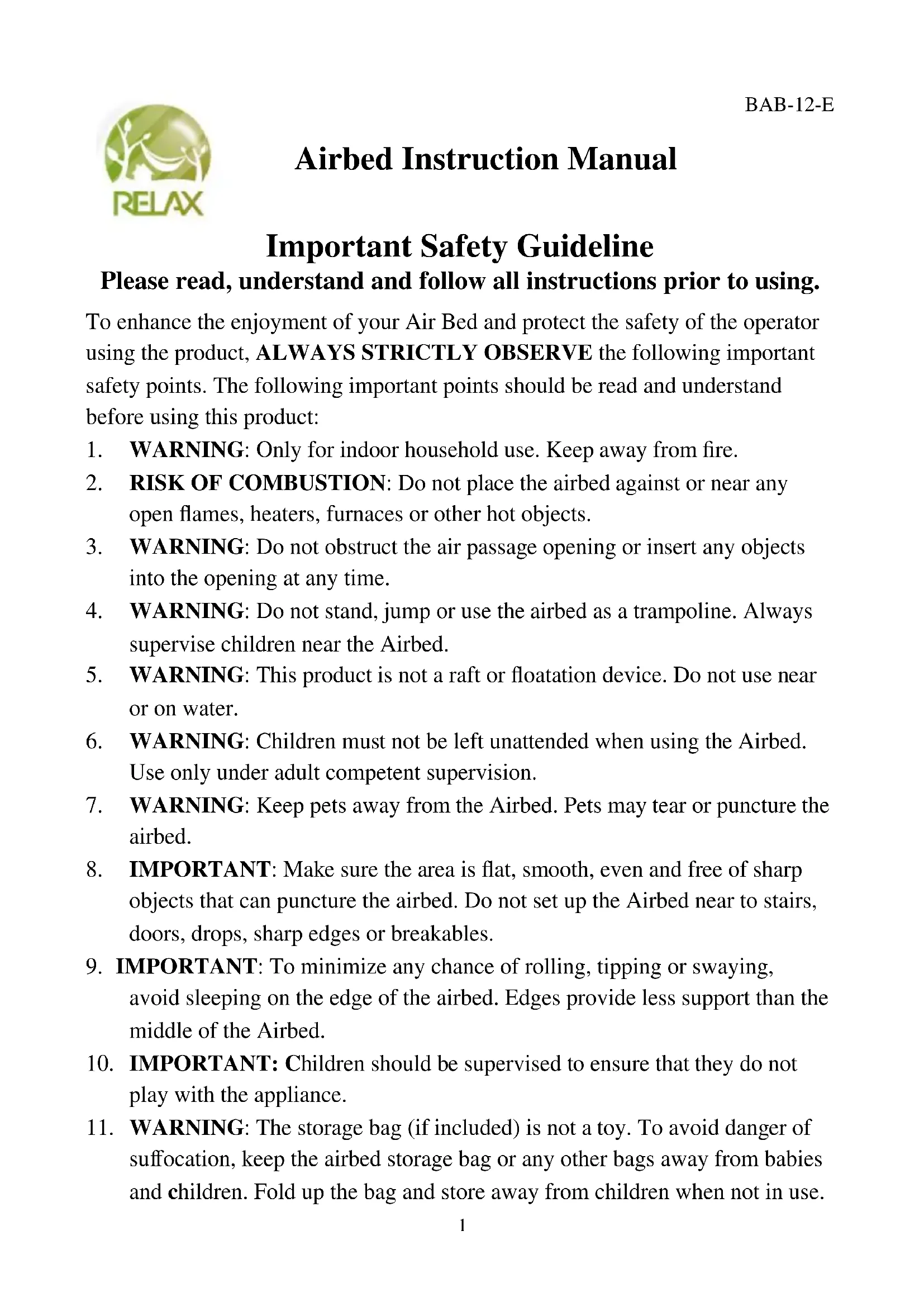

Airbed Instruction Manual

Important Safety Guideline Please read, understand and follow all instructions prior to using.

To enhance the enjoyment of your Air Bed and protect the safety of the operator using the product, ALWAYS STRICTLY OBSERVE the following important safety points. The following important points should be read and understand before using this product:

WARNING: Only for indoor household use. Keep away from fire.
RISK OF COMBUSTION: Do not place the airbed against or near any open flames, heaters, furnaces or other hot objects.
WARNING: Do not obstruct the air passage opening or insert any objects into the opening at any time.
WARNING: Do not stand, jump or use the airbed as a trampoline. Always supervise children near the Airbed.
WARNING: This product is not a raft or floatation device. Do not use near or on water.
WARNING: Children must not be left unattended when using the Airbed. Use only under adult competent supervision.
WARNING: Keep pets away from the Airbed. Pets may tear or puncture the airbed.
IMPORTANT: Make sure the area is flat, smooth, even and free of sharp objects that can puncture the airbed. Do not set up the Airbed near to stairs, doors, drops, sharp edges or breakables.
IMPORTANT: To minimize any chance of rolling, tipping or swaying, avoid sleeping on the edge of the airbed. Edges provide less support than the middle of the Airbed.
IMPORTANT: Children should be supervised to ensure that they do not play with the appliance.
WARNING: The storage bag (if included) is not a toy. To avoid danger of suffocation, keep the airbed storage bag or any other bags away from babies and children. Fold up the bag and store away from children when not in use.

Inflation

Unfold your product and lay flat. Make sure the flocked side is upturned during the inflation.
You can use foot or hand pump (not including) to inflate the airbed.

TIP: How to use the 2-in-1 inflatable valve

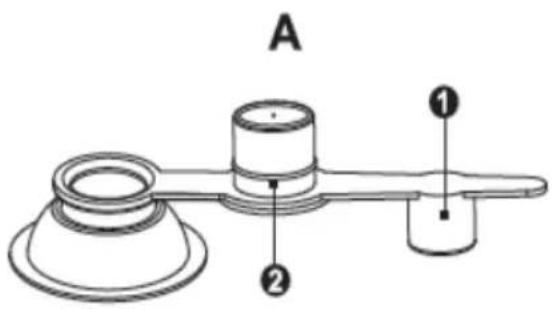

Pull out the base valve from the main chamber, open the top stopper of the valve (See A).
Insert the inflation hose and inflate the chamber (See B). Once inflation is finished, insert the top stopper to the base valve (See C).

JILONG JL027293N - TIP: How to use the 2-in-1 inflatable valve - 1

JILONG JL027293N - TIP: How to use the 2-in-1 inflatable valve - 2

JILONG JL027293N - TIP: How to use the 2-in-1 inflatable valve - 3

WARNING: Do not use air compressor or high pressure pumps. Do not over inflate: excessive inflation of the air chambers can cause the chamber to burst or cause damage to the welding seams.

Deflation

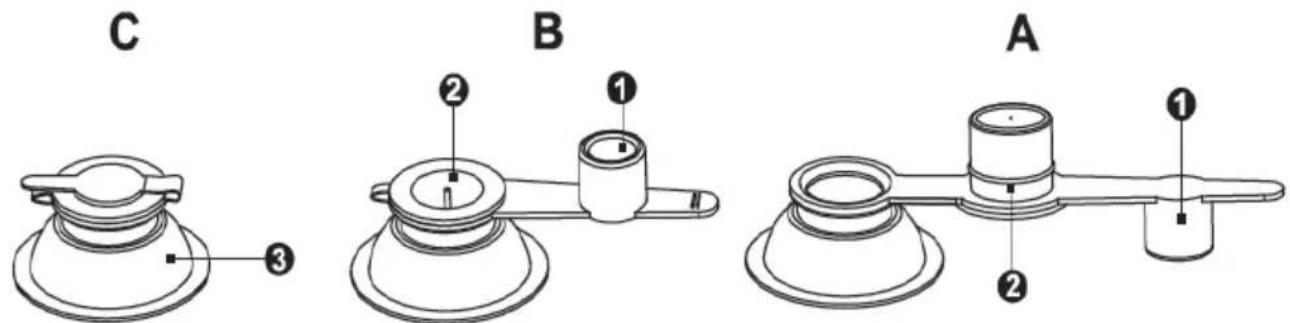

Pull out the base valve from the bed (C), open the cover (B) and take out the stopper to release air (A). Do not to puncture your Airbed. Do not force air out of the Airbed. Allow air to escape slowly and naturally. Fold carefully and re-insert into the package. See below illustration!

JILONG JL027293N - Deflation - 1

Storage and Maintain

1) Clean the product with clear water, then leave it in shady and cool place for airing, fold it into original package and place it indoor for next use. Caution: Do not use the alkali or acid detergent to clean product! Do not leave product exposed under sunlight directly because it will shorten the using-life of product.
2) Fold the airbed loosely and avoid sharp bends, corners and creases which can damage the airbed.
3) No specific maintenance is required for electric pump.
4) Place the airbed inside the storage bag and store in a dry and room temperature location indoors. Do not store in an area where it is likely to be exposed to extreme temperature.

Repair Patch Instructions

Small pinhole and small puncture leaks can be repaired with the included repair patch a) Locate the leak place.
b) Deflate and drain the water.
c) Clean the area surrounding the leakage and wipe up all water from the surface.
d) Take out the repair patch, cut it into required shape and size, which should be litter larger than the leaking area, put the patch on leaking area and press firmly.
e) You can use it again after 24 hours drying of the repaired position.

If the damage is bigger than 1" (2.5cm), we recommend using a Silicone or rubber based glue for repair. Please read warning statement on glue prior to use.
