Product type	Portable battery (Power bank)
Brand	Fresh n Rebel
Model	2PB100PT
Battery capacity	2600 mAh
Input power	5V / 1.5 A (max)
Output power	5 W
USB output port	5 V / 1 A
Input port	Micro USB
Dimensions	31 × 95 × 24 mm
Weight	72 g
Charging indicator	Red LED (charging), off (fully charged)
Battery level indicator	4 LEDs: 1 = 25%, 2 = 50%, 3 = 75%, 4 = 100%
Function button	Start charging / display battery status
Built-in protections	Overcurrent, overvoltage, overtemperature, overpower, short circuit
Operating temperature	5 °C to 35 °C (41 °F to 95 °F)
Warranty	2 years against manufacturing defects
Care and cleaning	Clean with a dry, soft cloth. Do not use liquids.
Spare parts and repairability	Not user-serviceable. Contains no user-serviceable parts.

Frequently Asked Questions - 2PB100PT FRESH N REBEL

How do I charge the power bank?

Connect the supplied micro USB cable to the input port (micro USB) and to a USB charger (5V/1.5A max). The red LED lights up during charging and turns off when the battery is full.

How do I charge a device with the power bank?

Connect your device to the USB output port (5V/1A) using a standard USB cable. Press the button to start charging. The remaining battery level is indicated by the 4 LEDs.

What do the LEDs mean?

When you press the button, the LEDs indicate the remaining charge level: 1 LED = 25%, 2 = 50%, 3 = 75%, 4 = 100%. While the power bank is charging, the red LED is lit.

How long does it take to charge the power bank?

Charging time depends on the charger used. With a standard 5V/1A charger, expect about 2-3 hours for a full charge (2600 mAh).

Can I use the power bank while charging?

Yes, you can charge the power bank and a device simultaneously, but this will increase the charging time of the power bank.

What are the safety precautions?

Do not open the device, do not expose it to moisture or extreme temperatures (5-35°C). Do not cover it while in use. Only use suitable chargers.

What should I do if the power bank won't charge?

Check the micro USB cable and charger. Try a different cable or charger. If the problem persists, contact customer service.

Is the warranty valid in case of failure?

The 2-year warranty covers manufacturing defects. It does not cover accidental damage, wear, or misuse.

Can I repair the power bank myself?

No, the device contains no serviceable parts. Any opening voids the warranty. If there is a problem, return it to the store.

How do I clean the power bank?

Use a dry, soft cloth. Never use liquids or abrasive products. Disconnect the power bank before cleaning.

USER MANUAL 2PB100PT FRESH N REBEL

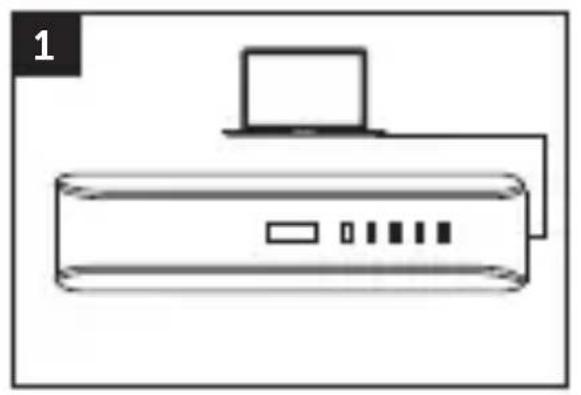

1. Fully charge your Powerbank before use.

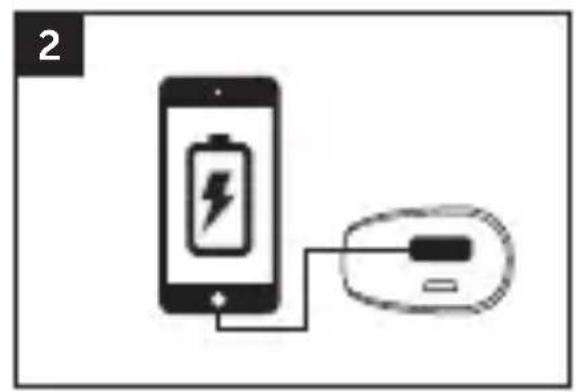

2. Connect the Powerbank to the device you would like to charge.

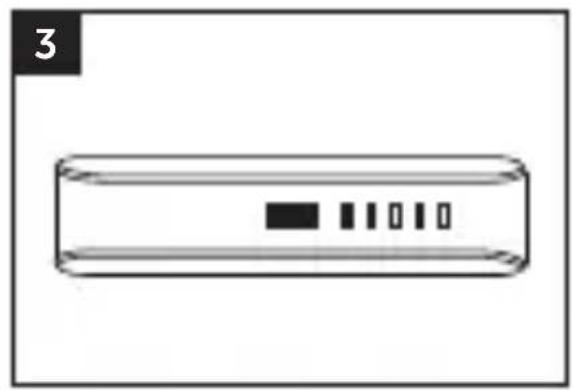

3. Push the button to start charging. The charging LED will light up red.

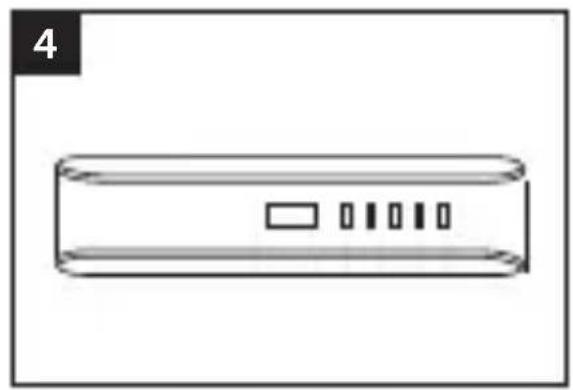

4. When your device is fully charged the charging LED will turn off.

Charge your Powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 2600mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 5W
• USB Output: 5V / 1A
• Dimensions: 31 × 95 × 24 mm
  Product Weight: 72 g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB100

Product description: Powerbank 2600mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam,17-06-2013

M. Bergwerff,

Chief Operations Officer
