USER MANUAL 2PB200IN FRESH N REBEL

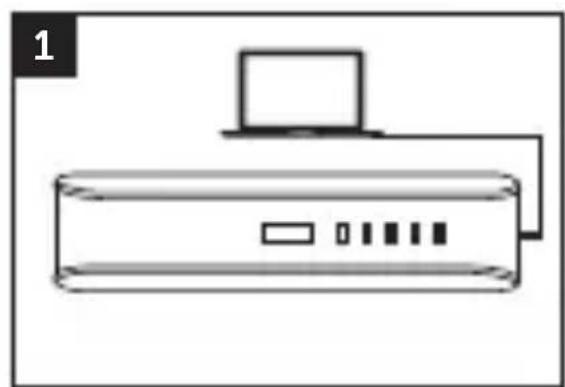

- Fully charge your Powerbank before use.

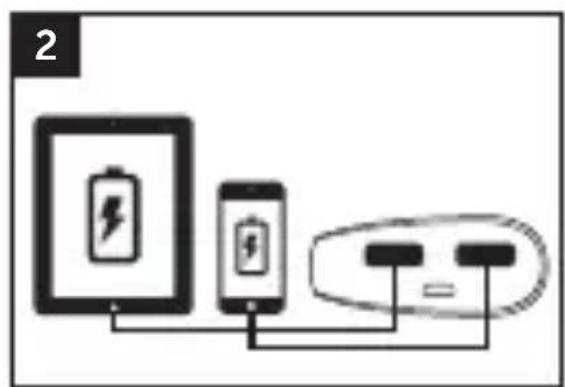

- Connect the Powerbank to the device you would like to charge
- Push the button to start charging. The charging LED will light up red
- When your device is fully charged the charging LED will turn off.
Fast charge your devices
- Micro-USBport
Charge your powerbank
- Button
Push to start charging
Push to read battery status
- Charging LED
Red = charging your Powerbank
Off = Powerbank is fully charged

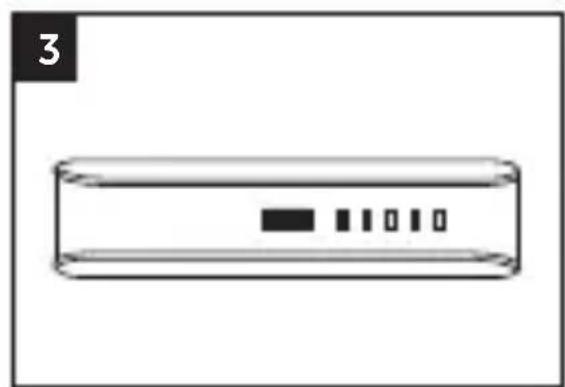

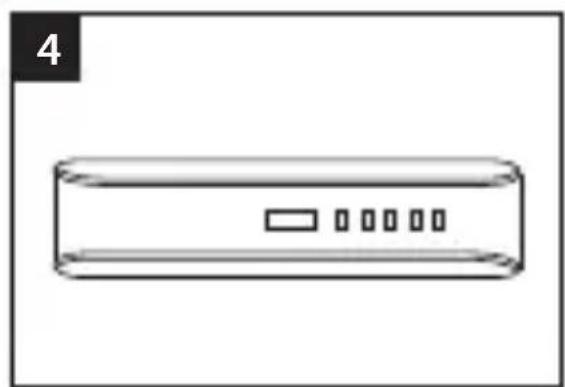

- Battery indicator
1 light = 25% battery power left
2 lights = 50% battery power left
3 lights = 75% battery power left
4 lights = 100% battery power left
IMPORTANT SAFETY INSTRUCTIONS
Warning!
The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:
Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.
Warranty & Limitations
We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.
Product Specifications
- Battery Capacity: 5200mAh
DC Input: 5V / 1.5A (max.)
Output Power: 15W
USB Output 1:5V/1A - USB Output 2: 5V / 2.1A
- Dimensions: 49 × 101 × 27 mm
Product Weight: 135g - Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection
POWER UP!
6. Battery indicator
EC Declaration of Conformity
Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands
We declare under our sole responsibility that the following product:
Product number: 2PB200
Product description: Powerbank 5200mAh
Low Voltage Directive (LVD)
EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919
Electromagnetic Fields (EMF)
EN 62311:2008
Electro-Magnetic Compatibility (EMC) Directive
ETSI EN 301489-1 V1.9.2
Radio and Telecom Terminal Equipment Directive (R&TTE)
EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1
are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.
Sitecom Europe BV Rotterdam, 17-06-2013
M. Bergwerff,
Chief Operations Officer
