Brand	FRESH N REBEL
Model	2PB200PT
Product type	Portable battery (Powerbank)
Battery capacity	5200 mAh
Input voltage	5V / 1.5A max.
Output power	15W
USB port 1 (output)	5V / 1A
USB port 2 (output)	5V / 2.1A
Input port	Micro USB
Dimensions	49 × 101 × 27 mm
Weight	135 g
Built-in protections	Overcurrent, overvoltage, overheating, overpower, short circuit
Charge indicator	Red LED (charging), off (finished)
Battery indicator	4 LEDs (25%, 50%, 75%, 100%)
Button	To start charging and display status
Operating temperature	5°C to 35°C
Warranty	2 years against manufacturing defects

Frequently Asked Questions - 2PB200PT FRESH N REBEL

How to charge the powerbank?

Connect the provided micro USB cable to the input port of the powerbank and to a wall adapter (5V/1.5A max.). The red LED lights up to indicate charging. It turns off when the battery is fully charged.

How to check the remaining battery level?

Briefly press the button on the side. The 4 LED indicators show the level: 1 LED = 25%, 2 = 50%, 3 = 75%, 4 = 100%.

Can I charge two devices at the same time?

Yes, you can connect one device to each USB port (1A and 2.1A). The total power is limited to 15W, which may slow down charging if both devices are demanding.

Is it safe to leave the powerbank charging overnight?

Yes, the powerbank has built-in protections against overcharge, overvoltage, and overheating. However, it is recommended to unplug it once full to preserve the battery.

What devices can I charge with this powerbank?

All devices that charge via USB: smartphones, tablets, Bluetooth earphones, speakers, etc. Use the 1A port for small devices and the 2.1A port for faster charging of smartphones.

Is the powerbank waterproof or water-resistant?

No, it is not waterproof. Avoid any contact with moisture and do not use it in a humid environment. Store it in a dry place.

What to do if the powerbank does not charge my phone?

Check that the USB cable is properly connected and working. Press the button to activate the output. Make sure the powerbank still has charge (press the button to see the LEDs). If the problem persists, contact customer service.

How long does it take to fully charge the powerbank?

With a 5V/1.5A charger, the charging time is about 3 to 4 hours (based on a capacity of 5200 mAh). A less powerful charger will extend this time.

Can I use a quick charger (Quick Charge) to recharge it?

The input only accepts 5V/1.5A max. A quick charger may work but will limit itself to this power. Preferably use a standard 5V charger.

What to do in case of powerbank overheating?

Immediately disconnect all devices and let it cool down in a well-ventilated area. Do not cover it. If overheating persists, stop using it and contact technical support.

USER MANUAL 2PB200PT FRESH N REBEL

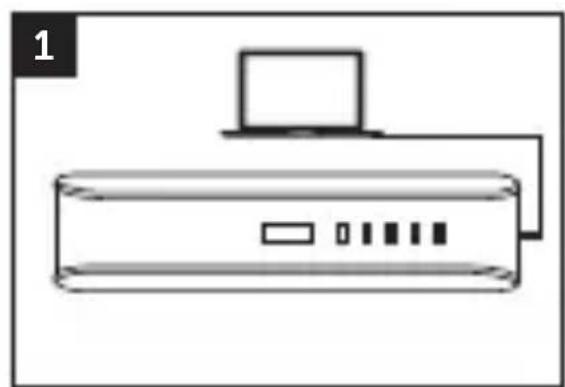

1. Fully charge your Powerbank before use.

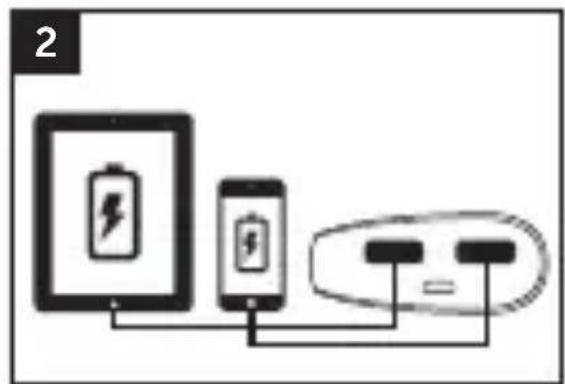

2. Connect the Powerbank to the device you would like to charge

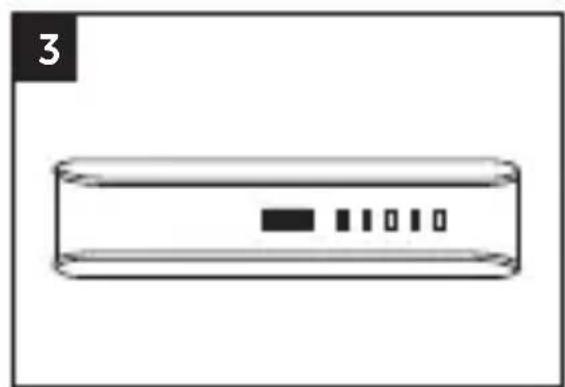

3. Push the button to start charging. The charging LED will light up red
4. When your device is fully charged the charging LED will turn off.

Fast charge your devices

1. Micro-USBport

Charge your powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 5200mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 15W
  USB Output 1:5V/1A
• USB Output 2: 5V / 2.1A
• Dimensions: 49 × 101 × 27 mm
  Product Weight: 135g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

6. Battery indicator

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB200

Product description: Powerbank 5200mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
