2PB100WB - Power bank FRESH N REBEL - Free user manual and instructions

Brand	FRESH N REBEL
Model	2PB100WB
Product Type	Portable battery (Powerbank)
Battery Capacity	2600 mAh
Input	5V / 1.5A (max.)
USB Output	5V / 1A (5W)
Dimensions	31 × 95 × 24 mm
Weight	72 g
Battery Indicator	4 LED indicators (25%, 50%, 75%, 100%)
Ports	1 USB-A port (output), 1 micro USB port (input)
Control Button	On/off for charging and battery level display
Built-in Protections	Overcurrent, overvoltage, overheating, overpower, short circuit
Warranty	2 years
Operating Temperature	5°C to 35°C (41°F to 95°F)
Safety Instructions	Do not open, do not expose to moisture or excessive heat
Cleaning	Wipe with a dry, soft cloth
Maintenance	Fully charge before use; disconnect after full charge

Frequently Asked Questions - 2PB100WB FRESH N REBEL

How to charge the Fresh 'n Rebel 2PB100WB portable battery?

Use the provided micro USB cable to connect the power bank to a USB charger (5V / 1.5A max.). The red light turns on during charging and goes off when the battery is full.

How can I know how much charge is left?

Press the button on the side: the 4 LED indicators show the remaining charge level (1 LED = 25%, 2 = 50%, 3 = 75%, 4 = 100%).

Can I charge my smartphone with this power bank?

Yes, it has a 5V/1A USB port compatible with most smartphones, headphones, and other small devices.

How long does it take to fully charge the power bank?

With a 5V/1.5A charger, charging time is approximately 2 to 3 hours for a 2600 mAh capacity.

Can the power bank be used while it is charging?

No, it is not recommended to use the output while charging. Wait until charging is complete before connecting a device.

What does the red light flashing or steady mean?

The red light steady on indicates the power bank is charging. It goes off when charging is complete. Flashing may indicate an anomaly (overheating, short circuit).

Is it safe to leave the power bank charging overnight?

Yes, it has built-in protections against overcharging. However, to preserve the battery, unplug it once full.

How to clean the Fresh 'n Rebel power bank?

Use a soft, dry cloth to wipe the surface. Never use chemicals or abrasives. Avoid any contact with water.

Is this power bank compatible with Apple devices (iPhone, iPad)?

Yes, it can charge any device using a USB-A to Lightning or USB-C cable, as long as the device accepts 5V/1A charging.

What to do if the power bank does not charge or no longer responds?

Check the cable and charger. Try a different cable or USB port. If the problem persists, the battery may be deeply discharged: leave it plugged in for a few hours. If no response, contact customer service under warranty.

USER MANUAL 2PB100WB FRESH N REBEL

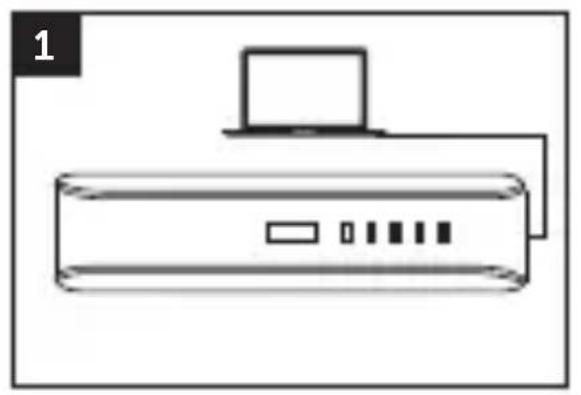

1. Fully charge your Powerbank before use.

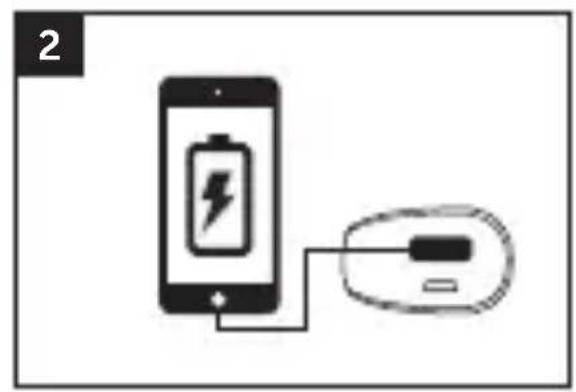

2. Connect the Powerbank to the device you would like to charge.

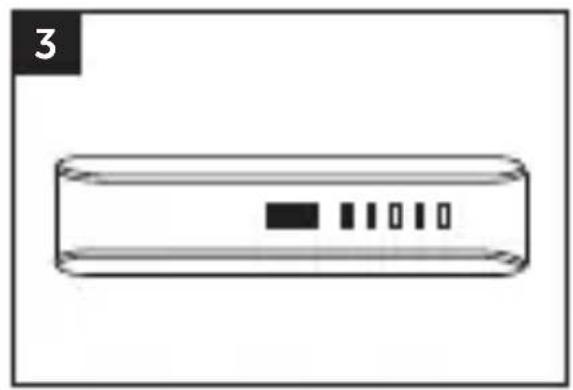

3. Push the button to start charging. The charging LED will light up red.

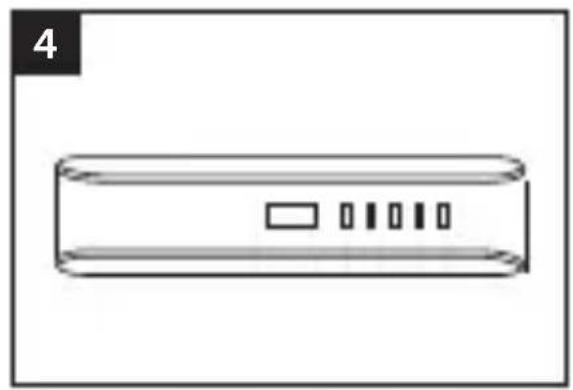

4. When your device is fully charged the charging LED will turn off.

Charge your Powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 2600mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 5W
• USB Output: 5V / 1A
• Dimensions: 31 × 95 × 24 mm
  Product Weight: 72 g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB100

Product description: Powerbank 2600mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam,17-06-2013

M. Bergwerff,

Chief Operations Officer
