USER MANUAL 2PB200WB FRESH N REBEL

Abstract black-and-white symmetrical shape resembling a stylized letter or symbol (no text or symbols present)

FRESH 'N REBEL

POWERBANK 5200mAh

manual

POWER UP!

1. Fully charge your Powerbank before use.

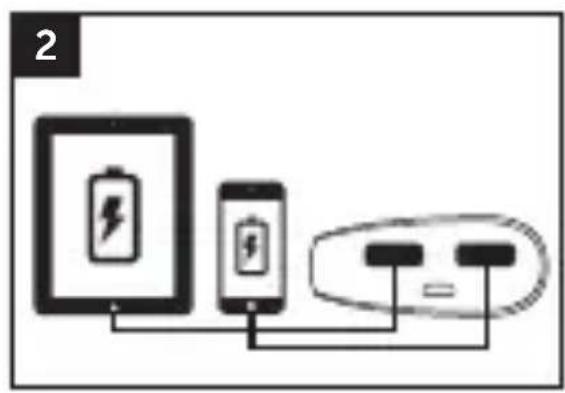

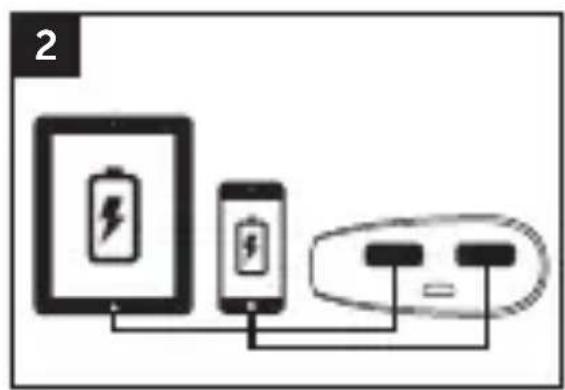

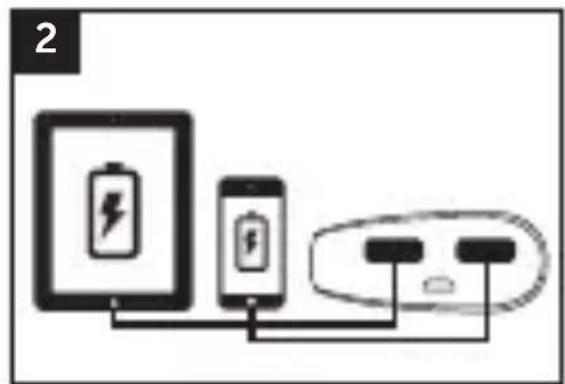

2. Connect the Powerbank to the device you would like to charge

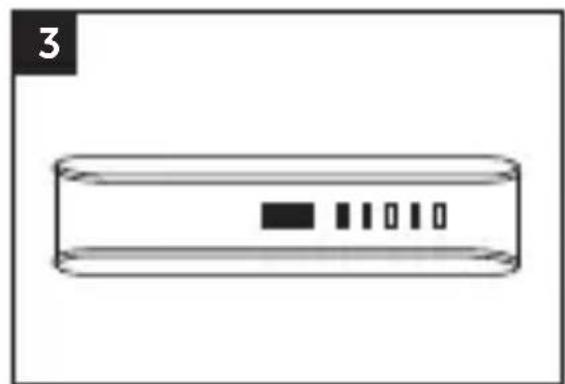

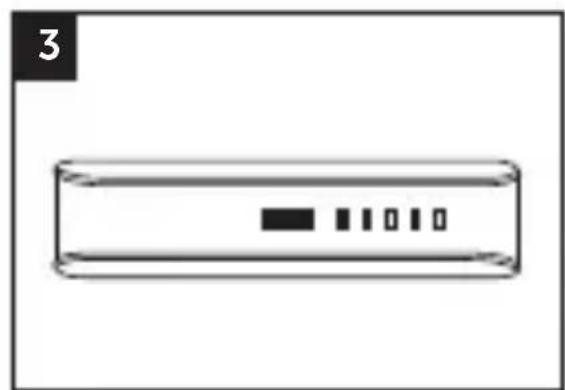

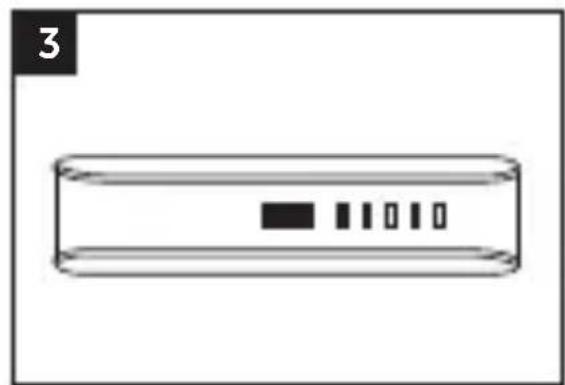

3. Push the button to start charging. The charging LED will light up red

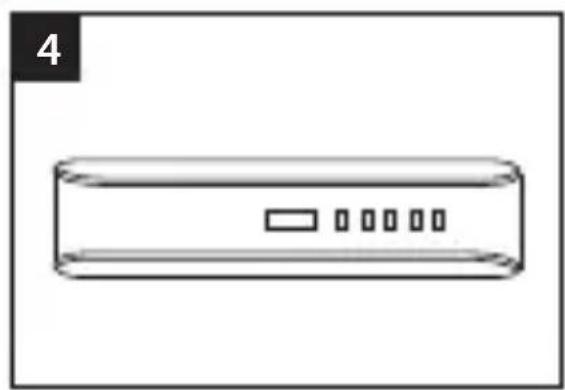

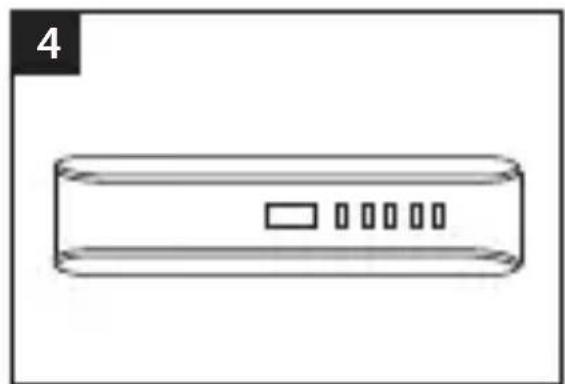

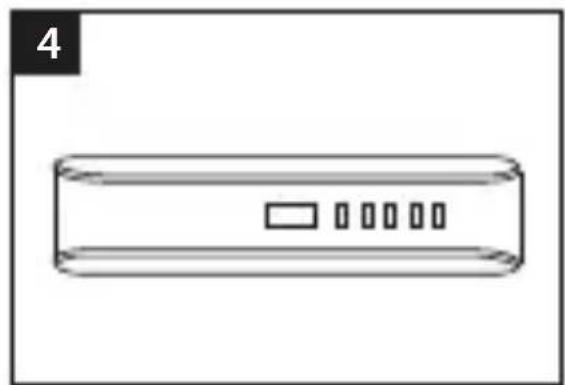

4. When your device is fully charged the charging LED will turn off.

Simple line drawing of a server with a laptop above it (no text or symbols)

2

Simple line drawing of a rectangular device with four vertical slots and a black indicator block (no text or symbols)

Simple line drawing of a rectangular device with a rectangular body and four small rectangular buttons on the side (no text or symbols)

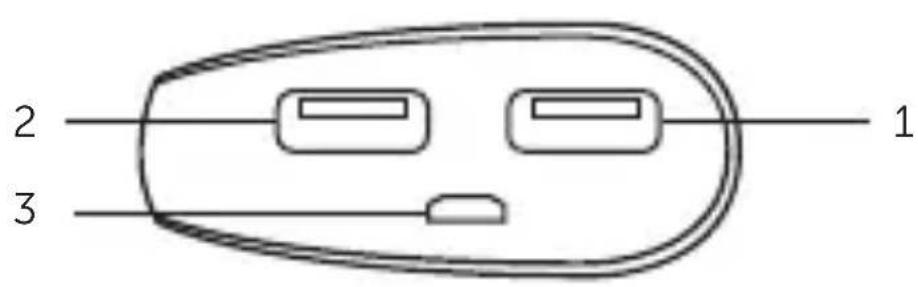

Fast charge your devices

1. Micro-USBport

Charge your powerbank

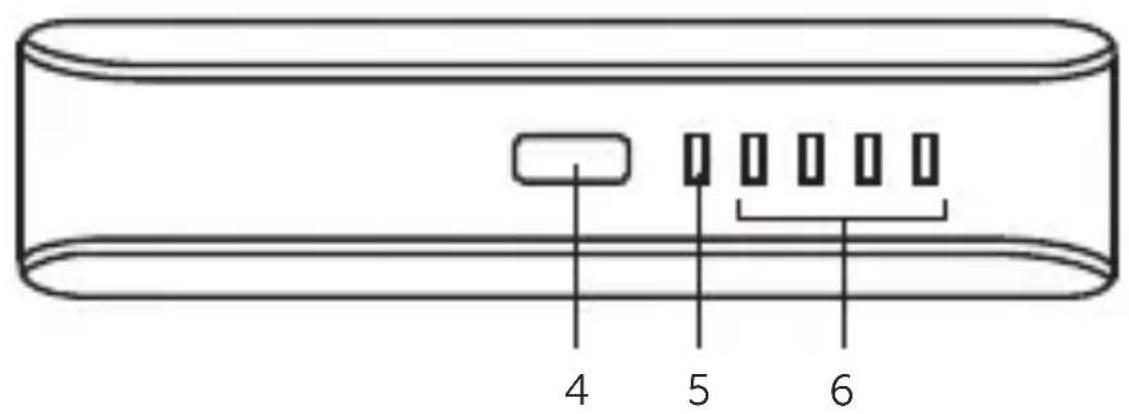

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

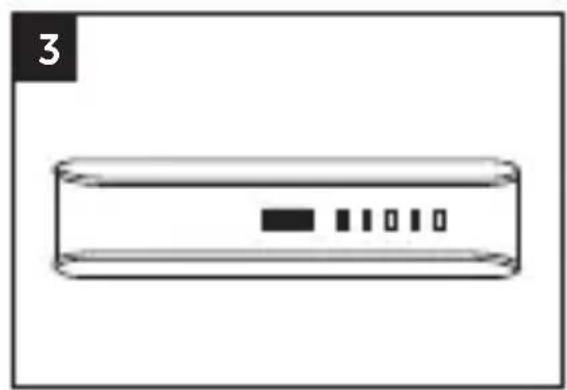

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

• Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5 °C - 35°C (41°F - 95°F).
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 5200mAh
  • DC Input: 5V / 1.5A (max.)
• Output Power: 15W
  • USB Output 1: 5V / 1A
  • USB Output 2: 5V / 2.1A
• Dimensions: 49 X 101 X 27 mm
  • Product Weight: 135g

- Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

Simple line drawing of a server with a laptop above it (no text or symbols)

2

Simple line drawing of a rectangular device with four vertical slots and a black rectangle on the side (no text or symbols)

Simple line drawing of a rectangular device with four small rectangular buttons on the side (no text or symbols)

JE APPARAAT KAN ER NU WEER VOL TEGENAAN!

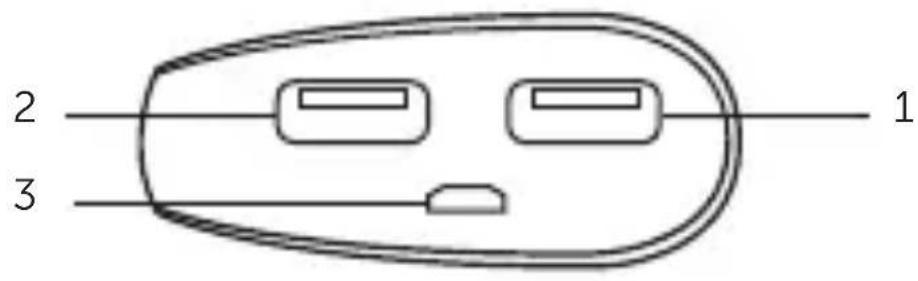

2 3 1

4 5 6

1. USB poort 1 Amp

Apparaten opladen

1. USB poort 2.1 Amp

Fast charge apparaten

1. Micro-USBpoort

Powerbank opladen

1. Knop

Simple line drawing of a server with a laptop above it (no text or symbols)

2

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with four vertical slots and a label '4' in the top-left corner (no text or symbols on the device itself)

Simple line drawing of a server with a laptop above it (no text or symbols)

2

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with a rectangular body and four small rectangular buttons on the side (no text or symbols)

Simple line drawing of a server with a laptop above it, no text or symbols present

2

Simple line drawing of a rectangular device with four vertical slots and a black indicator block (no text or symbols)

Simple line drawing of a rectangular device with four small rectangular buttons on its side (no text or symbols)

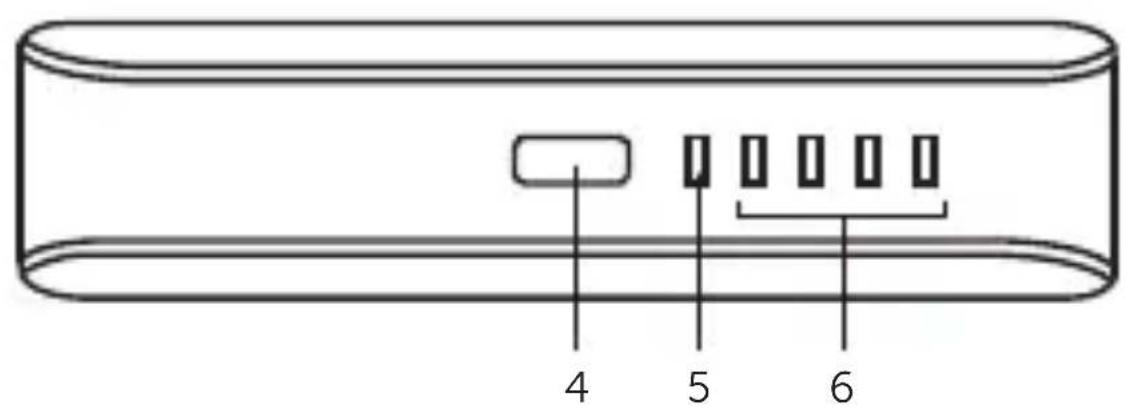

6. Battery indicator

Simple line drawing of a server with a laptop above it, no text or symbols present

2

Simple line drawing of a rectangular device with four vertical slots and a black indicator block (no text or symbols)

Simple line drawing of a rectangular device with four small rectangular buttons on the side (no text or symbols)

VOTRE APPAREIL EST ALORS PRÊT POUR LA FÊTE!

2 3 1

FR

4 5 6

1. USB port 1 Amp

Simple line drawing of a server with a laptop above it, no text or symbols present

2

Simple line drawing of a rectangular device with four vertical slots and a black square on the top (no text or symbols)

Simple line drawing of a rectangular device with four internal slots and a label '4' in the top-left corner (no text or symbols on the device itself)

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB200

Product description: Powerbank 5200mAh

Low Voltage Directive (LVD)

• EN 60950-1:2006
• EN 60950-1:2006/A12:2011
• EN 60950-1:2006/A1:2010
• EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

• EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

• ETSI EN 301 489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
