Powerbank 5200mAh - Power bank FRESH N REBEL - Free user manual and instructions

Product Type	Portable Battery / Powerbank
Brand	FRESH N REBEL
Model	Powerbank 5200mAh
Battery Capacity	5200 mAh
Input Voltage	5 V
Max Input Current	1,5 A
USB Output 1	5 V / 1 A
USB Output 2	5 V / 2,1 A
Maximum Output Power	15 W
Dimensions	49 × 101 × 27 mm
Weight	135 g
Battery Level Indicator	4 LEDs (25 %, 50 %, 75 %, 100 %)
Charge Indicator	Red LED (charging) / off (completed)
Built-in Protections	Overcurrent, overvoltage, overheating, overpower, short circuit
Operating Temperature	5 °C to 35 °C
Warranty	2 years
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use abrasive products.
Spare Parts and Repairability	Contains no user-serviceable parts. Do not open.

Frequently Asked Questions - Powerbank 5200mAh FRESH N REBEL

How to charge the powerbank?

Plug the supplied micro-USB cable into the powerbank input and a power adapter (5V/1.5A max). The red LED turns on during charging and turns off when complete.

How to charge a device with the powerbank?

Connect your device to one of the powerbank's USB ports (USB 1: 1A, USB 2: 2.1A). Press the button to start charging. The LEDs indicate the remaining battery level.

What do the LEDs on the powerbank mean?

The 4 LEDs indicate the remaining charge level: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%. The red LED next to the micro-USB port indicates the powerbank is charging.

What to do if the powerbank does not charge my device?

Check that the cable is properly connected and the device is compatible. Make sure to press the button to activate the output. Test with another cable or device.

Can I use the powerbank while it is charging?

Yes, you can charge a device on the USB ports while recharging the powerbank via the micro-USB input. Priority is given to charging the internal battery.

How long does it take to fully charge the powerbank?

With a 5V/1.5A charger, a full charge takes approximately 3 to 4 hours. The time may vary depending on the adapter used.

Can I charge two devices at the same time?

Yes, the powerbank has two USB ports that can operate simultaneously. The total power must not exceed 15W.

Is the powerbank safe to use?

Yes, it is equipped with built-in protections against overcurrent, overvoltage, overheating, overpower, and short circuits. Use it within the recommended temperature range (5°C to 35°C).

What to do if the powerbank overheats?

Disconnect all cables immediately and let it cool down in a dry, ventilated area. If the problem persists, stop using it and contact customer support.

How to clean the powerbank?

Disconnect all cables. Clean the surface with a soft, dry cloth. Do not use chemicals, alcohol, or abrasive liquids.

USER MANUAL Powerbank 5200mAh FRESH N REBEL

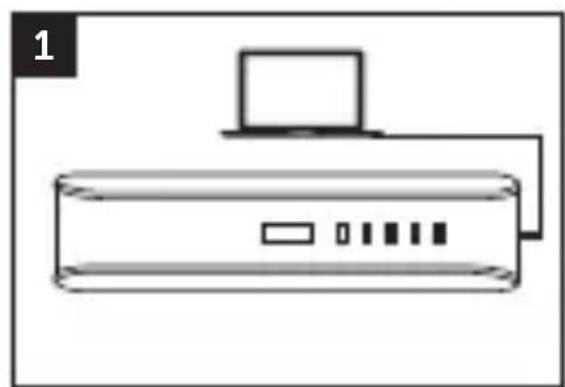

1. Fully charge your Powerbank before use.

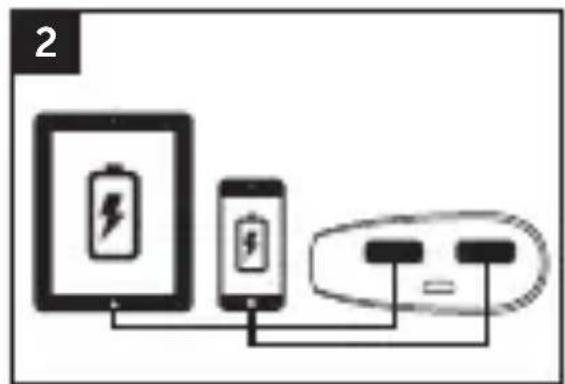

2. Connect the Powerbank to the device you would like to charge

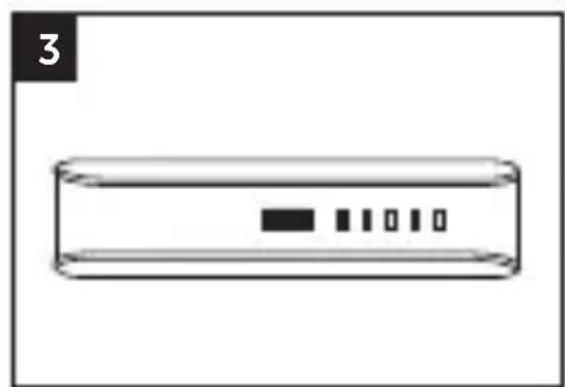

3. Push the button to start charging. The charging LED will light up red

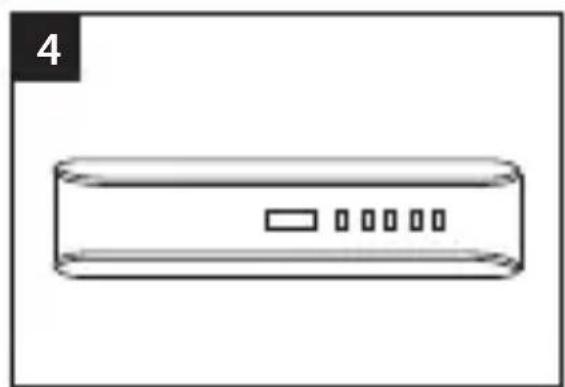

4. When your device is fully charged the charging LED will turn off.

Fast charge your devices

1. Micro-USBport

Charge your powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 5200mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 15W
  USB Output 1:5V/1A
• USB Output 2: 5V / 2.1A
• Dimensions: 49 × 101 × 27 mm
  Product Weight: 135g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

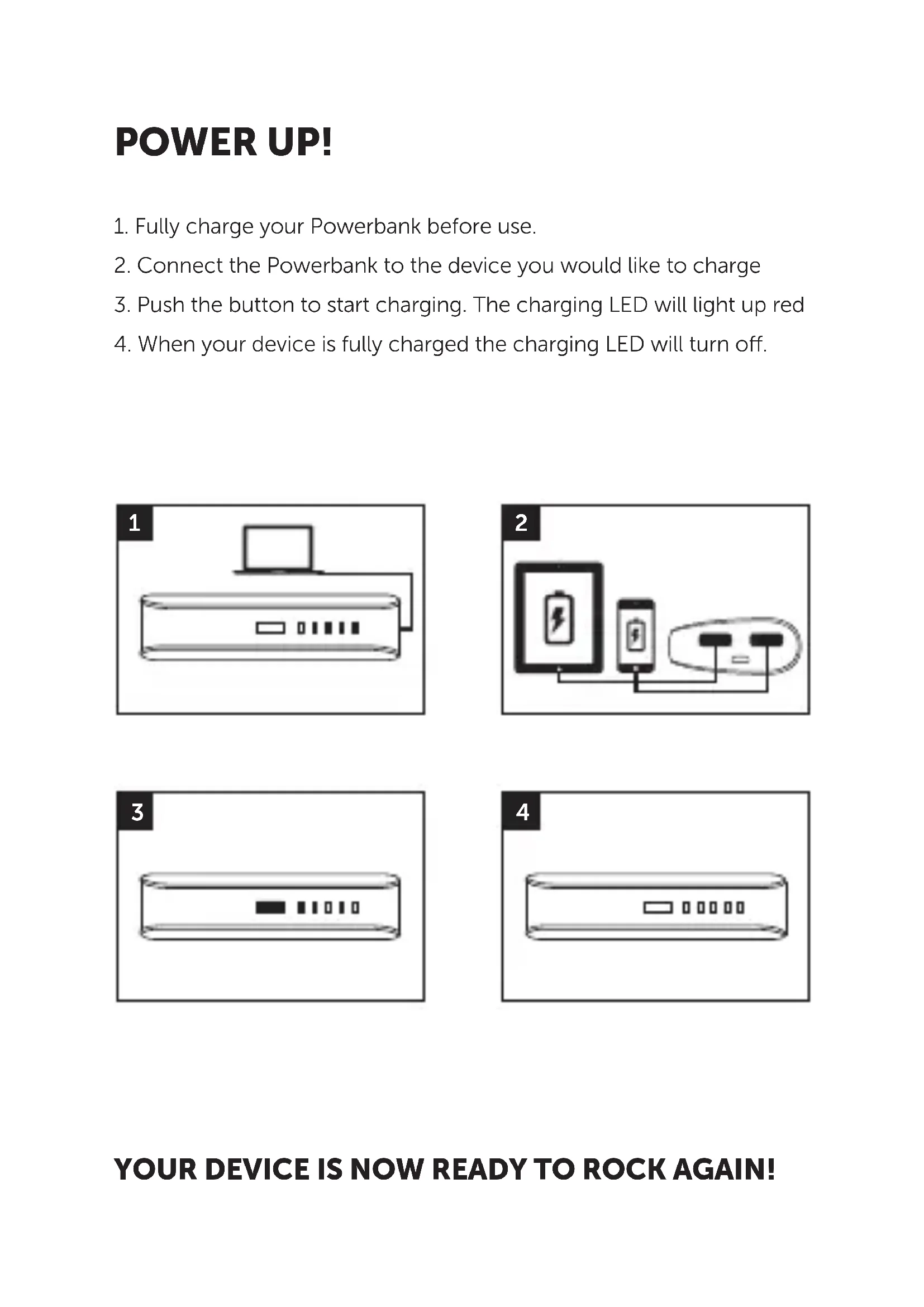

POWER UP!

6. Battery indicator

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB200

Product description: Powerbank 5200mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
