1PB200WH - Power bank FRESH N REBEL - Free user manual and instructions

Product type	Portable battery
Brand	FRESH N REBEL
Model	1PB200WH
Battery capacity	5200 mAh
Output power	15 W
Output ports	2 USB ports (1 A and 2.1 A)
Input port	Micro USB
Input voltage	5 V / 1.5 A max
Output voltage	5 V / 1 A (port 1), 5 V / 2.1 A (port 2)
Dimensions	49 × 101 × 27 mm
Weight	135 g
Indicators	4 battery level LEDs (25%, 50%, 75%, 100%); red charging LED
Built-in protections	Overcurrent, overvoltage, overheating, overpower, short circuit
Operating temperature	5 °C to 35 °C
Warranty	2 years
Maintenance	Clean with a soft, dry cloth; do not use solvents
Safety	Do not open, do not expose to moisture or extreme temperatures
Repairability	Not user-serviceable (no spare parts available)

Frequently Asked Questions - 1PB200WH FRESH N REBEL

How to charge the Fresh 'n Rebel 1PB200WH portable battery?

Plug the provided micro USB cable into the battery's input port and connect it to a USB charger (5V/1.5A max). Let it charge until all 4 LEDs are on.

How to use the battery to charge a device?

Connect your device via a USB cable to one of the output ports (1A or 2.1A). Press the button to start charging. The red LED lights up and turns off when the device is charged.

How long does it take to fully charge the battery?

Charging time depends on the charger used. With a 5V/1.5A charger, it takes about 3-4 hours for a full charge.

Can I charge two devices at the same time?

Yes, you can use both USB ports simultaneously. The total output power is limited to 15W, so charging speed may be reduced.

What does the red light on the battery mean?

The red light indicates that the battery is being charged (when plugged in) or is charging a device. It turns off when charging is complete.

How do I know the remaining battery level?

Briefly press the button. The 4 LEDs indicate the level: 1 LED = 25%, 2 = 50%, 3 = 75%, 4 = 100%.

My battery no longer charges my phone, what should I do?

Check that the battery itself is charged (press the button to see the LEDs). Make sure the cable and device are compatible. If the problem persists, contact customer service.

Is it compatible with all smartphones?

Yes, it is compatible with any device that charges via USB (smartphones, tablets, headphones, etc.). Make sure to use the correct cable.

What safety precautions should be taken?

Do not open the battery, do not expose it to water or extreme temperatures, use at a temperature between 5°C and 35°C, and do not cover it while charging.

What is the warranty for this portable battery?

Fresh 'n Rebel offers a 2-year warranty against manufacturing defects from the date of purchase, under normal use conditions.

USER MANUAL 1PB200WH FRESH N REBEL

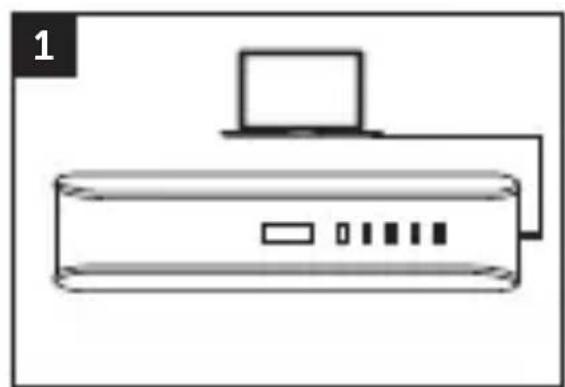

1. Fully charge your Powerbank before use.

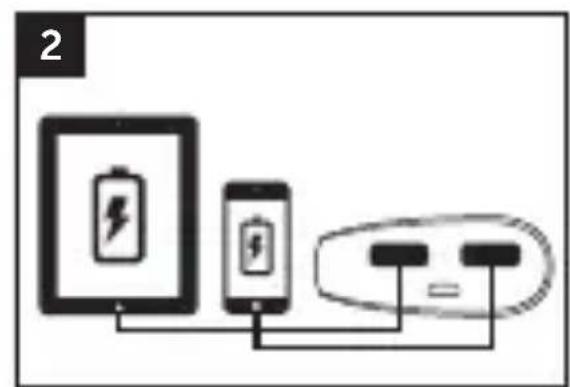

2. Connect the Powerbank to the device you would like to charge

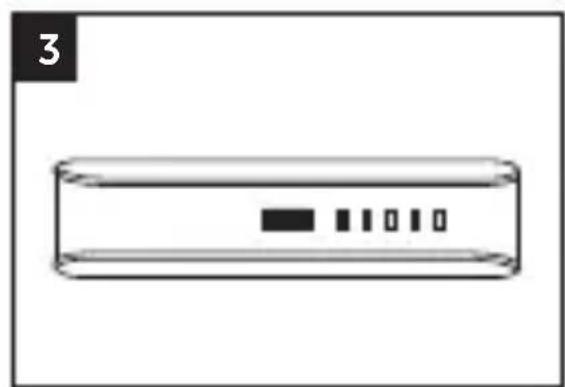

3. Push the button to start charging. The charging LED will light up red

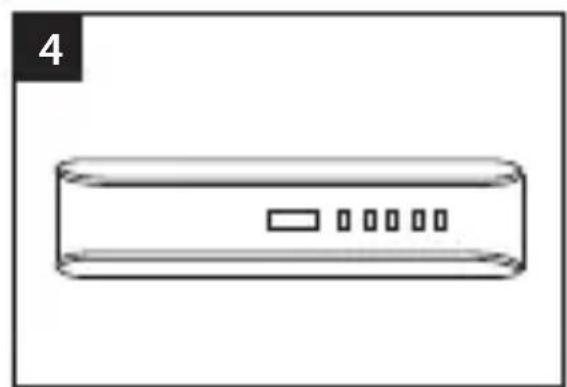

4. When your device is fully charged the charging LED will turn off.

Fast charge your devices

1. Micro-USBport

Charge your powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 5200mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 15W
  USB Output 1: 5V / 1A
• USB Output 2: 5V / 2.1A
• Dimensions: 49 × 101 × 27 mm
  Product Weight: 135g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

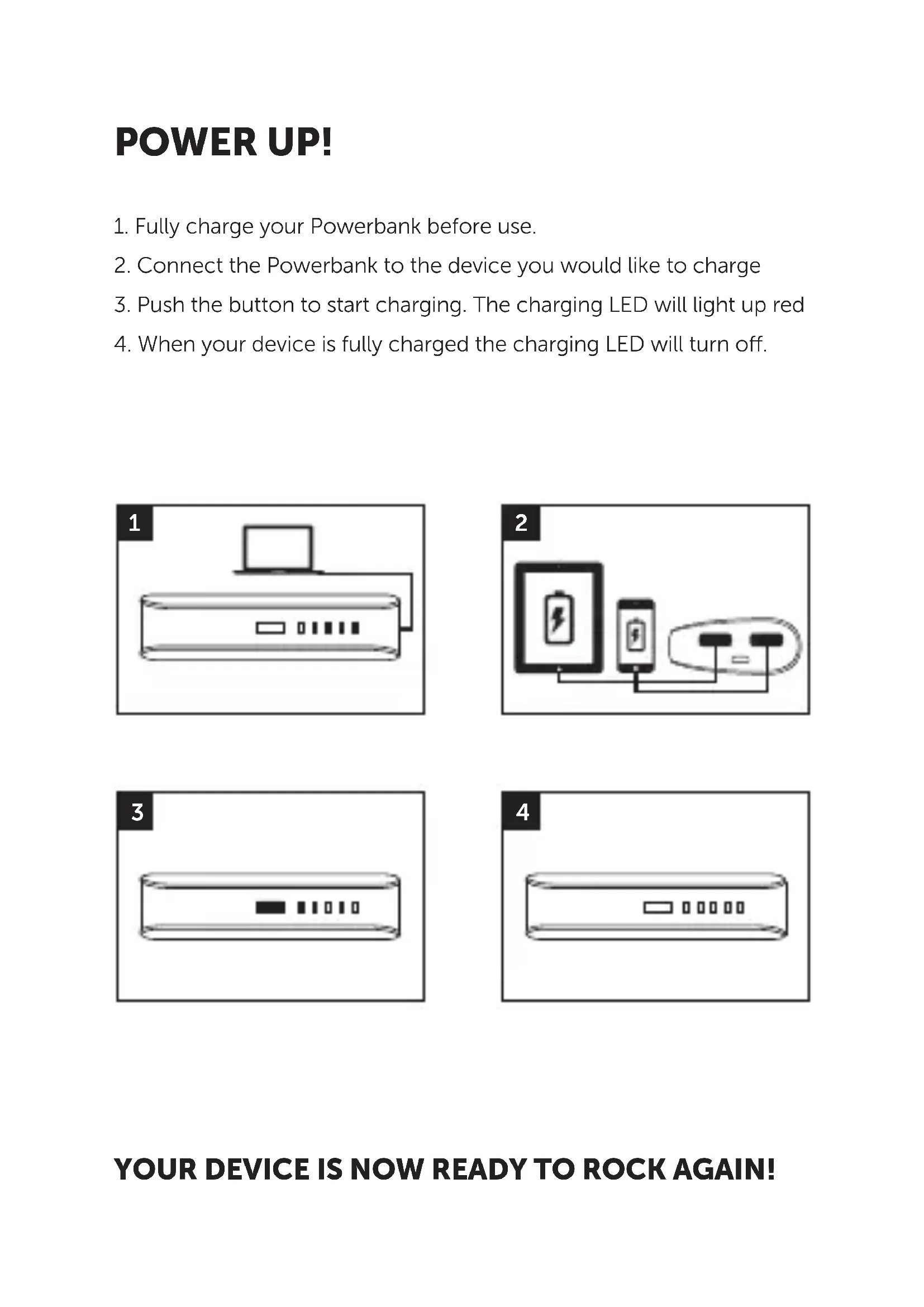

POWER UP!

6. Battery indicator

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB200

Product description: Powerbank 5200mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
