Brand	Marantec
Model	Special 315
Product type	Garage door
Category	Exterior manual release
Compatible door types	Flap-up overhead, Sectional, Non-flap-up overhead, Industrial sectional
Main functions	Manual release from outside for unlocking and manual opening of the garage door
Supplied components	Sheath, cable, lock bracket, adjusting screw, cable clamp, fastening parts, rings
Available lengths	5 m, 6 m, 7 m, 8 m (references 46 007 to 46 010)
Release article numbers	Special 311 (152 115), Special 302 (564 453), Special 301 (564 452), Special 315 (46 007-46 010)
Safety	Regularly check operation; ensure return to initial position after release; check for absence of mechanical play
Maintenance	No specific maintenance required; periodic visual check recommended
Repairability	Spare parts available (sheath, cable, cable clamp, adjusting screw); replacement possible
Languages of instructions	French, English, German, Spanish, Italian, Dutch, Polish, Swedish, Danish, and others
General information	User manual and instruction manual free of charge; 44 pages

Frequently Asked Questions - Special 315 MARANTEC

What types of garage doors are compatible with the Special 315 release?

The Special 315 release is compatible with garage doors for industrial sectional doors, as well as flap-up and non-flap-up overhead doors, and standard sectional doors (with specific adapters).

How to install the Special 315 exterior release on a sectional door?

Attach the lock bracket to the left latch of the lock. Connect the sheath to the bracket using the adjusting screw. Pass the cable through the cable clamp and tighten. Attach the sheath to the center hinges and panel stiffener using the supplied rings.

How to shorten the sheath if it is too long?

Determine the necessary length with the door open. Remove the metal cap, take out the cable, cut the sheath, replace the cap and reinsert the cable. Lock the cable clamp leaving 50 mm of cable protruding. Tip: wrap adhesive tape around the cutting point to prevent fraying.

How to adjust the mechanical play of the release?

Use the adjusting screw located on the lock bracket or on the drive carriage. Adjust so that the system has no mechanical play. Verify that the bracket is firmly against the lock housing.

What to do if the supplied interior handle cannot be used?

If the supplied handle is not compatible, you can drill the original handle according to the instructions. Drill a hole of diameter 5.5 mm at 48 mm from the left edge of the lock housing for the cable passage.

How to check that the door is properly disconnected from the operator?

Observe the pictograms under the guide carriage. If the sliding part is above the 'open lock' arrow, the door is disconnected. If it is above the 'closed lock' arrow, the door is connected to the operator.

How to perform manual release from outside?

First unlock the lock. Pull on the cord (depending on the rail type) until the sliding part is in front of the stop. Pull the ball in the sliding part, release and fix the sleeve. After release, check that the door opens electrically with the motor.

What are the reference numbers for the different lengths of the Special 315?

The references are: Art. No. 46 007 for 5 m, 46 008 for 6 m, 46 009 for 7 m and 46 010 for 8 m.

Is it necessary to drill additional holes for installation?

On some door models, the lock latch is not pre-drilled. In this case, drill a hole of diameter 5.5 mm at 48 mm from the left edge of the lock housing. For non-flap-up overhead doors, a hole of 3.5 mm at 60 mm above the handle axis may be required.

How to maintain the release system?

No specific maintenance is required. It is recommended to regularly check the proper operation of the system, especially the return of the carriage to initial position and the absence of play. Ensure that the red unlocking pin resets manually if necessary.

USER MANUAL Special 315 MARANTEC

Special 301, 302, 311, 315

D Einbauanleitung

Notentriegelung

GB Installation Instructions

Emergency Release

F Notice de montage

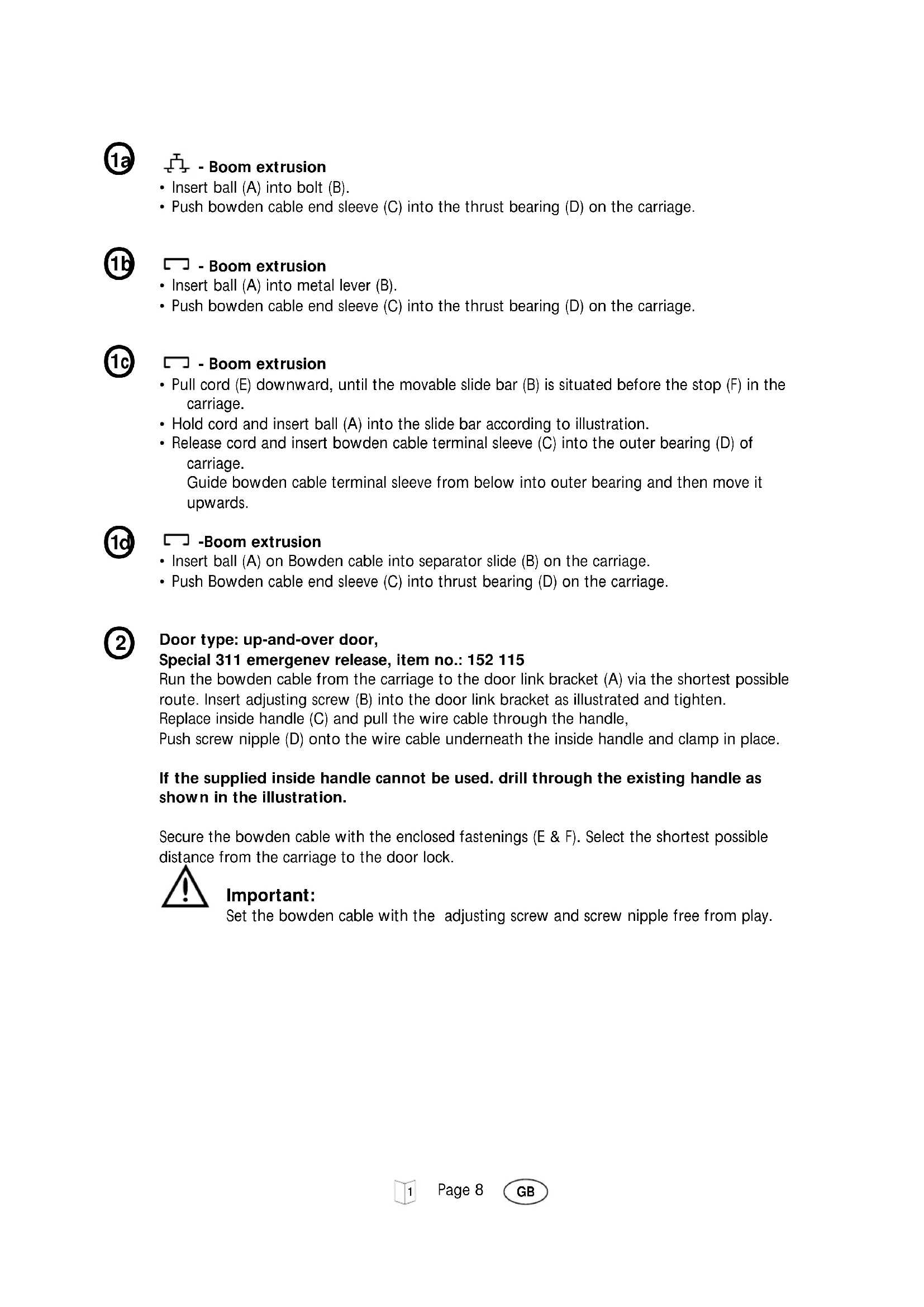

• Insert ball (A) into bolt (B).
• Push bowden cable end sleeve (C) into the thrust bearing (D) on the carriage.

- Boom extrusion

• Insert ball (A) into metal lever (B).
• Push bowden cable end sleeve (C) into the thrust bearing (D) on the carriage.

- Boom extrusion

• Pull cord (E) downward, until the movable slide bar (B) is situated before the stop (F) in the carriage.
• Hold cord and insert ball (A) into the slide bar according to illustration.
• Release cord and insert bowden cable terminal sleeve (C) into the outer bearing (D) of carriage.
  Guide bowden cable terminal sleeve from below into outer bearing and then move it upwards.

-Boom extrusion

• Insert ball (A) on Bowden cable into separator slide (B) on the carriage.
• Push Bowden cable end sleeve (C) into thrust bearing (D) on the carriage.

Door type: up-and-over door,

Special 311 emergenev release, item no.: 152 115

Run the bowden cable from the carriage to the door link bracket (A) via the shortest possible route. Insert adjusting screw (B) into the door link bracket as illustrated and tighten.

Replace inside handle (C) and pull the wire cable through the handle,

Push screw nipple (D) onto the wire cable underneath the inside handle and clamp in place.

If the supplied inside handle cannot be used. drill through the existing handle as shown in the illustration.

Secure the bowden cable with the enclosed fastenings (E & F). Select the shortest possible distance from the carriage to the door lock.

Important:

Set the bowden cable with the adjusting screw and screw nipple free from play.

Door Type: Sectional Door, Special 302 emergenev release, item no.: 564 453 Lock version with side locking bolts

Push the angle bracket (A) onto the left bolt of the door lock (B). Shorten the bowden cable (if necessary) and secure to the angle bracket with the adjusting screw (C).

From behind insert the hexagon screw of the screw nipple (D) through the drill hole of the lock bolt and screw into the screw nipple. Push the cable through the screw nipple and screw tight. With some door makes, the hole in the lock bolt will require drilling. Drill at a distance of 48 mm from the left edge of the lock case, using a 5.5 mm ∅ drill bit.

Using the supplied fixings (E), fix the bowden cable to the door connector attachment (F) and centre hinges (G). Choose the shortest distance from the carriage to the door lock, avoiding overtaut windings.

Important:

Set the bowden cable with adjusting screw (C) so that the lock angle bracket fits snugly against the lock case!

Door type: sectional door, Special 302 emergency release, item no. 564 453, lock version without side locking bolts.

(Shown is the inside right lock version.)

Remove inside door handle (A) and moving bar (B) from the door lock (four-edge pin) and screw the mounting angle (D) onto the lock body by using the fixing screw (C) of the lock.

If necessary, shorten the bowden cable and fix it to the mounting angle with adjusting screw (E). Push moving bar (B) and unlocking lever (F) onto the four-edge pin.

Run the hexagonal screw of the screw nipple (G) through the unlocking lever (F) (according to drawing). Push the wire through the drill hole of the screw nipple and fix it. Attach the inside door handle again and screw it on.

Use enclosed fixings (H) to fix the bowden cable to the door connector attachment (I) and to the centre hinges (J).

Choose the shortest distance from the carriage to the door lock. Avoid overtaut windings.

Important:

Set the bowden cable with the adjusting screw (E) and screw nipple without play.

Important:

The red plastic slide bar (drawing 1c, position E) of the flat carriage has to be put back into it's front operating position after adjustment of the bowden cable (symbol 'door closed'). Please also see point 7.

Door type: retractable up-and-over door,

Special 301 emergenev release, item no.: 564 452

Change the inside handle and a self-tapping screw 4,2 x 9,5, screw the thrust bearing (A) onto the left-hand side of the lock case (B). With some door makes, the hole fixing the thrust bearing to the lock case will still need drilling. Drill at a distance of 60 mm from above the centre of the handle, using a 3,5 mm ∅ drill bit.

Shorten the bowden cable (if necessary) and secure to the thrust bearing with adjusting screw (C). Remove the screw nipple (D). Feed the cable through the cable through the drill hole of the inside handel, and from underneath the handle push the screw nipple back onto the cable and screw tight.

Fix the bowden cable (E) to the inside of the door leaf using two clamping ears (F).

Avoid taut wiindings.

Important:

Set the bowden cable with adjusting screw free from play.

Door Type: Industrial Doors (Sectional Doors),

Special 315 Emergency Release,

item no.: 46 007; 5 m long

item no.: 46 008; 6 m long

item no.: 46 009; 7 m long

item no.: 46 010; 8 m long

Push angle bracket (A) onto left locking bolt (B). Shorten the Bowden cable (if necessary) and secure to the angle bracket with adjusting screw (C).

From behind insert the hexagon screw of screw nipple (D) through the drill hole of the locking bolt and screw into the screw nipple. Pull the Bowden cable wire through the screw nipple and screw tight.

With some door makes, the hole in the locking bolt will require drilling.

Drill at a distance of 48 mm from the left edge of the lock case, using a 5.5 mm ∅ drill bit.

Fix the Bowden cable to door connector attachment (F) using one clamping ear (E) and to centre hinges (G) using further clamping ears. Choose the shortest distance from the carriage to the door lock, avoiding overtaut windings.

For securing the Bowden cable to the door sections, the supplied nylon binders and adhesive clips can be used in addition to the clamping ears.

Attention:

Set the Bowden cable with the adjusting screw so that the angle bracket fits snugly against the lock case!

Shortening the Bowden Cable: (If necessary)

With the door open, establish the exact length.

Remove end sleeve from the bowden cable mantle, pull the wire cable far enough back to allow the outer mantle to be cut through at the appropriate point. Replace the end sleeve. Push the screw nipple onto the wire cable and shorten the remaining length to approx. 50 mm.

Tip:

Before cutting through the wire cable, wrap with insulation tape to prevent the cable from splicing.

On completing the installation and having checked the function, the door must be locked. If the emergency release is required, the door must first be unlocked.

After having used the emergency release, make a test run to make sure that the motor operates the door again.

The bolt (picture 1a / position B), the metal lever (picture 1b / position B) and the dividing bolt (picture 1d/ position B) in the carriage must be removed to their rear operating position.

The red disengagement pin (picture 1C/ Position G) of the flat carriage has to be pushed back manually in direction of the arrow.

The symbols (pictograms) on the downward side of the carriage indicate the actual state according to illustration:

Door is separated from operator.

- The front edge of the movable slide bar (B) is above the arrow symbol 'lock open'.

Door is connected to operator or will be reconnected automatically after next door travel.

- The front edge of the movable slide bar (B) is above arrow symbol 'lock closed'.

Attention:

Check the function of the emergency release regularly.

No part of this manual may be reproduced without our prior written approval.

We reserve the right to alter details in the interests of progress.
