Product type	Steam iron
Brand	Bomann
Model	CB 751
Power supply	230 V ~ 50 Hz
Power	2000 W (estimated)
Soleplate	Stainless steel
Water tank capacity	200 ml (estimated)
Temperature adjustment	Yes, thermostat with positions synthetic/silk, wool, cotton/linen, MAX
Steam	Yes, adjustable (no steam, low, high) + steam burst
Vertical steam	Yes, steam burst function in vertical position
Spray	Yes, spray button
Self-cleaning	Yes, SELF CLEAN function
Cordless ironing	Yes, with stand and 3-function selector (cordless, corded, lock)
Stand base	Yes, with table fixation
Dimensions (L x W x H)	Approximately 25 x 12 x 15 cm
Weight	Approximately 1.2 kg
Cable length	Approximately 1.8 m
Warranty	24 months
Maintenance	Clean the soleplate with a damp cloth, empty the tank after use
Safety	Unplug before filling, hot soleplate, do not use with wet hands
Country of manufacture	Not specified, complies with European standards

Frequently Asked Questions - CB 751 BOMANN

How to fill the water tank of the Bomann CB 751 iron?

First unplug the iron. Use a small container to pour water into the filling opening (2) up to the MAX mark. Use distilled or tap water (hardness < 2). Never use battery water, dryer water, or water with additives.

How to use the steam function?

Set the thermostat to a high temperature (cotton, linen) to produce steam. Turn the steam quantity selector (1) from the 'no steam' position to 'low steam' or 'high steam'. For more steam, press the steam burst button (7). Caution: steam is hot.

How to clean the iron with the self-cleaning function?

Fill the tank halfway. Heat the iron to maximum temperature. Unplug it then hold it horizontally over a sink. Place the steam selector on 'SELF CLEAN' and shake until the tank is empty. The selector automatically returns to ●. Heat again and iron a clean cloth to finish cleaning the soleplate.

Can I use the iron in vertical position?

Yes, the 'steam burst' function (7) can be used in vertical position to dewrinkle hanging garments. Beware of hot steam.

How to choose the right ironing temperature?

Use the thermostat (3). The marks indicate: low temperature for synthetic and silk, medium for wool, high for cotton and linen, MAX for maximum temperature. Always start with the lowest temperatures to avoid damaging fabrics.

What to do if the iron does not heat up anymore?

Check that the socket works and the cord is not damaged. Make sure the thermostat is set to a sufficient temperature. If the problem persists, contact a qualified technician. Do not attempt to repair yourself.

How to maintain the stainless steel soleplate?

Let the iron cool down. Clean the soleplate with a slightly damp cloth. Never use abrasive products. If burnt residues persist, iron a damp cloth at medium temperature.

Can I use scented water or water with starch?

No, use only pure water (distilled or soft tap water). Additives like starch, perfume, or softener can clog the steam ducts and dirty the laundry.

How to store the iron after use?

Set the steam selector to ●, empty the water tank, and let it cool completely before storing. Wind the cord without bending it. Never place the iron on its hot soleplate.

What to do if water drips from the soleplate?

This can happen if the temperature is not high enough to vaporize the water. Increase the thermostat temperature. Also ensure the steam selector is set correctly. Always empty the tank after use to avoid leaks.

USER MANUAL CB 751 BOMANN

PykoBoIDCTBO IO 3KcIpyaunn cTp. 49

TapaHTnA cTp. 52

Autonettoyant (Self-Clean)

Autolimpieza (Self-Clean)

Autolimpeza (Self-Clean)

Autopulizia (Self-Clean)

Selvrens (self-clean)

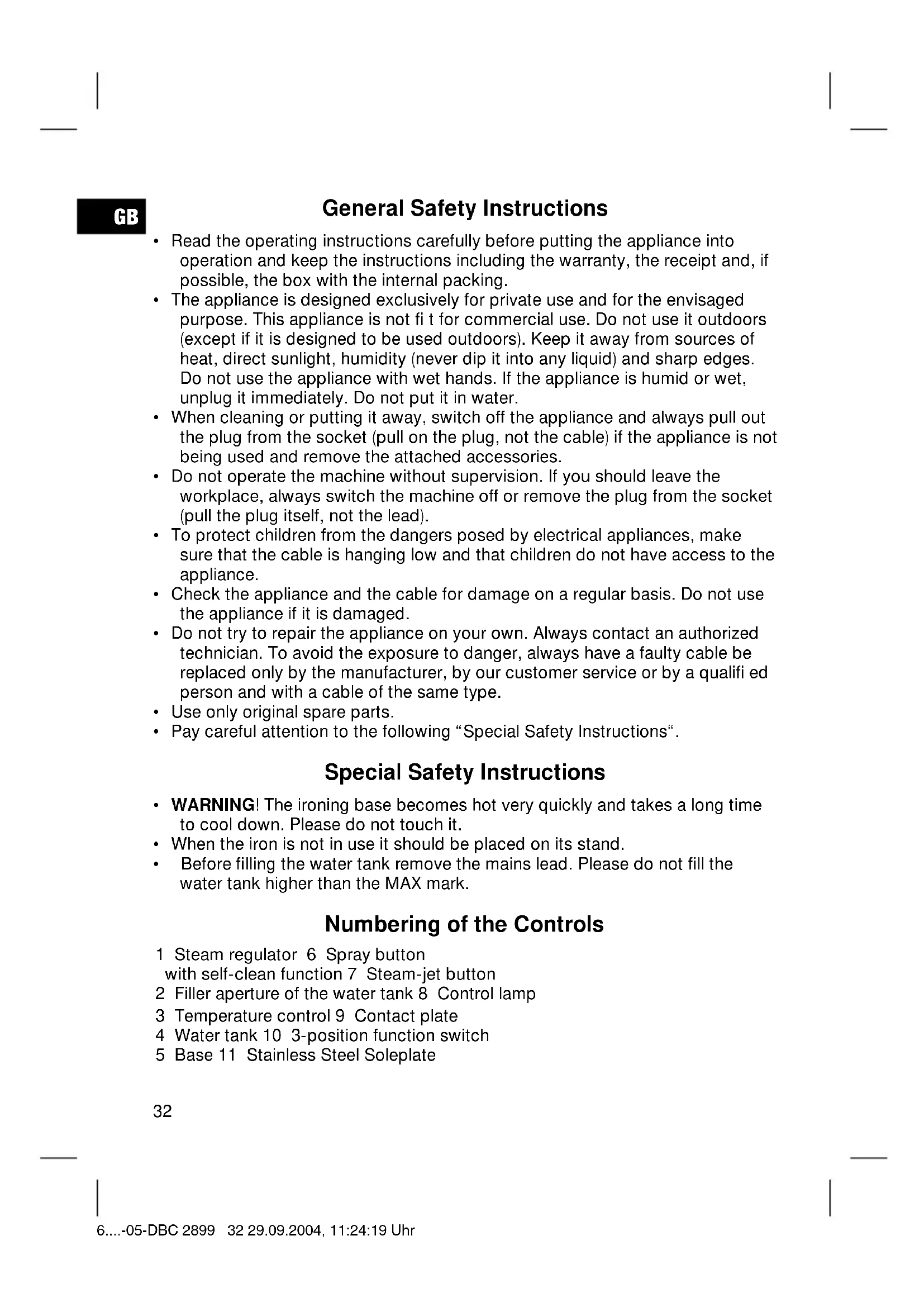

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

• WARNING! The ironing base becomes hot very quickly and takes a long time to cool down. Please do not touch it.
• When the iron is not in use it should be placed on its stand.
• Before filling the water tank remove the mains lead. Please do not fill the water tank higher than the MAX mark.

Numbering of the Controls

1 Steam regulator 6 Spray button
with self-clean function 7 Steam-jet button
2 Filler aperture of the water tank 8 Control lamp
3 Temperature control 9 Contact plate
4 Water tank 10 3-position function switch
5 Base 11 Stainless Steel Soleplate

How to Use

• Fill the water reservoir at the refi II opening (2), using a fi lling container. Preferably use distilled water or clear tap water (maximum water hardness level 2). If water is harder, used distilled water only.
• Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir. This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

Using the Machine

NOTE: Only clothes should to be ironed with this machine.

Ironing without steam (steam regulator turned to position

1. Place the iron on its stand.
2. Only connect the machine to a properly installed safety socket, 230V / 50Hz
3. Sort out the garments according to their ironing temperatures. Start with the lower temperatures. It is set with the thermostat (3):

Synthetics, silk low temperature
- Wool medium temperature
Cotton, linen high temperature

MAX maximum temperature

1. The indicator light is on. As soon as the indicator light goes out the desired operating temperature has been reached (approx. 3 minutes). Now you can start ironing.
2. Always pull the plug out of the socket after using the iron.

Steam Ironing

For this a high temperature is needed (cotton, linen). The quantity of steam can be regulated using the steam quantity regulator (1).

no

steam

Small steam volume

Large steam volume

Extra steam can be added with the steam jet function (7).

Caution: the steam is hot. Danger of scalding!

Vertical Steam

This can be used to produce a jet of steam in a vertical direction.

GB

Spray Function

If you wish to moisten an area which is to be ironed, press the spray button (6).

Self-Cleaning (Self-Clean)

1. Half fill the water tank with water.
2. Heat the machine up to its maximum temperature. After the control lamp goes off remove the machine from the mains supply.
3. Now hold the iron horizontally over a sink. Hold the steam control in the "SELF CLEAN" position. Now rock the device backwards and forwards until the tank is empty. The steam control automatically returns to position .
4. Place the machine back on its stand and heat it up again. To clean the base now iron over a clean cotton cloth.

Functions of the base

Position of the function switch	Function
Turned fully to the left Ironing	with cable
Turned fully to the right Ironing	without cable
Central position	Locked in position. The iron can no longer be removed from the base.

Attachment

Use the contrivance in the base to attach the iron to a table top. See also illustrations A to D.

Cleaning and Storage

Always remove the mains lead before cleaning!
- Clean the casing with a slightly damp cloth.
- Clean the iron with a slightly humid cloth.
- Always return the steam regulator to the „●“ position after use and empty the water tank in order to prevent any leaks.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

GB

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

Pexim camoouctkn (Self-Clean)

1. HanoJIHnTe BoJHOb 6aOc HA noJIOBHy BoOn.
2. Pa3oIpeTe npi6Op Do makcImaJIbHOm TemnepaTpybl. Iocne TOrO, KaK KOHTPOJbHaJaAMNoUka NOrachET, OTKIOUHTe eRO, NOXaJIyNCTa, OTCETN.
3. BozBMnte yTIOB pyKN u DePxNTE erO rOpNUOHTaJIbHO naD yMbIbJIbHnKOM. IpeBeIte peryIaTOp noDAu npa B noLoXeHne "SELF CLEAN" u dePxNTE erO. BolTaIte yTIOr Tua-cIOda noka 6aOcK He onOpOXHnTCra. PeryIaTOp noDaun npa aBTOMATUeCKn BEpHeTcB nNoLOXeHne
4. YctaHOBnTe np6op o6paTHo Ha noDCTaBky n pa3orpeiTe erO eue pa3.ДЯ ONUCTKn NOIOWBbl yTIOra npOrIaIbTe KaKoe-HN6yIb xJIoNuaTo6ymaxHoe NOLOTEHcE.

Функши nooctabkn noyTIO

TapaHTnIaTePcETc npBvBckpbITn N3dJIeNIA NOCTOpOHHIMN JINLAmN.

Pocne rapaHTnn

Iocne OKOHaHncaPoka rapaHTn, peMOHT n3delen npOn3BODITc 3a ONlaTy, COOTBETCTByIOUzIMM MaCTepCKIMN IIN NyKtAmN CepBnCHoro O6CnyXkBaHnA.

Technische Daten

Modell: CB 751

Bemessungsspannung/
