USER MANUAL FR 2223 CB BOMANN

White BOMANN® air fryer with control knobs and a green indicator light (no visible text or symbols on the device itself)

Technical diagram of a cooking appliance with numbered parts for identification

Bedienungsanleitung

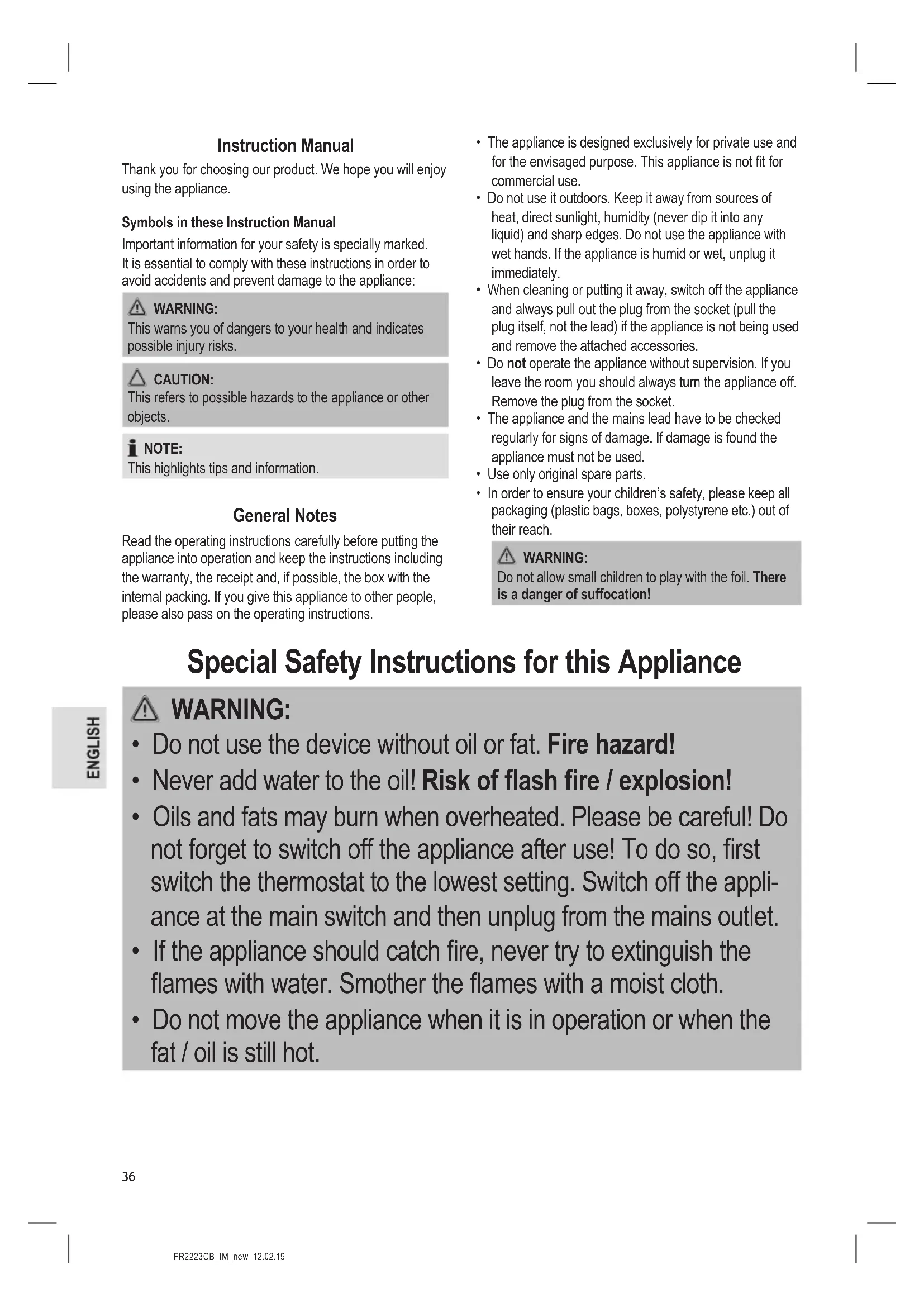

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

WARNING:

• Do not use the device without oil or fat. Fire hazard!
• Never add water to the oil! Risk of flash fire / explosion!
• Oils and fats may burn when overheated. Please be careful! Do not forget to switch off the appliance after use! To do so, first switch the thermostat to the lowest setting. Switch off the appliance at the main switch and then unplug from the mains outlet.
• If the appliance should catch fire, never try to extinguish the flames with water. Smother the flames with a moist cloth.
• Do not move the appliance when it is in operation or when the fat / oil is still hot.

CAUTION:

• This appliance is not intended to be immersed in water during cleaning.
• Different surfaces will get into contact with food and oil. Observe our instructions in this regard in the chapter “Cleaning”.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance shall not be used by children aged between 0 and 8 years.
• This appliance can be used by children aged from 8 years and above if they are constantly supervised.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Cleaning and user maintenance shall not be made by children.
  • Children shall not play with the appliance.
• Cooking pots should be set down in a stable position using the handles (if available) in order to prevent spilling of hot liquids.
• Do not operate the appliance on a separate timer or a separate remote control system.
• This appliance is intended to be used in a household and in similar applications such as
• in staff kitchens of stores, offices, and other industrial areas.

It is not intended for use

• by guests in hotels, motels, and other living arrangements;
• in agricultural estates;
• in bed and breakfasts.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material such as plastic films, filler material, cable ties and cardboard packaging.
3. Check the content for any missing parts.
4. In the event that the packaging content should be incomplete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately.

i NOTE:

There may be dust and production residue on the appliance. We recommend cleaning the appliance as described under "Cleaning".

Overview of the Components / Scope of Delivery

1 Lid (removable)
2 Viewing window
3 Filter cover
4 Tray for condensation
5 Frying fat container
6 Housing
7 Button to open the lid
8 Temperature regulator
9 Main switch
10 HEATING – Temperature control lamp
11 POWER – Power on lamp
12 Button for lowering the deep frying basket
13 Handle
14 Deep frying basket

Notes for Use

Useful Hints for Use

• Oil and fat must be heatable to very high temperatures. Use high quality frying oil or frying grease. Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures.
  • We recommend the use of liquid frying oil.

CAUTION:

... if you would like to use fat!

• If you use fat, please divide it up into small pieces.
  Place it onto the bottom of the frying oil pot.
• Never put the fat into the frying basket!

CAUTION:

... if you would like to use fat!

• Set the temperature regulator to a low temperature and slowly add the pieces.
• Once the fat has melted and the required oil level has been reached, you can set the desired temperature on the temperature control. Do not exceed the MAX mark!

CAUTION:

Heavy build up of foam!

• Never mix oils and fats. The liquid may overflow.
• Rub wet food dry with a cloth. Damp food causes a heavy build up of foam which is serious cases may cause the oil / fat to overflow.

WARNING:

Contaminated oil / fat can be highly inflammable!

• Always remove any food which may remain in the oil / fat.

• Replace the oil / fat regularly.

• Avoid splattering. Fill the basket outside the deep fryer.

• Only fry inside the frying basket.
• Choose the right frying temperature and check the conditions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.
• When frying dough-like foods scrape off the excess dough and put the pieces carefully into the oil.
• The deep fat frying basket must not be more than 23 full. Do not overfill the frying basket.
• Keep the lid closed during use.
• The frying times on the front of the deep fryer are guidelines. Use the times on the food packaging or in your recipe.

Tips for Reducing Acrylic Amide Concentration

• Acrylic amide is a chemical compound. It comes from the bronzing process (deep-frying, baking, frying, roasting and grilling) in foodstuffs high in carbohydrates (starch and sugar) like, for example, potato and cereal products.
• It is suspected that acrylic amide damages genetic make-up and causes cancer. The actual risk to humans is not currently known.
• We recommend that you do not exceed 170 °C when deep-frying.

• Furthermore we recommend that you keep the frying time as short as possible and fry food to a maximum gold yellow colour.
- Thicker chips or pieces of potato are less affected as the acrylic amide is mainly in the outer layer.
- If you make chips from fresh potatoes, you can soak the peeled and chopped pieces of potato for an hour beforehand. This removes some of the sugars (primary substance for acrylic amide) from the outer layers.

Putting into Use

Electrical Connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 1800 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

Use

1. Make sure that the appliance is unplugged and switched off (The control lamps are off.).
2. Open the deep fryer by pressing the button (7).
3. In order to remove the deep fryer, place your hands in the tub and pull the handle (13) upwards until it locks in place.
4. Fill oil or fat into the frying fat container. (maximum 2 litres). The filling level must be located between the minimum and the maximum level.

5. Insert the plug in a duly installed protective contact socket.

6. Switch on the appliance at the main switch (I). The POWER on lamp lights up.

7. Set the desired temperature on the temperature regulator (8). The HEATING control lamp lights up. Then close the lid during the heating-up phase.

NOTE:

Once the set temperature has been reached, the HEATING control lamp goes off. The power on lamp remains on and shows that the device is working.

1. Now fill the deep-fry basket. Please ensure that the basket is not filled above the hot fat. Open the lid and insert the basket with the items to be fried carefully into the recess.

2. Now close the lid. Release the handle (by pushing the button (12) on the handle). The deep-fry basket is now in the hot fat.

NOTE:

• During the deep-frying process the HEATING control lamp switches on and off several times. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained.

• The frying times are to be found on the packaging of the food or in the recipe.

• After the frying time has expired, you can allow the oil to drain off the deep-fried food. To do so, reach into the recess and pull the handle (13) up, until it latches. This will lift the basket.

WARNING:

As it is possible that hot steam will be released.

Open the lid carefully.

1. Now remove the deep-frying basket.

Switching Off

1. Set the temperature regulator to the minimum setting (0).
2. Switch the appliance off at the main switch (O).
3. Remove the mains plug from the socket.
4. Allow the frying oil a considerable time to cool down. Before continuing to use the full frying pot, please ensure that it is no longer at a dangerous temperature.

Cleaning

WARNING:

- Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

WARNING:

- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• The lid of the deep fryer can be removed. This makes it easier to clean.

• Pull out the condensation tray on the back of the appliance to empty it. Replace it afterwards.
  • Pour out any used oil from the side.
• Clean the fat container, the lid and the housing with a damp cloth and if necessary domestic washing-up liquid.
• Deep frying basket can be cleaned in the normal way in soapy water.
• Ensure that the parts are completely dry before re-using the appliance and before storage.

Changing the Odour and Fat Vapour Filter

The filter in the lid can be replaced.

1. Remove filter cover (3).
2. Replace the filter.
3. Then reassemble the cover.

NOTE:

When these filters have been used up it is possible to cut universal filters to size, e. g. from cooker hoods.

Storage

• Clean the appliance as described and let it dry completely.
  • We recommend that you store the appliance in the original packaging, should you not want to use it for a longer period of time.
  • Always store the appliance out of the reach of children in a well ventilated and dry location.

Technical Data

Model: FR 2223 CB
Power supply: 230 V\~, 50 Hz
Power consumption: 1800 W
Protection class: I
Filling quantity: .... max. 2 litres
Net weight: .... approx. 2.45 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the Symbol "Dustbin"

Protect our environment; electrical appliances do not belong in household waste.

Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use.

You help reduce the potential impact of incorrect disposal on the environment and human health.

You contribute to recycling, and other forms of recycling of electrical and electronic equipment.

Information concerning the disposal of appliances can be obtained from your local or municipal authorities.
