USER MANUAL Spectra Prism NGS
Thank you for purchasing this product. Please read user's guide for safety and operations information before using the product for better use and safety operation. Keep this manual for future reference. This product can create perfect laser programs and effects since it has passed a series of strictly tests before delivery.
Please handle with care after receiving the unit and check the attachments listed on the page after opening the carton. In the event of carton damage or attachment missing in transit, please contact your dealer or our after sales service department.
NOTICE
- Do not exposure the human eye direct to laser beam.
- This unit is intended for indoor use only and should be prevented form water, moisture and shake. The working temperature of this unit is 10-35°C, do not use this continuously over 4 hours, otherwise it shortens the lifetime of the unit.
Warning! Do not exposure the human eye direct to laser beam.
PACKAGE CONTENT
SPECTRA PRISM User's manual Remote control
Power supply Tripod
INSTALLATION
- Before installation, please make sure power voltage is proper as the one marked on the unit.
- When installing this unit, please make sure there is nothing flammable or explosive 0.5 meter near the unit. Make sure there is 15mm distance between the unit and the wall.
USER'S MANUAL
FRONT PANEL
1 Infrared receiver
2 Laser aperture
REAR PANEL
1 Auto / music active switch
2 Fan
3 Power input connector

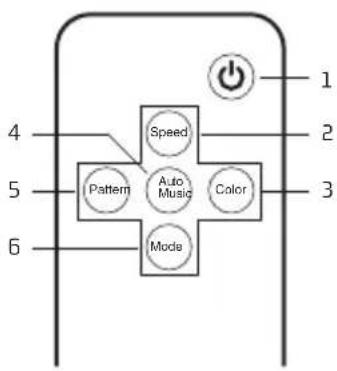

REMOTE CONTROL
1 POWER: Close or open the light
2 SPEED: faster fastest normal
3 COLOR: green red green and red strobe normal
4 AUTO & MUSIC: auto music
5 PATTERN: different pattern or flash speed
6 MODE: clockwise stop counterclockwise normal

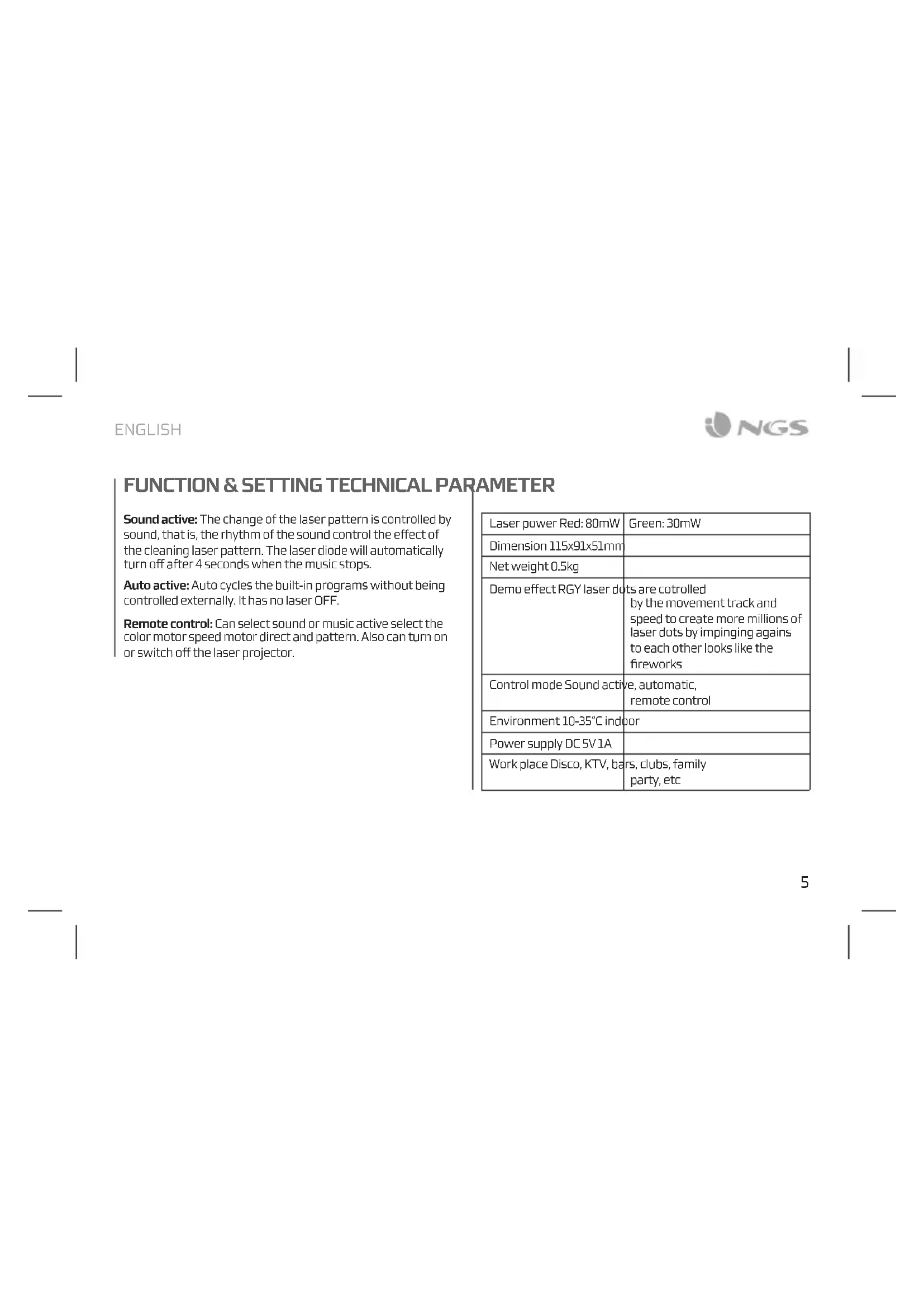

FUNCTION & SETTING TECHNICAL PARAMETER
Sound active: The change of the laser pattern is controlled by sound, that is, the rhythm of the sound control the effect of the cleaning laser pattern. The laser diode will automatically turn off after 4 seconds when the music stops.
Auto active: Auto cycles the built-in programs without being controlled externally. It has no laser OFF.
Remote control: Can select sound or music active select the color motor speed motor direct and pattern. Also can turn on or switch off the laser projector.
| Laser power Red: 80mW | Green: 30mW |
| Dimension 115x91x51mm | |
| Net weight 0.5kg | |
| Demo effect RGY laser dots are controlled by the movement track and speed to create more millions of laser dots by impinging agains to each other looks like the fireworks | |
| Control mode Sound active, automatic, remote control | |
| Environment 10-35°C indoor | |
| Power supply DC 5V 1A | |
| Work place Disco, KTV, bars, clubs, family party, etc | |
USER'S MANUAL
TROUBLESHOOTING
- Do not turn ON and OFF the unit frequently.
- Use cleaning tissue to remove the dust absorbed on the external lenses periodically to optimize light output.
| Trouble manifestation Trouble shooting | |
| Laser doesn’t work Please check the power supply | |
| If the laser light did not work with music or changed crazy during sound active function | Please increase or decreases the music volume |
| If the laser beam is at rest in working mode | Product problem |
| After trying the above solution you still have a problem, please contact your dealer or our company for service | |
ENGLISH
NGS
If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)
MANUEL DE L'UTILISATEUR
SPECTRA PRISM
LUMIÈRES DE FÉTE LASER
If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
(Waste Electrical and Electronic Equipment Directive)
O△HΓIEΣXPH∑H∑
SPECTRA PRISM
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:
HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARDE EUROPEAS ARMONIZADAS:
EN 55015:2013+A1:2015
EN61000-3-3:2013
EN61547:2009
EN60598-1:2015
EN61000-3-2:2006+A1:2009+A2:2009
EN60598-2-17:1989+A2:1991
AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
Y,PORLO TANTO, CUMPLE CON LOS REQUIERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTVAS DEL PARLAMENTO EUROPEO:
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU
LOW VOLTAGE DIRECTIVE (LVD) 2014/35/EU
ROHS DIRECTIVE 2011/65/EU
DIRECTIVA DE COMPATIBILIDAD ELECTROMAGNETICA (EMC) 2014/30/EU
DIRECTIVA DE BAJA TENSION (LVD) 2014/35/EU
DIRECTIVA ROHS 2011/65/EU
AUTHORIZED REPRESENTATIVE:
LURBE GRUPS.A
REPRESENTANTEAUTORIZADO:
POL IND.EGUIBURUBERRI
C/EGUBURUBERRI,5
20100 ERRENTERIA (GUIPUZCOA)
SPAIN
ERRENTERIA, JULY 25TH, 2017
ERRENTERIA, 25 DE JULIO DE 2017
RAUL MARTÍN
PRODUCT MANAGER
LURBE GRUP S.A, ERRENTERIA, ESPAGNE, SOUS SA RESPONSABILITE EXCLUSIVE, CERTIFIE LA CONFORMITE DU PRODUIT:
LURBE GRUP S.A, ERRENTERIA, ESPANA, DECLARA SOB A SUA EXCLUSIVA RESPONSABILIDADE A CONFORMIDADE DO PRODUTO:
NGS:LUMIERES DE FETELASERNGS/MODELE:SPECTRAPRISM
NGS: LUXES DE FESTALASERNGS / MODELO:SPECTRAPRISM
A ETÉ TESTÉ CONFORMÉMÉNT AUX NORMES STANDARDE EUROPEÉNNES HARMONISEES SUIVANTES:
FOI TESTADO EM CONFORMIDADE COM AS SEGUIENTES NORMAS STANDARDE EUROPEIAS HARMONIZADAS:
EN55015:2013+A1:2015
EN 61000-3-3:2013
EN 61547:2009
EN60598-1:2015
EN61000-3-2:2006+A1:2009+A2:2009
EN60598-2-17:1989+A2:1991
ET RESPECTE DONC LES EXIGENCES ET LES DISPOSITIONS DES DIRECTIVES SUIVANTES DU PARLEMENT EUROPEEN:
E,POR CONSEGUINE, CUMPRE COM OS REQUISITOS E PROVISIONS DAS SEGUINTES DIRECTIVAS DO PARLAMENTO EUROPEU:
DIRECTIVE DE COMPATIBILITÉ ÉLECTROMAGNÉTIQUE (EMC) 2014/30/EU
DIRECTIVE BASSE TENSION (LVD) 2014/35/EU
DIRECTIVE ROHS 2011/65/EU
DIRECTIVA DE COMPATIBILIDA ELECTROMAGNETICA (EMC) 2014/30/EU
DIRECTVA DE BAIXA TENSAO (LVD) 2014/35/EU
DIRECTIVA ROHS 2011/65/EU
REPRESENTANTAUTORISE:
LURBE GRUP S.A.
REPRESENTANTEAUTORIZADO:
POL IND.EGUBURUBERRI
C/EGUBURUBERRI,5
20100ERRENTERIA(GUIPUZCOA)
SPAIN
ERRENTERIA,LE25JULLET2017 ERRENTERIA,25DEJULHO DE2017
RAUL MARTÍN
PRODUCT MANAGER
NGS
TECHNICAL SUPPORT: WWW.NGS.EU/SUPPORT
WWW.NGS.EU
