USER MANUAL Wild Swag NGS

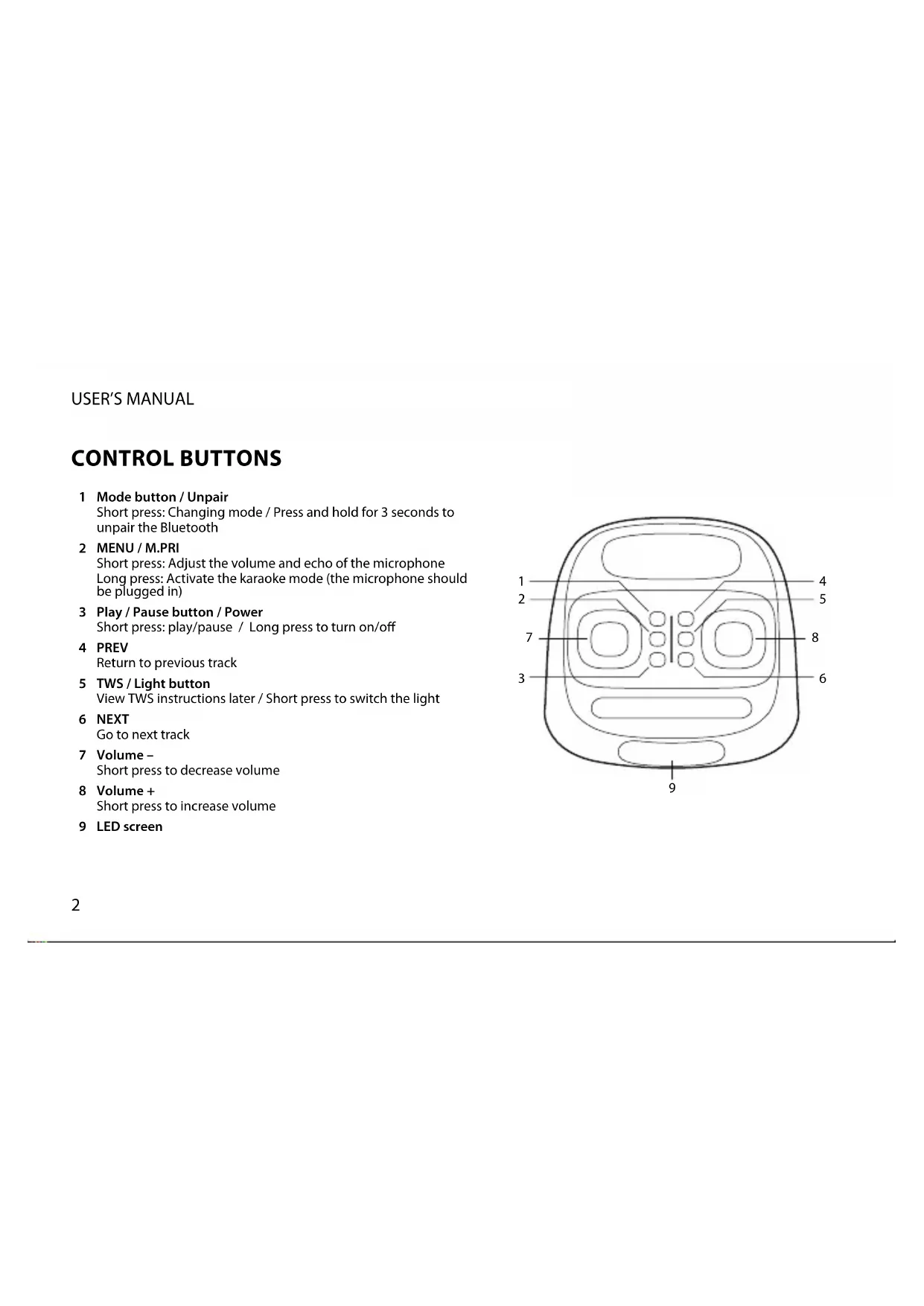

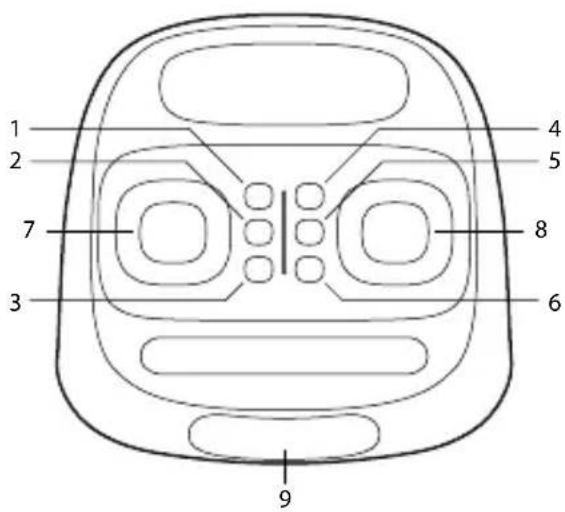

1 Mode button / Unpair Short press: Changing mode / Press and hold for 3 seconds to unpair the Bluetooth
2 MENU / M.PRI Short press: Adjust the volume and echo of the microphone Long press: Activate the karaoke mode (the microphone should be plugged in)
3 Play / Pause button / Power Short press: play/pause / Long press to turn on/off
4 PREV Return to previous track
5 TWS / Light button View TWS instructions later / Short press to switch the light
6 NEXT Go to next track
7 Volume – Short press to decrease volume
8 Volume + Short press to increase volume
9 LED screen

1 2 7 3 4 5 8 6 9

ENGLISH

10 Microphone input
11 AUX interface
12 TF card interface
13 USB interface
14 Type-C interface USB C charging port

10 11 12 13 14

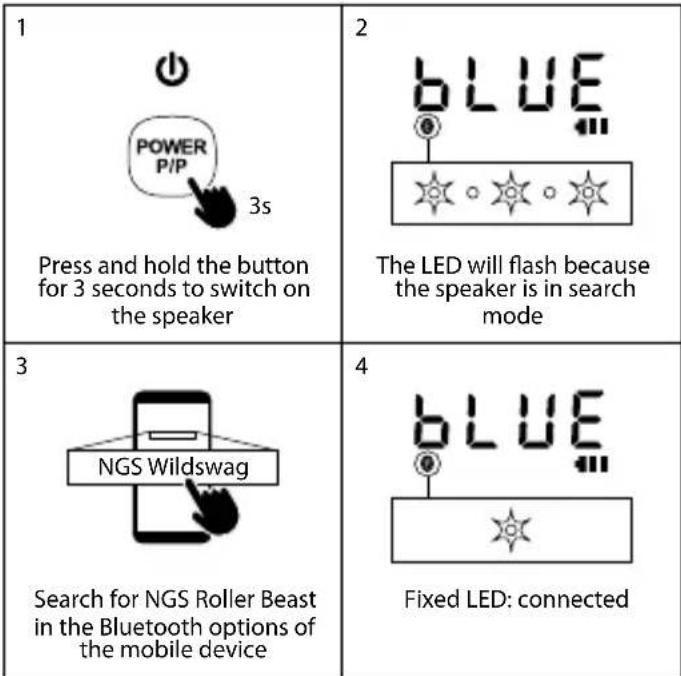

BLUETOOTH MODE

1 Press and hold the button for 3 seconds to switch on the speaker 2 The LED will flash because the speaker is in search mode 3 NGS Wildswag Search for NGS Roller Beast in the Bluetooth options of the mobile device 4 Fixed LED: connected

USER'S MANUAL

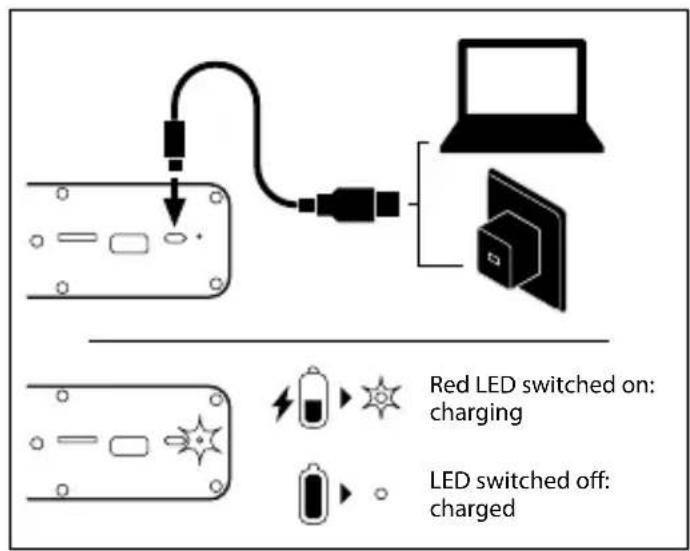

HOW TO CHARGE? TWS

Red LED switched on: charging LED switched off: charged

Note: With the battery below 10%, you will hear a beep several times before the music turns off, the battery indicator flashes.

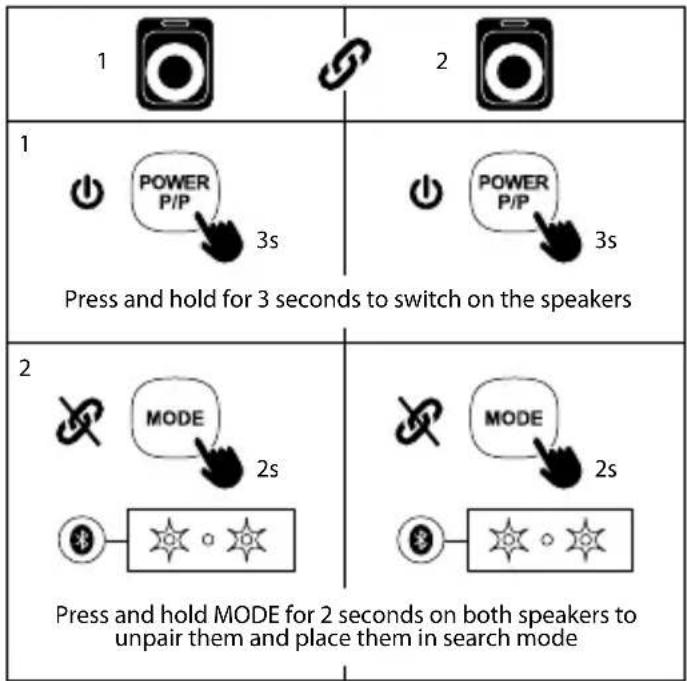

1 2 1 POWER P/P 3s POWER P/P 3s Press and hold for 3 seconds to switch on the speakers 2 MODE 2s MODE 2s Press and hold MODE for 2 seconds on both speakers to unpair them and place them in search mode

32s
Press and hold the TWS button for 2 seconds on one of the speakers to pair them
4"Connected"	[SZHS] "Connected"
You will hear a "Connected" sound on both speakers

5
Search the Bluetooth options on the mobile device for "NGS Wildswag"

Press and hold the TWS button for 3 seconds to exit the TWS mode

USER'S MANUAL

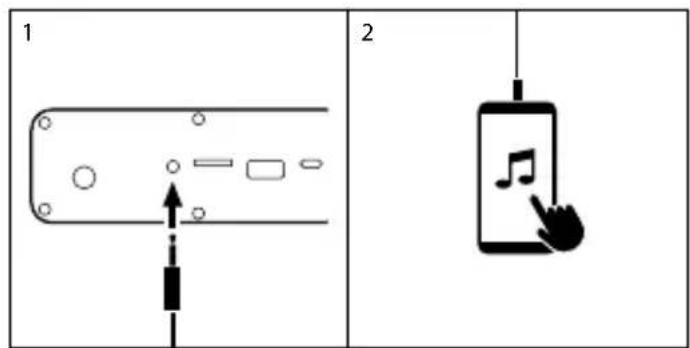

AUX IN MODEUSB/TF MODE

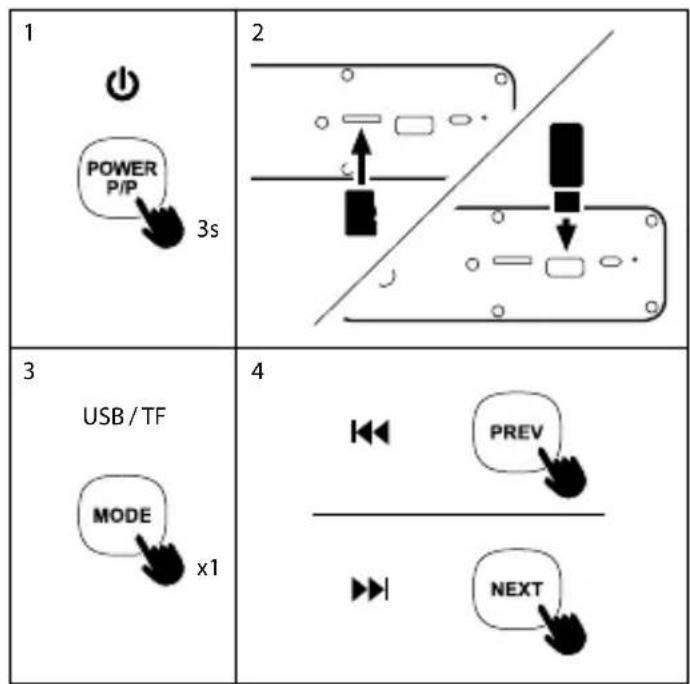

1 POWER P/P 3s 2 3 USB / TF MODE x1 4 PREV NEXT

1 2

ENGLISH

TECHNICAL SPECIFICATIONS

Compatible with bluetooth 5.0 Yes

TWS (get double power connecting

2 speakers at the same time without cables) Yes

Output power 80W

RMS power 40W

AUX audio input Yes

USB audio input Yes

TF audio input Yes

Volume control Yes

Battery Ion-Li 7.4V / 3600mAh

Battery life 6 hours*

Frequency range 2402-2480MHz

Max. RF output power 0.01dBm

* with lights

7 hours at 50% volume

5 hours at 70% volume

2.5 hours at 100% volume

without lights

10 hours at 50% volume

6 hours at 70% volume

3 hours at 100% volume

Battery warranty

The battery is a consumer product, and as such it is under warranty for 12 months.

USER'S MANUAL

SECURITY

IMPORTANT SAFETY INSTRUCTIONS

For all products:

1. Read and follow the instructions.
2. Keep the instructions in a safe place.
3. Observe the warnings.
4. Do not block the ventilation openings. Install according to the instructions.
5. Do not install near any heat sources such as radiators, heating vents, stoves, or other appliances (including amplifiers) that generate heat.
6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7. Avoid stepping on or pinching the power cord, especially at plugs, outlets, and the point where it exits the product.
8. Use only the accessories and auxiliary products specified in the product.
9. Take care when transporting the product to prevent damage.
10. Unplug the device during thunderstorms or when not in use for an extended period.
11. To completely disconnect the device from the power supply, unplug the power cord plug from the AC receptacle.
12. The mains plug of the power cord should remain readily accessible.

13. Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.

14. This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

The symbol refers to "dangerous voltage" inside the product's cabinet that, when misused and disassembled, may result in electric shock to people.

The symbol refers to "important instructions" for operation and maintenance (repairs).

WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.

FOR ALL EUROPEAN UNION COUNTRIES:

For products including audio output

Hearing loss prevention

Caution: Hearing loss may occur if headphones or earphones are used at high volume for extended periods. The products have been tested to verify compliance with the sound pressure level requirements established in the applicable standards NF EN 50332-1:2013 and/or EN 50332-2:2013 required by French Article L.5232-1.

Important: To prevent potential hearing damage, do not listen at high volume for extended periods.

This device complies with the European Union requirements (1999/5/EC) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.

The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20 W/kg over 10 grams of body tissue.

Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.

WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.

This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.

USER'S MANUAL

Compliance with RoHS requirements.

This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products that include batteries.

EU Directive 2013/56/EU on batteries.

The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

User instructions for extraction, recycling, and disposal of used batteries.

To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.

In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.

In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.

WARNING: Risk of explosion if the battery is replaced incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries.

The symbol for separate collection of all batteries and accumulators is shown in this section.

Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:

Hg Cd Pb

ENGLISH

MANUEL DE L'UTILISATEUR

BOUTONS DE COMMANDE

REŽIM AUX INREŽIM USB/TF

1 POWER P/P 3s 2 3 USB / TF MODE x1 4 PREV NEXT

1 2

ČEŠTINA

TECHNICKÉ SPECIFIKACE

REŽIM AUX INREŽIM USB/TF

1 POWER P/P 3s 2 3 USB / TF MODE x1 4 PREV NEXT

1 2

SLOVENČINA

TECHNICKÉ ŠPECIFIKÁCIE

Kompatibilné s Bluetooth 5.0 Áno

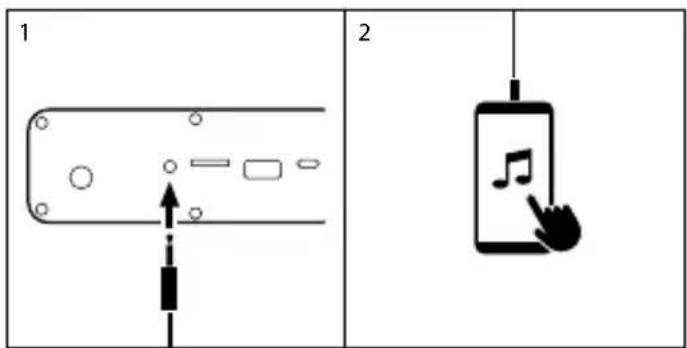

"AUX IN" REŽIMAS"USB/TF" REŽIMAS

1 2

TECHNINĖS SPECIFIKACIJOS

Suderinamas su "Bluetooth" 5,0 taip

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

ENIEC 62368-1:2020+A1:2020

EN62479:2010

EN50663:2017

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN55032:2015+A11:2020

EN55035:2017+A11:2020

EN61000-3-2:2019

EN61000-3-3:2013+A1:2019

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

ED ADO David G. Sato

RAÚL MARTÍN

PRODUCT MANAGER

LURBE GRUP S.A, SAN SEBASTIAN, ESPAGNE, SOUS SA RESPONSABILITÉ EXCLUSIVE, CERTIFIE LA CONFORMITÉ DU PRODUIT :

LURBE GRUP S.A, SAN SEBASTIÁN, ESPAÑA, DECLARA SOB A SUA EXCLUSIVA RESPONSABILIDADE A CONFORMIDADE DO PRODUTO:

NGS: HAUT-PARLEUR BLUETOOTH NGS / MODELE: WILDSWAG

NGS: ALTO-FALANTE BLUETOOTH NGS / MODELO: WILDSWAG

A ÉTÉ TESTÉ CONFORMÉMENT AUX NORMES STANDARD EUROPÉENNES HARMONISÉES SUIVANTES :

FOITESTADO EM CONFORMIDADE COM AS SEGUINTES NORMAS STANDARD EUROPEIAS HARMONIZADAS:

ENIEC 62368-1:2020+A1:2020

EN62479:2010

EN50663:2017

ETSI EN 301 489-1 V2.2.3 (2019-11)

ETSI EN 301 489-17 V3.2.4 (2020-09)

EN 55032:2015-A11:2020

EN55035:2017+A11:2020

EN61000-3-2:2019

EN61000-3-3:2013+A1:2019
