USER MANUAL FL 86 XA MT SCHOLTES

! Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance. ! Please keep these operating instructions for future reference. Make sure that the instructions are kept with the appliance if it is sold, given away or moved. Positioning ! Keep all packaging materials out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips). ! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. Built-in appliance Use the appropriate cabinet to ensure that the appliance functions properly. The panels adjacent to the oven must be made of heat-resistant material. Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C. To install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions: 480 mm. 595 mm.24,5 mm.545 mm. 3 mm. 470 mm. 7 mm. 475 mm. 45 mm.558 mm.547 mm. min. 560 mm. 45 mm. Installation ! If the appliance is fitted under the counter, make sure that the hob piping is positioned correctly and that it does not interfere with the oven during installation or obstruct the rear vents of the cooling fan. ! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation. Ventilation To ensure adequate ventilation is provided, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams). Centring and fixing Position the 2 tabs on the side of the oven so that they are lined up with the 2 upper holes in the outer frame. Adjust the tabs according to the thickness of the cabinet side panel: 20 mm thick: take off the removable part of the tab (see diagram). 18 mm thick: use the first groove, which has already been set in the factory (see diagram). OK OK18

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see side). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit- breaker). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point. ! The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that: The appliance is earthed and the plug is compliant with the law. The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below). The voltage is in the range between the values indicated on the data plate (see below). The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. 16 mm thick: use the second groove (see diagram). Secure the appliance to the cabinet by opening the oven door and placing 2 screws into the 2 upper holes in the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool. Electrical connection ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable

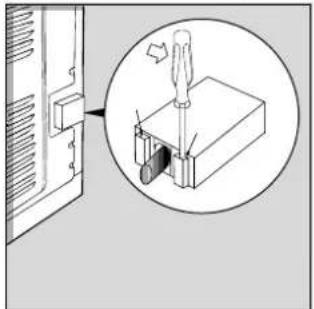

1. Open the terminal

board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

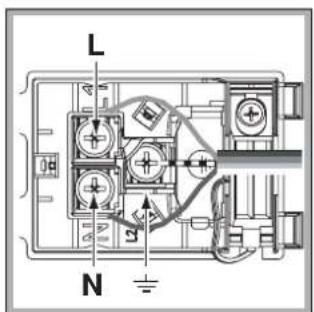

2. Install the power

supply cable Loosen the cable clamp screw and the three screws for the wire contacts L-N- and then fix the wires underneath the heads of the screws, respecting the colour coding: Blue (N) Brown (L) Yellow- Green (see figure).

3. Secure the cable by fastening the clamp screw.

4. Close the cover of the terminal board.19

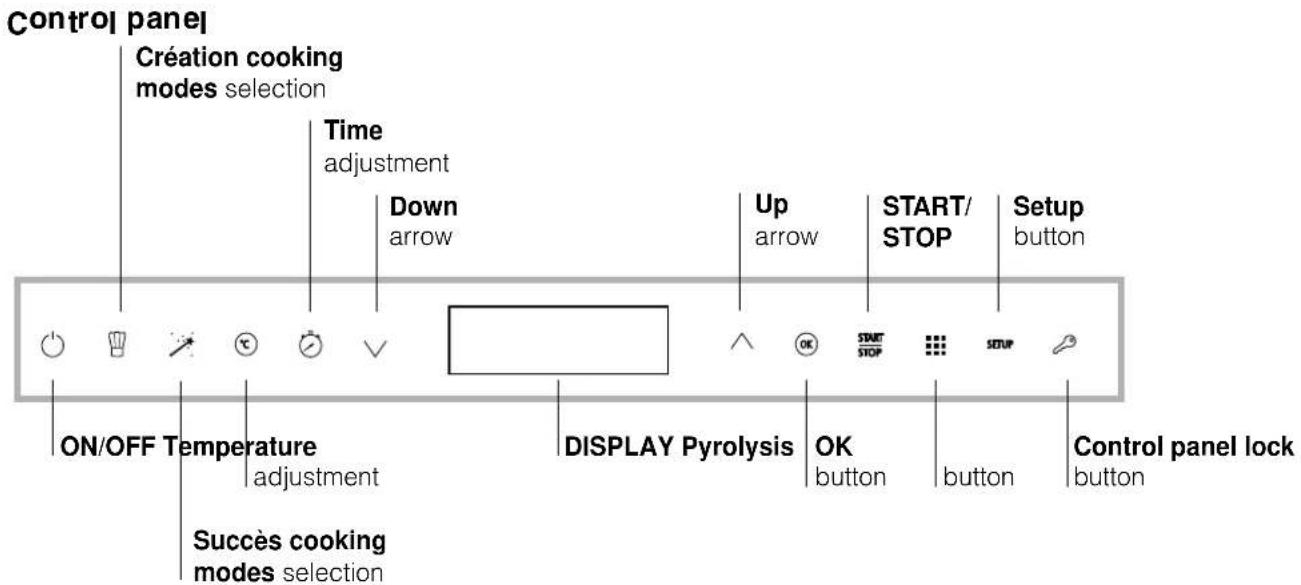

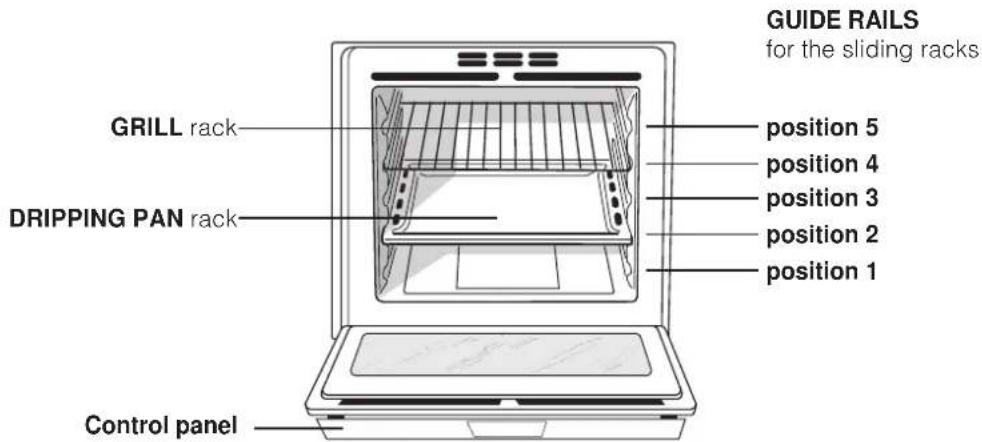

Control panel GRILL rack DRIPPING PAN rack GUIDE RAILS for the sliding racks position 5 position 4 position 3 position 2 position 1 Description of the appliance Overall view Control panel ON/OFF Temperature adjustment

! The first time you switch your appliance on, heat the empty oven to its maximum temperature for at least half an hour, making sure the door is kept shut. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. ! Every time the oven is switched on it is set to the Création menu. ! If the user does not touch any of the buttons after the oven is switched on, it will switch off again automatically after 2 minutes. Switching the oven on for the first time After connecting the oven to the electricity supply, the first time it is switched on the user should also switch on the control panel by pressing the button. The list of languages in the SETUP menu will appear. To choose the desired language select it using the and buttons. The character in bold indicates which language has been chosen. Press the OK button to confirm. Once the selection has been made, the display will show the following parameters: LANGUAGE Choose language TIME Set the time SOUND Keypad sounds CLOCK Display the clock SAFETY INFO Display the info text EXIT Exit the setup menu ! After choosing the language in the SETUP menu, if the display is not used for another 60 seconds it will automatically revert to the Création menu. Setting the clock To set the clock, switch on the oven by pressing the button, then press the SETUP button and follow the steps described.

1. Select the TIME command and press OK to

begin modifying the value.

2. Adjust the hour figure using the

3. Press the OK button to confirm.

4. Repeat the process to set the minutes.

Setting the timer The timer can be set while the oven is switched off or while it is switched on, when navigating the menu for a cooking mode. When the set time has elapsed, the oven will emit a sound signal. This will automatically stop after one minute or when any symbol on the control panel is pressed. To set the timer press the button and adjust the minutes using the or buttons. Press the OK button to confirm. ! The timer does not switch the oven on or off. Child Lock The Child Lock function may be used to lock the oven door and controls. To activate the function, press the button followed by the "OK" button to confirm the setting. To deactivate the function, repeat the procedure described above. The child lock function can be activated when a cooking programme is in progress or when the oven is switched off, or when a cooking end time has been set and the start button pressed. The child lock function can also be deactivated in all the above situations and after the oven has completed the cooking programme. Demo mode The oven can operate in DEMO mode: all heating elements are deactivated, and controls remain operative. To enable the DEMO mode, press the , button and the button in sequence, followed by the "OK" button, when the oven is switched on. To disable the mode, press the button and the button in sequence when the oven is switched on. A buzzer sounds and the display shows Demo Off. The Demo mode can only be activated when the oven is switched on and no cooking programme has been commenced. Starting the oven ! Every time the oven is switched on it is set to the Création menu.

1. Switch the control panel on by pressing the

or buttons to select the desired programme and confirm by pressing OK. The display will show the temperature and the set duration (only the duration is shown for Succès modes).

3. Press the START/STOP button to begin cooking.

4. The oven will begin its preheating stage.

5. When the preheating process has finished, a

buzzer sounds and all current preheating indicator lights show that this stage has been completed:

6. During cooking it is always possible to:

- Modify the temperature by pressing the button, adjust the figure using the or buttons and confirm Start-up and use21

by pressing OK (only for Création cooking modes). - Programme the duration of a cooking mode (only for Création cooking modes). - Stop cooking by pressing the START/STOP button. - Set the timer

- Switch off the oven by pressing the button.

7. In case of a blackout, if the oven was already

operating, an automatic system within the appliance will reactivate the cooking mode from where it was interrupted as long as the temperature did not drop below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. ! There is no preheating stage for the ROASTING and GRILL modes. ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to reduce the external temperature of the oven, a cooling fan generates a stream of air which escapes above the oven control panel. At the beginning of the PYROLYTIC cycle, the cooling fan operates at low speed. At the end of the PYROLYTIC cycle, the cooling fan operates at maximum speed. ! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door.

TABLE OF CHARACTERISTICS

Dimensions width 43.5 cm height 32 cm depth 41.5 cm Volume 58 l Electrical connections voltage: 220-240V ~ 50/60Hz maximum power absorbed 2800 W ENERGY LABEL Directive 2002/40/EC on the label of electric ovens. Standard EN 50304 Declared energy consumption for Forced convection Class – heating mode: Rotisserie. This appliance conforms to the following European Economic Community directives: 73/23/EEC dated 19/02/73 (Low Voltage) and subsequent amendments; 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments; 93/68/EEC dated 22/07/93 and subsequent amendments. 2002/96/EEC22

Création cooking modes ! All cooking modes have a default cooking temperature which may be adjusted manually between 30 °C and 300 °C as desired. The Création cooking mode covers all manual cooking modes. The oven controls all essential aspects of each of these cooking modes and makes it easier for you to create the perfect dish, from the simplest recipe to the most sophisticated culinary delights: the temperature, heat source, humidity and fan assisted operation are all controlled automatically. This chapter was written with the help of our very own culinary expert. We invite you to follow his advice so you can benefit from his experience and perfect your cooking skills. The recommended cooking modes, temperatures and oven shelf heights reflect our experts own experience in the kitchen and will help you achieve the very best results. The table below specifies whether it is best to pre-heat your oven or not for each Création cooking mode. Observing these suggestions will guarantee perfect results. If you wish to place food in a preheated oven, wait for the preheating stage to be completed (this will be signalled by a series of beeps). The temperature is set automatically, according to the cooking mode selected; however, you may adjust it to suit your recipe. You can also set a cooking time with an immediate or delayed start. MULTILEVEL mode All heating elements and the fan are activated. Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. GRILL mode The top heating element comes on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed. SPIT ROAST mode The top heating element and the turnspit will be activated. The function is ideal for spit cooking. Always cook in this mode with the oven door closed. GRATIN mode The top and circular heating elements switch on and the fan begins to operate. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This mode is ideal for cooking gratin dishes, lasagne, etc... Always cook in this mode with the oven door closed. OVEN TRADITION mode When using this traditional cooking mode, it is best to use one cooking rack only. Recommended for slow cooking or cooking with a bain-marie. When using a bain-marie, the water should be poured directly into the dripping pan. ROASTING mode The top and circular heating elements switch on and the fan begins to operate. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. PROVING mode The circular heating element will come on and the fan will operate during the preheating stage only. The oven temperature is ideal for activating the rising process. Always cook in this mode with the oven door closed. BRIOCHE mode The combined use of the upper and circular heating elements make this cooking mode ideal for desserts containing natural yeast. PIES mode The combined use of the upper and circular heating elements make this cooking mode ideal for puff pastry or flaky pastry desserts. BAKED CAKES mode This cooking mode is suitable for all baked desserts which do not fall into the BRIOCHE or PIES category (for example, small choux pastries, sponge cake, etc...). Cooking modes23

LOW TEMPERATURE modes This type of cooking mode, used for years by industry professionals, enables food (meat, fish, fruit and vegetables) to be cooked at very low temperatures (between 85 and 120°C), thereby guaranteeing a perfect level of cooking and enhancing the taste as much as possible. The value of these advantages should not be underestimated: As the cooking temperatures are very low (in general they are lower than the evaporation temperature), the dispersion of cooking sauces due to evaporation is substantially reduced and the food becomes softer. When cooking meat, the muscular fibres contract less than they would during a classic cooking programme. The result is a more tender meat which does not need to be rested after it is cooked. Meat should be browned before it is placed in the oven. Cooking foods which have been vacuum-packed at low temperatures, a technique used for over 30 years by the most prestigious chefs, brings many advantages: Culinary: flavours are concentrated and the taste, softness and tenderness of the food are maintained. Hygienic: provided that hygiene regulations are respected, this type of cooking protects the food from the harmful effects of oxygen, guaranteeing that the dishes may be stored for longer in the refrigerator. Organisational: thanks to the longer storage period, dishes may be prepared well in advance. Diet-related: this type of cooking limits the amount of fatty substances used and therefore means that the food is lighter and easier to digest. Financial: the food shrinks less so there is more of the product left after it has been cooked. To use this technique, you must use a vacuum- packing machine and the appropriate bags. Follow the instructions given relating to vacuum-packing food carefully. The vacuum-packing technique may also be used for raw products (fruit, vegetables, etc.) in addition to pre-cooked products (traditional cooking). Spit roast To operate the rotisserie spit (see diagram) proceed as follows:

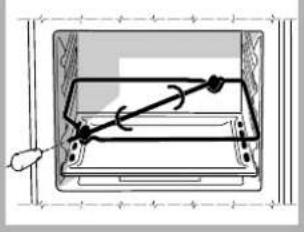

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 3 and

insert the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie spit by selecting the xxx

cooking mode. ! When this mode is enabled, the spit will stop if the door is opened. Succès automatic cooking modes ! Do not open the oven door as this will disrupt the cooking time and temperature. The Succès function encompasses all the automatic cooking programmes devised and set by our chef. All Succès cooking modes are completely automatic: the temperature and cooking duration are pre-set values, guaranteeing a perfect result every time - automatically. These values cannot be adjusted using the C.O.P.

(Programmed Optimal Cooking) system. Cooking ends automatically and the oven informs you when the dish is ready (only the Pizzeria function requires the user to check the food before taking it out of the oven). This chapter was written with the help of our very own culinary expert. We invite you to follow his advice so you can benefit from his experience and perfect your cooking skills. The recommended cooking modes, temperatures and oven shelf heights reflect our experts own experience in the kitchen and will help you achieve the very best results. None of the Succès cooking modes - except the Pizzeria function - require the oven to be preheated (see following paragraph). For the ROAST... and PIES... cooking modes, it is possible to programme a delayed start.24

ROAST... mode Use this function to cook beef, pork and lamb. Place the meat inside the oven while it is still cold. The dish may also be placed in a preheated oven. PIES... mode This function is ideal for cooking desserts which are made using natural yeast, baking powder and desserts which contain no yeast. Place the dish in the oven while it is still cold. The dish may also be placed in a preheated oven. BREAD mode Use this function to make bread. Please see the following chapter for further details. To obtain the best results, we recommend that you carefully observe the instructions below: Follow the recipe. Do not exceed the maximum weight of the dripping pan. Remember to put 100 ml of water in the dripping pan above the tray holding the dough; commence cooking while the oven is still cold. The dough must be left to rise at room temperature for 1 1 ½ hours (depending on the room temperature) or until the dough has doubled in size. Recipe for BREAD: 1 Dripping pan of 1000 g Max, lower level 2 Dripping pans each holding 1000 g Max, medium and lower levels Recipe for 1000 g of dough: 600 g flour, 350 ml water, 10 g salt, 25 g fresh yeast (or 2 sachets of powder yeast) Method: Mix flour and salt in a large bowl. Dilute yeast in lukewarm water (approximately 35 degrees). Make a small well in the mound of flour. Pour in water and yeast mixture. Knead dough by stretching and folding it over itself with the palm of your hand for 10 minutes until it has a uniform consistency and is not too sticky. Ball and cover the dough with plastic wrap and leave it to leaven at room temperature for 1 1 ½ hours (until it has doubled in size). Cut the dough into equal sized loaves. Place them in the dripping pan on oven paper. Cover the loaves with flour. Make incisions on the loaves. Pour 100 ml of cold distilled water into the dripping pan and place it above the tray holding the dough. Place the loaves inside the oven while it is still cold. Start the BREAD cooking mode. Once baked, leave the loaves on one of the grill racks until they have cooled completely. Programming the cooking mode ! Programming is only possible after a cooking mode has been selected. Programming the duration Press the button, then:

2. Adjust the time by pressing the

3. Press OK to confirm.

4. Select the EXIT command and press OK to

confirm. This setting will be memorised.

5. When the set time has elapsed, a buzzer will

sound and the oven will switch off. For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. ! Only the duration of Création cooking programmes may be set. Programming a delayed cooking mode

button and repeat steps 1 to 3 as described in the duration procedure.

2. Select the COOKING END TIME command and

press OK to confirm.

3. Adjust the hour figure using the

4. Press the OK button to confirm.

or buttons again to set the minutes.

6. Press the OK button to confirm.

9. Press the START button to enable the

programming process.

10. When the set time has elapsed, a buzzer will

sound and the oven will switch off. For example: it is 9:00 a.m., a time of 1 hour and 15 minutes is programmed and the end time is set to 12:30. The programme will start automatically at 11:15 a.m. The message awaiting cooking shows that a programme has been scheduled. The display shows the cooking end time and the cooking duration alternately. The cooking end time may be modified while the oven is waiting to start, by following the procedure detailed above. To cancel a programmed schedule, set the duration to 0:00 or switch the oven off

! A delayed cooking programme may be scheduled when setting the duration. Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. This is because excessive direct heat can burn temperature sensitive foods. ! In the SPIT ROAST, GRATIN and ROASTING cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTILEVEL Use positions 2 and 4, placing the food which requires more heat on 2. Place the dripping pan on the bottom and the rack on top. GRATIN Insert the rack in position 3 or 4. Place the food in the centre of the rack. We recommend that the temperature is set to its maximum level. The top heating element is regulated by a thermostat and may not always operate constantly.26

Création cooking advice table ! The Création cooking programmes have default cooking temperatures. Succès cooking advice table ! The Succès cooking programmes have default cooking temperatures and durations. Mode Cooking programme recommended for … Shelf level Rack level 1 Rack level 2 Oven at start NotaNoteMultilevelCooking several dishes on 2 or 3 rackssimultaneously without the respective flavours oraromas mingling 5 (if cookingon 3 shelves)Pre-heatedIf you use this function for one dish only, place the oven trayon shelf 2.GrillBeef steak, fish, grilled food and gratin dishes, etc.

The shelf height depends on thesize of the food to be grilledPre-heatedSpit Roast Cooking red or white meat roasts 1 3 (spit) ColdGrati nGratin/baked foods (potato gratin, parmentier,lasagne, etc.)2ColdIf you wish to brown the top of a gratin dish which is hot andhas already been cooked, select the grill function.Temperature (210 °C) cannot be adjusted.TraditionSlow-cooking dishes (hotpots, beef bourguignon,casseroles, etc.) or bain-marie cooking (terrines,crème caramel, etc.)2 Pre-heatedWhen using a bain-marie, you can pour the water directlyinto the dripping pan. Roasting Roasts (white or red meat) 1 2 Cold The recommended temperature guarantees perfect cookingand sealing of the roast and avoids the formation of smoke.If your meat is in a roasting dish, use the dripping pan onshelf 2.BakingBaking process for dough made with yeast orbaking powder (brioches, bread, sugar pie,croissants, etc.)2 Cold Temperature (40 °C) cannot be adjusted. Brioche Baked desserts (made using natural yeast) 2 Pre-heated If you wish to cook a pizza, set the temperature to 220°C. Pies Sweet or savoury pastries (puff or flaky pastry) 2 Pre-heated Perfect cooking from underneath and browning on top fordecoration.Baked CakesAll desserts not included in the Pies / Tarts andBrioche categories (choux pastries, pound cake,sponge cake, turnovers, clafoutis, etc.)2 Pre-heatedIf you use a single shelf, position the mixture (choux pastry,turnovers, etc.) or the cake tin (sponge cake, etc.) on thedripping pan. Low temperature 85 Meat, vegetables, fish, etc. 2 Cold Low temperature 95 Meat, vegetables, fish, etc. 2 Cold Low temperature 120 Meat, vegetables, fish, etc. 2 Cold Heating Pre-prepared dishes 2 Cold Temperature (140 °C) cannot be adjusted. Pasteurisation Fruit, vegetables, etc. 2 Cold Small containers may be positioned on 2 levels (drippingpan on the 1st shelf and rack on the 3rd shelf). Let thecontainers cool inside the oven. Mode Cooking programme recommended for … Shelf level Rack level 1 Rack level 2 Oven at start Note Roast Beef Roast beef 1 2 Roast veal Roast veal 1 2 Roast pork Roast pork 1 2 Roast chicken Roast chicken 1 2 Leg of lamb Leg of lamb 1 2 Cold If your meat is in a roasting dish, use the dripping pan on shelf 2. These dishes may also be placed in a hot oven if necessary. Pies Sweet or savoury pastries (shortcrust, puff or flaky) 2 Brioche Desserts made with natural yeast (brioches, almond cake, etc.)

Rich fruit cake Desserts made with baking powder (marbled biscuits, pound cake, etc.)

Cold To cook several items at once, place the dripping pan on the first shelf and the grids on the third and fifth shelves. These dishes may also be placed in a hot oven. Bread * * *27

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety ! The oven control panel is not a touch-pad, therefore the buttons should be pressed lightly yet firmly to ensure you have performed the intended operations. The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. When moving or positioning the appliance, always use the handles provided on the sides of the oven. Do not touch the appliance with bare feet or with wet or damp hands and feet. The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not touch the heating elements and parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance. Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. The openings used for the ventilation and dispersion of heat must never be covered. Always grip the oven door handle in the centre: the ends may be hot. Always use oven gloves when placing cookware in the oven or when removing it. Do not use aluminium foil to line the bottom of the oven. Do not place flammable materials in the oven: If the appliance is switched on accidentally, it could catch fire. When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable. Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. If the appliance breaks down, under no circumstances should you attempt to perform the repairs yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). Do not rest heavy objects on the open oven door. Avoid accidental knocks to the handle as this could damage the glass. Disposal When disposing of packaging material: observe local legislation so that the packaging may be reused. The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. Exhausted appliances may be collected by the public waste collection service, taken to suitable collection areas in the area or, if permitted by current national legislation, they may be returned to the dealers as part of an exchange deal for a new equivalent product. All major manufacturers of household appliances participate in the creation and organisation of systems for the collection and disposal of old and disused appliances. Respecting and conserving the environment You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning. The cooking mode programming options, the delayed cooking mode (see Cooking modes) and delayed automatic cleaning mode (see Care and Maintenance) in particular, enable the user to organise their time efficiently. Always keep the oven door closed when using the SPIT ROAST, GRILL and ROASTING modes. This will achieve improved results while saving energy (approximately 10%). Check the door seals regularly and wipe them clean to ensure they are free of debris so that they adhere properly to the door, thus avoiding heat dispersion.28

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products. The accessories can be washed like everyday crockery, and are even dishwasher safe. We advise against spraying detergents directly onto the control panel; instead spray the product onto a sponge. Use detergent to remove dirt residues from the glass on the inside of the oven door. Do not use steam equipment to clean the appliance. Inspecting the seals Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced. Replacing the light bulb To replace the oven light bulb:

1. Remove the glass cover using a screwdriver.

2. Remove the light bulb and replace it with a similar

one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly (see diagram). Glass door Seal Lamp Oven compartment Automatic cleaning using the PYROLYTIC cycle During the PYROLYTIC cycle, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated and burns away food and grime residues. Dirt is literally incinerated. Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven due to the spontaneous combustion process. There is no cause for concern: this process is both normal and hazard-free. ! The oven advises the user when it is necessary to perform a cleaning cycle; the display shows the text PYROLYTIC CYCLE recommended - START?; select yes to set the desired cleaning cycle level. Before initiating the PYROLYTIC CYCLE: Remove large or coarse food residues from inside of the oven using a damp sponge. Do not use detergents. Remove all the accessories, the guide rails and the supporting frames. Do not place tea towels or pot holders over the oven handle. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The programme may only be started once the oven door has been closed. To activate the PYROLYTIC cycle, press the button followed by the button. Select the desired PYROLYTIC cycle level by adjusting the

buttons. The PYROLYTIC cycle has three default time settings which cannot be modified:

1. Economy (ECO): 1 hour

2. Normal (NOR): 1 hour and 30 minutes

3. Intensive (INT): 2 hours.

Press the OK button to confirm. Press the START/STOP button to begin the PYROLYTIC cycle. Care and maintenance29

Safety devices The door is locked automatically as soon as the temperature exceeds a certain value. Should a malfunction occur, the heating elements will switch off. Once the oven door has been locked, you cannot change the cycle time and end time settings. ! Programming is possible only after selecting the PYROLYTIC cycle mode. Programming delayed automatic cleaning

2. Select the COOKING END TIME command and

press OK to confirm.

3. Adjust the hour figure using the

4. Press the OK button to confirm.

or buttons again to set the minutes.

6. Press the OK button to confirm.

7. Press the START/STOP button to enable the

programming process.

8. When the set time has elapsed, a buzzer will

sound and the oven will switch off. For example: it is 9:00 a.m. and the Economy PYROLYTIC cycle has been selected: default set time 1 hour. 12:30 is selected as the end time. The programme will start automatically at 11:30 a.m. The message awaiting pyrolytic cycle shows that a programme has been scheduled. The display shows the pyrolytic cycle end time and the duration alternately. To cancel programming press the button. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.30
