D7060XO - Basket NEFF - Free user manual and instructions

Brand	Neff
Model	D7060XO
Category	Hood
Product type	Extractor hood
Weight	7.0 kg
Compatible fan	HBD-MX10-8
Minimum duct diameter	150 mm
Length of supplied extension cable	Approximately 5 m
Roof type for installation	Tiled roof with slope ≥ 10°
Minimum distance between fan and hood	2 m
Permissible negative pressure	Max 4 Pa (0.04 mbar)
Hood material	Stainless steel
Cleaning	Special stainless steel cleaner, avoid abrasive sponges and acidic/chlorinated products
Safety	Disconnect before maintenance, repairs by specialist
Electrical installation	Connection by certified electrician, grounding mandatory
Optional accessory	Silencer for 150 mm duct
Disposal	Environmentally responsible recycling
Subject to modifications	Subject to technical modifications

Frequently Asked Questions - D7060XO NEFF

How to install the Neff D7060XO hood?

Installation must be carried out by a specialist. The fan is mounted on a tiled roof with a slope of at least 10°, at a minimum distance of 2 meters from the hood. The electrical connection is made via the supplied extension cable (approx. 5 m).

What are the risks if the air supply is insufficient?

If the hood exhausts air to the outside and the home has combustion appliances, insufficient air supply can lead to poisoning from re-aspiration of combustion gases. The negative pressure must not exceed 4 Pa.

How to clean the stainless steel of the hood?

Use a special stainless steel cleaner. Never use abrasive sponges or detergents containing sand, caustic soda, acid, or chlorine. Apply a maintenance product from time to time to protect the appearance.

Can I use a duct with a diameter smaller than 150 mm?

No, the diameter of the connecting ducts must not be less than 150 mm at any point. An additional silencer (optional) is available for this diameter.

What to do if the power cord is damaged?

Replacement must be carried out by the manufacturer, its after-sales service, or a qualified person to avoid any risk.

Can the fan be mounted on a flat roof?

No, the fan can only be mounted on tiled sloping roofs (slope of at least 10°). Flat roofs or Eternit roofs are excluded.

What safety precautions before maintenance?

Before any operation, disconnect the hood from the power supply by unplugging the plug-in connection or the power cable. Repairs must be carried out by a specialist.

How to ensure sufficient air supply for combustion?

Provide non-closable openings (doors, windows, vents) or interlocking to allow air to flow in. The negative pressure must not exceed 4 Pa.

What optional accessories are available?

An additional silencer for 150 mm duct is available as an option from specialized retailers.

How to dispose of the hood at the end of its life?

Do not dispose of the appliance with household waste. It must be recycled to recover raw materials. Contact your retailer or local council.

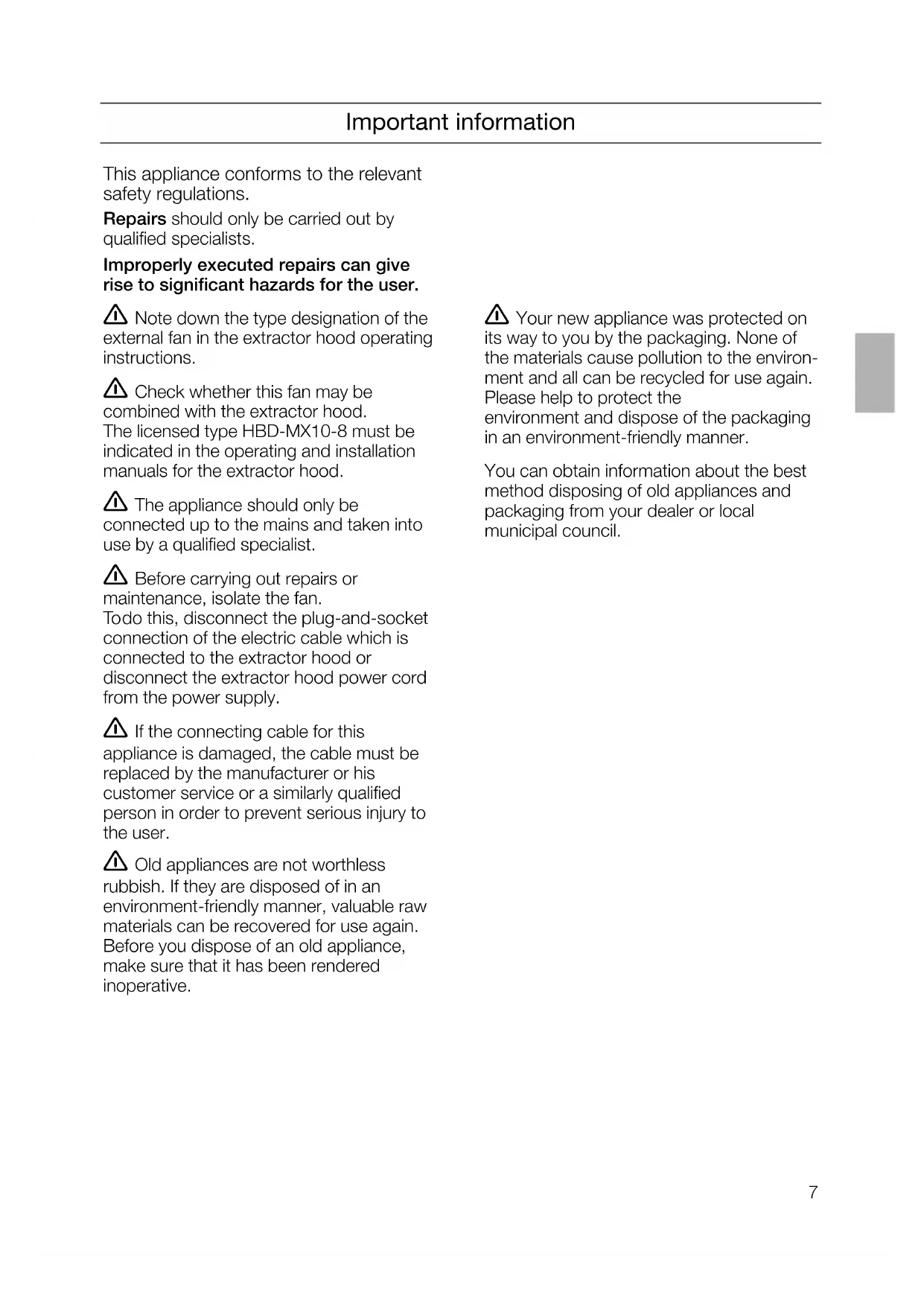

USER MANUAL D7060XO NEFF

This appliance conforms to the relevant safety regulations.

Repairs should only be carried out by qualified specialists.

Improperly executed repairs can give rise to significant hazards for the user.

Note down the type designation of the external fan in the extractor hood operating instructions.
Check whether this fan may be combined with the extractor hood. The licensed type HBD-MX10-8 must be indicated in the operating and installation manuals for the extractor hood.
The appliance should only be connected up to the mains and taken into use by a qualified specialist.
Before carrying out repairs or maintenance, isolate the fan.
Todo this, disconnect the plug-and-socket connection of the electric cable which is connected to the extractor hood or disconnect the extractor hood power cord from the power supply.
If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
Old appliances are not worthless rubbish. If they are disposed of in an environment-friendly manner, valuable raw materials can be recovered for use again. Before you dispose of an old appliance, make sure that it has been rendered inoperative.

Your new appliance was protected on its way to you by the packaging. None of the materials cause pollution to the environment and all can be recycled for use again. Please help to protect the environment and dispose of the packaging in an environment-friendly manner.

You can obtain information about the best method disposing of old appliances and packaging from your dealer or local municipal council.

If the extractor hood is operating in exhaust-air mode at the same time as a flue-type heater (e.g. gas, oil or solid-fuel heater, instantaneous water heater, boiler), there must be an adequate air supply which the fireplace requires for combustion.

Safe operation is possible if the partial vacuum in the installation room of the fireplace does not exceed 4 Pa (0.04 mbar). This can be achieved if the combustion air is able to flow through non-lockable openings, e.g. in doors, windows and in conjunction with an air supply/air-intake wall box or by other technical procedures such as reciprocal interlocking.

If the air supply is inadequate, there is a risk of poisoning caused by combustion gases being drawn back into the room.

Note: When assessing the air supply, always take into account the entire ventilation system in the house. This rule does not apply when using cooking appliances, e.g. hob or gas cooker.

The fan is designed for installation on sloping tiled roofs only. The slope of the roof must be at least 10^
The fan must not be installed on flat roofs or Eternit roofs.
The fan may be installed by a qualified roofer only.

The fan must be attached at least 2m from the extractor hood.
Do not attach the outer wall fan near windows, doors or patios.
When attaching the outer wall fan, ensure that

• residents and neighbours are not disturbed by noise and odours,
• it is accessible for maintenance and repairs.

The plug-and-socket connections of the electric cables must be located inside the building.
Do not reduce the 150~mm diameter of the pipes connected to the extractor hood. An additional silencer for 150~mm pipes is available as an optional accessory from specialist outlets.

Weight: 7,0kg

We reserve the right to construction changes within the context of technical development.

Installation

1. Remove the roof from the installation area.

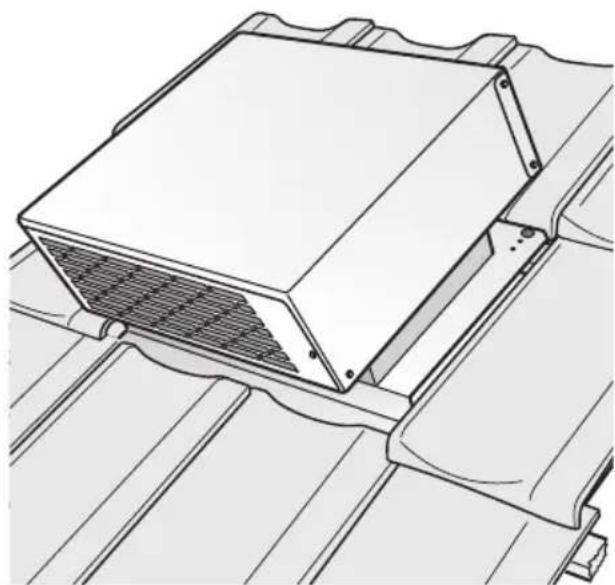

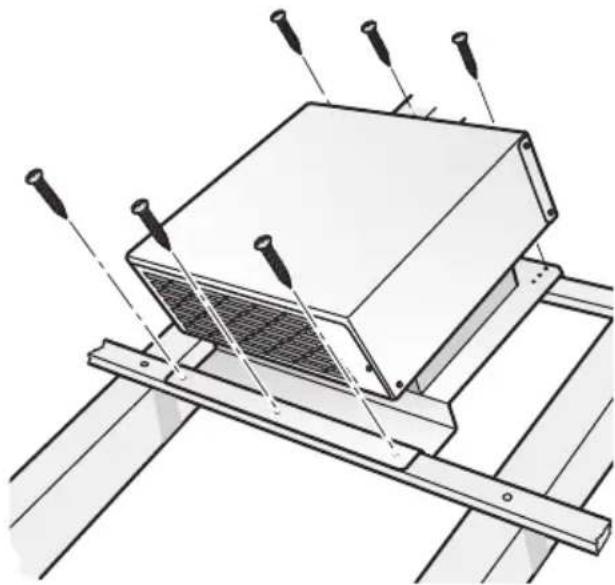

2. Insert the fan and screw into position.

Air outlet downwards.

1. Re-attach the roof.

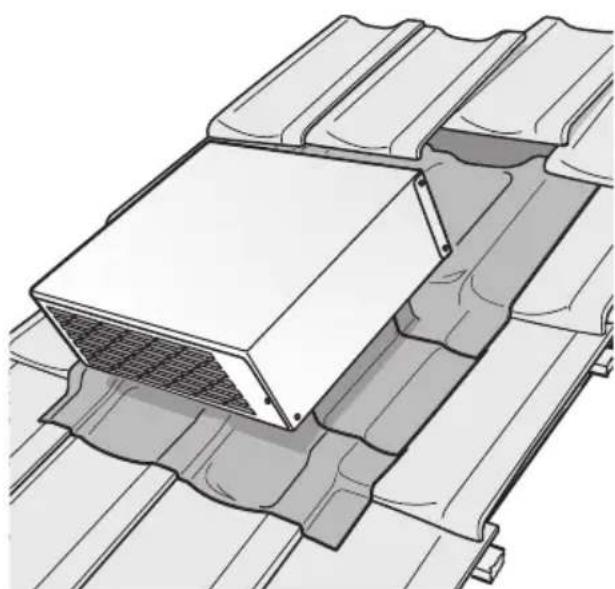

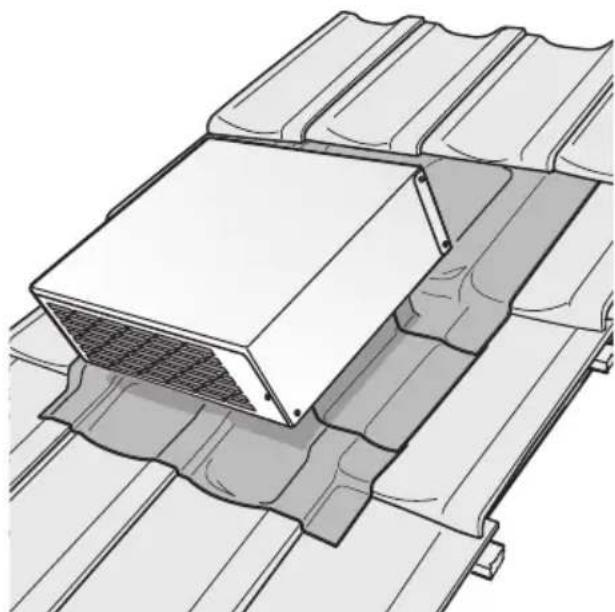

1. Seal the roof.

Installation

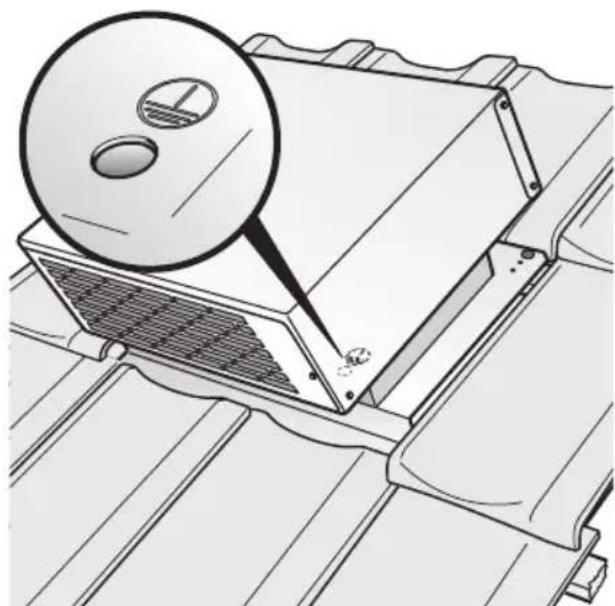

The fan is connected to the extractor hood with the 5m extension cable enclosed with the extractor hood. If an additional extension cable is required, the exterior of the fan housing must be earthed by an electrician before the housing is screwed into position. The parts used for earthing must not come into contact with the fan impeller.

Installation

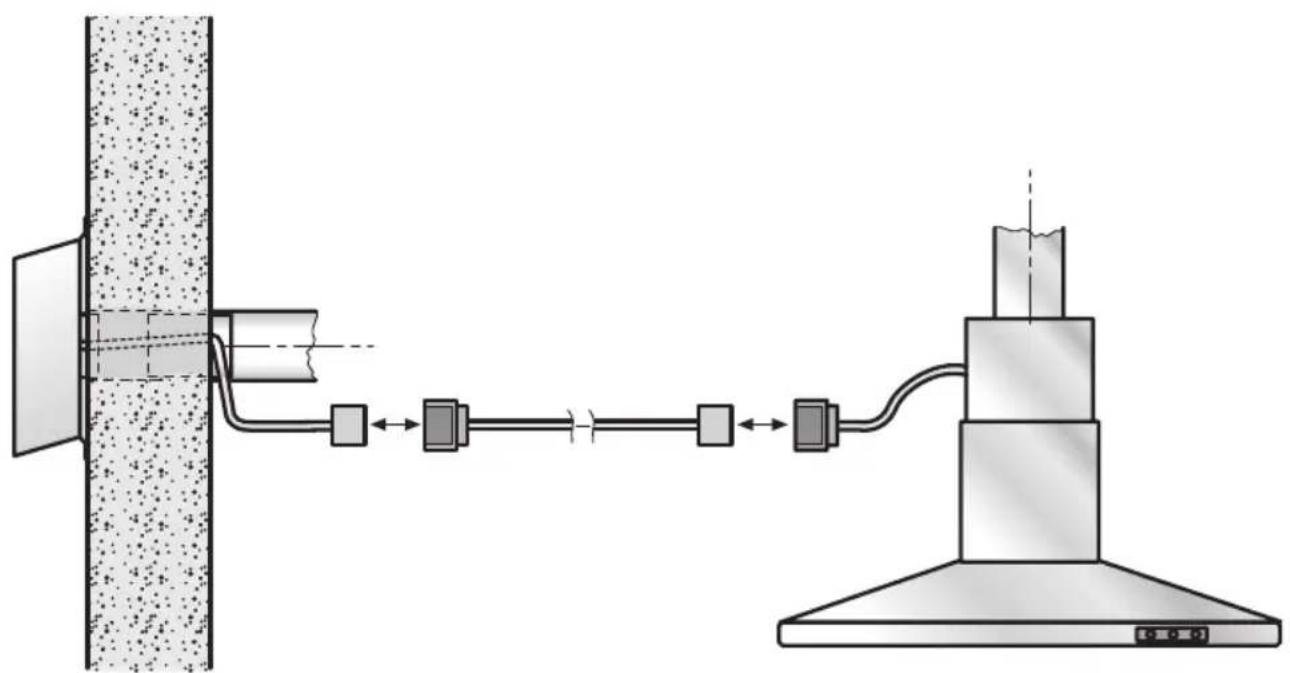

1. Connect the pipe and cable from the fan to the extractor hood.

The additional cover on the plug must always be attached and closed for safety reasons.

User information

Safety instructions

Regularly check that air can flow freely out of the fan.
Do not obstruct the air outlet grille or cover with plants.

If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

Cleaning and care

Use a mild non-abrasive stainless steel cleaner.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Apply a little stainless steel cleaner from time to time in order to maintain the appearance of the appliance.
