USER MANUAL RT10001D MTX Audio

Mono-Block Class-D Power Amplifier

1000W RMS

Designed by MTX in the USA

www.mtxaudio.com

www.mtxaudio.eu

Introduction

Thank you for purchasing an MTX Audio Hi-Performance amplifier. Proper installation matched with MTX speakers and subwoofers provide superior sound and performance for endless hours of waking the neighbors, slammin' your friends or flat out stomping wanna-be players. Congrats and enjoy the ultimate audio experience with MTX!

Specifications

• 1-Channel Mono Block Class-D Power Amplifier
• CEA2006 certified Power Output :
- 1000 watts RMS x 1-channel at 2Ω and THD+N ≤1%
- 600 watts RMS x 1-channel at 4Ω and THD+N ≤1%
• Crossover :
- Low pass 12dB/oct variable from 40Hz to 400Hz
- Subsonic filter 12dB/oct variable from 0 to 50Hz
• Signal-to-Noise Ratio (1 watt) : > 80dB
- THD+Noise (Distortion) (1 watt): ≤ 1%
• Frequency Response (±1dB): 20Hz-30000Hz
• Maximum Input Signal : 6V
• Maximum Sensitivity : 100mV
• Dimensions : 456mm x 180mm x 55mm
• EBC (External Bass Control) remote included

Control Panel

EBC Port 6 INPUT OUTPUT R R 4 5 L L GAIN LP X-OVER SUB 40Hz 180Hz6V 0.1V OFF 50Hz 1 2 3 ROAD THUNDER

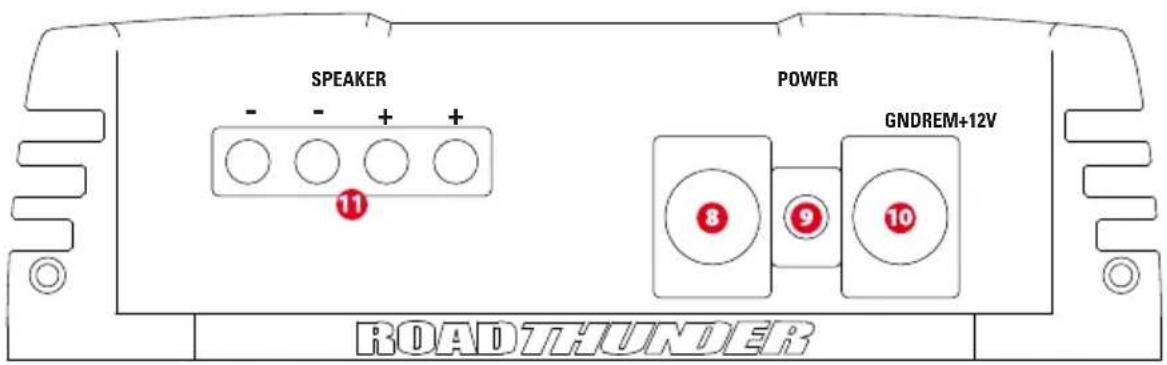

SPEAKER POWER GNDREM+12V ROADTHUNDER

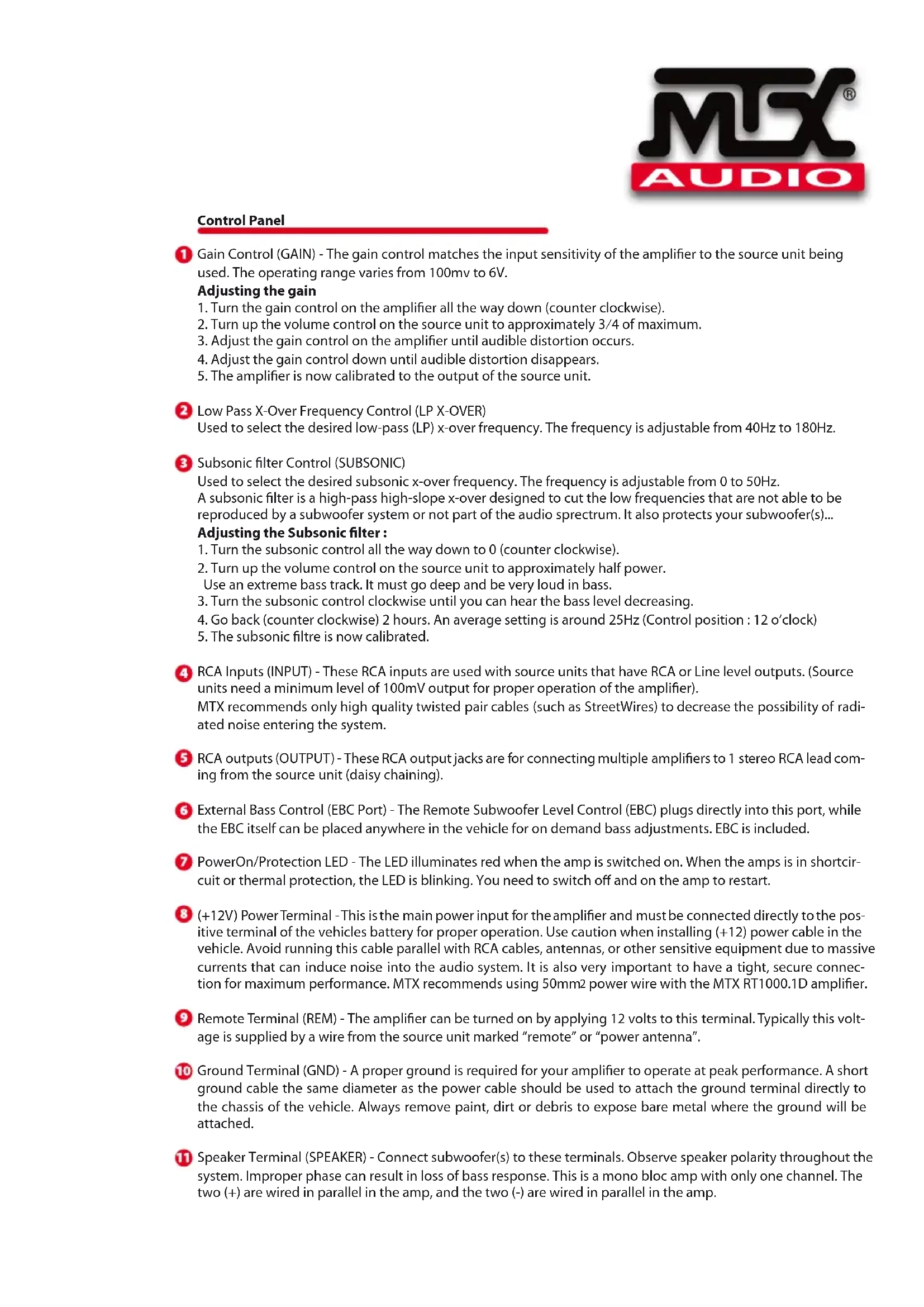

Control Panel

1 Gain Control (GAIN) - The gain control matches the input sensitivity of the amplifier to the source unit being used. The operating range varies from 100mv to 6V.

Adjusting the gain

1. Turn the gain control on the amplifier all the way down (counter clockwise).
2. Turn up the volume control on the source unit to approximately 3/4 of maximum.
3. Adjust the gain control on the amplifier until audible distortion occurs.
4. Adjust the gain control down until audible distortion disappears.
5. The amplifier is now calibrated to the output of the source unit.

2 Low Pass X-Over Frequency Control (LP X-OVER) Used to select the desired low-pass (LP) x-over frequency. The frequency is adjustable from 40Hz to 180Hz.

3 Subsonic filter Control (SUBSONIC) Used to select the desired subsonic x-over frequency. The frequency is adjustable from 0 to 50Hz. A subsonic filter is a high-pass high-slope x-over designed to cut the low frequencies that are not able to be reproduced by a subwoofer system or not part of the audio spectrum. It also protects your subwoofer(s)...

Adjusting the Subsonic filter :

1. Turn the subsonic control all the way down to 0 (counter clockwise).
2. Turn up the volume control on the source unit to approximately half power.
   Use an extreme bass track. It must go deep and be very loud in bass.
3. Turn the subsonic control clockwise until you can hear the bass level decreasing.
4. Go back (counter clockwise) 2 hours. An average setting is around 25Hz (Control position : 12 o'clock)
5. The subsonic filtre is now calibrated.

4 RCA Inputs (INPUT) - These RCA inputs are used with source units that have RCA or Line level outputs. (Source units need a minimum level of 100mV output for proper operation of the amplifier). MTX recommends only high quality twisted pair cables (such as StreetWires) to decrease the possibility of radiated noise entering the system.

5 RCA outputs (OUTPUT) - These RCA output jacks are for connecting multiple amplifiers to 1 stereo RCA lead coming from the source unit (daisy chaining).

6 External Bass Control (EBC Port) - The Remote Subwoofer Level Control (EBC) plugs directly into this port, while the EBC itself can be placed anywhere in the vehicle for on demand bass adjustments. EBC is included.

7 PowerOn/Protection LED - The LED illuminates red when the amp is switched on. When the amps is in shortcircuit or thermal protection, the LED is blinking. You need to switch off and on the amp to restart.

8 (+12V) Power Terminal - This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation. Use caution when installing (+12) power cable in the vehicle. Avoid running this cable parallel with RCA cables, antennas, or other sensitive equipment due to massive currents that can induce noise into the audio system. It is also very important to have a tight, secure connection for maximum performance. MTX recommends using 50mm² power wire with the MTX RT1000.1D amplifier.

9 Remote Terminal (REM) - The amplifier can be turned on by applying 12 volts to this terminal. Typically this voltage is supplied by a wire from the source unit marked "remote" or "power antenna".

10 Ground Terminal (GND) - A proper ground is required for your amplifier to operate at peak performance. A short ground cable the same diameter as the power cable should be used to attach the ground terminal directly to the chassis of the vehicle. Always remove paint, dirt or debris to expose bare metal where the ground will be attached.

11 Speaker Terminal (SPEAKER) - Connect subwoofer(s) to these terminals. Observe speaker polarity throughout the system. Improper phase can result in loss of bass response. This is a mono bloc amp with only one channel. The two (+) are wired in parallel in the amp, and the two (-) are wired in parallel in the amp.

Installation & Mounting

MTX recommends your new RoadTHUNDER amplifier be installed by an Authorized MTX retailer. Any deviation from specified installation instructions can cause serious damage to the amplifier, speakers and/or vehicles electrical system. Damage caused from improper installation is NOT covered under warranty. Please verify all connections prior to system turn on!

1. Disconnect the vehicle's negative battery cable.
2. Determine the mounting place for your MTX amplifier. Keep in mind there should be sufficient air flow for proper cooling. Mark the mounting holes from the amplifier to be drilled. Before drilling make sure all vehicle wires, gas lines, brake lines and gas tank are clear and will not interfere with installation. Drill the desired holes and mount the MTX amplifier.

3. Install a positive (+) power cable from the vehicle's battery through the firewall using a grommet or firewall bushing to avoid cable damage from sharp edges of the firewall. Run the cable through the interior of the vehicle and connect it to the amplifier's (+12V) terminal. Do Not connect to the battery at this time. Note : Use only proper gauge wire for both positive and negative connections.

4. Install a circuit breaker or fuse within 20cm of the battery. This effectively lowers the risk of severe damage to you or your vehicle in case of a short circuit or accident. Make sure the circuitbreaker is switched off or the fuse is taken out of the fuse holder until all connections are made. Now connect your positive power cable to the positive battery terminal of the battery.

5. Grounding - Locate a proper ground point on the vehicle's chassis and remove all paint, dirt or debris to reveal a bare metal surface. Attach the ground wire to that contact point. Connect the opposite end of the ground wire to the (GND) terminal on the MTX amplifier.

6. Connect a Remote Turn-on wire from the source unit to the MTX amplifier's (REM) terminal. If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit's Power Antenna lead.

7. Connecting signal cables to the amplifier: There are two ways to supply the signal to your MTX amp. • To get maximum performance, we suggest connecting a high quality RCA to the corresponding outputs at the source unit and inputs of the amplifier. • If a source unit is being used without RCA outputs, use the included high-level amplifier's speaker terminals using the right gauge speaker wire.

8. Connect your speakers to your MTX amplifier's speaker terminals using the right gauge speaker wire. Your MTX amp can drive a 2Ω minimum load for max power.

9. Double check all previous installation steps, in particular, wiring and component connections. Once verified, reconnect the vehicle's negative battery cable, turn the circuit breaker on or place the fuse in the fuse holder.

Note : Gain Levels on the amplifier should be turned all the way down (counter clockwise) before proceeding with adjustments.

Troubleshooting

Problem

Cause

Solution

No LED indication No +12V at remote connection Supply +12V to terminal No +12V at Power connection Supply +12V to terminal Insufficient ground connection Verify ground connection Blown power fuse Replace fuse

Power LED on, no output Volume on source unit off Increase volume on source unit Speaker connections not made Make speaker connections Gain control on amplifier off Turn up gain Signal processing units off Apply power to signal processor All speakers blown Replace speakers

Output distorted Head unit volume set too high Lower head unit volume Amplifier gain set too high Lower amplifier gain

Balance reversed RCA inputs reversed

Speakers wired L + R reversed Reverse RCA input

Wire speakers with correct orientation

Bass is weak Not using MTX woofers

Speakers wired out of phase Buy MTX woofers

Wire speakers with correct phase

Blowing fuses Amplifier defective

Excessive output levels Return for service

Lower the volume

Introduction :

- 1x 1000 watts RMS @ 2Ωet THD+N ≤1%

- 1x 600 watts RMS @ 4Ω et THD+N ≤1%

• Filtre actif :

MTX woofers no son usados

Compra woofers MTX

Fusibles dañados

3 Instel knop subsonic filter

- 1000W RMS x 1-CH/2 Ohm; THD+N ≤1%

- 600 W RMS x 1-CH/4 Ohm ; THD+N ≤1%

• Zwrotnica :
