Product type	Steam iron
Brand	SilverCrest
Model	DB 1400 B2
Maximum power consumption	1400 W
Mains voltage	220-240 V ~, 50/60 Hz
Temperature setting	Yes, with regulator and indicator light
Steam function	Yes, adjustable via steam regulator
Steam boost function	Yes, via dedicated button
Spray function	Yes, via spray button
Dry ironing	Yes, possible at all temperatures
Soleplate	Soleplate suitable for steam and dry ironing
Water tank	With MAX level indicator
Recommended water type	Tap water or mixed with distilled water depending on hardness
Anti-kink cord protection	Yes, integrated protection
Automatic shut-off	No
Use	Domestic, indoor
Included accessories	Measuring cup, instruction manual
Cleaning and maintenance	Clean the housing with a dry cloth, the soleplate with a damp cloth and mild detergent
Storage	In a dry, clean place away from dust, after complete cooling
Safety instructions	Disconnect before filling or cleaning, do not immerse, keep out of reach of children

Frequently Asked Questions - DB 1400 B2 SILVERCREST

How to fill the water tank of the SilverCrest DB 1400 B2 iron?

Place the iron on its soleplate, open the cover of the filling opening, and pour tap water up to the MAX mark using the supplied measuring cup. Close the cover.

What type of water to use for the DB 1400 B2 iron?

Use tap water. If the water is very hard, mix it with distilled water according to the proportions indicated in the instruction manual table (e.g., 1:1 for medium hardness).

How to adjust the ironing temperature?

Turn the temperature regulator to the position corresponding to the fabric (acrylic/rayon, silk/wool/polyester, cotton/linen). The indicator light turns on and then off when the temperature is reached.

Why is no steam coming out?

Check that the water tank is not empty and that the temperature regulator is at least in the steam range. Also ensure that the steam regulator is not in the off position (symbol ⑧).

How to use the steam boost?

Lift the iron slightly and press the steam boost button. This function is ideal for smoothing hard-to-reach areas.

How to clean the iron?

Unplug it and let it cool down. Clean the housing with a soft, dry cloth. For the soleplate, use a cloth slightly dampened with water and a mild, non-abrasive cleaning product.

Can the iron be left plugged in unattended?

No, never leave the hot or plugged iron unattended. For a break, set the temperature regulator to MIN and place it on its heel. Always unplug after use.

How to maintain the soleplate to avoid marks?

Clean the soleplate regularly with a damp cloth and mild detergent. Do not use abrasive products or solvents. To remove residue, iron an old cloth after heating the iron to maximum power.

What to do if the iron does not heat up?

Check that the plug is properly connected and that the temperature is set to a position other than MIN. If the problem persists, contact after-sales service; do not attempt to repair it yourself.

How to store the iron after use?

Unplug it, empty the water tank, clean the soleplate, and let it cool completely. Store it on its heel in a dry place away from dust.

USER MANUAL DB 1400 B2 SILVERCREST

STEAM IRON DB 1400 B2

GB 1E

STEAM IRON

Operating instructions

FR BE

FERÀ REPASSER VAPEUR

Mode d'emploi

DE AT CH

DAMPFBÜGELEISEN

Bedienungsanleitung

DK

DAMPSTRYGEJERN

Beteningsvejledning

NL BE

STOOMSTRIKIJZER

Gebruksaanwijzing

IAN 275074

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IE Operating instructions Page 1

DK	Betjeningsvejledning	Side	13
FR/BE	Mode d'emploi Page 25
NL/BE	Gebruiksaanwijzing Pgina 39
DE/AT/CH	Bedienungsanleitung Seite 51

Contents

Introduction 2

Copyright 2

Intended use 2

Package contents 2

Disposal of packaging materials 3

Operating components 3

Technical data 3

Safety instructions 4

Before first use 7

Filling the water tank 8

Operation 9

9

Steam ironing 10

Ironing with steam blast 10

Temporarily setting the steam iron down 10

Taking the steam iron out of service 10

Cleaning 11

Storage 11

Troubleshooting 12

Disposal of the appliance 12

Imporer. 12

Service 12

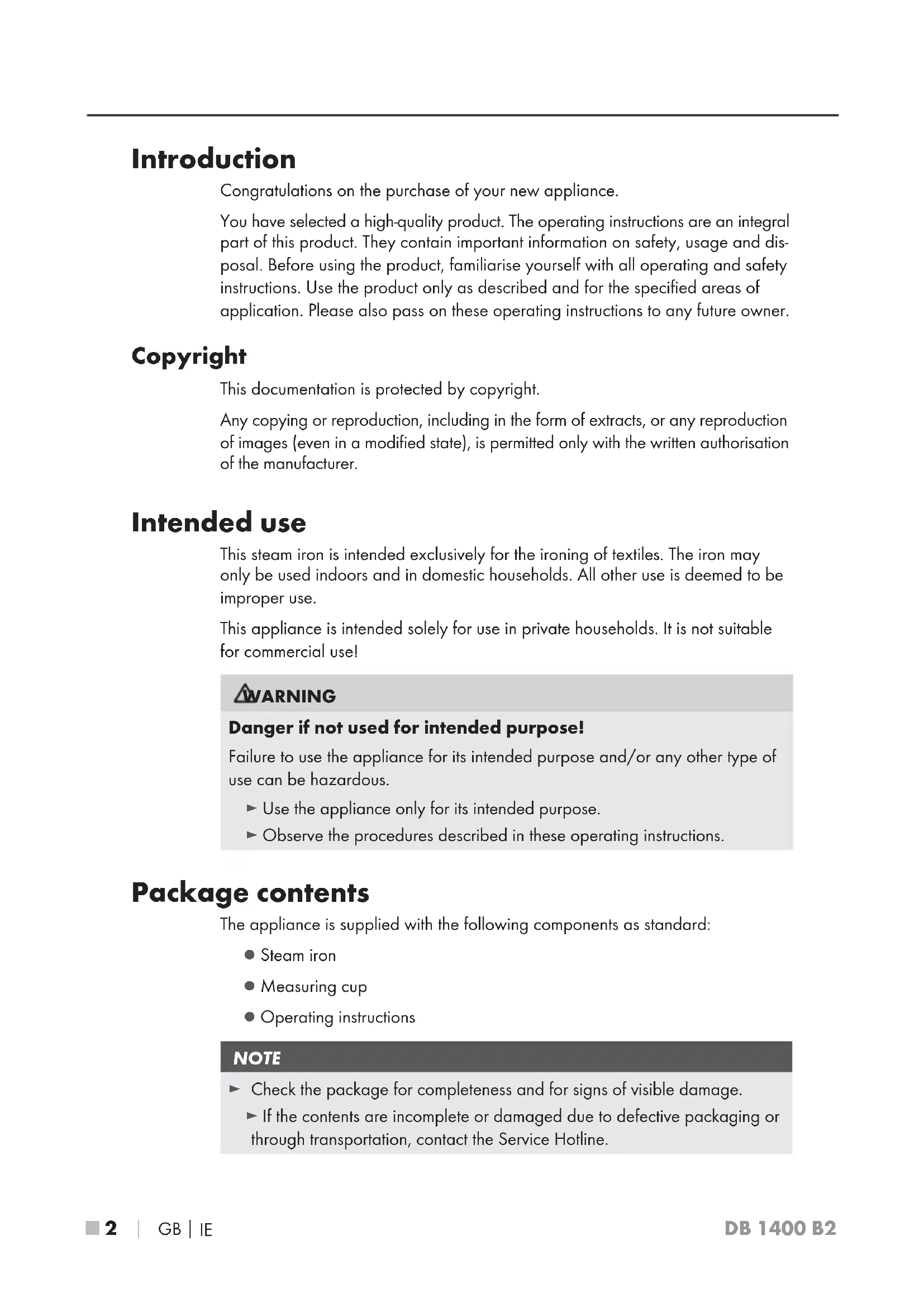

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are an integral part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Intended use

This steam iron is intended exclusively for the ironing of textiles. The iron may only be used indoors and in domestic households. All other use is deemed to be improper use.

This appliance is intended solely for use in private households. It is not suitable for commercial use!

WARNING

Danger if not used for intended purpose!

Failure to use the appliance for its intended purpose and/or any other type of use can be hazardous.

Use the appliance only for its intended purpose.
Observe the procedures described in these operating instructions.

Package contents

The appliance is supplied with the following components as standard:

• Steam iron
  Measuring cup
• Operating instructions

NOTE

Check the package for completeness and for signs of visible damage.
- If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline.

Disposal of packaging materials

The packaging protects the appliance from damage during transport.

The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispos of packaging materials that are no longer needed in accordance with applicable local regulations.

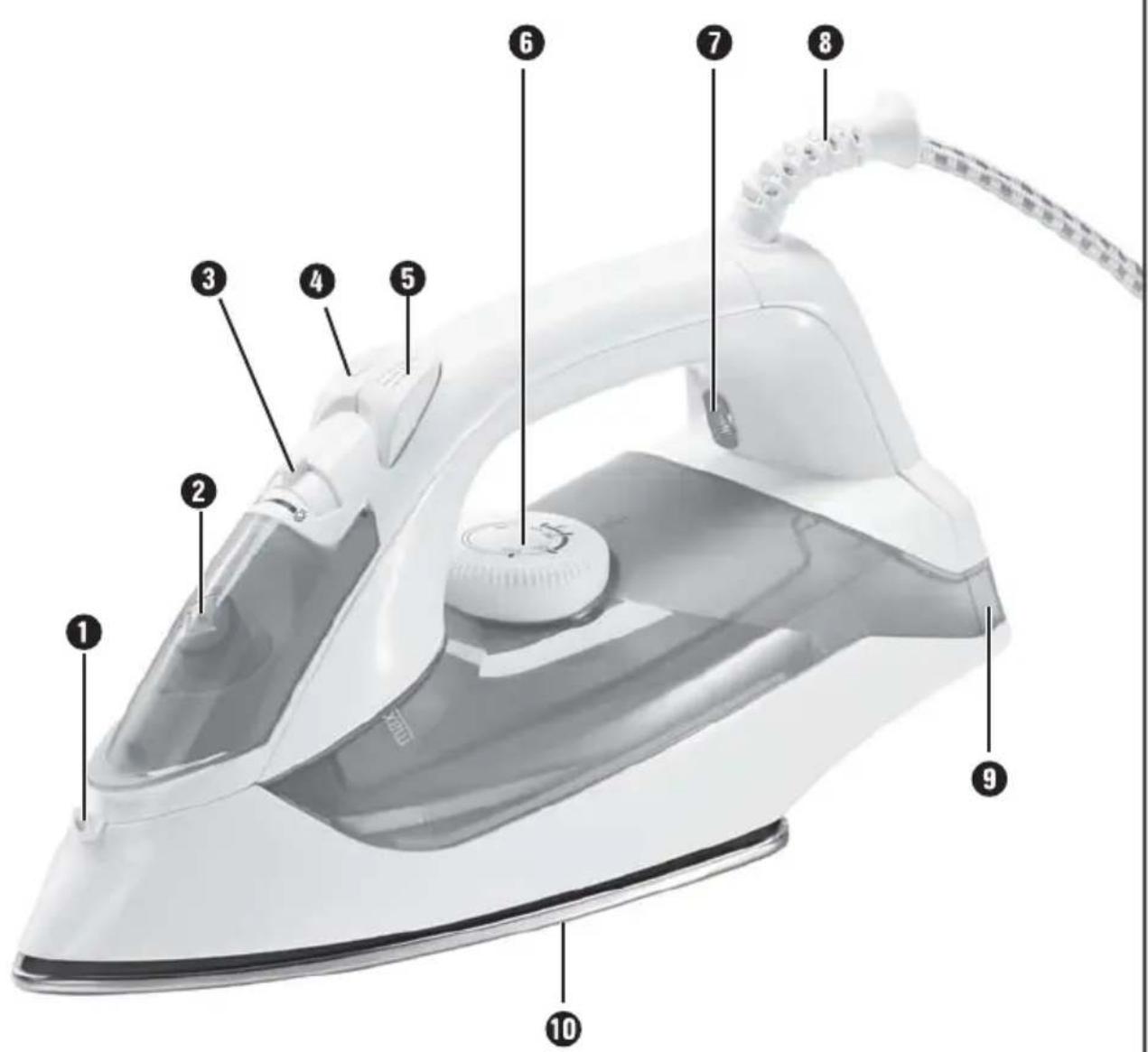

Operating components

Water jet
Filler opening for the water tank
3 Steam control
4 Steam blast button
Spray button
6 Temperature control
7 Temperature control lamp
8 Power cable with anti-kink protection
9 Base
10 Sole of the iron

Technical data

Mains voltage 220 - 240 V \~,50/60 Hz

Max. power consumption 1400 W

Safety instructions

RISK OF ELECTRIC SHOCK

The rating of the local power supply must correspond with the details given on the rating plate of the appliance.
- To avoid potential risks, arrange for a defective appliance to be checked and possibly repaired by qualified technicians, or contact our Customer Service Department.
- To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist technician or our Customer Service department.
- When disconnecting the appliance from the power source, pull only on the plug itself, never on the cable.
- Never bend (kink) or crush the power cable, always route it in such a way that it cannot come into contact with hot surfaces and such that no one can step on or trip over it.
After every use, before cleaning and when refilling with tap water, always remove the plug from the mains power socket.
Always unroll the power cable fully before switching on and do not use an extension cable.
- Never touch the power cable or the plug with wet hands.
- Never use the steam iron adjacent to water contained in a bath, shower, wash basin or other vessels. Water in the proximity of the appliance is hazardous, even if the appliance is switched off.

RISK OF ELECTRIC SHOCK

• Do not submerge the steam iron in any liquid or permit liquids to penetrate into the housing of the steam iron. Do not expose the appliance to humidity and do not use it outdoors. If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
• Do not open the steam iron housing. Have a defective appliance repaired only by an authorised technician.
• Do NOT use the appliance if it shows visible signs of damage, has fallen or leaks water. Arrange for it to be repaired by qualified specialists.
• Stop using the appliance if the anti-kink protection on the power cable is damaged!
• This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised, or have been instructed in the safe use of the appliance and have understood the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance may not be carried out by children unless they are supervised.

WARNING! RISK OF INJURY!

• Never leave the appliance unattended during operation.
• When the steam iron is hot, hold it only by the handle.
  Children should be supervised to ensure that they do not play with the appliance.
• Never place your hands in the steam spray or on hot metal parts.
• Do not open the filler opening for the water tank while the iron is in use. Allow the steam iron to cool down first and remove the plug from the power socket.
  The iron and its connecting cable must be kept out of the reach of children under the age of 8 while the iron is switched on or cooling down.
  Never let children use the steam iron.

Caution! Hot surface!

CAUTION! RISK OF FIRE! MATERIAL DAMAGE!

Always place the iron on a level and heat-resistant surface. The iron must be stable.
- When you want to put the steam iron down, always place it on its base.
- Never leave a hot steam iron unattended - especially if it is switched on or connected to the mains power supply.
- Do not put the steam iron away until it has cooled down completely.
- This steam iron should only be used and set down on stable surfaces.

CAUTION - PROPERTY DAMAGE!

• Use only the ironing temperatures stated in the care instructions as suitable for the material. Otherwise, you could damage the textiles. If you do not know the correct care instructions, start with the lowest temperature setting.
  If the clothing care instructions forbid ironing, (symbol), the clothing item may not be ironed. Ignoring this warning could lead to permanent damage to the clothing item.
  The water tank should be filled only with tap water or distilled water. Otherwise you will damage the steam iron.
• Do not clean the steam iron with solvents, alcohol or abrasive cleaning agents. These could damage it.

Before first use

1) Remove the steam iron from the packaging.
2) Remove all stickers and protective films from the steam iron and from the sole of the iron ⑩.

WARNING - RISK OF SUFFOCATION!

• Plastic bags can be dangerous. To avoid the risks of asphyxiation, keep plastic bags out of the reach of babies and toddlers.

3) Fill the water tank with water (See the chapter "Filling the water tank").
4) Insert the plug into a mains power socket supplying an electrical current as detailed on the rating plate.
5) Move the temperature control 6 to the "MAX" position.
6) Heat the steam iron up for several minutes at the highest setting.
7) Activate the steam blast button ④ a couple of times so that steam comes out of the sole of the iron 10.
8) Then iron over a piece of scrap fabric to remove any production residues that may remain on the sole of the iron 10.

Filling the water tank

1) Put the iron down on the sole of the iron 10.
2) Open the cover of the filler opening for the water tank ②.
3) Using the measuring beaker, fill the water tank with water to the "Max" marking, but no further.
4) Close the cover of the filler opening for the water tank 2.

NOTE

If the mains water in your area is rated as hard, it is recommended that you mix the mains water with some distilled water. Otherwise, the jets for the steam blast function could calcify (become blocked) prematurely.

To extend the optimal steam blast function, mix mains water with distilled water according to the table.

Water hardness	Ratio of distilled water to mains water
very soft/soft 0
medium 1:1
hard 2:1
very hard 3:1

Information about the level of hardness of water in your area can be obtained from your local waterworks.

Operation

Plugging in and ironing

NOTE

Dry ironing without steam is possible at all temperatures, steam ironing is only possible from the setting range on the temperature control 6.

1) Insert the plug into a mains power socket.

CAUTION - PROPERTY DAMAGE!

If the clothing care instructions forbid ironing, symbol), the clothing item may not be ironed. Ignoring this warning could damage your clothing.

2) Check the labels inside the garments for care instructions to see if they are suitable for ironing, and at which temperature setting.

Temperature control ① symbol

Type of material

Acrylic, rayon

Silk, wool, mixed polyester

Cotton, linen

3) Select the appropriate temperature setting using the temperature control 6. The temperature control lamp 7 lights up. When the set temperature has been reached, the temperature control lamp 7 goes out.
4) Wait until the temperature control lamp 7 goes out.
5) To moisten the laundry, press the spray button. This function is suitable for very dry and very crumpled garments.

Steam ironing

Set the steam control 3 to the desired steam setting.

The temperature control 6 must be set to at least the setting. Otherwise no steam will be produced.

NOTE

After steam ironing or when no more steam is needed, set the steam control 3

to the position. Otherwise, water could drip from the sole of the iron 10.

Ironing with steam blast

The steam blast function is especially suitable for smoothing difficult-to-reach parts of a garment.

1) Raise the steam iron slightly.
2) For a steam blast, press the steam blast button

Temporarily setting the steam iron down

CAUTION! RISK OF FIRE!

• Never leave a hot steam iron unattended if it is switched on or connected to the mains power supply.

1) Move the temperature control 6 to the "MIN" position.
2) Stand the steam iron only on the base 9.

Taking the steam iron out of service

1) Remove the power plug from the mains power socket.
2) Empty the water tank and clean the sole of the iron 10.
3) Place the cooled-down steam iron on the base 9.

Cleaning

WARNING - RISK OF ELECTRIC SHOCK!

Remove the plug before cleaning the device. There is a risk of electric shock!

WARNING - RISK OF INJURY!

• Allow the appliance to cool down before cleaning it! Otherwise, there is a risk of burns!

CAUTION - PROPERTY DAMAGE!

• Do not use abrasive, aggressive or chemical cleaning agents! They can damage the surface and also lead to irreparable damage to the appliance.
  Clean the housing with a soft, dry cloth only.
  Clean the sole of the iron using a damp cloth and a mild, non-scouring detergent.

Storage

Store the cooled-down appliance in a clean, dust-free and dry location.

Troubleshooting

Faults Cause	Remedy
The steam iron is producing no steam or very little steam.	The reserves of water in the steam iron are depleted.	Fill the water tank with water (See "Filling the water tank").
The steam iron does not heat up.	The steam iron is not plugged in or is not switched on.	Insert the plug into a wall power socket and adjust the temperature control 6 to the desired ironing temperature.
	The steam iron is defective.	Contact Customer Service or have the appliance repaired by qualified personnel.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European directive 2012/19/EU.

Dispose of the appliance via an approved waste disposal company or your municipal waste disposal facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 275074

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 275074

Indholdsfortegnelse

Indledning 14

Ophavsret 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Service

Service Danmark

Tel.: [phone]

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Service

FR Service France

Tel.: [phone]

E-Mail: [e-mail]

IAN 275074

BE Service Belgique

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING - GEVAAR VOOR VERSTIKKING!

WAARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Service

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Service

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867BOCHUM

DEUTSCHLAND/GERMANY

www.kompermass.com

Last Information Update · Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

12/2015·Ident.-No.:DB1400B2-112015-2
