USER MANUAL SSMW 750 B2 SILVERCREST

Operating instructions

SE

SMÖRGÅSGRILL

Bruksanvisning

FR BE

APPAREIL À CROQUE-MONSIEUR

Mode d'emploi

DE AT CH

SANDWICHMAKER

Bedienungsanleitung

FI

VOILEIPÄGRILLI

Käyttöohjee

DK

SANDWICHMAKER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB/IE Operating instructions Page 1

FI	Käyttöohje	Sivu	19
SE	Bruksanvisning	Sidan	37
DK	Betjeningsvejledning	Side	55
FR/BE Mode d'emploi Page 73
NL/BE Gebruiksaanwijzing Pagina 91
DE/AT/CH	Bedienungsanleitung			Seite 109

A ① ② ③ ④ ⑤ ⑥

E SILVERCREST® 12 11 10
        D["Square Shape"]
        E["Square Shape"]
    end
    subgraph Block2
        F["Square Shape"]
        G["Square Shape"]
    end

C ⑦ ⑧ ⑨

D ⑦ ⑧ ⑨

Index

Introduction 2

Copyright. 2

Limited liability 2

Intended use 2

Items supplied 3

Disposal of the packaging.... 3

Appliance description 4

Technical data 4

Safety instructions 5

Exchanging the removable plates....7

Placement of the removable plates 7

Extracting the removable plate 8

Commissioning 8

Operation 9

Toasting sandwiches 9

Baking waffles 9

Grilling....10

Cleaning 11

Storage 11

Troubleshooting 12

Recipes 12

Dutch Tomato Toast 12

Italian Toast 13

Hawaiian Toast 14

Waffles 14

Apple waffles....15

Shrimp skewer 16

Disposal 16

Warranty and Service 17

Importer 17

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high quality product. These operating instructions are a component of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the purposes indicated. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limited liability

All technical information, data and instructions for the installation, connection and operation contained in these operating instructions correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how.

No claims can be derived from the details, illustrations and descriptions in these instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This appliance is intended exclusively for the toasting of filled sandwiches, baking waffles and the grilling of foodstuff s.

This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!

Items supplied

The appliance is delivered with the following components as standard:

• Sandwich Toaster
  ● 2 Removable plates "Sandwich"
  ● 2 Removable plates "Waffl es"
• 2 Removable plates "Grill"
• Operating instructions

1) Remove the appliance, the removable plates and the operating instructions from the carton.

2) Remove all packing material.

NOTICE

▶ Check the contents to ensure everything is present and for visible damage.
▶ If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section
Warranty and Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

NOTICE

▶ If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can pack the appliance ideally for its return.

Appliance description

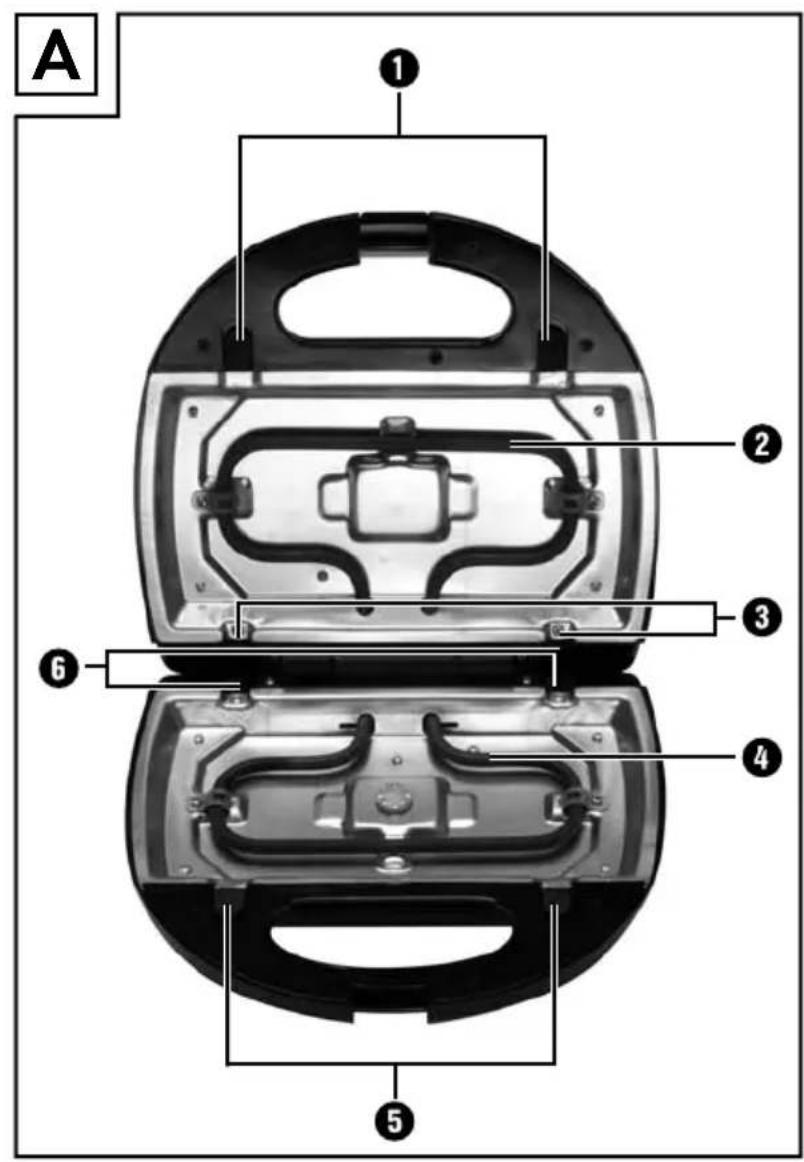

Illustration A:

① Locking device
② Heating coil
3 Lower mountings
4 Heating coil
⑤ Locking devices
6 Rear mountings

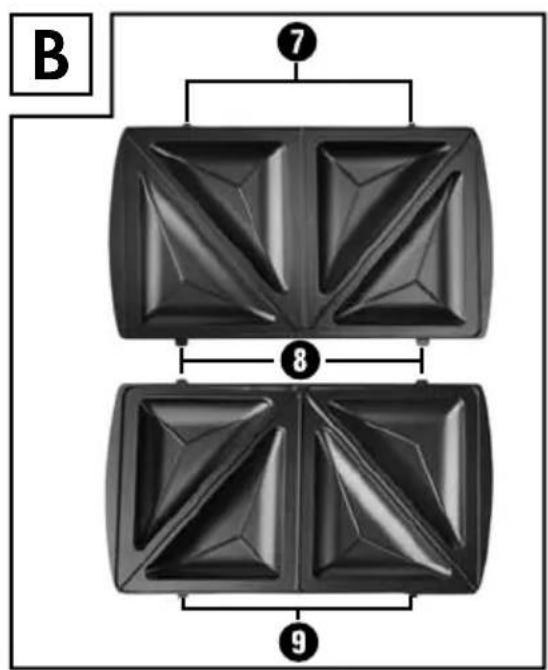

Illustration B (Sandwich plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

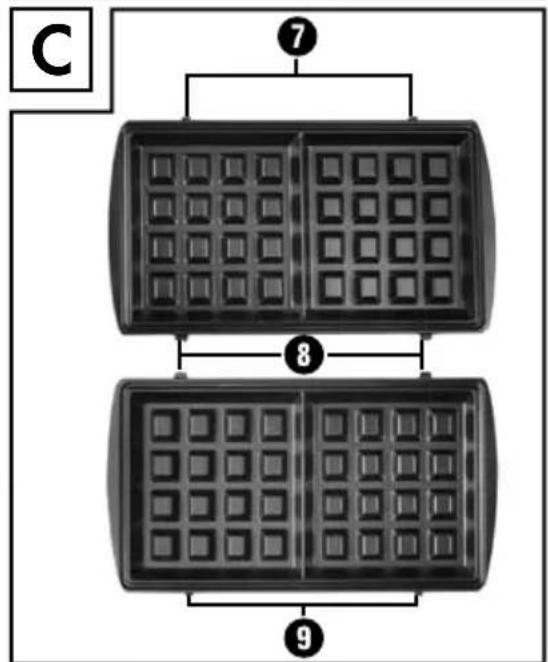

Illustration C (Waffl e plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

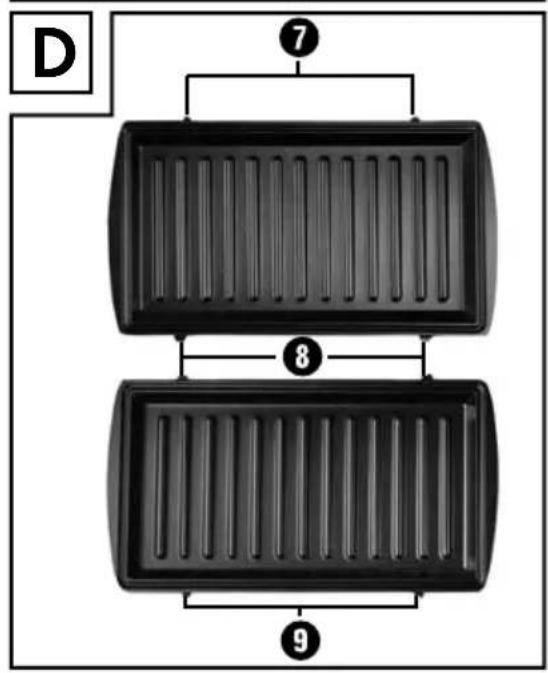

Illustration D (Grill plates):

⑦ Upper latches
8 Lower and rear latches
9 Front latches

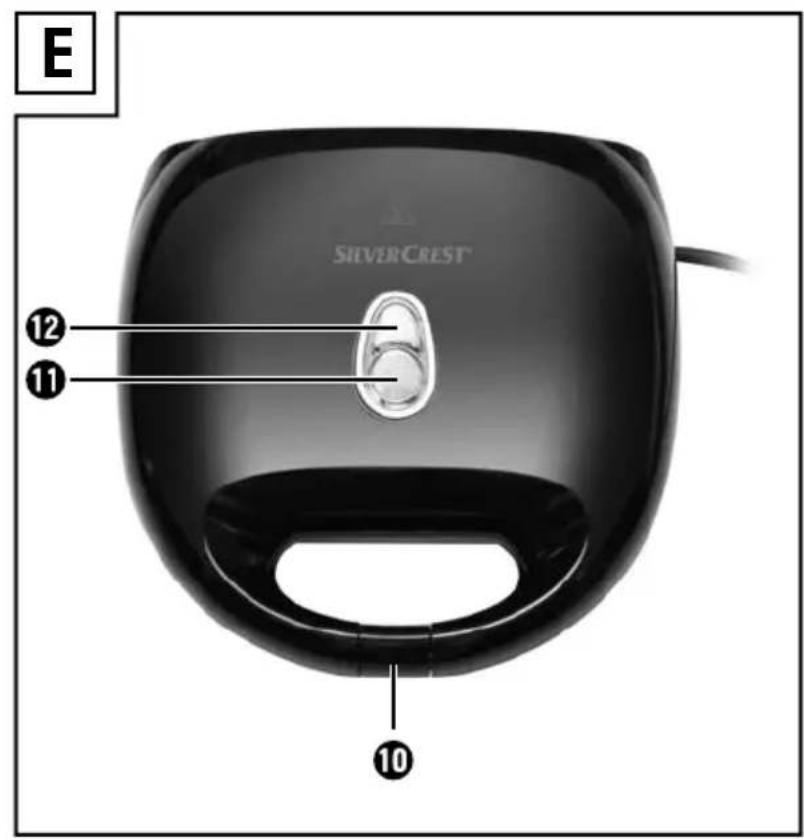

Illustration E:

⑩ Lid locking device
⑪ Control lamp "Power"
12 Control lamp "Ready"

Technical data

Voltage 220 - 240 V \~, 50 Hz

Power consumption 750 W

Safety instructions

WARNING! RISK OF ELECTRIC SHOCK!

• Arrange for damaged power cables and/or plugs to be replaced as soon as possible by a qualified specialist or by Customer Services.
  ▶ Use the appliance only in dry indoor areas, not outdoors.

NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock.

• When cleaning, ensure that water cannot permeate into the appliance. NEVER clean the appliance under running water.
  ▶ Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids.

▶ Ensure that the power cable never gets wet or moist when the appliance is in use. Lay the cable such that it cannot be clamped or otherwise damaged.

▶ After use, disconnect the power cable from the mains power socket to turn off the unit.

▶ NEVER open the housing of the appliance.

WARNING! RISK OF INJURY!

This appliance may be used by children of at least 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used, and they have understood the potential risks.

▶ Children should not play with the appliance.

- Cleaning and user maintenance should not be performed by children, unless they are older than 8 years of age and are supervised. Children younger than 8 years of age are to be kept away from the appliance and the power cable.

The appliance can become hot when it is in use. Therefore, only touch the handles.

▶ Let the appliance cool down completely before cleaning it, exchanging the removable plates or putting it into storage.

▶ Use caution when removing the finished foods (sandwiches, waffles, etc.). The appliance, as well as the sandwiches, will be very hot.

▶ Use the appliance only on a stable, non-slippery and level surface.

- Do not use an external timing switch or a separate remote control system to operate the appliance.

Attention! Hot surfaces!

CAUTION - RISK OF FIRE!

This appliance may not be used in close vicinity to fl ammable material.
▶ Do not leave the appliance unattended at any time when it is in use.
▶ Operate the appliance only on heat resistant surface.
▶ Do not operate the appliance unsupervised.

CAUTION - PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.
▶ Do not use abrasive cleansers or sharp objects for cleaning.

Exchanging the removable plates

You can choose between 3 different removable plates:

• Removable plates "Sandwich": for the preparation of filled sandwiches.
  -Removable plates "Waffles": for baking waffles.
  -Removable plates "Grill": for grilling meat, fi sh, etc.

WARNING! RISK OF ELECTRIC SHOCK

▶ Disconnect the plug from the mains power socket before exchanging the removable plates.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before exchanging the removable plates! Risk of Burns!

Placement of the removable plates

1) Open the sandwich maker by releasing the lid locking device ⑩ and lifting the lid.
2) Upper removable plate: First slide the lower latches ⑧ into the lower mountings ③.
3) Now press the upper latches ⑦ onto the locking devices ①, so that the upper latches ⑦ spring under the locking devices ① and the removable plate is firmly seated.
4) Lower removable plate: First slide the rear latches ⑧ into the rear mountings ⑥.
5) Now press the front latches ⑨ onto the locking devices ⑤ so that the latches ⑨ spring under the locking devices ⑤ and the removable plate is firmly seated.
6) Press firmly once in the centre of the lower removable plate to ensure that it is securely inserted.

GB IE

Extracting the removable plate

1) Upper removable plate: Slide the locking devices ① upwards and simultaneously tilt the removable plate forward so that you can lift it out from underneath the lower mountings ③.
2) Lower removable plate: Pull the locking devices ⑤ forward and lift the removable plate so that you can pull it out from the rear mountings ⑥.

Commissioning

Carry out the following procedure with each of the 3 pairs of removable plates.

■ Smear the non-stick coating on the removable plates with oil suitable for cooking.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before exchanging the removable plates! Risk of Burns!

■ Install a pair of removable plates into the appliance.

■ Insert the plug into a mains power socket.

■ Close the appliance and lock it with the lid locking device ⑩.

■ Let the appliance heat up for about 10 minutes.

NOTICE

▶ With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Provide for sufficient ventilation. For example, open a window.

■ Disconnect the plug and allow the appliance to cool down.

■ Clean the removable plates and the appliance as described in the chapter "Cleaning".

The appliance is now ready for use.

Operation

Toasting sandwiches

1) Select the removable plates "sandwich" and install them.

CAUTION - PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device ⑩.

3) Insert the plug into a mains power socket. The orange control lamp "Power" ⑪ glows.

4) As soon as the appliance is heated up, the green control lamp "Ready" ⑫ glows.

5) Open the lid and insert two prepared sandwiches on the lower removable plate.

6) Close the lid and lock it with the lid locking device ⑩. Should the sandwich be too thick, such that the lid locking device ⑩ cannot close, remove some fi lling from the sandwiches.

CAUTION - PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.

7) The sandwiches are ready after about 5 - 6 minutes. This time information can, depending on the type of filling and personal tastes, vary. Open the lid and take the sandwiches out.

8) When you no longer wish to prepare any more sandwiches, disconnect the plug from the mains power socket.

Baking waffles

1) Select the removable plates "waffles" and install them.

CAUTION - PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device ⑩.

3) Insert the plug into a mains power socket. The orange control lamp "Power" ⑪ glows.

4) As soon as the appliance is heated up, the green control lamp "Ready" ⑫ glows.

5) Open the lid and place about 2 - 3 large tablespoons of batter into each of the two waffle baking surfaces on the lower removable plate.

GB IE

6) Now close the lid. Do not lock the lid!

CAUTION - PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your waffles only with a plastic or wooden spatula or some other suitable, non-metallic implement.

7) The waffl es are ready after about 5 - 7 minutes. This time information can, depending on the type of batter used and personal tastes, vary. Open the lid and take the waffl es out.

8) When you no longer wish to prepare any more waffles, disconnect the plug from the mains power socket.

Grilling

1) Select the removable plates "grill" and install them.

CAUTION - PROPERTY DAMAGE!

▶ Never use two different removable plates at the same time.

2) Close the lid and lock it with the lid locking device 10.

3) Insert the plug into a mains power socket. The orange control lamp "Power" ⑪ glows.

4) As soon as the appliance is heated up, the green control lamp "Ready" ⑫ glows.

5) Open the lid and place the food to be grilled on the lower removable plate.

6) Now close the lid. Do not lock the lid!

7) From time to time check the degree of browning by lifting the lid.

CAUTION - PROPERTY DAMAGE!

▶ To avoid damaging the non-stick coating of the Sandwich Maker, remove your cooked foods only with a plastic or wooden spatula or some other suitable, non-metallic implement.

8) When the food is cooked through, take it from the removable plate.

9) When the appliance is no longer needed, remove the plug from the mains power socket.

Cleaning

WARNING! RISK OF ELECTRIC SHOCK

▶ Disconnect the plug from the mains power socket before cleaning the appliance.

NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock.

WARNING! RISK OF INJURY!

▶ Let the appliance cool down before cleaning it. Risk of Burns!

CAUTION - PROPERTY DAMAGE!

▶ Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance.

▶ Under no circumstances should you clean the removable grill plates or the appliance in the dishwasher!

NOTICE

▶ Do not wait too long to start with the cleaning. Wait until the appliance has cooled down sufficiently that you can touch it without the risk of being burnt. Then the food particles can be removed more easily.
■ Clean the appliance housing only with a dry or lightly moistened cloth.
■ Detach the removable plates and clean them in warm water with a little detergent added.
If fats or food should be under the removable plates and in the space in which the heating coils ② ④ are located, proceed as follows:

- Dab the fats or other liquids with a piece of kitchen paper.

- Remove stuck-on burnt residues with a wooden spatula or small wooden skewers.

■ Dry all parts well before re-use.

Storage

■ Store the Sandwich Maker at a dry location.
■ Clean the appliance as described in the chapter "Cleaning".

Troubleshooting

Problem Cause Remedy
The appliance does not function.	The plug is not inserted into a mains power socket.	Connect the power cable into a mains power socket.
	The appliance is defective.	In this case, contact Customer Services.
Thesandwiches/waffl es/grilled food are too dark.	Thesandwiches/waffl es/grilled food were in the Sandwich Maker for too long.	Take the sandwiches/waffl es/grilled food out a little earlier.

Recipes

Dutch Tomato Toast

Ingredients:

◆ 4 slices of toast bread
Water
♦ Spring onions
◆ 1 medium Tomato
Herb butter
◆ 2 slices of cooked Ham
Salt
♦ Freshly ground Pepper
◆ 2 slices of young Gouda cheese

1) Wash the spring onions and let them drip dry. Halve the onions lengthwise and then cut them into large pieces. Bring the water with salt to the boil in a pot. Add the spring onions and blanch them for about 1 minute. Then place the spring onions in a colander, douse them with cold water and let them drip dry.
2) Wash the tomatoes and dab them dry. Halve them and remove the stalks. Cut the tomatoes into slices.
3) Spread herb butter on one slice of toast and place a folded slice of ham on the smeared slice of toast bread. Distribute the pieces of spring onion and tomato slices on top. Season with salt and pepper.
4) Lay the cheese slices on the slice of toast bread.
5) Coat another slice of toast with some garlic butter and place it on your sandwich with the buttered side down.

Italian Toast

Ingredients:

◆ 4 slices of Toast bread
◆ 4 tblsp. Tomato purée
◆ 2 tbsp. Salad mayonnaise
Salt
Herbs de Provence
♦ Freshly ground Pepper
◆ 1 medium Tomato
◆ 1 package Mozzarella cheese
◆ Freshly ground coloured Pepper

1) Stir the tomato paste, mayonnaise, salt, herbs de Provence and pepper together. Spread the slices of toast bread with it.
2) Wash the tomatoes and dab them dry. Halve them and remove the stalks. Cut the tomatoes into slices.
3) Let the Mozzarella cheese drain in a colander and then cut it into slices. Cut these in half.
4) Now lay the tomato and Mozzarella slices on the coated slice and season with pepper.
5) Cover your sandwich with another slice of toast bread.

GB IE

Hawaiian Toast

Ingredients:

◆ 4 slices of Toast bread
◆ 2 slices of pineapple (from the tin)
Butter
◆ 2 slices of cooked Ham
◆ 2 Cheese slices

1) Let the pineapples drain in a colander.
2) Now coat the toast slice with butter.
3) Garnish the toast bread with ham and pineapple.
4) Lay the cheese on the pineapple as the last ingredient.
5) Cover your sandwich with a slice of toast bread.

Waffl es

Ingredients:

◆ 250 g Margarine or butter
◆ ca. 200 g Sugar
◆ 2 Packets of Vanilla sugar
◆ 5 Eggs
◆ 500 g Flour
◆ 2 teaspoons Baking powder
◆ 350 - 400 ml Milk

1) Stir the eggs until foamy.
2) Add the sugar and vanilla sugar, then stir everything together.
3) Then add the melted butter or margarine.
4) Blend in the baking powder.
5) Under constant stirring, gradually add the milk and fl our alternately.
6) Combine everything at the highest speed with a hand blender until a smooth batter mixture is achieved.

Apple waffles

Ingredients:

◆ 250 g Margarine or butter
◆ 75 g Sugar
◆ 4 Eggs
◆ 250 g fl our
◆ 1 tsp of Baking powder
◆ 125 ml lukewarm Milk
◆ 300 g Apples (peeled, cut into cubes.)
◆ 50 g grated Almonds or Nuts

1) Stir the eggs until foamy.
2) Add the sugar and stir everything.
3) Then add the melted butter or margarine.
4) Blend in the baking powder.
5) Under constant stirring, gradually add the milk and fl our alternately.
6) Finally, blend in the almonds/nuts and the apple cubes.
7) Combine everything at the highest speed with a hand blender until a smooth batter mixture is achieved.

GB IE

Shrimp skewer

Ingredients:

◆ 250 g medium size, peeled Shrimps
◆ 2 Garlic cloves (fi nely chopped)
◆ 5 tbsp. Olive oil
◆ 12 small Tomatoes (cherry tomatoes)
◆ 1 tbsp. chopped parsley
♦ Salt, pepper, paprika powder

1) Put the olive oil, garlic, a little paprika powder, salt, pepper and parsley in a bowl and mix everything.
2) Then add the shrimps and stir everything together, so that the shrimps are thoroughly moistened with the herb-spice mixture.
3) Let the shrimps marinade in the mixture for about 20 minutes.
4) Spike a tomato alternatively with a shrimp on a skewer.
5) Grill the skewers for about 5 minutes.

Disposal

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU. (Waste Electrical and Electronic Equipment).

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for domestic use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 100047

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 100047

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sisällysluettelo

Johdanto 20

Tekijänoikeus 20

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Indholdsfortegnelse

Introduktion ....56

Ophavsret 56

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sommaire

Introduction 74

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

Inleiding 92

Auteursrecht....92

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 110

Urheberrecht 110

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

04 / 2014 · Ident.-No.: SSMW750B2-032014-1
