USER MANUAL SEF 2300 A1 SILVERCREST

Operating instructions

SE

FRITÖS MED KALLZON

Bruksanvisning

NL BE

KOUDEZONE FRITEUSE

Gebruiksaanwijzig

F

FRITEERAUSKEITIN

Käytööhje

FR BE

FRITEUSEÀ ZONE FROIDE

Mode d'emploi

DE AT

CH

KALTZONEN-FRITTEUSE

Bedienungsanleitung

IAN 102781

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

H

GB/IE Operating instructions Page 1

FI	Käytöohje	Sivu	21
SE	Bruksanvisning	Sidan	41
FR/BE Mode d'emploi Page 61
NL/BE Gebruiksaanwijzing Pgina 81
DE/AT/CH Bedienungsanleitung Seite	101

Index

Introduction 2

Intended use 2

Package contents 3

Disposal of packaging. 3

Description of appliance / attachments 4

Technical details 4

Safety instructions 5

Before first use 7

Low-acrylamide cooking 7

Deep frying 8

Preparation 8

Frying foods. 10

Solid cooking fats 11

After frying 11

Changing the cooking oil or fat 12

Cleaning and care 13

Storage 14

Tips. 14

Home-made chips 14

Frozen foods 15

How to hinder unwanted aftertastes 15

Healthy nutrition. 15

Heat protection function 16

Table - frying times 17

Troubleshooting 18

Appendix 19

Disposal of the appliance 19

Notes on EC Conformity Declaration 19

Importer 19

Warranty 20

Service. 20

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

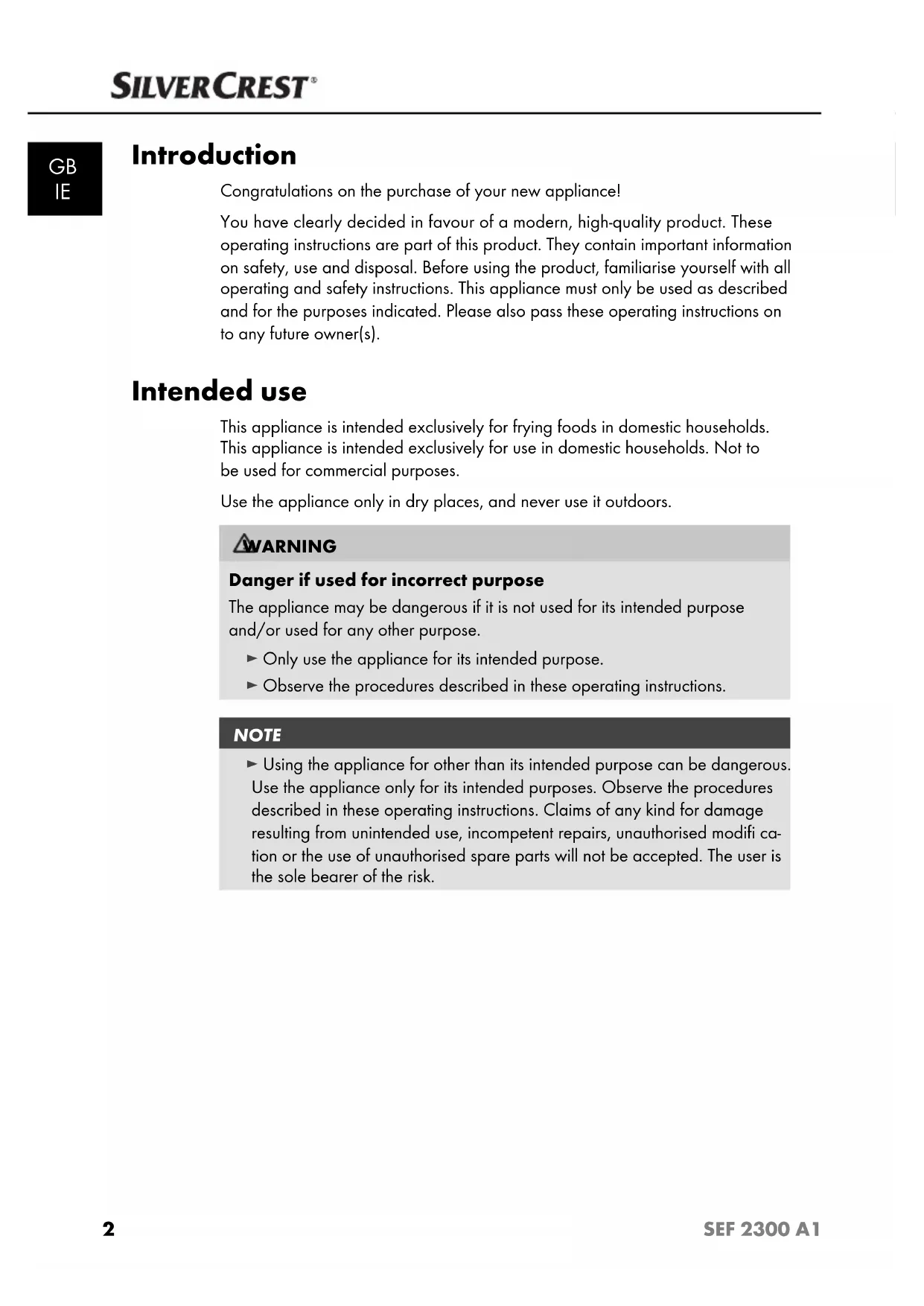

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high-quality product. These operating instructions are part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. This appliance must only be used as described and for the purposes indicated. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for frying foods in domestic households. This appliance is intended exclusively for use in domestic households. Not to be used for commercial purposes.

Use the appliance only in dry places, and never use it outdoors.

WARNING

Danger if used for incorrect purpose

The appliance may be dangerous if it is not used for its intended purpose and/or used for any other purpose.

Only use the appliance for its intended purpose.
Observe the procedures described in these operating instructions.

NOTE

• Using the appliance for other than its intended purpose can be dangerous. Use the appliance only for its intended purposes. Observe the procedures described in these operating instructions. Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted. The user is the sole bearer of the risk.

Package contents

This appliance is supplied with the following components as standard:

Cool-Zone Deep Fat Fryer
- Operating instructions

1) Remove all parts of the appliance and the operating instructions from the box.
2) Remove all packing material.

NOTE

Check the delivery for completeness and for signs of visible damage.
If the delivery is incomplete, or is damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the appliance from transport damage. The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material which is no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the appliance's original packaging during the warranty period so that the appliance can be packed properly for returning in the event of a warranty claim.

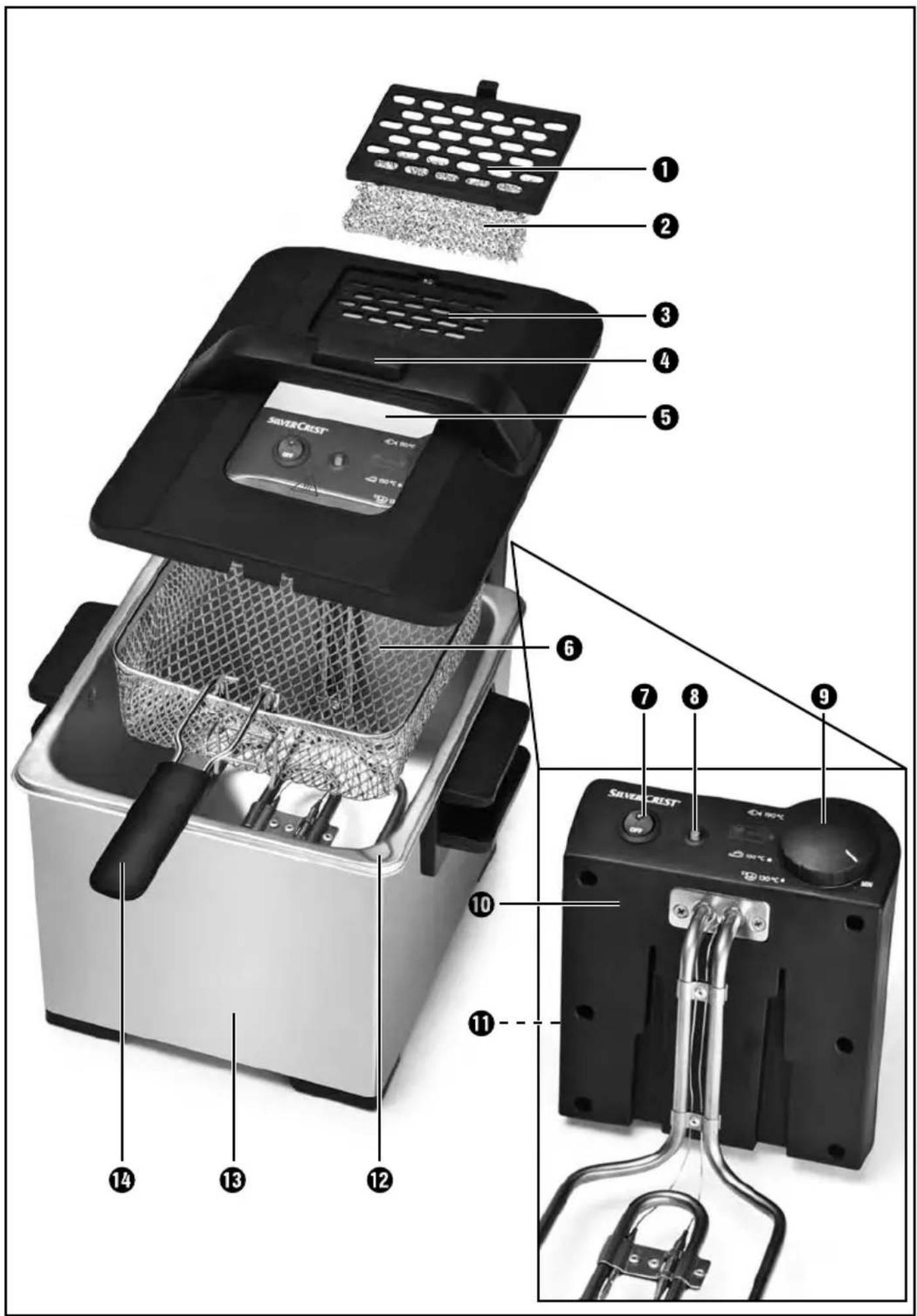

Description of appliance / attachments

1 Cover of permanent metal filter
2 Permanent metal filter
3 Recess for permanent metal filter
4 Lid release button
Viewing window
Frying basket
On/Off switch
Control lamp
9 Temperature regulator
10 Removable control and heating element
1 Power cable retainer
12 Stainless steel container
13 Housing
14 Handle

Technical details

Mains voltage 230 V	~, 50 Hz
Rated power 2300 W
Capacity for cooking oil approx. 3.2 litres
Capacity for solid fats approx. 2.5 kg

Safety instructions

RISK OF ELECTRIC SHOCK

• Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.
• Connect the appliance to a mains power socket supplying a voltage of 230V /50Hz
• To avoid risks, arrange for defective plugs and/or power cables to be replaced at once by qualified technicians or our Customer Service Department.

Never submerge the operating/heating element and the housing with the power cable in water, and do not clean these components under running water.

WARNING! RISK OF INJURY!

• This appliance may not be used by children under the age of 8. This appliance may be used by children aged 8 and upwards if they are under constant supervision. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning safe use of the appliance, and if they understand the potential risks.
  The appliance and its connecting cable must be kept away from children younger than 8 years old.
• Cleaning and maintenance may not be carried out by children.
• Provide a stable location for the appliance.
• Do not operate the appliance if it has sustained a fall or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians if necessary.

WARNING! RISK OF INJURY!

• Hot steam is generated during the frying process, especially when the lid is open. Keep a safe distance away from the steam.
• Ensure that all parts are completely dry before pouring oil or liquid fat into the deep fat fryer. Otherwise, hot oil or fat could splatter out.
• Carefully pat all foodstuff s dry before placing them in the deep fat fryer. Otherwise, hot oil or fat could splatter out.
• Be especially careful with frozen foodstuff s. Remove all ice particles. The more ice there is on the foodstuff, the more the hot oil or fat will splatter.
• Some parts of the appliance become very hot during operation. Touching these may cause serious burns.
  The appliance should be set up in a stable location using the handles to avoid spillage of hot liquids.
• Never lift the stainless steel container out of the housing during operation.
• Never use the closed lid to lift the stainless steel container out of the housing when it is filled with hot fat.

WARNING! RISK OF FIRE!

• Do not use an external timing switch or a separate remote control system to operate the appliance.
  NEVER melt solid fat (fat in blocks) in the deep fat fryer. The heating element may be damaged by the high temperature or there is a risk of fire! Melt the fat beforehand in a saucepan or similar.

WARNING! RISK OF FIRE!

• Do not use the appliance near hot surfaces.
• Never leave the appliance unattended while it is being used.

Caution! Hot surface!

NEVER use water to extinguish a fire in the deep fat fryer!

• Old or dirty fats and oils can spontaneously ignite if overheated. Change the oils or fats regularly. In the case of a fire, remove the plug from the mains power socket and smother the burning fat or oil with a damp towel or fire blanket.

CAUTION - APPLIANCE DAMAGE!

• When filling the stainless steel container with fat, NEVER fill it to above the MAX marking or to below the MIN marking. First ensure that there is sufficient oil or fat in the deep fat fryer every time you intend to switch the appliance on.
  NEVER switch the appliance on if there is no oil or liquid fat in it.
  This deep fat fryer is suitable only for frying foodstuff s. It is not designed for cooking liquids.

Before first use

1) Before you use the deep fat fryer for the first time please clean all individual components thoroughly and carefully dry them (see Chapter "Cleaning and Care").

Low-acrylamide cooking

Acrylamide is a possibly carcinogenic substance formed from a reaction with amino acids when frying foodstuff s with a high starch content. The formation of acrylamide increases rapidly at temperatures of more than 175^

You should therefore avoid frying foodstuff s with a high starch content, for example chips, at temperatures above 170^ . The foodstuff s should only be fried to golden-yellow, instead of dark or brown. This is the only way to achieve low-acrylamide cooking.

Deep frying

We recommend cooking oil or liquid cooking fat for use in this deep fat fryer. You can also use solid cooking fats. Read the chapter "Solid Cooking Fats" for more information.

Preparation

1) Place the appliance on a horizontal, level, stable and heat-resistant surface.

NOTE

If you wish to place the deep fat fryer below the cooker extraction hood, ensure that the cooker is switched off.

2) Pull the mains cable from the power cable retainer 1 on the rear of the control and heating element 0.
3) Press the lid release button ④ and lift the lid off at the same time.
4) Remove the frying basket 6 and attach the handle 14 to the frying basket 6:

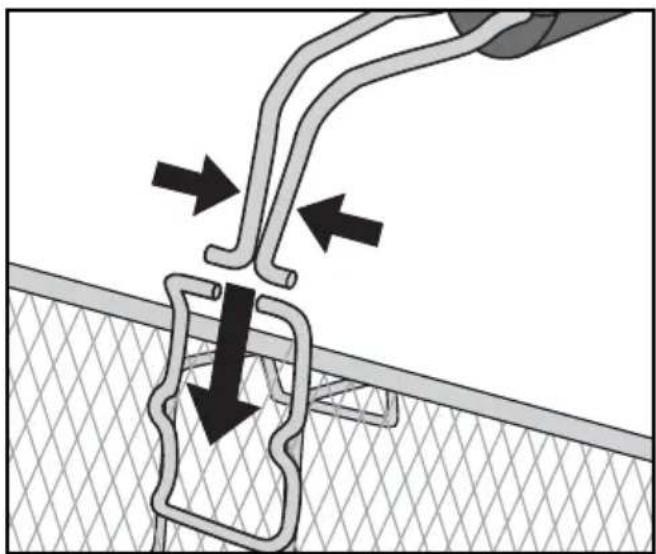

• Press the rods of the handle together a little so that the holding pins can be inserted into the eyelets on the frying basket:

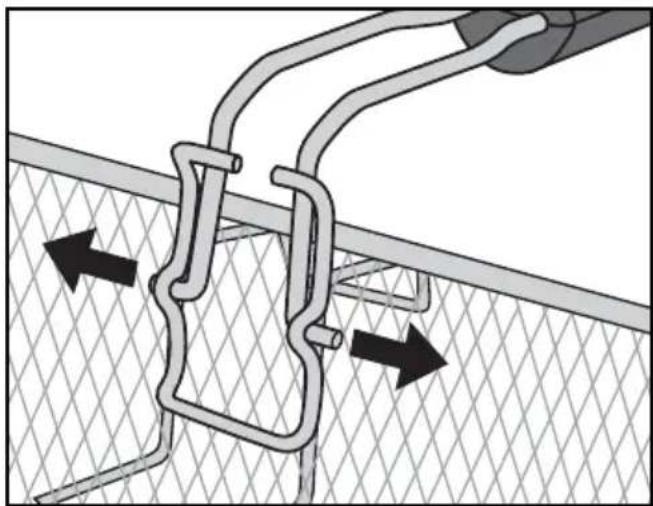

• Loosen your grip on the compressed rods on the handle 14 so that the rods move apart and the holding pins project into the holes:

• The handle is now sitting firmly on the frying basket.

TIPS

• Only use oils or fats which are specific cally labelled as non-foaming and are suitable for deep frying. This information is to be found on the packaging or the labelling.
  NEVER mix different types of oil or fat! The deep fat fryer could froth over.

5) Fill the dry and empty stainless steel container (with inserted control and heating element) with cooking oil, liquid or molten fat (about 3.2 litres of oil or about 2.5kg of solid fat).

NOTE

• When filling the stainless steel container ⑫ with oil or fat, NEVER fill it to above the MAX mark or to below the MIN mark.
  6) Insert the plug into the mains power socket.

RISK OF ELECTRIC SHOCK

The power cable must not come into contact with the hot areas of the deep fat fryer. Risk of electric shock!

7) Replace the frying basket 6
8) Close the lid by pressing the lid release button 4 and putting the lid into place. Release the lid release button 4 so that the lid is secure.

Frying foods

1) Switch on the deep fat fryer using the on/off switch ⑦. The control lamp integrated in the on/off switch ⑧ lights up.
2) Turn the temperature controller to the desired temperature. The cooking oil or the fat is now heated up to the required temperature. When the required temperature has been reached, the green control lamp lights up.

NOTE

The correct frying temperature is to be found either on the food packaging or in the frying times table in these operating instructions. A rough guide as to which foods should be fried at what temperature is given by the pictures on the front of the deep fat fryer:

Symbol Food Temperature
Prawns 130°C
Chicken 150°C
Chips (fresh) 170°C
Fish 190°C

The values given are only for guidance. The temperature can vary depending on the properties of the foods and personal taste!

WARNING - RISK OF INJURY!

The lid and the deep fat fryer become extremely hot during the cooking process. For this reason, do not touch anything except the handle during frying! Risk of burning! We recommend the use of oven gloves.

3) Press the lid release button ④ and remove the lid.

4) Lift the frying basket ⑥ out of the deep fat fryer. Add the food to be fried. Do not fill the frying basket ⑥ to more than the max. fill level marked on the inside of the frying basket ⑥ . However, always take note of the frying quantity indicated on the packaging of the food being fried!
5) Carefully lower the frying basket 6 into the hot oil or fat.
6) Close the lid so that it is firmly in place.

NOTE

The frying process can be monitored through the viewing window 5 in the lid.

Solid cooking fats

To prevent fat from spraying and the appliance from becoming too hot, please take the following precautions when using solid frying fat:

When using fresh fat, start by melting the blocks of fat slowly, under low heat, in a separate pan. Then carefully pour the molten fat into the deep fat fryer. When this has been done, insert the plug into a mains power socket and switch the deep fat fryer on.
After use, store the deep fat fryer with the solidified fat at room temperatures.

If the fat gets too cold, it could cause splattering on remelting! To avoid this, poke a few holes into the solidifi ed fat with a wooden or plastic spatula. Ensure that you do not damage the operating/heating element 10.

To melt the fat, switch on the appliance using the on/off switch 7 and set the temperature control 9 to 130^ . The integrated control lamp in the on/off switch will light up.
Wait until all of the fat has melted. The green control lamp can come on and go out several times during this process. Do not set the desired frying temperature until all of the fat has melted.

Afterfrying

1) When the fried food is ready, press the lid release button 4 and remove the lid.
2) Lift the frying basket ⑥ and hook it onto the rim of the appliance so that excess fat can drip off.
3) Press the on/off switch ⑦. The deep fat fryer is now switched off. Remove the plug from the mains power socket.

GB IE

WARNING - RISK OF INJURY!

• Never touch the frying basket ⑥ directly after frying. It will be extremely hot! Lift the frying basket ⑥ out of the deep fat fryer only by the handle 14!

4) Once the fried food has dripped dry, carefully lift the frying basket ⑥ out of the deep fat fryer.

5) Tip the fried food into a bowl or a sieve (lined with absorbent kitchen paper!). If you do not use the deep fat fryer regularly, it is advisable to store the cooled oil in well-sealed bottles or other containers in the refrigerator or a similar cool storage location. Fill the container through a sieve, in order to remove any food particles from the oil.

Changing the cooking oil or fat

Do not change the oil until it has completely cooled down. Solid fats must still be in a slightly liquid state so that they can be poured.

1) Press the lid release button 4 and remove the lid.
2) Remove the frying basket 6.
3) Remove the control and heating element 10.
4) Place the control and heating element 10 in a clean and dry location.
5) Carefully remove the stainless steel container 12 with the oil or fat from the deep fat fryer. To do this, hold it by the side handles.
6) Pour the oil or fat into suitable containers, for example bottles. Use the pouring funnel at the corner of the stainless steel container 12.

NOTE

The disposal of cooking oils and fats is regulated differently in every community or town. Disposal of such oils or fats in the normal household refuse is often prohibited. Make enquiries at your local community administration office about suitable disposal sites.

7) Thoroughly clean all parts of the deep fat fryer as described in the Chapter "Cleaning and Care".
8) Refi II the deep fat fryer with fresh oil or fat as described in the Chapter "Frying".

Cleaning and care

WARNING - RISK OF ELECTRIC SHOCK!

Always remove the plug from the mains power socket before cleaning the appliance.

UNDER NO CIRCUMSTANCES may the appliance or parts of it be submersed in liquids! This could result in a potentially fatal electric shock and the appliance could be damaged.
Never open the control and heating element 10 of the appliance.

WARNING - RISK OF BURNS!

• Allow the appliance to cool down completely before cleaning it.

CAUTION - PROPERTY DAMAGE!

• When cleaning the components, do not use aggressive or abrasive cleaning agents or materials such as scouring milk or steel wool. These could damage the upper surfaces of the appliance!

To simplify cleaning, dismantle the deep fat fryer:

1) Remove the lid.
2) Remove the cover of the permanent metal filter 1 and lift the permanent metal filter 2 out of the recess 3.
3) Remove the frying basket 6.
4) Pull the control and heating element 10 upwards out of the guide rails. Place the control and heating element 10 in a clean and dry location.
5) Remove the stainless steel container 12 and pour out the cooled fat or oil.

The frying basket 6 and the stainless steel container 12 can be cleaned in the dishwasher. They are suitable for dishwashers.
Clean the housing with a moist cloth. If required, use a mild detergent on the cloth.
Clean the control and heating element with a moist cloth. If necessary, add a little mild detergent to the cloth. Wipe this off afterwards using a damp cloth so that all detergent residue is removed. Dry the control and heating element thoroughly.
Clean the permanent metal filter 2 in warm water containing a mild detergent.

GB IE

Clean the appliance lid in warm water containing a mild detergent. Rinse the appliance lid off with clear water. Dry the appliance lid well and then place it upright on its side so that any excess water still inside the lid can drain away. Be aware that the lid MUST be completely dry before re-use!

6) Dry all parts well before reassembly.
7) Reassemble the deep fat fryer in the reverse order.

Storage

1) Lift or carry the appliance using the side carrying handles on the housing 13.
2) Push the power cable into the power cable retainer 1 on the control and heating element 10.
3) Store the appliance with the appliance lid closed. This will keep the inside of the deep fat fryer clean and free of dust.

Tips

Home-made chips

Potatoes intended for frying should be in good condition and not germinating.
Use potato varieties that are suitable for frying, such as "King Edward", "Maris Piper", "Cara", etc.
After peeling, cut the potatoes according to the intended preparation (chips or slices).
Soak the potatoes for about one hour before frying. This will help remove part of the sugar content, which is one of the constituent products for the formation of acrylamide.
Carefully dry the potatoes.
Always fry home-made potatoes twice:

• first for 10 - 14 minutes at 150^ then for 3 - 4 minutes at 170^ , depending on the desired degree of browning.

Deep-frozen chips are pre-cooked and thus only need to be fried once. Comply with the instructions on the packaging.

Frozen foods

Deep-frozen foodstuff s (-16 to -18°C) cool the oil or fat to a considerable extent, because of this they do not cook fast enough and may also soak up too much oil or fat. To avoid this, proceed as follows:

■ Do not attempt to fry large volumes all at once. Do not fit the frying basket 6 to more than the maximum fill level marked on the inside of the basket.
Heat the oil for at least 15 minutes before adding the frozen foods.

Adjust the temperature control to the temperature specified in these operating instructions or on the food's packaging.

■ Preferably, allow the deep frozen food to thaw at room temperature. Remove as much ice and water as possible before adding the food into the deep fat fryer.
Always add foods as slowly and carefully as possible into the deep fat fryer, as deep frozen foods can cause the oil or fat to bubble violently and abruptly.

How to hinder unwanted aftertastes

Some foodstuff s, especially fi sh, release fl uids when being fried. These fl uids collect in the oil or fat and can influ vence the smell and taste of fried foods that are later cooked in the same oil or fat.

Proceed as follows to obtain a neutral-tasting oil or fat:

Heat the fat or oil to 150^ and place two thin slices of bread or a couple of small sprigs of parsley into the frying basket.
Lower the frying basket 6 into the fat and close the lid.
Wait until the oil or fat is no longer bubbling and remove the bread or parsley with a skimmer. The oil or fat now has a neutral taste once again.

Healthy nutrition

Nutritional experts recommend the use of vegetable oils and fats containing unsaturated fatty acids (e.g. linoleic acid). However, these oils and fats lose their positive characteristics faster than other oils and must therefore be exchanged more frequently.

Orient yourself on the following guidelines:

Exchange the oil or fat regularly. If you use the deep fat fryer mainly to prepare chips and strain the oil or fat after every use, it can be used 10 to 12 times.

GB IE

However, do not use the oil or fat for longer than six months. Always follow the instructions given on the packaging.
As a general rule, oils and fats cannot be used so often if you mainly fry foods with lots of proteins, such as meat or fish.
Do not mix fresh oil with old oil.
Change the oil or fat if it foams on being heated, if it develops a strong taste or odour, if it becomes dark and/or if it develops a syrupy consistency.

Heat protection function

In a case of overheating, the heat protection function switches the appliance off.

This can happen if there is no, or not sufficiently, oil or fat in the deep fat fryer or when solid cooking fats are being melted in the appliance.

When using solid cooking fats, the control and heating element ⑩ cannot give off the heat that is generated quickly enough.

If the heat protection function has switched the appliance off, please proceed as follows:

1) Allow the appliance to cool down.
2) Leave the oil or fat to cool (the fat should just be liquid).
3) Open the appliance lid by pressing on the lid release button 4
4) Remove the frying basket 6.
5) Remove the operating/heating element 10.
6) Place the operating/heating element 10 in a clean and dry location.
7) Carefully press the reset button on the control and heating element with a small pointed object.

The appliance can now be used again.

Table - frying times

This table provides details of the temperatures at which specific foods must be fried and how much frying time is required for them. Should these details differ from those shown on the food packaging, please observe the instructions given on the packaging.

Food	Temperature (approx.)	Time in minutes
Beefburger(frozen)150°C3-5minutes
Pork chops (breaded) 150°C 15-25 minutes
Chicken pieces (large pieces)	150°C10-18minutes
Chicken pieces (small/medium pieces)	150°C8-18minutes
Chips(fresh)150°C/170°C		10 - 14 minutes / 3 - 4 minutes
Chips (deep-frozen)	see manufacturer's recommendations	see manufacturer's recommendations
Scampi(fresh)130°C3-5minutes
Mushrooms170-190°C5minutes

NOTE

It is possible that there will be minor variations in the temperatures. The values given in the table are intended as aids for guidance. They refer to a volume of approx. 300 grams. The times can vary, depending on the properties of the foods.
- Do not fill the frying basket ⑥ up to more than the max. fi ll level marking on the inside of the frying basket ⑥ .

Troubleshooting

PROBLEM POSSIBLE CAUSE	POSSIBLE SOLUTIONS
The appliance is not working. or The control lamp integrated into the on/off switch ⑦ does not light up.	The appliance is not connected with a mains power socket. Connect the appliance to a mains power socket.
	The appliance is damaged. Contact Customer Services.
	The on/off switch ⑦ has not been activated. Press the on/off switch ⑦.
	The heat protection function has been activated. 1. Remove the power plug and allow the appliance to cool down. 2. Press the reset button on the control and heating element ⑩.
The appliance has switched itself off during use and cannot be switched back on.	The heat protection function has been activated. 1. Remove the power plug and allow the appliance to cool down. 2. Press the reset button on the control and heating element ⑩.
The green control lamp ⑧ does not light up.	The selected temperature for the cooking oil/fat has not been reached. Wait a few minutes until the required temperature has been reached.

If the malfunction cannot be corrected with the above suggestions, or if you have determined that the malfunction may have other causes, please contact our Customer Service.

Appendix

Disposal of the appliance

Never dispose of the appliance in the normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal centre if you are in any doubt.

Notes on EC Conformity Declaration

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC, the Directive for Low Voltage Appliances 2006/95/EC and the ERP Directive 2009/125/EC.

The full original Declaration of Conformity is available from the importer.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Warranty

The warranty provided for this appliance is 3 years from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service by telephone. This is the only way to guarantee free return of your goods.

NOTE

This warranty is valid only for material or manufacturing faults, not for transport damage, parts subject to wear and tear or for damage to fragile parts, e.g. switches.

This appliance is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifi cations that were not carried out by one of our authorised service centres.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts.

Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase.

Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 102781

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 102781

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Sisällysluettelo

Johdanto 22

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Takuu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanti

Comment eliminer I'arriere-gout desagreable 75

Alimentation saine 75

Fonction anti-surchauffe 76

Fonctionanti-surchauff e

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING - LETSELGEVAAR!

WAARSCHUWING - LETSELGEVAAR!

WAARSCHUWING - GEVAAR VOOR VERBRANDING!

Zelf patates frites make

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tietojen tila

Informationsstatus · Version des informations

Stand van de informatie · Stand der Informationen:

08/2014-Ident-No.:SEF2300A1-072014-1
