USER MANUAL WW 2000 R EINHELL

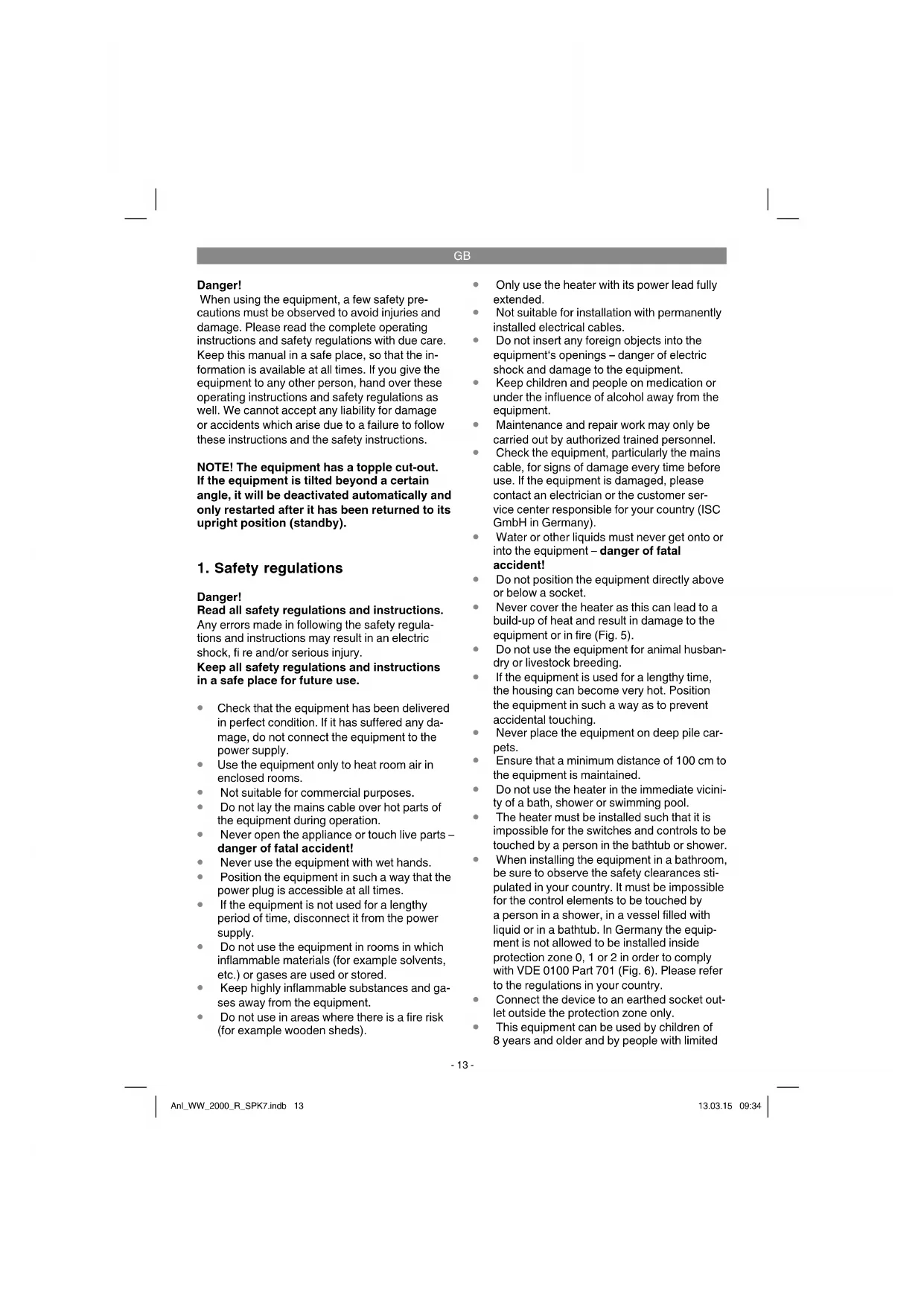

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

NOTE! The equipment has a topple cut-out. If the equipment is tilted beyond a certain angle, it will be deactivated automatically and only restarted after it has been returned to its upright position (standby).

1. Safety regulations

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

• Check that the equipment has been delivered in perfect condition. If it has suffered any damage, do not connect the equipment to the power supply.
• Use the equipment only to heat room air in enclosed rooms.
  Not suitable for commercial purposes.
• Do not lay the mains cable over hot parts of the equipment during operation.
• Never open the appliance or touch live parts - danger of fatal accident!
• Never use the equipment with wet hands.
• Position the equipment in such a way that the power plug is accessible at all times.
  If the equipment is not used for a lengthy period of time, disconnect it from the power supply.
• Do not use the equipment in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.
• Keep highly inflammable substances and gases away from the equipment.
• Do not use in areas where there is a fire risk (for example wooden sheds).

Only use the heater with its power lead fully extended.
Not suitable for installation with permanently installed electrical cables.
- Do not insert any foreign objects into the equipment's openings - danger of electric shock and damage to the equipment.
- Keep children and people on medication or under the influence of alcohol away from the equipment.
- Maintenance and repair work may only be carried out by authorized trained personnel.
- Check the equipment, particularly the mains cable, for signs of damage every time before use. If the equipment is damaged, please contact an electrician or the customer service center responsible for your country (ISC GmbH in Germany).
Water or other liquids must never get onto or into the equipment - danger of fatal accident!
- Do not position the equipment directly above or below a socket.
- Never cover the heater as this can lead to a build-up of heat and result in damage to the equipment or in fire (Fig. 5).
- Do not use the equipment for animal husbandry or livestock breeding.
If the equipment is used for a lengthy time, the housing can become very hot. Position the equipment in such a way as to prevent accidental touching.
- Never place the equipment on deep pile carpets.
- Ensure that a minimum distance of 100cm to the equipment is maintained.
- Do not use the heater in the immediate vicinity of a bath, shower or swimming pool.
The heater must be installed such that it is impossible for the switches and controls to be touched by a person in the bathtub or shower.
- When installing the equipment in a bathroom, be sure to observe the safety clearances stipulated in your country. It must be impossible for the control elements to be touched by a person in a shower, in a vessel filled with liquid or in a bathtub. In Germany the equipment is not allowed to be installed inside protection zone 0, 1 or 2 in order to comply with VDE 0100 Part 701 (Fig. 6). Please refer to the regulations in your country.
- Connect the device to an earthed socket outlet outside the protection zone only.
This equipment can be used by children of 8 years and older and by people with limited

GB

physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

Children younger than 3 years must be kept away unless they are continuously supervised.
Children of 3 years and younger than 8 years are allowed to use the equipment only if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use, provided that the equipment is positioned or installed in its normal place of use. Children of 3 years and younger than 8 years are not allowed to insert the plug into the socket, regulate the equipment, clean the equipment and/or perform the maintenance which a user is expected to perform.
- Caution - Some parts of the product can become very hot and cause burns. Special care is required when children and persons in need of protection are present.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1 LCD
2 Function buttons
3 Protective grille
4 ON/OFF main switch
5 IR sensor
6 Remote control

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any

packaging and/or transportation braces (if available).

• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Heater
• Remotecontrol
  CR2032 button cell
  Original operating instructions

3. Proper use

The equipment is designed for use as an additional heater in enclosed areas. It primarily emits heat by radiation straight on to objects and people who are in front.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Rated voltage: 230 - 240 V ~ 50 Hz
Heat rating: 2000 W (1000 W)
Thermostat setting range: 5-38°C
Protection type: IP 21
Protection class: II

GB

5. Before starting the equipment

Observe point 1 - Safety information.

Controls (buttons) (Fig. 2)

10 Desired Temperature +/Time Preselection + 11 Function Selection
12 On/Standby
13 Desired Temperature - / Time Preselection -
14 Time Preselection

Inserting batteries (Fig. 3-4):

1. Open the battery compartment cover by pressing the lock (A) towards the middle and pulling the battery compartment out at the same time.
2. Insert the battery (B) in the battery compartment with the positive pole facing down.
3. Press the battery compartment cover into the remote control.

As the end user you are legally required to return spent batteries. You can hand them in at public collection points provided by your council or sales outlets where batteries of this type are sold.

6. Operation

Warning! Before using the equipment for the first time, check that the voltage supply is the same as the voltage details set out on the rating plate.

• Read the safety regulations in section 1.
• When the equipment is used for the first time or after a long period of rest, it may emit an odor for a short time. This is not a fault.

All modes and functions can be set using the buttons on the appliance as well as with the remote control. The remote control requires a CR 2032 button cell (included in delivery).

6.1 Switching on the appliance

The ON/OFF main switch (Fig. 1 / Item 4) is used to disconnect the equipment completely from the mains supply.

The first step when you want to use the appliance is to turn on the main switch; the last step when you no longer need the appliance is to turn off the main switch. After the main switch is switched on, the equipment will be in standby mode.

The heater shows the current equipment temperature. The time display (00:00) for the timer flashes.

6.2 Heating mode (Fig. 2)

With the On / Standby button (Item 12) you can switch the equipment on or to standby mode. Press the On / Standby button (12) to switch on the equipment. The desired temperature (default setting 38^ ) fl ashes. The current equipment temperature is then shown in the display, along with the "Low heat output" and "Blower" symbols. The time display (00:00) flashes briefly and then shows the operating time which has elapsed. The heater operates with low heat output and the blower.

Press the "Mode" button (11) and by so doing select the heating function in the following sequence.

Low heat output -> High heat output and blower -> Frost protection function -> Low heat output and blower -> Low heat output, etc.

6.3 Setting the desired temperature.

A desired temperature can be set between 5^ - 38^ , which is the temperature range of the integrated temperature sensor (equipment temperature). Press the + or button to increase or reduce the desired temperature.

For the equipment to heat, the desired temperature must be set higher than the indicated equipment temperature. If the desired temperature is exceeded by 2^ , the equipment will switch off again.

In the frost protection function the temperature is set to a default setting of 7^ and cannot be adjusted.

6.4 Timer (Fig. 2)

Once you have first set the desired heating mode and the desired temperature, you can program a time for switching on (ON^ ) or a time for switching off (OFF^ ) . You can select from between 1 min to 23h 59min. It is also possible to combine the switch-on time with the switch-off time.

Press the "Clock" button (14) and select the timer function in the following sequence. Switch-on time hour -> Switch-on time minute -> Switch-off time hour -> Switch-off time minute -> Continuous operation

GB

While the Switch-on time / Switch-off time is flashing in the display, set the hours / minutes by pressing the + / - buttons.

When the switch-off time has elapsed, "End" is shown in the display and the heater switches off.

6.5 Overheating guard

In case of excessive heating the equipment will shut down automatically. If this occurs, turn off the equipment, disconnect the mains plug and wait a few minutes for the equipment to cool. After eliminating the cause (e.g. a covered air grille), the equipment can be switched on again.

6.6 Topple cut-out

NOTE! The equipment has a topple cut-out. If the equipment is tilted beyond a certain angle, it will be deactivated automatically and only restarted after it has been returned to its upright position (standby).

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Maintenance and cleaning

Danger!

Before carrying out any cleaning and maintenance work the equipment must be turned off, disconnected from the power supply and cooled down.
- Maintenance and repair work may only be carried out by an authorized electrical servicing contractor or ISC GmbH.
- Check the power cable at regular intervals for signs of defects or damage. A damaged power cable may be replaced only by an electrician or ISC GmbH in compliance with the relevant regulations.
Use a damp cloth to clean the casing.
- Remove dust with a vacuum cleaner.

9. Ordering replacement parts

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

11. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 ^ C . Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables*
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

GB

Warranty certificate

Dear Customer:

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fit tted. This also applies if an on-site service is used.

8. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Chere cliente, cher client,

6.5 Beveiling together oververhitting

Evnpewon yia to epbiC

GB explains the following conformity according to EU directives and norms for the following product

□90/396/EC_2009/142/EC

89/686/EC_96/58/EC

2011/65/EC

2006/42/EC

Annex IV

Notified Body: Notified Body No.:

Notified Body No.. Reg.No.

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured L_m = dB (A); guaranteed L_w = dB (A)

P = KW; L/0 = cm

Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60335-1; EN 60335-2-30; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR011179

Documents registrar:Josef Landauer

Wiesenweg 22, D-94405 Landau/Isar

-70

-71

EH 03/2015 (01)
