INTRODUCTION

Congratulations on your purchase of the BAR913 Digital Weather Forecaster with Hygrometer and RF Clock. The BAR913 is an all-in-one weather forecasting device and clock.

The BAR913, a weather forecasting device, has several weather related functions. A main feature is that it takes and records temperatures in more than one location. Using a wireless remote thermo-sensor, it can simultaneously monitor temperatures in three remote locations. The unit will show temperature trends and record maximum and minimum temperature readings.

As part of the weather forecasting function, a built-in barometer that displays atmospheric pressure. Using graphic illustrations the unit displays atmospheric pressure trends and displays forecasts as sunny, partly cloudy, cloudy, and rainy.

The BAR913 is also a Radio Frequency (RF) controlled clock. It can automatically synchronize its current time and date when it is brought within an approximate 1500km radius of the radio signal generated from Frankfurt, Germany (DCF77).

Included with this unit is a hygrometer. This feature graphically illustrates the current comfort level, displays the current humidity, and shows maximum and minimum humidity levels.

Other features of the BAR913 include, backlight, extra-large liquid crystal display (LCD), and a daily crescendo alarm with an eight minute snooze function.

No wire installation is required between the main and remote units. As the BAR913 operates at 433MHz it can be used in the USA and most places in Continental Europe.

MAIN FEATURES: MAIN UNIT

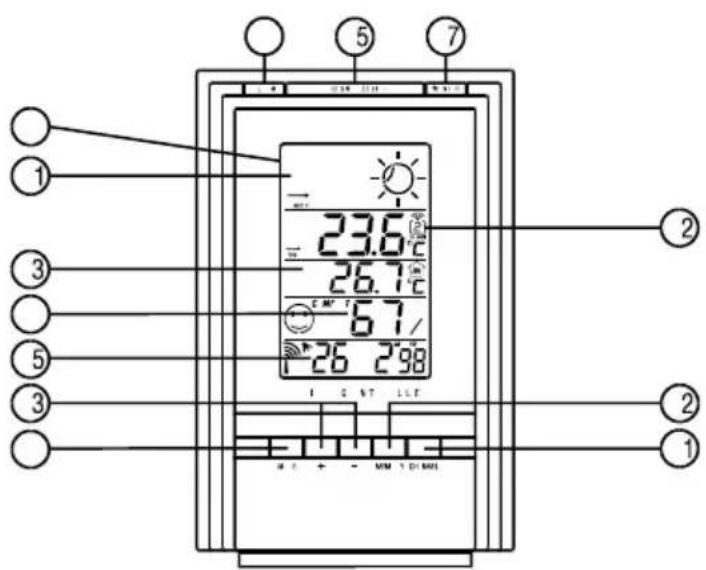

A.FRONT DISPLAY

The extra-large LCD occupies the front panel. The LCD is subdivided into five easy-to-read sections. Each section has a specific purpose that relates to weather forecasting, humidity, or clock / calendar / alarm functions.

• Graphically illustrates a weather forecast
• Indicates trends in atmospheric pressure
• Indicates when main unit battery is low

A2.REMOTE TEMPERATURE WINDOW

• Displays current temperature, remote sensor unit
• Indicates the minimum / maximum remote temperature
• Displays remote temperature as Fahrenheit(°F) or Celsius(°C)
• Indicates remote temperature trend
• Indicates when the remote sensor battery is low
• Indicates the remote sensor channel

A3.MAIN UNIT TEMPERATURE WINDOW

• Displays current indoor temperature
• Indicates minimum / maximum indoor temperature
• Displays indoor temperatures as Fahrenheit(°F) / Celsius(°C)

A4.HYGROMETER WINDOW

• Graphically illustrates the level of comfort.
• Current humidity
  Maximum and minimum humidity level

A5.TIME/DATE/ALARM WINDOW

• Displays the current time, date (day, month, and year), or alarm time
• Radio Frequency (RF) status indicator [P]
• "ALARM ON" icon, indicates when the alarm is active [▶]
• Alarm indicator [ALARM]ALARM
  A.M. / P.M. indicator

B.CONTROL BUTTONS

B1.CHANNEL BUTTON

Sets the remote sensor channel.

B2.MEMORY BUTTON

Displays minimum and maximum temperature readings, and erases memory data

B3. UP(+) DOWN(-) BUTTONS

Sets the increase or decrease in the value of a setting.

B4.MODE BUTTON

Changes the display mode of the clock, and alters time/date setting

B5.SNOOZE/LIGHT BAR

Activates the snooze function, functions to turn on the backlight

B6.ALARMSET BUTTON[ L M]

Displays the alarm time, or changes the alarm time

B7.ALARM OFF/ON BUTTON[ N/FF]

Activates and deactivates the alarm

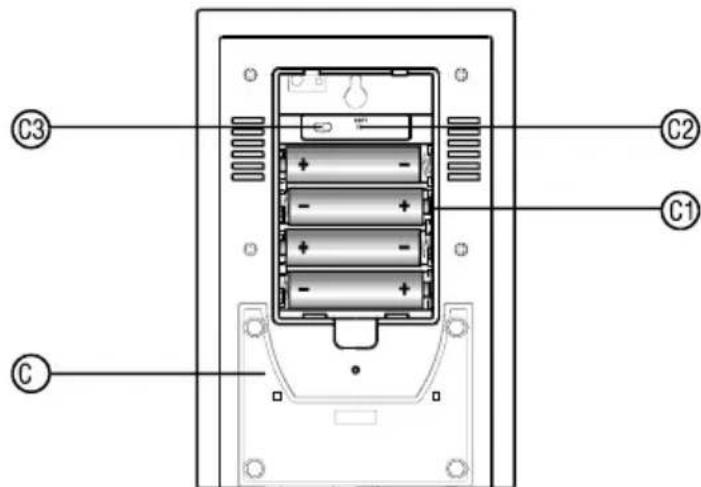

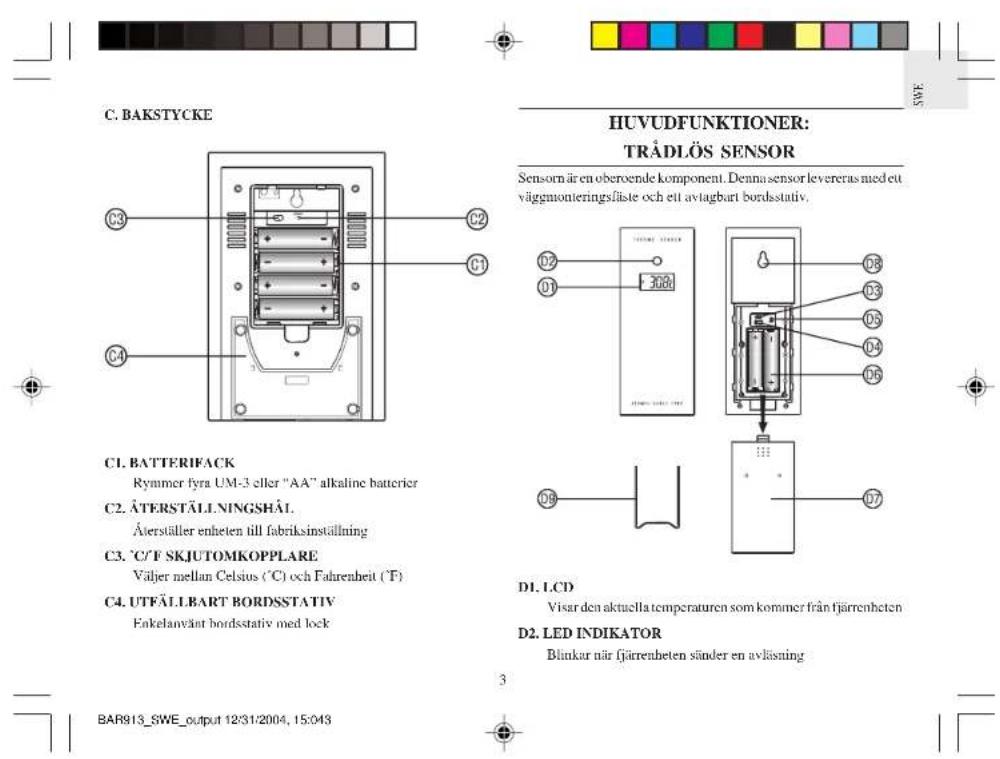

C.BACK PANEL

C1.BATTERY COMPARTMENT

Accommodates four UM-3 or "AA" size batteries

C2.RESSET SLOT

Resetstheunitbyreturningall settingto their defaultvalues

C3. ^ C / ^ SLIDE SWITCH

Selects between Centigrade (^) or Fahrenheit(°F) display

C4.COLLAPSIBLE TABLE STAND

Easy-open table stand with lock

MAIN FEATURES:

REMOTE SENSOR UNIT

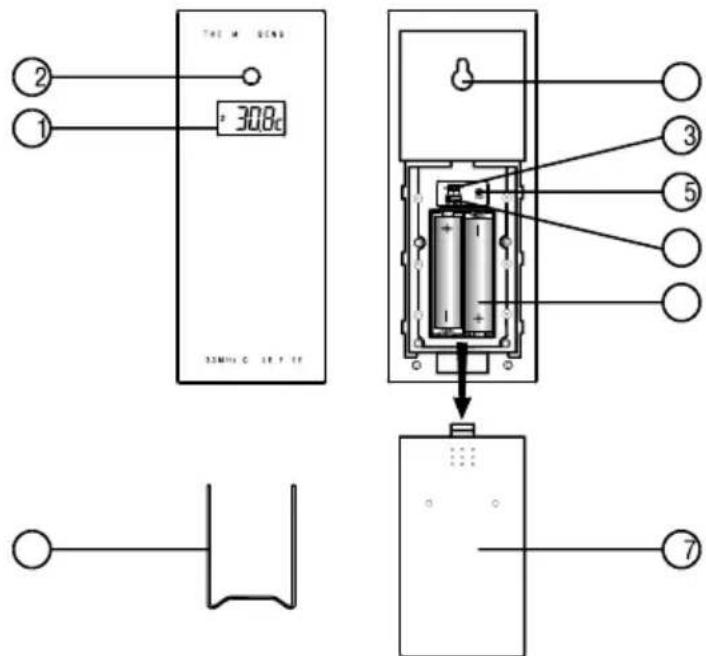

The remote sensor is an independent component. It comes with a wall-mount holder and removable table stand.

D1. LCD

Displays the current temperature monitored by the remote unit

D2.LED INDICATOR

Flashes when the remote unit transmits a reading

#

D3. ^ C / F SLIDES WITCH

Selects between Centigrade (^) and Fahrenheit (^)

D4.CHANNEL SLIDE SWITCH

Designates the remote sensor Channel 1, Channel 2 or Channel 3

D5.RESET BUTTON

Returns all settings to default values

D6.BATTERY COMPARTMENT

Accommodates two UM-4 "AAA" size batteries

D7.BATTERY DOOR

D8.WALL-MOUNT HOLDER

Supports the remote unit in wall-mounting

D9.REMOVABLETABLESTAND

For standing the remote unit on a flat surface

BEFORE YOU BEGIN

For best operation:

1. Insert batteries for the remote unit first. Then proceed with inserting the batteries for the main unit.
2. Position the remote unit and the main unit within effective transmission range. In usual circumstances, the effective range is 30 meters.
3. Though the remote unit is weather proof, it should be placed away from direct sunlight, rain or snow.

BATTERY INSTALLATION:

REMOTE UNIT

The remote unit uses two (2) UM-4 or "AAA" size batteries.

Installation:

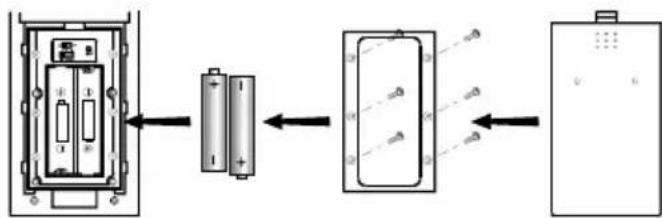

1. Remove the outer battery compartment door.
2. Remove inner screws and open the inner clear plastic compartment door.
3. Select the channel number on the CHANNEL slide switch.
4. Select the temperature display unit on the ^ C / ^ slide switch.

1. Insert the batteries strictly according to the polarities shown.

1. Replace the battery compartment door and secure its screws.

BATTERY INSTALLATION: MAIN UNIT

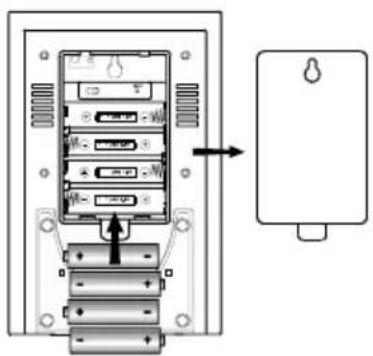

1. Gently lift the tab on the battery compartment door.
2. Insert four UM-3 or "AA" size alkaline batteries.

1. Replace the battery compartment door.

Note: For both the remote sensor and the main unit, replace batteries when they are low. The [ ] battery low indicator in the outdoor temperature window will be displayed when the batteries are low.

ABOUT RADIO RECEPTION

The BAR913 is designed to automatically synchronize its calendar clock once it is brought within range of the Frankfurt DCF77 radio signal. It will scan and adjust every full hour.

When the BAR913 is within range, its radio-control mechanism will override all manual settings.

When the unit is receiving radio signal, the RADIO RECEPTION signal will start to blink. A complete reception generally takes about two to 10 minutes, depending on the strength of the radio signal.

When the reception is complete, the RADIO RECEPTION signal will stop blinking. The strength of the reception for the last full hour will be indicated.

For better reception, place the clock away from metal objects and electrical appliances to minimize interference.

Should you wish to deactivate the RF controlled function, press MODE and DOWN(-) button simultaneously.

To reactivate the RF control function, press MODE and UP(+) simultaneously.

	- Strong
	- Weak
	- No signal
	- Receiving

HOW TO USE THE BACKLIGHT

Press SNOOZE/LIGHT bar once. The backlight will be activate for five seconds.

HOW TO MANUALLY SET THE CLOCK

1. Setting the 12hr./24hr. clock display

Press MODE and hold for three seconds. The 12-hr value will flash. Use the UP(+) or DOWN(-) buttons to make a selection between a twenty-four hour display and a twelve hour display.

2. Setting the Multilingual Day-Of-The-Week Function

The day-of-the-week can be expressed as an abbreviation in five different languages. The languages and their selected abbreviations for each day of the week are shown in the language chart below.

Language	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday	Sunday
English	E	No	Tu	WE	TH	Fr	SA	Su
German	I	No	M	M	Do	Fr	SA	So
French	F	Lu	NA	ME	DE	VE	SA	III
Italy	I	Lu	NA	ME	CI	VE	SA	Do
Spanish	S	Lu	NA	M	Cu	II	SA	Do

Proceeding from the clock display:

Press MODE again and the language setting will flash. Use the UP(+) or DOWN(-) button to select E for English, I for Italian, D for German, F for French, or S for Spanish.

3. Setting the time

Press MODE again, the hour settings will flash. Use the UP(+) or DOWN(-) button to enter the hours. Holding down either the up or down position will increase or decrease the value rapidly. Press MODE again, the minute settings will flash. Again, use the UP(+) or DOWN(-) button to change the minutes.

Note: When changes are made to the clock settings, the seconds will start from zero.

4. Setting the calendar

Proceeding for the time display:

Press MODE again, the calendar settings are displayed and the year is flashing. Use the UP(+) or DOWN(-) button to change the year.

Press MODE button, the month settings will flash. Enter the appropriate month using the UP(+) or DOWN(-) button.

Press MODE button, the day settings will flash. Enter the appropriate day using the UP(+) or DOWN(-) button.

Press MODE again. The day (D) and month (M) symbols will flash. The unit provides an option that allows either the day or the month to be indicated first. Using the UP(+) or DOWN (-) button, select whether the calendar reads as: Day/Month; or Month/Day.

Day / Month

Month / Day

Press MODE again to confirm and exit.

ATMOSPHERIC PRESSURE

The atmospheric pressure indicator, in the weather forecast window, uses arrows to indicate if the atmospheric pressure is increasing, remaining stable, or decreasing.

Arrow indicator	ESSU E	ESSU E	ESSU E
Temperature Trend		Steady FallingRising

HOW TO SET AND ACTIVATE THE ALARM

1. To set the Alarm

Press ALARM button to display the alarm time.

Press ALARM and hold for three seconds, the value for the hour setting will flash.

Press UP(+) or DOWN(-) buttons to make changes to the alarm hour setting.

Press ALARM, the minute setting will flash. Enter the value for the minute setting.

Press ALARM to exit.

The alarm is automatically activated.

2. To deactivate the alarm setting

Press ALARM ON/OFF [N/FF] to activate or deactivate the alarm setting. When the ALARM ON icon [ ] is visible, the alarm is set. The alarm will active at the specified time.

ALARM AND SNOOZE FUNCTION

When the alarm activates, the backlight will go on for five seconds and the ALARM ON icon will flash.

The alarm function has a built in crescendo type alarm system. Initially, the active alarm will have a gentle sound. The intensity will increase in three stages. Without interruption, the unit will alarm for two minutes.

To stop the alarm, press any button. However, if the SNOOZE/ LIGHT bar is pressed, the SNOOZE function will be triggered. The alarm will stop and the ALARM ON icon blinks for eight minutes. Then the alarm activates again.

To deactivate the SNOOZE function, press the ALARM ON/OFF button.

CHECKING INDOOR AND REMOTE SENSOR TEMPERATURES

The indoor temperature readings, and indoor temperature maximum/ minimum indicator are all part of the INDOOR TEMPERATURE window.

The OUTDOOR temperature window displays remote sensor temperatures, maximum and minimum temperatures and outdoor temperature trends. This window also displays the remote sensor channels and a remote sensor battery low [ ] icon.

The temperature can be shown in Centigrade (^) or Fahrenheit (^) . Select the appropriate reading by using the ^ C / ^ slide switch located in the battery compartment). Slide the switch to ^ C for Centigrade or ^ F for Fahrenheit.

This unit is able to measure outdoor temperatures within -50^ (58^) and +70^ (+158^) and indoor temperatures within -9.9^ (14.2^) and 70^ (158^) . If the temperature goes above or below these amounts, the display will show a flashing "HHH" or "LLL".

NOTE ON OUTDOOR-REMOTE TEMPERATURE

Once batteries are in place in the remote unit, it will start transmitting samplings at 30 second intervals.

If no signals are received when the outdoor-remote temperature is selected, "---" will be displayed. To force the main unit to search for remote sensor signals, press MEMORY and CHANNEL simultaneously.

If that fails, check that the remote sensor is still in place. Make sure the transmission is within range and the path is clear of obstacles and interference.

Repeat this procedure whenever you find discrepancies between the display on the main unit and the display on the remote sensor.

NOTE ON SETTING REMOTE SENSOR CHANNELS

The unit has an auto-scan function that sequentially displays temperature readings of up to three remote sensors. If more than one remote sensor is being used, set the channel before inserting the batteries.

MAXIMUM AND MINIMUM TEMPERATURES

The maximum and minimum recorded temperatures will be automatically stored in memory. To display them, press MEMORY. Press MEMORY again to alternate between the maximum, minimum, and current temperatures. The respective MAX or MIN indicator will be displayed.

To clear the memory, press MEMORY button and hold for three seconds. The maximum and minimum recorded temperatures will be erased. Subsequently, if you press MEMORY after the memory has been erased, the maximum and minimum temperature will have the same values as the current reading.

TEMPERATURE TREND

The temperature trend indicator shows the trend of temperatures collected at that particular remote sight. Three trends: rising, steady, and falling will be shown.

Arrow indicator	TEM	TEM	TEM
Temperature Trend		Steady FallingRising

WEATHER FORECAST

The unit is capable of detecting atmospheric pressure changes. Based on collected data, it can predict the weather for the forthcoming 12 to 24 hours. The effective range covers an area of 30 to 50km

Indicator displays on the unit	-
Forecast	Sunny	slightly	Cloudy	Rainy

NOTE:

1. The accuracy of a general pressure-based weather forecast is about 70% to 75% .
2. The weather forecasts from this unit are predictions that cover the next 12 to 24 hours. It may not necessarily reflect the current situation.
3. The "Sunny" icon, as applies to night time, implies clear weather.

HOW TO USE THE RELATIVE HUMIDITY

The relative humidity is displayed as a percent. The corresponding "happy face" illustration graphically illustrates the level of humidity as comfortable, wet, or dry.

Comfort	Wet	Dry

To see the maximum or minimum relative humidity, press MEMORY. Press MEMORY again to switch between the maximum and minimum reading

HOW TO WALL MOUNT OR USE THE TABLE STAND (REMOTE UNIT)

The unit can be wall-mounted using its recessed screw holes or place on a flat surface using the fold out table stand.

Wall-mount

Table stand

HOW TO WALL MOUNT OR USE THE TABLE STAND (MAIN UNIT)

The unit can be wall-mounted using its recessed screw holes or placed on a flat surface using the collapsible table stand. Gently pull the table stand from it's collapsed position. Position the lock to secure the stand.

Table stand

HOW TO RESET THE UNIT

The RESET slot allows you to return all settings to factory values. Accessing the slot is required only when the unit is not operating in a favorable way such as in the rare case of a malfunction.

The RESET slot is located inside the battery compartment door. To use the button,

1. Lift open the battery compartment door.
2. Place a blunt stylus into the slot and press.
3. Replace the battery compartment door.

MAINTENANCE

When handled properly, this unit is engineered to give you years of satisfactory service. Here are a few product care instructions:

1. Do not immerse the unit in water. If the unit comes in contact with a water, dry it immediately with a soft lint-free cloth.
2. Do not clean the unit with abrasive or corrosive materials. Abrasive cleaning agents may scratch the plastic parts and corrode the electronic circuit.
3. Do not subject the unit to excessive: force, shock, dust, temperature, or humidity. Such treatment may result in malfunction, a shorter electronic life span, damaged batteries, or distorted parts.
4. Do not tamper with the unit's internal components. Doing so will terminate the unit's warranty and may cause damage. The unit contains no user-serviceable parts.

5. Only use new batteries as specified in this instruction manual. Do not mix new and old batteries as the old batteries may leak.

6. Read this instruction manual thoroughly before operating the unit.

SPECIFICATIONS

Temperature Measurement

Main unit

Indoor Temperature measurement

Displayed IN temperature range: -9.9^ to +70.0^ (14.2°F to 158.0°F)

Proposed operating range: -5.0^ to +50.0^ (23.0°F to 122.0°F)

Temperature resolution: 0.1^ (0.2^)

Remote Temperature measurement

Displayed OUT temperature range: -50.0^ to +70.0^ (-58.0°F to 158.0°F)

Proposed operating range: -5.0^ to +50.0^ (23.0°F to 122.0°F)

Temperature resolution: 0.1^ (0.2^)

Remote unit

Displayed range: -50.0^ to +70.0^ (-58.0°F to 158.0°F)

Proposed operating range: -20.0^ to +60.0^ (-4.0^ to 140.0^)

Temperature resolution: 0.1^ (0.2^)

RF Transmission Frequency : 433 MHz

RF Transmission Range : 30 meters

Temperature sensing cycle : around 30 seconds

• Humidity Measuring Range : 25 to 95% RH

at 25^ (77^)

Resolution of Humidity : 1% RH

- Power

Main unit: use four (4) UM-3 or "AA"

1.5V alkaline batteries

Remote sensing unit: use two (2) UM-4 or "AAA"

1.5V alkaline batteries

- Weight

Main unit: 306gm

Remote sensing unit: 100~gm

- Dimension

Main unit: 170(L)× 110(W)× 34(T) mm

Remote sensing unit: 92(L)× 60(W)× 21(T) mm

CAUTION

The content of this manual is subject to change without further notice.
Due to printing limitations, the displays shown in this manual may differ from the actual display.
The contents of this manual may not be reproduced without the permission of the manufacturer.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children's electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact information for our customer care department in case you need to reach us, as well as frequently asked questions and customer downloads.

We hope you will find all the information you need on our website, however if you'd like to contact the Oregon Scientific Customer Care department directly, please visit www2.oregonscientific.com/ service/support or call 949-608-2848 in the US. For international enquiries, please visit www2.oregonscientific.com/about/ international/default.asp

EC-DECLARATION OF CONFORMITY

This product contains the approved transmitter module that complies with the essential requirements of Article 3 of the R&TTE 1999 / 5 / EC Directive, if used as intended and the following standards have been applied:

Safety of information technology equipment

(Article 3.1.a of the R&TTE Directive)

Applied Standard EN 60950:2000

Electromagnetic compatibility

(Article 3.1.b of the R&TTE Directive)

Applied Standards

Efficient use of radio frequency spectrum

(Article 3.2 of the R&TTE Directive)

Applied Standards

ETSI EN 300 220-3 (Ver1.1.1) : 2000-09

Additional information:

The product herewith complies with the requirements of the Low

Voltage Directive 73/23/EC, the EMC Directive 89/336/EC and carries the CE marking accordingly.

Carmelo Cubito

Agrate Brianza (MI) / Italy January 2004

Manufacturer's EU R&TTE Representative

COUNTRIES RTTE APPROVAL COMPLIED

All EC countries, Switzerland CH

and Norway N

BAROMETRO DIGITALE CON IGROMETRO E OROLOGIO RADIOCONTROLLATO

MODELLO: BAR913

Manuale d'uso

INTRODUZIONE

Agrate Brianza (MI) / Italia January 2004

B7.BOUTONALARMON/OFF[ N/FF]

Portee de transmission radio : 30 metres

Agrate Brianza (MI) / Italie January 2004

Representant du fabricant R&TTE

PAYSCONCERNESRIT&E

SO UBERWACHEN SIE DIE INNEN-UND AUSSENTEMPATUREN

Agrate Brianza (MI) / Italia January 2004

DIGITAL VADERSTATION MED HYGROMETER OCH RF KLOCKA

MODELL:BAR913

Bruksanvisning

INTRODUKTION

B7. ALARM OFF/ON KNAPP | ON/OFF

Aktiverar/avaktiver ar alarmet

1

D3. C/F SKJUTOMKOPPLARE

ATT STALLA KLOCKAN MANUELLT

1. Att stilla in 12/24tim klockformat

ATT STALLA OCH AKTIVERA ALARM

1. Att ställa alarmet

170(L)x110(B)x34(D)mm

1jirrenhet:92(L)x60(B)x21(D)mm

OM OREGON SCIENTIFIC

EC-DECLARATION OF CONFORMITY

BAR913_SWE_output 12:31:2004, 15:0412

© 2004 Oregon Scientific. All rights reserved.

086-001908-131
