EXP 155 - Coffee machine TEAM - Free user manual and instructions

Product type	Espresso coffee machine
Brand	Team
Model	EXP 155
Power supply	Mains, check voltage on rating plate
Main functions	Espresso, cappuccino, steam, hot water
Water tank capacity	Removable tank (capacity not specified)
Pump pressure	High pressure (value not specified)
Included accessories	Filter holder, filter, dosing spoon, disc for creamy coffee, pod filter
Maintenance	Regular cleaning of accessories, periodic descaling
Recommended descaling	According to water hardness: soft water once a year, medium water once a quarter, hard water once a month
Safety	Do not immerse, do not leave unattended, hot surfaces (steam wand, filter)
Repairability	Contact qualified after-sales service
Use	Household use only
Warning	Use cold drinking water, perform 3 rinses before first use
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - EXP 155 TEAM

How to prepare an espresso with the Team EXP 155?

Fill the water tank with cold water, insert the filter into the filter holder, add ground espresso coffee, tamp lightly, place the filter holder into the support, turn it to the right to lock. Turn on the machine, wait for the espresso indicator to light up, then press the espresso button. Coffee flows into the cups. Press the button again to stop.

How to froth milk for a cappuccino?

Remove the filter holder. Swivel the steam wand outward. Open the steam adjustment knob to expel residual water. Pour cold milk into a heat-resistant container (no more than half full). Immerse the wand into the milk, press the steam button. When the steam indicator lights up, gently open the steam knob to froth. Close as soon as the foam is firm. Clean the wand after use.

Can I use pods with this machine?

Yes, use the pod filter (small filter) instead of the standard filter. Remember to remove the disc for creamy coffee before using the pod filter.

What if water does not flow or there is no steam?

Check that the tank contains water. Open the steam adjustment knob after placing a container under the wand, then press the espresso button to purge air. If the problem persists, clean the wand with a needle or contact after-sales service.

How to clean the machine?

Turn off and unplug the appliance. Wipe the body with a damp cloth. Wash the accessories (filter, filter holder, spoon) in hot soapy water or in the dishwasher (top rack). Clean the steam wand after each use to prevent blockages. Never immerse the body.

How often should I descale the espresso machine?

The frequency depends on water hardness: with soft water, once a year; with medium hard water, once a quarter; with hard water, every month. Use a commercial liquid descaler, never vinegar.

Why does water overflow from the filter holder?

The filter holder is not properly positioned or locked. Check that it is fully turned to the right. Clean the gasket and the rim of the filter holder. If the gasket is worn, replace it. Ensure the shower screen and filter are not clogged.

How to get hot water for tea?

Place a container under the steam wand. Press the steam button. When the indicator lights up, open the steam adjustment knob and simultaneously press the espresso button. Hot water will flow. Close the knobs once the desired quantity is obtained.

What to do if coffee does not flow?

Check that there is water in the tank and coffee in the filter. The grind may be too fine or the coffee too tamped. Clean the holes of the filter and shower screen with a needle or toothpick.

Is it normal for the pump to be noisy at the start?

Yes, at the beginning of flow, the pump may be louder. That's normal; the noise decreases as water flows.

USER MANUAL EXP 155 TEAM

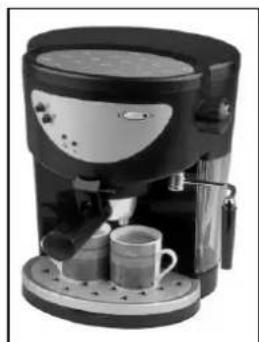

Exterior view of a modern coffee machine with a cup and side table (no visible text or symbols)

Espressomaschine

Expresso maker

Expresso

Expressoapparaat

Cafetera express

D

1. Expresso button
2. Steam button
3. Pilot light of the expresso function
4. Pilot light of the steam function
5. ON/OFF switch
6. Removable water tank
7. Support of the filter holder
8. Filter locking lever
9. Steam pipe
10. Removable drip tray
11. Drip tray cover
12. Filter holder
13. Filter
14. Measuring spoon
15. Creamer disk
16. Shower disk of the brew head
17. Steam control knob
18. Cartridge filter

F

Close-up of a hand holding a black knob with a white arrow indicating rotation (no text or symbols visible)

1

Close-up of a hand using a coffee machine to press or install a small electronic device (no visible text or symbols)

2

Close-up of a hand using a black espresso machine to press or install a small object, with an arrow indicating the process (no visible text or symbols)

3

Close-up of hands holding a small metallic object with a downward arrow indicating motion (no text or symbols visible)

4

Close-up of a hand pouring dark granular substance into a metal container (no text or symbols visible)

5

Close-up of a hand holding a mechanical component with a downward arrow indicating motion (no text or symbols visible)

6

Close-up of hands using a handheld device to clean or inspect a circular object with triangular patterns (no visible text or symbols)

7

Close-up of two white coffee mugs on a black tray, with no visible text or symbols.

8

9

Close-up of a hand pointing at a small mechanical component with circular features (no visible text or symbols)

10

Close-up of a hand using a sewing machine to press fabric (no visible text or symbols)

11

Close-up of a hand holding a black knob with an arrow indicating rotation (no text or symbols visible)

12

Close-up of hands using a computer mouse to interact with a cylindrical device (no visible text or symbols)

13

Close-up of a finger pressing a button on a computer monitor (no visible text or symbols)

14

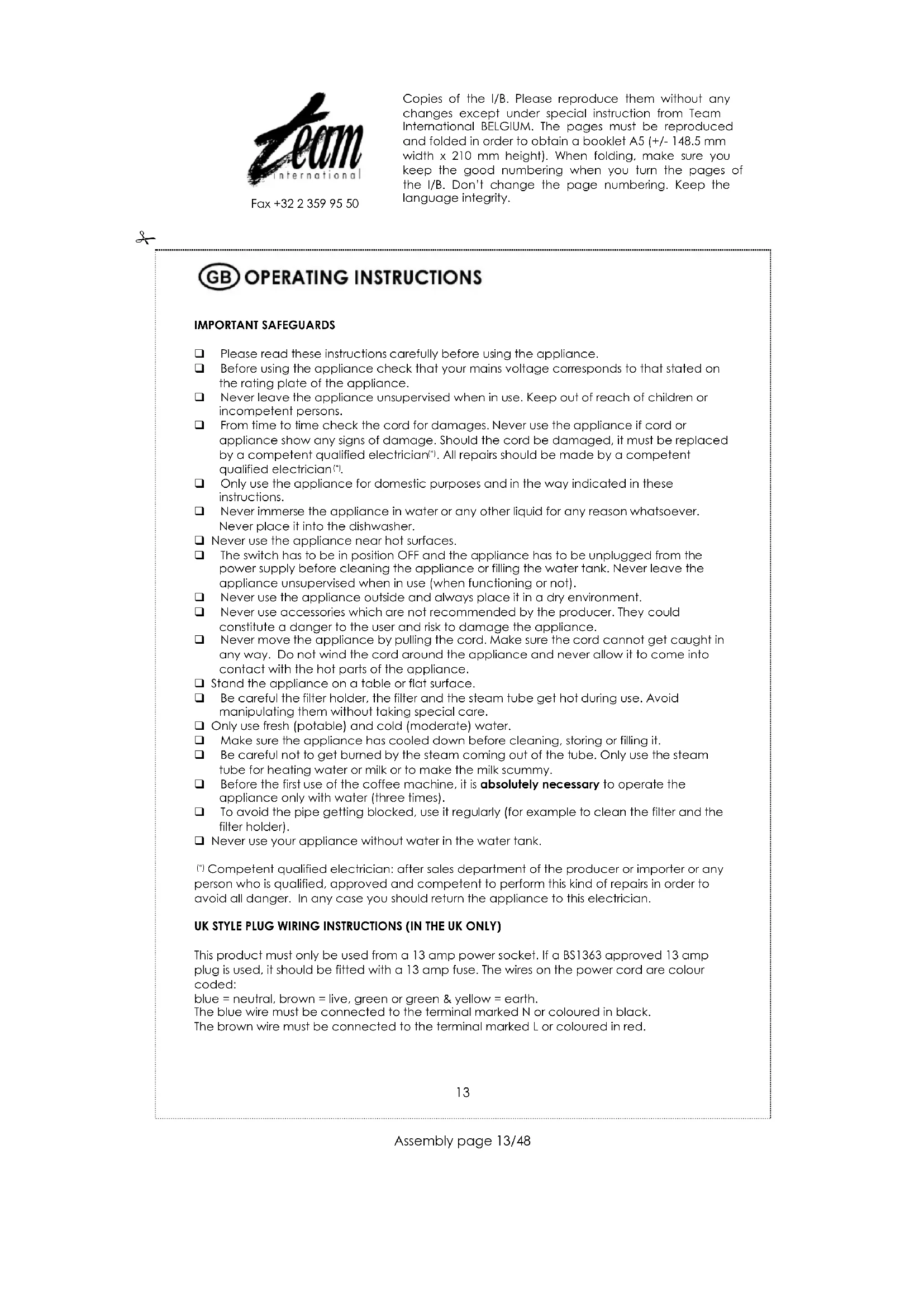

☐ Please read these instructions carefully before using the appliance.
Before using the appliance check that your mains voltage corresponds to that stated on the rating plate of the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician ^ . All repairs should be made by a competent qualified electrician ^ .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ The switch has to be in position OFF and the appliance has to be unplugged from the power supply before cleaning the appliance or filling the water tank. Never leave the appliance unsupervised when in use (when functioning or not).
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and never allow it to come into contact with the hot parts of the appliance.
□ Stand the appliance on a table or flat surface.
☐ Be careful the filter holder, the filter and the steam tube get hot during use. Avoid manipulating them without taking special care.
☐ Only use fresh (potable) and cold (moderate) water.
☐ Make sure the appliance has cooled down before cleaning, storing or filling it.
☐ Be careful not to get burned by the steam coming out of the tube. Only use the steam tube for heating water or milk or to make the milk scummy.
Before the first use of the coffee machine, it is absolutely necessary to operate the appliance only with water (three times).
☐ To avoid the pipe getting blocked, use it regularly (for example to clean the filter and the filter holder).
□ Never use your appliance without water in the water tank.

(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

PREPARING THE MACHINE

Check if all switches are on the OFF position.

Check that the steam control knob (17) is closed by turning it clockwise (Fig. 1).

We recommend to get used to all functions of your appliance before using it for the first time. Remove the water tank (Fig.2), fill it with cold water.

If there is a rubber cap at the end of the rubber pipe of the pump, remove it before use. Replace the water tank correctly (Fig. 3).

Before the first use, in order to clean the inner side of the appliance circuit, you have to operate it three times reading the "OPERATION" paragraph (without coffee in the filter holder).

Clean the accessories thoroughly in hot soapy water, rinse and dry them carefully. Be sure that the suction pads stick to the stand surface of the appliance.

OPERATION

Important: during the use, always check that there is enough water for the preparation in the water tank.

- Check that the switch (5) is in the OFF position and that the appliance is unplugged from the power supply.

- Fill water in the water tank.

- Replace the water tank and put the plug in an earthed socket. Your appliance is now ready for use.

NOTE: WHENEVER OPERATING THE APPLIANCE, BE SURE THAT THE STEAM CONTROL KNOB (17) IS COMPLETELY CLOSED BEFORE SWITCHING ON THE APPLIANCE

PREPARING EXPRESSO COFFEE

Expresso is a strong coffee, with a characteristic taste, extremely rich in aroma. Therefore, the water which arrives in the filter with a high temperature is pushed very fast through the coffee mass by a strong pressure. It extracts the nectar from the grinding and draws the essential aromas from the coffee. That's why the expresso is usually served in small "expresso" cups. Use preferably a special expresso coffee with suitable roasting and grinding.

Remember that the expresso needs a finer grinding than the standard coffee.

- Place the creamer disk (15) correctly in the filter holder (12). The creamer disk consists of two parts, a rubber disk and a metal disk, that must be assembled first. The plastic part of the creamer disk should be assembled on top of its metal part.

- Put the filter (13) in the filter holder (12) (Fig.4)

- According to the required number of cups, put 1 or 2 measures of special expresso coffee powder in the filter (Fig 5).

- Then press the coffee with the measuring spoon (Fig. 6).

- Insert the filter holder (12) in the support of the filter holder (7). Therefore, place the handle of the filter holder to the left and check that the filter locking lever is as far as possible from the filter by pulling it to you. Insert the filter holder in its support and turn it firmly to the right until it blocks (Fig. 7). The filter holder (12) should be as far to the right of the closing zone as possible and at least in the middle of the appliance. This will avoid that the filter holder comes out of its housing as the pressure rises when the coffee is flowing. If the filter holder does not fit in the closing zone and at least in the middle of the appliance, do not operate your appliance, remove the filter holder and position it again as described here above.

• Place one or two cup(s) on the grid of the drip tray and under the release valve of the filter holder (Fig. 8).
• Check that the function switches are in off position and place the switch ON/OFF switch in ON position (Fig. 9). The power pilot light of the switch will light up and indicate that the appliance is switched on.
• Wait until the pilot light of the espresso function (3) lights up. When it comes on, press the espresso button (Fig. 10) The pump will start functioning and a few seconds later the coffee will start coming out through the openings of the filter holder. At the beginning you can hear that the pump makes more noise than when the water starts flowing. This is absolutely normal.
• When the cup(s) is (are) filled, press the expresso button again and the water will stop flowing.
• To prepare other expressos, empty the used coffee of the filter. Therefore you have to remove the filter holder by turning it to the left. CAUTION: Be careful when you remove the filter holder (12) because the metal parts may be still hot. Never remove the filter holder
  (12) when the expresso button is on. Put the filter locking lever against the edge of the filter in order to block it and beat the filter holder above the bin. CAUTION: some hot water might remain under the creamer disk (15), pay attention not to get burned. Rinse the accessories with clear water and fill the filter again with the desired amount of coffee.
  • Proceed as described here above.

Use of coffee cartridges

Instead of grinded coffee, you can also use special coffee cartridges. To do so, put the cartridge filter (18) instead of the filter (13) in the filter holder, and put a coffee cartridge in its filter. Then follow the instructions above to continue.

CAUTION:

If you have not used your appliance for a long time, it is necessary to make one or two brewing processes without coffee to rinse the inner parts of the appliance.

!! Before using the cartridge filter (18), always remove the creamer disk (15) first.

HOW TO PREPARE A CAPPUCCINO

- First of all prepare a coffee as described here above letting enough place for the milk.

Caution: Before using the cappuccino function, make sure the filter holder (12) has been removed from its support.

In order to obtain a thick and creamy milk froth it is necessary to evacuate the remaining water in the hydraulic circuit of the appliance. To do so:

- Switch on the appliance.

- Let the steam button in OFF position, swing the steam pipe (9) to the right (Fig. 11) and put a recipient under the steam pipe.

- Open the steam control knob by turning it anti-clockwise (Fig. 12) wait a few seconds till the superfluous water has run in the recipient and then close the steam control knob by turning it clockwise.

- Then fill the desired milk quantity into a heat resistant container (it has to be large enough to avoid splashing, do not fill more than half of the recipient) and place it under the steam

pipe (9). Immerse the steam nozzle completely in the milk in order to reduce splashing (Fig. 13).

• Press the steam button (Fig. 14). When the pilot light of the steam function (4) comes on, turn the steam control knob anti-clockwise and the milk will start frothing, which means that the steam is coming out.
• When you obtain the required smoothness, turn the steam control knob clockwise and press the steam button again to put it in off-position.
• Then pour the preparation in your cup.

Caution: the steam pipe (9) should not touch the bottom of the container because it may bother the steam flood.

Clean the steam pipe (9) after each use especially when it has been immersed in milk. If you do not clean it, the inner side of the pipe can get blocked and it will be difficult to remove the milk residues around it. The plastic nozzle of the pipe can be removed for cleaning by simply unscrewing it and pulling it down. In case of obstruction of the pipe, use a needle to remove the milk residues. Just after having lathered up the milk, wipe the body of the pipe first with a damp cloth, then keep the cloth against the steam outlet and slowly open the steam control knob (17); let the steam escape for one or two seconds in order to throw out the milk residues and then close the knob (17).

CAUTION: PAY ATTENTION NOT TO GET BURNED WITH THE STEAM AND THE METAL PART OF THE PIPE (WHICH MAY BE HOT).

HOW TO PREPARE A TEA OR OTHER HOT BEVERAGE

With this appliance you can also obtain hot water to prepare some tea or other hot beverage. After having followed the instructions concerning the first use, place a container under the

steam/water pipe (9) and press the steam button. When the pilot light of the steam function (4) comes on, open the steam control knob (17) by turning it anti-clockwise and press the expresso button simultaneously. Hot water will come out of the pipe.

When you obtain the desired water quantity, press the expresso button again to put it in off-position, put the steam button in off-position as well, and close the steam control knob (17) by turning it clockwise.

CLEANING

The body of the appliance: before cleaning the appliance, switch it off, remove the plug from the wall socket and wait until it has cooled down. Wipe the body of the appliance with a damp cloth. Never immerse the body of the appliance in water or any other liquid.

Filter: Can be washed in the upper side of a dishwasher. If the holes are blocked by coffee residues, you can wipe them with a small non-metallic brush.

Support of the filter holder: The ground coffee residues can be removed with a toothpick.

Steam pipe for cappuccino: See paragraph "How to prepare a cappuccino".

Creamer disk: Separate both parts and wipe them under hot water before assembling them.

Drip tray: In order to clean the drip tray, remove the tray and the grid.

CAUTION: NEVER TRY TO OPEN OR TO DISASSEMBLE THE BODY OF THE APPLIANCE.

DESCALING

The expresso machine has to be descaled regularly. The frequency depends on the water hardness and of the use frequency.

1. Remove the scale and the coffee residues from the filter grid and from the support of the filter holder. It is recommended to use only liquid descaling agent that can be found in shops and in the proportions indicated on the packing paper by the producer.

2. Place the container under the support of the filter holder and another one under the steam pipe (9) (Caution: do not use the filter holder (12) during the descaling).

3. Press the ON Switch (5), turn the steam control knob (17) in the open position, and press the expresso button. Wait until steam comes out the opening of the pipe (9).

4. After approximatively 30 seconds, stop the hot water flow by closing the steam control knob (17) and let the descaling solution flow through the support of the filter holder in the container.

5. When the solution has finished flowing, switch off the appliance and let it cool down.

6. Repeat this operation a second time.

Then proceed in the same way but this time only with fresh water to rinse the inner side of the circuit. For a good rinsing, the equivalent of two expresso tanks has to pass through the circuit. Switch off the appliance and remove the plug from the power supply. Let it cool down.

Attention: Never use vinegar as descaling agent.

Some recognizable signs indicate that descaling is necessary:

• Increase of the noise during boiling.
  • A longer time of decoction cycle

For a regular use, the descaling has to be done in the following periodicity:

• With little bit hard water, once a year
• With middle hard water, once a trimester
• With hard water, once a month.

In case of doubt concerning the water quality, ask your local water company.

PROBLEMS AND CAUSES OF THE NON FUNCTIONING OF THE EXPRESSO

PROBLEMS	CAUSES
No hot water	-Check that there is water in the water tank-Open the control knob (17) after having placed a containerunder the steam pipe (9) and press the expresso button remove the air in the hydraulic circuit. When water comes out of the steam pipe (9), close the tap (17) and press the expressobutton again.-If those solutions are not enough, please ask to the competent customer service.
No steam	-Clean every residue in the steam pipe with a needle.-Check that there is water in the water tank
Water overflows through the filter holder	-The filter holder is not well positioned.-The filter holder is not blocked enough.-The joint is dirty and has to be cleaned.-The joint is no more elastic and has to be replaced.-Coffee powder is remaining on the surround of the filter holder.-The shower or the filter are blocked by coffee residues and have to be cleaned/removed with a toothpick or a needle.-If those solutions are not enough, please ask to the competent customer service.
Coffee doesn't flow	-No water in the water tank.-No coffee in the filter of the filter holder.-The coffee grinding in the filter of the filter holder is too fine or the coffee is too tamped.-The holes of the filter or of the shower disk are blocked. Clean them (see above).
