KM 44 - Coffee machine TEAM - Free user manual and instructions

Brand	Team
Model	KM 44
Product type	Drip coffee maker
Dimensions (W x D x H)	25 x 20 x 30 cm
Weight	2 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Water tank capacity	1.25 L (approx. 10 cups)
Coffee type	Ground coffee
Filter	Paper filter or permanent filter (depending on model)
Carafe	Glass, with level markings
Keep warm function	Yes, on heating plate
Anti-drip function	Yes, automatic valve
Automatic shut-off	No (must be turned off manually)
Materials	Plastic and stainless steel (heating plate)
Power cord length	0.8 m
Cleaning	Clean the carafe with warm soapy water; plastic parts with a non-abrasive sponge
Recommended descaling	Use a descaling agent for electric coffee makers
Safety	Do not immerse; do not use near heat sources; unplug before cleaning
Repairability	Have repairs done by a qualified service (manufacturer or importer after-sales service)

Frequently Asked Questions - KM 44 TEAM

How to use my Team KM 44 coffee maker for the first time?

Before first use, pour water into the reservoir without coffee, then turn on the appliance. Once the water has passed, turn off and repeat the operation twice, allowing it to cool between each cycle.

How much water should I put in the tank?

Pour the desired amount of water without exceeding the maximum level indicated to avoid coffee overflow into the carafe.

How to install the filter and coffee?

Rotate the water inlet device to release the filter holder. Place a paper or permanent filter, then add the desired amount of ground coffee. Close the tank lid.

What to do if the coffee does not flow or flows slowly?

This may indicate a need for descaling. Perform a complete descaling of the appliance with a suitable product for electric coffee makers.

How to descale the Team KM 44 coffee maker?

Use a commercially available descaling agent for electric coffee makers and follow the product instructions. Do not use ammonia or harmful substances.

Can I clean the carafe in the dishwasher?

No. Do not put any part of the coffee maker in the dishwasher. Clean the carafe with warm soapy water and rinse with clear water.

How to clean the plastic parts and heating plate?

Use a non-abrasive sponge or damp cloth. Never immerse the appliance in water.

Does the machine stay on permanently?

Yes, as long as the switch is in the on position. It is not recommended to leave it on for more than two hours, especially if the carafe is empty on the heating plate.

What to do if the power cord is damaged?

The cord must be replaced by a qualified service (manufacturer or importer after-sales service) to avoid any danger.

Can I use the carafe in the microwave?

No. The carafe must not be placed in a microwave oven to reheat coffee.

USER MANUAL KM 44 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Kaffeeautomat

Coffee Maker

Cafetière

Koffiezetapparaat

Cafeteria

Cafeteira

Caffettiera/Orziera

I/B Version 041201

TEAM KM 44

230V 1000W

Front cover page (first page)

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance and its cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician*.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Stand the appliance on a table or flat surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Never touch the hot parts of the appliance (be careful, also the warming plate is a hot part!), only touch the plastic parts and take the jug by the handle.
Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles, ... when it is in use as they might catch fire.
When removing lime scale, only use special products for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
Only put ground coffee in the filter.
Never use your coffee maker without water in it. If you have a programmable coffee maker, make sure to fill it with water before programming it. Important: never put the jug in a microwave oven to warm up the coffee. We will not take any responsibility if you do so.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13-amp power socket. If a BS1363 approved 13-amp plug is used, it should be fitted with a 13-amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

INITIAL OPERATION

When you use your appliance for the first time, pour fresh water into the water tank (without coffee) and switch on the appliance.

Once all the water has passed through, switch the appliance off and let it cool down. When it is cold enough repeat the process with fresh water. Repeat this process 3 times.

PREPARATION OF COFFEE

• Open the lid of the water tank.
• Pour the desired amount of water into the water tank. Make sure not to overfill by respecting the maximum level indicated on the water tank.

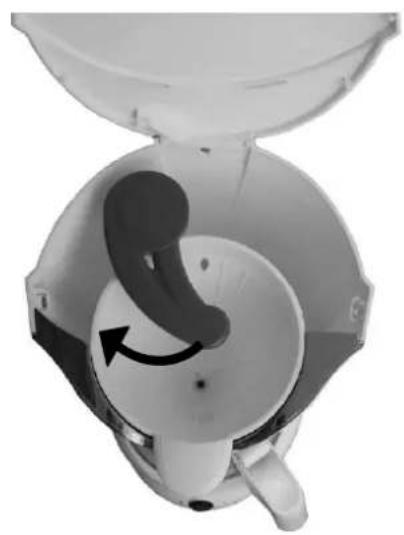

• Swing the water supply device in order to have access to the filter holder (see image page 2) and add a paper filter or permanent filter (depending on the model) in it. Add the desired quantity of ground coffee. Make sure the filter holder is placed correctly and close the lid of the water tank.
• Switch on the coffee maker. The pilot light of the switch will be illuminated, indicating that your appliance works. Thanks to the keep warm function, your coffee is warmed up as long as the appliance is switched on. Note that the appliance will be switched on as long as you do not switch it off manually. We advise you not to let the appliance switched on more than 2 hours and make sure that you never let an empty jug on the appliance.
• When you remove the jug from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the carafe automatically opens the non-drip valve and allows remaining coffee to filter trough into the jug.
• Wait until the brewing process is finished and the filter has run empty before removing the jug.

DECALCIFICATION AND CLEANING

• Decalcifying the coffee maker prolongs its life span. For decalcification only use products especially made for decalcification of coffee makers.
• Never use a dishwasher to clean the jug. Just clean it in soapsuds.
  To clean the plastic parts of the appliance, use a humid, non abrasive cloth.

PRACTICAL HINTS

When you notice that the coffee making process is longer than it should be it is probably time to descale the appliance. Do not wait until the situation gets worse. The descending frequency depends on the amount of lime in water and therefore can be different from family to family. Therefore it is important to pay attention to this. A good maintenance of your appliance will prolong its lifespan. Guarantee claims will not be accepted for the replacement of a heating element full of scale.
