EXP 8 Retro - Coffee machine TEAM - Free user manual and instructions

USER MANUAL EXP 8 Retro TEAM

team international

Exterior view of a modern espresso machine (no visible text or labels)

Espressoautomat

Expresso maker

Expresso

Espressoapparaat

Technical diagram of a coffee maker with labeled parts and exploded view

2 TEAM EXP 8 RETRO - 060322

D

A. Cap of the water tank
B. Water tank
C. Protection baluster
D. Switch/selector
E. Thermometer
F. Pilot light
G. Lid of the glass jug
H. Steam pipe
1. Main housing
J. Measuring spoon
K. Glass jug
L. Drip tray
M. Filter
N. Filter holder
O. Pilot light
P. Cup preheating surface

FR

Technical line drawing of a mechanical device with two views: top shows a brush and tool, bottom shows a bracket (no text or symbols)

Line drawing of a beaker with liquid and a handle, labeled '5' (no text or symbols on the object itself)

Technical diagram showing mechanical assembly steps with labeled components and a magnified view of the device's internal structure.

Line drawing of a rotary knob with a curved handle and a separate clip, no text or symbols present

Line drawing of a mechanical device with a circular component and a plate, no text or symbols present

Diagram of a mechanical device with rotating components and a cylindrical housing, no text or symbols present

4 TEAM EXP 8 RETRO - 060322

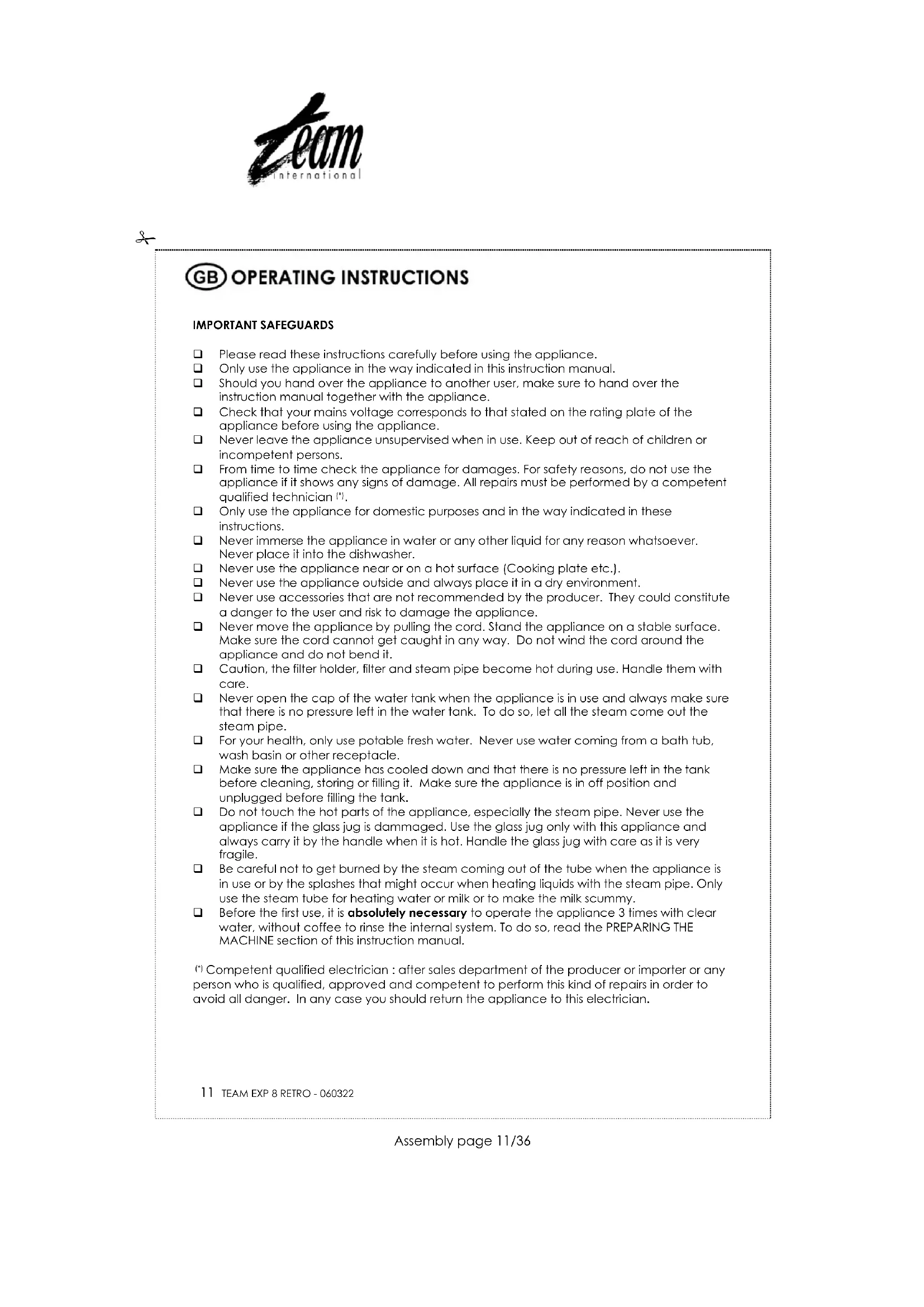

☐ Please read these instructions carefully before using the appliance.
☐ Only use the appliance in the way indicated in this instruction manual.
☐ Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
☐ Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. For safety reasons, do not use the appliance if it shows any signs of damage. All repairs must be performed by a competent qualified technician 1).
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
☐ Never use the appliance near or on a hot surface (Cooking plate etc.).
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Stand the appliance on a stable surface. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Caution, the filter holder, filter and steam pipe become hot during use. Handle them with care.
☐ Never open the cap of the water tank when the appliance is in use and always make sure that there is no pressure left in the water tank. To do so, let all the steam come out the steam pipe.
☐ For your health, only use potable fresh water. Never use water coming from a bath tub, wash basin or other receptacle.
☐ Make sure the appliance has cooled down and that there is no pressure left in the tank before cleaning, storing or filling it. Make sure the appliance is in off position and unplugged before filling the tank.
☐ Do not touch the hot parts of the appliance, especially the steam pipe. Never use the appliance if the glass jug is damaged. Use the glass jug only with this appliance and always carry it by the handle when it is hot. Handle the glass jug with care as it is very fragile.
☐ Be careful not to get burned by the steam coming out of the tube when the appliance is in use or by the splashes that might occur when heating liquids with the steam pipe. Only use the steam tube for heating water or milk or to make the milk scummy.
Before the first use, it is absolutely necessary to operate the appliance 3 times with clear water, without coffee to rinse the internal system. To do so, read the PREPARING THE MACHINE section of this instruction manual.

^17 Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

11 TEAM EXP 8 RETRO - 060322

PREPARING THE MACHINE

We recommend to get used to all functions of your appliance before using it for the first time. Make sure the selector (D) is in off position (0/OFF) and that the appliance is unplugged.

Wash the accessories thoroughly in hot soapy water, rinse and dry them carefully.

Open the cap (A) and fill the water tank (B) with cold water - maximum 4 cups, as indicated on the glass jug (K) - and close the lid of the tank correctly to make sure that no steam pressure can escape.

Before the first use, operate the appliance 3 times with clear water (without coffee), to clean the internal circuit.

CAUTION

Neither open the water tank nor detach the filter holder during the preparation of coffee or when steam is coming out of the steam pipe, or more specifically when the appliance is still under pressure. The green pilot light (O) illuminates when the pressure is totally reduced.

However, follow the instructions below to test if the appliance is still under pressure.

1. Make sure the selector (D) is in off position.
2. Unplug the appliance.
3. Hold a container with cold water under the steam pipe (H) and introduce the pipe in the water.
4. Once the steam pipe (H) is immersed in water, put the selector knob (D) in steam position. Continue this until no more steam comes out of the pipe.
5. Put the selector knob (D) in 0/OFF position.
6. You can now remove the cap (A) of the tank and the filter holder (N).
7. If there is still water in the tank, remove the glass jug and the drip tray, then turn the appliance upside down over a sink in order to empty the remaining water.

These safeguards are to be respected not only when the appliance is on but also during the 10-15 minutes following the stopping of the appliance.

special safeguards concerning the jug

In order to avoid breaking the jug:

- Don't heat the jug when it is empty.

- Change your jug if it is damaged.

- Do not use the jug if it is chipped or cracked.

- Do not place the hot jug on a cold or wet surface.

- Do not use the jug if the handle is cracked or broken.

- Do not use metal sponges to clean the jug, they could scratch and weaken the glass.

- Do not place the jug on or near an electric or gas stove, in a oven or in a microwave oven.

- Avoid shocks.

ESPRESSO FUNCTION

how to prepare an espresso

The espresso is a strong coffee, with a characteristic taste, extremely rich in aroma. Therefore, the water that arrives in the filter with a high temperature is pushed very fast through the coffee mass by a strong pressure. It extracts the nectar from the grinding and draws the

essential aromas from the coffee. That's why the espresso is usually served in small "espresso" cups.

Use preferably a special espresso coffee with suitable roasting and grinding. Remember that the espresso needs a finer grinding than the filter coffee.

1. Make sure the appliance is unplugged.

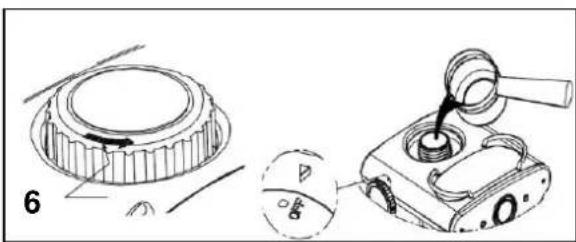

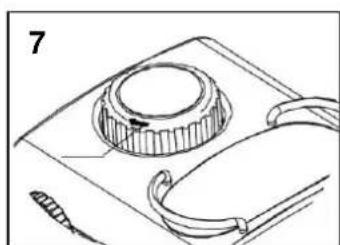

2. Pour the desired amount of water in the tank (B) as indicated above (fig. 6). Use the level indication on the glass jug (fig. 5). Close the lid (fig. 7).

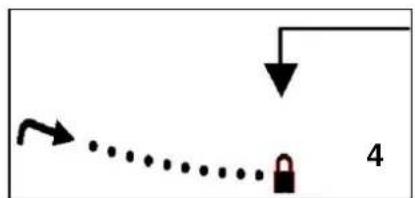

3. Detach the filter holder (N) by turning it to the left and taking it down. Fill the filter with the desired amount of ground coffee (fig. 1 and 2) and press the coffee in the filter. Put the filter holder back into position in the appliance by turning it from left to right until it locks. Make sure it is positioned correctly. Make sure the locking feature of the filter is as far as possible from the filter (fig. 3 and 4).

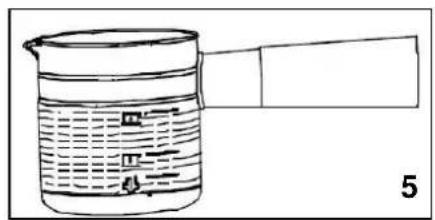

Marks on the jug:

Mark for 4 cups

Mark for 2 cups

Mark minimum quantity for steam production

1. Make sure the drip tray (L) is placed (Fig. 8).

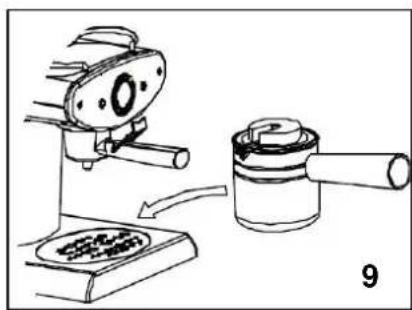

2. Place the jug with its lid (G) under the filter holder (N) (Fig. 9).
3. Plug in the appliance. Make sure the selector (D) is in off position.
4. Switch on the expresso function. Put the selector knob (D) in □ position. The red pilot light (F) will illuminate. After a certain heating time, the water is pressed through the ground coffee.
5. When the water tank is empty, the green pilot light illuminates. The brewing process is finished.
6. Switch off the appliance by putting the selector in off position.
7. Before detaching the filter holder, make sure the appliance is no longer under pressure.

CAUTION: Never remove the filter holder when the selector is not in off position.

CAUTION: be careful when emptying the filter, as the metal parts might still be hot. Remove the filter holder as described above and press the locking feature forward to hold the filter when throwing the ground coffee in the dustbin.

HOW TO PREPARE A CAPPUCCINO

You can use this appliance to froth milk to make cappuccino or hot chocolate or to heat up several other drinks.

First prepare an expresso as described above, but do not fill the cup completely in order to make sure that there is some space left for the milk foam.

1. Fill the water tank (B) with the desired amount of water.
2. Plug in the appliance. Make sure the selector (D) is in off position.
3. Switch on the expresso function. Put the selector knob (D) in position. After a certain heating time, steam comes out of the steam pipe (H).
4. Keep the cup filled (not more than halfway) with milk under the steam pipe and immerse the steam pipe in milk to froth it. Put the milk foam on the expresso with a spoon in order to obtain a real Italian cappuccino.
5. Put the selector knob (D) in 0/OFF position after use.
6. To empty the appliance, put a container under the steam pipe and put the selector in position. The remaining water comes out of the appliance.

Clean the steam pipe after each use. Especially if you immersed it in milk. Milk residues might obstruct the steam pipe. To clean the steam pipe (H), you can unscrew the steam pipe protection. If the pipe is obstructed, unclog it with a needle. If you just frothed milk, dry the steam pipe with some cloth, then maintain the cloth against the end of the pipe and put the selector (D) in position. Let steam escape for about 1 or 2 seconds to eliminate milk residues, then place the selector in off position.

CAUTION: Steam or metallic parts of the tube might be very hot, make sure not to get burned.

THERMOMETER

There is a thermometer on the front side of the appliance, it indicates the temperature of the pipes through which water flows to be pressed through the coffee. As the temperature sensor is not in direct contact with water, it might react a little later.

PREHEATING THE CUPS

Between the protection bars (C), there is a surface that allows preheating the cups (P). This surface heats up when the appliance is in use. Therefore we advise you to operate the appliance once with clear water before use in order to heat up the system. In the meantime, this will rinse the internal circuit.

CLEANING

Before cleaning, switch off the appliance, unplug it and let it cool down.

Main unit: Clean the plastic parts of the appliance with a damp cloth. Never use abrasive products. Never immerse it in water or any other liquid.

Removable parts: The removable parts are the filter holder (N), the filter (M), the drip tray (L) and the glas jug with its lid (K and G). These parts can be cleaned in soapy water. Rinse these parts with clear water and dry them thoroughly before installing them.

Caution: Never try to open or disassemble the unit.

DESCALING

The appliance must be descaled regularly. The frequency depends on the water hardness and of the use frequency.

1. Remove the scale and the coffee residues from the filter holder. t is recommended to use only liquid descaling agent that can be found in shops and in the proportions indicated on the packing paper by the producer. Pour the liquid in the water tank in the proportions indicated on the product's packaging.

2. Put a container under the opening of the filter holder and another container under the steam pipe (Caution: when descaling, remove the filter and clean it separately).

3. Fill the water tank with the product. Plug in the appliance and put the selector in position. Let the steam come out of the steam pipe for about 30 seconds, then let the rest come out of the opening of the filter holder.

4. When the product has passed, switch off the appliance and let it cool down.

5. Repeat this operation once again.

Operate the appliance 3 times with clear water to rinse the appliance. Switch off the appliance and unplug it. Let it cool down.

Caution: Never use vinegar to descale the appliance.

Signs showing that descaling is necessary are the following:

• When the noise level of the appliance rises during operation.
• The heating time is longer.

If you use the appliance frequently, it is advisable to descale the appliance frequently as follows:

• If water contains a small amount of limescale, descale once a year.
• If water contains a medium amount of limescale, descale three times a year.
• If water contains a large amount of limescale, descale once a month.

In case of doubt concerning the amount of limescale contact the local water distribution company.

PROBLEMS AND CAUSES OF THE NON-FUNCTIONING OF THE ESPRESSO

PROBLEMS	CAUSES
No hot water	- Please check if there is water in the water tank.
No steam	- Clean the residues in the steam pipe with a needle.-- Please check if there is water in the water tank.
Water overflows through the filter holder	- The filter holder is not well positioned.-- The filter holder is not well attached.- Coffee powder is remaining on the edge of the filter holder.- The openings or the filter are obstructed by coffee and must be cleaned (with a needle or toothpick).
Coffee doesn't flow	-No water in the water tank.- No coffee in the filter.- The coffee grinding in the filter of the filter holder is too fine or the coffee is too tamped.- The holes of the filter or of the shower disk are blocked. Clean them as described above in the "Water overflows through the filter holder".
Cold water flows when the appliance is in use.	- The water tank is too full.

If none of the points above resolves the problem, please contact the customer service or the vendor of this appliance.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol ■ the rating label or on the packaging, your appliance should not be disposed of as unsorted

municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
