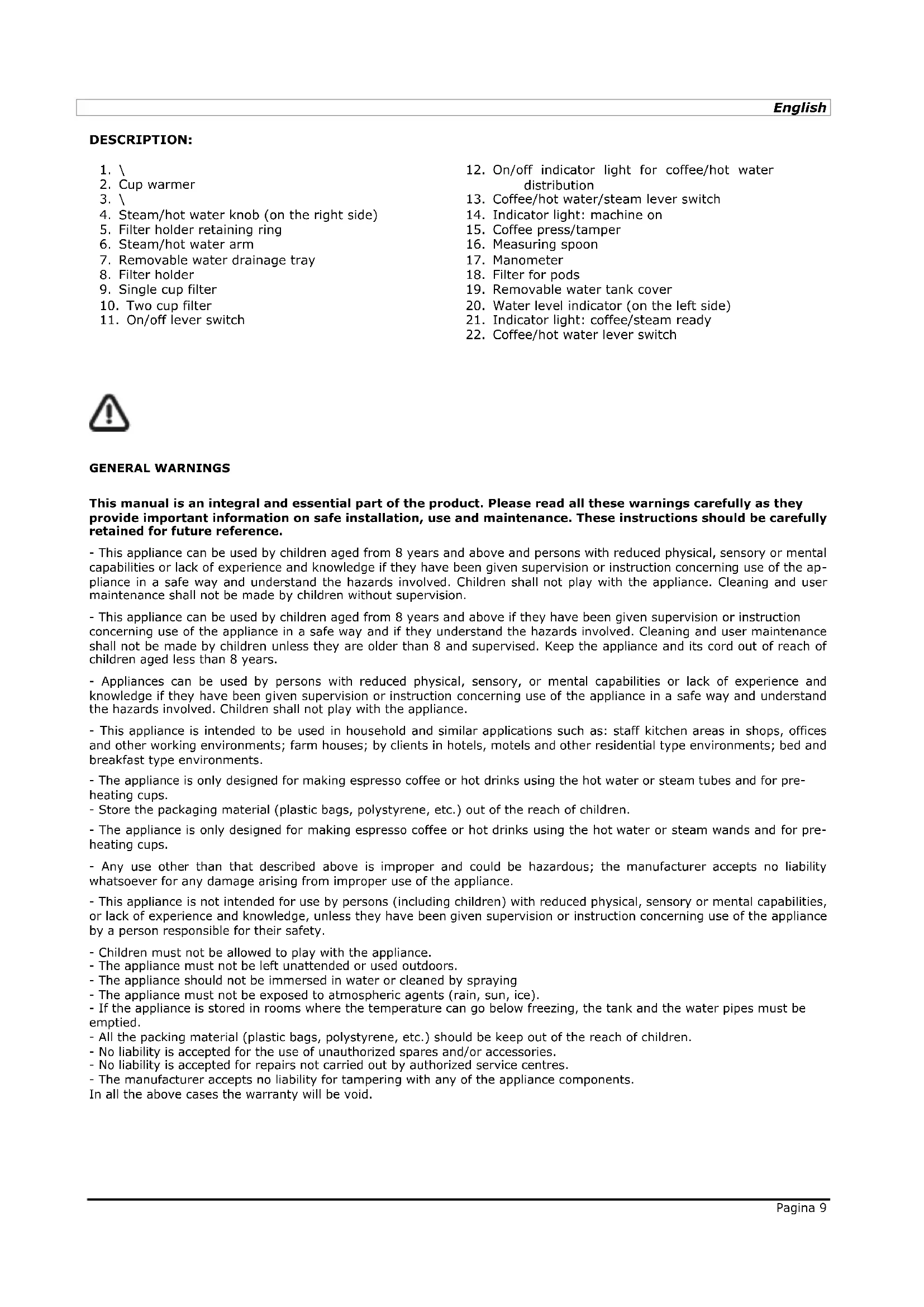

USER MANUAL Anna PL41LEM Lelit

1. \

2. Cup warmer

3. \

4. Steam/hot water knob (on the right side)

5. Filter holder retaining ring
6. Steam/hot water arm
7. Removable water drainage tray
8. Filter holder
9. Single cup filter
10. Two cup filter

11. On/off lever switch

12. On/off indicator light for coffee/hot water distribution

13. Coffee/hot water/steam lever switch
14. Indicator light: machine on
15. Coffee press/tamper
16. Measuring spoon
17. Manometer
18. Filter for pods
19. Removable water tank cover
20. Water level indicator (on the left side)
21. Indicator light: coffee/steam ready
22. Coffee/hot water lever switch

GENERAL WARNINGS

This manual is an integral and essential part of the product. Please read all these warnings carefully as they provide important information on safe installation, use and maintenance. These instructions should be carefully retained for future reference.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• The appliance is only designed for making espresso coffee or hot drinks using the hot water or steam tubes and for preheating cups.

Store the packaging material (plastic bags, polystyrene, etc.) out of the reach of children.

• The appliance is only designed for making espresso coffee or hot drinks using the hot water or steam wands and for preheating cups.
• Any use other than that described above is improper and could be hazardous; the manufacturer accepts no liability whatsoever for any damage arising from improper use of the appliance.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children must not be allowed to play with the appliance.

• The appliance must not be left unattended or used outdoors.
• The appliance should not be immersed in water or cleaned by spraying
• The appliance must not be exposed to atmospheric agents (rain, sun, ice).
• If the appliance is stored in rooms where the temperature can go below freezing, the tank and the water pipes must be
  emptied
• All the packing material (plastic bags, polystyrene, etc.) should be keep out of the reach of children.
• No liability is accepted for the use of unauthorized spares and/or accessories.
• No liability is accepted for repairs not carried out by authorized service centres.
• The manufacturer accepts no liability for tampering with any of the appliance components.

In all the above cases the warranty will be void.

ESSENTIAL SAFETY WARNINGS

As with all electrical appliances, the risk of electric shock cannot be excluded, therefore, the following safety warnings should be carefully observed.

To avoid spilling the connector, never pull the power cord.
- Always attach plug to appliance first, then plug cord into the wall outlet.
- To disconnect the appliance, turn any control to "off", then remove plug from wall outlet.
- In the event of any fault or malfunction, do not attempt to carry out repairs. Switch the appliance off, remove the plug and contact the Service Centre.
- In the event of damage to the plug or the power cord, do not operate the appliance, these should be replaced only and exclusively by the Service Centre.
- Unplug from outlet when not in use.
- Before cleaning the exterior surfaces of the appliance, putting on or taking off parts, switch it off, remove the plug from the outlet and allow to cool.
- To reduce the risk of injury do not drape cord over the counter top or table top where it can be pulled on by children or tripped over unintentionally.
- Do not let cord touch hot surfaces.
- Do not let cord hang over edge of table or counter.
- The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Before switching on, ensure that the power supply voltage corresponds to that indicated on the plate on the base of the appliance and that the power supply is properly earthed.
- Do not tamper with the appliance. Contact an authorized technician or the nearest service centre for any problem.
- Do not touch the appliance if your hands or feet are wet.
- Do not touch the plug with wet hands.
- Ensure that the electrical outlet is always freely accessible so that the plug can be easily removed when necessary.
- When removing the plug, always hold it directly. It should never be removed by pulling on the power cord, as this can cause damage.
- To protect against fire, electric shock and injury to persons do not immerse cord, plugs in water or other liquid.
- Do not use adapters, multiple sockets or extension cords. If their use is unavoidable, use simple adapters or multiple sockets and extension cords that conform to current safety standards, taking care not to exceed the current limit marked on the simple adapter or extension cord, or the maximum capacity of the multiple socket.

WARNING ABOUT BURN/SCALD RISKS

This appliance produces hot water and steam; therefore, the following safety warnings should be strictly observed

• Warning: hot surfaces remain hot for a certain time also after use.
• Take care to avoid contact with water spray or jets of steam.
• When the appliance is switched on, do not touch the cup warming plate as it is hot.
• Never direct the steam or water spray towards your body.
• Be careful when touching the steam/ hot water dispensing wand (6).
• Never remove the filter holder (8) during operation.
• The parts labelled "CAUTION HOT" are very hot, so approach and operate them with maximum caution.
• Only place cups and glasses for use with the coffee machine on the cup warmer (2). Other objects should not be placed there.
• Dry the cups thoroughly before placing them on the cup warmer (2).

USER INSTRUCTIONS:

Starting of the machine:

1. Remove the machine from its packing and make sure all packing parts have been taken off (including the protection bags).
2. Lay the machine on a flat and steady surface far away from hot places and from the water taps.
3. Remove the water tank cover (19) placed on the top of the machine and take out the water tank paying attention not to damage the water tubes inside the tank.
4. Fill the tank with cold water.
5. Replace the water tank back in the machine and check that the water tubes are not bent and that the filter is well set on one of them; reposition the tank cover (19).
6. Plug in the machine in the mains. Make sure that the wall socket has the right voltage.
7. Place the filter holder (8) under the brewing group (5) and turn it from the left to the right. Leave it there so that it can get warm and it gets ready for use.
8. Turn the machine on by pushing the on/off switch (11). The indicator light (14) comes on to confirm the power supply.
9. Open the steam/hot water knob (4).
10. Position the lever switch (13) on hot water mode (middle) and push up the switch (22).
11. When water comes out of the steam nozzle (6), let down the switch (22) and close the steam/hot water knob (4). Position the lever switch (13) on coffee mode (down).
12. After completing all these operations, leave the machine on.

1. Check that the water tank has been filled in with water by looking at the water level indicator (20).
2. Press the on/off switch (11): the indicator light (14) will come on. Do this operation only if the machine is off. If it's on pass to the following point. Make sure the lever switch (13) is on coffee mode (down).
3. As soon as the indicator light (21) comes on, the machine is ready for use. PL41LEMAUS: the indicator light (21) goes off.
4. Fit the single cup filter (9) or the two-cup filter (10) into the filter holder (8) that has been warmed up by leaving it attached to the brewing group as described in point 7.
5. Fill the filter with ground coffee by means of the supplied measure spoon (16): 1 measuring spoonful (16) = 1 coffee cup - 2 measuring spoonful (16) = 2 coffee cups. Every time you fill the filter with a spoonful of coffee, press the coffee with the coffee press/tamper (15) before proceeding to fill it with the next spoonful and make sure that there are no coffee rests on the filter border.
6. Insert the filter holder (8) in the brewing group ring (5), turn it from left to right with force, and then put the cup on the removable water drainage tray (7).
7. Push up the coffee/hot water lever switch (22). The manometer (17) will show the reached pressure, between 8 and 14 bar.
8. Once you get the desired quantity of coffee, push down the switch (22) again.
9. Remove the filter holder (8) and throw away the coffee grounds. Make sure that the filter holder is clean and reposition it in the brewing group to warm up again.

Preparing an espresso with the use of coffee pods:

1. Check that the water tank has been filled in with water by looking at the water level indicator (20).
2. Press the on/off switch (11): the indicator light (14) will come on. Do this operation only if the machine is off. If it's on pass to the following point. Make sure the lever switch (13) is on coffee mode (down).
3. As soon as the indicator light (21) comes on, the machine is ready for use. PL41LEMAUS: the indicator light (21) goes off.
4. Fit the pod filter (18) into the filter holder (8) that has been warmed up by leaving it attached to the brewing group as described in point 7.
5. Open the single packed pod and pay attention not to damage the pod.
6. Place the pod in its filter (18).
7. Insert the filter holder (8) in the brewing group ring (5), turn it from left to right with force, and then put the cup on the removable water drainage tray (7).
8. Push up the lever switch (22). The manometer (17) will show the reached pressure, between 8 and 14 bar.
9. Once you get the desired quantity of coffee, push down the switch (22) again.
10. Remove the filter holder (8) and throw away the used pod.

Steam:

1. Check that the water tank has been filled in with water by looking at the water level indicator (20).
2. Press the on/off switch (11): the indicator light (14) will come on. Do this operation only if the machine is off. If it's on pass to the following point.
3. Position the lever switch (13) on steam mode (up/high position).
4. As soon as the light (21) goes on, the machine is ready for use. PL41LEMAUS: the indicator light (21) goes off.
5. Open the steam/hot water knob (4). First some water will flow out and then the steam.
6. Put the cup with the desired infusion under the steam tube (6) and turn the knob (4) completely.

7. When the drink has been suitably frothed, close the steam/hot water knob (4).

8. IMPORTANT: after you have frothed your milk, reopen the steam/hot water knob (4), position the steam switch (13) on hot water (middle) and push up the switch (22). When the water flows out of the steam tube (6), close the steam/hot water knob (4) again, at the same time push down the switch (22) and re-position the switch (13) on coffee again (down). Clean carefully the steam/hot water tube (6). This operation is needed to restore the water circuit inside the machine's tubes.

Hot water:

1. Check that the water tank has been filled in with water by looking at the water level indicator (20).

2. Press the on/off switch (11): the indicator light (14) will come on. Do this operation only if the machine is off. If it's on pass to the following point.

3. Position the lever switch (13) on hot water (middle).
4. As soon as the indicator light (21) remains on, the machine is ready for use. PL41LEMAUS: the indicator light (21) goes off.
5. Open the steam/hot water knob (4) and push up the lever switch (22).
6. Hot water will flow out from the steam arm (6) immediately.
7. Once you have got the desired quantity of hot water, push down the switch (22) and close the steam/water knob (4).
8. After obtaining hot water from the arm (6), make sure that there is still water in the tank.

USEFUL TIPS:

The single cup filter (9), the two-cup filter (10) and the pod filter (18) do not need to be washed after each use but please check that the holes are not blocked.
- For best results, we suggest warming the cups up on the cup warmer (2) which works only when the machine is on.

CLEANING AND MAINTENANCE

Cleaning and maintenance of the machine are essential for the quality of the coffee and the durability of the appliance.

Cleaning

The machine must be cleaned at least once a week.

Before starting, remove the plug from the electrical outlet and allow the machine to cool.

Use a soft cloth, preferably microfiber, like the Lelit cloth (code MC972 - not included), and moisten

it with plain water. Do not use abrasive detergents and do not immerse the machine in water.

For thorough maintenance, we suggest you use the Lelit brush (code PL106 - not included), which will help you clean the nozzles and the spaces between the ga-skets more effectively, removing stains and coffee residues from even the smallest cracks.

Warm running water can be used to clean the removable parts of the machine. The filters and filterholder should never be washed in a dishwasher.

There is no need to clean the filters after each use, but just to ensure they are not clogged.

However, to ensure the best performance from your machine, it is essential to thoroughly clean the steam wand and filterholder after each use.

The filterholder should be cleaned to remove the greasy coffee residues that can negatively affect the taste of your.
espresso.

Wash the exterior part of the steam wand with a damp cloth and release a little steam to remove any milk residues from inside the tube, as these could obstruct the steam output, making it more difficult to froth milk properly.

BACKFLUSHING:

It is recommended to perform this cleaning at least once a week and / or at least every 100 brewed coffees. The following instructions apply to all types of groups fitted to our espresso machines.

Material needed:

• Blind filter

code MC002/C for portafilters with 57mm diameter)

Brush (code PL106)
- Detergent powder for espresso machine (code PL103)

Group cleaning. Follow these steps:

1. Place the blind filter in the portafilter
2. Add 1 tea spoon of detergent powder (3-5 grams) in the blind filter
3. Insert the portafilter into the brewing group
4. Switch the espresso switch on for about 10 seconds
5. Stop the espresso brewing and wait for 10 seconds
6. Without removing the portafilter, repeat this operation 5 times
7. Remove the portafilter, switch the espresso switch on again and rinse the portafilter under the hot water that comes out of the group. Turn the switch off
8. Clean the brew group and the brew gasket first with the brush and then with a damp cloth in order to remove all coffee powder rests
9. Insert the portafilter into the brew group again and repeat points 4-5-6 without detergent powder
10. Throw away the first espresso you'll brew

Cleaning of the accessories through immersion. Follow these steps:

1. Place the filters and portafilter in a jug with the portafilter handle upwards
2. Pour 3 tea spoons of detergent powder in the jug (10 grams)
3. Pour 1 liter of hot water in the jug until the metallic part of the portafilter is completely immersed
4. Wait at least 15 minutes
5. Remove the immersed parts and rinse them with plenty of warm tap water
6. Throw away the first espresso you'll brew

DESCALING THE MACHINE

Use of the machine creates a natural formation of lime scale, over a time period depending on how frequently the machine is used and on the hardness of the water.

Lime scale deposits can obstruct the tubes and decrease the brewing temperature, altering the quality of the coffee and reducing the lifetime of your machine.

To avoid the formation of limescale, which can also deposit in the internal circuits, we recommend the use of our Lelit resin filter (code MC747 - MC747PLUS - not included) to soften the water. Please insert the filter in the tank following the instructions on the packaging. The filter purifies the water from the calcium and magnesium salts which are deposited to form lime scale and affect the taste of your coffee. Remember that the filter loses its effectiveness after a certain number of gallons treated, so replace it periodically. Instructions for the use and replacement of the filter are given on the box.

To avoid any possibility of damaging the machine's components, ADD ONLY NATURAL DESCALING PRODUCTS INTO THE WATER TANK.

TECNCIAL DATA:

Voltage: 230V - 50Hz -- Power: 1050 W -- Pump pressure: 15 bar

Water tank: 2,7 litres -- Heating time: ca. 3 min.

Dimensions (HxLxD): 34,52327 cm -- Weight: 7,2 kg

To be operated with ground coffee and coffee pods

For voltage 240V - 50Hz: art. PL41LEMN.

PL41LEMUK: assembled with UK plug -- PL41LEM-120 - 120V-60 Hz -- PL41LEM-60 220V 60 Hz

TROUBLESHOOTING:

We thank you for buying one of our products, projected and assembled in accordance with the most up-to date technological innovations.

Following carefully the simple operations described in this manual, which respect all essential safety regulations, you will get the best performances and will appreciate the remarkable reliability of this product in the years to come.

Please find below the description of the most frequent problems and of their solution:

PROBLEM	CAUSE	SOLUTION
Coffee is not creamy	1. Coffee blend not suitable for machine 2. Improper grinding 3. Too little coffee in filter; the pressure indicated by the manometer (17) is under 8 bar 4. The filter holder has not be tightened under the brewing group ring	1. Use a different coffee blend 2. Adjust coffee grinding 3. Put more coffee in the filter and press it properly 4. Tighten better the filter holder
The coffee is too cold	1. The machine had not reached the proper temperature 2. Filter-holder has not been preheated 3. Cups have not been preheated 4. Thermostat malfunction.	1. See section "Starting the Machine" and "Making an Espresso Coffee" 2. Filter-holder must be heated together with the water - see section "Starting the Machine" 3. Properly heat the cups on the cup-warmer (2) 4. Contact the nearest SERVICE CENTER
The coffee comes out too quickly	1. Coffee too coarsely ground 2. Too little coffee in the filter 3. Coffee has not been pressed enough 4. Coffee/pod old or unsuitable	1. Use a finer grinding 2. Put more coffee in the filter 3. Press the coffee more firmly 4. Use a different coffee blend
Coffee comes out between the coffee group and the filter-holder	1. Filter-holder not properly inserted 2. Too much coffee in the filter 3. Edge of the filter-holder not clean 4. The douche seal is worn or damaged	1. Insert the filter-holder correctly 2. Put less coffee in the filter 3. Clean the edge of the filter-holder and the brewing group seal 4. Contact the nearest SERVICE CENTER
Coffee comes out in drops	1. Coffee too finely ground 2. Too much coffee in the filter 3. Coffee too firmly pressed	1. Use a coarser grinding 2. Put less coffee in the filter 3. Press the coffee more gently
The machine does not produce steam	1. The water tube hole may be obstructed 2. Lack of water in the tank	1. Clean the hole with a needle 2. See section "Starting the Machine"
No coffee produced during the coffee cycle; the manometer indicates 0 bar pressure	1. Lack of water in the tank 2. Steam switch on	1. Fill the tank 2. Turn off the steam switch
No coffee produced during the coffee cycle; the manometer indicates more than 14 bar pressure	1. Coffee too finely ground 2. Too much coffee in the filter 3. Coffee too firmly pressed 4. The brewing group douche is dirty	1. Use a coarser grinding 2. Put less coffee in the filter 3. Press the coffee more gently 4. Contact the nearest SERVICE CENTER
The machine does not work and the ON light does not come on	1. No electricity 2. The power cable is not properly plugged in 3. The power cable is damaged	1. Restore electrical power 2. Plug in the power cable correctly 3. Contact the nearest SERVICE CENTER for a replacement cable
The ON light is on but the ready steam indicator does not go off within 10 minutes	1. Thermostat malfunction 2. Heating element malfunction	1. Contact the nearest SERVICE CENTER 2. Contact the nearest SERVICE CENTER

The inserted data and pictures can be subject to changes without previous notice for the improvement of the machine's performances.

DESCRIPTION:

Material necessities:

Cnedyuoune HNCTpykun OTHocTcKo Bcem TINam rpynn, yCTaHOBJIeHHbIX Ha HauNX 3cnpecco-MaunH. Heo6xOumMbIe:

TEXHnueCKNE DAHHbIe:

HapnjaKeHne: 230B - 50/60Hz;

MoHocTB:1050BT. 6Obem6OuKaIJNBAoBbI:2,7IITpa

Bpemr roTOBHOCTn pa60Te: OKoJIo 3 MmHyT

Pa3Mepbl (BxUxD): 34,52327 cm

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differential waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal of enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the products is marked with a crossed-out wheeled dustbin.

EC DECLARATION OF CONFORMITY

Gemme Italian Producers srl declares under its own responsibility that the product:

Coffee machine type: PL41LEM - PL41LEMAUS to which this declaration relates conforms to the following standards:

EN 60335/1 - EN 60335/2/15 - EN 61000/3/2 - EN 55014

pursuant to directives:

2014/35/UE - 2014/30/UE

NB: This declaration is null and void should the machine be modified without our specific authorisation.

FRANCAIS

AVERTISSEMENT POUR L'ELIMINATION CORRECTE DU PRODUIT AUX TERMES DE L DIRECTIVE EUROPEENE 200/96/EC

Genre Italian Producers srl

25045 Gantegnato (Bp)

DEUTSCF

KomnaHnGemme Italian Producers srl 3aBnEeT noCBOIO OTBeTCTBEHHOCTb, UTO n3dJIHe:

KoΦeBaPka Tnla: PL41LEM n PL41LEMAUS K KOtOpoi OTHocntc DaHHa JeKnapaun, COOTBeTCTBYOT CNeDyHouIm HOpMaM:

EN 60335/1 - EN 60335/2/15 - EN 61000/3/2 - EN 55014

COrJaCHO NIOJOKeHnM DnpeKtNB:

2014/35/UE - 2014/30/UE

PpmeaHHe:HaToaJaeKlapaTepaTeCnly,ecnBycTroCTBO6bln BHeceHbI 3MeHen86e3 Haewero nncbMeHHoro pa3peSeHn.

Geme Italian Producers srl

25045 Castegnato (Bp)

This product is covered by the warranty laws valid in the country where the product has been sold; specific information about the warranty terms can be given by the seller or by the importer in the country where the product has been purchased. The seller or importer is completely responsible for the product. The importer is completely responsible also for the fulfillment of the laws in force in the country where the importer distributes the product, including the correct disposal of the product at the end of its working life. Inside the European countries the laws in force are the national laws implementing the EC Directive 44/99/CE.

Français

CONDITIONS DE GARANTIE: GARANTIE LEGALE

Gemme Italian Producers srl
