USER MANUAL Royal Topmark

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be aected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing parts or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

• Never leave your child unaended.
• This seat is not suitable for children under 6 months.
• The use of this stroller is recommended for children from 6 months to 4 years. The maximum weight is up to 15kg .
• This chassis is compatible with car seat T8006 when using adapter A8005. This chassis is also compatible with carseat Maxi Cosi Cabrio-Fix or Maxi Cosi Pebble, when using the uncluding adapter for Maxi Cosi.
• FOR CAR SEAT USED IN CONJUNCTION WITH A CHASSIS: this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
• Do not overload the basket with more than 2kg .
• The maximum permissible loading of the rear pocket on the canopy does not exceed 1kg .

WARNING

• The maximum permissible loading of the backrest pocket on seat does not exceed 0,5 kg.

• Any load aached to the handle and/or on the back of the backrest and/or on the sides of the stroller aects the stability of the stroller. The stroller may become unstable and p over and can injure you child.

• This product is not suitable for running or skang.
  Always use the restraint system.

• To avoid serious injury from falling or sliding out always use the 5 point safety harness.
• Always use the crotch strap in combinaon with the waist belt.
• This vehicle designed for one child only. Do not allow more children, as stroller may become unstable.
• Pay special aeton when manoeuvring the stroller up or down the pavement, it is best to do it backwards.
• Be aware of the risk of open re and other sources of strong heat, such as electric bar res, gas res, etc. in the near vicinity of the stroller.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Ensure stroller is completely erected and check all locking devices are engaged before placing child in stroller.
• Check that the car seat aachment devices are correct engaged before use.
• Before making adjustments to stroller ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not use on stairs or escalators, fold stroller and carry.
• Put on all the brakes whenever you park the stroller.
• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• The parking device shall be engaged when placing and removing the children.
• Do not allow objects on top of canopy as this stroller may become unstable.
• Keep plasc rain cover away from children to avoid suocan.
• Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocao. To prevent the risk of suocao, never leave the stroller with child in it under the sun, with the rain cover ed to it.
• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Accessories which are not approved by the manufacturer shall not be used.
• Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
• Do not use this stroller if any parts are broken, torn or missing.
• Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• 1 stroller frame with 1 basket and rear wheels
• 2 pcs front wheels
• Canopy
• Rain cover
  Adapters et of car seat (MC)

EN

Note that the fabric paerns, colour pictures and stroller accessories on the stroller in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent suocaoon.

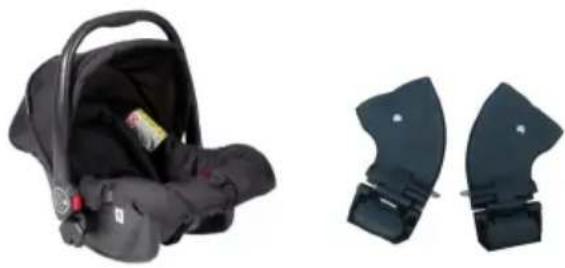

Oponal: T8006 Car seat for Royal + adapter A8005.

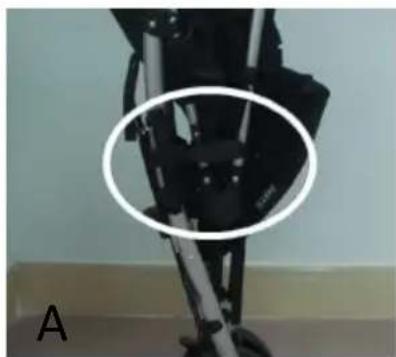

TO OPEN STROLLER

A. Release storage clip.

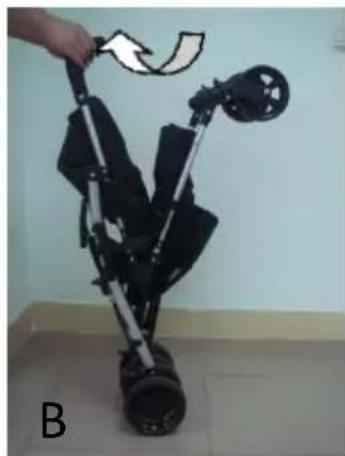

B. Grasp handles and fully open out the stroller.

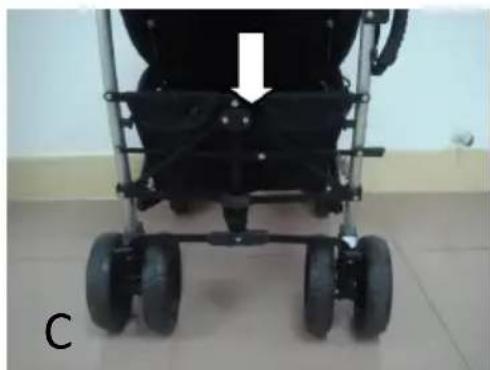

C. Using foot, push the brake pedal down fully until you hear a click.

ASSEMBLING

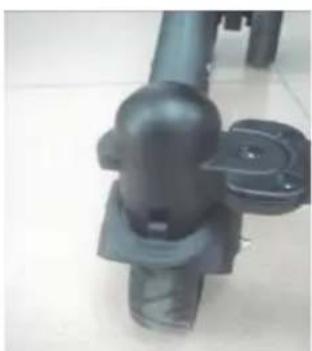

FRONT WHEEL ASSEMBLY

A. Before assembly to the front legs, make sure that the lock mechanism is well ached each of the front wheel before assembly.

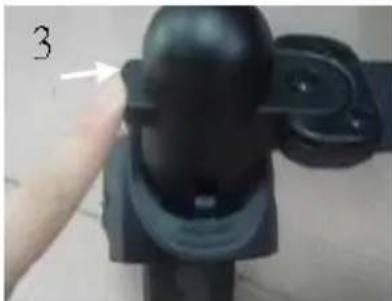

B. The front axle on the front to push up the plasc inside the hole and press the buon inside as picture 3 showed to x the wheel housing completely. Follow same way for other side.

EN

FITTING CANOPY

Put canopy hoop front into posion and buckle both sides onto handle tube and also buckle the Velcro on both handle tubes behind canopy.

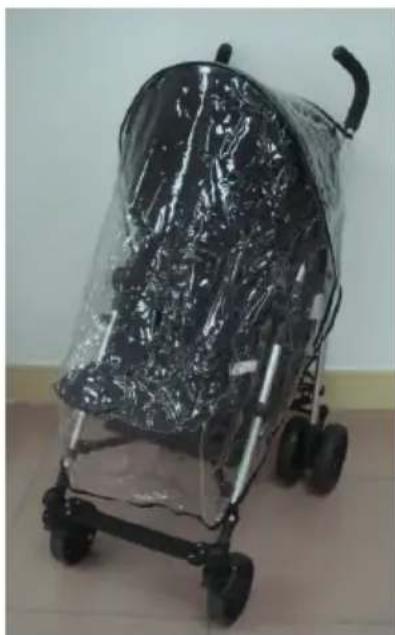

RAIN COVER ASSEMBLY

Put rain cover on the stroller and make sure it has been xed by Velcro.

WARNING:

Be extremely careful when using the rain cover.

Store away from children when not in use.

To be used under adult's supervision.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocacon.

To prevent the risk of suocao, never leave the stroller with child in it under the sun, with the rain cover ed to it.

To prevent your child from overheang, always remove the rain cover when indoor or in warm environments.

USING

ADJUSTMENTS

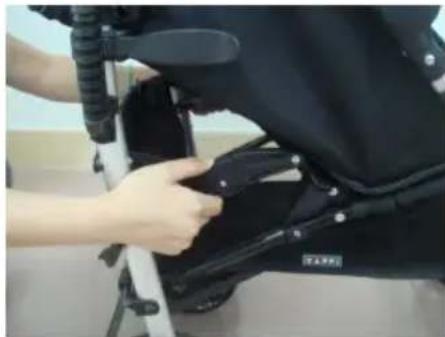

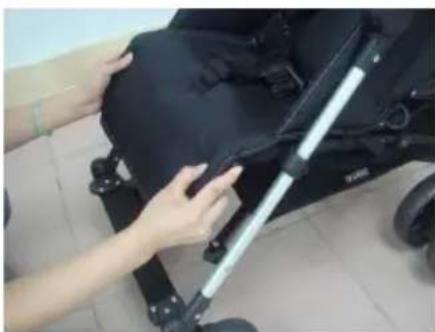

A. Backrest adjustment

Press down the second parts and adjust to desired posion both side simultaneously, total 4 posions.

EN

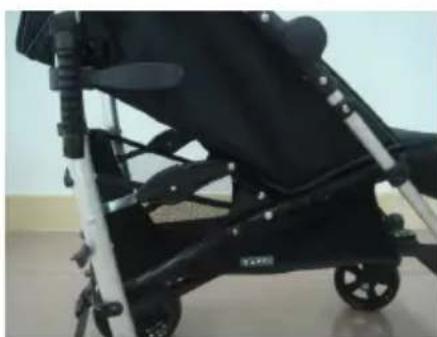

B. Adjustable leg rest

Pull the plasc parts of the adjustable leg rest forwards to change posion of the leg rest. The leg rest can be adjusted to 3 posions.

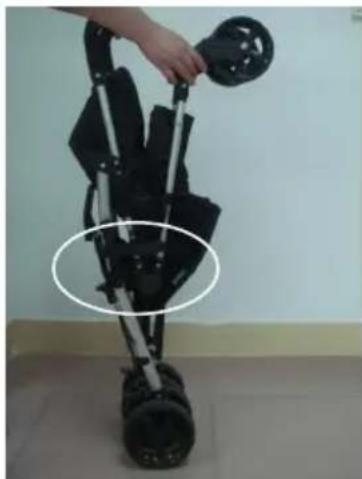

Make sure the backrest is in upright position, footrest is up and canopy is closed when folding the stroller.

Li up base lock and press down 2nd lock. Then squeeze the stroller and lock the folding latch.

2

USING

FUNCTIONS

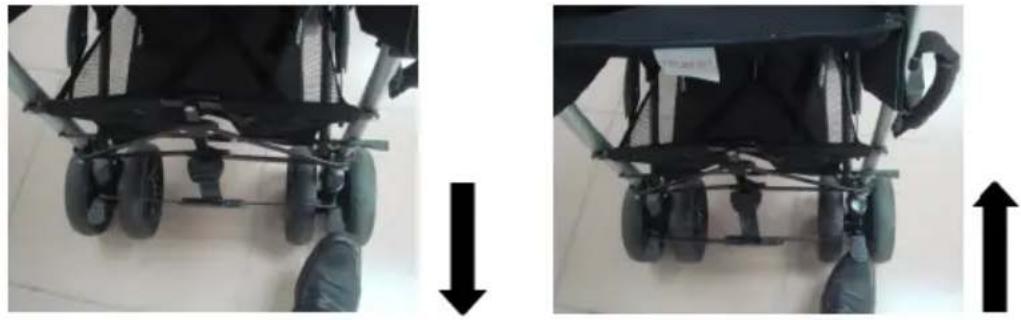

A. Brake funcon

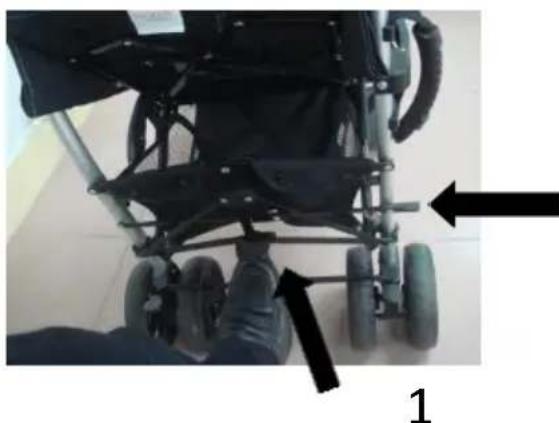

To apply brakes, press down link-brake lever on rear wheels and roll stroller back and forth uncl levers lock into place.

Release the link-brake by pushing the brake levers upwards.

EN

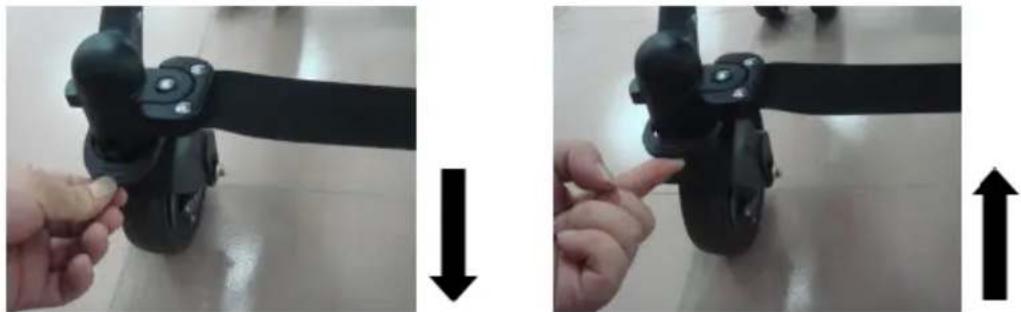

B. Front swivel wheel

To unlock the swivel wheel, press down the lever. To lock the wheel, push the lever in an upward direcon.

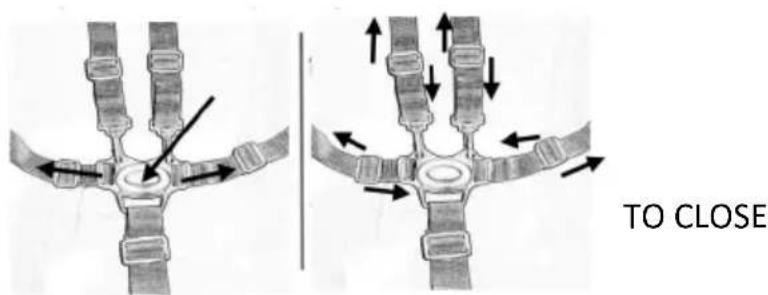

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) unll secure click is heard.

Adjust shoulder, hip and crotch belt in right length to t your child.

To release belt just press the buon.

TO OPEN

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with sand or salt water, sand causes corrosion and salt water the formaon of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only parts and accessories approved by the supplier.

GUARANTEE

We grant 2 years guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible eect on the value or operaon of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888
