USER MANUAL Lucca T8003 Topmark

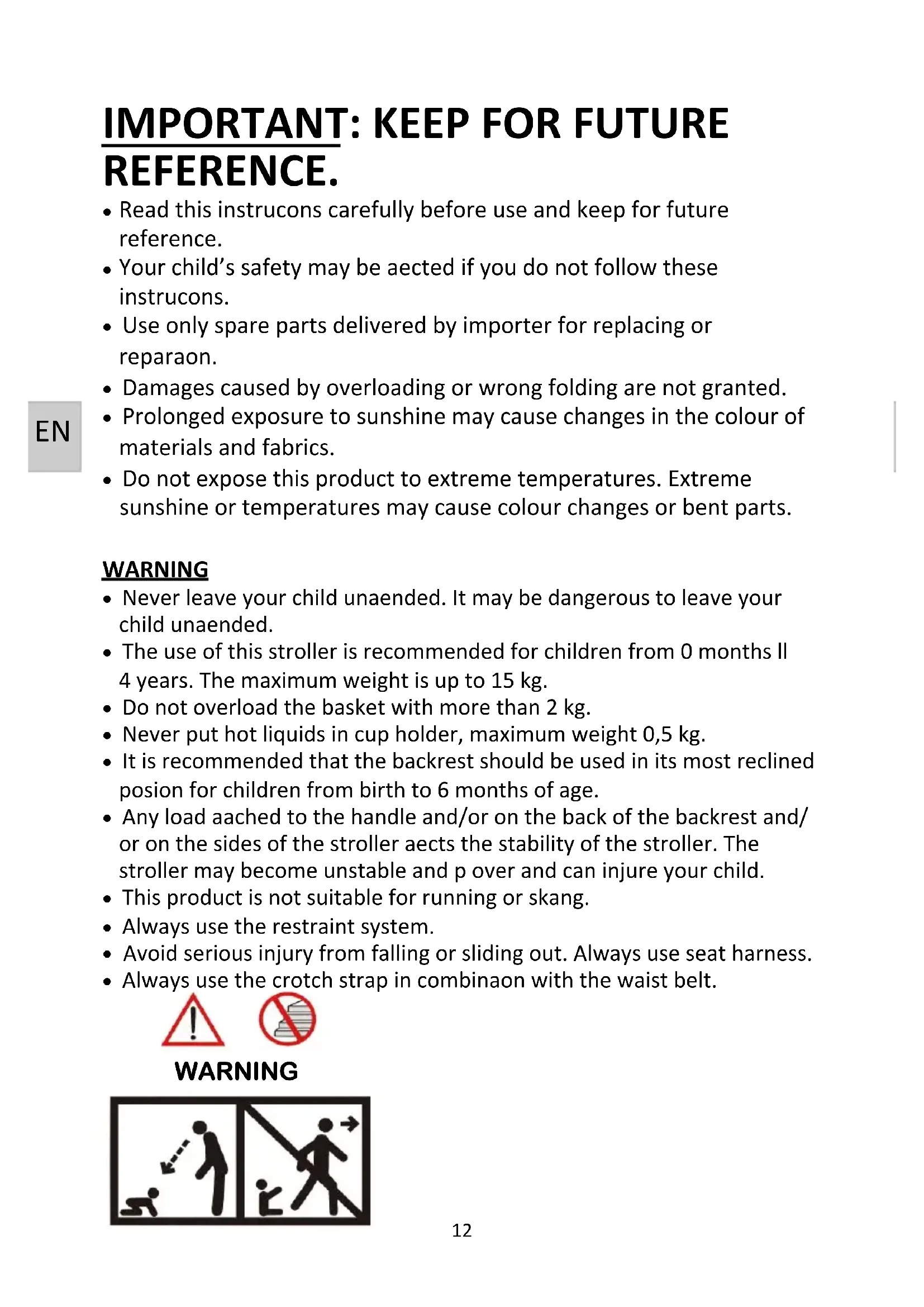

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be aected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

• Never leave your child unaended. It may be dangerous to leave your child unaended.
• The use of this stroller is recommended for children from 0 months to 4 years. The maximum weight is up to 15kg .
• Do not overload the basket with more than 2kg .
• Never put hot liquids in cup holder, maximum weight 0.5kg .
• It is recommended that the backrest should be used in its most reclined position for children from birth to 6 months of age.
• Any load aached to the handle and/or on the back of the backrest and/or on the sides of the stroller acts the stability of the stroller. The stroller may become unstable and p over and can injure your child.
• This product is not suitable for running or skang.
  Always use the restraint system.
• Avoid serious injury from falling or sliding out. Always use seat harness.
• Always use the crotch strap in combinaon with the waist belt.

WARNING

• This vehicle is designed for use by one child only.
• No additional mares shall be added.
• This product is not intended for periods of long sleeping. Should your child need to sleep then it should be placed in a suitable pram body, cot or bed.
• Pay special aeton when manoeuvring the stroller up or down the pavement, it is best to do it backwards.
• Be aware of the risk of open re and other sources for strong heat, such as electric bar res, gas res... in the vicinity of the stroller.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not use this stroller if any parts are broken, torn or missing.
• Ensure that all the locking devices are engaged before use.
• Check that the pram body or seat unit or seat aachment devices are correctly engaged before use.
• Before making adjustments to stroller ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not use on stairs or escalators, fold stroller and carry.
• Put on all the brakes whenever you park the stroller.
• Always apply the brakes when ever the stroller is staonary.
• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• Do not allow more children, as stroller may become unstable.
• The parking device shall be engaged when placing and removing the children.
• Do not allow objects on top of canopy as this stroller may become unstable.
• Keep plasc rain cover away from children to avoid suocao.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocao. To prevent the risk of suocao, never leave the stroller with child in it under the sun, with the rain cover ed to it.

• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Do not use accessories which are not approved by the manufacturer.
• Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
• Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• Stroller frame with basket, front and rear wheels

BOX COLOUR PACK

• Rain cover
• Canopy for seat unit
• Cup holder
• Shoulder and crotch strap pads

Note that the fabric paerns, colour pictures and stroller accessories on the stroller in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent suocaoon.

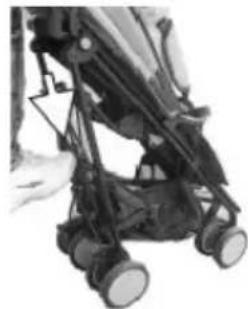

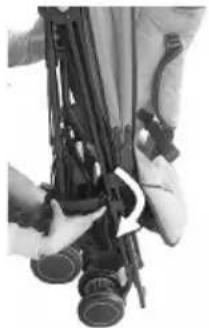

TO OPEN STROLLER

Release folding latch and open the frame, then step down the base lock unl it is fully locked.

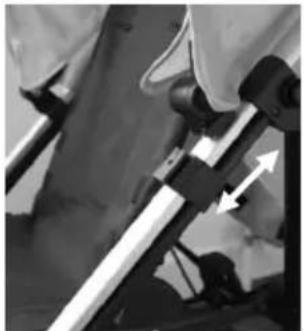

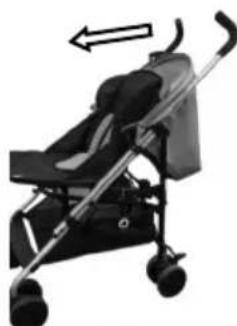

FITTING CANOPY

Push or pull the hood tab to install or remove the hood. Fasten the snap buons. Push down to close the hood and pull up to open the hood.

WARNING: the hood must be xed on both sides of the stroller. Ensure that the hood is correctly secured into posion.

ASSEMBLING

SHOULDER PAD ASSEMBLY

Slide shoulder pads to the shoulder harness.

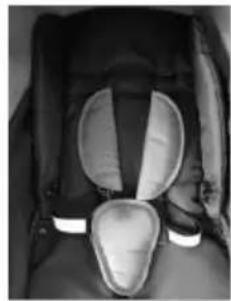

CROTCH STRAP ASSEMBLY

Press the centre of harness buckle. Assemble protect cover to the crotch strap.

Final to fasten the harness clip each chest strap onto the waist strap.

CUP HOLDER ASSEMBLY

To install or remove cup holder simple push down or pull up the cup.

EN

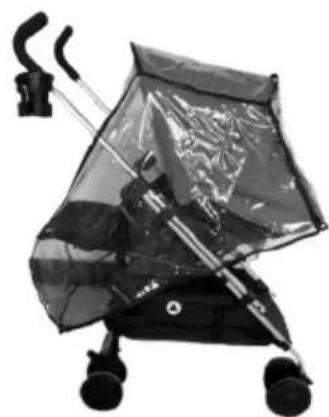

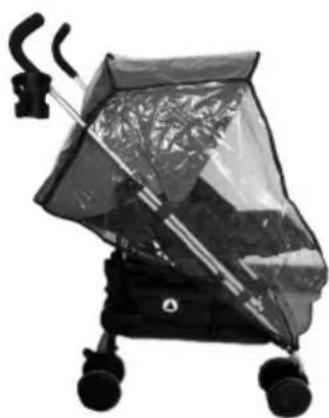

RAIN COVER ASSEMBLY

Put rain cover on the stroller and make sure it has been xed by Velcro.

WARNING:

Be extremely careful when using the rain cover.

Store away from children when not in use.

To be used under adult's supervision.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon.

To prevent the risk of suocao, never leave the stroller with child in it under the sun, with the rain cover ed to it.

To prevent your child from overheang, always remove the rain cover when indoor or in warm environments.

USING

ADJUSTMENTS

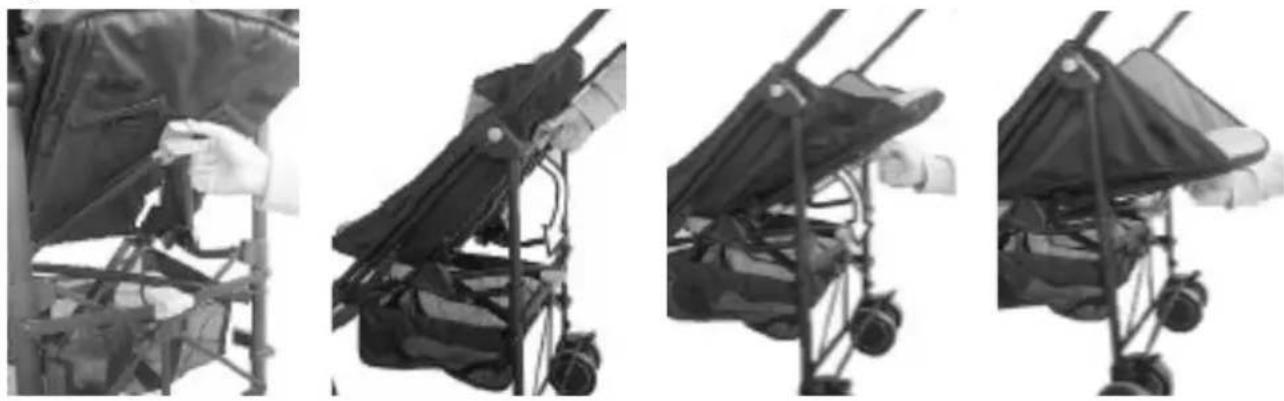

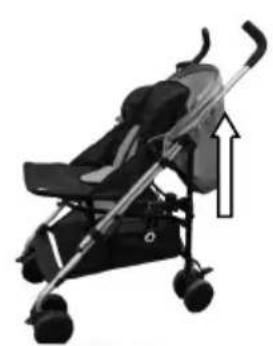

A. Backrest adjustment

Pull up recline release tab to adjust seat back to desire recline posions.

To erect seat back, simply pull up seat back to upright posions. The backrest can be adjusted in 4 posions.

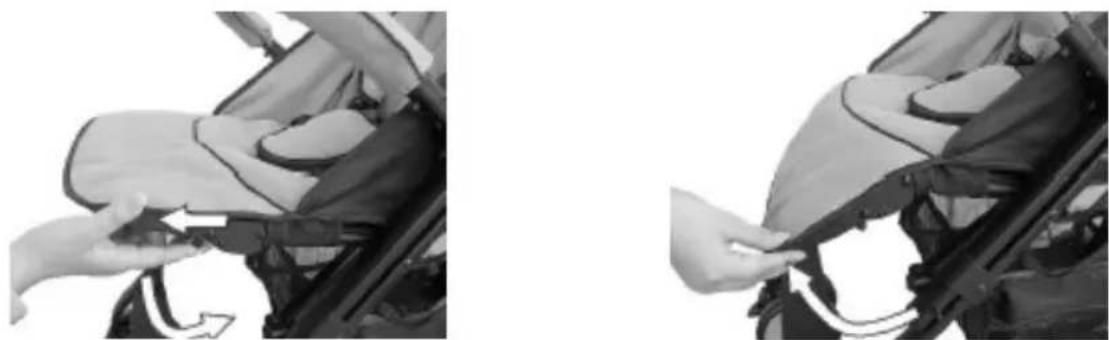

B. Adjustable leg rest

Pull the plasc parts of the adjustable leg rest forwards to change posion of the leg rest. The leg rest can be adjusted to 2 posions.

CONVERT THE HOOD FROM PARENT FACING TO FORWARD FACING

The hood can be converted to both forward facing or parent facing, simply hold front hood panel with one hand, grape rear hood panel from underside of hood with another hand, pull both hand to convert the hood to opposite posion.

EN

USING

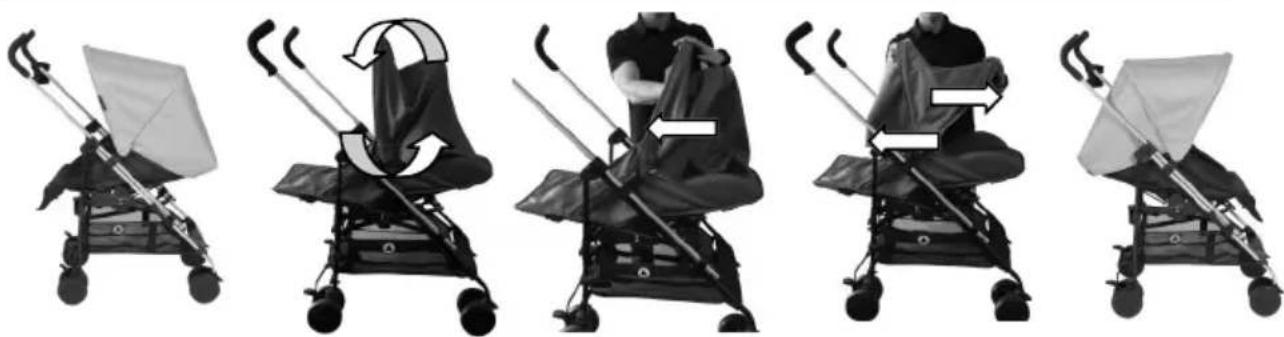

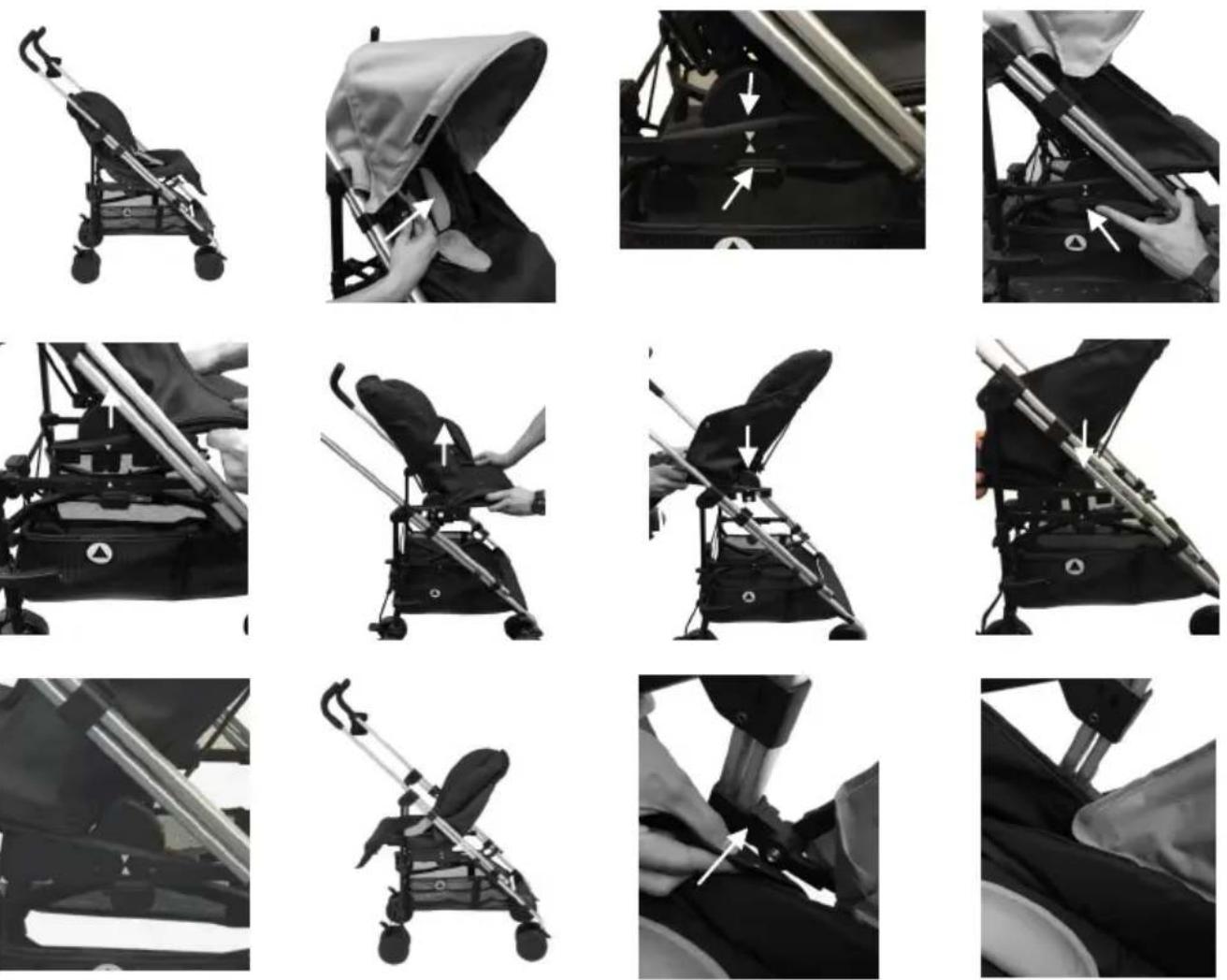

CONVERT THE SEAT FROM FORWARD FACING TO PARENT FACING

1. Release the side wing snap on both sides of the canopy.

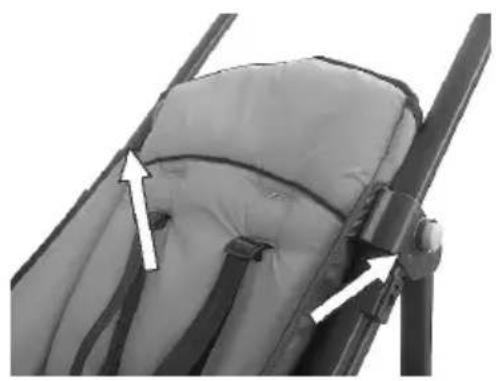

2. Push both sides seat main lock buon unl hear "CLICK" sound to release both sides lock.
3. Li up seat unit and convert to opposite posion then push in seat unit into lock posion.
4. Secure the side wing snap on both sides of the canopy.

USING

Buggy can be folded when seat is facing either direcons.

Make sure the backrest is in upright position (when stroller is in facing forward position), footrest is up and canopy is closed when folding the stroller.

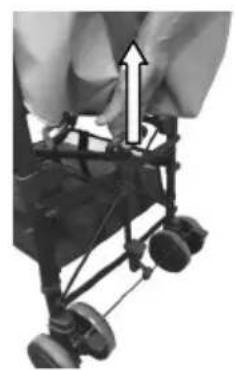

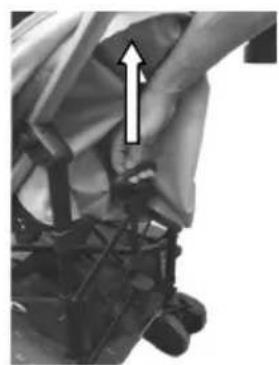

Push both sides 2nd lock buon unl hear "CLICK" sound to release both 2nd lock. Pull up the main lock release handle (push handle in the same me) to unfolding unl lock into folding posion. Close the folding latch.

EN

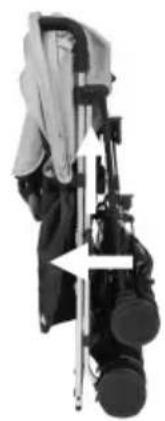

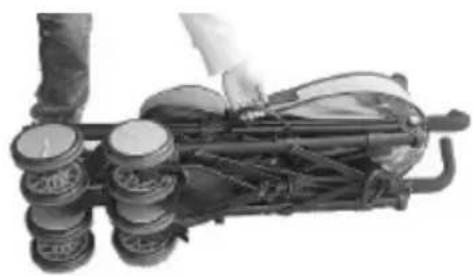

CARRY HANDLE

To carry push chair, simply hold the carry handle on side of push chair as shown.

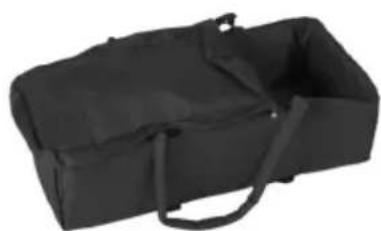

Oponal:
So carry cot T2031

USING

FUNCTIONS

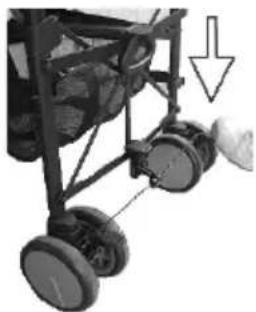

A. Brake funcon

To apply brakes, press down brake lever on rear wheels and roll stroller back and forth untl levers lock into place.

Release the brake by pushing the brake levers upwards.

EN

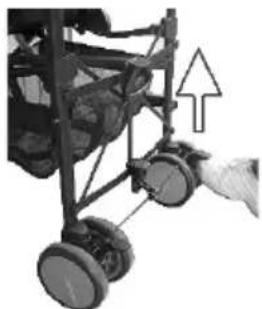

B. Front swivel wheels

To unlock the swivel wheels, push the lever in an upward posion. To lock the wheels, lower the lever in a downward direcon.

Unlock

Lock

USING 5-POINT SAFETYBELT

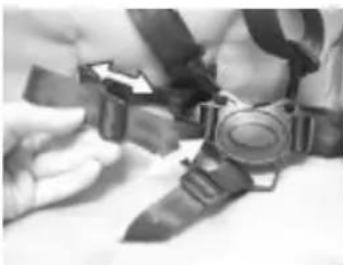

WARNING: ALWAYS USE THE CROTCH STRAP WITH WAIST BELT.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) unll secure click is heard.

Pull on belt to be sure both buckles are fastened to secure child safety.

To safely secure child, adjust shoulder straps and waist belt snugly around child.

To release belt just press the buon.

There are 2 posions for height adjusng. If the shoulder height is not okay please re-install the belt again.

NO- Too low
NO- Too high
YES-Correct

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with salt water, this causes the formaon of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well ventilated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible eect on the value or operaon of the product.

Damages caused by overloading or wrong folding are not granted.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888
