USER MANUAL T7015 Topmark

Black baby stroller with twin canopy and wheels, no visible text or symbols

T7015

6-48

15 kg

Gebruiksaanwijzing

Instrucon for use

Gebrauchsanleitung

Mode d'emploi

Safety warning illustration showing pictograms of human walking and defecation with directional arrows

Side-by-side comparison of a stroller and a black cart frame, both without any visible text or symbols.

MONTAGE

Two-panel image showing a car's wheel assembly and a hand holding a stroller with an upward arrow (no text or symbols)

MONTEREN

Close-up of a stroller with black curved legs and two black arrows pointing to the side (no text or symbols visible)

NL

Black plastic stroller with transparent cover and wheels, no visible text or symbols

IN GEBRUIK NEMEN

VERSTELLEN

A. Rugleuning

Mechanical device with two black plastic bags and circular annotations highlighting features (no text or symbols)

Close-up of a fabric with a central knob and four protruding pins, no visible text or symbols

B. Verstelbare beensteun

Close-up of hands using a mechanical tool to adjust or install a component (no visible text or symbols)

INKLAPPEN VAN DE BUGGY

Side view of a two-wheeled baby stroller with wheels and black cover, showing side-mounted blades and white directional arrows (no text or symbols)

Illustration of a person wearing a black outfit with a circular device attached (no text or symbols)

IN GEBRUIK NEMEN

FUNCTIES

A. Rem funce

Close-up of a mechanical assembly with a wheel and gear, showing a downward arrow indicating motion (no text or symbols visible)

Mechanical assembly diagram showing a wheel and mechanical components with an arrow indicating motion direction (no text or symbols)

NL

B. Voorzwenk wielen

Close-up of a two-wheeled toy with black wheels and a metallic handle (no text or symbols visible)

Close-up of a two-wheeled vehicle with a metallic handle and four wheels (no visible text or symbols)

Vergrendelen Ontgrendelen

GEBRUIK VAN DE 5-PUNTS VEILIGHEIDSGORDEL

WAARSCHUWING: GEBRUIK ALTIJD DE VEILIGHEIDSGORDEL IN COMBINATIE MET HET TUSSENBEENSTUK.

LOSMAKEN VASTMAKEN

VERZORING EN ONDERHOUD

IMPORTANT: KEEP FOR FUTURE REFERENCE.

• Read this instrucons carefully before use and keep for future reference.
• Your child's safety may be aected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing or reparation.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

• Never leave your child unaended.
• This seat is not suitable for children under 6 months.
• The use of this stroller is recommended for children from 6 months ll 4 years. The maximum weight is up to 15 kg.
• Do not overload the basket with more than 2 kg.
• The maximum permissible loading of the rear pocket on the canopy does not exceed 1,0 kg.
• Any load aached to the handle and/or on the back of the backrest and/or on the sides of the stroller aects the stability of the stroller. The stroller may become unstable and p over and can injure you child.
• This product is not suitable for running or skang.

WARNING

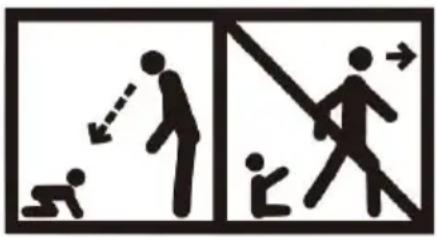

Diagram showing two safety scenarios: one with a person walking away and another with a person walking away, both with directional arrows indicating movement.

• Always use the restraint system.
• Always use the crotch strap in combinaon with the waist belt.
- This stroller is designed for one child per seat.
- Pay special aenon when manoeuvring the stroller up or down the pavement, it is best to do it backwards.
- Do not use stroller near open re, exposed ame, BBQ or heater.
- Avoid hot liquids, power cables and other possible dangers may come within range of a child.
- Do not use this stroller if any parts are broken, torn or missing.
- Ensure stroller is completely erected and check all locks are engaged before placing child in stroller.
- Before making adjustments to stroller ensure that child's body is clear of any moving parts.
- To avoid injury ensure that your child is kept away when unfolding and folding this product.
- Do not use on stairs or escalators, fold stroller and carry.
- Put on all the brakes whenever you park the stroller.
- Do not let your child play with this product.
- Do not allow child to stand on seat or footrest.
- Do not allow more than 2 children, as stroller may become unstable.
- The parking device shall be engaged during the loading and unloading of children.
- Do not allow objects on top of canopy as this stroller may become unstable.
- Keep plasc rain cover away from children to avoid suocaon.
- Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon. To prevent the risk of suocaon, never leave the stroller with child in it under the sun, with the rain covered to it.
- Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
- Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
- Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• 1 stroller frame with 2 baskets and rear wheels
• 3 sets front wheels
• 2 canopies
• 1 rain cover

Note that the fabric paerns, colour pictures and stroller accessories on the stroller in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken please contact the store where you bought the product before using.

WARNING:

Please keep all packaging material away from baby's and children, to prevent suocaon.

TO OPEN STROLLER

Release folding latch and open the frame, then step down the base lock until it is fully locked.

Side-by-side comparison of a stroller and a black vehicle chassis (no text or symbols visible)

ASSEMBLY

A. Front wheel assembly

Before assembly to the front legs, make sure that the lock mechanism is well

aached each of the front wheel before as-

sembly. Hold one front frame leg, push the whole of front wheel set unl covered with front leg tube and the wheels come to a stop.

Repeat for the other front wheels.

Close-up of a three-bladed industrial airship with no visible text or symbols

Hand holding a wheeled vehicle with a pull rod and upward arrow indicating motion (no text or symbols)

ASSEMBLING

B. Fing canopy

Put canopy hoop front into posion and buckle both sides onto handle tube and also buckle the Velcro on both handle tubes behind canopy.

Close-up of a baby stroller with curved legs and black arrows pointing to the side (no text or symbols visible)

EN

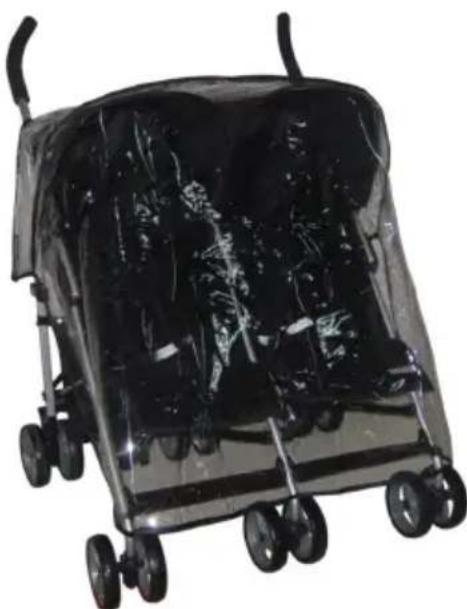

C. Rain cover assembly

Put rain cover on the stroller and make sure it has been xed by Velcro.

WARNING:

Be extremely careful when using the rain cover.

Store away from children when not in use.

To be used under adult's supervision.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon.

To prevent the risk of suocaon, never leave the stroller with child in it under the sun, with the rain covered to it.

To prevent your child from overheang, always remove the rain cover when indoor or in warm environments.

Black plastic stroller with transparent cover and wheels, no visible text or symbols

USING

ADJUSTMENTS

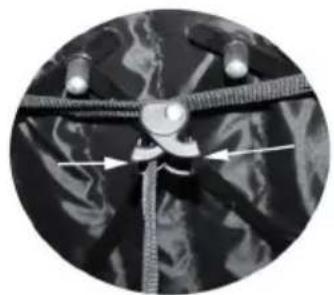

A. Backrest adjustment

Squeeze the clip on the backside and adjust the length of the belt unl the backrest comes to the desired posion.

Mechanical device with two black compartments and circular annotations highlighting features (no readable text or symbols)

Close-up of a fabric with a central knob and four protruding pins, no visible text or symbols

B. Adjustable leg rest

Pull the plasc parts of the adjustable leg rest forwards to change posion of the leg rest. The leg rest can be adjusted to 2 posions.

Close-up of hands using a mechanical tool to adjust or install a component (no visible text or symbols)

Make sure the backrests are in upright posion, footrest are up and canopies are closed when folding the stroller.

Turn the handles to the le (g. 1) and li them up. Push the handles to each other and squeeze the stroller. Lock the folding latch.

Side view of a two-wheeled baby stroller with wheels and back cover, showing white directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device with gears and a circular component (no text or symbols)

USING

FUNCTIONS

A. Brake funcon

To apply brakes, press down link-brake lever on rear wheels and roll stroller back and forth unl levers lock into place.

Close-up of a mechanical assembly with a wheel and attached components, showing a downward arrow (no text or symbols visible)

Mechanical component with a wheel and attached gear, showing motion direction (no text or symbols)

B. Front swivel wheels

To unlock the swivel wheels, lower the lever located between the two wheels. To lock the wheels, push the lever in an upward direcon.

Close-up of a two-wheeled toy car with black wheels and a metallic handle (no text or symbols visible)

Close-up of a two-wheeled vehicle with a curved handle and wheels (no visible text or symbols)

Lock Unlock

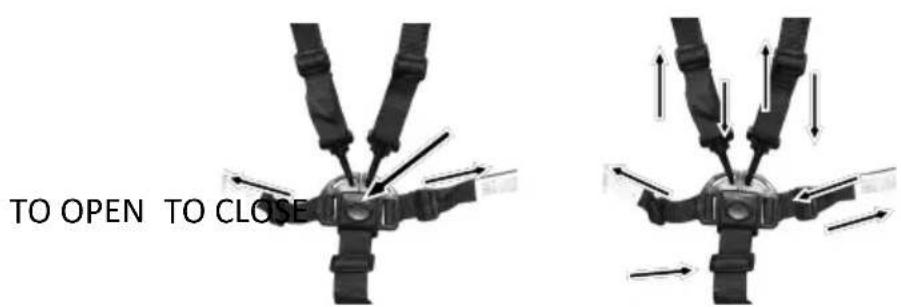

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) unl secure click is heard.

Adjust shoulder, hip and crotch belt in right length to t your child.

To release belt just press the buon.

TO OPEN TO CLOSE

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with salt water, this causes the forma-on of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

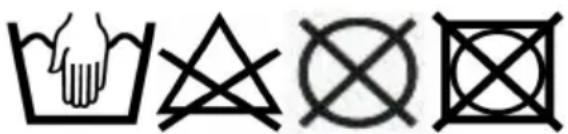

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well venlated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

Four symbolic icons: hand holding a magnifying glass, crossed-out triangle, crossed-out cross, and rectangular box.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

EN

Importer: Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888

Diagram showing two safety scenarios: one with a person walking away and another with a person running away, both with directional arrows indicating movement.

Side-by-side comparison of a person pushing a stroller with a back cover, and a black-and-white photo of the same person in a car (no text or symbols visible)

MONTAGE

A. Vorderräder

Two mechanical diagrams showing a car tire assembly and a hand holding a stroller with an arrow indicating motion (no text or symbols present)

MONTAGE

B. Verdeck

Close-up of a stroller with curved legs and black arrows pointing to interior features (no text or symbols visible)

Black plastic stroller with transparent casing and wheels, no visible text or symbols

GEBRAUCH

EINSTELLUNGEN

Mechanical device with two black compartments and circular annotations highlighting features (no readable text or symbols)

Close-up of a fabric with a central knob and four protruding pins, no visible text or symbols

Close-up of hands using a mechanical tool to adjust or install a component (no visible text or symbols)

ZUSAMMENKLAPPEN DES BUGGYS

Side view of a two-wheeled baby stroller with wheels and side panels, showing white directional arrows indicating motion (no text or symbols)

Illustration of a mechanical device with gears and a circular component (no text or symbols)

GEBRAUCH

FUNKTION

A. Bremsen

Close-up of a mechanical component with a curved wheel and attached lever, showing a downward arrow (no text or symbols visible)

Mechanical assembly diagram showing a wheel and mechanical components with an arrow indicating motion direction (no text or symbols)

Four symbolic icons: hand holding cup, triangle, crossed cross, and square with grid lines

GARANTIE

Safety warning illustration showing pictograms of human walking and deflection with arrows indicating movement

Side-by-side comparison of a stroller and a black trolley car (no text or symbols visible)

MONTAGE

Two-panel image showing a car tire lift mechanism and its hand positioning on a wheeled vehicle wheel (no text or symbols visible)

MONTAGE

B. Placer la capote pare-soleil

Close-up of a gray children's stroller with black straps and decorative handles (no text or symbols visible)

Black plastic stroller with transparent casing containing internal components, no visible text or symbols

UTILISATION

RÉGLAGES

A. Dossier

Close-up of a mechanical device with two dark fabric panels and circular annotations highlighting features (no text or symbols present)

Close-up of a mechanical component with a central knob and threaded arms, shown in grayscale (no visible text or symbols)

Close-up of hands using a mechanical tool to adjust or install a component (no visible text or symbols)

RABATTRE LA POUSSETTE

Side view of a black two-wheeled stroller with wheels and side panels, showing directional arrows (no text or symbols)

Black and white illustration of a mechanical device with gears and a circular component (no text or symbols)

UTILISATION

FONCTIONS

Close-up of a mechanical assembly with a wheel and attached components, showing a downward arrow indicating motion (no text or symbols visible)

Mechanical assembly diagram showing a wheel and mechanical components with an arrow indicating motion direction (no text or symbols)

Close-up of a small wheeled vehicle with black wheels and a metallic handle (no text or symbols visible)

Close-up of a wheeled car with two wheels and a curved handle (no text or symbols visible)

Verrouiller

Close-up of a mechanical buckle with two arms and a central buckle, showing force application arrows (no text or symbols)

Mechanical assembly diagram showing two arms fastening a seat with directional arrows indicating force or movement (no text or symbols)

POUR FERMER

SOIN ET ENTRETIEN

Safety instruction diagram showing two scenarios: one with a person kneeling and pointing to a walking figure, the other with a person walking away from the ground.

Side-by-side comparison of a person pushing a stroller and a black station wagon (no text or symbols visible)

ENSAMBLAJE

Two mechanical diagrams showing a car tire and its hand positioning with a pull-up, no text or symbols present.

INSTALACION

B. Colocar la capota

Close-up of a baby stroller with curved legs and black arrows pointing to the side (no text or symbols visible)

Black plastic stroller with wheels and transparent cover, no visible text or symbols

USO

ADAPTER

Mechanical device with two compartments showing internal components and mounting brackets (no visible text or symbols)

Close-up of a fabric with a central knob and four hanging pins, no visible text or symbols

Close-up of hands using a mechanical device to adjust a component (no visible text or symbols)

ES

PLEGAR EL COCHECITO

Side view of a black two-wheeled baby stroller with wheels and side panels, showing directional arrows (no text or symbols)

Black-and-white illustration of a mechanical device with gears and wheels (no text or symbols)

USO

FUNCIONES

A. Función de freno

Close-up of a mechanical component with a curved wheel and arrow indicator (no text or symbols)

Mechanical assembly diagram showing a wheel and mechanical components with an arrow indicating motion direction (no text or symbols)

B. Ruedas delanteras giratorias

Close-up of a small wheeled car with black wheels and a metallic handle (no text or symbols visible)

Close-up of a two-wheeled vehicle with a curved handle and wheels (no visible text or symbols)

Bloquear Debloquear

Copyright© Top Mark 2013
