T7014 - Stroller Topmark - Free user manual and instructions

Product Type	Stroller
Brand	Topmark
Model	T7014
Dimensions (unfolded)	100 x 60 x 105 cm
Dimensions (folded)	70 x 40 x 30 cm
Weight	8 kg
Maximum weight capacity	15 kg
Recommended age	6 months to 3 years
Power supply	None (manual stroller)
Number of wheels	4
Swivel front wheels	Yes
Brake	Parking brake
Safety harness	5-point
Canopy	Yes, adjustable
Storage basket	Yes
Adjustable footrest	Yes
Reclining backrest	Yes
Chassis material	Lightweight aluminum
Upholstery	Washable fabric
Care instructions	Clean with lukewarm water and mild soap
Safety	Complies with EN 1888 standards
Included accessories	Rain cover, mosquito net

Frequently Asked Questions - T7014 Topmark

How to fold the T7014 stroller?

To fold the stroller, lower the backrest, then pull the folding handle located under the seat. The stroller folds automatically. Make sure the folding lock is engaged for safe storage.

Can I machine wash the fabrics?

Yes, the stroller fabrics are machine washable at 30°C. Remove them from the chassis and close the Velcro fasteners before washing. Air dry.

Up to what age can this stroller be used?

The T7014 stroller is designed for children from 6 months to 3 years, with a maximum weight of 15 kg. For newborns, use a compatible car seat or bassinet (not included).

How to install the safety harness?

Thread the shoulder straps through the slots in the backrest, adjust the height according to the child's size. Attach both buckles at the crotch level and tighten the adjustment strap. The harness should be snug without restricting the child.

Is the stroller compatible with car seats?

Yes, the T7014 stroller is compatible with most car seats and bassinets using adapters. Check compatibility with your car seat brand or contact Topmark customer service.

How to adjust the backrest recline?

To recline the backrest, press the button located at the back of the seat while pushing the backrest backward or pulling it forward. Multiple positions are available, including a lie-flat position for napping.

Where to find spare parts?

Spare parts are available from Topmark customer service or on the official website. Contact support with the model number T7014 to order wheels, straps, or other components.

Is the warranty transferable?

The 2-year warranty is tied to the original purchaser. In case of resale, the warranty is not transferable, but the new owner can contact Topmark for extended warranty options.

How to clean the chassis?

Clean the aluminum chassis with a damp cloth and mild detergent. Avoid abrasive or solvent products. Dry thoroughly after cleaning to prevent corrosion.

Can I use the stroller for a newborn?

Directly, no, because the stroller does not recline flat. Use a compatible bassinet or car seat with adapters recommended by Topmark for newborns.

USER MANUAL T7014 Topmark

T7014

6-48

15 kg

Gebruiksaanwijzing

Instrucon for use

Gebrauchsanleitung

Mode d'emploi

MONTEREN

VOORWIEL MONTAGE

OPZETTEN VAN DE ZONNEKAP

IN GEBRUIK NEMEN

VERSTELLEN

A. Rugleuning

INKLAPPEN VAN DE BUGGY

IN GEBRUIK NEMEN

FUNCTIES

A. Rem funce

NL

B. Voorzwenk wielen

VERZORING EN ONDERHOUD

GARANTIE

IMPORTANT: READ THIS INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

• Your child’s safety may be aected if you do not follow these instrucons.
• Use only spare parts delivered by importer for replacing or reparaon.
• Damages caused by overloading or wrong folding are not granted.
• Prolonged exposure to sunshine may cause changes in the colour of materials and fabrics.
• Do not expose this product to extreme temperatures. Extreme sunshine or temperatures may cause colour changes or bent parts.

WARNING

• Never leave your child unaended.
• This seat is not suitable for children under 6 months.
• The use of this stroller is recommended for children from 6 months II 4 years. The maximum weight is up to 15 kg.
• Do not overload the basket with more than 2 kg.
• The maximum permissible loading of the rear pocket on the canopy does not exceed 1,0 kg.
• Any load aached to the handle and/or on the back of the backrest and/or on the sides of the stroller aects the stability of the stroller. The stroller may become unstable and p over and can injure you child.
• This product is not suitable for running or skang.

WARNING

• Always use the restraint system.
• Always use the crotch strap in combinaon with the waist belt.
• This stroller is designed for one child only.
• Pay special aenon when manoeuvring the stroller up or down the pavement, it is best to do it backwards.
• Do not use stroller near open re, exposed ame, BBQ or heater.
• Avoid hot liquids, power cables and other possible dangers may come within range of a child.
• Do not use this stroller if any parts are broken, torn or missing.
• Ensure stroller is completely erected and check all locks are engaged before placing child in stroller.
• Before making adjustments to stroller ensure that child's body is clear of any moving parts.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not use on stairs or escalators, fold stroller and carry.
• Put on all the brakes whenever you park the stroller.
• Do not let your child play with this product.
• Do not allow child to stand on seat or footrest.
• Do not allow more children, as stroller may become unstable.
• The parking device shall be engaged during the loading and unloading of children.
• Do not allow objects on top of canopy as this stroller may become unstable.
• Keep plasc rain cover away from children to avoid suocaon.
• Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon. To prevent the risk of suocaon, never leave the stroller with child in it under the sun, with the rain cover ed to it.
• Do not use accessories or replacement parts other than the ones recommended by instrucon manual.
• Do not use accessories which are not approved by the manufacturer.
• Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
• Never put stroller near steps or stairs.

ASSEMBLING

Check if following spare parts are in the box:

• 1 stroller frame with 1 basket and rear wheels
• 2 swivel front wheels
- Canopy
- Rain cover

Note that the fabric paerns, colour pictures and stroller accessories on the stroller in this instrucon manual may vary from that of the product that you have purchased.

If one or more of the above menoned spare parts are missing or broken, please contact the store where you bought the product, before using.

WARNING:

Please keep all packaging material away from babies and children, to prevent suocaon.

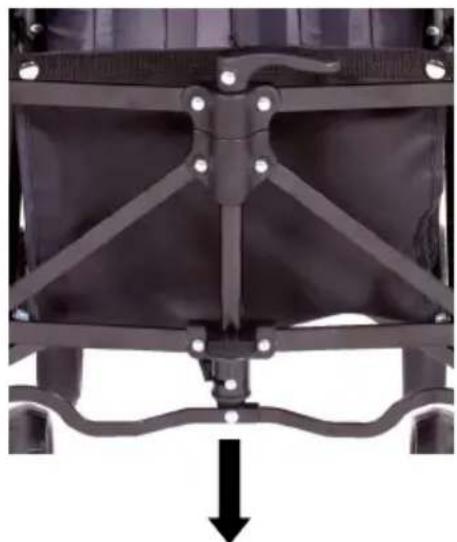

TO OPEN STROLLER

Release folding latch and open the frame, then step down the base lock until it is fully locked.

ASSEMBLING

FRONT WHEEL ASSEMBLY

Hold one front leg, press the buon on the upper wheel block (1) and push the whole front wheel set into the upper wheel block (2), release the buon to x the front wheel. Repeat on the other side of front wheels.

Press the buon on upper wheel block (1) to release front wheels.

EN

FITTING CANOPY

Put canopy hoop front into posion and buckle both sides onto handle tube and also buckle the Velcro on both handle tubes behind canopy.

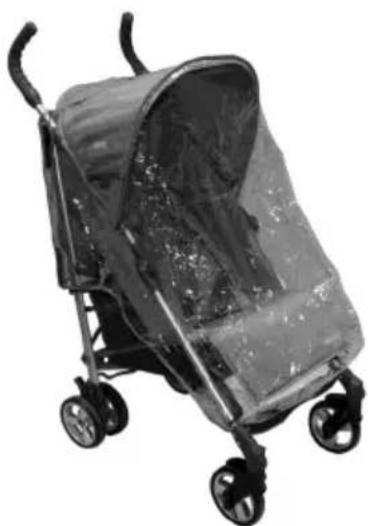

RAIN COVER ASSEMBLY

Put rain cover on the stroller and make sure it has been xed by Velcro.

WARNING:

Be extremely careful when using the rain cover. Store away from children when not in use.

Do not use the rain cover if the stroller is not ed with the hood or sun canopy to prevent the risk of suocaon.

To prevent the risk of suocaon, never leave the stroller with child in it under the sun, with the rain covered to it.

USING

ADJUSTMENTS

A. Backrest adjustment

Press up the seconal parts and adjust to desired posion both side simultaneously, total 5 posions.

B. Adjustable leg rest

Pull the plasc parts of the adjustable leg rest forwards to change posion of the leg rest. The leg rest can be adjusted to 2 posions.

Make sure the backrest is in upright posion, footrest is up and canopy is closed when folding the stroller.

Turn the handle le (g. 1). And li it up, then li the upper lever. Squeeze the stroller and lock the folding latch.

USING

FUNCTIONS

A. Brake funcon

To apply brakes, press down link-brake lever on rear wheels and roll stroller back and forth unl levers lock into place.

Release the link-brake by pushing the brake levers upwards.

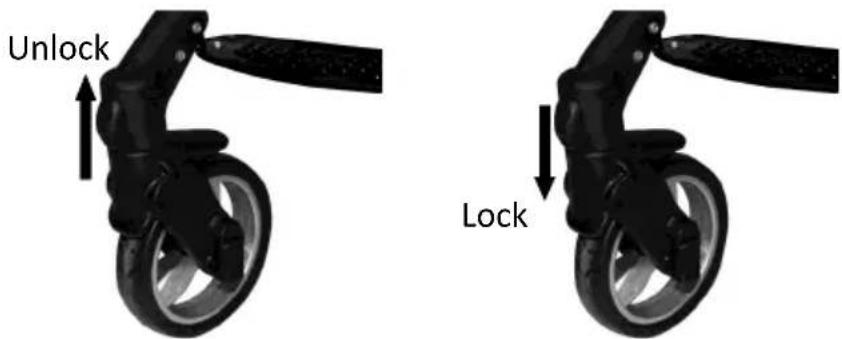

B. Front swivel wheels

To unlock the swivel wheels, push the lever in an upward posion. To lock the wheels, lower the lever in a downward direcon.

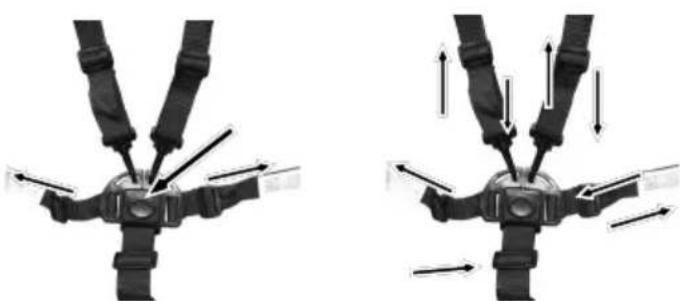

USING 5-POINT SAFETYBELT

WARNING: ALWAYS USE THE CROTCH STRAP WITH SAFETY BELTS.

Ensure shoulder straps are clipped to hip safety belts.

Lock buckle parts of hip belts together into the cross belt (belt between the legs) unl secure click is heard.

Adjust shoulder, hip and crotch belt in right length to t your child.

To release belt just press the buon.

CARE AND MAINTENANCE

To prolong the life of your nursery product, keep it clean and do not leave in the direct sunlight for extended periods of me.

Check the wheels regularly for wear and make sure that there is no dust and sand between the axles and wheels.

Removable fabric covers and trims may be cleaned using warm water with a household soap or a mild detergent. Allow it to dry fully, preferably away from direct sunlight.

Do not allow the stroller to come in contact with salt water, this causes the forma-on of rust.

EN

Helpful hints

If the wheels squeak, use a silicon based spray ensuring it penetrates the wheel and axles assembly.

Do not dry clean or use bleach.

Do not machine wash, tumble or spin dry, unless the care labeling on the product permits these methods.

Non removable fabric covers and trims may be cleaned using a damp sponge with soap or mild detergent. Allow it to dry completely before folding or storing it away. In some climates the covers and trims may be aected by mould and mildew. To help prevent this occurring, do not fold or store the product if it is damp or wet. Always store the product in a well venlated area.

Always check parts regularly for ghtness of screws, nuts and other fasteners, ghten if required. To maintain the safety of your nursery product, seek prompt repairs for bent, torn, worn or broken parts.

Use only part and accessories approved by the supplier.

GUARANTEE

We grant 2 year guarantee on this product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete product.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the product.

To obtain service within the guarantee period, hand in the complete product with your sales receipt to the store where the product has been bought. The warranty applies only to the rst owner and is not transferable.

Importer: Top Mark BV

Postbus 308

8200 AH Lelystad

NETHERLANDS

[e-mail]

www.topmark.nl

EN 1888

MONTAGE

MONTAGE VORDERRÄDER

B. BEFESTIGEN VERDECK

GEBRAUCH

EINSTELLUNGEN

ZUSAMMENKLAPPEN DES BUGGYS

GEBRAUCH

FUNKTION

A. Bremsen

PFLEGE

GARANTIE

MONTAGE

MONTAGE DES ROUES AVANT

PLACER LA CAPOTE PARE-SOLEIL

ASSEMBLAGE DE LA HOUSE IMPERMÉABLE

UTILISATION

RÉGLAGES

A. Dossier

RABATTRE LA POUSSETTE

UTILISATION

FONCTIONS

SOIN ET ENTRETIEN

INSTALACION

COLOCAR LAS RUEDAS DELANTERAS

COLOCAR LA CAPOTA

MONTAJE DE LA CUBIERTA PARA LA LLUVIA

USO

ADAPTER

A. Espalda

PLEGAR EL COCHECITO

USO

FUNCIONES

A. Función de freno

B. Ruedas delanteras giratorias

Copyright© Top Mark 2013
