Product type	Turntable with MP3 player, FM radio, USB/SD recording
Brand	Roadstar
Model	TTR1923UCEN
Power supply	AC 230V~50Hz
Radio frequencies	FM 87.5-108 MHz
Rotation speeds	33 and 45 rpm
Supported audio formats	MP3, WMA
Storage media	USB, SD/MMC card
Recording function	Recording from vinyl to USB/SD in MP3 format (128 kbps)
Radio function	FM stereo with FM/ST/Mono selection
X-Bass function	Yes
Headphone jack	Yes, 3.5 mm
Line output	Yes, RCA (LINE OUT)
FM antenna	Built-in wire antenna
Remote control	Yes (AAA batteries not included)
Built-in speakers	2 speakers (left and right)
LCD display	Yes
Auto Stop function	Yes, selectable
45 rpm adapter	Included
Maintenance and cleaning	Clean with a dry cloth. Do not use abrasive products. Avoid moisture.
Safety	Double insulation. Do not open the casing. Unplug before cleaning.
Repairability information	Repairability index not specified. Contact after-sales service.

Frequently Asked Questions - TTR1923UCEN ROADSTAR

How to connect the device?

Connect the power cord to an AC 230V~50Hz outlet. Verify that the voltage matches that indicated on the device.

How to listen to a vinyl record?

Set the function selector to PHONO. Open the lid, place the record on the turntable, select the speed (33 or 45 rpm) with the button (25). Unlock the tonearm, remove the stylus cap, lift the tonearm with the lever (24) and place it at the beginning of the record. Gently lower the tonearm to start playback.

How to record a vinyl to USB?

Set the function selector to PHONO. Insert a USB flash drive or SD card. Press the RECORD button (3) to start recording. Start playing the record. To stop, hold down RECORD until the display stops flashing.

How to separate tracks during recording?

During recording in PHONO to USB/SD mode, press the TRACK SEPARATION button on the remote control to create a new track. The display shows "PHONO" flashing to confirm.

How to listen to the radio?

Set the function selector to RADIO. Use the FM/FM STEREO selector (10) to choose the mode. Adjust tuning with the knob (19) to receive a station. Adjust volume (18). Extend the FM antenna (28) for better reception.

How to play MP3 files from a USB flash drive?

Set the function selector to USB/SD. Press SOURCE (4) to select USB. Insert the USB flash drive. Playback starts automatically. Use the skip buttons (13/21) to navigate between tracks.

How to program the playback order of tracks?

In USB stopped mode, press PROGRAM (5) on the remote control. Use the SKIP buttons to select a track, then press PROGRAM again to add it. You can program up to 10 tracks. Press PLAY/PAUSE to start programmed playback.

How to use the X-Bass function?

Press the X-BASS button (15) to activate bass amplification. Press again to deactivate.

What to do if the radio reception is noisy?

If the FM stereo reception is noisy, set the selector (10) to MONO to switch to monophonic. Extend and orient the FM antenna to improve reception.

How to remove the memory card?

Turn off the device or switch to AUX/TUNER mode. Gently press the SD/MMC card to unlock it, then release. The card ejects partially, you can remove it manually.

USER MANUAL TTR1923UCEN ROADSTAR

TURNTABLEWITHMP3PLAYERAND FMSTEREO RADIO. USB/SDPORTS,ENCODINGFUNCTION ANDREMOTECONTROL.

TTR-1923UCEN

Instructionmanual

Bedienungsanleitung

Manueld'instructions

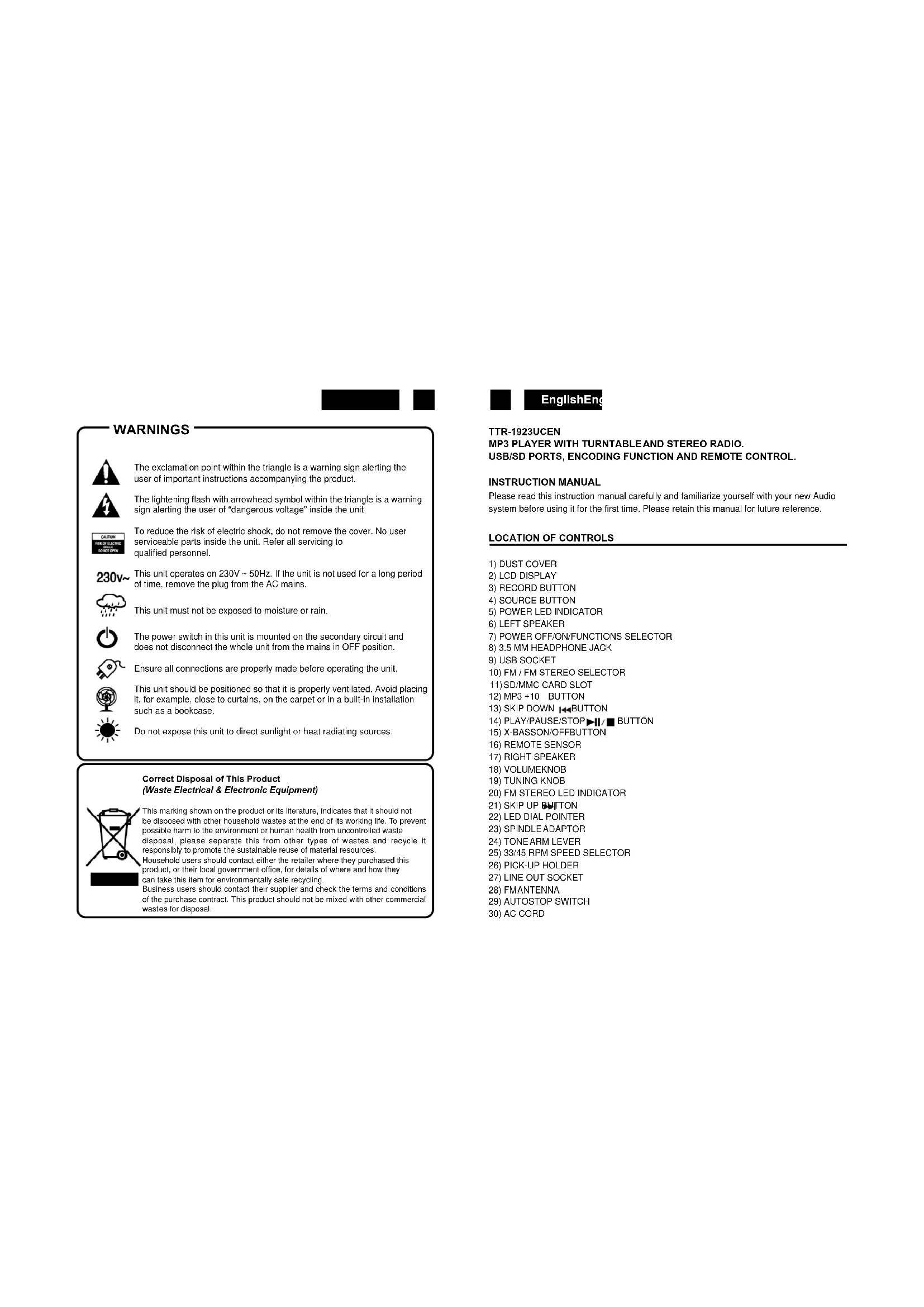

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

230v~

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the mains in OFF position.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

EnglishEn

TTR-1923UCEN

MP3 PLAYER WITH TURNTABLE AND STEREO RADIO.

USB/SD PORTS,ENCODING FUNCTION AND REMOTE CONTROL.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Audio system before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

1) DUST COVER

2) LCD DISPLAY

3)RECORD BUTTON

4) SOURCE BUTTON

5) POWER LED INDICATOR

6) LEFT SPEAKER

7) POWER OFF/ON/FUNCTIONS SELECTOR

8) 3.5 MM HEADPHONE JACK

9) USB SOCKET

10) FM/FM STEREO SELECTOR

11)SD/MMC CARD SLOT

12)MP3+10 BUTTON

13)SKIPDOWNBUTTON

14)PLAY/PAUSE/STOP■BUTTON

15)X-BASSON/OFFBUTION

16) REMOTE SENSOR

17) RIGHT SPEAKER

18) VOLUMEKNOB

19) TUNING KNOB

20) FM STEREO LED INDICATOR

21)SKIPUPBINTON

22)LED DIAL POINTER

23) SPINDLE ADAPTOR

24) TONE ARM LEVER

25) 33/45 RPM SPEED SELECTOR

26) PICK-UP HOLDER

27) LINE OUT SOCKET

28) FMANTENNA

29) AUTOSTOP SWITCH

30) AC CORD

REMOTE CONTROL

BATTERY INSTALLATION

the infra-red transmitter requires 2 pcs AAA size battery for operation (not included).

BUTTONS DESCRIPTION

1) FIND in MP3 mode, press to activate file/folder name search function.
2)INFO in USB mode, press to active the ID3 feature.
3) REC in PHONO mode, press to activate recording function.
4) REP/INTRO/RAN in USB mode, press to activate Repeat one/ Repeat All/ Folder/ Intro/ Random functions.
5)PROGRAM in USB mode, press to active programming function.
6)PLAY/PAUSE USB mode, press once to start playback. press again to enter pause mode.
7) SKIP/SEARCH forward press once to Skip to next track.

SKIP/SEARCH backward press once to Skip to previous track.

Press & hold for search backward.

8)STOP in USB mode, press to stop playback

9) +10/-10 in MP3 mode, press to selec the track +10 forward or -10 backward
10) SOURCE in USB mode, press to select USB/CARD function repeatedly.
11) TRACK SEPARATION press to divide, one by one. the recording track from turntable, during encoding.

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

4

EnglishEn

For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit.

CAUTION

To prevent electric shock disconnect from the mains before removing cover. No user serviceable prts inside. Refer servicing to qualified service personnel.

SAFETY PRECAUTION

Do not allow this unit to be exposed to rain or moisture.

Mains Supply: 230V 50Hz - AC only

This symbol means that this unit is double insulated. An earth connection is not required.

POWER SUPPLY

Remove the stereo carefully from the box, retaining the packaging for future use (servicing).

AC POWER OPERATION

Connect the plug to a mains power inlet 230V AC 50Hz

FM TUNER

Operation

• Set the Function Selector (7) to the RADIO position.
  The red Power Indicator (5) will light up.
• Select the desired FM or FM Stereo with the Selector (10).
  Tune to the desired radio station by turning the Tuning control (19).

ANTENNA

• For FM reception there is a built-in FM antenna wire (28) at the rear of the unit. Move the wire around to obtain the best reception.

FM & FM-STEREO RECEPTION

• Stereo reception is possible when the tuned FM station is broadcasting in stereo.
• When in FM STereo mode and the station is broadcasting in Stereo, the STEREO

indicator (20) lights up.
- When FM stations are weak and are disturbed, listening can be improved by switching the selector (10) to FM (Mono). Reception will then be in MONO.

TURNTABLE OPERATION

Preparation

Open the Record Player Cover.

Release the Tonearm Clamp. and remove the sty

Listening to Records

1. Set the Function Selector (7) to the PHONO position.
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle when playing 17cm EP records.
3. Set the Speed Selector (25) to 33 or 45rpm according to the record.
4. Release the tonearm clamp, and remove the protective cap from the stylus.
5. Lift the Tonearm with the Tonearm Lift Lever.
6. Move the tonearm to the beginning of the record, or to the start of a particular track.
7. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
8. When the record is finished the tonearm will automatically stop. Lift the tonearm from the record and return it to the rest.
9. To stop manually, lift the tonearm from the record and return it to the rest.
10. To select Auto Stop mode, move the Auto Stop Switch (29) to ON position.

Notes: Do not stop or turn the platter manually.

Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm. Replace the protective cap on the stylus when not in use.

6

EnglishEn

ID3(TRACK/ALBUM TITLE) FUNCTION(BYREMOTE HANDSET)

1. Press the "INFO" (2) button during playback of MP3 file, the song title is being displayed. press the "INFO" button again to disable the function.

SONG TITLE/FOLDER NAMESEARCH FUNCTION (BY REMOTEHANDSET)

You can search the track by the name during Stop mode:

1. Press the "FIND" (1) button once, then press the "skip up" (or skip down) button (7), you can search the title of each song one by one under alphabet order on LCD display, then press the "PLAY/PAUSE" button (6) to start the playback of the selected track.

REMARK:

• In case no name had been assigned for the track, "none" or "unknown" is being displayed" on the display.
• The LCD display supports English language only.

MP3/WMA TRACK FORMAT REQUIREMENT:

• MP3 bit rate : 128 kbps

The performance of playing MP3 disc is various from the quality of recording disc and the method of recording.

Remark: USB port does not support connection with usb extension cable and is not designed for communication with computer directly.

REPEAT/INTRO/RANDOMMODE (BYREMOTECONTROL)

Press the Repeat/Intro/Random button (4) on the remote control before or during playback, a single track, single folder (MP3 only) or all the tracks can be played in different mode as follows:

FOR MP3/WMA

INDICATOR PLAY MODE ONLCD DISPLAY REPEATSINGLETRACK REPEATALL TRACKS ALL

INTROPLAYMODE INTORANDOM MODE RANDOM OFF MODE

Repeat play

You can listen the desired tracks or folder repeatedly by this function.

- Intro play

You can listen the beginning (10 seconds) of each track in a cd by this function & saving your time to search the desire song

- Random play

You can listen all the tracks or folder in a random order by this function

USB/SDPROGRAMMING(BY REMOTECONTROL)

Up to 10 tracks can be programmed for MP3 file and play in any order. before use, be sure the system is at stop mode before programming:
1. Set in USB mode with the Source button (10).
2. Press the "PROGRAM" button (5), "PROG" will appear on LCD display. Moreover, it will indicate program no. and digits for track no. to be programmed.
3. Select a desired track by pressing SKIP or buttons (7).
4. Press the "program" button to store the trace into memory.
5. Repeat steps 3 and 4 to enter additional tracks into the memory if necessary.
6. When all the desired tracks have been programmed, press "PLAY/PAUSE button (6) to play the disc in assigned order.
7. To cancel the programmed file, press PROGRAM" button on remote handset during STOP mode until "PROG" is disappear on LCD display (2).

PLAYBACK OF MP3/WMA SONG VIA USB STORAGE MEDIA OR MEMORY CARD CONNECTING

The system is able to decode and playback all MP3 /WMA file which stored in the memory media with USB connecting port or SD/MMC memory card.

1. Set Function selector (7) at USB mode and then press SOURCE button (10) to select "USB or CARD" mode.
2. Plug-in the USB plug with the face up & make sure it going into completely or insert the memory card in the direction of the arrow as shown in the label on the underside of the MEMORY CARD slot cover. Insert straight without bending.
3. Connecting the USB upside down or backwards could damage the audio system or the storage media (usb thumb drive / sd/mmc card). Check to be sure the direction is correct before connection.
4. The system will start reading the storage media automatically after connecting, and LCD display (2) will show the total number of MP3 files, then will start playback automatically.

REMARK

• The system can detect and read the file under mp3 and wma format only though the usb port.
  If connect the system to MP3 player via the usb socket, due to variances inMP3 encoding format some mp3 player may not be able to play via the usb socket. this is not a maul-function of the system.

ENCODING OF PHONO INTO MP3 FILE

The system is able to ENCODE music from TURNTABLE to MP3 format and recording at memory media with USB connecting port.

REMARK:

• The recording speed is 1:1 and according to the actual plying time of the track
  The system will creat a "AUDIO" folder and then store the encoding track in it.
• The recording format is preset at - MP3 bit rate : 128 kbps, sampling rate : 44.1khz
• No song title will be recorded during encoding mode
• To interrupt the recoding, press the "RECORD" button again during record mode.

In both media (USB/SD) inserted to the unit, until will default record to USB media when encoding from Phono.

Due to this defaulted to USB mode encode, thus, during encoding to SD card, please do not insert the USB media, it will case the unit had abnormal phenomenon.

A)PHONO ENCODING

1) Set the Function button to "PHONO" mode and then press the "RECORD" button directly.
2) The LCD display with show the word "USB" and then flashing, and then display

" & " * *ashing after few seconds. Now the system is starting the

encodingmode.

3) Start playback at PHONO for the track which you want to record to USB.
4) After finishing of recoding, press and hold the *RECORD * button (3) until the LCD

stops flashing and returns to " PHONO " mode

B) TRACK SEPARATION (BY REMOTE HANDSET)

You can divide the recorded music in single tracks during encoding from Phono to USB/SD. Every time "TS" (Track Separation) button is pressed on the remote control during encoding from Phono to USB/SD, the system will generate a new track and continue the recording. "PHONO" will flash on the LCD display once to inform that the unit has successfully created a new track.

REMOVING OF USB / MEMORY CARD

To remove the USB / MEMORY CARD, turn off the power or switch the function mode to either AUX or TUNER first. For USB port - un Plug it by pulling out the USB socket directly, for memory card - press the memory card inward & then release, now the card being partially eject and you can remove it by hand.

EnglishEn

LINEOUTCONNECTION

You can connect the system to your home Hi-fi system by connecting the LINE OUT socket (27) to the auxiliary input socket with a RCA cable (not included).

SPECIFICATIONS

Power Supply

AC:

RC Battery:

230V\~50Hz

2x AAA (UM-4) 1.5V (not included)

Radio Frequency Coverage

FM:

87.5-108MHz

Power output

2x2W RMS (10% THD)

Design and specifications are subject to change without notice.
