English Français Deutsch Svenska Italiano Español Nederlandsi En Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or injury caused by not following the cautions below. 1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.2. Install the speakers in a cool, dry, clean place – away from windows, sources of heat, sources of excessive vibration, dust, moisture or cold. Avoid sources of electrical humming (e.g., transformers and motors). To prevent fire or electric shock, do not expose the speakers to rain or water.

3. To prevent the enclosure from warping or discoloring, do not

expose the speakers to direct sunlight or excessive humidity.4. Avoid installing the speakers where foreign objects may fall onto them and/or where they may be exposed to liquid dripping or splashing.

5. Do not place the following objects on top of the speakers:

– Other components, as they might damage or discolor the surface of the speakers.– Burning objects (e.g., candles), as they might cause fire, damage to the speakers or personal injury. – Containers of liquid, as they might spill and cause electric shock to the user or damage to the speakers.6. Do not place the speakers where they are liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.7. Placing the speakers on the same shelf or rack as the turntable can result in feedback.

8. Any time you note distortion, reduce the volume control on your

amplifier to lower setting. Never allow your amplifier to be driven into “clipping”. Otherwise, the speakers may be damaged.

9. When using an amplifier with a rated output power higher than

the nominal input power of the speakers, care should be taken not to exceed the maximum input of the speakers.10. Do not attempt to clean the speakers with chemical solvents as this might damage the finish. Use a clean, dry cloth.

11. Do not attempt to modify or fix the speakers. Contact qualified

Yamaha service personnel when service is needed. The cabinet should never be opened for any reason.12. Be sure to read the “Troubleshooting” section regarding common operating errors before concluding that the speakers are faulty.13. Secure placement or installation is the owner’s responsibility. Yamaha is not liable for accidents caused by improper placement or installation of speakers. For NS-SW280

1. Do not operate this unit upside down. It may overheat, possibly

2. Do not use excessive force on switches, controls or connection

wires. When moving this unit, first disconnect the power plug and the wires connected to other equipment. Never pull the wires themselves.3. Never put a hand or a foreign object into the port located on the right side of this unit. When moving this unit, do not hold the port, as it might cause personal injury and/or damage to this unit.4. Since this unit has a built-in power amplifier, heat radiates from the rear panel. Place the unit away from walls, allowing at least 20 cm (8") of space above, behind and on both sides of the unit to prevent fire or damage. Furthermore, do not position the unit with the rear panel facing down on the floor or other surfaces.5. When using a humidifier, be sure to avoid condensation inside this unit by allowing enough space around the unit and avoiding excess humidification. Condensation might cause fire, damage to the unit, and/or electric shock.6. Do not cover the rear panel of this unit with a newspaper, tablecloth, curtain, etc. to avoid obstructing heat radiation. If the temperature inside the unit rises, it may cause fire, damage to the unit, or personal injury.

7. Do not plug this unit into a wall outlet until all connections are

complete.8. The voltage to be used must match that specified on the rear panel. Using this unit with a voltage higher than specified is dan-gerous and may cause fire, damage to the unit, and/or personal injury. Yamaha is not responsible for damage resulting from use of this unit with a voltage other than specified.9. Super-bass sound reproduced by this unit may cause a turntable to generate audio feedback. In this case, move the unit away from the turntable.

10. This unit may be damaged if certain sounds are continuously

output at high volume level. For example, if 20 Hz–50 Hz sine waves from a test disc or bass sounds from an electronic instrument, etc. are continuously output, or if a turntable stylus touches the surface of a disc, reduce the volume level to prevent the unit from being damaged.11. If you hear distorted noise (i.e., unnatural, intermittent “rapping” or “hammering” sounds) from this unit, reduce the volume level. Extremely loud movie soundtrack low frequency, bass-heavy sounds, or similarly loud popular music passages can damage this unit.

12. Vibration generated by super-bass sound may distort images on a

TV. In this case, move the unit away from the TV set.13. When disconnecting the power cord from the wall outlet, grasp the plug; do not pull the cord.

14. When you plan not to use this unit for a long period of time (i.e.

vacation, etc.), disconnect the AC power plug from the wall outlet.

15. Install this unit near the wall outlet and where the AC power plug

can be reached easily. For U.K. customers If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

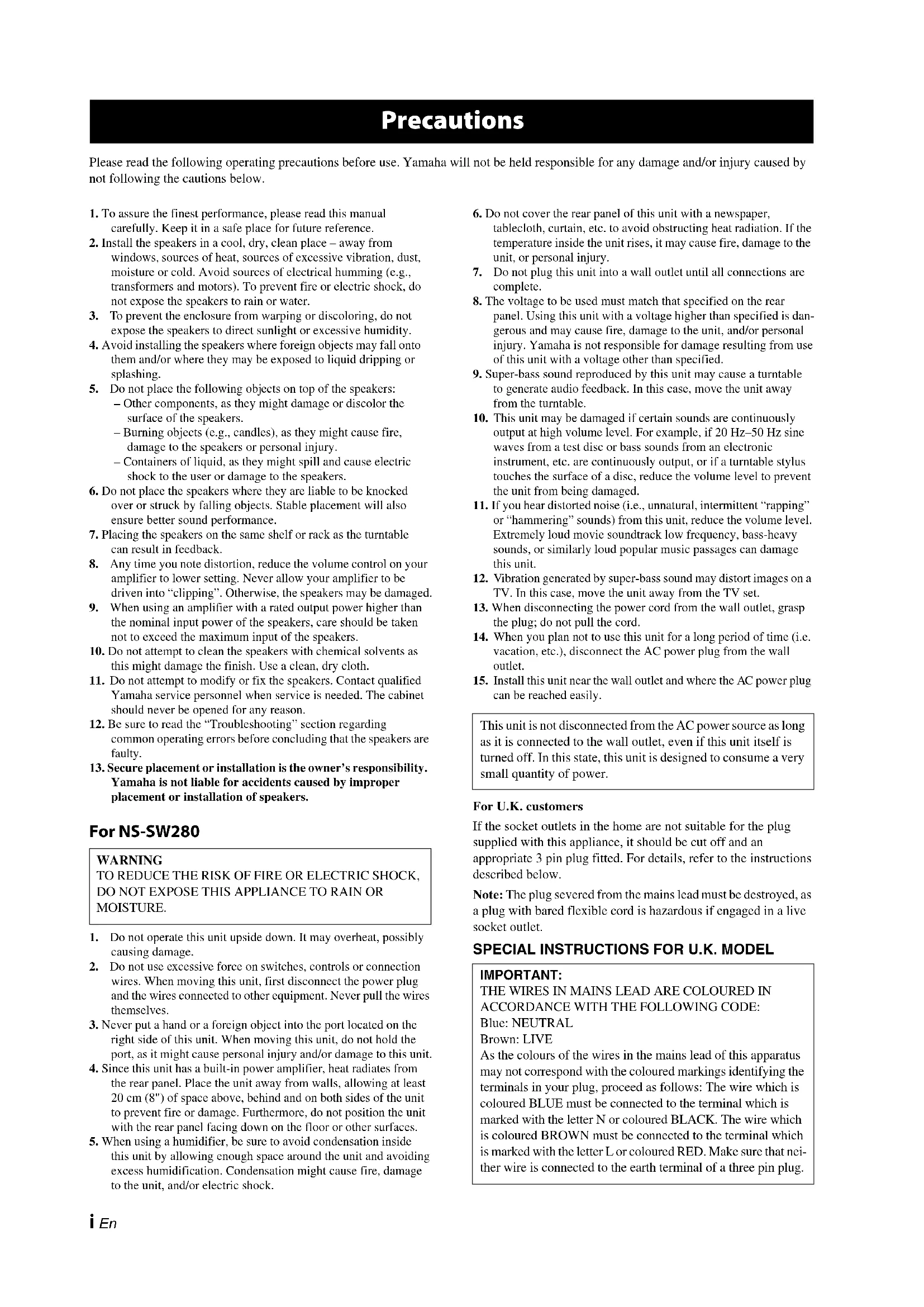

Precautions WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. In this state, this unit is designed to consume a very small quantity of power. IMPORTANT: THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: Blue: NEUTRAL Brown: LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Make sure that nei- ther wire is connected to the earth terminal of a three pin plug.1 En English Thank you for choosing the Yamaha YHT-594 Home Theater Package. The Yamaha YHT-594 Home Theater Package includes everything you need to add great sound to your home theater. By following the instructions in this manual, you’ll have your home theater set up in no time and be enjoying music and movies like never before. See also the AV Receiver’s owner’s manual for full instructions and precautions for AV Receiver. Make sure the package contains the following items. Note

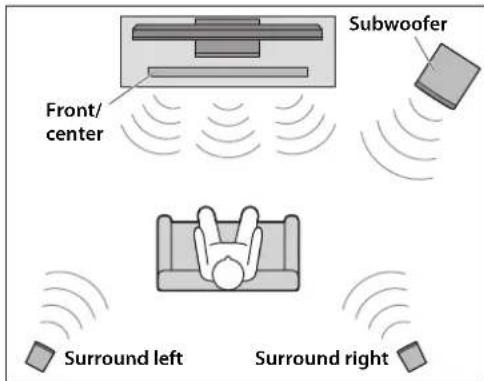

• Only the items required to complete the instalation explained in this manual are shown here. Before you connect the speakers, place each speaker in its respective location. Speaker positioning is very important as it affects the overall sound quality of the system. Place the speakers in locations that will optimize the sound quality at your listening position. Refer to the illustration. The position of the subwoofer is not as critical as the position of the other speakers because sub-bass sounds are not very directional. Notes

• Placing the speakers too close to a CRT-type TV may impair the picture color or cause a buzzing noise. In this case, move the speakers at least 20 cm (8") away from the TV. This is not an issue with LCD and plasma TVs.

• See the AV Receiver’s owner’s manual for a list of the items supplied with the AV Receiver. Subwoofer (NS-SW280) Surround speakers (NS-B285) AM antenna FM antenna Subwoofer cable 5 m (16 ft.) x1 Speaker cable 25 m (82 ft.) x1 Front/center speaker (NS-BR300) Mounting template for front/ center speaker (NS-BR300) Stands and screws for front/center speaker (NS-BR300) Non-skid pads for front/center speaker (NS-BR300) Owner’s manual Speaker stands SPS-90 for surround speakers (NS-B285) (Assembled stand shown) Positioning the speakers Subwoofer Surround right Surround left Front/ center2 En Once you’ve positioned the speakers, you’ll need to cut the 25-meter (82 ft.) speaker cable to make three cables for connecting the front/center speaker and two cables for the surround speakers. 1 Cut the included speaker cable to suitable lengths for the front/center speaker and surround speakers. You need five cables. 2 Remove about 10 mm (3/8") of insulation from the end of each speaker cable. 3 Twist the bare wires tightly. Notes • Make the speaker cables as short as possible. Do not bundle or roll up excess cable.• Twist the bare wires tightly so the individual strands are not splayed.• Be careful not to injure yourself while preparing the speaker cables. 4 Connect the speaker cables to the front/center speaker (NS-BR300) and surround speakers (NS-B285). Note • Refer to the SPS-90 Owner’s Manual for information on connecting the surround speakers (NS-B285). ■ Attaching the speaker stands

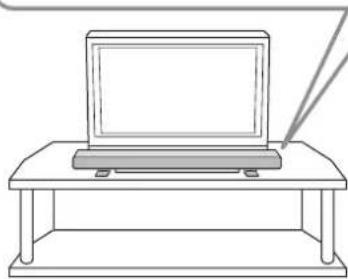

• Front/center speaker (NS-BR300) If you place the front/center speaker (NS-BR300) at the base of your TV, attach the included stands. If you use it without the stands, affix the included non-skid pads.
• Surround speakers (NS-B285) Refer to the SPS-90 Owner’s Manual for information on assembling the SPS-90 speaker stands and attaching the surround speakers (NS-B285). Connecting the speakers and antennas

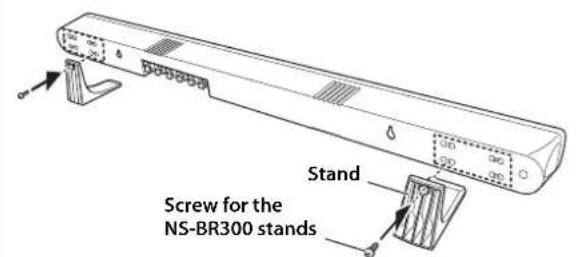

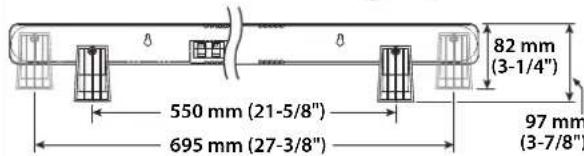

Preparing the cables and speakers Good No Good10 mm (3/8") NS-BR300 (front/center speaker) Non-skid pads550 mm (21-5/8")695 mm (27-3/8")82 mm (3-1/4")97 mm(3-7/8")StandAttaching the standsOn the rear of the front/center speaker (NS-BR300), there are four screw holes at each end for attaching the stands at a suitable height and width for your TV.Note • Make sure the front/center speaker does not obstruct the remote control sensor on the front of your TV.Affixing the non-skid padsScrew for the NS-BR300 standsConnecting the speakers and antennas 3 En English Caution: Disconnect all components from AC outlets before proceeding. Connect the NS-BR300 speaker cables to the AV Receiver. Make sure you connect the speaker with the correct polarity: positive (+) terminals to positive (+) terminals, and negative (–) terminals to negative (–) terminals. Connect the surround speaker cables to the AV Receiver. Make sure you connect the speakers with the correct polarity: positive (+) terminals to positive (+) terminals, and negative (–) terminals to negative (–) terminals. Use the included subwoofer cable to connect the subwoofer’s INPUT jack to the AV Receiver’s SUBWOOFER jack. See “Using the subwoofer” on page 6 for more information about the subwoofer and its operation. Connect the AM loop antenna and indoor FM antenna to the AV Receiver, as shown. See the AV Receiver’s owner’s manual for more information about connecting antennas.

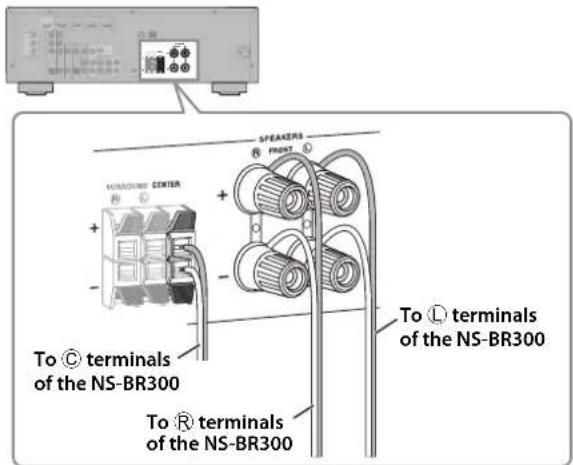

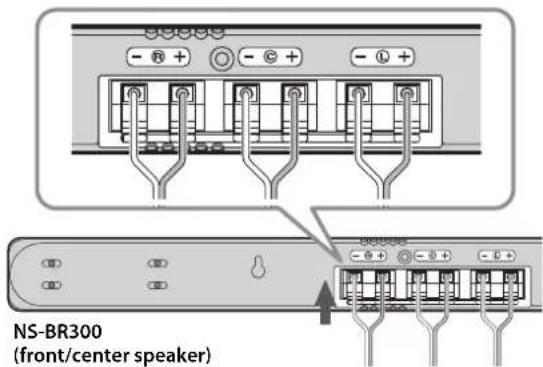

Connecting the front/center speaker (NS-BR300)

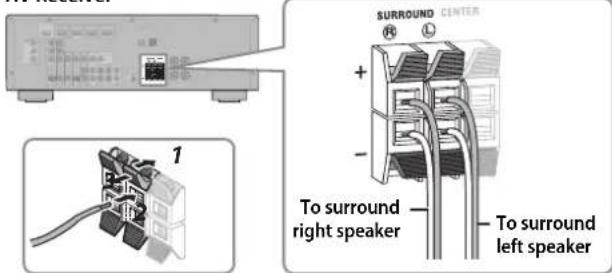

Connecting the surround speakers (NS-B285) ANTENNA

AV ReceiverTo R terminals of the NS-BR300To L terminals of the NS-BR300To C terminals of the NS-BR300 ANTENNA

AV ReceiverTo surroundright speakerTo surround left speaker

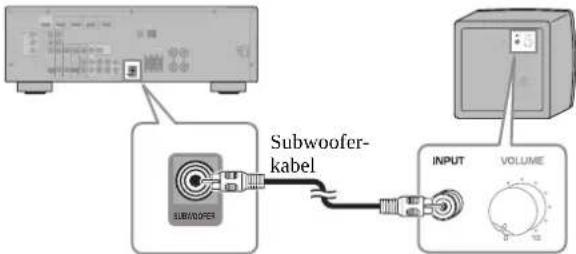

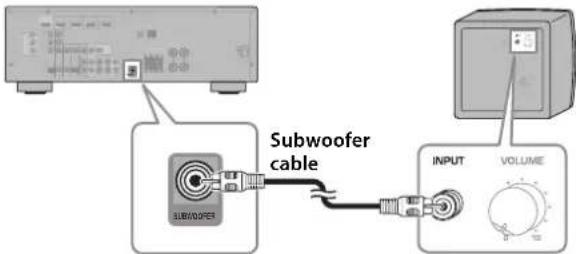

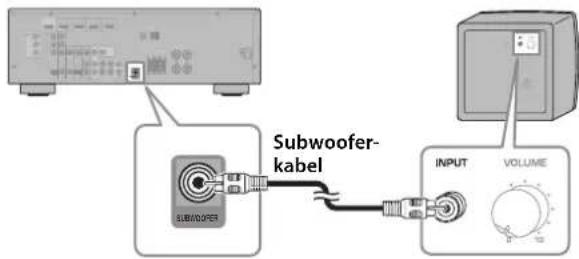

Connecting the subwoofer (NS-SW280)

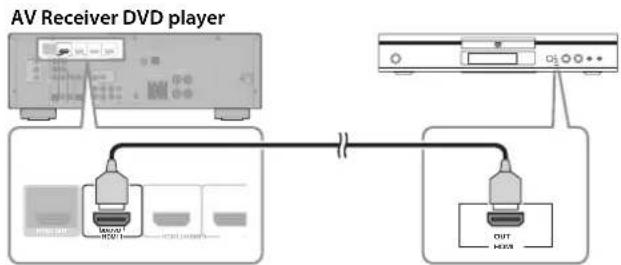

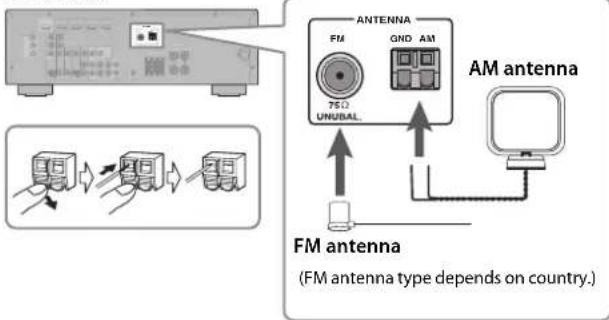

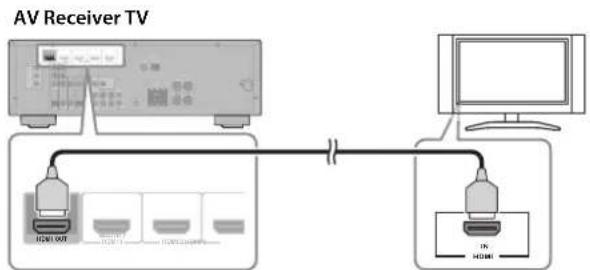

AV ReceiverAM antennaFM antenna (FM antenna type depends on country.)4 En Caution: Disconnect all components from AC outlets before proceeding. If your TV and DVD player or satellite/cable set-top box have HDMI jacks, you can connect them via the AV Receiver. Using HDMI cables (not included), connect the AV Receiver’s HDMI OUT jack to an HDMI input on your TV, and connect your DVD player and satellite/cable set-top box to the AV Receiver’s HDMI 1(BD/DVD) and HDMI 2 jacks, respectively, as shown. Refer to the AV Receiver’s owner’s manuals for more information about HDMI. ■ Connecting your TV ■ Connecting your DVD player ■ Connecting your satellite/cable set-top box You can listen to TV audio through the AV Receiver and speakers by connecting an audio output on your TV to an audio input on the AV Receiver with, for example, an optical digital audio cable (not included), as shown. To listen to TV audio, select the appropriate input source on the AV Receiver.Use a video pin cable (not included) to connect the AV Receiver’s MONITOR OUT jack to a composite video input on your TV, as shown.Use AV pin cables (not included) to connect your DVR (digital video recorder) or VCR to the AV Receiver’s AV 5 and AV OUT jacks, as shown. Connecting AV components

AV Receiver DVD player ANTENNA

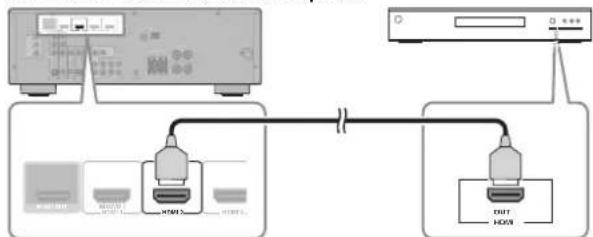

HDMI 2 AV Receiver Satellite/cable set-top box

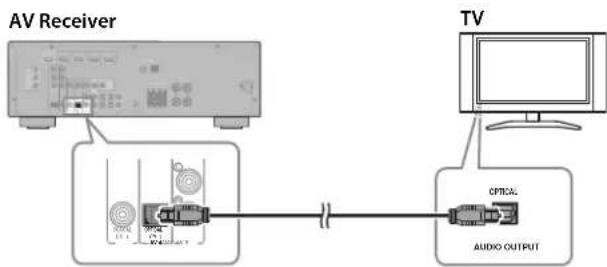

Connecting your TV for audio output

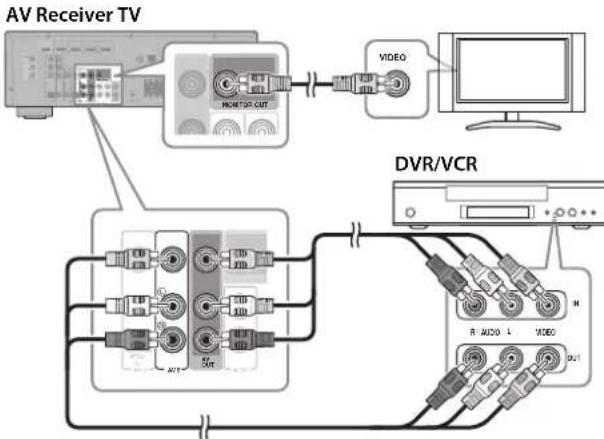

Connecting your DVR/VCR ANTENNA

OUT SUBWOOFER AUDIO OUT SPEAKERS

OUT SUBWOOFER AUDIO OUT SPEAKERS

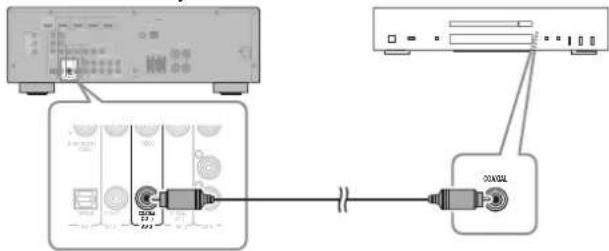

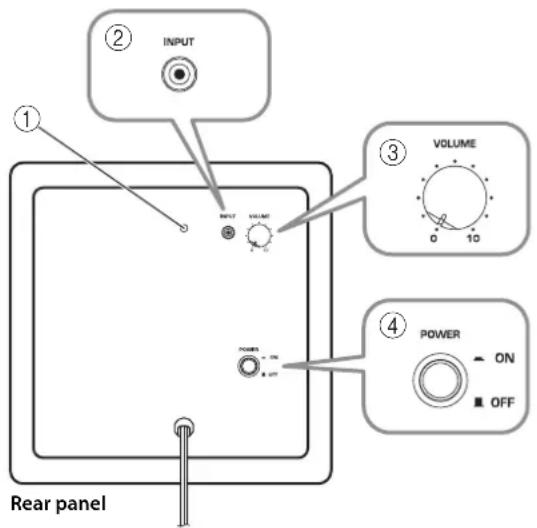

OUT MONITOR OUT AV Receiver TV DVR/VCRConnecting AV components 5 En English Use an audio pin cable (not included) to connect your CD player to the AV Receiver’s AV 3 COAXIAL(CD) jack, as shown. Use a 3.5 mm stereo mini plug cable (not included) to connect your portable music player to the AV Receiver’s PORTABLE jack (on the front panel), as shown. ■ Almost Finished

• Connect the AV Receiver, subwoofer, and your other AV components to suitable AC outlets.

• Turn on the AV Receiver first, then the subwoofer and your other AV components.

• Install the batteries in the AV Receiver’s remote control.

• The optimum crossover frequency setting on the AV Receiver is 160 Hz.

• See the relevant owner’s manuals for full operating instructions. Time to enjoy your Yamaha Home Theater Package! Now, relax and enjoy the great sound of your Yamaha Home Theater Package.

Connecting your CD player

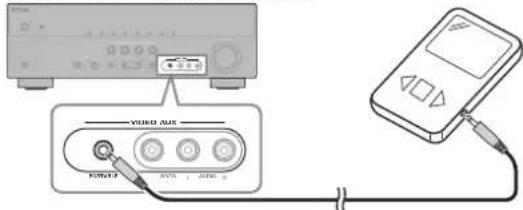

Connecting your portable music player SURROUNDANTENNA

OUT SUBWOOFER AUDIO OUT SPEAKERS

COAXIAL VIDEO COAXIAL AV Receiver CD player CONTROL PROGRAM STRAIGHT INPUT VIDEO AUDIO PORTABLE VIDEO AUX VOLUME SCENE VIDEO AUDIO PORTABLE VIDEO AUX AV Receiver Portable music player If your AV Receiver has a DOCK jack (U.S.A. and Canada models), you can connect a Yamaha Universal Dock for iPod, such as the YDS-12, or a Yamaha Bluetooth Wireless Audio Receiver, such as the YBA-10 (both sold separately). See the AV Receiver’s Owner’s Manual for more information.6 En a Power indicator Lights up when the POWER switch is set to ON; goes off when the POWER switch is set to OFF. b INPUT jack Input jack for connecting the line-level subwoofer output on your amplifier. c VOLUME control Adjusts the volume of the subwoofer. Turn it clockwise to increase the volume; counterclockwise to decrease the volume. d POWER switch Set this to ON to turn on the subwoofer. Set it to OFF to turn off the subwoofer. Setting the subwoofer volume The very first time you use the subwoofer, you need to set the volume balance between the subwoofer and the front speakers as follows. 1 Turn on your other AV components. 2 Set the subwoofer’s VOLUME control to minimum (0). 3 Set the subwoofer’s POWER switch to ON. The power indicator on the rear panel lights up. 4 Play an audio source that contains low-frequency bass sounds. Set the amplifier’s volume control to a suitable level. 5 Turn the subwoofer’s VOLUME control up gradually until you achieve a good balance between the subwoofer and the other speakers.Notes • Once the subwoofer volume has been set, you can leave the subwoofer’s VOLUME control set as it is and use your amplifier’s volume control to adjust the volume of the entire system. • If you replace the front/center speaker (NS-BR300) with other speakers, you will need to re-adjust the subwoofer’s volume.• The frequency characteristics graphs below show how the subwoofer and front speakers work together to provide a full-range sound. Frequency characteristics Using the subwoofer

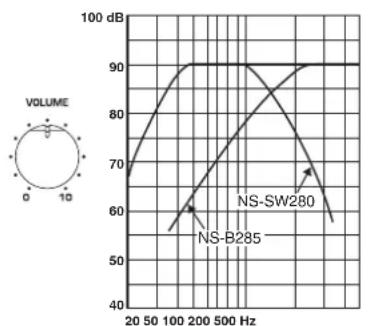

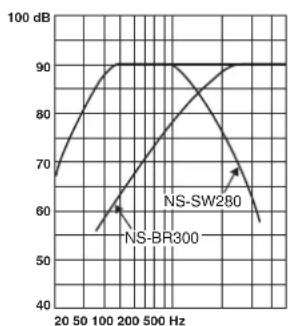

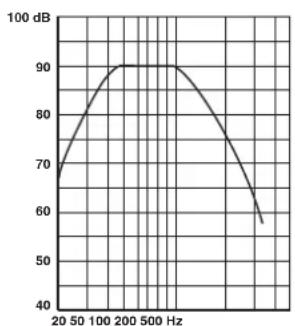

100 dB The following graph shows the frequency characteristics of the subwoofer (NS-SW280).The following graph shows the combined frequency characteristics of the subwoofer (NS-SW280) and front/center speaker (NS-BR300), and surround speaker (NS-B285).7 En English You can mount the speakers on the wall as follows.

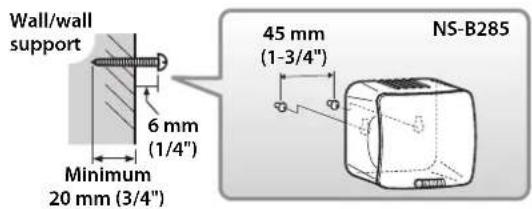

• Surround speakers (NS-B285) 1 Install screws into a solid wall or wall support, as shown below. Use 3.5 to 4 mm (1/8") diameter self- tapping screws. 2 Hang each speaker by its keyhole slots onto the protruding screws. Note
• Make sure the shaft of the screw is seated in the narrow part of the keyhole slot. Otherwise, the speaker may fall.

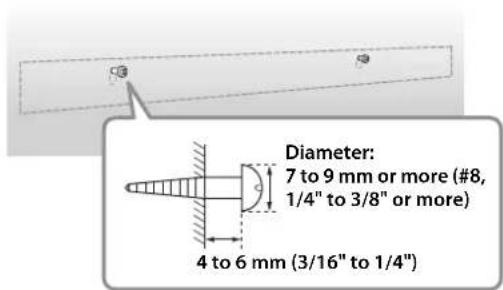

• Front/center speaker (NS-BR300) 1 Use tape or thumbtacks to affix the supplied mounting template to the wall, and use a pencil or other tool to mark the hole positions on the wall. 2 Remove the template, and then install screws, as shown below. Use 3.5 to 4 mm (1/8") diameter self- tapping screws. 3 Hang the speaker by its keyhole slots onto the protruding screws. Note
• Make sure the shaft of each screw is seated in the narrow part of each keyhole slot. Otherwise, the speaker may fall. Cautions
• The front/center speaker (NS-BR300) weighs 1.5 kg (3 lbs.). The surround speakers (NS-B285) weigh 0.45 kg (1 lbs.). Do not mount the speakers on thin plywood or on walls with a soft surface material. Otherwise, the screws may pull out of the surface and the speakers may fall, causing damage or injury.• Do not affix the speakers to walls by using nails, adhesives, or unsuitable hardware. Long-term use and vibration may cause the speakers to fall.• To prevent tripping accidents, secure loose speaker cables to walls, floors, etc., using suitable fasteners.• Mount the speakers at positions on the walls where people are unlikely to bump their heads.• Attach the speakers to a rack or wall. Do not attach the speakers to walls made of weak materials, such as plaster or veneered woods. Doing so may cause the speakers to fall.• Use commercially available screws that can support the weight of the speakers.• Only use the screws specified for attaching the speakers. Using fasteners other than those specified, such as short screws, nails, or double-sided tape, may cause the speakers to fall.• When connecting the speakers, secure the speaker cables so that they do not hang loose. If your foot or hand accidentally gets caught on a loose speaker cable, the speaker may fall, causing damage or injury.• After installing each speaker, check that it’s fixed securely. Yamaha accepts no responsibility whatsoever for accidents due to improper installation. Wall-mounting the speakers Unless you are very competent at DIY, do not wall-mount the speaker yourself. Ask your dealer or a qualified contractor to do the installation for you. Incorrect installation may cause the speaker to fall, causing damage or injury. 45 mm(1-3/4")Wall/wall support 6 mm (1/4")Minimum 20 mm (3/4")NS-B285 Tape or thumbtacksMark here Mounting template 4 to 6 mm (3/16" to 1/4")Diameter: 7 to 9 mm or more (#8, 1/4" to 3/8" or more)8 En If this product doesn’t work as expected, look for a possible cause below. If the issue you are experiencing is not listed, or you cannot resolve it after reading through these instructions, disconnect the power cable and contact an authorized Yamaha dealer or service center. ■ Subwoofer (NS-SW280) ■ Surround speakers (NS-B285) Type ........................................... Full-range acoustic-suspension non-magnetic shielding type Driver............................................ 6.5 cm (2-1/2") cone speaker Nominal input power ......................................................... 30 W Maximum input power ...................................................... 80 W Impedance ............................................................................... 6 Ω Frequency response........................................... 110 Hz–40 kHz Sensitivity ........................................................81 dB/2.83 V, 1 m Dimensions (W × H × D) ................ 90 × 90 × 109 mm (3-1/2" × 3-1/2" × 4-1/4") (without stand) .............. 90 × 120 × 123 mm (3-1/2" × 4-3/4" × 4-7/8") (with stand) Weig ht ........................................0.45 kg (1 lbs.) (without stand) ■ Front/center speaker (NS-BR300) Type ........................................... Full-range acoustic-suspension non-magnetic shielding type Driver....................... 4 × 10 cm (1-1/2 × 4 in) cone speaker ×3 Frequency response........................................150 Hz to 20 kHz Impedance ............................................................................... 6 Ω Dimensions (W × H × D) NS-BR300 ........... 800 × 50 × 70 mm (31-1/2" × 2" × 2-3/4") Stand................. 45 × 70 × 88 mm (1-3/4" × 2-3/4" × 3-1/2") Weig ht ...................................................................... 1.5 kg (3 lbs.) ■ Subwoofer (NS-SW280) Type ........................ Advanced Ya m a h a Active Servo Technology Driver...............................................16 cm (6-1/2") cone woofer non-magnetic shielding type Output power........................ 50 W (100 Hz, 5 Ω, 10% T.H.D.) Dynamic power ......................................................... 100 W, 5 Ω Input impedance ....................INPUT (1P RCA pin jack): 10 kΩ Frequency response .............................................30 Hz–160 Hz Input sensitivity............................. INPUT (1P RCA pin jack): 80 mV (50 Hz, 50 W/5 Ω) Power supply U.S.A. and Canada models...........................AC 120 V, 60 Hz Australia model..............................................AC 240 V, 50 Hz U.K. and Europe models...............................AC 230 V, 50 Hz Dimensions (W × H × D) ........................262 × 264 × 316 mm (10-3/8" × 10-3/8" × 12-1/2") Wei ght .................................................................6.9 kg (15.2 lbs.) ■ Speaker stand (SPS-90) Dimensions (D × H) .............. Φ 230 × 910 mm (Φ 9" × 35-7/8") (Shortest) ............... Φ 230 × 1200 mm (Φ 9" × 47-1/4") (Tallest) Wei ght .............................................................. 2.2 kg (4 lbs 7 oz) Specifications are subject to change without notice. Troubleshooting Issue Possible cause RemedyThere’s no sound. The speaker cables are not connected properly.Make sure the speaker cables are connected properly.The sound is very quiet. The speaker cables are not connected properly.Make sure the speaker cables are connected properly: L (left) to L, R (right) to R, “+” to “+” and “–” to “–”.Issue Possible cause RemedyThe POWER switch is set to ON but the subwoofer doesn’t work.The power cable is not connected properly.Set the POWER switch to OFF, then make sure the power cable is connected properly. There’s no sound. The VOLUME control is set to 0. Turn up the VOLUME control. The subwoofer cable is not connected properly.Make sure the subwoofer cable is connected properly.The subwoofer is too quiet. The source material doesn’t contain much bass.Try playing source material that contains more bass.Bass sounds are being cancelled out by standing waves.Reposition the subwoofer, or break up parallel wall surfaces by placing bookshelves or other large objects along the wall. Specifications9 En English Limited Guarantee for European Economic Area (EEA) and Switzerland Thank you for having chosen a Yamaha product. In the unlikely event that your Yamaha product needs guarantee service, please contact the dealer from whom it was purchased. If you experience any difficulty, please contact Yamaha representative office in your country. You can find full details on our website (http://www.yamaha-hifi.com/ or http:// www.yamaha-uk.com/ for U.K. resident). The product is guaranteed to be free from defects in workmanship or materials for a period of two years from the date of the original purchase. Yamaha undertakes, subject to the conditions listed below, to have the faulty product or any part(s) repaired, or replaced at Yamaha’s discretion, without any charge for parts or labour. Yamaha reserves the right to replace a product with that of a similar kind and/or value and condition, where a model has been discontinued or is considered uneconomic to repair. Conditions 1. The original invoice or sales receipt (showing date of purchase, product code and dealer’s name) MUST accompany the defective product, along with a statement detailing the fault. In the absence of this clear proof of purchase, Yamaha reserves the right to refuse to provide free of charge service and the product may be returned at the customer’s expense. 2. The product MUST have been purchased from an AUTHORISED Yamaha dealer within the European Economic Area (EEA) or Switzerland. 3. The product must not have been the subject of any modifications or alterations, unless authorised in writing by Yamaha.
