GB - Functions: The way to follow

Three black-and-white fitness equipment items: a digital watch, a wrist strap, and a pair of accessories (no visible text or symbols)

Illustration showing a person using a wristwatch and a bicycle tire, with red arrows indicating the motion of the device.

I.1 Kit contents Page 17
1.2 Wearing the heart rate monitor/ Attachment on the bike Page 17
1.3 Functions Page 18
1.4 Functions of the operating keys Page 19
1.5 Basic settings Page 19

II. Explaining and setting the trainings functions

II.1 Max Heart rate (Hr max) – the maximum test Page 21
II.2 The right heart rate for training Page 22 Setting of upper and lower limit of heart rate
II.3 Time above the upper limit in one work-out session in percentage Page 23
II.4 The average heart rate Page 23
II.5 Calorie accumulation Page 24
II.6 Lap counter Page 25
II.7 Warning Page 26
II.8 Malfunction Page 27
II.9 Changing the battery Page 27
II.10 Warranty Page 28

III. Short Instruction Page 29

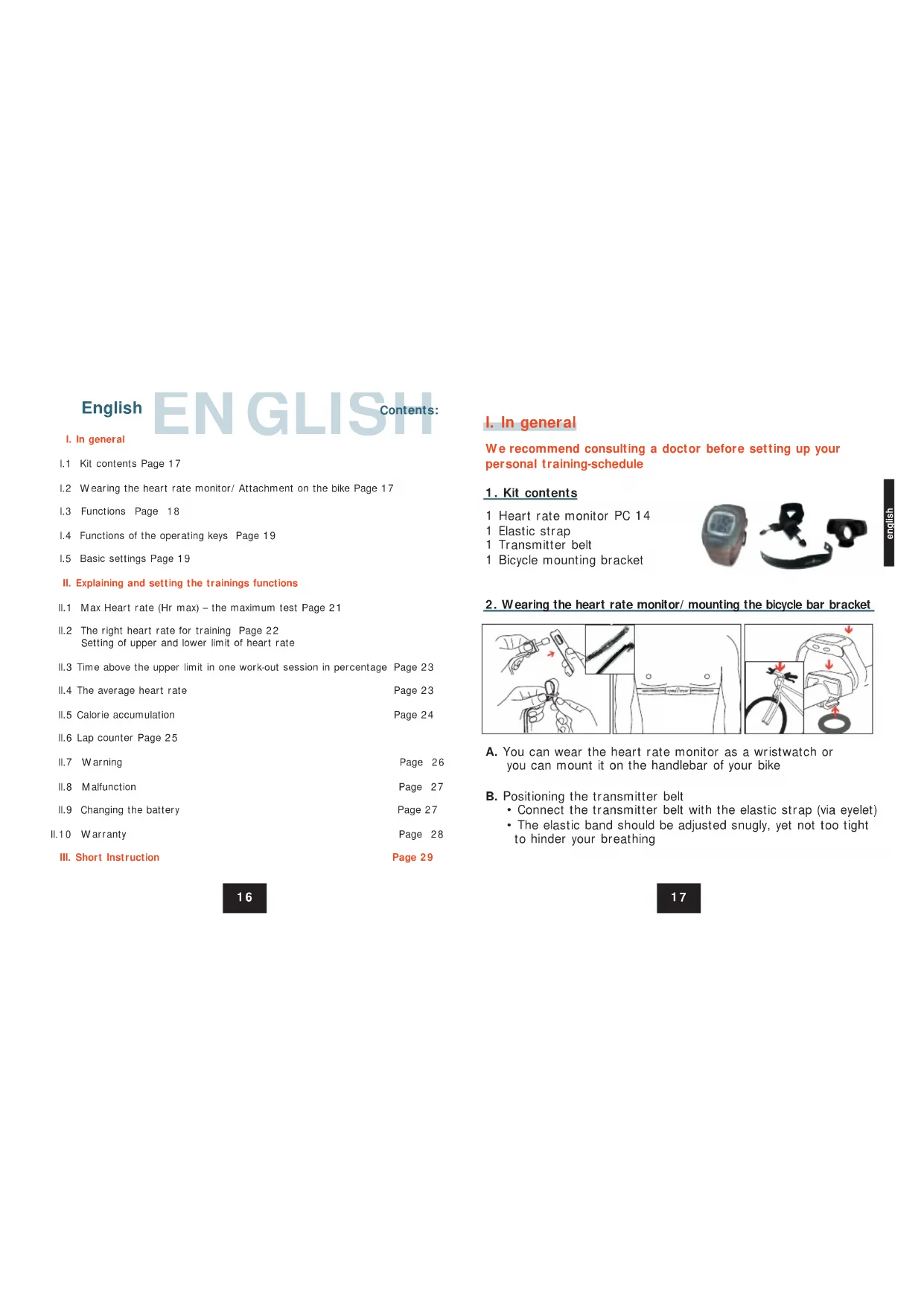

I. In general

We recommend consulting a doctor before setting up your personal training-schedule

1. Kit contents

1 Heart rate monitor PC 14
1 Elastic strap
1 Transmitter belt
1 Bicycle mounting bracket

Product photo of a smartwatch and two black athletic gear accessories (no visible text or symbols)

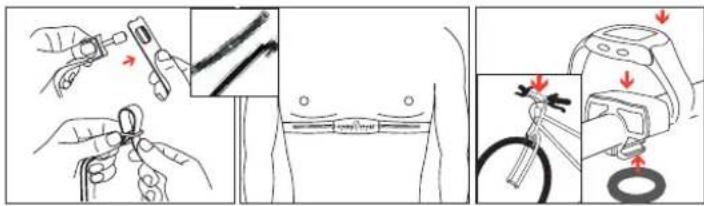

2. Wearing the heart rate monitor/ mounting the bicycle bar bracket

Illustration showing a mechanical assembly procedure with labeled steps and directional arrows indicating motion or movement.

A. You can wear the heart rate monitor as a wristwatch or you can mount it on the handlebar of your bike
B. Positioning the transmitter belt

- Connect the transmitter belt with the elastic strap (via eyelet)

- The elastic band should be adjusted snugly, yet not too tight to hinder your breathing

- Men should place the transmitter at the base of the chest muscle, women at the base of the breast. The Sigma Sport logo must be visible in front and not upside down.

C. Lift the belt slightly from the skin and wet the rear surface of the conductive ribbed rubber pads with ECG conductive gel or moisten the pads with saliva

3. Functions

1. Heart rate display
2. 12 / 24 h clock
3. Stopwatch
4. Setting of lower (30-179) and upper (240-100) limit
5. Alarm if you pass the upper and lower limit
6. Average heart rate
7. Date
8. Maximum heart rate
9. Lap counter
10. Calorie accumulation
11. Time above the upper limit in one work-out session in percentage
12. Current heart rate compared to maximum heart rate in percentage
13. Alarm
14. Backlight

4. Functions of the operating keys

MODE 1: Changes between stopwatch, average heart rate, max. heart rate, clock and date

SET: Setting the clock, alarm, date, lower and upper limit, calorie accumulation, maximum heart rate, stopwatch on/off/reset

ALARM: On/ Off of alarm and backlight

MODE 2: Changes between lap counter, calorie accumulation, percentage of maximum heart rate, time percentage above the upper limit and alarm

For the following settings, please also use the picture on page 2 for a better understanding.

5. Basic settings

Set Clock

• Press MODE 1 key until CLK appears at top of display
• Hold SET key for 2 seconds until the word "hold" disappears and you get the blinking clock format
• Press SET key to select 12/24 h display and confirm with MODE1.
• Press MODE 1 to select hours and minutes, set flashing section with SET key.
  • To complete and quit the setting press MODE 1 key

Set Date

• Press MODE 1 key until date appears in the display
• Press and hold SET key for 2 seconds until the word "hold" disappears and you get the blinking year format
• Press MODE 1 to select year, month and day, set flashing section with SET key.
  • To quit the setting press MODE 1 key

Stopwatch

• Press MODE 1 to enter STP display
• Press SET to start and Stop
• Press SET 2 Sec for RESET

Alarm Audio Tone

• Press ALARM Key. A small sound wave icon will appear to signal that the audio alarm is activated. You will hear the audio display when your current heart rate is above or below your training zone limits.
• To deactivate, just press ALARM Key and icon will disappear.

Set Alarm Clock

• Press MODE 2 until AL appears.
• Press SET key until HOLD disappears.
• Press SET to turn ON alarm. (bell icon will appear)
• Press MODE 1 to make hour flash.
• Press SET key to select hour
• Press MODE 1 to switch to minutes.
• Press SET key to select minutes.
• Press MODE 1 to finish.
• Press any key to silence alarm.
• Repeat steps 1-3 to turn alarm to off. (bell icon will disappear)

Backlight

- Press ALARM key 4 Sec

II. Explaining and setting the training functions

The heart rate (Hr) is displayed in beats per minute.

1. Maximum Heart Rate- Maximum test

The maximum heart rate Hr MAX is your present maximum heart rate if you go to the limits of your capability. The individual Hr max depends on your age, your sex and your fitness level. The best way to determine the individual Hr max is a stress test.

We recommend you to see a doctor to do this test and to repeat it regularly.

The Hr max may also be estimated by means of the following mathematical equation.

Men: 210 - half age - (0.11 x personal weight + 4)

Women: 210 - half age - (0.11 x personal weight)

Set of maximum heart rate

• Press MODE 2 to enter MAX % display. SET appears blinking.
• Hold SET key for 2 seconds until the word "hold" disappears and you get the blinking MAX format (30)
• Press SET key to select individual maximum heart rate.
  • T o quit the setting press MODE 2 key

2. The right heart rate for training

The training zone is the variation of the heart rate you want to train in for effective training

An indication is:

65 % of the Hr max is your lower limit for training and 80 % of the Hr max should be your top limit. You can find out your estimated heart rate zone looking at the chart in accordance with your goals.

Zone: General Health 50-70 % of the Hr max
Alignment: Fitness for beginners

	Hr max			150	160	170	180	190	200	210
Upper limit	70 %	105	112	119	126	133	140	147
Lower limit	50 %	75	80	85	90	95	100	105

Zone: Fitness 70-80 % of Hr max

Alignment: Fitness for advanced users

	Hr max
	150	160	170	180	190	200	210
Upper limit	80 %	120	128	136	144	152	160	168
Lower limit	70 %	105	112	119	126	133	140	147

Zone: Competitive performance 80-100 % of Hr max
Alignment: Compatition Training for performance athletes

	Hr max	150	160	170	180	190	200	210
Upper limit 100 %	150	160	170	180	190	200	210
Lower limit 80 %	120	128	136	144	152	160	168

Please be aware that common training schedules never match the individual needs of a person. A perfect training schedule can only be set up by a well-educated trainer, who knows you personally.

Set upper/ lower limit

• Press MODE 2 key to select % format
• Press SET key until the word "hold" disappears and the flashing upper limit with 240 is on display
• Press Set key to set upper limit, the figures run downwards
• Confirm upper limit by pressing MODE 1 key and select flashing lower limit (30) and press SET key to set it.
  • T o leave and confirm the setting push MODE 1 key

If you exceed the upper or lower limit you will get an audible (if turned on) and visual alarm.

3. Time above the upper limit in one work-out session in percentage

This number tells you how much time you have trained above your set upper limit in percentage

4. The average heart rate

Your personal average heart rate should be within your individual training zone.

Formula: 170 minus your age in years

5. Calorie accumulation

This heart rate monitor can analyze your calorie consumption during a physical effort; taking into consideration sex, weight, and specific sport factor the PC 14 can calculate the total calorie consumption of a person.

Tablet of specific sport factors:

Factor Activity

00045 Walking: 2 miles in 30 minutes

00061 Jogging, relaxed: 2 miles in 30 minutes

00079 Jogging, average: 3 miles in 30 minutes

00099 Jogging, intensive: 4 miles in 30 minutes

00031 Cycling, relaxed: 7 miles in 1 hour

00055 Cycling, average: 11 miles in 1 hour

00080 Cycling, intensive: 17 miles in 1 hour

00068 Inline Skating, relaxed: 6 miles in 1 hour

00078 Inline Skating, average: 9 miles in 1 hour

00089 Inline Skating, intensive: 13 miles in 1 hour

00048 Aerobic, relaxed: 30 minutes

00061 Aerobic, average: 30 minutes

00072 Aerobic, intensive: 30 minutes

00030 Gymnastic: 30 minutes

Set of the calorie accumulation

• Press MODE 2 to enter KCAL display.
• Press SET key until the word "hold" disappears and the flashing KCAL factor is on display
• Select your specific factor in the table and press SET key to set it. Confirm factor by pressing MODE 1 key.
• Press SET key to set sex – male (M) or female (F).
• Press MODE 1 to select weight. Press MODE 2 to select kilogram (KG) or pound (Lb)
• Press Set key to set
  • T o quit the setting press MODE 1 key
• Stopwatch must be running for this functions to calculate

6. The lap counter

The lap counter is used for analyzing all lap times (e.g. in the stadium) regarding time and average heart rate of the lap. End of lap is confirmed by pressing a key.

Set the lap counter

• Press MODE 2 to enter LAP display.
• Press SET key to start or stop a lap. Press SET at the end of every lap. Display is flashing for 5 sec and turns to the next lap.
• To stop the workout session press MODE 1 + MODE 2 for 2 seconds until the display is flashing.
• If you want to restart training, press set.

• T o stop workout session press MODE1 and MODE2.
- Press MODE2 for 2 seconds. The display changes between the average lap time and the total training time.
- Press SET to get the result of every lap.
- Press SET key for 2 seconds to reset.

7. Warning

• MAX, KCAL and AVG functions only work if stopwatch (STW) is switched on.
• Before you start to train contact your doctor to analyze you personal heart rate.
• People using a pacemaker or other such device should consult a physician prior to starting any exercise program
• Before wearing transmitter belt, pre-set upper and lower limit
• Values are converted automatically from Lb to kg and from kg to Lb

8. Trouble Shooting

No heart rate display:

• The inside surface of the conductive ribbed rubber pads are not clean or not moist
• Sources of interference e.g. power lines
• Check battery of the transmitter

LCD display is sluggish or black:

• Possible at temperatures under 34°F or above 131°F

Display fades:

- Battery (Number CR 2025 or DL 2025) weak, change as soon as possible

Watertightness:

The SIGMA SPORT heart rate monitors and transmitter unit are water resistant to a 3m depth. The use in sea (salt water) should be avoided and can cause malfunctions

9. Battery change

Battery in heart rate monitor: CR 2025 or DL 2025. Battery in transmitter belt: CR 2032 or DL 2032 The SIGMA SPORT heart rate monitor is a very sensitive and technical measuring instrument. To guarantee the function and the water resistance, the battery change has to be done only by an authorized dealer. Its warranty is void if the watch has been tampered with, taken apart or ill treated. The KCAL-factor resets automatically to 00069 after battery change and has to be corrected. The clock, maximum heartrate and upper/ lower limits must be reset also.

10. Warranty

The legal warranty regulations are valid.

The warranty is limited to material and workmanship.

Batteries are not included in the warranty.

The warranty is only valid if

1. The heart rate monitor has not been opened

2. The receipt comes with it

Please read the instructions carefully before sending off the heart rate monitor for a warranty claim. If the equipment still seems faulty, contact the dealer where you bought it or send it together with the receipt and all its fittings and with sufficient postage to:

Europe:

SIGMA Elektro GmbH

Dr.-Julius-Leber-Str. 15, 67433 Neustadt/ Weinstr., Germany

America:

SIGMA SPORT USA

1926 Miller Drive, Olney, IL 62450 USA

tel. [phone] free for US

Asia, Australia, South America:

SIGMA SPORT ASIA

7F-1, No. 193, Ta-Tun 6th Street, Taichung City, Taiwan, ROC

tel. ++886-4-2475 3577

Where warranty claims are covered by our guarantee, replacement equipment will be returned to you free of charge. Only current models are used. Specifications are subject to change without notice.

III. Short Instruction

BASIC SETTINGS

Set Clock and Date: Select the Clock or Data format by pressing the MODE 1 key. Hold SET key for 2 sec. Set Formats with MODE 1 and SET key.

Stopwatch: Press MODE 1 to enter STP display. Use SET key to start and stop. Press SET 2 sec for RESET.

Alarm Audio Tone: To activate, just press ALARM key.

Set Alarm Clock: Press MODE 2 until AL appears and SET key until HOLD disappears. Use SET and MODE 1 key to turn ON/OFF and select time.

Backlight: Press ALARM key 4 sec.

TRAINING FUNCTIONS

Set of maximum heart rate: Press MODE 2 to enter MAX % display. Hold SET key for 2 sec. Press SET key to select individual maximum heart rate. To quit press MODE 2 key.

Set upper/ lower limit: Press MODE 2 key to select % format. Press SET key until the flashing upper limit with 240 is displayed. Select the limits with SET key and confirm the setting with MODE 1.

Set calorie accumulation: Press MODE 2 to enter KCAL display. Press SET key until the flashing KCAL factor is displayed. Select your specific factor in the table and press SET key to set. Confirm with MODE 1 key.

Press SET key to set sex – male (M) or female (F). Press MODE1 to select weight. Press MODE 2 to select kilogram (KG) or pound (Lb). Press SET key to set. To quit press MODE 1.

Set the lap counter: Press MODE 2 to enter LAP display. Press SET key to start or stop a lap. Press SET at the end of every lap. Display is flashing for 5 sec and turns to the next lap. To stop the workout session press MODE 1 + MODE 2 for 2 sec until the display is flashing. Press SET to restart training. To review your workout first stop workout per above, then press MODE 1 and MODE 2 key together. The display changes between the average lap time and the total training time. Press SET to get the result of every lap. Press SET key for 2 sec to reset.
