Product type	Heart rate monitor / Sports watch
Brand	SIGMA
Model	Onyx Classic
Watch power source	CR2032 battery (ref. 00342)
Transmitter power source	CR2032 battery (ref. 00342)
Display	Digital screen with backlight
Heart rate measurement	ECG accuracy, coded digital transmission
Training zones	Fatburner (55-70% HRmax), Fitness (70-80%), Individual (OWN)
Stopwatch	Yes, with start/stop and reset
Calorie calculation	Yes, from 100 bpm
Average heart rate	Yes, displayed during training
Time display	Yes, 12/24 h mode adjustable
Date display	Yes, European (DD/MM) or American (MM/DD) format
Zone alarm	Yes, audible alarm can be enabled/disabled
Sleep mode	Automatic after 5 minutes or manual (long press both buttons)
Water resistance	Up to 10 meters (do not press buttons underwater)
Operating temperature	0°C to 55°C
Package contents	Watch, chest strap with transmitter, handlebar bracket, battery compartment tool
Warranty	Legal compliance (batteries excluded)
Replacement battery reference	CR2032 (item no. 00342)

Frequently Asked Questions - Onyx Classic SIGMA

What to do if the watch displays no heart rate?

Check that the chest strap is properly positioned, moisten the electrodes with saliva or water. If the problem persists, clean the electrodes, replace the transmitter battery (CR2032), or move away from sources of electrical interference. Refer to chapter 5.3 of the manual.

How to correctly install the chest strap?

Attach the transmitter to the elastic belt, adjust the length so that it is tight but not too tight. Position the belt so that the transmitter is at the base of the pectoral muscle (men) or beneath the chest (women), with the SIGMA logo visible and facing forward. Moisten the electrodes before use.

How to set the training zones?

Enter the settings menu by holding the lower button. Select the ZONE submenu with the lower button, then open it with the upper button. Choose between FAT (55-70% HRmax), FIT (70-80%), or OWN (individual zone). Confirm with the upper button.

How to replace the watch battery?

Use the provided key to open the battery compartment on the back of the watch. Replace the old battery with a new CR2032 battery (ref. 00342). Close the compartment, ensuring it is properly locked.

Is the watch waterproof?

Yes, the Onyx Classic is waterproof to a depth of 10 meters. However, do not press any buttons while underwater.

How to activate the backlight?

Press both buttons (upper and lower) simultaneously to activate the light function.

What do the up and down arrows on the screen mean?

A down arrow indicates that your heart rate is too high relative to the set training zone, you should reduce your effort. An up arrow indicates that your heart rate is too low, you should increase intensity. An audible signal may also sound.

How to reset the stopwatch?

Hold the upper button pressed for about 3 seconds. The calories and average heart rate are also reset to zero.

Why does the display become black or slow?

This may be due to an operating temperature that is too high or too low. The device is designed to function between 0°C and 55°C. If the display is faint, the battery may be low and needs to be replaced.

Can I use the watch without the chest strap?

Yes, you can use the Onyx Classic as a simple watch in standby mode. However, the heart rate, calorie calculation, and stopwatch functions will not be available without the chest strap.

USER MANUAL Onyx Classic SIGMA

HEART RATE

ONYX CLASSIC

DEUTSCH

ITALIANO

ENGLISH

ESPAÑOL

FRANÇAIS

NEDERLANDS

Puls Computer ONYX CLASSIC

2.3 ANLEGEN DES BRUSTGURTES / LENKERHALTERUNG

Aktivmodus

1. FAT (Fatburner Zone):

2. FIT (Fitness Zone):

70-80 % der HF max.

1. Foreword and package contents 23

2. Basic operating principle 24

2.1 Menu summary 24

2.2 Key occupancy 25

2.3 Attaching the chest belt/ Fastening the handlebar holder 26

1. Settings before the first training

→ The settings menu 27

3.1 USER (user settings) 29

3.2 ZONE (zone settings) 30

3.3 TIME (time settings) 31

3.4 DATE (date settings) 31

3.5 TONE (zone alarm tone settings) 31

1. Training with the ONYX CLASSIC 32

2. Further information 35

5.1 Information on heart rate 35

5.2 FAQ 38

5.3 Troubleshooting 39

5.4 Changing the battery, watertightness and warranty

1. FOREWORD AND PACKAGE CONTENTS

Congratulations on choosing a heart rate monitor from SIGMA SPORT®. Your new ONYX CLASSIC will be a faithful companion for sport and leisure for many years to come.

The ONYX CLASSIC is a technically demanding measuring device. In order to learn and apply the varied functions of your new heart rate monitor, please read this user manual carefully.

SIGMA SPORT® wishes you a lot of fun using your ONYX CLASSIC.

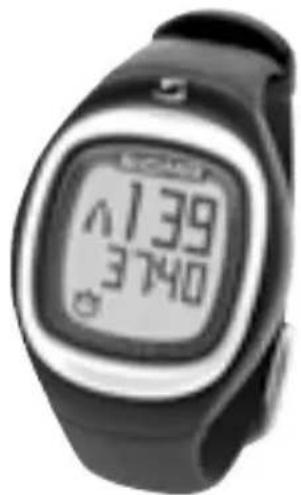

Heart rate monitor ONYX CLASSIC

→ ECG-accurate
→ Manufactured based on medical standards

Chest belt with digitally coded radio transmission.

Handlebar holder to use the ONYX CLASSIC on the bike with an O ring.

2. BASIC OPERATING PRINCIPLE

2.1 MENU SUMMARY

The main menu

Press any button for 3 seconds to get into the main menu of your ONYX CLASSIC. The main menu is divided into the following areas:

→ "Training time"

→ "Calories"

→ "Average HR"

→ "Time".

The symbol on the bottom screen indicates where you are in the main menu.

Use the bottom button to change between the individual main functions.

The settings menu

Open the settings menu by holding down the bottom button in the main menu.

The settings menu is divided into:

→ "USER" (user settings)

→ "ZONE" (zone settings)

→ "TIME" (time settings)

Change between these settings by pressing the bottom button.

Top button:

→ Start / stop the stopwatch
→ Reset the stopwatch (hold down)
→ Open and confirm the settings"

Pressing both buttons simultaneously:

→ Activate the light function
→ Put the clock into sleep mode (hold down)

Bottom button:

→ Change between functions
→ Open the settings menu (hold down)
→ Change the value in the settings menu

2.3 ATTACHING THE CHEST BELT / HANDLEBAR HOLDER

	Connect the transmitter with the elastic belt.
	Use the adjusting mechanism to individually adapt the length of the belt.Ensure that you set the length of the belt so that it sits well but is not too tight.
	Place the belt such that for men the transmitter is below the chest muscles and for women below the breasts.The SIGMA logo must always be readable from the front.
	Lift the belt slightly from the skin. Dampen the ribbed zones (electrodes) on the rear of the transmitter with salvia or cardio gel.

2.3 ATTACHING THE CHEST BELT / HANDLEBAR HOLDER

Assemble the handlebar holder. Then fix the handlebar holder with the O ring and close the wristband.

3. SETTINGS BEFORE THE FIRST TRAINING → THE SETTINGS MENU

Before the first training session enter your personal settings. To do this, press the top or bottom button for 3 seconds to go from sleep mode to active mode.

Now press the bottom button for about 3 sec. in active mode. The screen first displays "SET OPEN" and then "USER". You are now in the settings menu.

3. SETTINGS BEFORE THE FIRST TRAINING → THE SETTINGS MENU

USER

ZONE

TIME

DATE

TONE

SET

OK

The settings menu is divided into "USER" (user settings), "ZONE" (zone settings), "TIME" (time settings), "DATE" (date settings) and "TONE" (zone alarm tone settings).

Change between these settings by pressing the bottom button.

Open any settings menu by pressing the top button.

Each menu now shows different values that can be set. Change or increase any value by pressing the bottom button. To lower any given setting, you must continue to increase it until the numbers exceed the maximum values and start from the minimum values again.

Confirm each setting with the top button.

3. SETTINGS BEFORE THE FIRST TRAINING → THE SETTINGS MENU

Once you have carried out your settings and have gone back to the settings menu, press the bottom button for about 3 seconds. The screen first displays "SET CLOSE" and then active mode.

3.1 USER (User settings)

In the "USER" menu enter in succession your gender, date of birth and weight (in kg or Engl. Pounds (lb)). Change each setting value by pressing the bottom button. Use the top button to confirm each setting and to change to the next setting value.

Maximum heart rate

Your maximum heart rate is calculated on the basis of the user settings (USER). The calculated HR max. is the basis for setting the upper and lower limits of your chosen training zone. The training zone is selected and set in the "ZONE" menu (zone settings).

3.2 ZONE (Zone settings)

ZONE

In the “ZONE” settings menu, you can select one of the following training zones depending on your primary objectives by pressing the bottom button.

ZONE FAT

1. FAT (Fatburner Zone): approx. 55–70 % of the max. HR

Aimed at: Training for beginners or those starting again. Primarily for the metabolism

You can find more information on this in Chapter 5.1 "Information on heart rate".

ZONE FIT

1. FIT (Fitness Zone): 70-80% of the max. HR

Aimed at: Fitness at advanced level Training for basic aerobic endurance to strengthen the heart circulation system.

You can find more information on this in Chapter 5.1 "Information on heart rate".

ZONE OWN

1. OWN (Individual Zone): The ONYX CLASSIC also gives you the possibility to set your own training zone. To do this, in the "ZONE OWN" menu heading change the lower limit (LOW) and the upper limit (HIGH) using the bottom button.

3.3 TIME (Time settings)

In the "TIME" settings menu, the time mode (12 / 24 h) and the current time can be set. Increase or lower the setting value using the bottom button. Change between the values to be set using the top button.

3.4 DATE (Date settings)

In the “DATE” settings menu, the current year, month and day can be set one after the other. In addition it is possible to set whether the date is displayed in the Anglo-American format (MM / DD) or the European date format (DD / MM).

3.5 TONE (Zone alarm tone settings)

In the "TONE" settings menu, you are able to activate /deactivate the zone alarm tones. Zone alarm tones always occur if you go below the lower limit or above the upper limit of your training zone.

4. TRAINING WITH THE ONYX CLASSIC

Your ONYX CLASSIC is equipped with a digital coded chest belt that enables you to have fault-free training in a group. Its innovative technology means that you can be sure that your data is transmitted from the chest belt to your ONYX CLASSIC as digital packages without loss.

Active mode

Press any button for 2 seconds to activate the watch.

Synchronisation between watch and chest belt

In active mode, the watch is automatically synchronised with the attached chest belt in a few seconds. A flashing zero appears on the screen until synchronisation has finished.

4. TRAINING WITH THE ONYX CLASSIC

Your current pulse value now appears on the pulse display.

As well as displaying your current pulse value, the following information is also displayed during training:

Stopwatch / Training time

Activate the stopwatch when you start training by pressing the top button. To pause the stop-watch, press the top button again.

Note: Calories and the average HR are only calculated when the stopwatch is running.

Reset the stopwatch to 00:00:00 by holding down the top button. This also sets the calories and average HR back to "O".

Kcal

This shows how many calories have been burnt. Please note that the calorie calculation does not start until you reach a pulse of 100 beats per minute (bpm), as the calculation is too inaccurate at a lower pulse rate.

4. TRAINING WITH THE ONYX CLASSIC

AVG (Average)

The average heart rate of the current training unit is shown under this menu heading.

Time

Here you can display the current time during training.

Upper and lower limit of the training zone

The arrows next to the current pulse reading always appear when you go over or under the set training zone. An arrow pointing down signals that the pulse rate is too high and should be lowered accordingly.

An arrow pointing up signals that the current pulse is too low and should be increased accordingly.

When you go over or under the current pulse value, a signal beeps. This signal can be activated or deactivated in the "TONE" settings menu.

4. TRAINING WITH THE ONYX CLASSIC

Sleep mode

The ONYX CLASSIC switches itself off automatically after 5 minutes, as long as no training is undertaken. Alternatively, you can return your watch to sleep mode manually at any time.

Press the top and bottom buttons simultaneously for at least 3 seconds. Your ONYX CLASSIC is once again in sleep mode and can be worn as an everyday watch.

5. FURTHER INFORMATION

5.1 INFORMATION ON HEART RATE

The heart rate (HR) is stated in beats per minute (bpm).

Maximum heart rate

The maximum heart rate (HR max.) is the maximum possible rate at which your heart beats when exploiting your physical performance completely. Your personal HR max. varies with your age, gender, ability to perform, performance related to your type of sport and your physical fitness. The best way to find out your personal HR max. is to take a stamina test.

5.1 INFORMATION ON HEART RATE

We recommend undertaking this test with a doctor and repeating it regularly.

The HR max. is approximated automatically in the ONYX CLASSIC using the following mathematical equation:

Men:

210 - "half age" - (0.11 x personal weight in kg) + 4

Women:

210 - "half age" - (0.11 x personal weight in kg)

The right training pulse

The training zone is the range in which the heart rate should move during effective and targeted training. In your ONYX CLASSIC you can choose between the Fatburner Zone (FAT) and the Fitness Zone (FIT) depending on your personal objectives. In addition, you are able to determine your own zone limits (OWN) by manually setting the upper and lower limits of your watch. You can find more information about this in Chapter 3.1 “USER” (user settings).

1. FAT (Fatburner Zone):

approx. 55–70 % of the max. HR

Aimed at: Training for beginners or those starting again. When training at a lower intensity and therefore for a longer period, in percentage terms more fat that carbohydrates are used to provide energy. People who primarily want to reduce their weight and burn fat should therefore train in this range. A training time of 45-90 min. is recommended.

5.1 INFORMATION ON HEART RATE

Beginners, who have not done any sport for a long time, should also start with training at this intensity level first. This significantly reduces the risk of over-exertion and the associated health risks.

2. FIT (Fitness Zone):

70-80 % of the max. HR

Aimed at: Advanced level fitness

You train much more intensively in the fitness zone. In this zone, a higher proportion of the immediately available carbohydrates are used as a source of energy. Training in this intensity strengthens the heart circulation system and basic aerobic stamina.

3. OWN (Individual Zone):

The ONYX CLASSIC also gives you the possibility to set your own training zone. To do this, in the “ZONE OWN” menu heading change the lower limit (LOW) and the upper limit (HIGH) using the bottom button.

Note:

Please always note that general plans can never address personal needs! Therefore really ideal training can only be designed by a well educated trainer who knows the sportsperson personally.

Frequently asked questions and service

What happens if I remove the chest belt during training?

The watch will no longer pick up a signal, the screen will indicate "O". If the stopwatch is not running, the ONYX CLASSIC goes into sleep mode after a short time.

Do SIGMA heart rate monitors switch off completely?

No – in sleep mode only the time and date are displayed so you can use the heart rate monitor as a normal watch. In this state the ONYX CLASSIC uses only very little power.

Why does the display react slowly or turn to a black colour?

The operating temperature may be too high or low. Your heart rate monitor is designed for temperatures between 0° C and 55° C.

What should I do if the screen display is weak?

A weak display may be due to weak batteries. You should change them as quickly as possible – battery type CR 2032 (Item No. 00342)

5.3 TROUBLESHOOTING

No signal was found. Please ensure you have attached your chest belt correctly. Switch the watch off and on again to restart synchronisation.

During synchronisation two or more chest belts with the same frequency were found close by. Move away and press any button.

Important information

If no heart rate is shown on the display, this may be due to the following reasons:

→ The chest belt is not attached properly.
→ The sensors (electrodes) on the heart rate monitor are dirty or dry.
→ There is interference from electrical sources.
(e.g. high voltage lines, railways etc.)
→ The transmitter battery (CR 2032) is dead (Item no. 00342).

Before starting to train, please consult your doctor - particularly if you have cardio-vascular problems.

5.4 CHANGING THE BATTERY AND WARRANTY

Changing the battery

Battery CR 2032 (item no. 00342) is used in the heart rate monitor and chest belt.

The ONYX CLASSIC comes with a battery compartment. Open the battery compartment with its key, change the battery and close the battery compartment again.

The chest belt also has a battery compartment, meaning that users can very easily change the battery themselves.

Waterproofing

The ONYX CLASSIC is waterproof down to 10 m.

Do not press any buttons under water.

Warranty

We are liable to our contractual partner for faults as defined by law. Batteries are excluded from the warranty. If you need to use the warranty please contact the dealer where you bought the heart rate monitor or send the monitor with proof of purchase and all accessories with adequate postage to:

5.4 CHANGING THE BATTERY AND WARRANTY

SIGMA Elektro GmbH

If your warranty claim is justified we will send you a replacement

unit. You only have the right to the current model at the time.

The manufacturer reserves the right to make technical changes.

2.3 MISE EN PLACE DE LA SANGLE THORACIqUE / DU SUPPORT SUR LE GUIDON

3. REGLAGES AVANT LE PREMIER ENTRAÎNEMENT → MENU DE REGLAGE

Mode Actif

5. AUTRES INFORMATIONS

5.1 INFORMATIONS SUR LA FREQUENCE CARDIAQUE

1. FAT (Fatburner Zone):

2. FIT (Zona fitness): 70-80 % della FC max.

Modalità attiva

2. FIT (Zona fitness):

3. AJUSTES PREVIOS AL PRIMER ENTRENAMIENTO → EL MENÚ DE AJUSTES

Modo activo

5. MÁS INFORMACIÓN

Cambio de pilas

2.3 OMDOEN VAN DE BORSTRIEM / MONTAGE VAN DE STUURBEVESTIGING

3. INSTELLINGEN VÓÓR DE EERSTE TRAINING → HET INSTELLINGSMENU

Actieve modus

5. VERDERE INFORMATIE

5.1 WETENSWAARDIGHEDEN OVER DE HARTFREQUENTIE

Batterij vervangen

You can find the CE Declaration under: www.sigmasport.com

GB Batteries may not be disposed of in household waste (Germany Battery Law - BattG).

US Please hand in the batteries at a nominated hand-over point for disposal.

Asia, Australia, South America, Africa

10F, No.192, Zhonggong 2 ^nd Rd.,

Xitun Dist., Taichung City 407, Taiwan
