PC 4 - Sports Watch SIGMA - Free user manual and instructions

Product type	Sports heart rate monitor
Power supply	2 CR2032 batteries (watch and chest strap transmitter)
Main functions	Heart rate display, stopwatch, clock (12h/24h), memory of last exercise duration
Exercise zones	Heart zone (wellness), Sport zone (70-80% max HR), Performance zone (80-100% max HR)
Maximum heart rate (estimate)	Men: 210 - (age/2) - (0.11 x weight in kg) + 4; Women: 210 - (age/2) - (0.11 x weight in kg)
Water resistance	Up to 3 meters depth (do not press buttons underwater)
Operating temperature	From 1°C to 55°C
Care and cleaning	Moisten the transmitter electrodes before use; clean with water. Have the battery replaced by a specialist to ensure water resistance.
Safety	Consult a doctor before any training, especially if you have cardiovascular disease. Do not use in seawater.
Spare parts and repairability	CR2032 battery (ref. 00342), elastic strap, chest strap transmitter. Battery replacement by a specialist.
Included accessories	PC 4 watch, elastic strap, chest strap transmitter, bicycle mount
Warranty	Legal warranty (batteries excluded). Contact the seller or SIGMA Elektro GmbH.

Frequently Asked Questions - PC 4 SIGMA

What happens if I remove the chest strap during exercise?

The watch no longer receives the signal and displays '0'. After a few moments, it goes into standby mode.

Does the heart rate monitor turn off completely?

No. In standby mode, only the time is displayed, allowing it to be used as a wristwatch with very low power consumption.

Can I use the chest strap on a treadmill?

Yes. The signals are received and displayed by most cardio training equipment.

Is the PC 4 waterproof? Can I swim with it?

Yes, up to a depth of 3 meters. Caution: do not press buttons underwater and avoid seawater.

Why is the display slow or showing a black tint?

This may be due to the operating temperature being exceeded (between 1°C and 55°C). Let the device return to a normal temperature.

What to do when the display is dim?

A dim display indicates a nearly empty battery. Replace it with a CR2032 battery (ref. 00342) at a specialist dealer.

How to set the time on the PC 4?

Press and hold the function button until 'hold' appears and the format flashes. Choose 12h or 24h, then set the hours and minutes by pressing the button repeatedly.

How to properly position the chest strap?

Place the transmitter at the base of the pectorals (men) or at the base of the breast (women). The SIGMA SPORT logo must be visible. Moisten the electrodes before use.

How to calculate my maximum heart rate?

Use the formula: for men: 210 - (age/2) - (0.11 x weight in kg) + 4; for women: 210 - (age/2) - (0.11 x weight in kg). A medical stress test is recommended.

What to do if no heart rate is displayed?

Check the strap positioning, electrode moisture, absence of electrical interference, and the condition of the transmitter battery (CR2032). Consult a doctor if the problem persists.

USER MANUAL PC 4 SIGMA

Asia, Australia, South America 2014, 01, 03, 07, 10, 15

TAIZHANG City, Taiwan

Tel. [phone]

Fax++886-4-24753563

WWW.SIGMASPORT.COM

EnglishContents1 Introduction and packaging contents

1. Your new PC 4

1.1 Introduction and packaging contents 15
1.2 Overview: Watch, symbols and display layout 16
1.3 Setting the time 17

2 Training

2.1 Attaching the chest belt, fastening the bicycle mounting bracket 18
2.2 Display of heart rate frequency 19
2.3 Training time (start, stop, reset) 20
2.4 Ending the training 21

3 Information

3.1 Useful facts about heart rate frequency 22
3.2 Important information 23
3.3 Frequently asked questions and service 24
3.4 Warranty

25

Information

Thank you for purchasing the SIGMA SPORT PC 4 heart rate monitor. Your new PC 4 will provide you with reliable service in sport and leisure for many years to come.

The PC 4 is a state-of-the-art measuring instrument. Please read the instructions carefully to become familiar with the functions of this heart rate monitor.

SIGMA SPORT wishes you an enjoyable time using your PC 4.

Heart Rate Monitor PC 4

Elastic strap

Transmitter belt

Bicycle mounting bracket with o-ring

1.2 Overview: Watch, symbols and display layout 1.3 Setting the time

Time

Function key

Symbol for heart rate frequency received

Current heart rate

130° 0:1545

Stopwatch [training time]

Symbol for running stop watch

Time

Stopwatch: Previous training time

10:45 03548

WWW.SIGMASPORT.COM

The clock can only be set when the PC 4 is in sleep mode. (Only time is displayed)

Note: Do not pause too long when changing the settings! The PC 4 automatically changes to the next item to be set after 3-4 seconds.

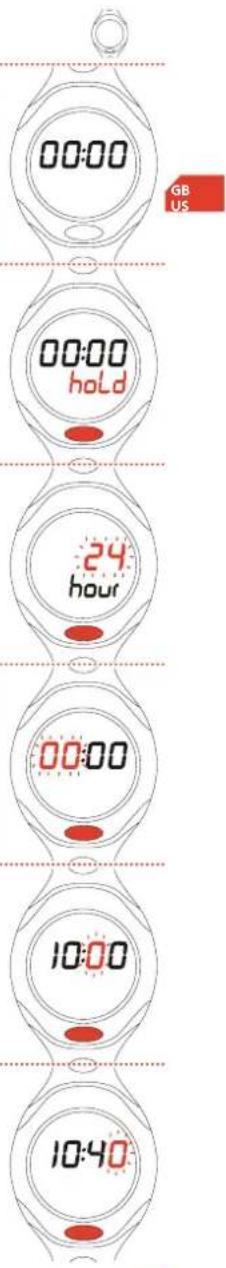

Press the function button down for 4 seconds, [You will first see the word "hold", followed by the flashing time format - 24 hour or 12 hour display], then release.

Chose between 24 and 12 hour format using the function button.

Please wait - Display will automatically change to the next setting.

Set the current time in hours by repeatedly pressing the function button.

Please wait - display will change to the next setting.

Set the first digit of the minute setting by repeatedly pressing the function button.

Please wait - display will change to the next setting.

Set the second digit of the minute setting by repeatedly pressing the function button.

Please wait - The time is now set.

2.1 Attaching the chest strap/handlebar holder 2.2 Heart frequency display

Attach transmitter belt to the elastic strap.

The length of the strap can be individually adjusted via the securing mechanism. Take care to set the strap length so that the strap fits well but not too tightly.

Put the belt on so that the transmitter is below the base of the pectoral muscle in men, and below the base of the breast in women.

The SIGMA SPORT logo must always face forwards and be readable.

In the front, raise the belt slightly from the skin. Moisten ribbed zones [electrodes] on the back of the transmitter with water.

Fastening the bicycle mounting bracket.

The PC 4 is in sleep mode.
The chest belt is attached.
Press the function button to activate training mode.
The current heart rate frequency appears in the display.

10:45

10:45

130 00000

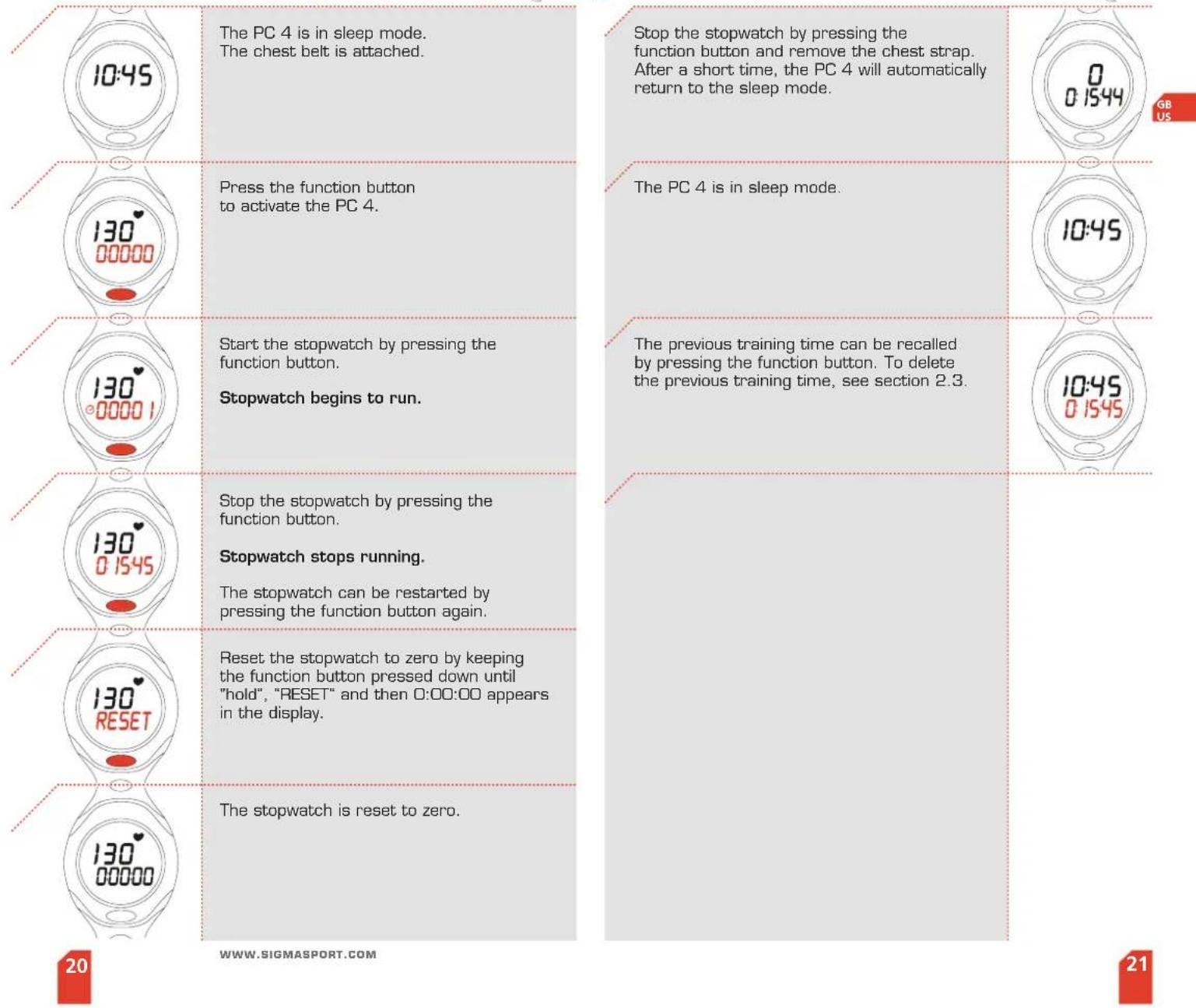

2.3 Training time [start, stop, reset] 2.4 Ending the training

3.1 Useful facts about heart frequency 3.1 Useful facts about heart frequency

The heart rate frequency (HR) or pulse is recorded in beats per minute.

Maximum Heart Rate Frequency

The maximum heart rate (max HR) is the highest frequency possible, achieved at total exhaustion during physical performance. Some factors that can influence max HR are age, weight, sex, and fitness level. The best way to determine your max HR is a stress test.

We recommend that you have your doctor carry out this test for you at regular intervals.

The max. HR can also be estimated with the aid of a mathematical formula:

Men:

210 - "half age" - [0.11 x personal weight in kg] + 4

Women:

210 - "half age" - [0.11 x personal weight in kg]

[Note: To convert weight from lb. to kg, multiply by 2.2]

The correct training pulse

The training zone is the range in which the heart rate frequency should fluctuate during effective and targeted training. Three training zones can be classified from a sports medicine perspective:

Please be aware that these are general guidelines. Target zones will vary from person to person. Individualized training/personal goal setting is only possible through a well qualified trainer who knows the individual.

HZ (Health-Zone)

Health 55 - 70% of the HR max. Orientation: General wellness and weight reduction. This zone is commonly referred to the "fat burning zone. At this intensity, the body readily burns fat and carbohydrates for energy.

FZ (Fitness-Zone)

Fitness 70 - 80% of the HR max. Orientation: Advanced fitness, aerobic conditioning. Your training is considerably more intensive in the Fitness-Zone. Energy is primarily generated from the combustion of carbohydrates.

PZ (Power-Zone)

Performance 80 - 100% of HR max. Orientation: Competitive training. The training in the Power-Zone is very intensive and should only be performed by trained individuals.

3.2 Important information

If no heart rate frequency can be read on the display, this may be the result of the following:

The chest strap/transmitter is not worn properly
- The inside surfaces of the conductive ribbed rubber pads are not clean or not moist.
- Disturbance from electrical interference sources (high-voltage cables, railway lines etc)
- Transmitter battery (CR 2032) is empty (ref. no. 00342).
- In some cases, use of a conductive gel may be necessary.

Please consult your doctor before starting training - especially if you suffer from any cardiovascular illnesses.

3.3 Frequently asked questions and service 3.3 Frequently asked questions and service

What happens if I remove the chest belt during training?

The watch will no longer receive any signal, and "0" will appear on the display.

Does the SIGMA SPORT heart rate monitor completely switch off?

No. Only the time is displayed in sleep mode, so that you can also use the heart rate monitor as a normal wristwatch. The PC 4 uses very little power in this state.

Can I use the chest belt on a treadmill?

Yes - the signals can be received and displayed by almost all corresponding cardio devices.

Are SIGMA SPORT heart rate monitors waterproof and can they be used for swimming?

Yes - up to a water depth of 3 meters.

Please note: Do not press the buttons underwater, as otherwise water can enter the housing.

Avoid using in sea water, as malfunctions can occur.

The display responds sluggishly or shows a black coloration, what is the reason for this?

The operating temperature may have been exceeded or fallen below. Your heart rate monitor is designed for a temperature of 1^ to 55^ .

What should I do if the display is faint?

A faint display may be the result of a weak battery.

The latter should be replaced as soon as possible - Battery type CR 2032 (ref. no. 00342)

Battery change.

A CR 2032 battery (ref. no. 00342) is used in the heart rate monitor und chest belt. The SIGMA SPORT heart rate monitor is a state-of-the-art measuring instrument. To ensure proper functioning and water tightness, the batteries should only be changed by an authorised dealer. Incorrect battery changes can damage the heart rate monitor leading to expiry of the claim to warranty.

After a battery change, the time has to be set again.

3.4 Warranty

We are liable for damages in accordance with the statutory regulations in respect to our contractual partners. Batteries are excluded from the warranty. In the event of a warranty claim, please contact the dealer from whom you purchased your heart rate monitor, or send the heart rate monitor together with receipt of purchase and all accessory parts, having paid sufficient postage, to:

SIGMA Elektro GmbH

For warranty in the US, Canada and Mexico: SIGMA SPORT USA

1926 Miller Drive, Olney, IL 62450

Service#:888-744-6277

Email: [e-mail]

In the event that you are entitled to a warranty claim you will receive a replacement unit. A claim only exists for the model current at this time. The manufacturer reserves the right to make technical changes.
