| Product Type | Internet Radio / DAB+ / FM / Bluetooth / Spotify Connect |
| Brand | REVO |
| Model | SuperConnect |
| Dimensions (approx.) | 300 x 180 x 130 mm |
| Weight (approx.) | 2.5 kg |
| Power Supply | Mains adapter with multi-country plugs (UK, EU, US, AU) |
| Power Consumption | Not specified (typical ~15 W) |
| Radio Reception | DAB/DAB+ (Band III), FM (87.5-108 MHz), Internet Radio (Wi-Fi) |
| Bluetooth | Bluetooth 4.0 with aptX, range ~10 m, memory for up to 8 devices |
| Spotify Connect | Built-in, requires Premium account |
| Music Player | UPnP / DLNA via local network (MP3, WMA, FLAC) |
| Audio Inputs | Auxiliary Input (3.5 mm jack), RCA input |
| Audio Output | Digital optical output (Toslink) |
| Loudspeakers | 2 x full-range speakers, integrated amplifier |
| Display | OLED, adjustable contrast (standby and on) |
| Special Features | Dual alarm, tactile snooze, 8 physical presets, 9-mode equalizer |
| Remote Control | Infrared, AAA batteries supplied |
| Antenna | Telescopic for DAB/FM |
| Maintenance and Cleaning | Clean with a soft dry cloth (cloth provided). Do not use chemicals. |
| Safety | Do not use near water, do not open the casing, use only the provided cable, avoid entry of liquids or small objects. |
| Warranty | 1 year (parts and labor), register at www.revo.co.uk/register |
| Customer Service | Technical support by email: support@revo.co.uk, UK phone: 01555 666161, international: +44 1555 666161 |
| Software Update | Automatic or manual via Internet, retains settings |
Frequently Asked Questions - SuperConnect REVO
User questions about SuperConnect REVO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual SuperConnect - REVO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SuperConnect by REVO.
USER MANUAL SuperConnect REVO
v1.0
English
Deutsch
Français
Italiano
TECHNICAL SUPPORT
Should you encounter problems using this product, please refer to the troubleshooting section on page 38 of this owner's guide.
Alternatively, call Revo technical support on :
UK 01555 666161
From outside the UK + 44 1555 666161
Alternatively, e-mail support@revo.co.uk or visit the troubleshooting section of our website at: www.revo.co.uk/support
ENVIRONMENTAL INFO
PRODUCT DISPOSAL INSTRUCTIONS (WEEE DIRECTIVE)
The symbol shown here and on the product means that it is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.
The Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfi II.
For more information please contact your local authority or the retailer where the product was purchased.
RoHS COMPLIANT & CE MARK
This product has been designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) and has been designed and type-tested to comply with EU requirements and carries a CE mark.
SAFETY WARNINGS
- Do not operate this radio near water
- Do not remove screws or casing parts
- Use only the power supply unit supplied
- Avoid small objects and liquids from entering the product
WARRANTY
Revo Technologies Ltd warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of one year from the date of purchase.
This guarantee covers breakdowns due to manufacturing faults and does not apply in cases such as accidental damage, general wear and tear, user negligence, modification or repair not authorised by Revo Technologies Ltd.
To register your purchase please visit www.revo.co.uk/register
COPYRIGHTS AND ACKNOWLEDGEMENTS
Copyright 2013 Revo Technologies Ltd. All rights reserved.
No part of this publication may be copied, distributed, transmitted or transcribed without the permission of Revo Technologies Limited.
REVO and SUPERCONNECT and are trademarks or registered trademarks of Revo Technologies Ltd.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. aptX® is a trademark of CSR plc.
Revo Technologies Ltd
The Inox Building, Caldwellside, Lanark,
Scotland, United Kingdom, ML11 7SR
Tel: +44 (0) 1555 66 61 61 Email: enquiries@revo.co.uk
The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses
DISCLAIMER
Revo Technologies Limited makes no representation or warranties with respect to the content of this publication, and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Revo Technologies Limited reserves the right to make changes to this publication from time to time, without notification to any person or organisation.
CONTENTS
02 Technical Support
02 Environmental Info
02 Warranty
02 Copyrights and Acknowledgements
02 Disclaimer
03 Welcome / Unpacking
04 Anatomy
05 Remote Control
06 Power Supply
06 Set-Up
07 Control and Menu Structure
08 - 09 DAB Mode
10 - 11 DAB Mode Menu Options
12 FM Mode
13 FM Mode / AUX-IN Mode
14 - 15 Bluetooth
16 - 21 Internet Radio Mode
22 Internet Radio Portal
23 - 24 Setting Up A Music Server
25 - 27 Music Player Mode
28 - 30 Spotify Connect
31 - 32 Alarm Clock
33 - 37 System Settings
38 - 39 Troubleshooting
40 Error Messages
WELCOME
Thank you for purchasing our SUPERCONNECT radio, we are sure that it will provide you with many years of enjoyment and reliable service.
SUPERCONNECT is the ultimate expression of our design and engineering philosophy, and the culmination of everything we have learnt in 10 years of award-winning product design and development.
Functionalism meets craft and technology, a next-generation audio device that beats at the heart of your musical ecosystem, providing whatever soundtrack you need. Radio from around in the globe, access to your personal music collection or an almost limitless supply of songs from the world's leading music streaming service.
This guide has been designed to quickly get you up-and-running with your radio, offer guidance on the more complex features of this product and provide information on safety, warranty details and troubleshooting.
UNPACKING YOUR RADIO
The SUPERCONNECT box should include the following items:
• SUPERCONNECT radio
- Remote control and batteries
• Power supply with multi-country adaptors
- Screen cleaning cloth
- Warranty card
- Owner's guide
Should any item be missing or damaged, please contact your point of purchase or call Revo directly on +44 (0) 1555 66 61 61
NOTE: All packaging should be retained for possible future use, it is the safest way to transport your radio should it be necessary.


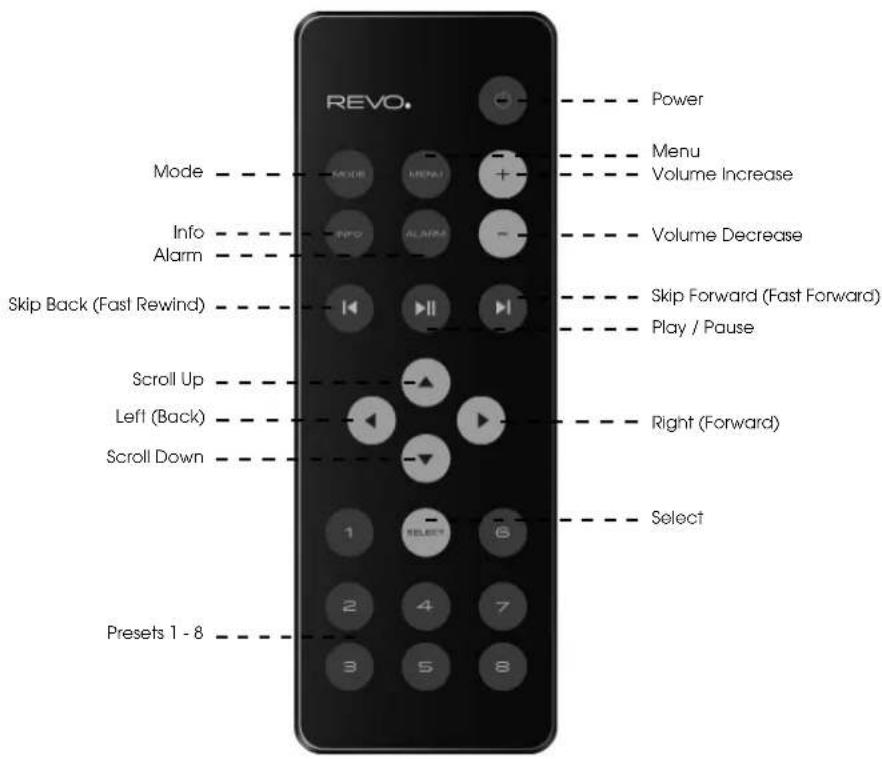

REVO. Mode Info Alarm Skip Back (Fast Rewind) Scroll Up Left (Back) Scroll Down Presets 1 - 8 Power Menu Volume Increase Volume Decrease Skip Forward (Fast Forward) Play / Pause Right (Forward) SelectBATTERY REPLACEMENT

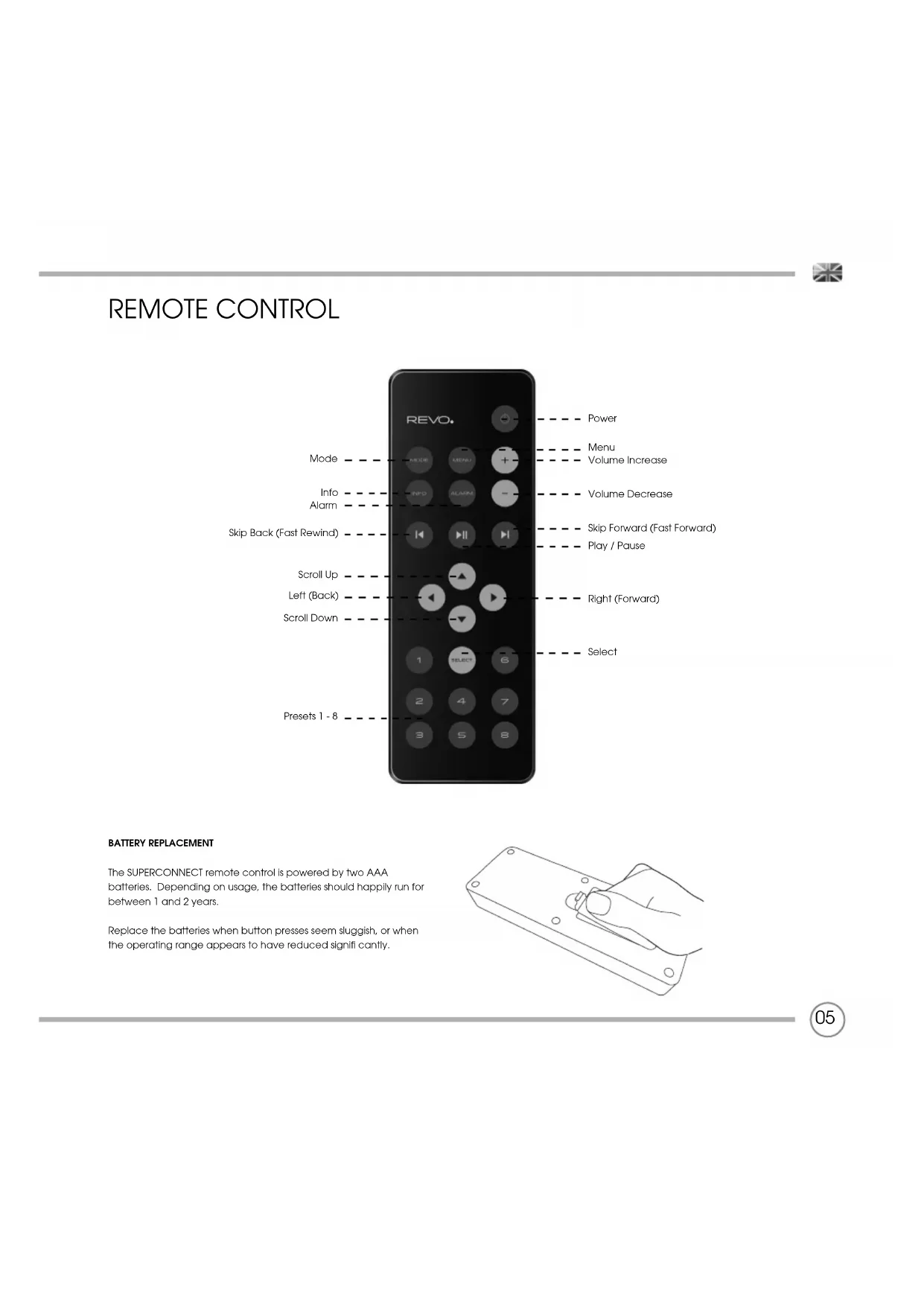

The SUPERCONNECT remote control is powered by two AAA batteries. Depending on usage, the batteries should happily run for between 1 and 2 years.
Replace the batteries when button presses seem sluggish, or when the operating range appears to have reduced significantly.


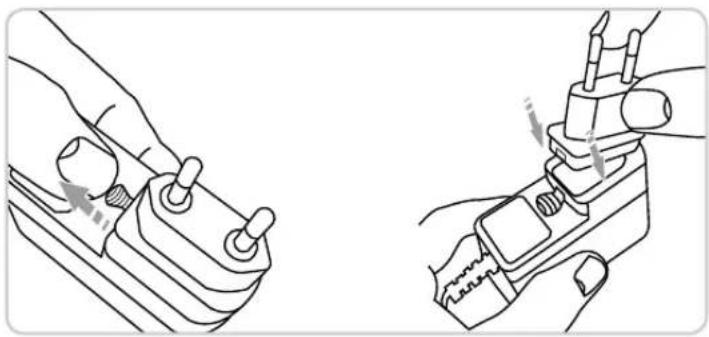

Your SUPERCONNECT radio is supplied with a multi-region power supply, meaning that it can be operated in a number of countries around the world.
Simply choose the correct adaptor for your country from the selection supplied, then follow the instructions below.
UK
EURO
U.S.A
AUSTRALIA


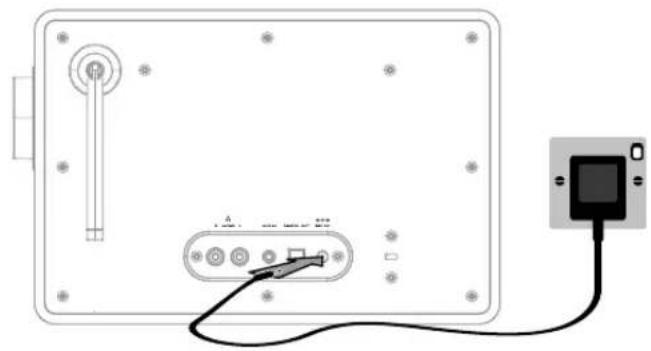

① Using the PSU supplied, connect one end to the DC power socket found on the rear of your radio, then plug the opposite end into the mains socket on the wall.


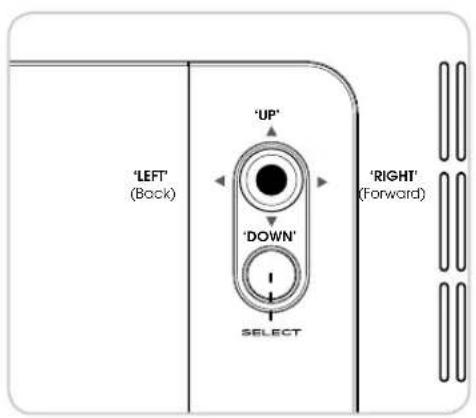

JOYSTICK CONTROL
Your radio uses a joystick based control system for ease of use.
The joystick controller has four functions and is used in conjunction with a separate SELECT button.
UP Scrolls Up
DOWN Scrolls Down
LEFT Scrolls Left and moves back through menus
RIGHT Scrolls Right and moves forward through menus
SELECT Selects current option
MENU BUTTON
Pressing the MENU button will take you to the Mode Menu for the particular mode of operation you are in. For example, pressing MENU when in DAB Mode will take you to the DAB MODE MENU.
Pressing the MENU button for a second time will return you to the 'playing screen' that you just left.
MODE BUTTON
Pressing the MODE button will sequentially cycle through each of SUPERCONNECT's modes of operation. It is also possible to move between modes of operation via the MAIN MENU (see below).
MENU STRUCTURE EXPLAINED
MAIN MENU
This is SUPERCONNECT's principle (top level) menu, and allows you to enter different operating modes, change settings and view information such as your radio's ID number software version.
The MAIN MENU provides access to the following modes and sub-menus:
- Internet radio
• Music player • Auxiliary Input
- Bluetooth • Alarms
• DAB radio • Sleep
• FM radio • System settings
The Mode Menus are so called because they show the functions available within the currently selected mode.
Pressing the MENU button at any time will take you to the Mode Menu for the mode of operation your radio is currently in.
Each of the Mode Menus also includes a listing for MAIN MENU, allowing you to return to the top level MAIN MENU.
DAB RADIO MODE
Please ensure that the radio's antenna is extended before operation in DAB Mode.
To enter DAB MODE, press the MODE button until the DAB MODE intro screen is displayed, alternatively press MENU then select MAIN MENU, then DAB from menu option list.
When in DAB MODE for the first time, SUPERCONNECT will automatically perform a full scan to see what stations are being broadcast in your area, before storing them alphabetically in the radio's memory.
It may be necessary to perform a manual scan from time to time, in order to update your radio's station list. This may be required for any one of the following reasons:
- Station availability can change from time to time as new stations appear, or existing stations cease broadcasting.
- If reception was poor during the initial automatic scan, for example the radio's antenna was not completely extended. It may be that the station list is incomplete or even empty.
- If you have poor reception on some of the stations (resulting in broken or poor quality audio), you may wish to list only stations that have a strong signal strength.
To start a manual scan, press the Ⓜ button then select SCAN from the menu list.
When the scan is complete, your radio will list all available stations.
To remove stations that are listed but unavailable, press MENU then choose PRUNE INVALID. When asked whether you wish to "remove all invalid stations", select YES.
DAB RADIO MODE
SELECTING A STATION
To access your radio's station list, press UP, DOWN or LEFT on the joystick controller at any time, alternatively press MENU then select STATION LIST.
Scroll through the available stations using UP and DOWN on the joystick controller, then either press the SELECT button to select your station choice, or tap the joystick RIGHT.
FAVOURITE STATION PRESETS
SUPERCONNECT allows you to store your favourite stations as presets, either via its 8 front panel mounted 'hot-keys', or the numbered preset buttons located on the remote control.
To store the station you are currently listening to as a preset, simply press and hold a preset button until "Preset Stored" is displayed on your radio's screen. The preset number that has been assigned to the station is displayed at the bottom of the screen next to a star icon.
If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.
DAB MODE MENU OPTIONS
STATION INFO
In DAB MODE, SUPERCONNECT is capable of displaying various pieces of information on its screen. By pressing the INFO button, you can sequentially cycle through the following types of information.
STANDARD DAB SCREEN Shows scrolling text info from broadcaster
PROGRAMME TYPE For example News, Rock Music, Classical etc.
MULTIPLEX AND FREQUENCY Multiplex owner and station frequency
SIGNAL STRENGTH Station's current signal strength
BIT RATE AND CODEC Audio format, sample rate, mono or stereo
DATE
Today's
date
DAB MODE MENU OPTIONS
DYNAMIC RANGE COMPRESSION (DRC)
If you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking), you may wish to compress the audio's dynamic range. This has the effect of making quiet sounds louder, and loud sounds quieter.
To change the DRC setting, press MENU then choose the DRC option, before selecting OFF, LOW or HIGH.
STATION ORDER
It is possible to choose the order of the DAB station list to be either ALPHANUMERIC, ENSEMBLE or VALID.
As the name implies, ALPHANUMERIC lists stations in alphanumeric order.
ENSEMBLE lists groups of stations that are broadcast together on the same ensemble, for example BBC or Central Scotland Local.
VALID lists valid stations first, alphanumeric, then off-air stations.
To change the station order, press MENU then select STATION ORDER, before choosing either ALPHANUMERIC, ENSEMBLE or VALID.
STATION ORDER DESCRIPTION
ALPHANUMERIC Display all stations in alphanumeric order.
ENSEMBLE List active stations (ones that are currently broadcasting) before inactive ones.
VALID Remove inactive stations from the station list.
FM RADIO MODE
FM OPERATION
Please ensure that the radio's antenna is extended before operation in FM MODE.
To enter FM MODE, press the 📂 button until the FM MODE intro screen is displayed, alternatively press 📋 then select MAIN MENU, then FM from menu option list.
If this is the first time that SUPERCONNECT has been used in FM MODE, scanning will start at the beginning of the frequency range - otherwise SUPERCONNECT will default to the station that was being listened to last.
Pressing the SELECT button will start the radio scanning for the next available station. SUPERCONNECT will automatically stop scanning when a station is found.
To fine tune, use UP or DOWN on the joystick controller to incrementally change the frequency.
When on an FM station that has a strong signal and is broadcasting RDS information, SUPERCONNECT will display the station name and other pieces of text information on-screen.
FAVOURITE STATION PRESETS
SUPERCONNECT allows you to store your favourite stations as presets, either via its 8 front panel mounted 'hot-keys', or the numbered preset buttons located on the remote control.
To store the station you are currently listening to as a preset, simply press and hold a preset button until "Preset Stored" is displayed on your radio's screen. The preset number that has been assigned to the station will be displayed at the bottom of the screen.
If you want to change a particular preset in the future, repeat the process and the previously stored preset will be automatically overwritten.
FM RADIO MODE
FM SETTINGS
Press the MENU button to access the FM MODE MENU. From here you can set some FM preferences such as SCAN SETTING and AUDIO SETTING.
SCAN SETTING allows you to decide whether the radio should stop scanning only when it finds a station with a strong signal.
AUDIO SETTING gives you the option of listening to a station in mono, should the signal strength not be sufficiently strong to allow stereo reception.
AUX IN MODE
AUX IN MODE allows you to play audio from an external source (such as an MP3 player) through your radio.
To do so, connect your external audio source to the 3.5mm AUX IN connector on the rear of SUPERCONNECT.
Turn the volume down low on both SUPERCONNECT and, if adjustable, the external device.
Now press MODE until the AUX IN screen is displayed, alternatively press MENU then select MAIN MENU, then choose AUX IN.
Adjust the volume of SUPERCONNECT and, if necessary, the external audio device as required.
BLUETOOTH MODE
Wirelessly stream music from your Bluetooth smartphone, tablet, laptop or other Bluetooth enabled device directly to SUPERCONNECT, without the need for physical docking or connection.
PAIRING WITH BLUETOOTH DEVICES
'Pairing' occurs when two Bluetooth devices talk to each other and establish a connection. This connection is stored in the memory of both devices, meaning that once you 'pair' a particular device with SUPERCONNECT, you shouldn't have to go through the pairing process again.
HOW TO PAIR A BLUETOOTH DEVICE WITH SUPERCONNECT
To enter Bluetooth mode, press the MODE button until the Bluetooth mode intro screen is displayed. Alternatively, press the MENU then select MAIN MENU then Bluetooth from the option list. SUPERCONNECT will now enter pairing mode, signified by the flashing Bluetooth icon at the bottom of the screen.
On your Bluetooth device, ensure that Bluetooth is enabled then initiate a 'Search' for a new device. When the search process has been completed, your device will list all the available Bluetooth devices in your close proximity.
SELECT SUPERCONNECT FROM THE LIST.
Your Bluetooth device will confirm when pairing has been completed, and SUPERCONNECT will now display a static Bluetooth logo on screen.
PASSKEY
During the pairing process some Bluetooth devices may prompt you to enter a Passkey. Should your device require a Passkey, enter 0000.
Should you experience problems when pairing your device with SUPERCONNECT, please see the Bluetooth Troubleshooting section on page 39.
BLUETOOTH MODE
STREAMING MUSIC
Selecting and controlling music playback can be done in one of two ways: either directly from the source device (smartphone, tablet or laptop etc.), or by using the 🏠️ 🏠️ 🏠️ buttons mounted on your radio's front panel.
Please note, the playback volume level can be independently controlled from either SUPERCONNECT or the source device.
MANAGEMENT OF MULTIPLE BLUETOOTH DEVICES
If you have paired only one Bluetooth device, on entering Bluetooth mode SUPERCONNECT will automatically seek to connect with this device.
Should you wish to pair another device, press MENU then select 'BT Disconnect'. SUPERCONNECT will now disconnect its current Bluetooth device and enter pairing mode again. This will allow you to repeat the 'Pairing with Bluetooth Devices' procedure.
SUPERCONNECT will remember up to 8 individual Bluetooth devices. When you reach the point of having a 9th device you wish to pair, SUPERCONNECT will pair with the 9th device and automatically erase the oldest-paired device from its memory.
You can continue to pair new devices and your radio will always remember the previous 8 devices it has paired with.
aptX®
SUPERCONNECT's Bluetooth solution is equipped with CSR's patented aptX® technology, meaning that when it is used in conjunction with a device that also supports aptX®, the streamed audio will be of CD quality rather than the MP3 quality of a standard Bluetooth stream.
INTERNET SETUP
USING THE INTERNET RADIO SETUP WIZARD
The first time you use SUPERCONNECT in INTERNET RADIO MODE, you will be asked whether you would like to run the SETUP WIZARD. The 'WIZARD' will run through a series of questions, and is the simplest way to get internet radio up and running on your device.
If you have already run the SETUP WIZARD go to page 18.
You can run the SETUP WIZARD again at any time, it can be found under the NETWORK heading, in the SYSTEM SETTINGS MENU.
To set up your radio for online operation using the INTERNET WIZARD, follow these steps:
Press the SELECT button, and start the SETUP WIZARD procedure.
① Choose and select your preferred hour format (12 or 24 hour).
② Choose and select UPDATE FROM NETWORK.
③ Scroll and select your local timezone from the menu.
④ Choose and select your preferred daylight savings status.
⑤ Scroll and select your Wlan region.
INTERNET SETUP
⑥ Scroll and select your NETWORK. In some cases your radio may find more than one. Simply choose the one you want to use.
⑦ If your wireless network is not password protected. SUPERCONNECT will automatically connect, and the following screen will be displayed:
⑧ If you do use password protection, enter your network password using the joystick controller to scroll through the alphanumeric characters, pressing SELECT to enter each number or letter. When you have correctly entered your entire password, select OK.
Select BKSP (back space) if you have entered an incorrect character.
SUPERCONNECT will save the password into its memory. There will be no need to re-enter the password again.
INTERNET RADIO MODE
GETTING STARTED
To enter INTERNET RADIO MODE, press the MODE button until the INTERNET RADIO MODE intro screen is displayed, alternatively press MENU then select MAIN MENU, then INTERNET RADIO from the menu option list.
On entering the INTERNET RADIO MAIN MENU you will be offered the choice of access in the LAST LISTENED station or selecting a new one.
To choose a new station select the STATION LIST menu entry, you will then be offered the following options:
My Favourites: Used to navigate to your favourite stations. These can be set up by visiting the Frontier Silicon Radio Portal (using your PC or Mac). See page 22 for further information.
Local: A comprehensive list of all the stations being broadcast from within your own geographical area (or country).
BBC: Used as a shortcut to all BBC stations broadcast worldwide.
Stations: Find stations using a number of search criteria such as: location, genre, most popular etc.
Podcasts: Find Podcasts or 'Listen-Again' broadcasts by location, genre or search by name.
My Added Stations: Shows stations that you have personally added to your radio's station list via the Frontier Silicon Radio Portal. See page 23 for full details.
Help: Find your radio's ACCESS CODE here. Required to access the Frontier Silicon Radio Portal. See page 22.
CHOOSING A STATION
To choose a station, select STATION LIST from the INTERNET RADIO MENU, then select STATIONS using the joystick controller.
You now have the option to choose or find a station using the following search criteria:
LOCATION (country of origin) GENRE SEARCH STATIONS (by name) POPULAR STATIONS NEW STATIONS
INTERNET RADIO MODE
CHOOSING A STATION (Continued)
Using the joystick controller, scroll through the options and press SELECT to choose your search criteria.
For example, choosing LOCATION will give you an alphabetical list of continents/regions, and then a list of countries. Use the joystick controller to scroll through the list and press SELECT to choose your chosen continent, then country. You will then be given the option of choosing ALL STATIONS or a GENRE, to further refine your search.
After selecting your search criteria, you will be presented with a list of stations. Simply select a station from the list to begin listening.
SEARCH
You can search for an internet radio station by name (if you know it), or by using a keyword from within its title.
To SEARCH for a station, select SEARCH STATIONS from the STATIONS MENU, then enter a keyword using the keyboard input screen (similar to the keyboard screen you used for password Input).
If your station is found, simply select to listen.
If you searched for a keyword, SUPERCONNECT will list all the stations found that contain that particular keyword. Scroll through the list and select your station.
CHOOSING A PODCAST
Podcasts (also referred to as 'Listen Again') are searched and selected in the same way as a regular station.
Select PODCAST from STATION LIST in the INTERNET RADIO MENU, then search by location, genre or a combination of both.
The main difference when searching for a Podcast, is that when you have selected a station, you will then be presented with a list of Shows (or Podcasts) available from that station.
Simply select your choice from the list.
INTERNET RADIO MODE
MY FAVOURITES
It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of stations from different countries and genres.
To do this you must first register your radio with the Frontier Silicon Radio Portal. See the INTERNET RADIO PORTAL section on page 22.
To store a station as a favourite, press and hold the SELECT button until FAVOURITE ADDED appears on the screen. The chosen station will now appear in the default favourites stations list.
To access the MY FAVOURITES list, select STATION LIST, then MY FAVOURITES, followed by STATIONS. You can now scroll through and select any station in the list.
MY ADDED STATIONS
If you have added any of your own stations to the internet radio station list (via the Frontier Silicon Radio Portal, see page 22), they will be listed here. The MY ADDED STATIONS option can be found under the STATION LIST MENU, in INTERNET RADIO MODE.
BBC
The BBC option is a shortcut to the entire BBC station list. Simply select this option from the STATION LIST MENU, then scroll through and select a station in the normal way.
LAST LISTENED
When you enter INTERNET RADIO MODE, the last-listened station is automatically selected. To select another station that you've listened to recently, select LAST LISTENED. A full list will be displayed (the most recent being at the top).
INTERNET RADIO MODE
HELP
The HELP option can be found in the STATIONS LIST MENU. Under HELP, you will find the ACCESS CODE that you require to register your radio on the Frontier Silicon Radio Portal (see page 22 for full instructions).
A helpful FAQ audio track can also be found under the HELP heading.
LOCAL
The LOCAL station list can be found under the STATION LIST MENU and will differ depending on which country you are currently located in. For example, if you are based in the UK, this selection will display stations originating from the UNTIED KINGDOM. Likewise, if you are using your radio in Germany, this selection will display only stations that are being broadcast from Germany.
Select this option to navigate either all of the available local stations, or alternatively you can search the list by genre.
INTERNET RADIO PORTAL
ACCESSING ADDITIONAL FEATURES
Some of SUPERCONNECT's more advanced internet radio features can only be accessed by visiting the Frontier Silicon Radio Portal.
In order to access these features you must first register your radio.
REGISTERING YOUR RADIO
In order to register your radio, you will need your radio's unique access code.
To find the access code, firstly enter INTERNET RADIO MODE, then press MENU. Select STATION LIST, then HELP. Now select GET ACCESS CODE.
Write down the access code.
Now, using your PC or Mac, visit the portal website at - www.wifiradio-frontier.com
Click on the REGISTER HERE link (located on the left hand panel) to begin the registration process.
If you already have an account and wish to add an additional radio, log in to your account and select MY PREFERENCES, then ADD ANOTHER Wi-Fi RADIO.
When you have registered your radio with the portal, you can immediately take advantage of various additional features and services that it provides.

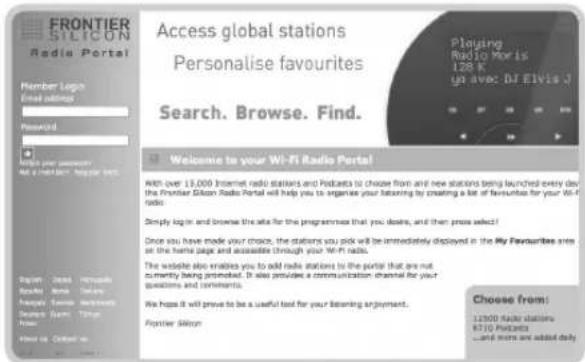

In order for SUPERCONNECT to be able to play music flies from a connected computer, the computer must first be set up for media sharing.
UPnP media sharing allows devices like SUPERCONNECT to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.
If you are running a PC with Windows Media Player 11 or later (WMP), or an Apple Mac with OS X 10 or later and a UPnP application installed, you can connect SUPERCONNECT and stream audio.
NOTE: iTunes does not currently operate as a UPnP media server, but there are a number of third party software add-ons available that will allow you to access your iTunes library.
SHARING MEDIA WITH WINDOWS MEDIA PLAYER
The most common UPnP server is Windows Media Player (version 11 or later) although other UPnP platforms and servers may be used.
To set up WMP for media sharing, performs the following steps:
Ensure that your PC and radio are connected to the same network. SUPERCONNECT will be recognised as 'SUPERCONNECT' by your PC.
① In WMP, add to the media library the audio files and folders you want to share with SUPERCONNECT (LIBRARY > ADD TO LIBRARY . . .).
The PC is now ready to stream music to your radio. The WMP UPnP service runs in the background: there is no need to start WMP explicitly.
SETTING UP A MUSIC SERVER
SHARING MEDIA WITH A MAC
In order to connect SUPERCONNECT to your Apple Mac, a third party UPnP server application is required. There are a number of applications available to download from the Internet.
One such application is EyeConnect. This is an easy to install media sharing application that enables SUPERCONNECT to stream audio. EyeConnect can be downloaded from:
http://www.elgato.com
③ Once installed, EyeConnect can be found on the System Preference panel. When connecting SUPERCONNECT, make sure EyeConnect is shown as running on its setup screen.
SUPERCONNECT will appear as 'SUPERCONNECT' in the EyeConnect list of devices. The ENABLE box must be checked and the ACCESS selection set to ENABLE NEW DEVICES.
Your Mac is now ready to stream music to your radio. EyeConnect will normally run automatically after boot up.

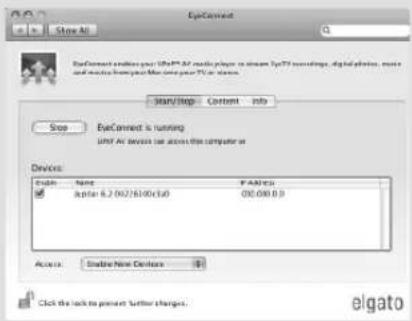

PLAYING AUDIO TRACKS IN THE MUSIC PLAYER
MUSIC PLAYER MODE allows you to play audio files such as MP3s, AACs, WMAs or FLACs directly from a computer or music server on your local network.
To enter MUSIC PLAYER MODE, press MODE until the MUSIC PLAYER MODE intro screen is displayed, alternatively press MENU then select MAIN MENU, then MUSIC PLAYER from the menu option list.
Once in music player mode, press MENU, then select either SHARED MEDIA.
You can navigate your way through the list using the joystick controller, using UP and DOWN to scroll through the list, and either Push (SELECT) or RIGHT to advance through folders. When you reach your desired track, a short press of the select button will start the track playing, a long press will add the track to the playlist (see PLAYLISTS on page 27 for more information).
Audio tracks can also be controlled using the 🔊 🔒 🔒 buttons mounted on your radio's top panel.
Pressing and holding the ⏻ button will fast-rewind the track your are currently playing, while doing the same with the ⏻ button will fast-forward.
MUSIC PLAYER MODE
SHARED MEDIA (From a UPnP Media Server)
In MUSIC PLAYER MODE select SHARED MEDIA. If you have set up shared media (as described on page 23), you should see an entry, for the server you set up, example "SB-Laptop: Audio". If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.
From this point on, the menus are generated from the shared media server (typically Windows Media Player). The first menu shows a list of media types, for example music, video, pictures and playlists. SUPERCONNECT can only play music and playlists.
There is also a search function, which finds tracks in a similar way to Internet radio search, as described on page 19.
For music there are numerous ways of selecting tracks, including:
Genre | Artist | Album | Composer | Rating
Once you have found a track you want to play, press the select button to select. A short press plays the track immediately, while a long press will add the track to the PLAYLIST.
MUSIC PLAYER MODE
PLAYLISTS
SUPERCONNECT is capable of holding a queue of up to 500 tracks in its playlist. Playlist tracks can be mixed from multiple and UPnP servers devices. To manage the playlist, select MY PLAYLIST from the MUSIC PLAYER MENU.
To view the contents of the playlist, scroll through it using the joystick control. To play the playlist from a certain track, give the select button a short press. To delete a track from the playlist, give the select button a long press, then confirm YES to erase.
If you select a track/album/folder for instant playback, without using the playlist feature, the playlist will be preserved and will continue to be stored by your radio until you choose to delete it.
REPEAT/SHUFFLE
You can choose to repeat tracks or play them in random order by selecting REPEAT PLAY or SHUFFLE PLAY from the MUSIC PLAYER MENU.
NOW PLAYING INFORMATION
While a track is playing, SUPERCONNECT will display the track and artist name (UPnP). There is also a progress bar with displays elapsed and total track time.
To view further track information, press INFO. Each time you press INFO, another piece of information is displayed as follows:
UPnP: Track name/artist, progress bar/track times, album, codec/sampling rate, playback buffer and today's date.
SPOTIFY CONNECT EXPLAINED
Spotify Connect is a new home audio experience that provides effortless control and enjoyment of your music across a range of devices, from your phone, to your tablet, to your SuperConnect radio. SuperConnect owners with a Spotify Premium account can now enjoy instant access to over 20 million songs from the Spotify archive, all at superior audio sampling rates, simply download the Spotify app for smartphone or tablet.
How It Works – You've just walked through the door, listening to your favourite playlist on your phone. With Spotify Connect, simply hit play on your SuperConnect radio and the music instantly fires up, right where you left off – ensuring you never miss a beat. Now pick up your tablet to keep controlling the music from your sofa, or seamlessly switch the sound to another Spotify Connect enabled product in another room.
The Beat Goes On - With Spotify Connect you don't need to rely on unstable connections to stream music between your devices. You can make calls, play a game, or watch a video - you can even take your phone or tablet out of range and the music will just keep playing.
To use Spotify Connect, Revo SUPERCONNECT owners are required to download the Spotify app for their smartphone or tablet (iOS or Android), and have an active Spotify Premium account. A free 30-day trial is available, for more details visit www.spotify.com/uk/freetrial/
*For service availability in your country, check www.spotify.com
Spotify®
For music.
SPOTIFY CONNECT
Activate your Spotify account on SUPERCONNECT
To activate Spotify on SUPERCONNECT, firstly ensure that both your radio and iOS/Android device are on the same wifi network and that you are running the latest Spotify app on your device.
When the Spotify app recognises SUPERCONNECT on your network, the app's Connect logo will be shown with a circle round it.
Tap the Connect icon to display all available Spotify Connect enabled devices, then tap 'Revo SuperConnect' from the list.
You will notice that your radio is currently listed as "Revo SuperConnectxxxxxxxxxxxx" (the 12 digit alphanumeric code is the MAC address of your radio) in the Spotify App. If you would like to change this name to something more personal ('John's SuperConnect' for example), you can do so as follows:
On the radio: Press Menu and select System Settings -> Network Settings -> View Settings. Scroll down and take a note of the 'IP address'.
On your computer: Ensure that your computer is on the same network as the radio, then enter the IP address into your browser's address bar (example: 192.168.0.34). This will allow you to view some of the radio's diagnostics, but also change its name.
The Connect icon will turn green to signify that SUPERCONNECT is now selected and being used for audio playback.


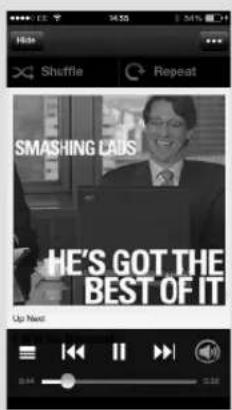

SPOTIFY CONNECT
Controlling Spotify Connect
You can now control Spotify from the app like normal; search for and play your tracks, change the volume and add to playlists even though playback is through SUPERCONNECT. The next time you open the Spotify app, playback will continue through SUPERCONNECT and its name will appear at the bottom of the app's playing screen.
The music can also be controlled using the ⏻️ button mounted on your radio's front panel.
Now that activation is complete, the audio is streaming directly from Spotify to SUPERCONNECT, and the Spotify app is only being used as a remote control for the service. This means that your phone/tablet can be used for making calls and can even be switched off without any disruption to the music.
Spotify Connect is a cloud-based service, therefore after activation on SUPERCONNECT, your iOS/Android device no longer needs to be on the same wifi network to control audio playback.
Use another Spotify account with SUPERCONNECT
Your Spotify account details are now stored on SUPERCONNECT. To overwrite this with another Spotify account, simply follow the activation steps again whilst running the Spotify app using your desired account. Please remember that both your iOS/Android device and SUPERCONNECT need to be on the same wifi network for the overwriting to occur.
Please note:
Your Spotify app will only recognise SUPERCONNECT when the radio is connected to the Internet (i.e. in Internet Radio or Music player modes)
To use Spotify when your radio is in non-Internet modes (DAB, FM) you need to select 'KEEP NETWORK CONNECTED' in the radio's 'NETWORK SETTINGS' menu. This also allows you to wake the radio from standby using your Spotify app.
ALARM CLOCK
SETTING AN ALARM
SUPERCONNECT is able to store two individual alarm settings. To set or change an alarm, either press the ALARM button, or select MENU, then MAIN MENU, then ALARM. Select which of the ALARM SETTINGS (Alarm 1 or Alarm 2) you would like to modify or enable.
Using the joystick controller, scroll through the options below, setting your preferences.
- Enable: on/off
• Frequency: Daily, Once, Weekends or Weekdays.
• Time
• Mode: Buzz, Internet Radio, DAB or FM - Preset: Last listened or favourite station preset 1-8
• Volume: 0 - 32
When your preferences have been set, remember to select SAVE.
SUPERCONNECT shows any active alarms by displaying an icon at the bottom of its screen.
When in STANDBY MODE, by simply pressing the ALARM button, you can turn any alarms held in memory ON or OFF. Pressing ALARM will cycle through ALARM 1 and ALARM 2 settings, enabling, and disabling them. If the ALARM icons are displayed, the alarm is enabled. If no alarm icon is shown, the alarms are switched off.
STOPPING AN ALARM
When an alarm is sounding, pressing ⏻ or ⒽARM will STOP the alarm.
When the alarm has been cancelled, an ALARM OFF message will be displayed on SUPERCONNECT's screen.
ALARM CLOCK
SLEEP MODE
By using the SLEEP function, you can set SUPERCONNECT to automatically switch itself into STANDBY mode.
Press MENU then select MAIN MENU, then SLEEP. You can now set the SLEEP timer to any one of the following: 5, 10, 15 or 30 minutes.
When you have selected a sleep duration, SUPERCONNECT will return to the MAIN MENU.
Press MENU to return to the NOW PLAYING screen.
SNOOZE FUNCTION
SUPERCONNECT includes a TOUCH-SNOOZE feature which is incorporated into your radio's aluminium front panel. SNOOZE is activated by tapping anywhere on the metal area during an alarm. SNOOZE allows you to temporarily silence the alarm for a period of up to 30 minutes.
The SNOOZE duration can only be set when your radio is actually in the process of alarming. At this point, simply tap the FRONT PANEL to cycle through a range of pre-set SNOOZE durations, either 5, 10, 15 or 30 minutes.
Please note: that the Snooze function will only register a touch for a period of 60 seconds from the commencement of the alarm, meaning that after 60 seconds the front panel can be touched without the Snooze function being activated.
When SNOOZE is activated, SUPERCONNECT will return to standby for the set period with the icon of the SNOOZED alarm shown on-screen.
SYSTEM SETTINGS
EQUALISER
SUPERCONNECT provides the user with a significant degree of control over its standard (factory default) audio settings. This includes control over BASS and TREBLE, LOUDNESS and the ability to use one of a number of preset EQ settings. It is also possible to create your own personalised EQ setting - known as "My EQ".
To adjust the audio settings, press MENU then select MAIN MENU, followed by SYSTEM SETTINGS. Now select EQUALISER from the menu.
SUPERCONNECT will display a list of nine EQ options as follows:
Normal, Flat, Jazz, Rock, Movie, Classic, Pop, News and My EQ.
Simply select your preference from the list by highlighting your option and pressing the select button. SUPERCONNECT will now store this setting in its memory. For reference, the current EQ setting is highlighted by an asterisk (*) in the EQ list.
To configure your own personal EQ setting, select MY EQ PROFILE SETUP from the EQUALISER menu. Now adjust the BASS and TREBLE levels, decide whether you would like the LOUDNESS function OFF or ON - before selecting SAVE. Your personalised EQ setting can now be selected by choosing MY EQ from the EQUALISER menu.
SYSTEM SETTINGS
NETWORK
The NETWORK MENU can be found under SYSTEM SETTINGS in the MAIN MENU and includes an entry for the INTERNET WIZARD, which will assist you in setting up your radio's Internet connection.
For the more experienced user, a variety of manual settings can also be accessed from here, as follows:
INTERNET WIZARD :
Simplifi es the setup of your radio's internet connection by taking you through step-by-step instructions.
PBC WLAN SETUP :
Used to pair your radio with a router that uses WPS security.
VIEW SETTINGS :
View the MAC address, Wlan region, etc.
WLAN REGION :
Where you are using your radio - Europe, USA etc.
MANUAL SETTINGS :
Detailed control of Wired and Wireless connections.
NETWORK PROFILE :
Shows the names of the last four wireless networks SUPERCONNECT has been connected to.
NOTE: SUPERCONNECT remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. It's possible however to delete unwanted networks, simply select SYSTEM SETTINGS, then NETWORK, then NETWORK PROFILE. Now select the network profile you'd like to delete by selecting and confirming delete YES.
SYSTEM SETTINGS
TIME / DATE
Found in the SYSTEM SETTINGS menu, this menu offers you the option of changing a number of time/date related settings. The TIME/DATE menu has three listings as follows:
SET TIME / DATE : Allows you to manually set the time/date.
AUTO UPDATE : Choose from three different automatic setting options.
SET FORMAT : Choose whether you would like to use 12hr or 24hr formats.
Update from DAB :
Automatically takes time/date from DAB signal. SUPERCONNECT needs to have been operated in DAB MODE (and have received a signal) before this information can be extracted.
Update from Network :
Takes time/date from your internet connection.
CONTRAST
SUPERCONNECT allows a degree of control over the contrast of its OLED display, meaning that both its STANDBY and POWER ON contrast levels can be independently set to either HIGH, MEDIUM or LOW brightness levels.
To change the contrast settings, press MENU then select MAIN MENU, followed by SYSTEM SETTINGS. Now select CONTRAST from the menu list. You will now be able to modify the default brightness level settings for the two modes of operation - STANDBY and POWER ON. Select the mode you'd like to change from these two options, then choose your desired brightness level. Your chosen settings will be held in memory indefinitely, but can be changed at any time.
SYSTEM SETTINGS
LANGUAGE
The default language on your radio is English, though 12 other languages are supported as follows:
Danish Dutch Finnish French German Italian
Norwegian Polish Portuguese Spanish Swedish Turkish
To change the current language setting, select SYSTEM SETTINGS from the MAIN MENU, then LANGUAGE, then select your choice.
FACTORY RESET
By selecting FACTORY RESET from the SYSTEM SETTINGS menu, you can reset SUPERCONNECT to its default factory values, erasing any personal settings that may have been configured (time/date, network configuration and presets will be erased). However, your radio's current software version is maintained, as is its registration with the internet radio portal. Internet radio favourites are therefore retained, unless you re-register your radio with another account on the portal.
To perform a factory reset, press MENU then select MAIN MENU, followed by SYSTEM SETTINGS, then FACTORY RESET. Now answer YES.
SOFTWARE UPDATES
From time to time we will make software updates available for your radio. These are necessary for general maintenance reasons, as well as for adding additional functionality to your radio. Software updates are carried out 'over-the-air', via your broadband connection.
SUPERCONNECT will check for software updates each time it is switched on, and if an update is available, will ask you to confirm that you'd like to go ahead and commence the download.
Please note that after a software upgrade, all user settings are maintained.
SYSTEM SETTINGS
SOFTWARE UPDATES (Continued)
If you'd prefer to manually check for software updates, press MENU then select MAIN MENU. Now choose SYSTEM SETTINGS, then SOFTWARE UPDATES. Select AUTO-CHECK SETTING then choose NO when prompted.
To manually check for updates, select CHECK NOW from the SOFTWARE UPDATES menu.
CAUTION: Before commencing a software upgrade, ensure that SuperConnect is plugged into a stable mains power connection. Disconnecting power during a software update may permanently damage your radio.
SETUP WIZARD
The SETUP WIZARD simplifi es the set-up of both time/date and internet settings, by running through a series of questions.
To access the SETUP WIZARD, press MENU then select MAIN MENU, followed by SYSTEM SETTINGS. Now select SETUP WIZARD from the menu list.
INFO
When dealing with a technical support issue, you may be asked for the SOFTWARE VERSION or RADIO ID number. Both these pieces of information can be found under the INFO heading, in the SYSTEM SETTINGS menu.
Press MENU then select MAIN MENU, followed by SETTINGS, then INFO.
TROUBLESHOOTING
| PROBLEM CAUSE SOLUTIONS | ||
| FM: HISS | Low signal strength. Check/move antenna. | |
| DAB: Burbling/Intermittent | Move radio to another location.Rescan local (high-strength)stations only.For DAB, check local coverage at www.ukdigitalradio.com/coverage | |
| Cut-Out | ||
| DAB: 'No stations available' Low signal strength. As above, then rescan stations. | ||
| Cannot connect to network Network down. Check that network is working between computer and the router. | ||
| Router restricts access to listed MAC addresses. | Obtain the SUPERCONNECT MAC address fromMENU> SYSTEM SETTINGS > NETWORK > VIEW SETTINGS and add to router listNOTE: SUPERCONNECT has separate MAC addresses for wired and wireless networks; only the current network adaptor method address is displayed, but the other address can be obtained by changing the first pair of digits between '00' (wireless) and '02' (wired) | |
| Insuffi cient Wi-Fi signal strength. Check distance to router.See if a computer can connect to the network in this location. | ||
| Unknown encryption method. Change encryption method on router. SUPERCONNECT supports WEP, WPA and WPA2. | ||
| Unusual network configuration. Setup network manually through MENU > SYSTEM SETTINGS > NETWORK > MANUAL SETTINGS | ||
| Firewall preventing access. Check the following ports are open on the router:UDP and TCP ports 80 and 123DNS port 53Windows shares: ports 135 - 139 and 445Windows media player: varies - Non-Microsoft fi rewalls may require configuration for UPnP. | ||
TROUBLESHOOTING
| PROBLEM CAUSE SOLUTIONS | ||
| Cannot connect to Internet Internet | connection down Check that the Internet is working for a computer connected to the same network. | |
| Firewall preventing access Check the following ports are open: UDP and TCP ports 80 and 123 DNS port 53. Some Internet radio stations may require additional ports to be opened. | ||
| Cannot play particular Internet radio station | Station not broadcasting Overloaded or insufficient bandwidth. Station broadcasting using unknown codec. Link out of date. | Try other stations. Try listening on computer via Internet radio portal website. Try later. |
| Bluetooth Mode: Can't connect to a paired device | Select BT DISCONNECT from the Bluetooth Menu and delete SUPERCONNECT's profile from your Bluetooth device, then re-pair the devices as normal | |
| Bluetooth Mode: Poor audio quality | Your Bluetooth device may be out of range Electromagnetic interference | Move your Bluetooth device closer to SUPERCONNECT Move your Bluetooth device away from other sources of interference such as other Bluetooth devices, wireless routers etc. |
ERROR MESSAGES
| MESSAGE DESCRIPTION EXAMPLE | ||
| Failed to connect Correct key entered, but router rejects request. | MAC filtering enabled on router. | |
| Format error Cannot recognise file format - independent of network. | Received .wma, but found that the stream wasn't WMA when trying to decode. | |
| Network error Problem past router - incorrect data being received from network. | Data obtained from server is unreadable. | |
| Network timeout Problem past router - no response being received from network. | Streaming IR station and suddenly station becomes unavailable. | |
| No UPnP media found No UPnP servers found. | ||
| Service not available (DAB) No DAB reception. | ||
| Unauthorised Access not grated by UPnP server. Allow access for SUPERCONNECT in UPnP server settings. | ||
| Update failed Software upgrade failed. | ||
| Network not ready | problem with connection to router. | Router switched off. |
REVO.

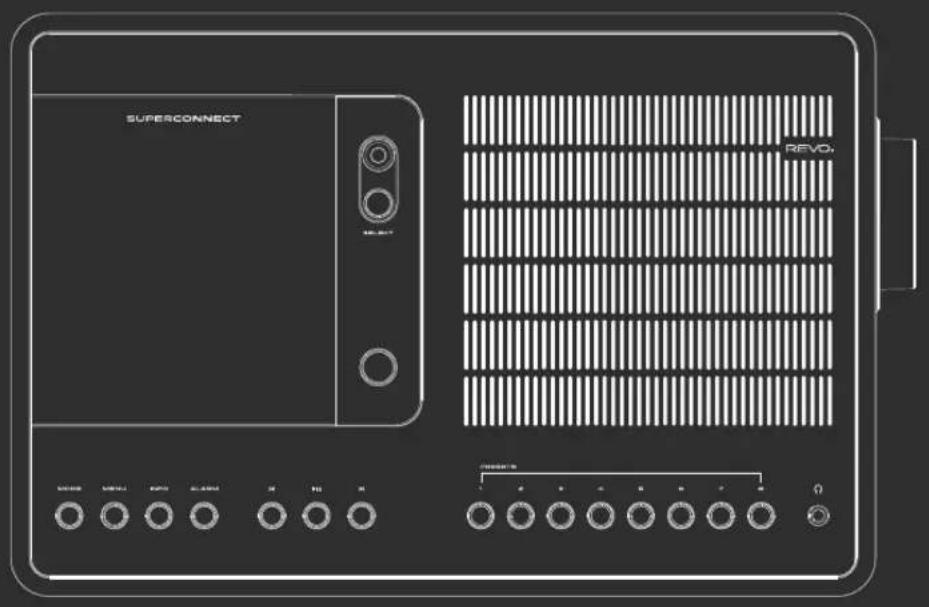

SUPERCONNECT
v1.0
Deutsch
Copyright 2013 Revo Technologies Ltd. All rights reserved.
Revo Technologies Ltd
The Inox Building, Caldwellside, Lanark, Scotland, United Kingdom, ML11 7SR
Tel: +44 (0) 1555 66 61 61 Email: enquiries@revo.co.uk
NETZTEIL
Pure technical diagram showing a vertical rod and circular component with an arrow, no text or symbols presenttext_image
Diagram of a refrigerator control panel with labeled buttons and a power button indicatorSUPERCONNECT BEDIENEN
Media Sharing Share news, pictures, and videos on your network Learn about sharingOnline Sharing settings ✓ Share video How does sharing change email settings? OK Canceltext_image
Media Sharing Share music, pictures, and video on the network. Shares more about shares. Sharing settings Share my cards to: Settings... Add... Buy Customize... How does any other email options? Edit Cancel Apply
MEDIA-SHARING MIT MAC
AUDIOSPUREN IM MUSIK-PLAYER
v1.0
SUPPOR TECHNIQUE
Revo Technologies Ltd
The Inox Building, Caldwellside, Lanark,
Scotland, United Kingdom, ML11 7SR
Tel: +44 (0) 1555 66 61 61 Email: enquiries@revo.co.uk
02 Support technique
13 Mode FM / Mode AUX-IN
14 - 15 Bluetooth
16 - 21 Mode Radio Internet
22 Portail Radio Internet
23 - 24 Installation Serveur musical
SUPPORT D'ALIMENTATION (PSU)
Pure technical diagram showing a vertical rod and circular component with an arrow, no text or symbols presenttext_image
Diagram of a refrigerator control panel with buttons and a power button, showing Chinese labels for function keys.CONTROLE DE SUPERCONNECT
CHOOSING A STATION (Continued)
MISE EN PLACE SERVEUR MUSICAL
PARTAGER DES FICHIERS MEDIATIQUES AVEC MAC
REPRODUIRE TRACES AUDIO AVEC LE LECTEUR MUSICAL
Hide Shuffle Repeat SMASHING LAWS HE'S GOT THE BEST OF IT Up NextSPOTIFY CONNECT
MISE A JOUR LOGICIEL
v1.0
Italiano
ASSISTENZA TECNICA
Revo Technologies Ltd
The Inox Building, Caldwellside, Lanark,
Scotland, United Kingdom, ML11 7SR
Tel: +44 (0) 1555 66 61 61 Email: enquiries@revo.co.uk
Pure technical diagram showing a vertical rod and circular component with an arrow, no text or symbols presenttext_image
Diagram of a refrigerator control panel with labeled buttons and a power button indicatorCOMANDI SUPERCONNECT
Media Sharing Show news, pictures, and video on user networks. Learn online about shares Sharing settings □ Show my video list Settings... Add to Deny Customize... How does share change from new settings? OK Cancel Apply
IMPOSTAZIONE DI UN SERVER MUSICALE
MEDIA SHARING CON UN MAC
RIPRODURRE TRACCE AUDIO NEL MUSIC PLAYER
Genre | Artist | Album | Composer | Rating
Press MENU to return to the NOW PLAYING screen.
FUNZIONE SNOOZE
Update from Network :
E-MAIL - support@revo.co.uk
WEB - www.revo.co.uk/support
