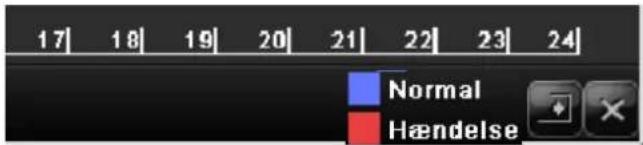

17 10 19 20 21 22 23 24 Dauer Ereignis

(17) (18)(19)

Packet Export Abbrechen

,Network Time Protokoll'

,Universal Serial Bus'

86444 Affing (Germany)

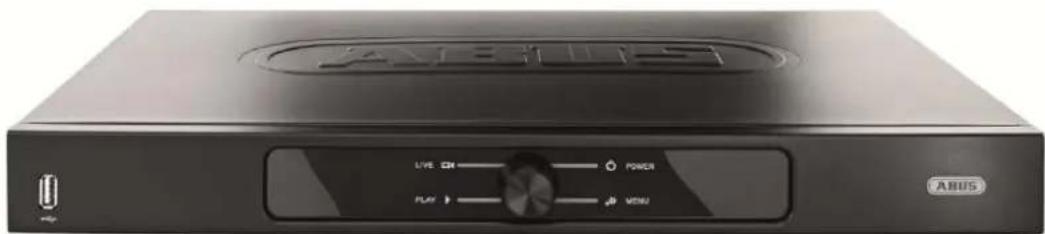

ABUS 4/8-channel HD-SDI digital recorder TVHD80100 / TVHD80110

LIVE OR POWER PLAY > MENU ASUS

User guide

Version 1.0

CE

English

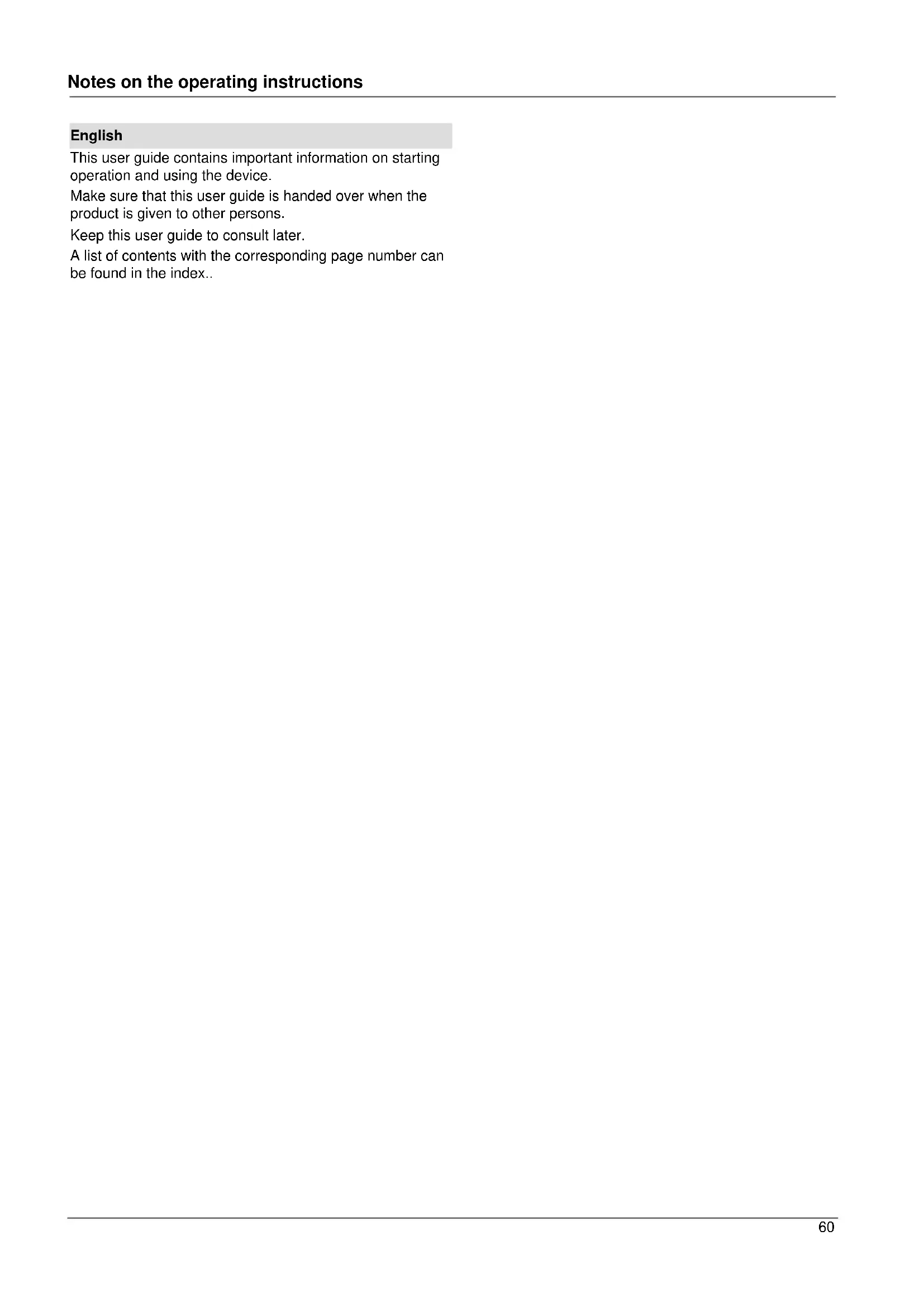

This user guide contains important information on starting operation and using the device.

Make sure that this user guide is handed over when the product is given to other persons.

Keep this user guide to consult later.

A list of contents with the corresponding page number can be found in the index..

Device overview

See System operation on page 62.

Rearside

AUDIO IN AUDIO OUT VGA ALARM IN / OUT POWER ON/OFF AUDIO IN AUDIO IN VGA HDMI LAN RS-485 POWER VIDEO IN USB HDMI LAN RS-485 STROMVERSORGUNG

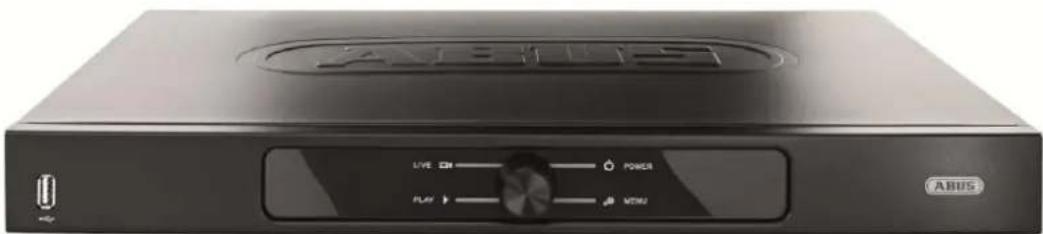

Front

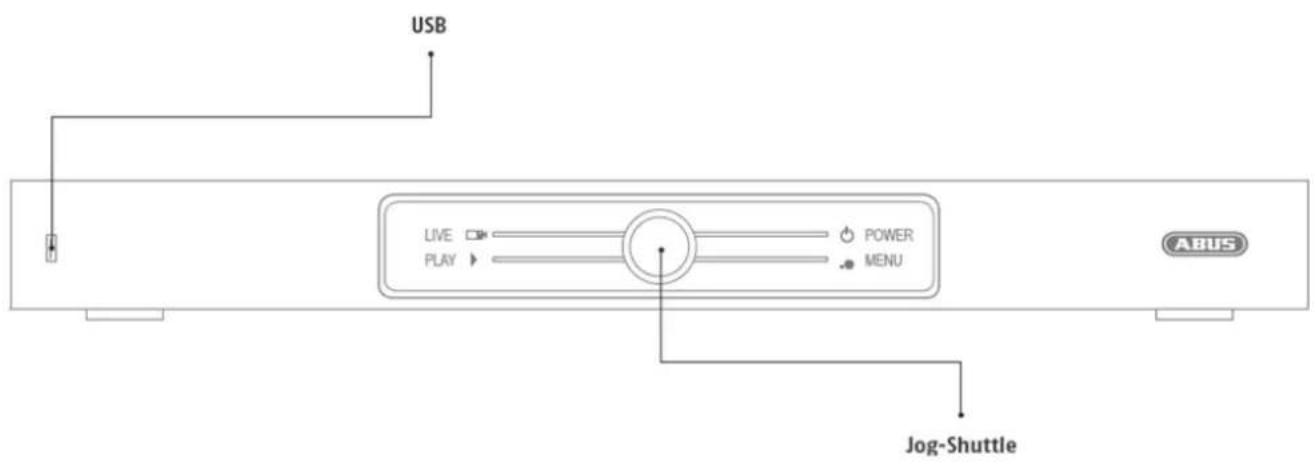

USB LIVE □ PLAY ▶ POWER MENU Jog-Shuttle ABUS

System operation

General information

The device can be controlled as follows:

• Using the USB mouse

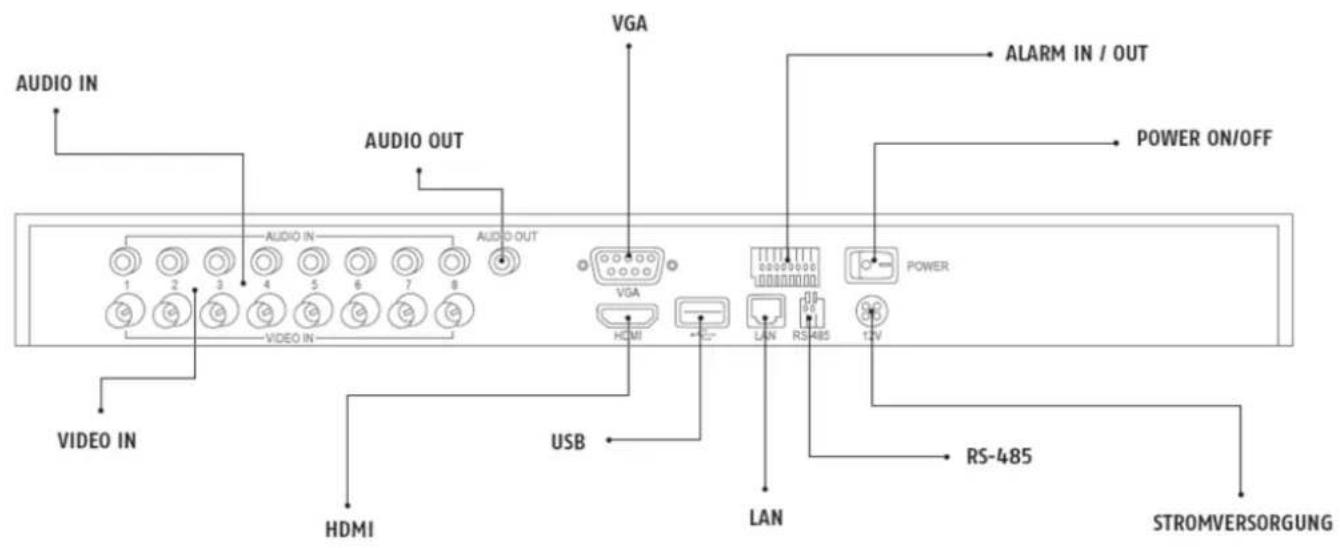

Connections on the rear of the device

Note

Pay attention to the overview on page 61.

NameFunction

VIDEO IN:• BNC input for analogue cameras

AUDIO IN:• Cinch inputs

AUDIO OUT:• Cinch audio output (synchronised with the video output)

VGA:• VGA monitor connection (9-pin), video output signal

ALARM IN/OUT:• Max. 4 alarm inputs, max. 1 relay outputs

POWER ON/OFF:• On and off device switch

POWER SUPPLY• 12 V DC connection for power supply

RS-485• Connection for PTZ cameras

LAN• RJ45 port for a network connection

USB• Connection for USB devices

HDMI• HDMI monitor connection

USB• Connection for USB devices

SHUTTLE KNOB• For selecting the operating mode

Mouse operation

i

Note

Further descriptions in these operating instructions are made with the mouse.

The device is suitable for use with a USB mouse.

Connect the mouse to the USB port.

Button	Function
Left	Single-click:Selection in the menu, activation of an input field or a TAB, display of the Quick Set menuDouble-click:Switches between the screen display of single and multiple images in the live view and during playbackClick and drag:In PTZ mode: Camera controlSet-up of alarm areas or zones
Right	Single-click:Calls up the pop-up menu
Scroll wheel	In the live view:Shows previous / next cameraIn menus:Scrolls through the menus

Device overview....61

System operation....62

General information 62

Connections on the rear of the device 62

Mouse operation....63

Quick guide....67

Before you start....67

Installing the HDD 67

Establishing the connections 67

Configuring the device 67

Important safety information....68

Explanation of symbols 68

Proper use 68

General information 68

Power supply 68

Overloading / overvoltage 69

Cables 69

Installation location / operating environment 69

Remote control....69

Care and maintenance....70

Accessories....70

Putting into operation....70

Children and the device 70

Introduction 71

General information 71

Unpacking the device....71

Scope of delivery 71

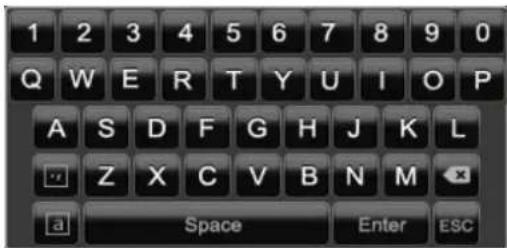

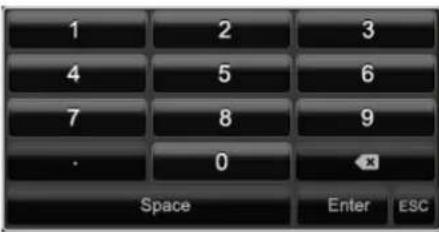

On-screen keyboard 72

Starting the device 72

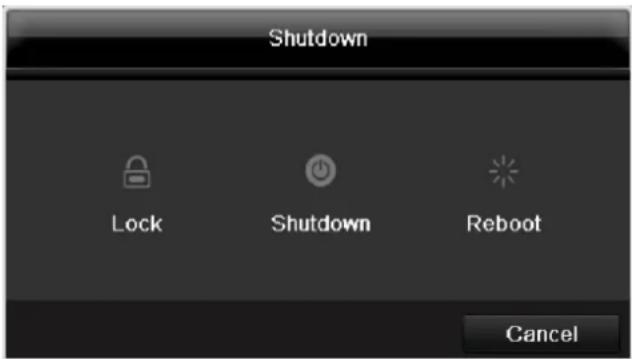

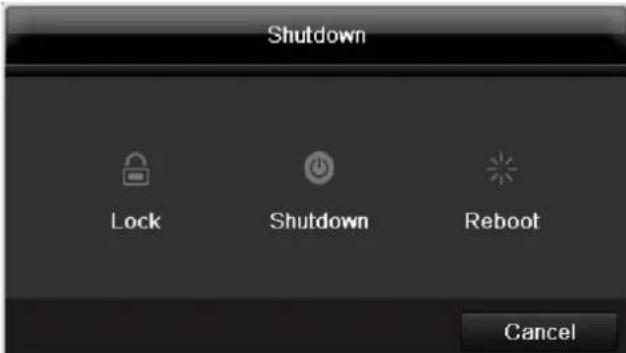

Switching off, locking and rebooting the device....72

Status displays....73

General information ....73

Display on the monitor 73

Setup wizard....74

Setting up the system ....74

Setting up the administrator....74

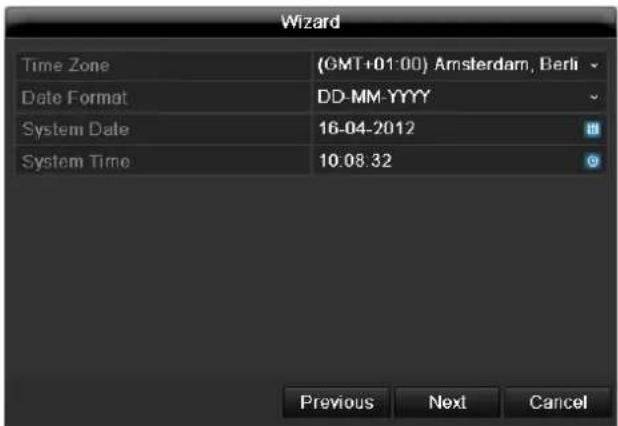

Time / Date 74

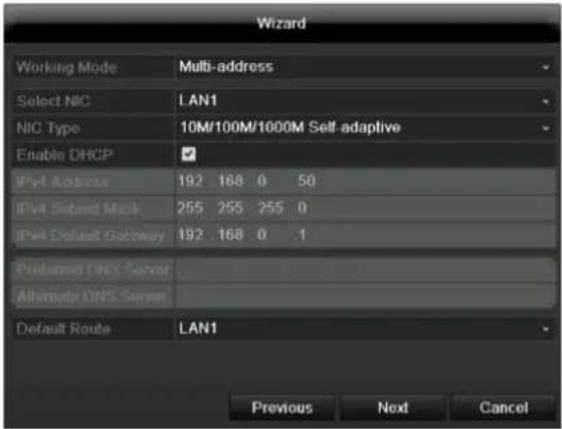

Network Settings....75

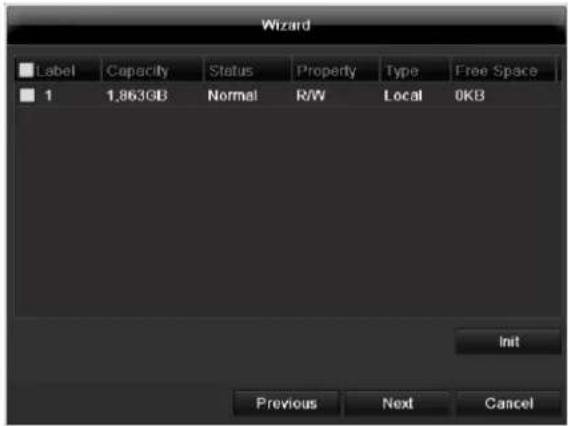

HDD Management....75

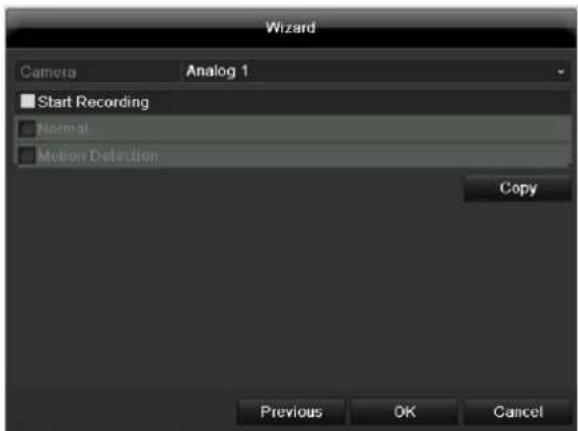

Camera recording 75

Live view 76

Overview 76

Status symbols....76

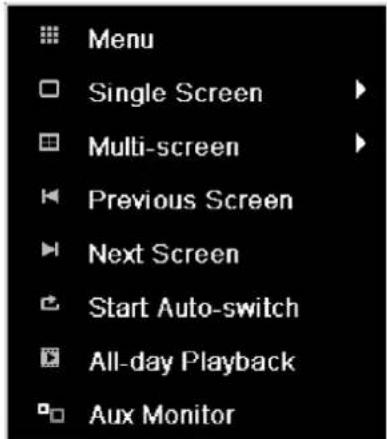

Pop-up menu for mouse operation ....76

Selection bar in the camera image 77

Settings 78

Setting the camera output 78

Playback....79

General information 79

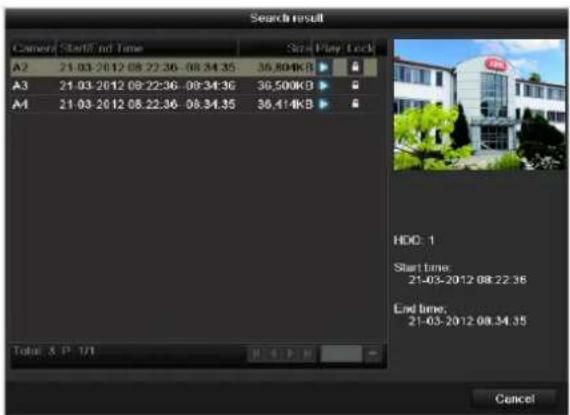

Playback screen....79

Using the control panel....79

Main menu 81

Menu overview....81

Menu description 81

Menu description 82

Configuration....83

Overview....83

General....83

Terms and definitions 84

Network layout....85

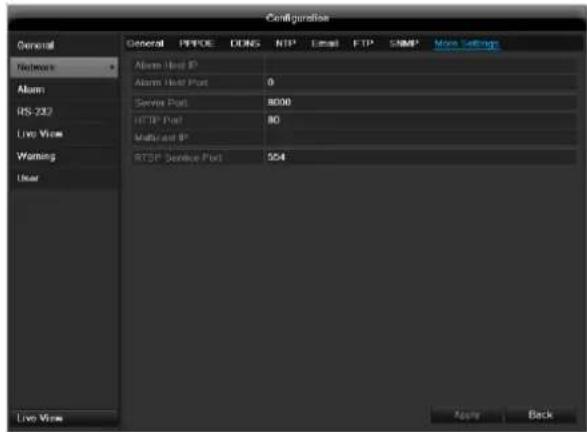

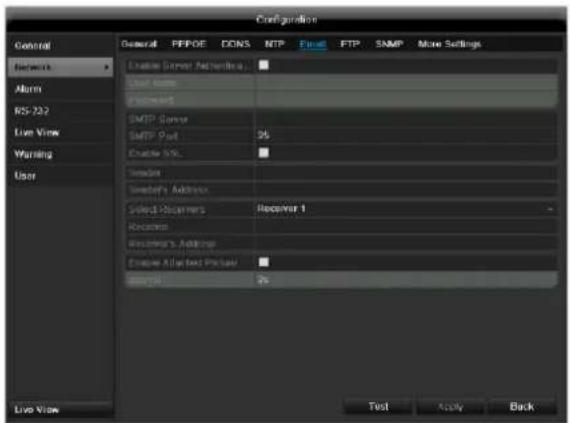

Network-configuration 85

Warning....89

User....89

Camera....91

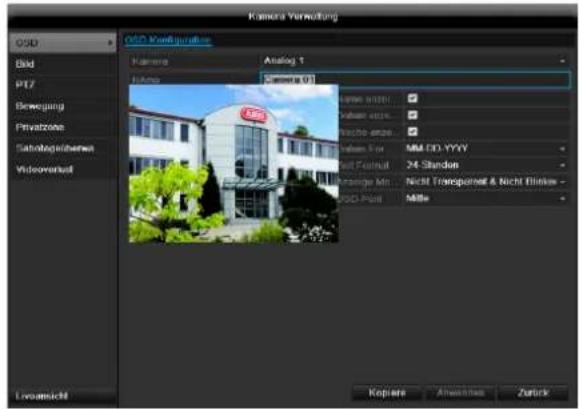

OSD 91

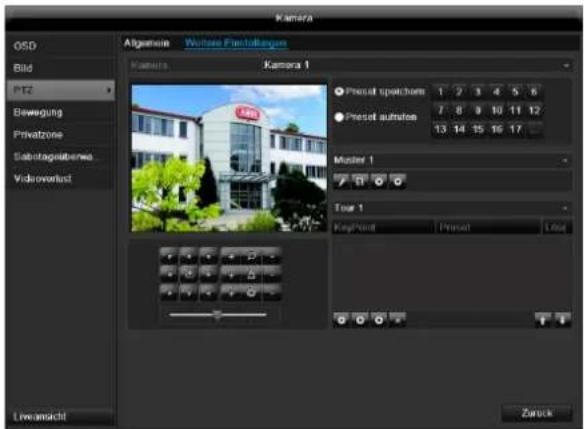

PTZ 91

Motion 92

Handling....92

Private Zone....93

Tamper monitoring....93

Video signal loss 94

Setting up....95

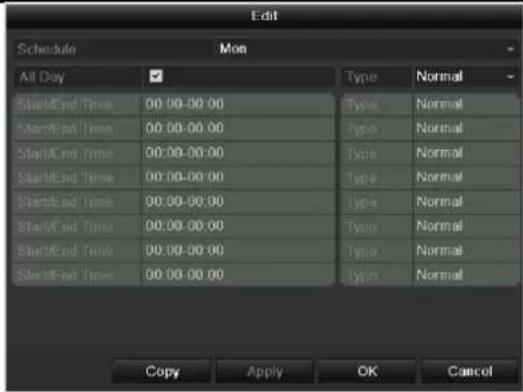

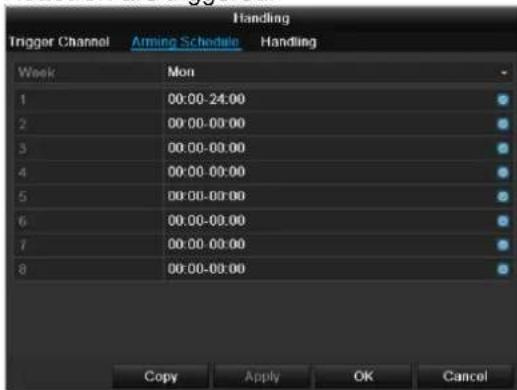

Schedule....95

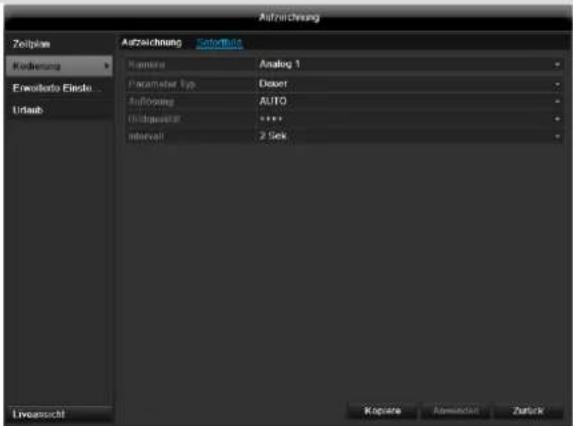

Record....96

TAB Substream....96

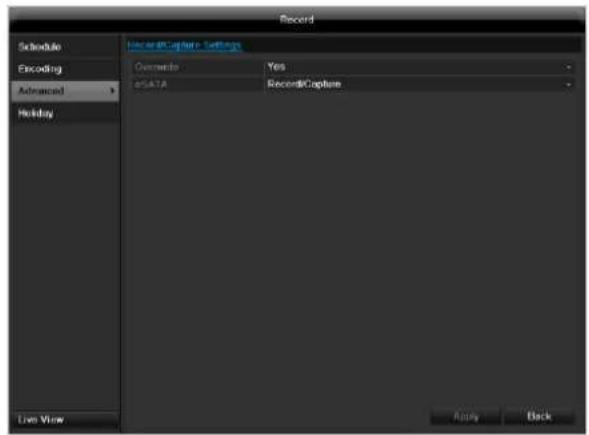

Advanced settings 97

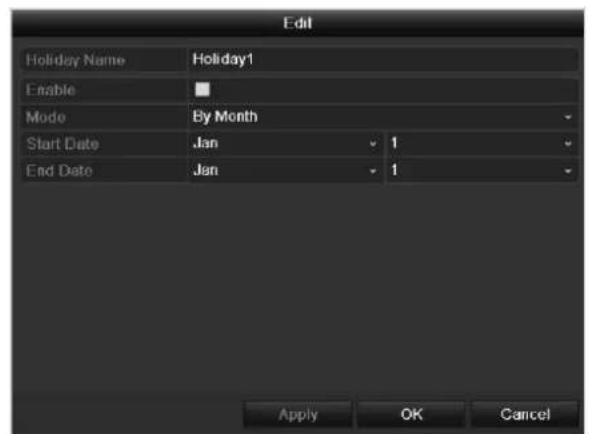

Holidays....97

HDDs....98

Installing the HDD 98

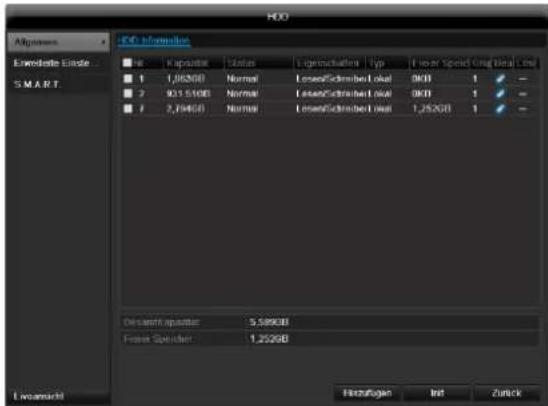

HDD Management parameters 98

HDD settings of the cameras....99

S.M.A.R.T....99

Checking the HDD status....100

Recording....100

Continuous Recording 101

Event....101

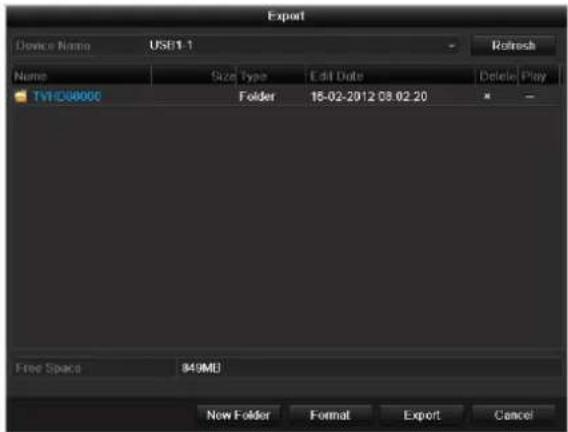

Video Export....102

Duration....102

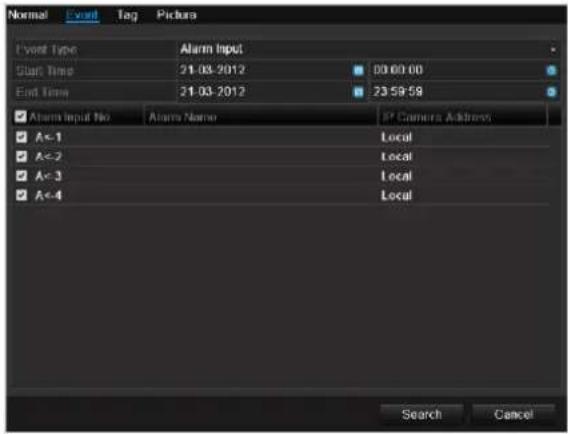

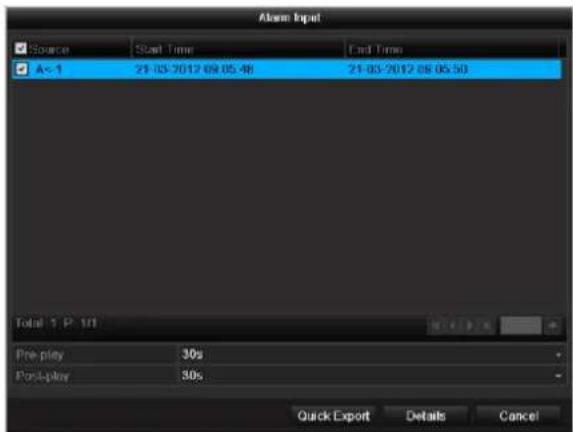

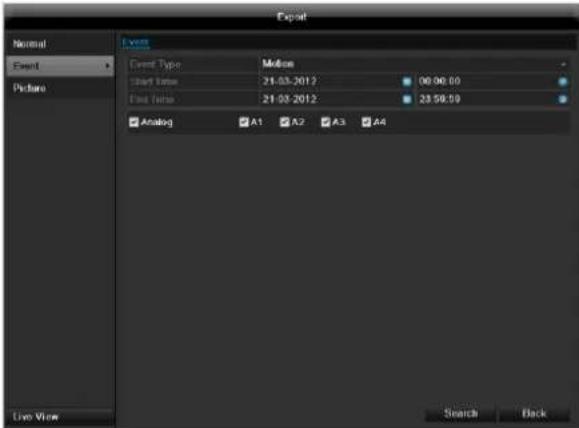

Event (event type 'Motion') 103

Maintenance ....104

System Info 104

Log Search....104

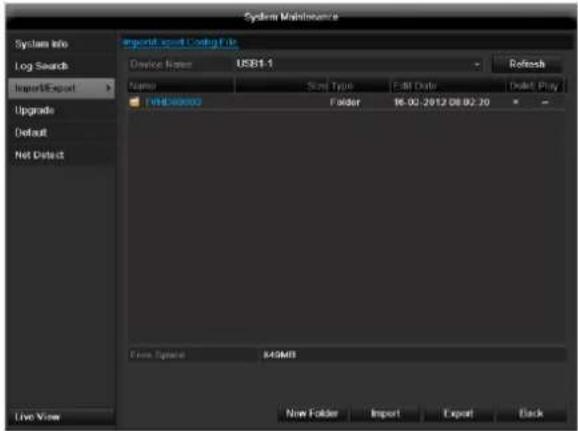

Import / Export 105

Upgrade 105

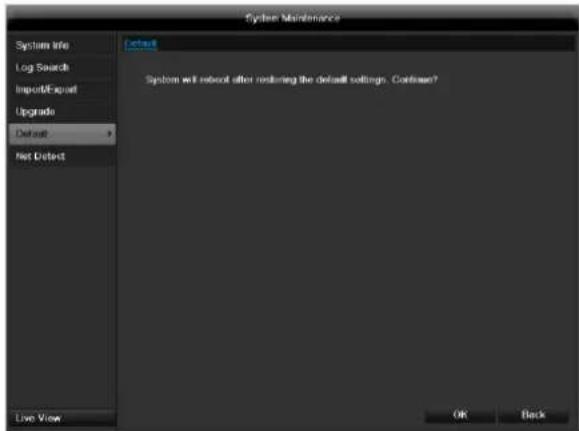

Default....106

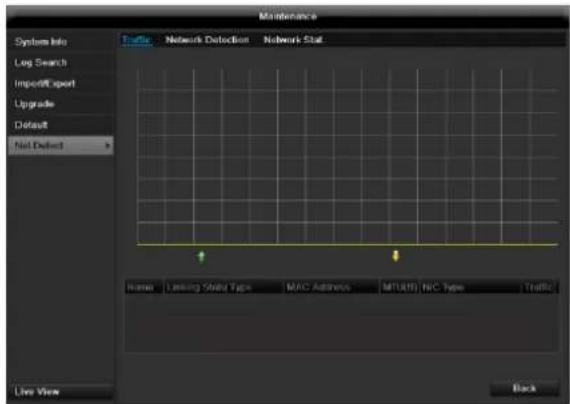

Network....106

Shutdown....108

Troubleshooting....109

Device cleaning and care....109

Contents

Note....109

Technical data 110

Disposal 112

Information on the EU directive on waste electrical and electronic equipment 112

Information on handling batteries 112

Important information on disposing of batteries....112

Information on the European RoHS directive 112

Glossary....113

Overview of specialist terms 113

Internal HDD 115

Quick guide

Before you start

The following preparatory steps must be made:

1. Pay attention to the general information, safety information and notes on setting up and connecting the device (see page 62).
2. Check the contents of the package for completeness and damages.
3. Insert the batteries into the remote control.

Note

Pay attention to the information in the separate quick guide.

Installing the HDD

Warning

Switch off the device and disconnect it from the mains power supply. Pay attention to the required earthing of the device to avoid static discharge.

1. Install one or more HDDs (see the separate quick guide).
2. First make a connection to the motherboard (small connector).
3. Connect the power supply cable (large 5-pin connector).
4. Check that the connections are secure.
5. Close the housing.

Note

Only use HDD's that are approved for video recording and 24/7 usage.

Establishing the connections

Note

Pay attention to the minimum radius when laying cables. Do not kink the cable.

1. Connect all cameras to the recorder.
2. Connect the monitor to the VGA or HDMI connection.
3. Connect the mouse to the USB port.
4. Connect the device to the mains power supply, it will then start automatically.

Configuring the device

Note

Pay attention to the information in the separate quick guide.

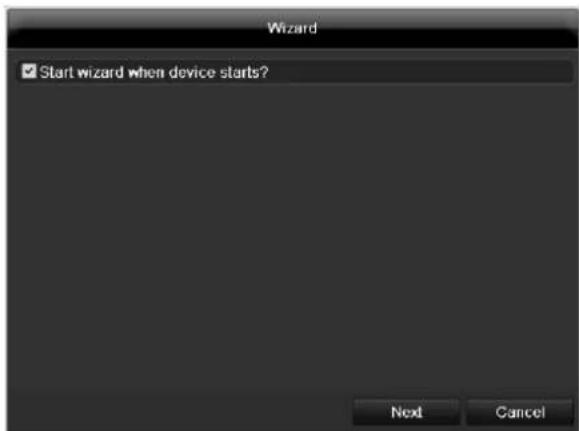

• Proceed through the individual steps in the setup wizard (see page 74).
• The following settings are configured in sequence:
• Language selection for the user interface
• Administrator setup
• General settings (date, time etc.)
  • HDD management (initialisation etc.)
• Network settings
• Camera management

Note

Subsequent changes to the date and time can lead to the loss of data!

Note

Check the ABUS homepage (www.abus.com) if for this device any firmware updates are available and install these

- Pay attention to the menu overview on page 81, plus the notes and explanations on basic system operation on page.

Pay attention to the notes on the following:

Live view	P. 76
Playback	P. 79
Data export	P. 102
Troubleshooting	P. 109

Important safety information

Explanation of symbols

The following symbols are used in this manual and on the device:

Symbol Signal word Meaning

Warning Indicates a risk of injury or health hazards.

Warning Indicates a risk of injury or health hazards caused by electrical voltage.

Important Indicates possible damage to the device/accessories.

Note Indicates important information.

The following labels are used in the text:

Meaning

1....	Set of tasks or instructions with a defined sequence in the text
2....

...	Set of points or warnings without a defined sequence in the text
...

Proper use

Only use the device for the purpose which it was designed and built for. Any other use is considered inappropriate.

This device may only be used for the following purpose(s):

- This 4/8-channel HD-SDI digital recorder is used in combination with connected video signal sources (HD-SDI cameras) and video output devices (CRT or TFT monitors) for object surveillance.

Note

Data storage is subject to national data-protection guidelines.

During installation, inform your customers regarding the existence of these guidelines.

General information

Before using the device for the first time, read the following instructions carefully and pay attention to all warnings, even if you are already familiar with electronic devices.

Warning

All guarantee claims become invalid for damages caused by non-compliance with these operating instructions.

We cannot be held liable for resulting damages.

Warning

We cannot be held liable in the event of material or personal damage caused by improper operation or non-compliance with the safety information.

All guarantee claims are invalid in such cases.

Keep this manual in a safe place for future reference.

If you pass on or sell the device, you must also include this user manual.

This device has been manufactured in accordance with international safety standards.

Power supply

• Only operate this device through a power source which supplies the mains power specified on the type plate.
• If you are unsure of the power supply at the installation location, contact your power supply company.

Warning

Avoid data loss!

Always use an uninterruptible power supply (UPS) with overvoltage protection.

• Disconnect the device from the mains power supply before carrying out maintenance or installation work.
• The on/off switch does not completely disconnect the device from the mains power supply.
• To disconnect the device completely from the mains power supply, the plug must be disconnected from the mains socket. Therefore, the device should be positioned so that direct and unobstructed access to the mains socket is guaranteed at all times and the plug can be disconnected immediately in an emergency.

To avoid the possibility of fires, the plug should always be disconnected from the network socket if the device is not used for long periods. Disconnect the device from the mains power supply before impending electrical storms, or use an uninterruptible power supply.

Warning

Never open the device on your own! There is a risk of electric shocks!

If it is necessary to open the device, consult trained personnel or your local maintenance specialist.

- The installation or modification of a HDD should only be made by trained personnel or your local maintenance specialist.

Warning

The installation of additional equipment or modification of the device invalidates your guarantee if not carried out by trained personnel.

We recommend having the HDD installed by a maintenance specialist.

Your guarantee is invalidated in the event of improper installation of the HDD.

Overloading / overvoltage

• Avoid overloading of mains sockets, extension cables and adapters as this can result in fires or electric shocks.
• Use overvoltage protection to prevent damages caused by overvoltage (e.g. electrical storms).

Cables

• Always hold cables by the connector, and do not pull the cable itself.
• Never touch the mains cable with wet hands, as this can lead to a short circuit or electric shock.
• Never position the device, furniture or other heavy items on the cable. Ensure that the cable does not become kinked, especially on the connector and sockets.

- Never knot the cable, and do not tie it to other cables.

- All cables should be laid so that they cannot be stepped on or cause an obstruction.

- A damaged mains cable can cause a fire or electric shock. Check the mains cable from time to time.

- Never modify or manipulate the mains cable or plug.

- Do not use plug adapters or extension cables that do not conform to the applicable safety standards, and do not make alterations to power supply cables or mains cables.

Installation location / operating environment

• Position the device on a firm, level surface and do not place any heavy objects on the device.
• The device is not designed for operation in rooms subject to high temperatures or moisture (e.g. bathrooms), or in excessively dusty rooms.
• Operating temperature and ambient humidity: -10 °C to 55 °C, maximum 85% relative humidity. The device may only be operated in moderate climate conditions.

Ensure the following:

- Sufficient ventilation must be present at all times (do not place the device in a storage rack, on thick carpets, on a bed or anywhere where the ventilation slots are covered. Make sure that a gap of at least 10 cm is present on all sides).

- The device must not be exposed to direct heat sources (e.g. heaters).

- The device must not be exposed to direct sunlight or strong artificial light.

- The device must not be placed in close proximity to magnetic fields (e.g. loudspeakers).

- Naked flames (e.g. candles) must not be placed on or near the device.

- Contact with spraying or dripping water and aggressive liquids must be avoided.

- The device must not be operated in close proximity to water, and must not be submerged under any circumstances (do not place objects containing water on or near the device, such as vases or drinks).

- Foreign objects must not penetrate the device.

- The device must not be exposed to strong variations in temperature, as this can lead to condensation and electrical short circuits.

- The device must not be exposed to excessive jolts or vibrations.

Remote control

- Remove all batteries if the device will not be used for a sustained period, as these can leak and damage the device.

Care and maintenance

Maintenance is necessary if the device has been damaged. This includes damage to the plug, mains cable and housing, penetration of the interior by liquids or foreign objects, exposure to rain or moisture or when the device does not work properly or has fallen.

• Disconnect the device from the mains power supply before maintenance (e.g. cleaning).
• If smoke develops or unusual noises or odours are detected, then switch off the device immediately and pull the mains plug from the socket. In such cases, the device should not be used until it has been inspected by a qualified technician.
• Maintenance work should only be carried out by qualified specialists.
• Never open the housing on the device or accessories. There is a risk of fatal injury due to an electric shock when the housing is opened.
• Clean the device housing and remote control with a damp cloth.
• Do not use solvents, white spirit or thinners as these can damage the surface of the device.
• Do not use any of the following substances:
• Salt water, insecticides, solvents containing chlorine or acids (ammonium chloride) or scouring powder.
• Gently rub the surface with a cotton cloth until it is completely dry.

Warning

The device works under dangerous voltages. The device must only be opened by authorised specialists. All maintenance and service work must be carried out by authorised firms. Improper repairs can expose device users to the risk of fatal injury.

Accessories

- Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or damage to the device can occur.

Putting into operation

• Observe all safety and operating instructions before putting the device into operation for the first time.
• Only open the housing to install the HDD.

Warning

When installing the device in an existing video surveillance system, ensure that all devices are disconnected from the mains power supply and low-voltage circuit.

Warning

If in doubt, have a specialist technician carry out assembly, installation and connection of the device.

Improper or unprofessional work on the mains power supply or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Children and the device

• Do not allow children access to electrical devices. Never allow children to use electrical devices without supervision. Children may not be able to accurately detect possible risks. Small parts can be life-threatening if swallowed.
• Keep batteries away from small children. Call for medical assistance immediately if a battery is swallowed.
• Keep packaging materials away from children (danger of suffocation).
• This device should not be used by children. If used improperly, spring-loaded parts can be ejected and cause injuries to children (e.g. eye injuries).

Introduction

Dear customers,

This device complies with the requirements of the applicable EU directives.

The declaration of conformity can be ordered from:

To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions!

Read the entire operating manual carefully before putting the product into operation and pay attention to all operating and safety information!

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

In the event of questions, please contact your local maintenance specialist or dealer.

Disclaimer

These operating instructions have been produced with the greatest care. Should you discover any missing information or inaccuracies, please contact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and operating instructions at any time and without prior warning. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this document.

General information

In order to use the device correctly, read this user manual carefully and keep it in a safe place for later use.

This manual contains instructions on recorder operation and maintenance. Consult an authorised specialist if the device needs to be repaired.

Unpacking the device

Handle the device with extreme care when unpacking it.

The packaging is made of reusable materials, and should always be passed on for recycling.

We recommend the following:

Paper, plastic packaging, cardboard and corrugated cardboard should be disposed of in the appropriate recycling containers.

If recycling containers are not available in your local area, then you can dispose of these materials as domestic waste.

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, then return it in the original packaging and contact the manufacturer.

Scope of delivery

• ABUS 4- or 8-channel HD-SDI digital recorder
- Power supply unit
• 3x power cable (DE, UK, AU)
- SATA cable and screws for hard drives
- Bracket and screws for server cabinet
- USB mouse
- Quick guide
- Manual
• CD

On-screen keyboard

The on-screen keyboard appears after clicking on a text entry field with the mouse:

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

The following screen keyboard appears during mere numerical entry:

1 2 3 4 5 6 7 8 9 . 0 Space Enter ESC

The keys have the same function as on a computer keyboard.

• To enter the character, left-click the mouse.
• To finish data entry, press Enter.
- To delete the character in front of the cursor, click on ←.
- To switch between upper and lower case, click on the framed a symbol. The current setting is displayed above the keyboard.
- To cancel the entry or exit the field, press ESC.

Starting the device

Important

The device must only be operated with the mains power specified on the type plate.

For safety reasons, use an uninterruptible power supply (UPS).

When the device is connected to the power supply, it starts up automatically.

1. The device carries out a self-test during the start-up procedure.

2. The setup wizard appears. Exit the wizard to access the live view.

Switching off, locking and rebooting the device

Click on "Shutdown" in the main menu. The overview appears.

Shutdown Lock Shutdown Reboot Cancel

1. To switch off the device, select ShutDown and confirm by pressing Yes. The device is then switched off.

2. Do not press any keys during the shutdown procedure.

3. Now pull out the plug of the power supply unit.

4. To lock the system, select the corresponding Lock symbol on the left. The user interface is now locked and a password must be entered to access the menu.

5. To reboot the device, select the corresponding Re-boot symbol on the right. The device is then rebooted.

Switching on the device

- Plug in the power supply unit to start the device.

Status displays

General information

The following status displays indicate the current operating state:

• LEDs on the front of the device
- Acoustic signal tones
- Icons (display elements) on the monitor

Note

Pay attention to the information in the separate quick guide.

Display on the monitor

The device shows the date and time, camera name and whether a recording is in progress.

• Continuous recording: blue "R"
- Motion detection recording yellow "R"

Setup wizard

Setting up the system

The setup wizard guides you through the necessary basic system settings. The DVR is then set up for recording and surveillance.

Note

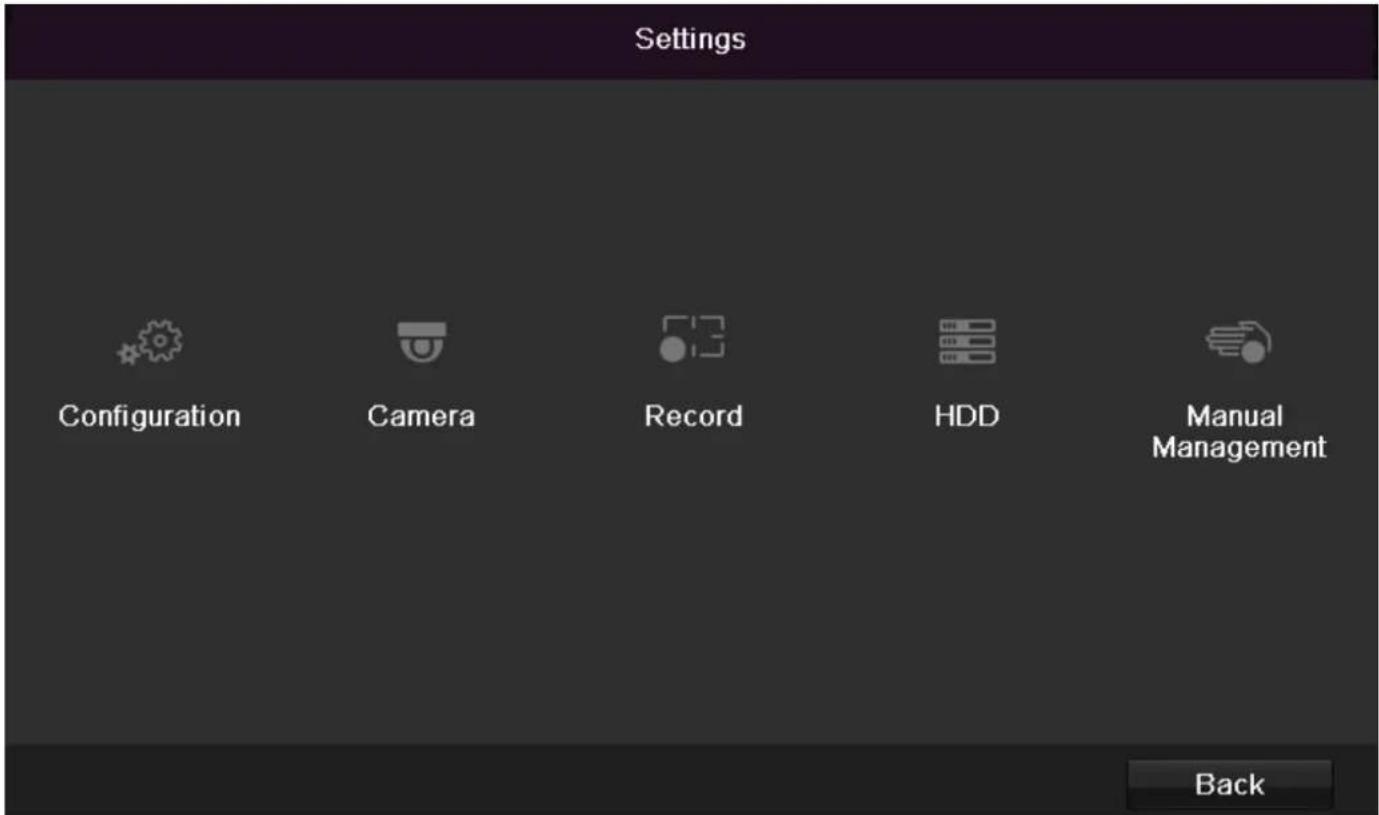

All detailed settings can be found in the device menu (see overview on 81).

The language selection appears after switching on for the first time:

Language System Language English Apply Cancel

1. Click the entry field and select the desired language from the list. Click on Apply to continue. The following query appears:

Wizard ✓ Start wizard when device starts? Next Cancel

- Click on Next to start the wizard.

Note

After the system is set up, you can untick the box. The setup wizard is then no longer started automatically.

Setting up the administrator

Warning

Note down the admin password. The following password is preset

“1 2 3 4 5”

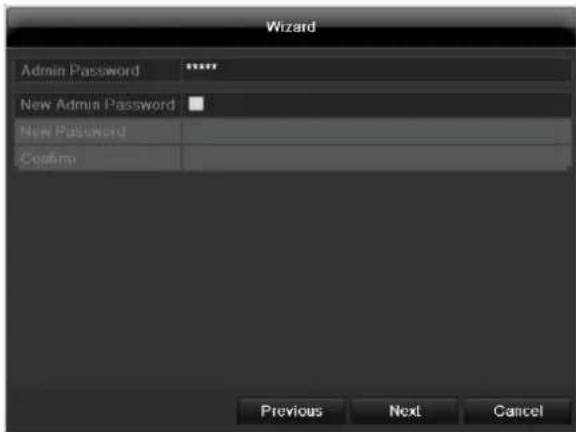

Wizard Admin Password ****** New Admin Password * New Password Confirm Previous Next Cancel

1. Click the entry field and enter your admin password.
2. To assign a new password, tick the box next to New Admin Password.
3. Enter the new password and confirm in the field below.
4. Click on Next.

Time / Date

Wizard Time Zone (GMT+01:00) Amsterdam, Berli Date Format DD-MM-YYYY System Date 16-04-2012 System Time 10.08.32 Previous Next Cancel

Enter the system time (date and time). Click on Next to accept the data.

Network Settings

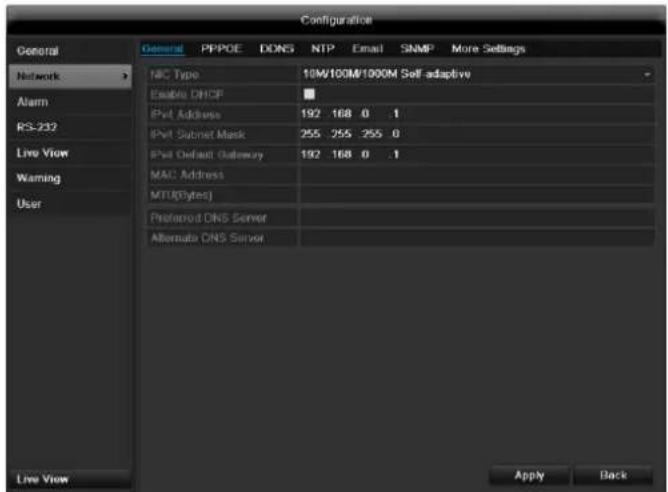

Wizard Working Mode Multi-address Select NIC LAN1 NIC Type 10M/100M/1000M Self-adaptive Enable DHCP ✓ IPv4 Address 192 168 0 50 IPv4 Subnet Mask 255 255 255 0 IPv4 Default Gateway 192 168 0 1 Preferred DNS Server Alternate DNS Server Default Route LAN1 Previous Next Cancel

i

Note

To check whether DHCP can be selected (or if you have to set the IP address and other settings manually), consult your network administrator.

1. DHCP activated: If DHCP is set up in the network router, then tick the DHCP box. All network settings are then made automatically.
2. DHCP not activated: Enter the data manually (IPv4 address, IPv4 subnet mask and IPv4default gateway = IPv4 address of the router). You can also optionally enter the address of the DNS server that you need for sending the E-mail.

A typical address specification is as follows:

• IPv4 address: 192.168.0.50
• IPv4 Subnet mask: 255.255.255.0
• IPv4 Default gateway: 192.168.0.1
• Preferred DNS server: 192.168.0.1

i

Note

When the device is accessed remotely via the internet, it should be given a fixed network address.

HDD Management

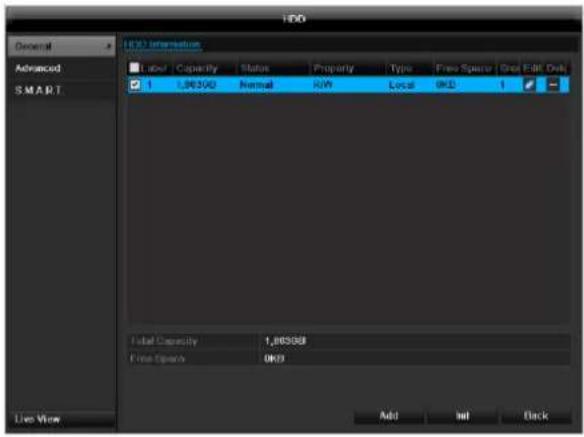

Wizard Label Capacity Status Property Type Free Space 1 1,863GB Normal R/W Local 0KB Init Previous Next Cancel

1. To set up a new hard disc, activate the "Check box" with a left click and then click on Init.

Warning

All data on the drive is deleted!

1. Confirm the prompt by pressing OK. The HDD is then set up for operation. The progress is displayed on the status bar.
2. Exit the setting by pressing Next.

Camera recording

Wizard Camera Analog 1 Start Recording Normal Motion Detection Copy Previous OK Cancel

1. At "Camera" select a camera with which you would like to record.
2. Activate the check box "Start recording".
3. Select the type of recording. You can choose between "Time plan" and "Motion recognition". Arm the motion detection inside the camera for recording motion.
4. Press Copy to take on the setting for other cameras. For this, select the cameras that appear in the new window. Activate the respective check box with a mouse click.
5. Finalize the setting and end the installation assistant with OK.

Live view

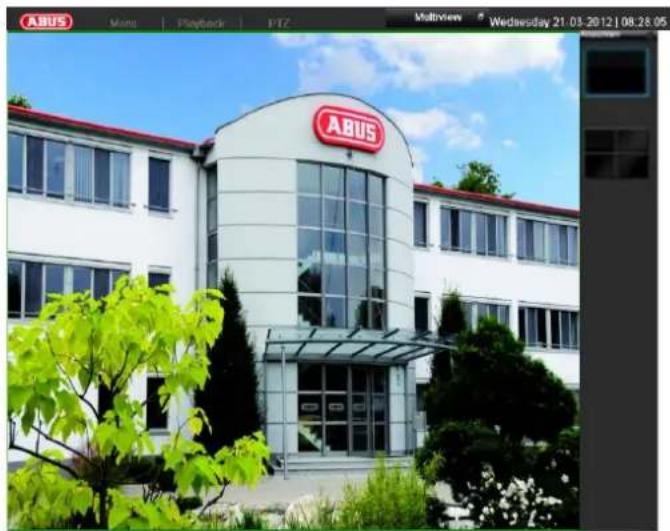

Overview

The live view starts automatically after the device is switched on.

You can also go back to the live view by pressing the Menu key repeatedly.

Exterior view of a modern white building with a red logo on the facade, surrounded by greenery and trees (no visible text or symbols on the building itself)

The following menus are found in the screen header:

• Menu
• Playback
• PTZ

The view pop-up menu is found on the right. The time and date are displayed on the right.

• Click on the symbol to open the pop-up menu of the multi view.
• Click on one of the symbols to switch between the different views.

The signals of the connected cameras are displayed on the main screen.

- By double-clicking the left mouse key, you can display the camera image as a full-screen view or switch back to the original view.

Status symbols

- The following symbols are displayed depending on the operating status of the device:

Symbol	Meaning
R	Yellow: Motion RecordingRecording at motion detectionBlue: RecordingContinuous recording

Pop-up menu for mouse operation

i

Note

Press the right mouse button when the cursor is positioned on a live image.

The following settings can be made. The arrow pointing to the right indicates that a sub-menu is opened for selection:

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch All-day Playback Aux Monitor

Menu	Opens the main menu
Single Screen	Full-screen view for selected camera
Multi Screen	Various camera layouts
Previous Screen	Changing the presentation of the previous camera
Next Screen	Displays the next camera(s)
Start Auto-Switch	Starts the camera sequence
Start Recording	Starts motion detection or the schedule for the entire day
Quick Set	Setting for the output mode
All-day playback	Switches to playback mode

Note

Stop Auto-switch:

Specify the delay in the image sequence in the display settings.

Selection bar in the camera image

Click on the camera image in single or multi view. A selection bar appears:

Toolbar with eight application icons including zoom, refresh, and email (no text or labels visible)

(1)

(2)

(3)

(4)

(5)

(6)

No.	Meaning/function
(1)	Area for moving the miniature bar
(2)	Activate/deactivate manual recording
(3)	Instant playback of the last 5 minutes
(4)	PTZ menu
(5)	Digital zoom
(6)	Close the selection list

Settings

Note

The live view can be set as follows.

Open the main menu, then click on "Configuration". Then click on "Liveview":

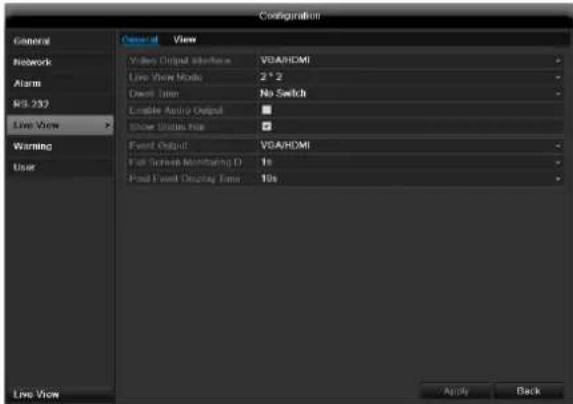

Configuration General View Network Volume Output Interface VGA/HDMI Alarm Live View Mode 2 * 2 RS 332 Dead Time No Switch Enable Audio Output Show Status Fee Event Output VGA/HDMI Full Screen Monitoring D 1s Post Event Display Time Tls Live View Apply Back

The following settings are available in the TAB "General":

Video Output Interface	VGA/HDMISelect the connection where the settings are changed
Live View Mode	Different camera layouts
Dwell Time	Switching time between the individual cameras and the sequence display
Event Output	Allocate monitor for the output of events
Full Screen Monitoring Duration	in seconds, where the event on the allocated monitor will be displayed.
Post Event Display Time	in seconds, the duration of the Pop-up window when an event occurs.

Note VGA monitor connected:

A connected VGA monitor automatically becomes the main monitor where the audio output is also assigned.

No HDMI monitor connected

If during the boot process of the DVR the HDMI cable is not connected, the main video signal is displayed at VGA output. Connect the HDMI cable and reboot the DVR in order to display the main video signal at the HDMI output.

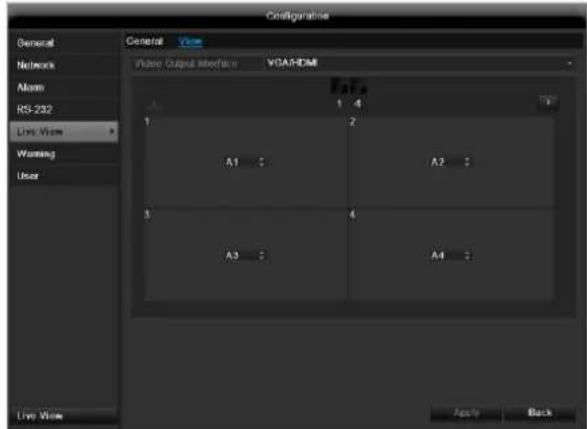

Setting the camera output

You can display a maximum of 8 cameras simultaneously in the live view.

1. Click on the TAB "View".

Configuration General Network Name RS-232 Line View Warning User General View Main Output Interface VOARHDMI 1 4 2 A1 A2 3 4 A3 A4 Live View Apply Back

1. Select the display mode.

2. 1 × 1

3. 2 × 2
   • 1 + 5
   • 1 + 7

4. 3×3

5. The camera signal is assigned to the corresponding image section using the navigation keys.

- "X" means that this camera is not displayed.

1. Click on Apply to accept the settings.

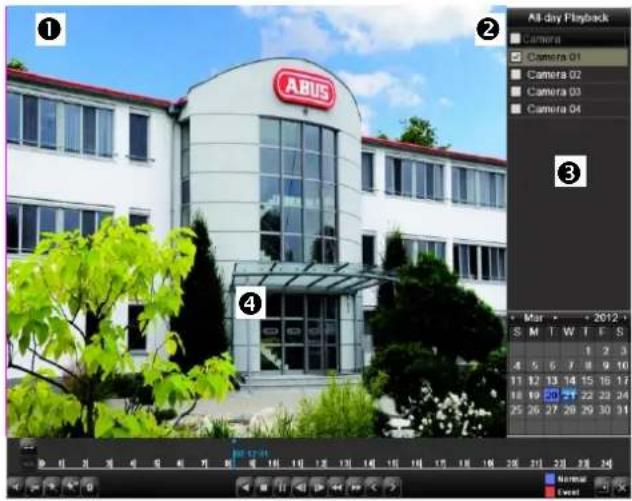

Playback

General information

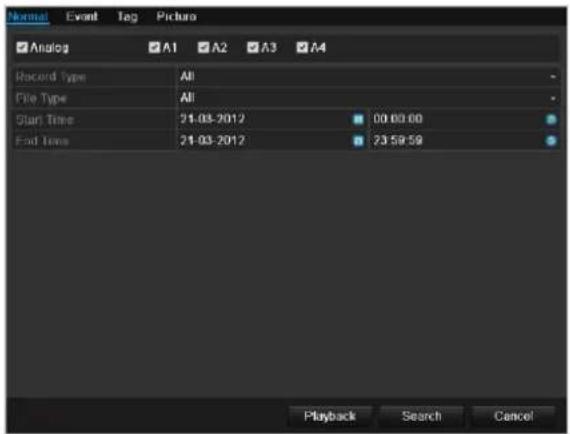

Playback can be made in three different ways:

• Through the video search in the main menu
- From the live view
• Through the log file in the maintenance menu

i

Note

The buttons "previous file/day/event" are used differently depending on the playback mode:

Normal playback:

By pressing the button the playback jumps to the previous/next day.

Video Search:

By pressing the button the playback jumps to the previous/next event day.

Video Export:

By pressing the button the playback jumps to the previous/next file.

i

Note

It is possible to start a simultaneous playback with up to 4 cameras.

Playback screen

Playback is controlled on the control panel:

① ② ③ ④ All-day Playback Camera Camera 01 Camera 02 Camera 03 Camera 04 Mar - 2012 S M T W T E S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Normal Clear

No.	Area
1	Running playback with date and time
2	Used to select the camera for feedback
3	Calendar with recording type
4	Control panel with time bar (see right)

Using the control panel

The control panel (4) is used for controlling the running playback. The symbols have the following meaning:

(1)

00:00:11 0 1 2 3 4 5 6 7

(2) (3) (4) (5) (6)

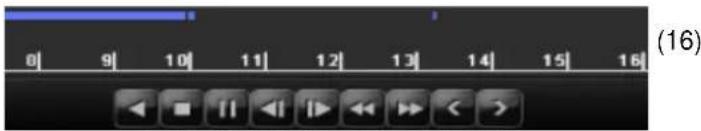

0| 9| 10| 11| 12| 13| 14| 15| 16| (16)

(7) (8) (9) (10)(11)(12)(13)(14)(15)

17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | Normal Event

(17) (18) (19)

No.	Meaning / function
1	Start video clip
2	Add marking
3	Add user-defined marking
4	Manage markings
7	Backwards playback
8	Stop
9	Playback start / pause
10	Jump backward 30 seconds
11	Jump forward 30 seconds
12	Slow forward (slow motion) (1/16x - 1x)
13	Fast forward (1x - 16x)
14	Previous recording marking
15	Next marking
16	Time bar:Click on the time bar with the mouse to continue playback from another pointTo start playback from a specific time, click on the slider and drag it to the required time

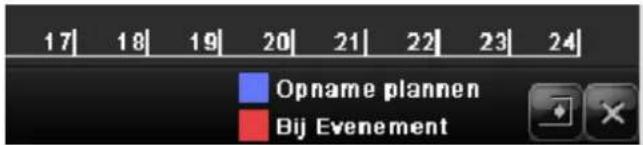

17	Recording typeBlue = Continuous recordingRed = Event recordingGreen = Smart
18	Hides the control panel
19	Exits playback

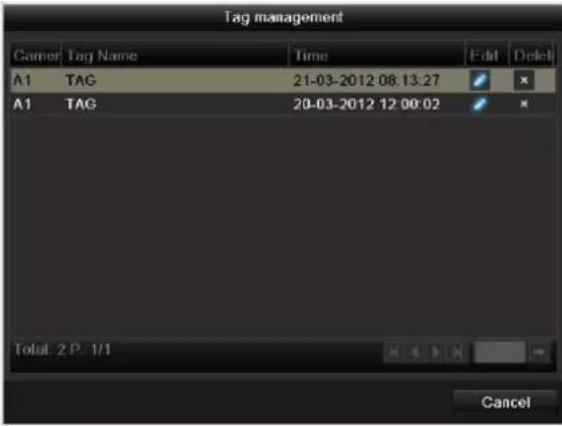

Please klick on ,Tag management' (6):

Tag management Gamer Tag Name Time Edit Delete A1 TAG 21-03-2012 08:13:27 A1 TAG 20-03-2012 12:00:02 Total 2 P. 1/1 Cancel

- In order to change the description of your marking, click on the process symbol. To remove, click on the delete symbol.

Main menu

Menu overview

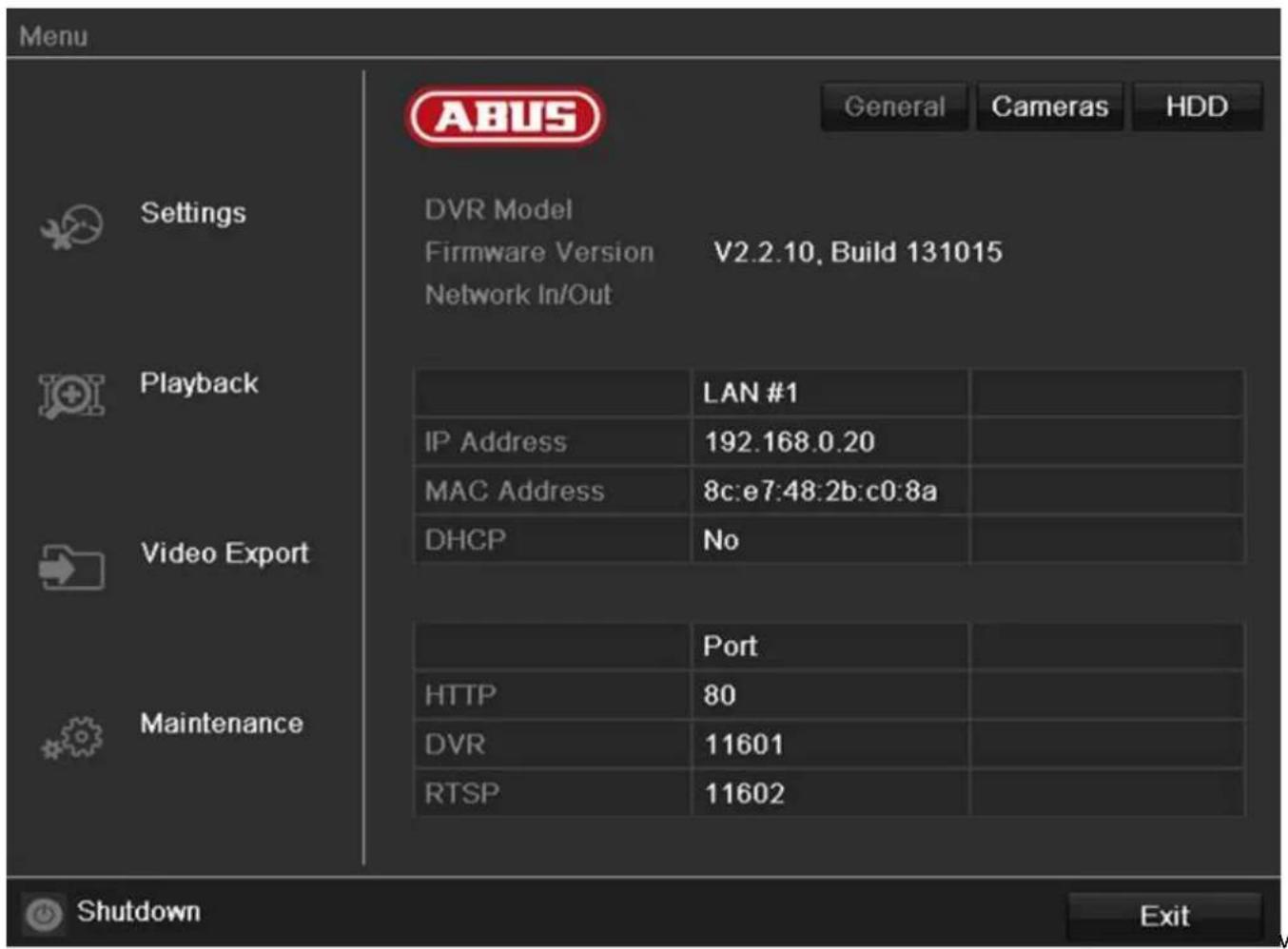

The following overview shows the main menus used to set and control the device.

Furthermore you can find important information regarding the device on the right side of the menu.

• Click on the menu to open it.
• Click Exit to close the menu overview.

Menu Settings DVR Model Firmware Version V2.2.10, Build 131015 Network In/Out Playback Video Export Maintenance General Cameras HDD LAN #1 IP Address 192.168.0.20 MAC Address 8c:e7:48:2b:c0:8a DHCP No Port HTTP 80 DVR 11601 RTSP 11602 Shutdown Exit

Menu description

Menu	Description	See page...
Settings	Includes the menus Configuration, Camera, Record, HDD, Playback.	90
Playback	Parameter-controlled search for video and image recordings which were triggered by events such as motion detection, as well as markings set in playback.	101
Video Export	Parameter-controlled search for video and image recordings which were triggered by events such as alarms or motion detection, as well as alarm events and markings set in playback.	102

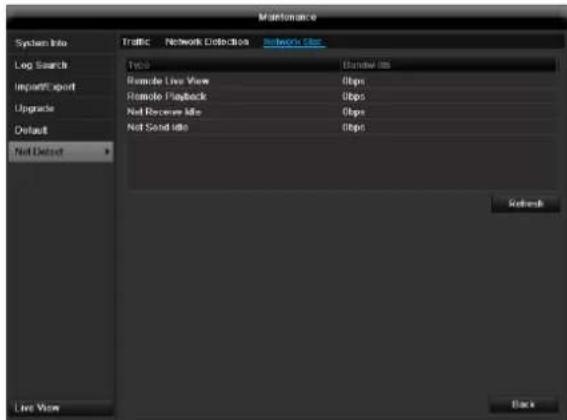

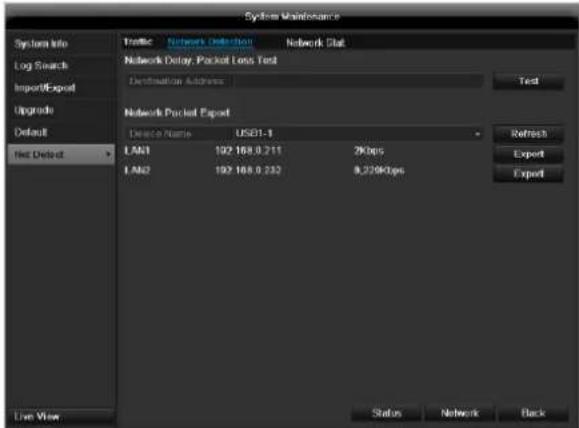

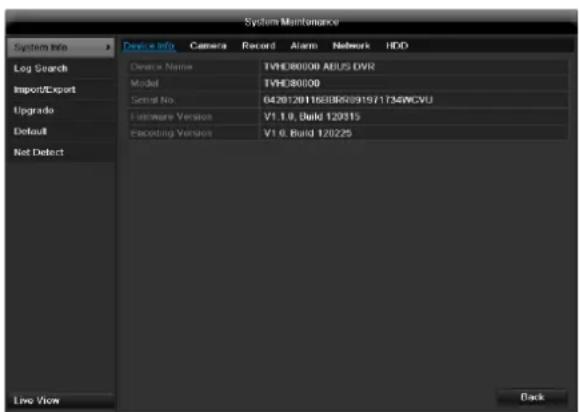

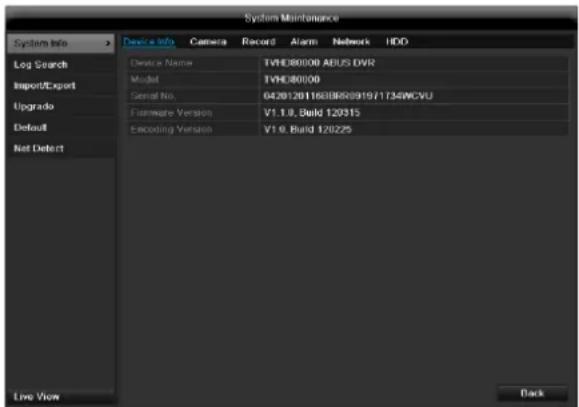

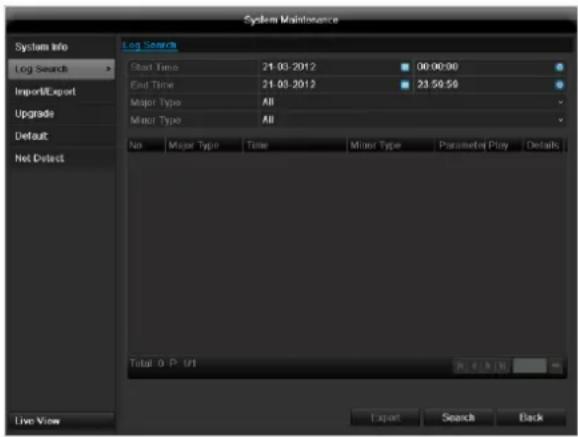

Maintenance	System information, searching logs, importing/exporting configurations, device maintenance such as updating new firmware, loading factory settings, displaying network loads.	104

Settings Configuration Camera Record HDD Manual Management Back

Menu description

Menu	description	page
Configuration	Used for managing all device settings (General, Network, Live View, Exception, User).	82
Camera	Menu for setting camera parameters (OSD configuration, image mode, motion recognition, Private Zone, Tamper Monitoring, Video Loss).	91

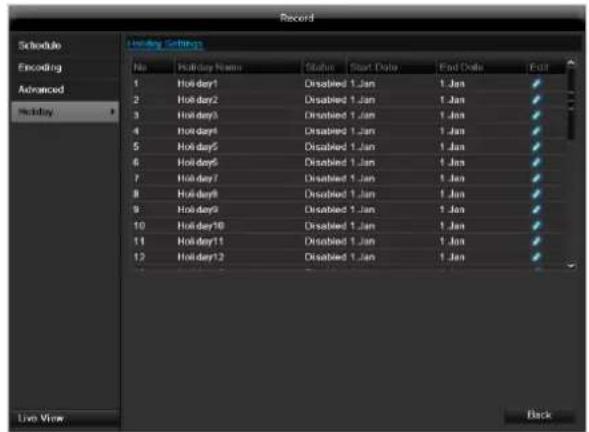

Record	Menu to set recording parameters (time plan, camera resolution, camera stream etc.).	95

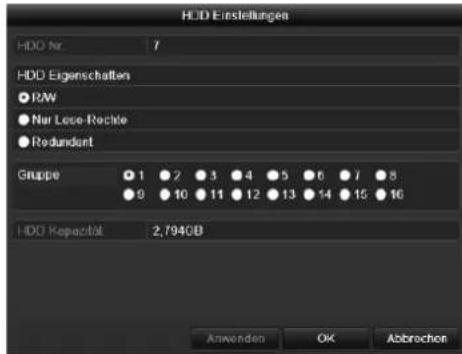

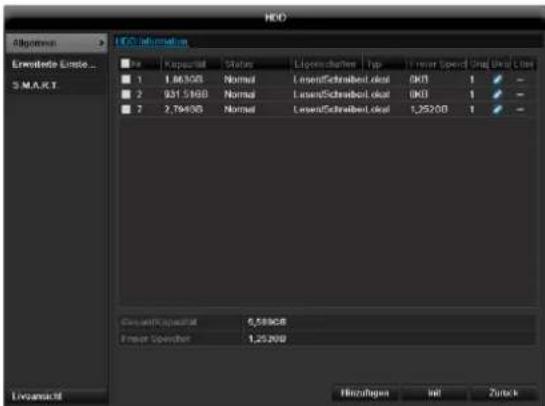

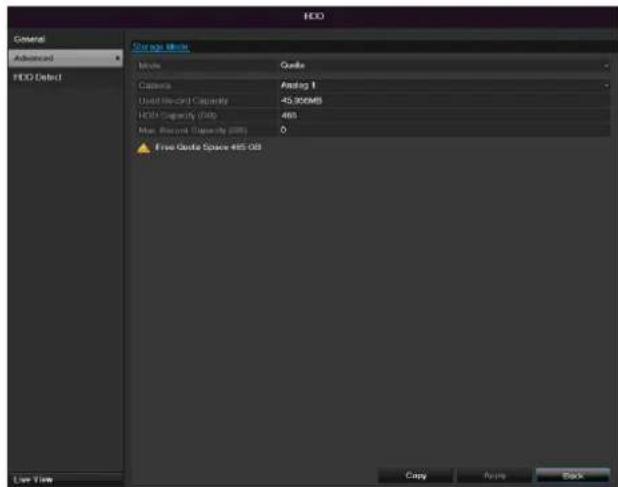

HDD	Used for initialising or managing installed HDD (assigning read/write functions, cameras, network HDD management etc.).	98

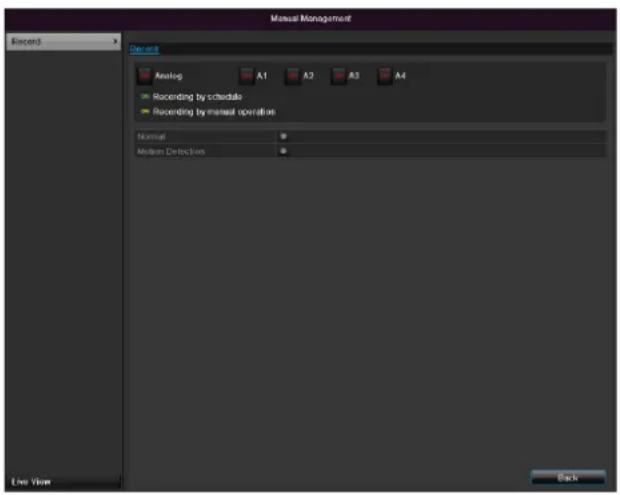

Manual Management	Menu for setting manual recordings.	101

Configuration

Configuration General DGT Settings More Settings Language English CVRRs Output Standard PAL Resolution 1024*764/0HZ Time Zone (GMT+01.00) Amsterdam, Berlin, Rome, Paris Data Format DD:MM/YYYY System Data 21.03.2012 System Time 09:52:52 Mouse Pointer Speed Flicker Wizard Locable ID Authentication Live View Apply Back

Note

The "Configuration" menu is used to manage all device settings.

Warning

Ensure that the date and time are set correctly.

IMPORTANT:

Subsequent changes to the settings can lead to data loss!

Ensure a data backup has been made in good time beforehand.

Overview

Menu	Setting	Page
General	Language, video, time, date, mouse pointer, password, time zones and other settings	83
Network	Required network settings (manual IP, DHCP, PPPOE, DDNS etc.)	85
Live View	Display settings and assignment of the event output	63

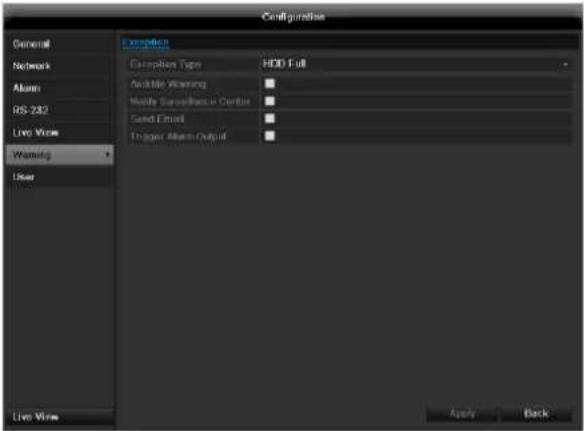

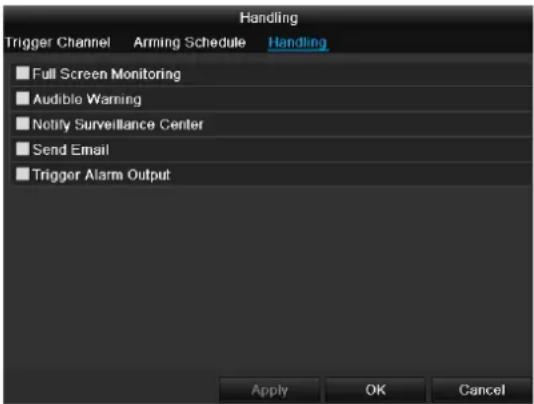

Warning	Behaviour of the device in exceptional cases (HDD full, network disconnected etc.)	89

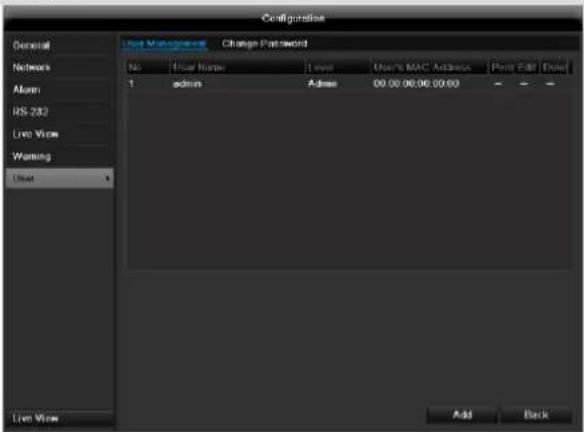

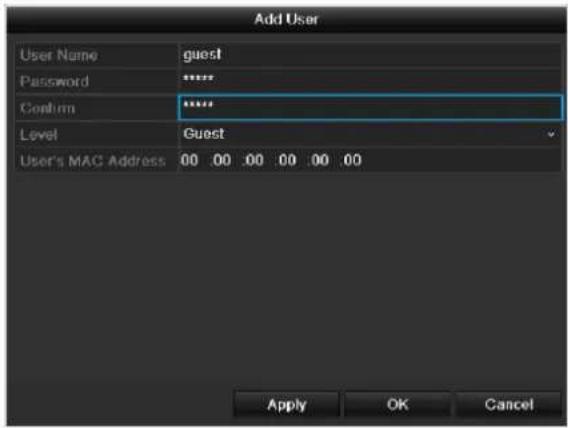

User	Adding and changing users, assigning authorisation rights	89

Note

Pay attention to the instructions in the corresponding sections.

General

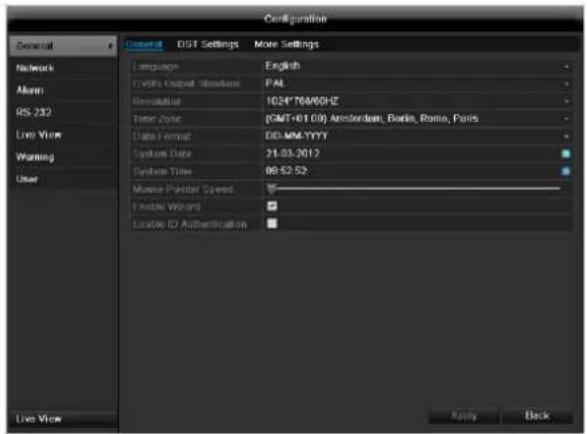

Configuration General DST Settings More Settings Language English LWRL Output Standard PAL Remodality 1024*769R0HZ Time Zone (GMT-01/03) Amsterdam, Berlin, Rome, Paris Date Format DD-MM-TYYY Options Date 21-03-2012 System Time 89:52:52 Mouse Frontier Speed Enable Wizard Enable ID Authentication Live View Apply Back

“General” tab	Setting
Language	Language on the OSD
Resolution	Resolution on the monitor
Time Zone	GMT (Greenwich Mean Time)
Date Format	MM-DD-YYYY, DD-MM-YYYY, YYYY-MM-DD
System Date/Time	Date and time
Mouse Pointer Speed	Set on the scroll bar (left = low speed; right = high speed)
Enable Wizard	Box ticked:Wizard will appear after restart of the device.
Enable ID Authentication	Box not ticked:In order to enter a menu no password has to be entered. At access by network the password has to be entered.Box ticked:Password must be entered in order to use the menu.
TAB “DST settings”	Setting
Auto DST Adjustment	With an activated check box, the device converts automatically to summer time.
Enable DST	With an activated check box, an exact start / end date can be selected
From / To	Date of DST start / end
DST Bias	Daylight Saving Time Bias: Correction of the DST to the reference time
TAB “More Settings”	Setting
Device Name	Unique specification of the device
Device Number	Used for unique identification when using remote control
Operation Timeout	Never / 1 to 30 minutes – regulates how long the menu is shown

Confirm the settings by clicking Apply and leave the menu with OK.

Network configuration

Correct network settings are essential in the following cases:

- When using remote control of the device and surveillance over your server

i

Note

Please read the following basic instructions before setting up the device.

A network is a connection of at least two network-capable devices.

Transmission types:

• Wired networks (e.g. CAT5 cable)
  • Wireless networks (WLAN)
  • Other transmission types (Powerline)

All systems have certain similarities, but can also differ in many ways.

Terms and definitions

An overview of relevant terms when using the device in a network can be found below.

Parameter	Setting
IP address	An IP address is the unique address of a network device within a network.This address may only appear once within a network. Certain IP address ranges are reserved for public networks (e.g. the Internet).
Private address range	e.g. 10.0.0.0 – 10.255.255.255Subnet mask: 255.0.0.0172.16.0.0 - 172.31.255.255Subnet mask: 255.255.0.0192.168.0.0 - 192.168.255.255Subnet mask: 255.255.255.0
Subnet mask	A subnet mask is a bit mask used for making decisions and assignments during routing.255.255.255.0 is the standard subnet mask in home networks.
Gateway	A gateway is a network device which allows all other network devices to access the Internet.This can be the computer connected to the DSL modem or – usually – the router or access point within the network.

Parameter	Setting
Name server	The name server is responsible for assigning a unique IP address to a web address or URL (e.g. www.google.de). Also known as DNS (Domain Name Server).When a domain name is entered into a browser, the DNS searches for the corresponding IP address of the server and forwards the query on.The IP of the provider's DNS can be entered here. However, it is often sufficient to select the IP of the gateway. This then forwards the queries independently to the provider DNS.
DHCP	The DHCP server automatically assigns the IP address, subnet mask, gateway and name server to a network device.DHCPs are available in current routers. The DHCP service must be specially set and activated (see the corresponding manual for more information).Note:When using fixed IP addresses and a DHCP server, make sure that the fixed IP addresses are outside the address range assigned by DHCP. Otherwise, problems could occur.
Port	A port is an interface used for communication by different programs. Certain ports are fixed (23: Telnet, 21: FTP), whilst others can be freely selected. Ports are important for different applications (e.g. external access to the device over a browser).
MAC address	The MAC address (Media Access Control or Ethernet ID) is the specific hardware address of the network adapter. This is used for the unique identification of the device in a computer network.

Network layout

The device must be physically connected to the network over a CAT5 cable (see the connections on page 62).

Note

Pay attention to the specific information and instructions on the network devices.

Several switches, routers and access points can be connected to each other. Firewalls and other security software can affect the network.

Warning

When using a router, the network clients (e.g. the recorder) can be connected to the Internet and vice versa.

Make sure to use protective measures to prevent unauthorised external access (e.g. firewall, changing passwords, changing ports)!

Network-configuration

Configuration General General PPPOE DONS NTP Email SNMP More Settings Network Alarm RS-232 Live View Warning User MAC Type 10W/100M/1000M Self-adaptive Enable DHCP IPv1 Address 192 168 0 .1 IPv1 Subnet Mask 255 255 255 0 IPv1 Default Gateway 192 168 0 .1 MAC Address MTU(Bytes) Preferred DNS Server Alternate DNS Server Apply Back

TAB	Settings
General	Settings for the local net and selecting the network mode.
PPPOE	PPPOE is used on ADSL connections and when using modems in Germany. Click on “Set” to enter the access data (ID and password) for your provider.
DDNS	Server for Dynamic Domain Name System management. Used for updating host names or DNS entries
NTP	Network Time ProtocolServer for time synchronisation
Email	Used to specify the e-mail settings which are sent as an e-mail to a specific address in the event of an alarm.
SNMP	Configure the parameters to receive information about the device status.
UPnP	Universal Plug and PlaySettings for the convenient control of network devices in an IP network.
More Settings	Used to configure the IP address of the PC where a message should be displayed in the event of an alarm

TAB General

Parameter	Setting
NIC Typ	Set the transmission speed of the installed network card here. Tip: 10M/100/1000M self adaptive
Enable DHCP	Tick the box if the IP addresses are assigned dynamically via DHCP in the network. DHCP activated: Subsequent entry fields are inactive (parameters assigned via DHCP). Note: If the IP addresses are assigned manually, ensure that DHCP is not active (box not ticked).
IPv4 Adress	Address of the network device in the network (manual assignment)
IPv4 Subnet Mask	Usually 255.255.255.0
IPv4 Default Gateway	Address of the gateway for Internet access
IPv6 Adress 1	Currently no functioning
IPv6 Adress 2	Currently no functioning
IPv6 Standard Gateway	Currently no functioning
MAC Adress	Hardware address of the installed network card
MTU (Bytes)	Describes the max. size of the largest protocol data .
Preferred DNS Server	Address of the Domain Name Server (usually the IP address of the gateway)
Alternate DNS	IP address of the alternative DNS server
Report network interruption	Box ticked: Acoustic alarm in the event of a network interruption

Note

In certain modes some of these settings cannot be selected.

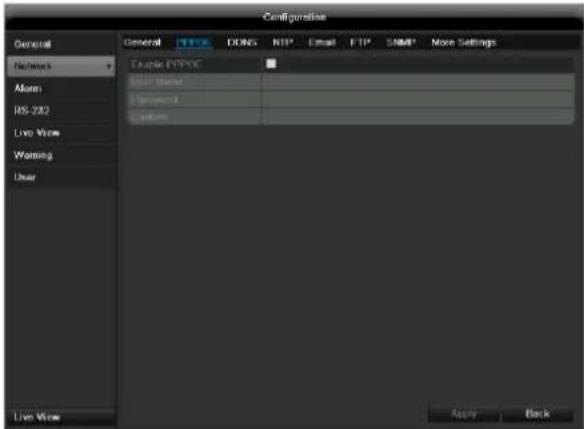

PPPOE

Configuration General Networks Alarm RS-232 Live View Warning User Live View General TYPE DONE FTP Email FTP SNMP More Settings Enable HTTPX User Name: Version 1 Login: Apply Back

1. Tick the PPPOE box, enter the user name (Internet access ID) and password, then confirm the password.

2. Confirm the settings by pressing Apply.

Warning

Use PPPOE only if there is no router available.

DDNS

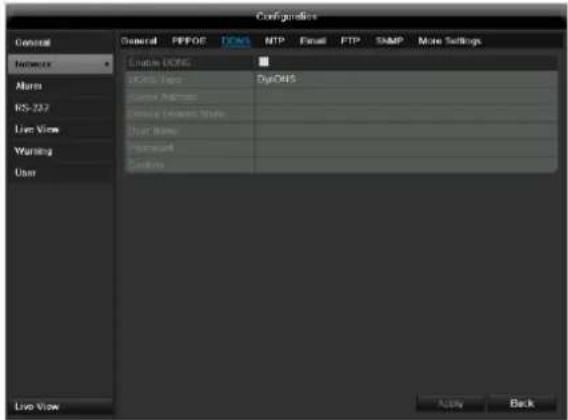

Configelines General PEFOE DCMS NTP Email FTP SAMP Move Settings Networks Mars RS-222 Live View Warning User Enable DLNG DLNG Type DryOHS Current Portion: Device Connection Style: User Name: Microsoft System: Live View Apply Back

1. To use the ABUS DDNS function, you must first set up an account under www.abus-server.com. Please note the FAQs on the website when doing this.

2. Tick the "Enable DDNS" box, enter 'ABUS DDNS' as the "DDNS Type", then enter www.abus-server.com or "62.153.88.107" under "Server Address".

3. Confirm the settings by pressing Apply. The IP address of your Internet connection is now updated on the server every minute.

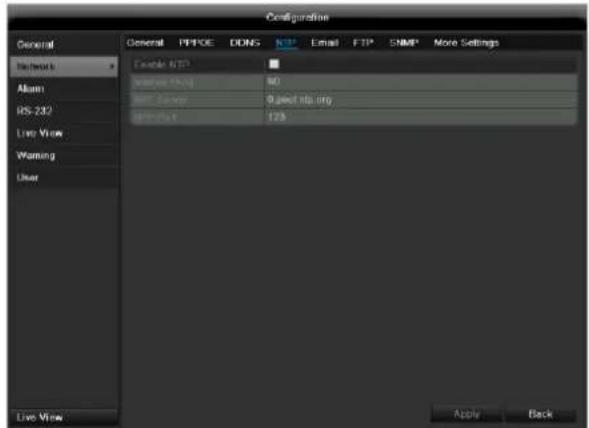

NTP

Configuration General Network Alum RS-232 Line View Warning User Live View General PPFGE DONG NTP Email FTP SNMP More Settings Enable NTP Network Name: 80 NTP Address: 9. Just No.org Service ID: 123 Apply Back

Note

The recorder can synchronise the time with an external server. Several server addresses are available on the Internet for this purpose.

1. Tick the "Enable NTP" box and then enter the interval at which the synchronisation should be made again. Enter the IP address of the NTP server and the NTP port.

2. Confirm the settings by pressing Apply.

Email

In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here:

Configuration General PFPOE ECONS NTP Fit FTP SNMP More Settings Enable Server Networking User name Password SMTP Server SMTP Port 36 Enable I/O. Sendiri Sendiri's Address Select Discountes Receiver 1 Receive Receive's Address Enable Address Packet Sendiri 36 Test Apply Back Live View

Parameter	Setting
Enable Server Authentica...	Tick the box when authentication is made on the server of the Internet provider
User Name	E-mail account at the provider
Password	Password connected to the e-mail account
SMTP Server	SMTP server address of the provider
SMTP Port	Enter the SMTP port here (Default: 25)
Enable SSL	Tick the box to activate the e-mail encryption
Sender	Name of the sender

Sender's Adresse	Corresponding e-mail address for the e-mail account
Sender's Receiver	Select three possible recipients for the e-mail
Receiver	Enter the name of the recipient here
Receiver's Adresse	Enter the e-mail address of the recipient here
Enable Attached Picture	Tick the box when camera images should also be sent with the e-mail as photo files
Interval	Select the interval between the individual recordings (2 to 5 seconds)

1. Enter the parameters of the e-mail notification.

2. Click on Test to send a test e-mail.

3. Please clarify if your settings are correct and you have received a confirmation mail. Then click on Apply.

Note

The device sends an e-mail to the specified recipients.

If the e-mail is not received, check the settings and correct them.

If necessary, check the spam filter of your e-mail client.

Note

Because of the cause of compatibility please do only use E-Mail clients where a dial-up via SMTP is possible.

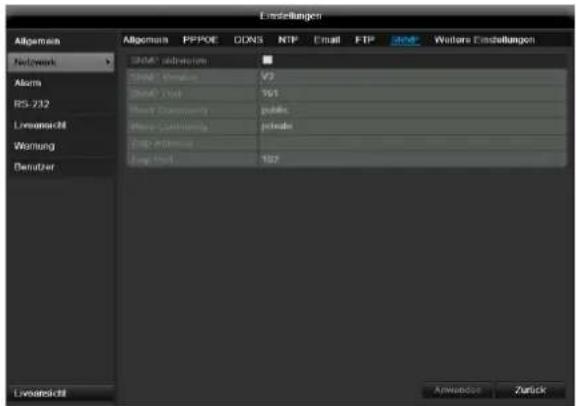

SNMP

Einstellungen Allgemein Network Alarm RS-232 Livemail Waltung Demutzer Allgemein PPPOE DONS NTP Email FTP Weitere Einstellungen SNAP radioform Wireless USB 240 Next Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Generation New Distribution Adder... Remove... Adder... Remove... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder... Adder...

Parameter	Setting
Activate SNMP	Activate the checkbox to create a connection to SNMP software
SNMP version	Version of the SNMP system
SNMP port	Enter the SNMP port(Default: 161)
Read community	Enter the “Key” according to the settings of your SNMP software.
Write community	Enter the “Key” according to the settings of your SNMP software.
Trap address	Enter the IP address of the SNMP manager
Trap port	Enter the trap port(Default: 162)

Note

SNMP is used for monitoring the device status. For this you need SNMP software not available from ABUS.

Confirm the settings by clicking Apply and exit the menu with Back.

UPnP

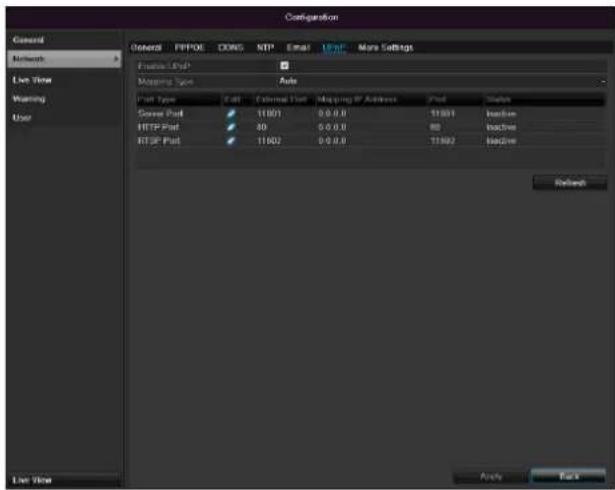

Configuration General FIPPOE DOGS NTP Email Link Main Settings Network Live Time Warning User Fusion14* Mapping Type Auto Port Type Cell External Port Mapping IP Address Pilot Status Server Port 11001 0.0.0.0 11001 Inactive HTTP Port 40 0.0.0.0 80 Inactive FTP Port 11002 0.0.0.0 11002 Inactive Refresh Last Time Apply Next

Parameter	Settings
Enable UPnP	Tick box to activate visibility in an IP network.
Mapping Type	Select here whether port mapping is to be conducted automatically or manually.

Confirm the settings by clicking Apply and exit the menu with Back.

More settings

Configuration General General PFDE DINS NTP Email FTP SNMP More Settings Network Alarm Host ID Alarm Host Port 0 Server Port 8000 HTTP Port 80 Multi- port RTSP Service Port 954 Live View Apply Back

Parameter	Setting
Alarm Host IP	Network address of the PC where the CMS is installed
Alarm Host Port	Port of your CMS Station
Server Port	Port for data communication (General: 8000)
HTTP Port	Port for web server (General: 80)
Multicast IP	In order to minimize traffic you can enter a Multicast IP. The IP address has to match the IP address of the PC running the CMS software.
RTSP Service Port	RTSP-port(Default: 554)

Note

Server port 8000 and HTTP port 80 are the standard ports for remote clients and remote Internet browser access.

Note

With Alarm Host IP/Port you configure the address of your CMS software. The CMS software is notified when there is an alarm, and performs various reactions depending on the setting.

Warning

Configuration General Network Alarm RS-232 Live View Warning User Exception Exception Type HDD Full Accessible Warning Modify Security Center Send Email Trigger Alarm Output Live View Apply Back

You can trigger a warning for the following error types:

• HDD Full
• HDD Error
  • Network Disconnected
• IP Conflict
• Illegal Login
  • Video input/output signals not equal
• Exception Error

Parameter	Notifications
Audible Warning	The device emits a repeating tone.
Send E-mail	An e-mail is sent to a specific e-mail address.

User

Configuration General Network Alarm HS-232 Live View Warning User User Management Change Password No User Name Level User's MAC Address Point Edit Window 1 admin Address 00:00:00:00:00 Add Back Live View

Warning

Note down the admin password.

The following password is preset

"1 2 3 4 5"

You can add new users, delete existing users and change the settings in the "User Management" menu.

1. To add a new user, select Add.

Add User User Name guest Password ****** Confirm ****** Level Guest User's MAC Address 00 00 00 00 00 00 Apply OK Cancel

Parameter	Setting
User Name	Unique identification
Password	Access code for the device (device management)Note: Change all passwords on a regular basis, using a combination of letters and numbers. Note down all passwords in a safe place.
Confirm	Enter the access code again here
Level	IMPORTANT:More access rights can be set on the Manager level than on the User level.
User's MAC Address	MAC address of the network adapter on the PC of the corresponding userNote:This limits access to the PC whose MAC address is entered here!

1. Enter the name and password and confirm the password in the field below.
2. Select the level and enter the MAC address.
3. Confirm the settings by clicking Apply.

Warning

Pay attention to the instructions below on assigning access rights.

Permission

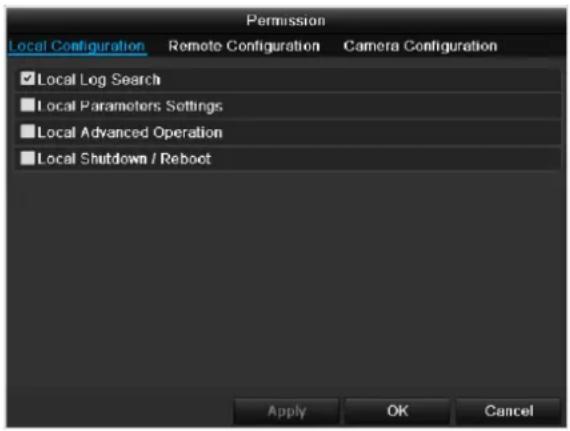

Control the access rights of the user by clicking the "Permission" symbol. Only the access data of users added manually can be changed:

Permission Local Configuration Remote Configuration Camera Configuration ✓ Local Log Search ■ Local Parameters Settings ■ Local Advanced Operation ■ Local Shutdown / Reboot Apply OK Cancel

i

Note

The user can make the settings locally (i.e. on the device) or change the parameters.

The user can access the device via the network connection.

The “Camera Permission” tab is used to set access rights for individual cameras (network or local).

Parameter	Setting
Local Configuration	Local Log SearchLocal Parameters SettingsLocal Advanced OperationLocal Shutdown / Reboot
Remote Configuration	Remote Log SearchRemote Parameters SettingsRemote Serial Port CtnrolRemote Video Output CntrolTwo-way AudioRemote Alarm ControlRemote Advanced OperationRemote ShutDown / Reboot
Camera Configuration	Camera Permission

Warning

Change the general settings of the user (name, password, level, MAC address) by clicking the "Edit" symbol or in the TAB "Change password".

Camera

OSD

Kamera Vermöhung OSD Bid PT7 Bewegung Privatzone Sathologsüberw Videoverlust OSD Konfjektungen Kategorie Analog 1 Hamp Gelene 01 Name: 01321 Coban extra. Nacho angle Coban For MM OD-YYYY Post Format 24 Standen Range M: Nicht Transpohort & Nicht Elinker - ISO-Port Mille Livonsicht Kopiere Amaxhalla Zutick

Camera	Camera to be set
Camera Name	Allocation of camera name
Display Name	Activate / deactivate display of camera name in the live view
Display Date	Activate / deactivate display of date in the live view
Display Week	Activate / deactivate display of week in the live view
Date Format	Selection of date display type
Time Format	12 hours / 24 hours
Display Mode	Settings relating to the presentation of camera name and date
OSD font	Changing the font size

PTZ

Kamera Algemeine Wursee Fristallbogen Kamera Kamera 1 Preset spichorn 1 2 3 4 5 6 Preset autrilon 7 8 9 10 11 12 13 14 15 16 17 Master 1 Tour 1 Keyboard Preset Line Lowansicht Zurück

Saving and retrieving presets

1. Use the arrow buttons to move the camera to the required image section and save the position, for example as Preset 1.

2. Click on Call up to move to Preset 1.

Setting up and calling up patrols

1. Create several presets to use for the patrol.
2. Click on + to select a preset.
3. Add more presets to set up the required patrol.
4. Then click on the play symbol to start the patrol.

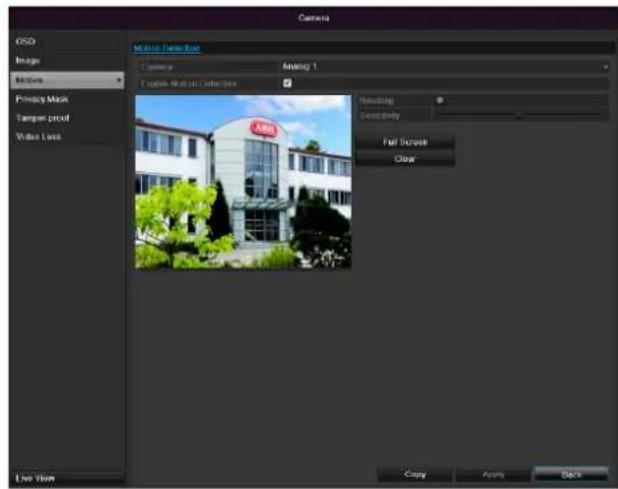

Motion

Select the camera channel under "Camera".

Select the checkbox for the motion detection.

Camera New Camera Icon Camera Analog 1 New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera Icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera icon New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera image New Camera photo

Handling

Trigger Channel

When "Reaction" is clicked, the TAB Trigger channel appears (only with motion recognition):

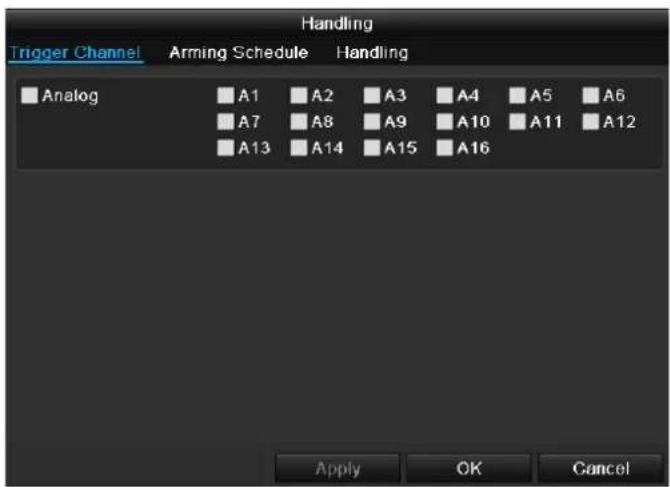

Trigger Channel Arming Schedule Handling Analog A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 Apply OK Cancel

Select one or more camera channels that should carry out a reaction in the event of an alarm.

Confirm the settings by clicking Apply and leave the menu with OK.

Armin Schedule

Select the TAB Arming Schedule.

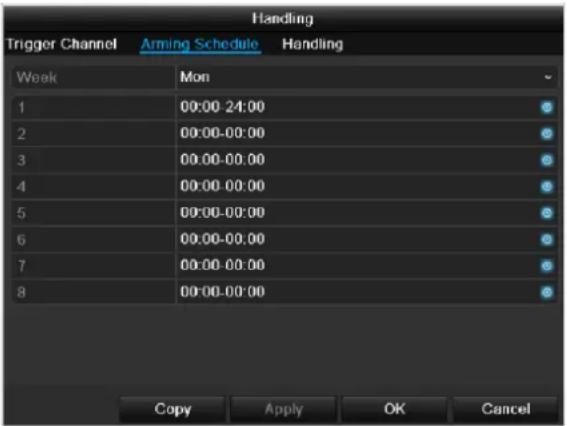

Here you set the times when the reactions in the TAB Reaction are triggered.

Trigger Channel Arming Schedule Handling Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

1. Select the day and enter the schedule.

i

Note

In order to record using the motion recognition, you must set the time plan at recording (see p. 95).

i

Note

You can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual periods must not overlap.

1. Select whether the settings should be applied to all days of the week with using Copy.
2. Confirm the settings by clicking Apply and leave the menu with OK.

Handling

Click on the TAB Handling.

Here you can configure the behavior of the recorder during a detected event (for example: motion got detected) by clicking the respective check box.

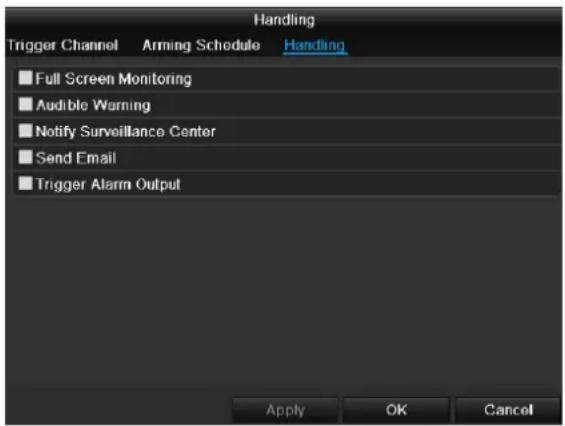

Handling Trigger Channel Arming Schedule Handling ■ Full Screen Monitoring ■ Audible Warning ■ Notify Surveillance Center ■ Send Email ■ Trigger Alarm Output Apply OK Cancel

Parameter	Notification
Full Screen Monitoring	The camera is displayed as a full-screen picture in live cast
Audible Warning	The device emits a repeating tone
Send E-Mail	An e-mail is sent to a specific e-mail address.

- Confirm the settings by clicking Apply and leave the menu with OK

Private Zone

Select the camera channel under "Camera".

Select the checkbox for activating the private zone.

1. Select up to four private zones with the mouse.
2. Select Copy if the setting is to be applied for all cameras.
3. Confirm the settings by clicking Apply and exit the menu with OK.

Tamper monitoring

Select the camera channel under "Camera".

Select the checkbox for activating tamper monitoring.

Armin Schedule

Select the TAB Arming Schedule.

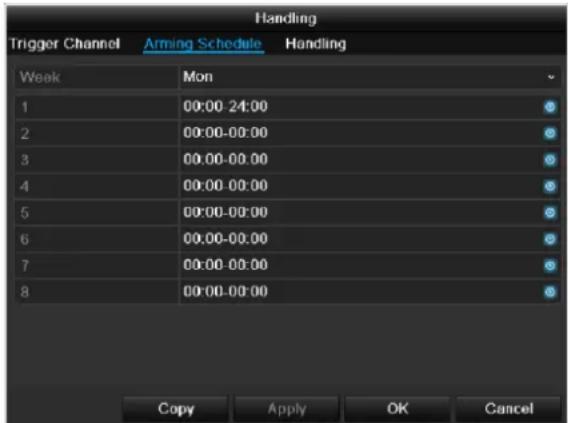

Here you set the times when the reactions in the TAB Reaction are triggered.

Trigger Channel Arming Schedule Handling Weak Mon 1 00:00 24:00 2 00:00-00:00 3 00:00-00:00 4 00:00 00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

1. Select the day and enter the schedule.

i

Note

You can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual periods must not overlap.

1. Select whether the settings should be applied to all days of the week with using Copy.
2. Confirm the settings by clicking Apply and leave the menu with OK.

Handling

Click on the TAB Handling.

Here you can configure the behavior of the recorder during a detected event (for example: motion got detected) by clicking the respective check box.

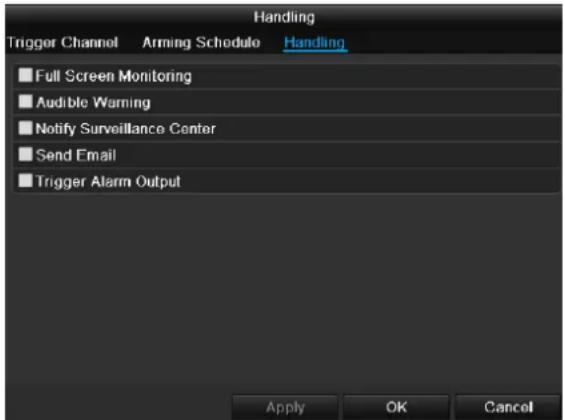

Handling Trigger Channel Arming Schedule Handling Full Screen Monitoring Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output Apply OK Cancel

Parameter	Notification
Full Screen Monitoring	The camera is displayed as a full-screen picture in live cast
Audible Warning	The device emits a repeating tone
Notify CMS	Sends an alarm signal to a PC with ABUS CMS software. The software must be enabled and the recorder set to surveillance mode on the PC.
Send E-Mail	An e-mail is sent to a specific e-mail address
Trigger alarm output	See page 46

- Confirm the settings by clicking Apply and leave the menu with OK

Video signal loss

Select the camera channel under "Camera".

Set the checkmark for the alarm in the event of a "Video Loss".

Armin Schedule

Select the TAB Arming Schedule.

Here you set the times when the reactions in the TAB Reaction are triggered.

Trigger Channel Arming Schedule Handling Week Mon 1 00:00 24:00 2 00:00-00:00 3 00:00-00:00 4 00:00 00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

1. Select the day and enter the schedule.

Note

You can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual periods must not overlap.

1. Select whether the settings should be applied to all days of the week with using Copy.
2. Confirm the settings by clicking Apply and leave the menu with OK.

Handling

Click on the TAB Handling.

Here you can configure the behavior of the recorder during a detected event (for example: motion got detected) by clicking the respective check box.

Handling Trigger Channel Arming Schedule Handling Full Screen Monitoring Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output Apply OK Cancel

Parameter	Notification
Full Screen Monitoring	The camera is displayed as a full-screen picture in live cast
Audible Warning	The device emits a repeating tone
Notify CMS	Sends an alarm signal to a PC with ABUS CMS software. The software must be enabled and the recorder set to surveillance mode on the PC.
Send E-Mail	An e-mail is sent to a specific e-mail address
Trigger alarm output	See page 46

- Confirm the settings by clicking Apply and leave the menu with OK

Record

Setting up

Open the main menu and click on record:

Schedule

The schedule is used to specify the recording times and triggers (recording type) for the cameras. Click on the "Schedule" tab:

Note

Because there is no difference between the settings for the TABs record and instant image, these are only listed once.

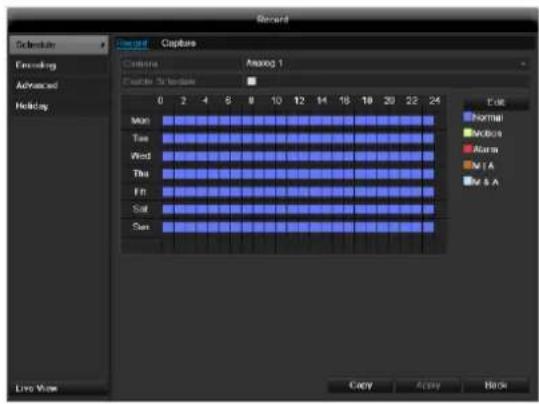

Timeline Capture Actions Advanced Holiday Cinema Ampo 1 Example Update 0 2 4 6 8 10 12 14 16 18 20 22 24 Mon Tue Wind Thu Fri Sat Sun E-mail Normal Audio Audio M I A M & A Live Now Copy Apply Back

In the OSD, the hours of the respective days are listed from left to right (the days are listed from top to bottom). A colour key is shown underneath the days (i.e. the recording periods in the schedule are shown in colour according to the trigger (recording types)).

Colour symbol	Key
Blue	Normal recording: Period in hours
Yellow	Motion detection
Light blue	Motion detection and alarm
Red	Alarm
Grey	No selection
Brown	Motion or alarm

• Select the camera and click on the check box Enable Schedule.
• Click on Edit to specify the type and duration of the time plan

Edit Schedule Mon All Day StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00:00:00 Type Normal StartEnd Time 00:00.00:00 Type Normal Copy Apply OK Cancel

1. Define the day to be set in the pull-down menu at 'Schedule'.
2. Activate/deactivate 'All day'. If the full day is active, no definite times can be entered as the setting is now valid for the whole day.
3. To make specific time settings, deactivate the "All Day" box.

Application example

Recording should run from 11:00 to 07:00. 2 time zones must be set up for this:

1. 11:00 AM - 24:00PM

2. 00:00 AM - 7:00 AM

3. Specify the recording type in the drop-down menu:

4. Time

5. Motion detection
6. Alarm
7. Motion detection or alarm

8. Motion detection and alarm

9. When making a specific time setting, you can define up to 8 time periods (each from 00:00 to 24:00). The times in the individual periods must not overlap.

Note

The "Time" recording type defines the time window where a recording is made.

The other events (e.g. motion detection and/or alarm) only trigger the recording after the specific event has occurred.

- At Copy you can take on this setting for other days or the whole week.

1. Finalize your settings in the record screen with Apply and then OK.

Encoding

Record

The schedule is used to specify the recording times and triggers (recording type) for the cameras.

The following setting options are available in this sub-menu:

Camera	Camera to be set
Encoding Parameter	Stream to be set
Stream Type	Predefined video stream
Resolution	CIF / 4CIF / VGA / HD720P / 1080P
Bit rate	Select a variable or constant bit rate
Video Quality	There are various quality levels: +++: medium quality+++++: high quality
Frame rate	Setting for the stream frame rate
Max. bit rate mode	Select the mode for setting the bit rateUser def. (32 – 8192)
Max. bit rate (kbps)	Setting for the maximum bit rate
Recommended max. bit rate	Recommended bit rate depending on the set resolution, frame rate, etc.
Lead time	Recording period before an alarm (in seconds)
Overrun time	Recording period after an alarm (in seconds)
Mark elapsed time	Setting for the longest retention time for recorded files.

Confirm the settings by clicking Apply and exit the menu with OK.

TAB Substream

Camera	Camera to be set
Stream Type	Predefined video stream
Resolution	CIF / 4CIF / VGA / HD720P / 1080P
Bit Rate Type	Select a variable or constant bit rate
Video Quality	There are various quality levels: +++: medium quality+++++: high quality
Frame rate	Setting for the stream frame rate
Max. bit rate mode	General, user def. (32 – 8192)
Max. bit rate (kbps)	Display of the maximum bit rate
Recommended max. bit rate	3072~5120 (kbps)

Confirm the settings by clicking Apply and exit the menu with Back.

Advanced settings

Record Schedule Encoding Advanced Holiday Current/Capture Settings Currents Yes ASATA Record/Capture Live View Apply Back

Overwrite

You can specify whether older recordings are deleted when the HDD memory is full

Holidays

Record Schedule Encoding Advanced Holiday Holiday Settings No.Holiday Name Status Start Date End Date End 1.Holder1 Disabled 1 Jan 1 Jan 2.Holder2 Disabled 1 Jan 1 Jan 3.Holder3 Disabled 1 Jan 1 Jan 4.Holder4 Disabled 1 Jan 1 Jan 5.Holder5 Disabled 1 Jan 1 Jan 6.Holder6 Disabled 1 Jan 1 Jan 7.Holder7 Disabled 1 Jan 1 Jan 8.Holder8 Disabled 1 Jan 1 Jan 9.Holder9 Disabled 1 Jan 1 Jan 10.Holder10 Disabled 1 Jan 1 Jan 11.Holder11 Disabled 1 Jan 1 Jan 12.Holder12 Disabled 1 Jan 1 Jan Live View Back

In this sub-menu, 32 different recording settings for vacations or public holidays can be applied.

To apply these settings click on the "Edit" symbol:

Edit Holiday Name Holiday1 Enable Mode By Month Start Date Jan 1 End Date Jan 1 Apply OK Cancel

Holiday Name

Manual name entry of the vaca-

	tion or holiday
Enable	Activate or deactivate the set vacation
Mode	According to date / week / month
Start Date	Selection of start date / start time
End Date	Selection of end date / end time

Confirm your settings with Apply and OK.

HDD

HDDs

Note

The device can manage two 3.5" SATA hard disk drive.

Each of the installed HDDs must be initialised before the device can be used for recording. The device only detects the HDD and its assignment after initialisation has been made.

Warning

All data is deleted from the HDD during initialisation.

Ensure a data backup has been made in good time beforehand.

Installing the HDD

1. Disconnect the device from the mains power and open the cover.
2. Observe the applicable ESD guidelines when handling electronic devices and ensure they are earthed.
3. Do not open the device in rooms with carpets or other surfaces that can become electro statically charged.
4. Avoid bodily contact with all components on the PCB.

Warning

If you have questions regarding the information or cannot find the information you need, please contact your maintenance specialist.

1. Install the HDD and then connect it.
2. Reattach the cover and connect the device to the mains power supply.

Note

If the initialised HDD is not displayed, check the connections

Click on "HDD" in the menu to define settings relating to hard disc administration

HDD Management parameters

HDD General Advanced SMART HDD Information Label Capacity Status Property Type Freq Spacing Grid Edit Help 1,00500 Normal NAV Local ON2 1 Total Capacity 1,00500 Free Spacing ON3 Add Init Back Live View

HDD information
No.	Shows the internal connection number
Capacity	HDD capacity (in GB)
Status	Shows the current status of the HDD:Not initialisedNormalErrorStandby
Features	Read-only: Read-only protectionR/W: Read and write
Type	Local: Device HDDNFS: Network HDDIf possible, avoid using NFS storage due to compatibility problems that may occur.
Free Space	Shows the approximate free memory for recordings
Delete	Remove the hard drive

1. Select the HDD by ticking the corresponding box.
2. Start the process by clicking on Init.
3. Confirm the prompt by pressing OK.
4. The status bar shows the progress of the initialisation.
5. Nach Beendigung des Vorgangs erscheint die Festplatte.

HDD settings of the cameras

Click on the "Advanced" submenu

Mode: Storage

HDD General Advanced HDD Defect Storage Items Module Quote Camera Anglog 1 Used Record Capacity 45.300MB LED Capacity (USB) 465 Max Record Capacity (MM) 0 Free Quote Space: 485 GB Live View Copy Apply Back

• Camera
• Selection of the camera channel for processing.
  • Used Record Capacity
• File size of a recording file
• HDD capacity (GB)
  • HDD capacity (in GB)
  • Max. capacity (GB) for recordings

• Specify the maximum recording size on the hard disk drive for each camera.

• Select Copy if the setting is to be applied for all cameras.

• Confirm the settings by clicking Apply and exit the menu with OK.
• Click Apply and confirm the restart in the next window with OK.

S.M.A.R.T.

S.M.A.R.T. means Self-Monitoring Analysis and Reporting Technology.

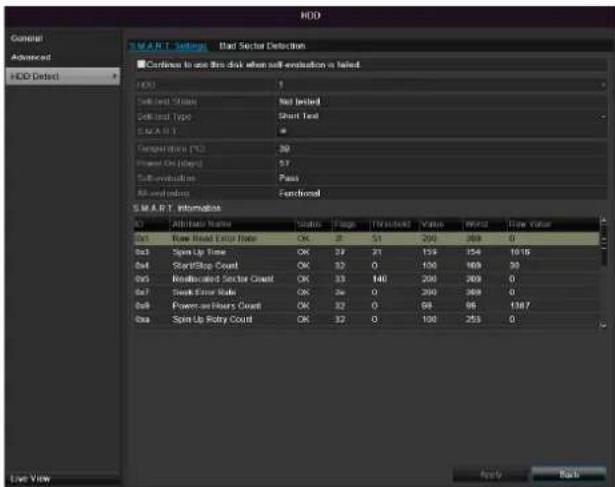

HDD General Advanced HDD Defect Continuous to use this disk when self-evaluation is listed 100 Subtract Status Not listed Subtract Type Short Test S.M.A.R.T. Temperature (°C) 20 Project On (bps) 57 Self-evaluation Pass All-ewindles Functional S.M.A.R.T. Information ID Attribute Name Scale Flags Threshold Value WIND Flow Value 0x1 Raw Read Error Rate OK 27 51 200 269 0 0x3 Spin-Up Time OK 27 21 159 154 1015 0x4 Start/Stop Count OK 32 0 100 169 30 0x5 Reiterated Sector Count OK 33 140 200 269 0 0x7 Seek Time Rate OK 26 0 200 269 0 0x8 Power-on Hours Count OK 32 0 59 96 1387 0x9 Spin-Up Rotor Count OK 32 0 100 253 0

Click on the "S.M.A.R.T" submenu.

This information helps to recognise hard disc errors. For this reason, do not deactivate this feature if possible.

HDD Einstellungen HDD Nr. 7 HDD Eigenschaften ● RW ● Nur Lese-Rechte ● Redundant Gruppe 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 HDD Repackital 2,794GB Anwenden OK Abbrochen

HDD	Selection of the hard disk drive to be processed.
Self-test status	Shows the status of the current self-test
Self-test type	Select the type of the self-test.Short Test / Expanded Test / Transport Test
S.M.A.R.T	Click on the icon to start the self-test
Temperature (°C)	Display the HDD temperature
Switching on (Days)	Display the operating days of the hard disk drive
Self-evaluation	Status display of the self-evaluation
Complete evaluation	Status display of the evaluation

Confirm the settings by clicking Apply and exit the menu with OK.

Important: If only one HDD is installed and this is set to "Read-only", then the device cannot make recordings.

Checking the HDD status

The status of each HDD can be checked in the “Maintenance” menu. S.M.A.R.T. information (Self-Monitoring, Analysis and Reporting Technology) is stored in the log data.

- Panic recording

• Call up the log file and search according to the information/S.M.A.R.T. HDD.
• You can specify alarms to inform you of HDD errors.
• To do this, call "Warning" in the "Settings" menu.

Recording

Press the REC button or navigate to Panic Recording in the main menu to start manual picture/video recording.

Click on the "Recording" submenu.

Manual Management Record Recent Analog A1 A2 A3 A4 Recording by schedule Recording by manual operation Normal Melan Detection Back

Analog	Select the settings for all camerasClick “Off” or “On” to change the settings.On, green:Recording according to schedule,On, yellow:Recording with manual operationOff, red:No recording.
Duration	Click on permanent recording to activate all channels for the whole day.Click “Yes” to confirm your selection.
Motion detection	Click the symbol to activate motion detection for all channels for the whole day.Click “Yes” to confirm your selection.

Playback

Press Configuration in the main menu and then Play-back to search for video recordings after an event or a marking, or to view your saved images.

Continuous Recording

Normal Event Tag Picture Analog A1 A2 A3 A4 Record Type All File Type All Start Time 21-03-2012 00:00:00 End Time 21-03-2012 23:58:59 Playback Search Cancel

The following settings are available:

A1 - A4	Camera to be set
Record Type	Schedule, motion detection, alarm or motion detection and/or alarm, manual recording, all
File Type	Locked, unlocked, all
Start Time End Time	Enter the date and time

- Click on Search to search for recordings with the corresponding settings. The results are then shown:

Search result Camera Start/nd Time Stop/Play Lock A2 21.03.2012 08:22:36 - 08:34:35 36.80KB A3 21.03.2012 08:22:36 - 08:34:36 36.50KB A4 21.03.2012 08:22:36 - 08:34:35 36.47KB Total: & P : 1/1 Cancel HDD: 1 Start time: 21-03-2012 08:22:36 End time: 21-03-2012 08:34:35 Cancel

- Select the recording by clicking on the line and then on "Play"-symbol.

i

Note

You can return to events search at any time in the playback mode by performing a right click and selecting 'Video Search'.

i

Note

The sub-menus 'Tag' and 'Picture' are almost identical with the menu described above and are therefore not listed separately. In the sub-menu 'Tag', searching does not take

place according to recording type, rather according to identification or a keyword of the markings' name

Event

Please klick on the TAB „Event“.

Normal Event Tag Pictures Event Type Alarm Input Start Time 21-03-2012 00:00:00 End Time 21-03-2012 23:59:59 ✓ Alarm Input No Alarm Name IP Camera Address ✓ A<=1 Local ✓ A<=2 Local ✓ A<=3 Local ✓ A<=4 Local Search Cancel

A list of all event types is displayed.

For "Event Type" select whether a search is to be made for recordings with motion (motion detection).

Select one or more cameras by activating the checkbox. Click on Search.

Select one or more event markings from the list which appears. Click on Details to obtain more information about the recordings.

Video Export

Duration

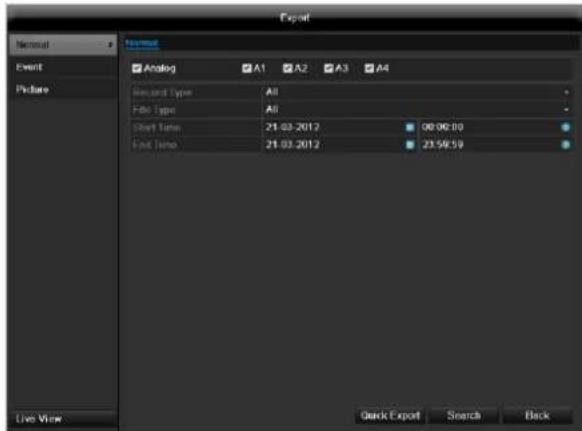

Export Normal Event Picture Analog A1 A2 A3 A4 Record Type All File Type All Start Time 21.03.2012 00:06:00 End Time 21.03.2012 23:58:59 Live View Quick Export Search Back

i

Note

The export function is used to store important recordings on connected external media, such as:

• USB media
• USB HDD
• DVD writer

- When "Quick export" is selected, all recordings of the selected time span are exported. Please note that not more than 24 hours can be exported.

1. Enter the parameters.
2. Click on "Details" to limit the search

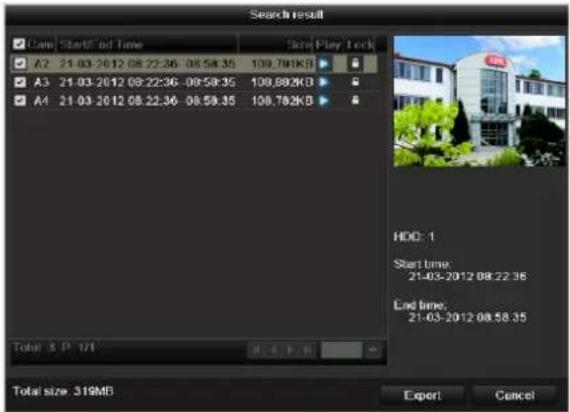

Search result □ Case Start End Time □ Start Play Lock A2 21-03-2012 08:22:36 - 08:58:35 108.791KB ▶ A3 21-03-2012 08:22:36 - 08:58:35 108.882KB ▶ A4 21-03-2012 08:22:36 - 08:58:35 108.782KB ▶ Total: 3 P 1/1 HDD: 1 Start time: 21-03-2012 08:22:36 End time: 21-03-2012 08:58:35 Total size: 319MB Export Cancel

• The file size of the individual recording and the total size of all found recordings are displayed.
• By clicking the "Playback" symbol you can view the respective recording.
• To block or unblock a file click on the "Lock" symbol.
• Click on Export to access the export screen.

Export Device Name USB1-1 Name Size Type Edit Date Delete Play TYHD00000 Folder 15-02-2012 08.02.20 Free Space 849MB New Folder Format Export Cancel

1. Select the connected medium used for data storage from the drop-down menu.
2. If the medium is not displayed, click on Refresh.

- If the medium is still not displayed, disconnect it from the device and reconnect the medium again. See also the manufacturer's specifications.

1. Click on Export to start the export process. The progress of the export process is then displayed.

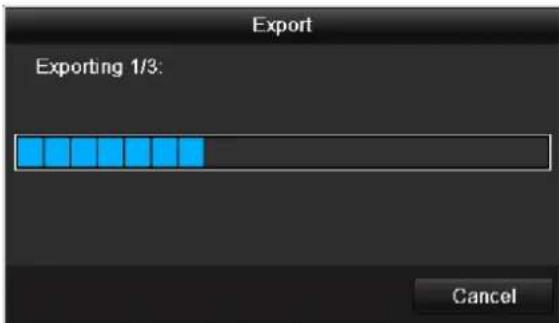

Export Exporting 1/3: Cancel

i

Note

After the storage process is completed, the data on the medium can be selected and played on the player (which was also backed up). In this way, you can check whether the export has been made successfully.

Event (event type 'Motion')

Export Normal Event Picture Event Type Motion Start Time 21-03-2012 00:00:00 Data Time 21-03-2012 23:59:59 Analog A1 A2 A3 A4 Live View Search Back

Define the time span of the recording being searched for by means of the selection fields at "Start time" and "End time". Select the camera by activating or deactivating the check box and click Search.

For both types of event, the following window appears after activating the Search button:

Alarm Input Source Start Time End Time A-1 21-03-2012 09:05:48 21-03-2012 08:05:50 Total 1 P 1/1 Pre-play 30s Post-play 30s Quick Export Details Cancel

Select the files to be exported by activating or deactivating the check box. You can set the pre-alarm and post-alarm time at "Pre-play" or "Post-play". In this way you can define the length of your export video.

Click on Details to view the selected video. For more exact information on the Details window, see DURATION (p. Fehler! Textmarke nicht definiert.).

i

Note

The "Pre-play" recordings can only be viewed when recording has been carried out before the alarm.

i

Note

The sub-menus "Normal" and "Picture" are similar and are therefore not listed separately.

Maintenance

Note

This menu is used for device maintenance, and should only be operated by experienced users.

System Maintenance System Info > Log Search Import/Export Upgrade Default Net Detect Device Name TVHD80000 ABUS DVR Model TVHD80000 Serial No. 042012011630R0291571734MCVU Hardware Version V1.1.0, Build 120315 Encoding Version V1.0, Build 120225 Live View Back

Menu	Setting	P.
System Info	Device information (serial number, firmware status etc.)	104
Log Search	A search of recordings or information (S.M.A.R.T. HDD status) can be made in the log file according to certain criteria (alarms, exceptions, operation or information).	104
Import/Export	Used to export or import the settings	105
Upgrade	Carries out a firmware upgrade	105
Default	System reset	106
Network	Displays the transmission and reception rate of the recorder	106

System Info

System Maintenance System Info > Device Info Camera Record Alarm Network HDD Log Search Device Name TVHD80000 ABUS DVR Import/Export Model TVHD80000 Serial No. 042012011688050919/1734WCVU Upgrade Firmware Version V1.1.0, Build 120315 Default Encoding Version V1.0, Build 120225 Net Detect Live View Back

Note

The information menu shows the technical data for the device and information on the various settings of the cameras, recording etc.

This can be useful for support queries, for example.

Log Search

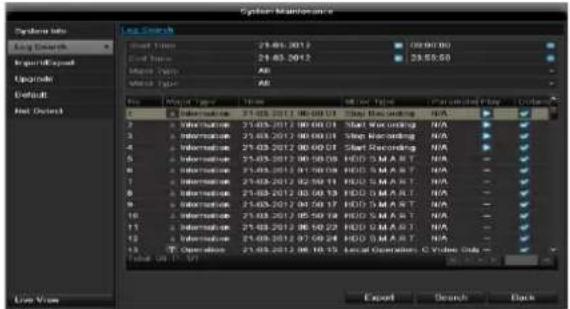

System Maintenance System Info Log Search Start Time 21-03-2012 00:00:00 End Time 21-03-2012 23:59:59 Major Type All Minor Type All No Major Type Time Minor Type Parameter Play Details Total 0 P /M Export Search Back Live View

Note

An event search can be made according to the following main types, events and parameters:

• All
- Alarm
- Exception
- Operation
- Information

Filter1	Filter2
All	-
Alarm	AllAlarm Input/OutputStart/Stop Motion DetectionStart/Stop Tamper-proof
Exception	AllVideo Loss SignalVideo Signal ExceptionIllegal LoginHDD FullHDD ErrorIP ConflictedNetwork DisconnectedException recordingVideo input/output signal not equalRecorder buffer overflow
Operation	All
	Power OnAbnormal ShutdownStart/Stop AudioLocal Operation, e.g.:Shutdown/Reboot/Login/Logout/Configure Parameters/Upgrade/Start RecordingRemote Operation, e.g.:Export Record File/Alarm Arming/ ...
Information	AllLocal HDD InformationHDD S.M.A.R.T.Start/Stop RecordingStart/Stop CaptureDelete Expired RecordNetHDD Information

1. Select the event you wish to search for in the log, then select the sub-parameter.
2. Enter the date and time under "Start Time" and "End Time", then click on Search.
3. The results are then displayed:

System Maintenance Systems Info Log Search Import/Export Upgrade Default Net Object 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

- The pages are changed using the navigation bar:

(1) (2) (3) (4) (5) (6)

Note

To scroll forwards or backwards press (3) or (2). To jump to the first or last page press (4) or (1). To go to a specific page number enter it in (5) and confirm by clicking (6).

• Click on Details to see more detailed information.
• Click on Play to start the recording for the event, when necessary.
• Click on Export to back up the log file on a USB medium.

Import / Export

System Maintenance Import Export Coding File Device Name: USB1.1 Refresh Name: Soft Type: E-81 Data Default Play F:\MSC0003\Folder 16.02-2012.08.02.30 From System: 845MB New Folder Import Export Back Log Search ImportExport Upgrade Default Net Detect Live View

Note

The configuration data contains all settings made on the device since the start of operation. This data can be saved on a USB medium. You can then configure another device identically, for example.

Upgrade

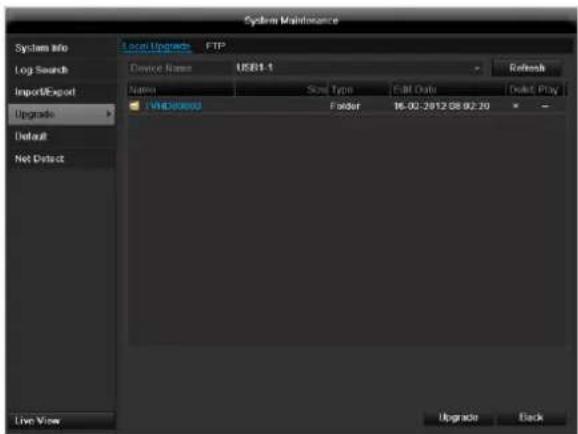

System Maintenance System Info Log Search Import/Export Upgrade Default Net Detect Local Upgrades FTP Device Name USB1-1 Name Size Type Full Only Default Play Fixedset FieldSet 16-02-2012 08:02:20 Live View Upgrade Back

Note

A device upgrade can be made from a USB device or over the network.

• Copy the upgrade file to the main directory of a USB stick.

• Connect the USB stick to a USB port on the device.

• Select the USB port (click on Refresh, if necessary).

• Select the upgrade file and click on Upgrade.
• Wait until the device reboots.
• Check the firmware status in the "Maintenance" menu under "System Info".

i

Note

Upgrades via FTP are made in the same way as detailed above.

The PC must be in the same local network.

Set up a PC as an FTP server.

Enter the IP address of the FTP server.

Default

System Maintenance System Info Log Search Import/Export Upgrade Default Not Detect Default System will reboot after restoring the default settings. Continue? OK Back

i

Note

In this process, the device is reset to the factory default settings.

Warning

All settings made since the start of operation are deleted (cameras, recording settings, alarms etc.)!

Avoid data loss by backing up the settings in advance. These can be imported again following the system reset.

Network

Maintenance Symbols Info Log Search ImportDiff Export Upgrade Default Not Defect Traffic Network Detection Network Stat Name Linking Status Type MAC Address MTU(NT) N/C Type Traffic Live View Back

i

Note

Information regarding the network traffic and network interfaces are shown here.

TAB network load

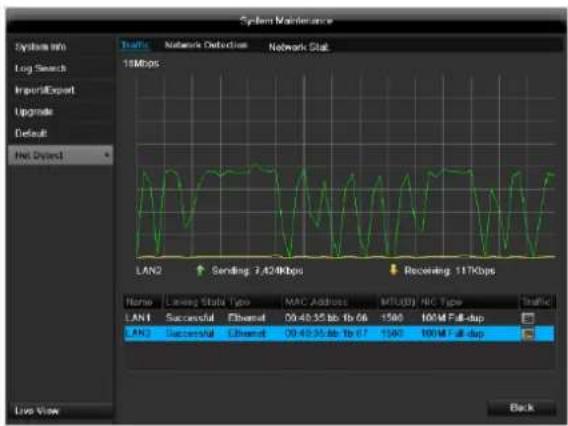

System Maintenance Trains Network Detection Network Stat. 15M005 LAN2 Sending 7.424Kbps Receiving 117Kbps Name Lanag State Type MAC Address MTU03P NIC Type Traffic LAN1 Successful Ethernet 09:40:35:bb Tb 66 1500 100M Full-dup LAN2 Successful Ethernet 09:40:35:bb Tb 67 1500 100M Full-dup Back

The amount of received and sent data is displayed graphically.

Depending on the network settings, the status and information for one or two network connections is shown in the field underneath the graph.

TAB Network Detection

System Maintenance System Info Log Search Import/Export Upgrade Default Net Defect Traffic Network Detector Network Slot Network Delay, Packet Loss Test Destination Address Test Network Packet Export Device Name: USB1.1 LAN1 192.168.0.211 2Kbps LAN2 192.168.0.232 8,229Kbps Refresh Export Export Live View Status Network Back

In "Destination Address", you can check the connection to another device, such as a computer ('pinging'). Enter the network address of the device to be checked (e.g. 192.168.0.25) and press Test.

Result Average delay: 27 ms Packet loss rate: 0% OK

Information on two parameters appears:

Parameter	Setting
Average delay	The time the pinged device needs to reply.
Packet loss Rate:	Displays the percentage of packets that were not transmitted

i

Note

If the packet loss rate is high, we recommend that the "Network Test" is repeated.

i

Note

If the packet loss rate is still high, you should check that the cables are correct and not damaged.

The higher the packet loss rate, the poorer the connection between the pinged device and recorder.

For "Network Packet Export", you can export the settings of the individual connections or – depending on the setting – the connection.

1. For "Device Name", select a storage medium to save the settings to.

2. Click Export.

Packet exporting Cancel

After the progress display finishes and initialization is successful, an information window appears. Close it with OK.

• Click Status to display the status of the LAN connections (connected/not connected).
• Click Network to change your network settings (see p. 85).

TAB Network Stat.

Maintenance System Info Log Search Import/export Upgrade Default Net Deliver Traffic Network Collection Network List Type Remote Live View Remote Playback Net Receive Min Net Send Info Remote Ids Steps Steps Steps Steps Refresh Live View Back

Displays all used in- and outcoming bandwidth.

You can refresh the data by clicking on Refresh.

Shutdown

Shutdown Lock Shutdown Reboot Cancel

i

Note

• Select "Lock" to lock the operating menu.
• Select "Shutdown" to switch off the device.
• Select "Reboot" to reboot the system (switch off and back on).

Troubleshooting

Before calling the Service department, read the following information to determine the possible cause of a malfunction.

Malfunction	Cause	Solution
No power	Mains cable not connected	Connect the mains cable securely to the socket
	Power switch set to OFF	Turn the power switch to ON
	No current in the power socket	Use another device on the socket, where necessary
No image	Screen not set for reception	Set the correct video input mode until an image from the recorder appears
	Video cable not connected properly	Connect the video cable securely
	Connected modem is switched off	Switch on the monitor
No sound	Audio cables not connected properly	Connect the audio cables securely
	Devices connected over the audio cables are not switched on	Switch on the devices connected over the audio cables
	Audio connection cable is damaged	Replace the cable
HDD is not working	Connection cables not connected properly	Connect the cables securely
	HDD defective or not system-compatible	Replace with a recommended HDD
USB port not working	Device not supported	Connect a compatible USB medium (USB 2.0)
	USB hub is in use	Connect the USB medium directly
Network access not possible	Network cable connections are loose	Connect the network cable
	Network settings are incorrect (DHCP, IP address etc.)	Check the network configuration and cor-rect it, ifnecessary (see page 85).
Remote control is not working	Batteries inserted with the wrong polarity or are empty	Replace the batteries. To control the device with the remote control, point it at the remote control sensor on the device
	Remote control too far away from the re-corder	Use the remote controller within 7 metres from the device
	Signal blocked by obstruction between the remote control and recorder	Remove the obstruction
	Lighting too bright or fluorescent tubes in use?	Switch off strong fluorescent lighting in the immediate vicinity
Recording not possible	No HDD or HDD is not initialised	Install and initialise the HDD
Sudden deactivation of the device	Temperature inside the device is too high	Clean the device and remove any obstructions from the ventilation area

Device cleaning and care

Note

• Your device requires no maintenance.
• Protect the device from dust, dirt and moisture.

Technical data

Subject is to alterations and errors. The dimensions are approximate values.

ABUS digital recorder	TVHD80100	TVHD80110
Video compression	H.264
Camera inputs	4	8
Monitor outputs	Monitor: 1 x VGA, 1 x HDMI
Operating mode	Triplex
Resolution (live view)	VGA:1080P: 1920*1080/60Hz, 1280*1024/60Hz,720P: 1280*720/60Hz, 1024*768/60HzHDMI:1080P: 1920*1080/60Hz, 1280*1024/60Hz,720P: 1280*720/60Hz, 1024*768/60Hz
Resolution @ frame rate per camera (recording)	352 x 288 @ 25 fps, 704 x 576 @ 25 fps, 1280 x 720 @ 25 fps, 1920 x 1080 @ 25 fps
Total frame rate	100 fps	200 fps
Compression levels	6
Post-alarm memory	0-30 sec. / 5-900 sec.
Storage medium	2 x 3.5" SATA HDD
Data backup	2 x USB 2.0
Views	1 / 2 / 4 / 6 / 8 / 9
Recording modes	Manual, schedule, motion detection, alarm, motion detection and alarm,motion detection or alarm
Search modes	By event, date and time, S.M.A.R.T.
User levels	2 (max. 31 users)
Network access	1 x RJ45 10/100 / 1000 Mbps
Parallel network access	128 camera connections
Network functions	Live view, playback, data export
DDNS	√
NTP	√
Alarms	Acoustic warning, OSD signal, e-mail, CMS
Control	USB mouse
OSD languages	German, English, French, Dutch, Danish,Polish, Russian
Power supply	12 VDC, 3,3 A, 50~60 Hz	12 VDC, 5,0 A, 50~60 Hz
Power consumption	<20 W (without HDD)
Operating temperature	-10 °C ~ +55 °C
Dimensions (W x H x D)	400 x 45 x 275 mm
Weight	≤ 4.0 kg (without HDD)
Certifications	CE

HDD storage capacity

In addition to the actual storage capacity of the installed HDD, the required storage space for recording and surveillance depends on the set resolution and frame rate of the recording.

On the included CD you can find a program in order to calculate the required amount of memory. In addition you find this software for download on our homepage together with the ABUS CMS software.

Overview monitor output combination

It is possible to connect a SPOT monitor. Use the table below to find out what combinations are possible. A tick indicates that the combination is possible, a cross shows that it is not.

HDMI+VGA	HDMIonly	VGAonly
√	√	√

Disposal

Information on the EU directive on waste electrical and electronic equipment

To protect the environment, do not dispose of the device with domestic waste at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material.

Dispose of the device in accordance with EU directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be disposed of, for example, by your local or municipal authority, the local waste disposal company or your dealer.

Information on handling batteries

• Always insert batteries with the correct polarity. Never attempt to recharge the batteries supplied and do not throw them into naked flames under any circumstances. Do not use different batteries at the same time (old and new, alkaline and zinc-carbon etc.). Remove the batteries if the device is not used for a long period of time. If used improperly, there is a risk of explosion and leaking batteries!
• Take environmental protection into account – used batteries should not be disposed of in domestic waste! They must be taken to a collection point for used batteries.
• Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immediately.

• Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).

• Change low batteries in good time.

• Always change all the batteries at the same time and use batteries of the same type.

Important

Leaky or damaged batteries can cause chemical burns on contact with the skin.

In this case, wear protective gloves.
▶ Clean the battery compartment with a dry cloth.

Important information on disposing of batteries

Your product uses batteries which are subject to the European directive 2006/66/EC and may not be disposed of with domestic waste.

Find out about the regulations for the separate collection of batteries which apply in your country.

Proper disposal of batteries helps prevent harm to health and the environment.

Batteries that contain harmful chemicals are labelled with these signs:

Pb = battery contains lead

Cd = battery contains cadmium

Hg = battery contains mercury

Information on the European RoHS directive

The device complies with the RoHS directive.

Compliance with the RoHS directive means that the product or component does not contain more than the following maximum concentrations of the following substances in homogeneous materials, unless the substance is part of an application that is excluded from the RoHS directive:

a) 0.1% lead (by weight)
b) Mercury
c) Hexavalent chromium
d) Polybrominated biphenyl (PBB) and polybrominated diphenyl ether
e) 0.01% cadmium (by weight)

Glossary

Overview of specialist terms

1080i

HDTV image signal with 1080 pixels and interlaced display.

16:9

Cinematographic aspect ratio on widescreen displays.

720p

HDTV image signal with 1280 x 720 pixels and progressive display.

CIF

Common Intermediate Format

Originally planned for converting PAL to the NTSC standard. CIF corresponds to a video resolution of 352 x 288 pixels (2CIF = 704 x 288 pixels; 4CIF = 704 x 576 pixels).

CINCH

Socket type used for analogue audio or CVBS video signals.

CVBS

Colour, Video, Blank and Sync – The simplest variation of video signals (also known as composite video). The image quality is comparatively low.

DDNS

Dynamic Domain Name System entry

Network service which provides and updates IP addresses of its clients in a database.

DHCP

Dynamic Host Configuration Protocol

Network protocol which allows the automatic connection of devices (clients) in existing networks. DHCP servers (e.g. Internet routers) automatically assign the IP address, network mask, gateway, DNS server and WINS server (when required). Only the automatic acquisition of IP addresses must be activated for the client in this case.

Domain

Name used for the identification of websites on the Internet (e.g. www.abus-sc.de).

Dual Stream

Dual stream is a video transmission method. A high-resolution recording and lower-resolution transmission are made over the network, for example. The main stream has a 4CIF resolution and the sub-stream has a CIF resolution.

DVR

Digital Video Recorder – A device used for recording different video and audio sources (analogue, digital). The data is compressed for recording and saved on hard disk drives (HDD).

H.264

(MPEG-4 AVC) – Standard method for the highly-efficient compression of video signals. Used on Blu-ray discs or video conference systems, for example.

HDD

Hard Disk Drive

Digital data storage on computers or DVRs.

GIGABYTE

Unit of capacity for storage media (HDD, USB, SD/MMC cards).

HDVR

Hybrid DVR – DVR used for recording analogue cameras and network cameras.

http

Hypertext Transfer Protocol

Method for transmitting data across networks. Primarily used for displaying websites in a browser.

INTERLACED

Method for improving the picture quality of a video signal without consuming extra bandwidth (scan pattern on every second line).

IP address

An address in the computer network based on the Internet protocol. Allows different devices to identify themselves in a network so that they are accessed specifically.

JPEG

Compression method for photo images with minimal loss. Most digital cameras save photos in JPEG format.

MPEG

Moving Picture Experts Group – International standard for the compression of moving images. On some DVDs, the digital audio signals are compressed and recorded in this format.

NTP

Network Time Protocol

Method for synchronising the time across networks. SNTP (Simple Network Time Protocol) is also available, offering a simplified protocol.

NTSC

Standard television format in the USA. The method is different from the European PAL system in certain ways. A full-screen NTSC image is comprised of 480 visible lines and a total of 525 lines. 60 half-images are displayed per second. Compared to PAL, the system is more susceptible to colour errors.

PAL

Phase Alternating Line – European colour TV system. Uses 576 visible image lines. Together with the lines used for signal management, a full-screen image is comprised of 625 lines. 50 half-images are displayed per second. The phase position of the colour signal changes from line to line in the image.

PANEL

Interior of a flatscreen display (e.g. LCD or plasma panels).

PC

Personal Computer – Can be used as a remote site, either with the software supplied or over a browser.

Pixel

Short for “picture element”, the smallest unit for digital image transmission or display.

PIP

Picture in Picture – Where two signal sources are shown on the screen at the same time. The second signal source is stored above the first.

PPPoE

PPP over Ethernet (point-to-point protocol)

Network transmission method used for establishing a connection over dial-up lines. Used in ADSL connections, for example).

PROGRESSIVE

Method for displaying, storing or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to the interlacing used in traditional television systems.

PTZ

Pan-Tilt-Zoom

Pan, tilt and zoom function on motor-driven cameras.

RESOLUTION

Normal PAL television systems show images in 576 lines, normally with 768 pixels. HDTV works with at least 1280 x 720 pixels.

SCREEN SIZE

Size of the display from the bottom-left corner to the top-right corner in inches or centimetres.

Browser

Program for viewing websites on the Internet.

USB

Universal Serial Bus

Serial bus connection, used for connecting media whilst in operation. Maximum data rate for USB 2.0: ca. 320 Mbit/s (ca. 40 MB/s).

VGA

Video Graphics Array – Standard interface for analogue video signals in PCs (primarily deals with RGB signals).

ZOLL (inches)

Typical unit of screen size. One inch is equivalent to 2.54 centimetres. The most common sizes of 16:9 displays are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42 inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).

Internal HDD

The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss.

Note

• Do not move the device during operation.
• Moisture inside the device can condense and lead to HDD malfunctions.
• When the device is turned on, never remove the mains plug from the socket or interrupt the power supply using the safety switch.
• Do not move the device immediately after switching it off. To move the device, carry out the following steps:
• Wait until OFF has been shown on the display for at least two minutes.
• Remove the mains plug from the socket.
• Move the device.
• Data on the HDD can be lost in the event of a power failure during operation. Use an uninterruptible power supply (UPS)!
• The HDD is very sensitive. Improper use or unsuitable surroundings can damage the HDD after some years of use. This may be indicated by the playback stopping unexpectedly or visible “mosaic” effects in the image. In some circumstances, there are no prior signs of a HDD malfunction.
• In the event of a malfunction, no recordings can be played. The HDD must be replaced in this case.

ABUS 4/8-channel HD-SDI digital recorder

TVHD80100 / TVHD80110

Manufacturer:

86444 Affing (Germany)

ABUS 4/8-kanaals HD-SDI digitale recorder TVHD80100 / TVHD80110

A B B U S T LIVE ON POWER PLAY MENU ABUS

TAB Substream....156

Firmware Upgrade 165

Standaard 166

Netzwerk 166

Uitschakelen 168

Display....168

Instellingen: Opname 168

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

Exterior view of a modern white building with a red logo on the facade, surrounded by greenery and trees (no visible text or symbols on the building itself)

Toolbar with application icons including zoom, image, and search functions (no readable text)

(1) (2)

(3)

(4)

(5)

(6)

00:00:11 0 1 2 3 4 5 6 7

(2) (3) (4) (5) (6)

8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | (16)

(7) (8) (9) (10)(11)(12)(13)(14)(15)

17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | Opname plannen Bij Evenement

(17) (18) (19)

S.M.A.R.T. betekent Self-Monitoring Analysis and Reporting Technology.

HDD Algebras Exfolierte Eldele SMART. HDD Information ■ 1.063GB Normal LeaseCohmber Label OKD 1 ■ 2.0154GB Normal LeaseCohmber Label OKD 1 ■ 2.794GB Normal LeaseCohmber Label 1,252GB 1 Descent spenter: 5.580GB Freee Spenter: 1.252GB Herzungen Ind Zurück

Backup Options planset Environment Fole Volume Type: Altes Blend Mode: Altes Outfall Time: 21-03-2012 00:00:00 End Time: 21-03-2012 22:58:59 Live Kilion Exporter Zodkan Clock

i Opmerking

86444 Affing (Germany)

Exterior view of a black electronic device labeled 'ABUS' with control buttons and speaker grille (no readable text beyond branding)

Surcharge/surtension....187

Câbles....187

Surveillance anti-sabotage....212

Perte vidéo....213

TAB Substream....215

Vacances....216

Disque management....217

Disque 217

Configuration....224

Surcharge/surtension

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

Exterior view of a modern white building with a red 'ABUS' logo on the facade, surrounded by greenery and trees (no readable text or symbols beyond branding)

Toolbar with application icons including zoom, image editing, and search functions (no readable text)

(1) (2)

(3

(4)

(5)

(6)

00:00:11 0 1 2 3 4 5 6 7

(2) (3) (4) (5) (6)

0| 9| 10| 11| 12| 13| 14| 15| 16| (16)

(7) (8) (9) (10)(11)(12)(13)(14)(15)

S.M.A.R.T. signifie Self-Monitoring Analysis and Reporting Technology.

HDD General Parameters: 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Program /MADL - Defectue des secteurs déferrations ■ Utiliser HDD après active HDD 1 Auto-Drive Type Not active Auto-Drive Type Count 5.5 X 5.5 Temperature (°C) 39 Power (kPa) ST Auto-Production Presser Full-Production Fenchcode Info SMART ID Non attribute Total Cross Total Value Prior Value time 8x1 Raw Rated Cuts Rate OK 27 35 268 268 9 8x2 Spin Up Rate OK 27 25 159 154 1918 8x3 Start/Stop Count OK 32 9 168 168 38 8x4 Reimodicated Sector Count OK 33 149 268 268 9 8x5 Seek Other Rate OK 26 9 268 268 9 8x6 Power-on Hours Count OK 32 9 96 96 1387 8x7 Spin Up Daily Count OK 33 9 168 268 9 Agency directs Cancel Finish

Sauvegarder Exportation 2/3: Annuler

i

Remarque

'PPP over Ethernet' (protocole Point-to-Point)

'Universal Serial Bus'

TAB Substream....273

Udividee indstillinger 274

Ferie 274

HDD 275

Harddisks 275

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

IPv4 Address: 192.168.0.50

IPv4 Subnet Mask: 255.255.255.0

IPv4 Default Gateway: 192.168.0.1

Preferred DNS Server: 192.168.0.1

i

Henvisning

Exterior view of a modern white building with a red logo on the facade, surrounded by greenery and trees (no readable text or symbols)

I topteksten findes menuerne

• Menu
• Playback og
  • PTZ.

Toolbar with application icons including document, folder, and search bar (no readable text)

(1)

(2)

(3)

(4)

(5)

(6)

Instellinger General Network Alarm RS 232 Line-wuring Advanced Bruger Line-wuring Vlogor Vlogor Vlogor Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wuring Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wurning Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wearing Line-wear10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

① ② ABUS Kamera 01 Kamera 02 Kamera 03 Kamera 04 ④ © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 ® 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 2019 © 1887-865-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-666-66

00:00:11 0 1 2 3 4 5 6 7

(2) (3) (4) (5) (6)

0| 9| 10| 11| 12| 13| 14| 15| 16| (16)

(7) (8) (9) (10)(11)(12)(13)(14)(15)

Einstellungen Allgemeins Network 1 Alarm RG 232 Liveansicht Warming Demutzer SIMP Information USB Version V2 USB Port 161 USB Community joduts USB Community private USB User 162 Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List Last List

Options Tidssplan Kodning Unfideds addilla Fare Eneratelnbrige for Name Status Unfunded und Unfunded Heilgen 1 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 2 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 3 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 4 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 5 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 6 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 7 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 8 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 9 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 10 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 11 Holiday? Deadhver 1.JanMarketing 1.JanMarketing 12 Holiday? Deadhver 1.JanMarketing 1.JanMarketing Live-visning Tilbage

86444 Affing (Germany)

TAB Substream....331

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

Exterior view of a modern multi-story building with visible logo and surrounding greenery (no readable text or symbols)

Toolbar with application icons including zoom, refresh, and search functions (no text or labels visible)

(1)

(2)

(3)

(4)

(5)

(6)

Mac OS File Edit View Help Model title: Winless window Webnet NIC: LAN1 Top MAC: 100/100M/1000M Auto LANP Access FWD: 197.168.0 50 Maximize (includes) Plus: 315.295.295.6 Address Domestries: 102.168.0 1 Address name: 1400.240.308 HOS 1840/04 Address / Web Address Demystries: Web Address MAC style: 00.40.55 Mb To Be MTU: 1500 Portfolioing Path: All Programming Path: Demolary rating: LAN1 Live Zip-Menu Write

S.M.A.R.T. to skrót z ang. od Self-Monitoring Analysis and Reporting Technology.

HDD Algorithm Enerstede Einsto... S.M.A.R.T. HDD information File Kapacatik Status Eigenities Type Freeer Speed/Drag/Order/Order 1 1.06308 Normal Laser/SchreiberDeal OKI 1 - 2 931.5468 Normal Laser/SchreiberDeal OKI 1 - 2 2.79408 Normal Laser/SchreiberDeal 1,25200 1 - Gesamt/Capacatik 6,55908 Freeer Speed/Order 1,25200 Hizuzungen Init Zurück

,Universal Serial Bus'

System operation....62

General information 62

Connections on the rear of the device 62

Mouse operation 63

Quick guide....67

Before you start....67

Installing the HDD 67

Establishing the connections 67

Configuring the device 67

Important safety information....68

Explanation of symbols....68

Proper use 68

General information 68

Power supply 68

Overloading / overvoltage....69

Cables 69

Installation location / operating environment ....69

Remote control....69

Care and maintenance....70

Accessories....70

Putting into operation....70

Children and the device 70

Introduction....71

General information 71

Unpacking the device....71

Scope of delivery 71

On-screen keyboard 72

Starting the device 72

Switching off, locking and rebooting the device....72

Status displays....73

General information 73

Display on the monitor 73

Setup wizard....74

Setting up the system 74

Setting up the administrator 74

Time / Date 74

Network Settings....75

HDD Management 75

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M a Space Enter ESC

Assistant Admin Password ***** News Admin Pass ... Names Password Bembalgym Zuruck Nachsto Abbrechen

Exterior view of a modern white building with a red logo on the roof, surrounded by greenery and trees (no visible text or symbols on the building itself)

Toolbar with application icons including zoom, edit, refresh, and search functions (no text or labels visible)

(1)

(2)

(3)

(4)

(5)

(6)

00:00:11 0 1 2 3 4 5 6 7

(2) (3) (4) (5) (6)

0 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | (16)

(7) (8) (9) (10)(11)(12)(13)(14)(15)

17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | Dauer Ereignis

(17) (18)(19)

Configuration File Path Name: 100 File Path: 100 Status: Normal Access: Normal Access Status: Normal Access Status: Normal Access Status: Normal Location: Location: Location: Location:

Packet Export Abbrechen

86444 Affing (Germany
