USER MANUAL XEM26 PIONEER

Operating Instructions

Mode d'emploi

Bedienungsanleitung

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

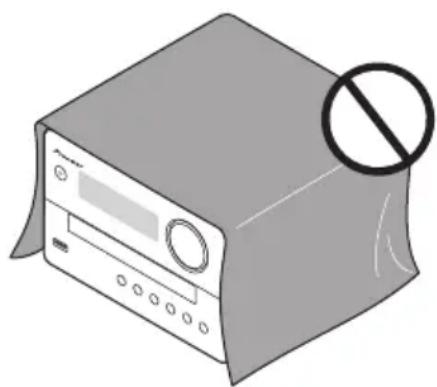

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b ^* _A1_En

Illustration of a portable electronic device with a prohibition symbol (no text or labels)

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*_A1_En

D3-4-2-1-7c ^* _A1_En

CAUTION

The ⏻ switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a ^* _A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest our authorized service center or your dealer for a replacement.

S002*_A1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Radio wave caution

X-EM26 only

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

- We are not responsible for any malfunction of the compatible product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.

- A separate contract with/payment to an Internet service provider is required to use the Internet.

Condensation

If the unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible.

Condensation can also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.

S005_A1_En

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

Before you start 4

Part names and functions ..... 5

Overview of the main unit 5
Overview of the remote control 6

Connections 6

Speaker connection 6
FM antenna installation 7
Connect power....7

Getting started 7

Turning on 7
Setting the clock....7
Selecting a source 7

Playing....8

Playing a disc....8
Playing from a USB storage device 8
Controlling playback. 8

Bluetooth ^® Audio playback (X-EM26 only) 9

Pairing with the unit (Initial registration) 9
Listen to music on the unit from a Bluetooth capable device 10

Listening to the FM radio.... 11

Tuning to an FM radio station 11
Programming radio stations 11

Other features.... 11

Additional information.... 13

Troubleshooting 13
Cautions on use 14
Handling discs 14
Specifications.... 15

Before you start

■ Introduction

With this system, you can:

• enjoy audio from discs, USB storage devices, and other external devices
• listen to FM radio stations
• enjoy audio from Bluetooth wireless technology enabled device (X-EM26 only)

playable media:

• Discs: CD-DA, CD-R, CD-RW, MP3-CD
- Files: .mp3
- USB storage device
- Compatibility: USB 1.1/2.0 (Full Speed)
– Class support: MSC (Mass Storage Class)
– File system: FAT16, FAT32
– Maximum number of albums/folders: 256
– Maximum number of tracks/files: 999
– Maximum level of directory: 8

What's in the box

Check and identify the contents of the package:

• Main unit
• Speaker unit x 2
• Remote control
• AAA battery (R03)
• FM wire antenn
• Non-skid pads x 8
• Warranty card (European models only)
• Operating Instructions (this document)

■ Loading the battery in the remote control

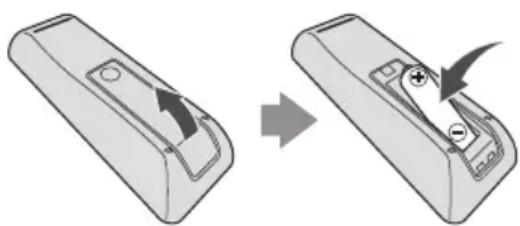

1 Open the rear lid and load the battery as illustrated below.

Diagram showing a device transitioning from a rectangular component to a battery holder, with arrows indicating the process (no text or symbols present)

2 Close the rear lid.

The battery included with the unit has been provided to allow you check product operation and may not last long. We recommend using an alkaline battery that has a longer life.

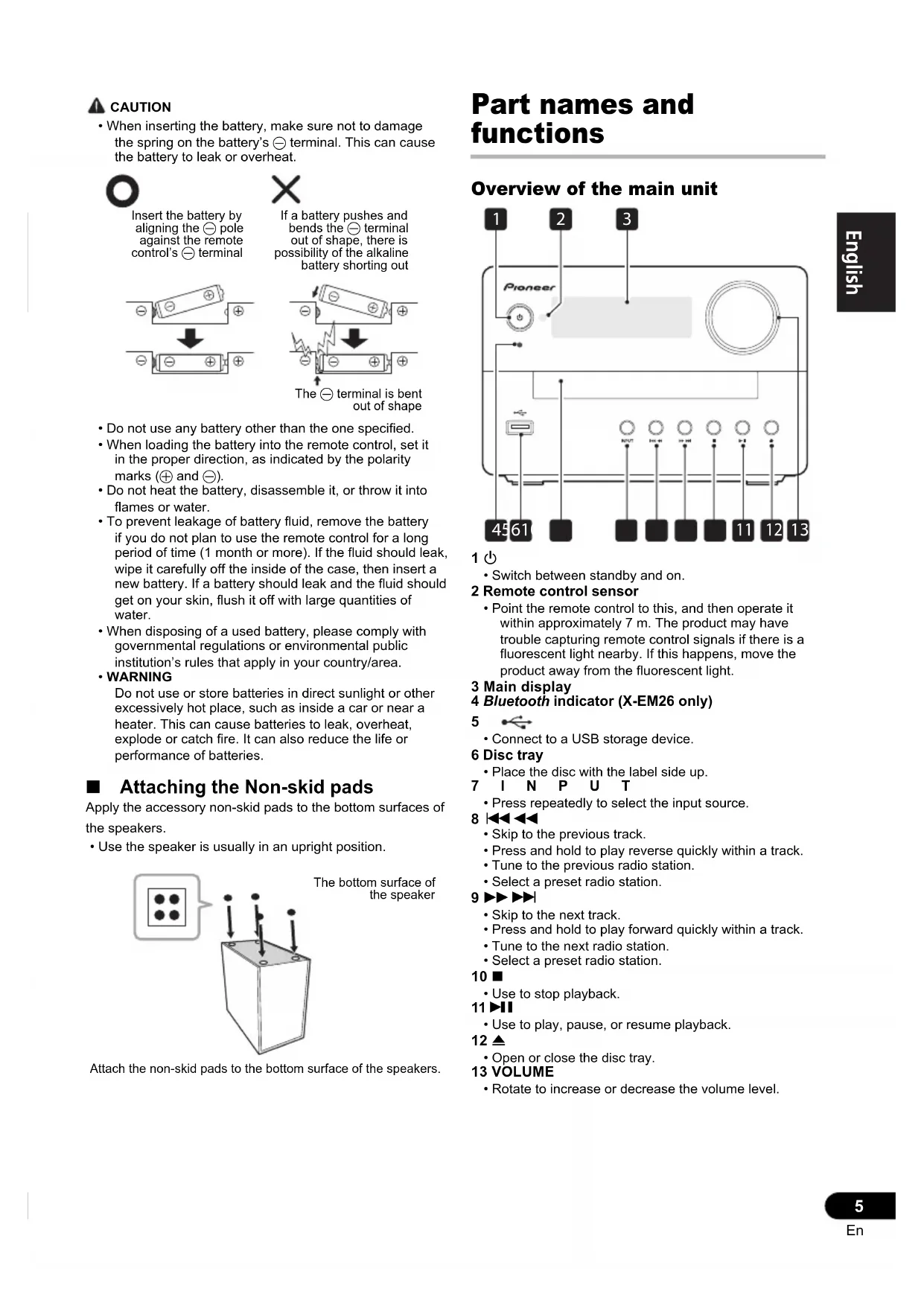

CAUTION

- When inserting the battery, make sure not to damage the spring on the battery's terminal. This can cause the battery to leak or overheat.

Insert the battery by aligning the ⊖ pole against the remote control's ⊖ terminal

If a battery pushes and bends the ⊖ terminal out of shape, there is possibility of the alkaline battery shorting out

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating the principle of reducing a battery, showing charge distribution and lightning mechanism.

The ⊖ terminal is bent out of shape

- Do not use any battery other than the one specified.

- When loading the battery into the remote control, set it in the proper direction, as indicated by the polarity marks (⊕ and ⊖).

- Do not heat the battery, disassemble it, or throw it into flames or water.

- To prevent leakage of battery fluid, remove the battery if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert a new battery. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

- When disposing of a used battery, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

• WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

■ Attaching the Non-skid pads

Apply the accessory non-skid pads to the bottom surfaces of the speakers.

- Use the speaker is usually in an upright position.

Diagram showing a cube with four dots and three arrows pointing to its faces, alongside a speech bubble containing four dots.

The bottom surface of the speaker

Attach the non-skid pads to the bottom surface of the speakers.

Part names and functions

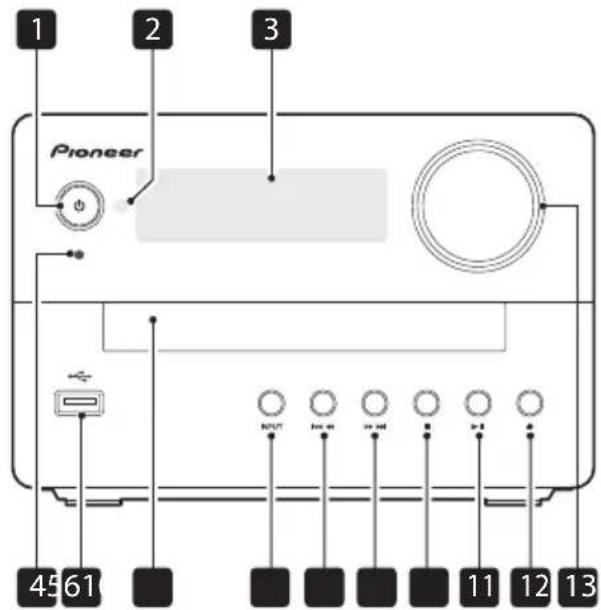

Overview of the main unit

1 2 3 Pioneer 45 61 NDUT Ito me Ito me 11 12 13

1 ⏻

- Switch between standby and on.

2 Remote control sensor

- Point the remote control to this, and then operate it within approximately 7 m. The product may have trouble capturing remote control signals if there is a fluorescent light nearby. If this happens, move the product away from the fluorescent light.

3 Main display

4 Bluetooth indicator (X-EM26 only)

5

- Connect to a USB storage device.

6 Disc tray

- Place the disc with the label side up.

7 INPUT

- Press repeatedly to select the input source.

8

• Skip to the previous track.
• Press and hold to play reverse quickly within a track.
• Tune to the previous radio station.
• Select a preset radio station.

9 ▶▶▶▶▶

• Skip to the next track.
• Press and hold to play forward quickly within a track.
• Tune to the next radio station.
• Select a preset radio station.

10

- Use to stop playback.

11▶II

- Use to play, pause, or resume playback.

12 ▲

- Open or close the disc tray.

13 VOLUME

- Rotate to increase or decrease the volume level.

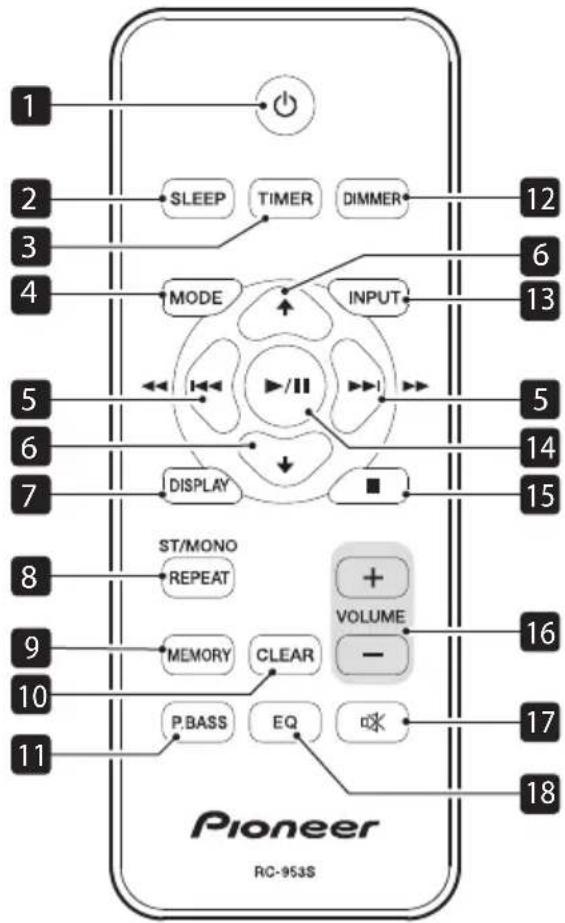

Overview of the remote control

1 ⏻

- Switch between standby and on.

2 S L E E P

- Set the sleep timer in the working mode.

3 T I M E R

- Use for setting the clock, as well as for setting and checking the timers.

4 M O D E

• To select Play Mode.

- Tuning Mode.

• To turn on or off BT menu.

5 |◀/▶▶|

- Skip to the track.

- Press and hold to play forward/reverse quickly within a track.

- Tune to the station.

- Select a preset radio station.

6 ↑/↓

- Use to select/switch system settings and modes.

- Use to select a folder (album) on an MP3 disc or USB device.

- Select a preset radio station.

7 D I S P L A Y

- Display the clock.

- Display the current status or media information.

- Display the available ID3 information of MP3 tracks.

8 REPEAT, ST/MONO

- REPEAT: Use to select the repeat mode of each input source. (page 8)

• ST/MONO: Use to select FM stereo or monaural reception. (page 11)

9 MEMORY

- Use to program the tracks.

• To preset radio stations in FM function.

10 CLEAR

- Delete the last track or file of the program in Program Play mode.

11 P.BASS

- Boost bass sound.

12 DIMMER

- Press to dim or brighten the display. The brightness can be controlled in 3 steps.

13 INPUT

- Use to select the input source (CD, USB, BT AUDIO (X-EM26 only), FM, AUDIO IN).

14 ▶/II

- Use to play, pause, or resume playback.

- Use to confirm actions.

15

- Use to stop playback.

16 VOLUME +/-

- Use to set the listening volume.

17

- Use to mute or restore volume.

18 EQ

- Use to select EQ.

[FLAT] → [POP] → [JAZZ] → [ROCK] → [CLASSIC] → (Back to beginning)

Connections

CAUTION

- Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.

- Connect the power cord after all the connections between devices have been completed.

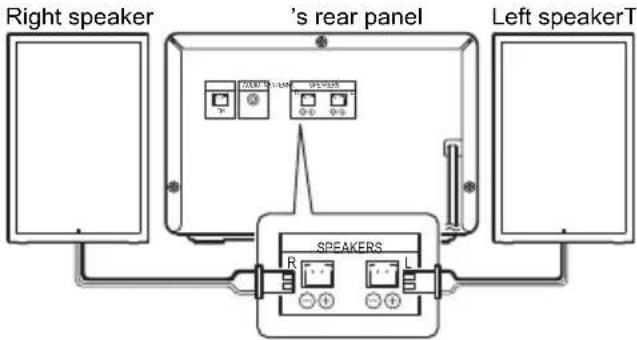

Speaker connection

- Both speakers can be used on either the right or the left side.

Right speaker 's rear panel Left speakerT SPEAKERS R L

CAUTION

- Do not connect any speakers other than those supplied to this system.

- Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.

- Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.

- Insert speaker cables securely into the terminals and check that the cable does not come out of easily.

• There is no difference between L and R speakers.

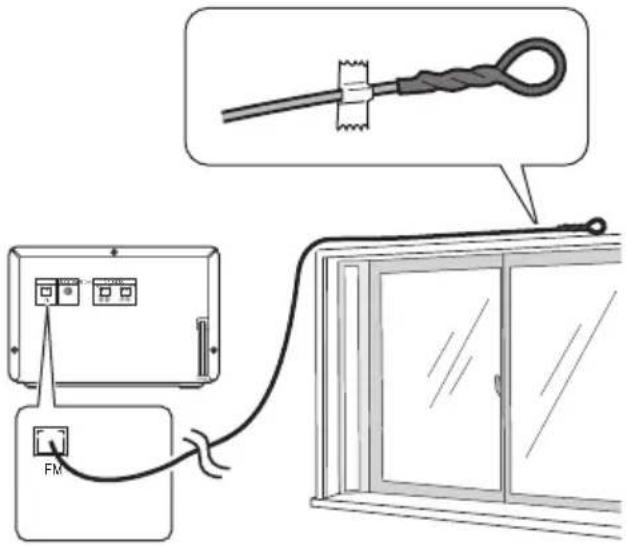

FM antenna installation

• For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up.
• Never tug strongly on the antenna line since damage of an antenna may be caused.
• This product does not support MW (medium wave) radio reception.

Diagram showing cable installation connection with FM power connector and wire harness, alongside a wall-mounted door panel.

Connect power

- Before you connect the AC power cord, make sure that you have completed all other connections.

To the wall outlet

Connect the AC power cord to the wall outlet.

Getting started

CAUTION

- Use of controls or adjustments or performance of procedures other than herein expressly specified may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Turning on

1 Press Ⓧ

This product switches to the last selected source.

Setting the clock

• During setting, if no action is made within 65 seconds, the system exits clock setting without saving earlier operations.
• When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

1 Press ⏻ to turn the power on.

2 Press TIMER on the remote control. If [SELECT] or [PLAY SET] appears, press ↑/↓ to select [CLOCK], and then press ▶/||

3 Press ↑/↓ to set the hour, then press ▶/||

The hour digits will blink.

4 Press ▲/▼ to set the minute, and then press ▶/Ⅱ.

The minute digits blink.

To display the clock when the system is off:

Press DISPLAY. The clock is displayed for about 8 seconds.

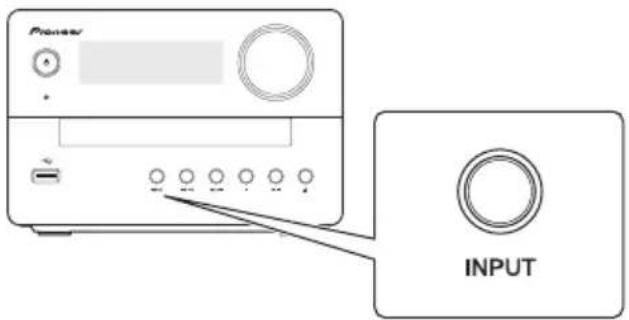

Selecting a source

Press INPUT repeatedly to select a source.

Pioneer INPUT

• [ CD]: the disc in the disc tray
• [ USB]: .mp3 files stored on the connected USB storage device
• [BT AUDIO]: Bluetooth capable device that is paired (X-EM26 only)
• [ FM]: the FM radio

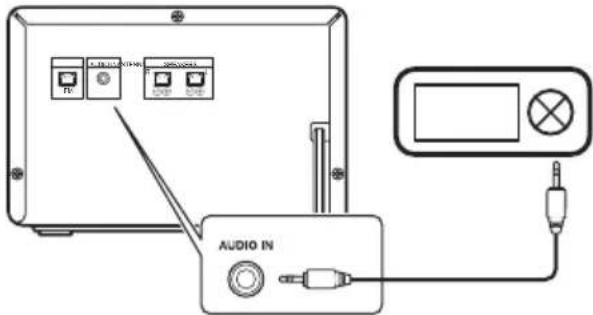

• [AUDIO IN]: the audio input through the AUDIO IN socket

Playing a disc

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to [CD].

2 Press ▲ to eject the disc tray.

3 Load a disc with the printed side facing up.

4 Press ▲ again to close the disc tray.

5 Press/II .

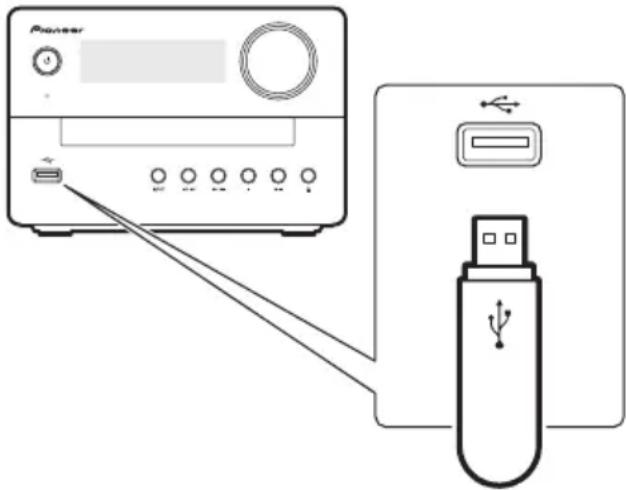

Playing from a USB storage device

This system can play .mp3 files that are copied onto a USB storage device (page 13).

- Pioneer does not guarantee compatibility with all USB storage devices. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

Diagram showing connection between a Pioneer device and a USB device, with labeled ports and connections.

1 Connect the USB storage device to the USB socket.

2 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to [USB].

3 Press. ▶/II

Controlling playback

During playback, follow the instructions below to control playback.

▶/II : Pause or resume playback.

■:Stop playback.

|◀◀/▶▶|: Skip to the previous or next track.

Press and hold to rewind a track or search forward fast within a track.

/ : Skip to the previous or next album when no less than one album exists.

REPEAT: Select an available play mode.

- Repeat 1 [REP ONE]: Repeat the current track

• Repeat all [REP ALL]: Repeat all tracks
• Repeat folder [REP FLDR]: Play all tracks in current folder. (only USB function)
• Repeat off [REP OFF]:Turns off repeat play.

■ Changing the play mode

1 Press ■ to stop playback.

2 Press MODE repeatedly.

CD: OFF→SHUFFLE→PROGRAM

• Normal play [OFF]: Tracks are played in their normal order.
• Shuffle [SHUF]: Play tracks in shuffle
• Program [PROGRAM]: Play tracks in any order you choose.
• Folder* [FLDR]: Play all files in the selected folder.

• Folder shuffle* [FLDRSHUF]: Play all files in the selected folder in random order. * For USB only

• In SHUFFLE and FOLDER SHUFFLE mode, there is the possibility that the same track playbacks continuously. Also, playback does not stop automatically. To stop playback, press ■.

• When [PLS STOP] appears:

You cannot change the play mode during playback. Stop playback, then change the play mode.

■ Programming tracks

• You can program up to 64 tracks.
  1 Press ■ to stop playback.

• (For a CD) [XX XX:XX] (XX indicates the total number of tracks and XX:XX indicates the total time of tracks) is displayed.

• (For MP3 files) [FILE XX] (XX indicates the total number of tracks) is displayed.

2 Press MODE repeatedly to select [PROGRAM].

3 (For MP3 files) Press / to select the folder containing the tracks or files that you want to program.
4 Press |◀◀/▶▶| to select a track.

5 Press MEMORY.

6 (For a CD) Repeat steps 4 and 5 to program more tracks.

(For MP3 files) Repeat steps 3 - 5 to program more tracks.

7 Press to start playback.

■ Erasing the program

To cancel program play

- Press MODE repeatedly to select [OFF].

To erase the program

- When in [PROGRAM] mode, press ■ to stop, then press CLEAR. Each time you press the button, the last programmed track or file will be deleted. When all the programmed tracks or files are deleted, [NO STEP] appears.

Bluetooth® Audio playback (X-EM26 only)

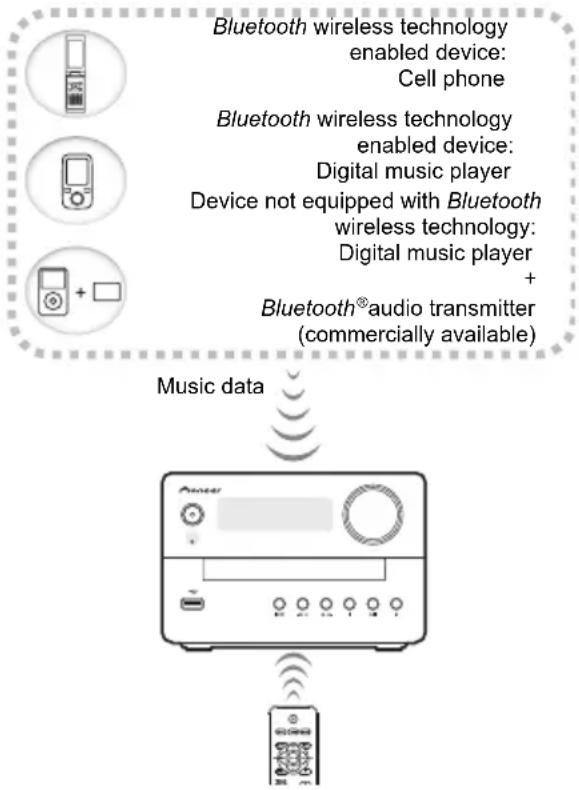

■ Music playback using Bluetooth wireless technology

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessly. You can also use a Bluetooth audio transmitter (sold separately) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user's manual for your Bluetooth capable device for more details.

• The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc.
• The Bluetooth wireless technology enabled device must support A2DP profiles.
• Connection is not always guaranteed with all Bluetooth enabled devices.

■ Remote control operation

The remote control supplied with this unit allows you to operate Bluetooth wireless technology enabled devices.

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

Pairing with the unit (Initial registration)

In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason.

Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out.

• Pairing is only performed the first time that you use the unit and the Bluetooth capable device together.
• In order to allow communication using Bluetooth wireless technology to take place, pairing must be performed on both the unit and the Bluetooth capable device.

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to [BT AUDIO].

The Bluetooth indicator blinks.

If there is no pairing information in the system, such as when using a Bluetooth device for the first time after purchasing the system, the system will automatically switch to pairing mode.

2 Press MODE on the remote control.

(For operating with this unit) Press and hold INPUT until the Bluetooth indicator starts to flash quickly.

- This unit switches to pairing mode, and the Bluetooth indicator starts to flash quickly. (Go to step 4)

3 Press ↑/↓ to select [PAIRING], and then press ▶/||

- This unit switches to pairing mode, and the Bluetooth indicator flashes quickly.

4 Turn on the power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it.

- This unit will be displayed as "Pioneer X-EM26" on all Bluetooth capable devices that you have.

Pairing will start.

• Place the Bluetooth capable device close to the unit.
• Please refer to the user's manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing.
• When PIN code entry is requested, enter "0000". (This unit does not accept any PIN code setting other than "0000".)

5 Confirm that [BT AUDIO] appears on the display and the Bluetooth indicator switches from blinking to staying lit.

• If the Bluetooth indicator will not switch from blinking to staying lit, the pairing was not completed correctly so please try pairing with the unit again.
• If paring has been completed correctly, you need not repeat this procedure again.

Even devices that have already been paired with this unit will not connect during pairing mode in the following cases. In such cases, delete pairing history from the Bluetooth wireless technology device and perform pairing again.

- Up to 8 pairing history can be recorded with this unit. If connecting to a Bluetooth wireless technology device over 8 units, the oldest pairing history will be deleted.

- If the settings are reset to the factory setting, all pairing history will be deleted. In order to reset to factory setting, press and hold INPUT and ▲ on the unit for more than 5 seconds, until "RESET" appears on the display.

To cancel pairing

- Press MODE or change the source.

Terminating a Bluetooth connection

1 Press MODE.

2 Press ↑/↓ to select [DISCONNECT], and then press ▶/||

Listen to music on the unit from a Bluetooth capable device

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to [BT AUDIO].

The unit will start using the BT AUDIO function, and connect with a Bluetooth capable device.

2 A Bluetooth connection will be created between the Bluetooth capable device and the unit.

Procedures for connecting to the unit should be performed from the Bluetooth capable device.

- Please refer to the user's manual for your Bluetooth capable device for details of the connection procedures.

3 Playback music from the Bluetooth capable device.

- Press on the remote control or ▶ on the main unit to playback.

You can control ▶ and ▶/▶▶.

Stopping playback and other operations can be controlled using the Bluetooth capable device.

- When Bluetooth capable devise is not connected and no operations have been performed for more than 15 minutes, the unit will automatically power off.

■ Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (see list below). To prevent noise or interrupted communication, do not use this unit nearby such devices, or make sure these devices are switched off during use.

• Cordless phones
• Cordless facsimiles
• Microwave ovens
  • Wireless LAN devices (IEEE802.11b/g)
• Wireless AV equipment
• Wireless controllers for game systems
• Microwave-based health aids
• Some baby monitors

Other, less common, equipment that may operate on the same frequency:

• Anti-theft systems
• Amateur radio stations (HAM)
• Warehouse logistic management systems
  • Discrimination systems for train or emergency vehicles
• In the event noise appears in your television image, there is the possibility that a Bluetooth wireless technology enabled device or this unit (including products supported by this unit) are causing signal

interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and the Bluetooth wireless technology enabled device or this unit (including products supported by this unit).

- If there is something obstructing the path between this unit (including devices supported by this unit) and the device equipped with Bluetooth wireless technology (such as a metal door, concrete wall, or insulation containing tinfoil), you may need to change the location of your system to prevent signal noise and interruptions.

■ Scope of operation

Use of this unit is limited to home use. (Transmission distances may be reduced depending on communication environment).

In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped:

• In reinforced concrete buildings or steel framed or iron-framed buildings.
  • Near large metallic furniture.
• In a crowd of people or near a building or obstacle.
• In a location exposed to the magnetic field, static electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as this unit, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g) or microwave oven.
• If you live in a heavily populated residential area (apartment, townhouse, etc.) and if your neighbor's microwave is placed near your system, you may experience radio wave interference. If this occurs, move your unit to a different place. When the microwave is not in use, there will be no radio wave interference.

■ Radio wave reflections

The radio waves received by this unit include the radio wave coming directly from the device equipped with Bluetooth wireless technology (direct wave) and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the device equipped with Bluetooth wireless technology a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between this unit and the device equipped with Bluetooth wireless technology.

■ Precautions regarding connections to products supported by this unit

• Complete connections for all devices supported by this unit, including all audio cords and power cables before connecting them to this unit.
• After completing connections to this unit, check the audio and power cables to confirm that they not twisted together.
• When disconnecting this unit, confirm that you have sufficient working space in the surrounding area.
• When changing connections of audio or other cables for products supported by this unit, confirm that you have sufficient working space in the surrounding area.

Listening to the FM radio

Tuning to an FM radio station

- Make sure that you have connected and fully extended the FM antenna.

■ Manual tuning

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to FM.

2 Press MODE repeatedly to select [MANUAL].

3 Press |◀◀/▶▶| on the remote control to tune in to the desired station.

■ Automatic tuning

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to FM.
2 Press MODE repeatedly to select [AUTO].
3 Press |◀◀/▶▶|.

Scanning will start automatically and the tuner will stop at the first receivable broadcast station.

(For European model only) When you tune to an FM station that provides RDS services, the service name or station name appears on the display.

Programming radio stations

• You can program up to 20 preset radio stations.
• To overwrite a programmed radio station, store another one with its sequence number.

1 Tune to a radio station.

2 Press MEMORY.

3 Press |◀◀/▶▶| (▲/▼) repeatedly to select a preset number, and then press ▶/■

"COMPLETE" appears on the display and the radio station is registered with the preset number.
4 Repeat steps 1-3 to program more stations.

■ Tuning to a preset radio station

1 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to FM.
2 Press MODE repeatedly to select [PRESET].
3 Press ↑/↓ to select the desired preset number.

If reception of an FM stereo broadcast is noisy, press ST/MONO repeatedly to select [MONO] to select monaural reception. This reduces noise.

Other features

■ Automatic standby mode

- After this product is kept inactive for 15 minutes, it automatically switches to the standby mode.
ress and hold ⏻ on the remote control or on the main unit.

"AUTO STANDBY ON" or "AUTO STANDBY OFF" is displayed on the main display, then switches the setting.

The system may not enter standby mode automatically in the following cases:

• While using the tuner function
- While an audio signal is being detected
- During playback of audio tracks or files
- While the Play Timer or Sleep Timer is being used

The system resets the 15 minute countdown time for entering standby mode in the following cases:

• When a USB device is connected in USB function
• When a button on the remote or unit is pressed

■ Turn on and offautomatically

You can set a time for automatic power on and off.

- Make sure that you have set the clock before this setup.

1 Press timer .
2 Press ♦/▼ to select [PLAY SET], then press ▶/■.

[ON TIME] appers, and the hour digits blink.

3 Press / to set the hour of ON TIME, then press /

The minute digits blink.

4 Press / to set the minute, then press / . [OFF TIME] appers, and the hour digits blink.
5 Press ↑/↓ to set the hour of OFF TIME, then press ▶/||

The minute digits blink.

6 Press ↑/↓ to set the minute, then press ▶/II.
7 Press / to select the source, then press /III .

CD, USB and FM can be selected as the playback source.

- It is possible to move cursor between "hour" and "minute" settings by |/| .

To check the setting

1 Press timer .
2 Press ↑/↓ to select [SELECT], then press ▶/III.
3 Press ♦/▼ to select [PLAY SEL], then press ▶/III.

To cancel the timer

1 Press timer.
2 Press ↑/↓ to select [SELECT], then press ▶/III.
3 Press ↑/↓ to select [OFF], then press ▶/II.

■ Setting the sleep timer

In the working mode, press SLEEP repeatedly to select a preset period (10, 20, 30, 40, 50, 60, 70, 80, 90 minutes or AUTO).

- To deactivate the sleep timer, press SLEEP repeatedly until [OFF] is displayed.

- If you select [AUTO], this unit turns off automatically after a CD or USB device playback ends.

■ Routing audio from other devices

CAUTION

• We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.

Through the AUDIO IN socket

TV USB USB AUDIO IN

1 Connect a stereo mini-plug cable (commercially available) to

• the AUDIO IN socket on the rear panel of the main unit, and
• the headphones socket on the external device (for example, an MP3 player).

2 Press INPUT on the remote control or INPUT repeatedly on the main unit to switch the source to [AUDIO IN].

3 Play the external device.

USB 500 mA charge

The USB terminal on this unit has a 500 mA output. A USB device up to 500 mA can be connected and used/charged. Battery charging starts when the USB device is connected to

the ← (USB) port on the unit.

Notes on charging USB devices with this system

• You cannot use the system as a battery charger when the system is off.
• Battery charging may not be possible depending on the specifications of the USB device.

■ Setting the Bluetooth signal on or off

1 Press and hold ◀◀◀◀◀ and ▶▶ the main unit for 5 seconds.

2 Release the button when [BT OFF] (Bluetooth signal off) or [BT ON] (Bluetooth signal on) is displayed.

- You cannot pair this unit with Bluetooth-enabled devices when this unit is off.

■ Sound controls

P.Bass control

When the power is first turned on, the unit will enter the P.bass mode which emphasises the bass frequencies. To cancel the P.bass mode, press the P.BASS on the remote control.

Additional information

■ USB playability information

Compatible USB devices:

• USB flash memory (USB1.1/2.0 (Full Speed))
• USB flash players (USB1.1/2.0 (Full Speed))

Supported formats:

• USB or memory file format: FAT16, FAT32
• MP3 bitrates (data rates): 32 kbps to 320 kbps and variable bitrates
• Folder Depth 8: including ROOT
  • Maximum number of folders: 256 (including ROOT)
  • Maximum number of tracks/files: 999

Maximum number of files that this unit can recognize in a folder : 999

• ID3tag: v1.0, v1.1, v1.2, v2.0, v2.2, v2.3, v2.4

Audio files cannot be played depending on the encoding software settings, USB device type, recording, other conditions.

Unsupported formats:

• Empty albums: an album that does not contain MP3 files
• Unsupported file formats are skipped. For example, Word documents (.doc) or MP3 files with extension.dlf are ignored and not played.
  • Audio files except for MP3.
• Other file systems (exFAT, NTFS, HFS etc.) other than FAT16 and FAT32.

■ Supported MP3 disc formats

• ISO9660 Level 1/Level 2, Joliet
• Maximum number of folders: 256 (including ROOT)
• Maximum number of tracks/files: 999

Maximum number of files that this unit can recognize in a folder : 999

• Supported sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
- Supported bitrates: 32 kbps to 320 kbps, variable bitrates
- Folder Depth 8: including ROOT

Audio files cannot be played depending on the encoding software settings, USB device type, recording, other conditions.

Troubleshooting

WARNING

• Never remove the casing of this apparatus.
• Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified even after checking the points below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
• If the unit does not operate normally due to external effects such as static electricity, disconnect the power plug from the outlet and insert it again to return to normal operating conditions.

If "PROTECT" appears on the display.

→ Immediately unplug the power cord, and check the following items after “PROTECT” disappears.

- Make sure that nothing is blocking the ventilation holes of the system.

After you have checked these above items and found no problems, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest dealer.

No power.

→ Make sure that the AC power cord is connected properly.
→ Make sure that there is power at the AC outlet.
→ In automatic standby mode, the system switches off automatically 15 minutes after the system stays inactive.

No sound or poor sound.

→ Adjust the volume.
→ Make sure that the speakers are connected correctly.

No response from the system.

→ Reconnect the AC power plug, and then turn on the system again.
→ With a power-saving feature, the system switches off automatically 15 minutes after the system stays inactive.

➢ Remote control does not work.

→ Reduce the distance between the remote control and the main unit.
→ Insert battery with its polarity (+/- signs) aligned as indicated.
→ Replace the batteries.
→ Aim the remote control directly at the sensor on the front panel of the main unit.

No disc is detected.

→ Insert a disc.
→ Make sure that you place the disc with its label facing upwards.
→ Wait until the moisture condensation at the lens has cleared.
→ Replace or clean the disc.
→ Make sure that the recordable disc is finalized and the format is supported.

USB storage device is not supported.

→ Make sure that the USB storage device is compatible with the system.
→ Is the USB storage device connected properly? Make sure that the device is firmly inserted.

The file or folder name (album name) is not displayed correctly.

→ The character code that can be displayed by this unit are as follows:

• Upper cases (A to Z).
- Numbers (0 to 9).
- Symbols (< >* +, [ ] _).

Other characters appear as “”.

“OVER CURRENT” appears.

→ A problem has been detected with the level of electrical current from the ●(USB) port. Turn off the system and remove the USB device from the

(USB) port. Make sure there is no problem with the USB device. If this display pattern persists, contact your nearest dealer.

➢ Cannot play some files on the USB storage device.

→ Make sure that the file format is supported.
→ Make sure that the file quantity does not exceed the maximum. (page 13)

➢ Radio reception is poor.

→ Increase the distance between the system and other electrical appliances.
→ Fully extend the antenna.

➢ Timer does not work.

→ Set the clock correctly.
→ Switch on the timer.

➢ Clock/timer setting is erased.

→ Power has been interrupted or the AC power cord has been disconnected.
→ Reset the clock/timer.

When the Bluetooth wireless technology device is connected or operated (X-EM26 only)

The Bluetooth wireless technology device cannot be connected or operated.

Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted.

→ Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device or Bluetooth wireless technology apparatus) is near the unit. If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.
→ Check that the Bluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetooth wireless technology device and the unit. Set the Bluetooth wireless technology device and the unit so that the distance between them is less than about 10 m* and no obstructions exist between them.

* The distance given is to be used as a rough guide. The actual allowable distance between devices may vary depending on conditions in the surrounding environment.

→ The Bluetooth wireless technology device may not be set to the communication mode supporting the Bluetooth wireless technology. Check the setting of the Bluetooth wireless technology device.

Cautions on use

■ When moving this unit

When moving this unit, be sure to first check that there is no disc loaded. Then press ⏻, wait until [STANDBY] disappears on main display to turn off, and then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal, or AUDIO IN mini-plug jack.

■ Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also, install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
  • Humid or poorly ventilated places
  • Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam, or heat (kitchens, etc.)

■ Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other components that generate heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio components, place it on a shelf below the amplifier.

• Turn off the power of this unit when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the power of this unit is on. If this happens, turn off the power of this unit.

■ Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, and then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

■ Cleaning the lens

- The lens of this unit should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
- Be sure to read the cautions included with the disc.

■ Cleaning discs

- Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

Illustration of hands cleaning a CD or DVD disc (no text or symbols visible)

• Do not use benzene, thinner or other volatile chemicals. Also, do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, and then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also, note that rental discs often have labels attached to them, and the glue of the label may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

Two circular objects with a diagonal line and a circle, no text or symbols present.

■ About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

Specifications

- Amplifier

(For European models)

RMS Output Power 5 W + 5 W

(8 ohms, 1 kHz THD 10 %)

(For North American model)

Rated output power All channels:

5 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven at 1 kHz, with a maximum total harmonic distortion of 10% (FTC) 2ch x 5 W (8Ω, 1kHz, 2ch driven) (IEC)

• D i s c

Disc diameter.... 12 cm, 8 cm

Support discs . . . . . . . CD-DA, CD-R, CD-RW, MP3-CD

Frequency response .....20 Hz to 20 kHz (44.1 kHz)

- Tuner (FM)

Tuning range 87.5 MHz to 108 MHz

- Bluetooth (X-EM26 only)

Version. Bluetooth Specification Ver. 4.0

Output .... Bluetooth Specification Class 2 Estimated line-of-sight transmission distance*

About 10 m

Frequency range . . 2.4000 GHz to 2.4835 GHz ISM Band Modulation

FH-SS (Frequency Hopping Spread Spectrum)

Supported Bluetooth profiles ..... A2DP, AVRCP

Supported Codec.... SBC (Subband Codec)

Supported contents protection..... SCMS-T

* The line-of-sight transmission distance is an estimate.

Actual transmission distances supported may differ depending on surrounding conditions.

- Speakers

Type.....1 way 1 speaker system

Speaker composition 8 cm cone type

Speaker impedance.... 8 Ω

- General information

AC power (For European models) ..220 V to 240 V, 50 Hz/60 Hz

AC power (For North American model) ..... 120 V, 60 Hz

Operation power consumption....12 W

Standby power consumption. ≤ 0.5 W

USB Direct....USB 1.1/2.0 (Full Speed)

USB 5V Power ....≤ 500 mA

Dimensions

- Main unit (W x H x D) . . . 180 mm x 121 mm x 221 mm

- Speaker box (W x H x D)

121 mm x 182 mm x 200 mm

Weight

- Main unit 1.3 kg

– Speaker box 1.1 kg x 2

• The specifications and design of this product are subject to change without notice.
• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

"Pioneer" and "PBASS" are trademarks of Pioneer Corporation, and is used under license.

© 2016 Onkyo & Pioneer Corporation.

All rights reserved.

ATTENTION

POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT.

D3-4-2-1-1_B1_Fr

AVERTISSEMENT

Illustration of a computer monitor with a prohibition symbol (no text or labels)

Programmation de stations radio .....11

Diagram showing a device being placed on its side, with arrows indicating movement (no text or symbols present)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating battery charging process with positive and negative terminals and a lightning bolt indicating charging direction

Diagram showing a cube with four dots and three arrows pointing to its faces, accompanied by a speech bubble containing four dots.

Diagram showing cable installation connection with a fuse and labeled component 'FM' connected to a window panel

Pioneer INPUT

Diagram showing connection between a power supply unit and a USB device, with labeled ports and connections.

Programmation de stations radio

Illustration of hands cleaning a CD or DVD disc (no text or symbols)

Two overlapping circular objects with a diagonal line and a circle, no text or symbols present.

© 2016 Onkyo & Pioneer Corporation.

Illustration of a computer monitor with a prohibition symbol (no text or labels)

Diagram showing a device being placed on its side, with arrows indicating movement (no text or symbols present)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating battery charging process with lightning and power lines, showing charge movement and circuit breakers

Diagram showing a cube with four dots and three arrows pointing to its faces, accompanied by a speech bubble containing four dots.

Superficie inferior del altavoz

Diagram showing cable installation connection with FM connector and wire, including a close-up of the cable being attached.

Pioneer INPUT

Diagram showing connection between a Pioneer device and a USB device, with labeled ports and connections.

• Memoria flash USB (USB1.1/2.0 (Full Speed))
• Reproductores flash USB (USB1.1/2.0 (Full Speed))

Formatos compatibles:

Illustration of hands using a tool to cut a CD or DVD disc (no text or symbols visible)

Two overlapping circular shapes with a diagonal line and a circle, no text or symbols present.

5 W + 5 W (8 ohmios, 1 kHz THD 10%)

© 2016 Onkyo & Pioneer Corporation.

Illustration of a computer monitor with a prohibition symbol (no text or labels)

Diagram showing a device transitioning from a rectangular component to a battery holder, with arrows indicating the process (no text or symbols present)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram showing a 3D cube with four dots and three arrows pointing to its faces, alongside a speech bubble containing four dots.

SPEAKERS R L

AVVERTENZA

Diagram showing cable installation connection with a fuse and labeled component 'FM' on the wall panel

Pioneer INPUT

Diagram showing connection between a power supply device and a USB flash drive, with labeled ports and connections.

Three circular icons with Chinese text: a desktop computer, a mobile phone, and a battery with plus sign.

Illustration of hands using a tool to clean or restore a fish (no text or symbols visible)

Two icons showing a CD and a disc with a prohibition symbol (no text or labels)

...... FH-SS (Frequency Hopping Spread Spectrum) Profili Bluetooth supportati ....A2DP, AVRCP

USB Direct .....USB 1.1/2.0 (Full Speed)

© 2016 Onkyo & Pioneer Corporation.

Illustration of a microwave oven with a prohibition symbol (no text or labels)

Betriebsumgebung

Diagram showing two steps of a battery casing with arrows indicating direction (no text or symbols)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating battery charging process with positive and negative charges, showing current flow and lightning bolt mechanism

Diagram showing a cube with four dots and three arrows pointing to its faces, accompanied by a speech bubble containing four dots.

Diagram showing cable installation connection with fuse, switch, and power outlet labeled FM

Pioneer INPUT

Diagram showing connection between a Pioneer device and a USB device, with labeled ports and connections.

- USB-Flash-Speicher (USB1.1/2.0 (Full Speed)) - USB-Flash-Player (USB1.1/2.0 (Full Speed))

Illustration of hands using a tool to clean or restore a disc (no text or symbols visible)

Two overlapping circular shapes with a diagonal line crossing through them, no text or symbols present.

...... FH-SS (Frequency Hopping Spread Spectrum)

© 2016 Onkyo & Pioneer Corporation.

Illustration of a microwave oven with a prohibition symbol (no text or labels)

Gebruiksomgeving

KLASSE 1 LASERPRODUCT

D58-5-2-2a_A1_NI

WAARSCHUWING NETSNOER

Diagram showing a device being placed on its side, with arrows indicating movement (no text or symbols present)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating battery charging process with positive and negative charges, showing current flow and voltage drop

Diagram showing a cube with four dots and three arrows pointing to its faces, alongside a speech bubble containing four dots.

[FLAT] → [POP] → [JAZZ] → [ROCK] → [CLASSIC] → (Terug naar begin) te selecteren

Aansluitingen

WAARSCHUWING

Diagram showing cable installation with a fuse and labeled connection point FM, alongside an electrical panel setup.

Pioneer INPUT

Diagram showing connection between a Pioneer device and a USB device, with labeled ports and connections.

1 D r u k o p T I M E

1 D r u k o p T I M E

1 D r u k o p T I M E

2 Druk op / om te selecteren [SELECT], druk dan op /

R AUDIO IN

• USB-flashgeheugen (USB1.1/2.0 (Full Speed))
  • USB-flashspelers (USB1.1/2.0 (Full Speed))

Illustration of hands using a tool to clean or restore a CD or DVD (no text or symbols visible)

Two overlapping circular objects with a diagonal line and a circle, no text or symbols present.

© 2016 Onkyo & Pioneer Corporation.

Illustration of a portable electronic device with a prohibition symbol (no text or labels)

Diagram showing a device being placed on its side, with arrows indicating movement (no text or symbols present)

Diagram showing a battery moving through a circuit with negative charges, indicating charge distribution or polarity change.

Diagram illustrating battery charging process with negative charges and lightning bolt symbol indicating charging direction

Diagram showing a cube with four dots and three arrows pointing to its faces, accompanied by a speech bubble containing four dots.

Pioneer INPUT

Pioneer USB

Illustration of hands cleaning a CD or DVD disc (no text or symbols visible)

Two overlapping circular objects with a diagonal line and a circle, no text or symbols present.

USB Direct ..... USB 1.1/2.0 (Full Speed)

© 2016 Onkyo & Pioneer Corporation.

Все права защищены.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

O&P Corporation

2-3-12, Yaesu, Chuo-Ku, Tokyo 104-0028, Japan

EU

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer.eu

Representative's:

CE

[*] X-EM26

English:

Hereby, O&P, declares that this [*] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Suomi:

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom

Tel: [phone]

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE

Tel :[phone]

Корпорация О энд Пи

© 2016 Onkyo & Pioneer Corporation. All rights reserved.
