USER MANUAL YDS10 YAMAHA

Universal Dock for iPod

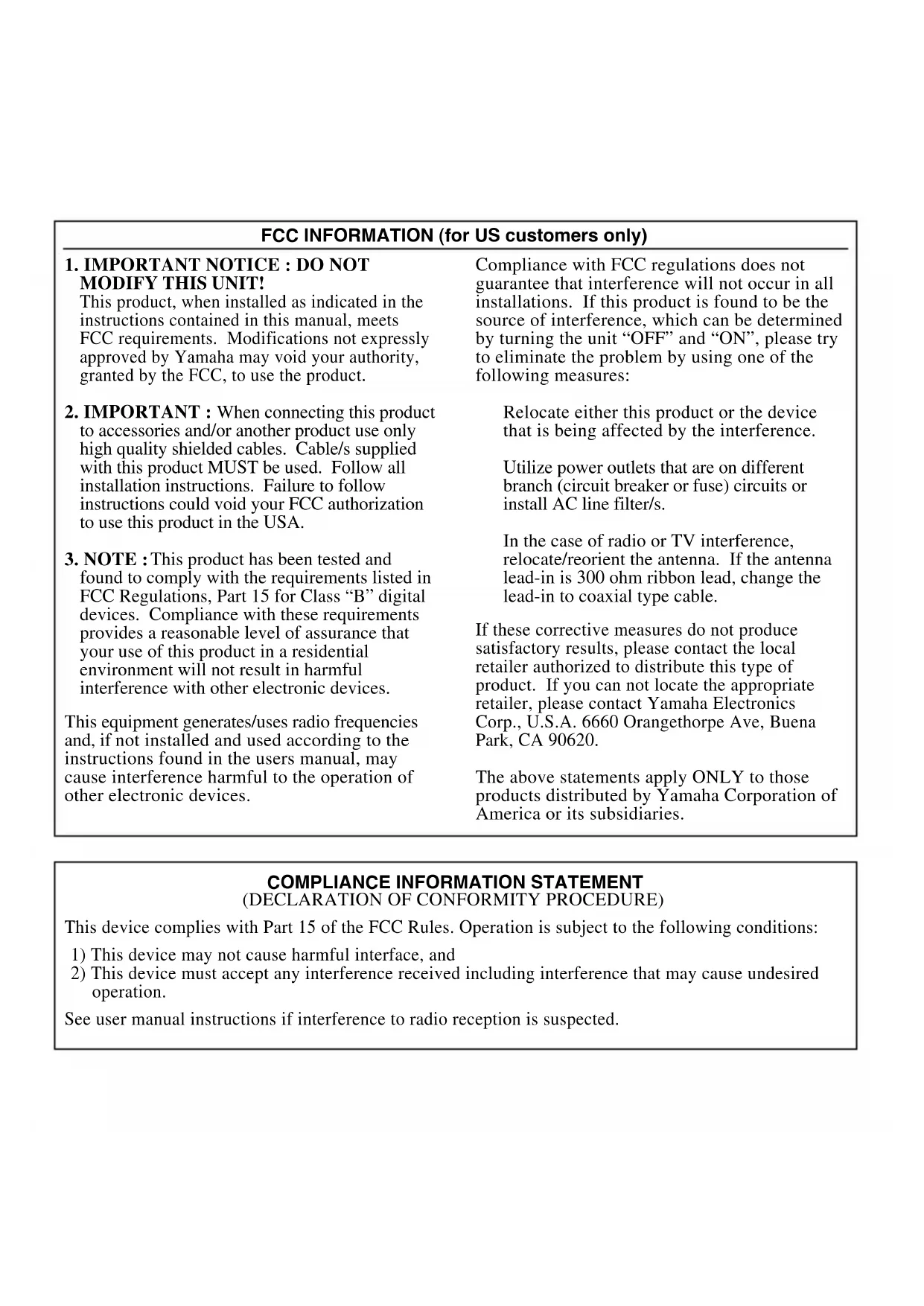

FCC INFORMATION (for US customers only)

1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

1. IMPORTANT : When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
2. NOTE : This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1) This device may not cause harmful interface, and
2) This device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

Precautions

Read this before using this unit.

To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
- Install this unit in a cool, dry, clean place away from windows, heat sources, and sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors, etc.). To prevent fire or electrical shock, do not expose this unit to rain or water.
- To prevent the enclosure from warping or discoloring, do not place this unit where it will be exposed to direct sunlight or excessive humidity.
- Do not place this unit where foreign objects such as water drips may fall. It may cause a fire, or damage to this unit.
- Do not attempt to clean this unit with chemical solvents as this may damage the finish. Use a clean, dry cloth.
- Do not attempt to modify or fix this unit. Contact qualified YAMAHA service personnel when any service is needed. The cabinet should never be opened for any reasons.

Secure placement or installation is the owner's responsibility.

YAMAHA shall not be liable for any accident caused by improper placement or installation of this unit.

■Introduction

With the Universal Dock for iPod, you can enjoy music, photo, or movie stored on your iPod by connecting it to YAMAHA universal dock compatible components. The function and operation of your iPod with this unit depending on the type of your iPod or universal dock compatible components. For more information about the operation or function, refer to the instructions of your iPod or universal dock compatible components.

This unit is compatible with the following types of iPod:

• i P od (Click and Wheel)
• iPod nano
• iPod mini

iPod®

"iPod" is a trademark of Apple computer, Inc., registered in the U.S. and other countries.

■Checking the package contents

Check that the following items are included in the package.

(iPod is not included.)

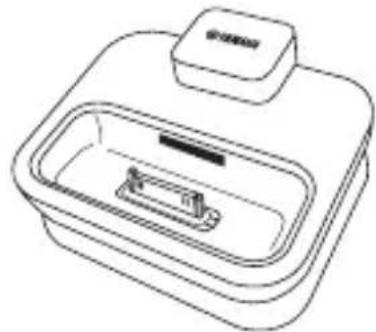

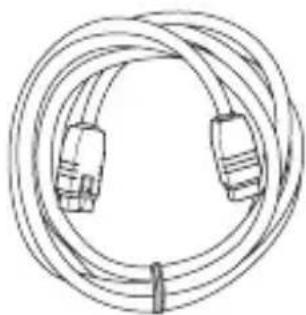

YDS-10 (Main unit) Dock cable (2 m (6.5 ft))

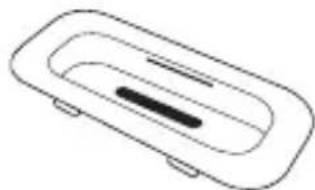

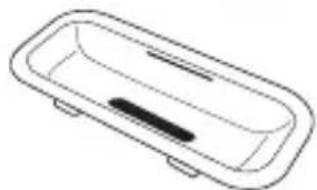

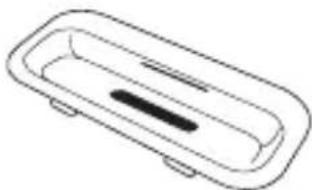

iPod dock adapters (A)

iPod with color display (20 GB or 30 GB) or U2 Special Edition

iPod with color display (40 GB or 60 GB) or iPod (40 GB)

• The mark ( A, B, or C) is shown on the back of each iPod dock adapter.

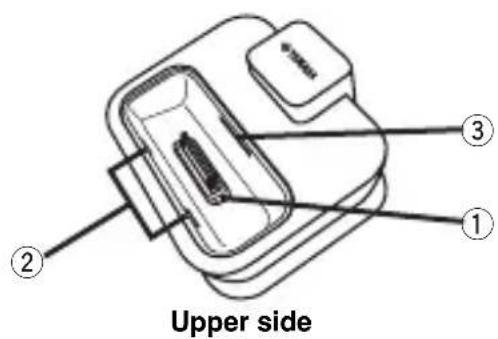

Controls and functions

① iPod connector terminal

Connects your iPod.

②Slits

Hold an iPod dock adapter.

③Adapter holder

Holds an iPod dock adapter.

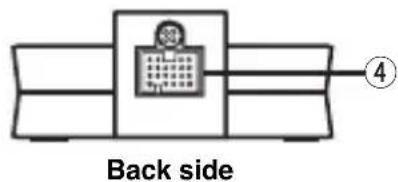

④ Dock cable terminal

Connects the supplied dock cable.

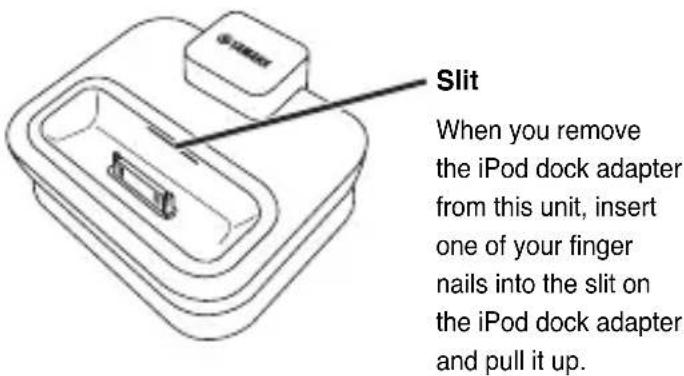

Inserting an iPod dock adapter

Insert the iPod dock adapter supplied with your iPod into the slot of the main unit. Depending on the type of your iPod, you may need to insert one of the iPod dock adapters supplied with this unit. See page 1 for details about the iPod dock adapter.

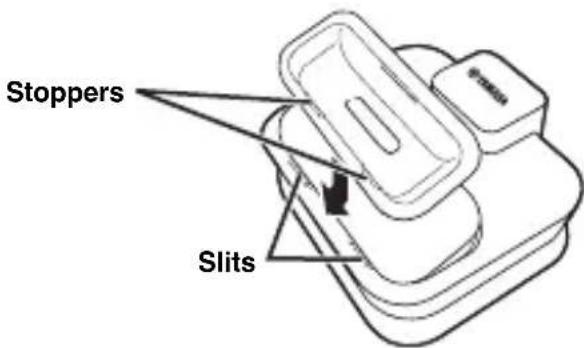

1. Insert the stoppers of the iPod dock adapter into the slits on the slot of this unit.

1. Insert the iPod dock adapter until it snaps into the slot of this unit.

Connecting the dock cable

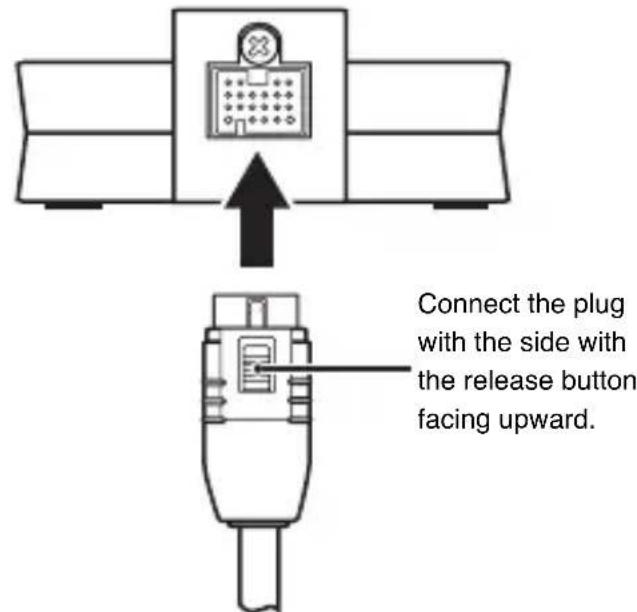

1. Connect one of the plugs of the dock cable to the dock cable terminal of this unit firmly.

1. Make sure the power of the universal dock compatible component is turned off.

2. Connect the other plug of the dock cable to the DOCK terminal of the universal dock compatible component.

Note

Be sure to connect the plugs of the dock cable firmly to both the dock cable terminal of this unit and the DOCK terminal of the universal dock compatible component. When the connection is loose, this unit may output some unwanted noise.

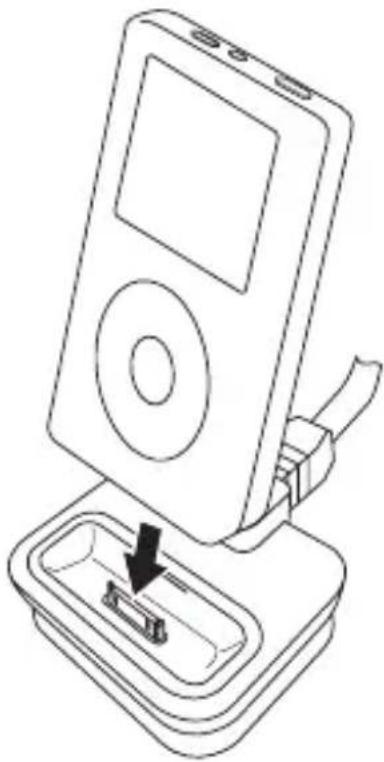

Connecting your iPod

Insert the dock connector port of your iPod into the iPod connector terminal of this unit firmly.

Notes

Make sure that the output level of the universal dock compatible component is set to minimum.
- T o protect the dock connector from damage, do not twist or sway back and forth your iPod when inserting or taking it off from this unit, and be careful not to knock over this unit when your iPod is inserted.
- Use this unit with the iPod dock adapter (supplied with your iPod or with this unit) appropriate for your iPod. If you use this unit without using an appropriate iPod dock adapter, loose connection may result.
- Do not take off your iPod from this unit when you play back the music, photo, or movie stored on your iPod with the universal dock compatible component.
- Connect your iPod without any other iPod accessories (such as headphones, a wired remote control, an FM transmitter etc.).
- It is recommended that you update your iPod software before using it with this unit. The updater for the iPod software is available at the Apple website.

Disconnecting the dock cable

1. Make sure the power of the universal dock compatible component is turned off.

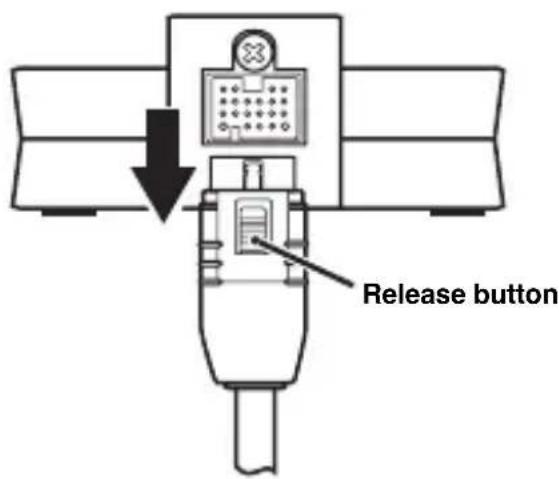

2. Press and hold the release button and then pull off the plug of the dock cable.

Troubleshooting

Refer to the items listed below when this unit does not function properly.

• Connect your iPod to this unit firmly.
• Connect the dock cable to the universal dock compatible component firmly.
• Connect the dock cable to this unit firmly.
• Update the software of your iPod to the latest version.

If the instructions above do not help, refer to the instructions of your iPod or universal dock compatible component.

■Specifications

Dimensions (W× H× D) 80x33x70mm

[3.1 x 1.3 x 2.8 in]

Weight 135g

[4.8 oz]

• Specifications are subject to change without notice.

Precautions

iPod Dock-Adapter (A)

Per collegare I'iPod.

② Fessure

iPod Dock-adapters (A, B, C)

iPod met kleurendisplay (20 GB of 30 GB) of U2 Special Edition
iPod met kleurendisplay (40 GB of 60 GB) of iPod (40 GB)
iPod mini (4 GB of 6 GB)

YDS-10 (OchOBHO annapaT) Ka6eIb Ioka (2 m)

■Bo3MOxHbIe HeIcnpaBHOCTn I cNoCoBbl nx yCTpaHeHnA

Ecn daHbI aNnapaT pa6oTaET HecOOTBeTCTByIOUIM O6pa3OM, CMOTpNTe HxKeYKa3aHHbIe NyHKTbl.

• Hadejno noKIOUHTe iPod K daHOMy annapaty.
  -HaJExHNOIOKJIIOUHTe DOKOBbIKa6eJIb KOMHOHEHTy, COBMECTUMOMY C yHnBepCaIbHbIM DOKOM.
  -HaedexHo nOdkNIOUHTe DOKOBbI KaBb K daHHOMy annapaTy.
  -ObHOBnte nporpaMMHoe oecneueHne iPod nocJeDHeBepCneE O6HOBJIeHnI.

Ecnn HNCTpyKun BBIe He NOMORAOT, CMOTPte HNCTpyKUIO K iPod nnn K KOMNOHHTy, COBMECTUMOMY C yHNBepcaNbHbIM DOKOM.

TexHnueckne xapaKTepeNCTnKN

TamaTbI (UxBxΓ) 80x33x70MM Bec 135 T

• TexHnueckne xapaKTePncTnKn MOryT n3MeHrTbcR 6e3 npEaBapntbHoro yBeDOMLeHnR.

■注意事项

使用本机前敬请阅读。
