USER MANUAL XHM30V PIONEER

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3 A1 En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel.

D3-4-2-1-4* A1 En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a A1_EN

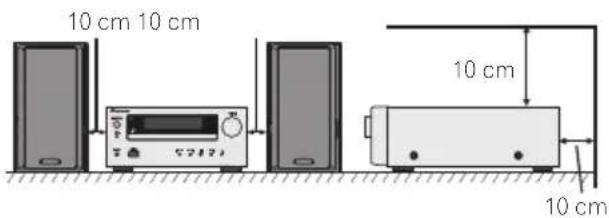

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_EN

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal.

The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K05Ba_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: Inside of the unit

CAUTION

CLASS 38 VIBBLE AND RARELLE LASER RATION WHEN OPEN,NOO EXPOSURE TO THE BEAM

ATTENTION

RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 3B QUAND OUVERT, EVITEZ TOUT EXPOSITION AU FAISCEAU.

ADVARSEL

KLASSE 38 SYNLIG OUG SYNLIG LASERSTRAING VED ABBNNG, UNOGA UDSATTEL SE FOR STRALING.

WARNING

KCLASS 38 SYNCH OXY OSYNGL LASERSTRALING NAR DENNA DEL ARI OPENNAD, UNIDY ATT UTSATIDIS FOR STRALEN.

VORSICHT

B8 GEOFFICIER BEADECCKING BT SIGHTBARE UND UNSIGHTBARE LASERTRAHLUNG DER KASSE 58 IN CERATENNEREN VORHANDEN, NCHT DEV LASERTRAHLASSZETTM

PRECAUTION

CUANDO SE ABERE HAY RADIACION LAPER DE CASE 3B VISIBLE E INVISIBLE, EVITE LA EXPOSION A LOS RAYOS LASER.

VAROI

AVAATEASS AOLE ALTINNA NAKYVALLE JANAKYMATTOMALE LUXOAN 38 LASERSATELYLE, ALKA SATOSATESEEN.

CLASS 1 LASER PRODUCT

D58-5-2·b*_B1_En

Condensation

If the player is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which the player is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, the player will not operate properly and playback is not possible. Let the player stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible.

Condensation can also occur in the summer if the player is exposed to the direct wind from an air-conditioner. If this happens, move the player to a different place.

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries.

ENGLISH

DVD Receiver System consisting of main unit and speaker system.

Introduction

Thank you for purchasing this PIONEER product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your PIONEER product.

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Accessories

Please confirm that the following accessories are included.

iPhone adaptors x 3	Remote control x 1 “AA” size batteries x 2	AM loop aerial x 1 FM aerial x 1
Video cable x 1 (Yellow)	Speaker wire x 2	Power Cord Warranty card These operation instructions

CONTENTS

Page

Page

General Information

Precautions 5

Controls and indicators 5-7

Types of playable discs 8

Description of discs 9

Preparation for Use

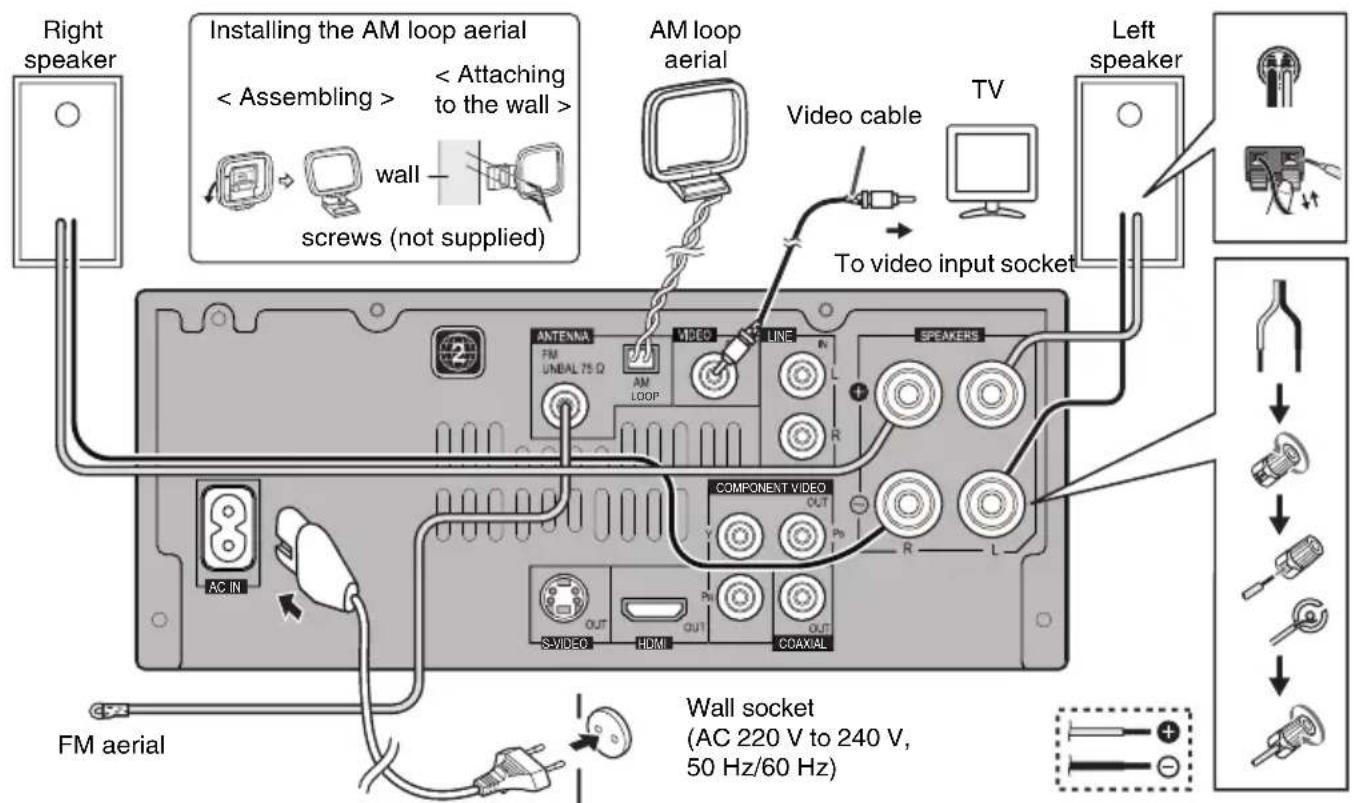

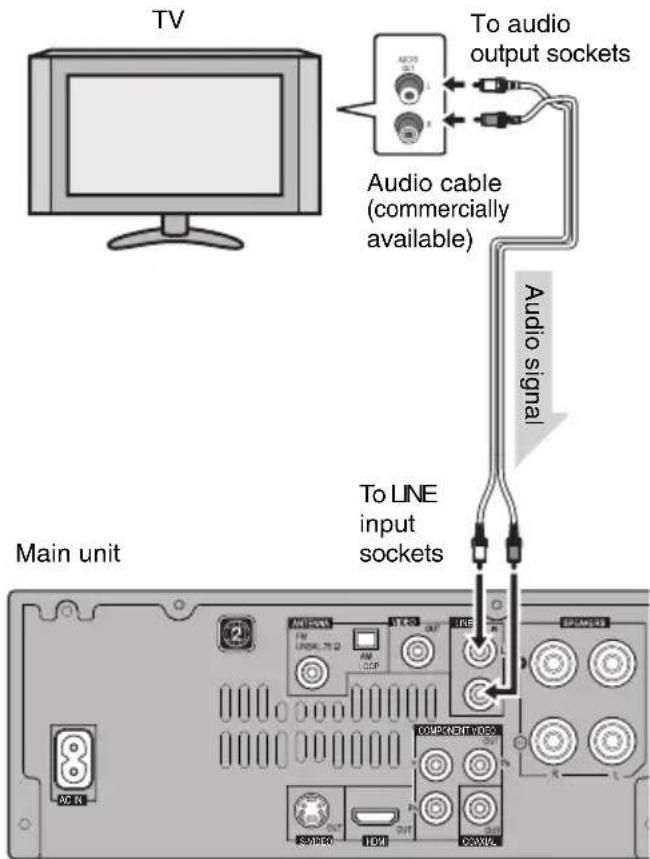

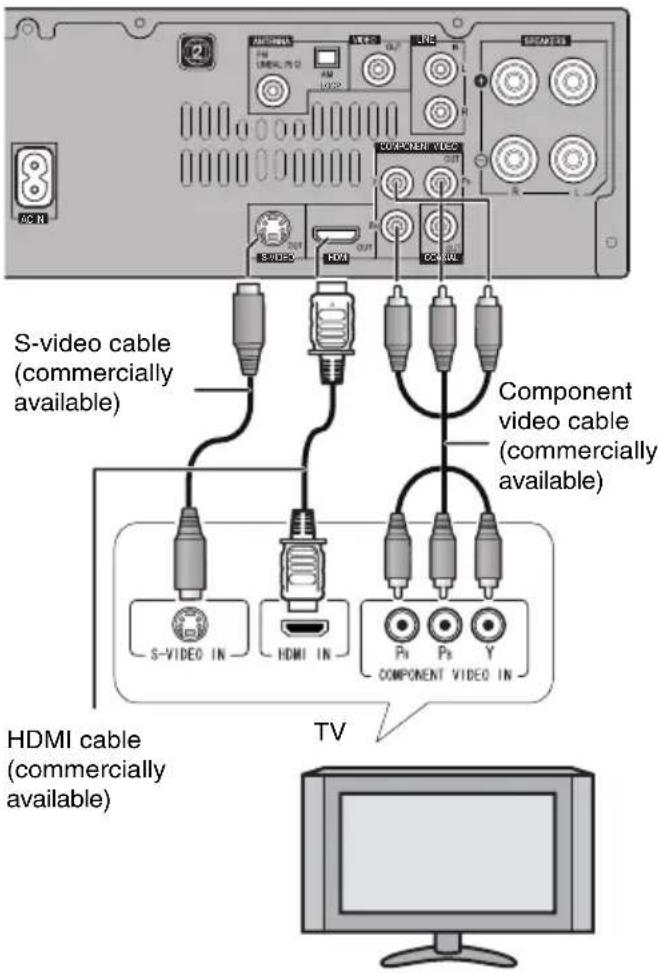

System connections 10-12

Remote control 12

Changing the setup menu 13-17

General operation

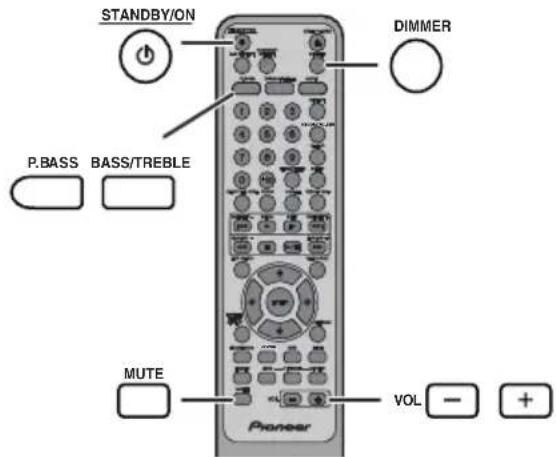

General control 17-18

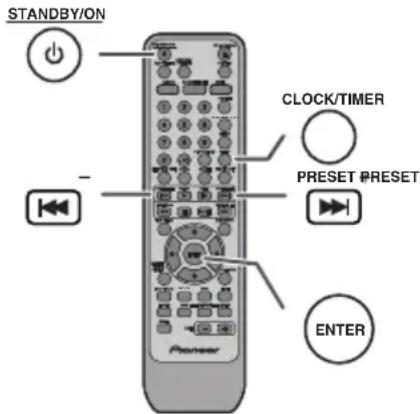

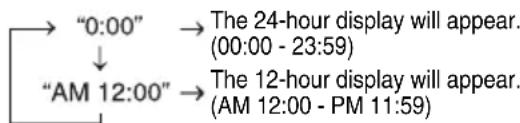

Setting the clock (Remote control only) 18

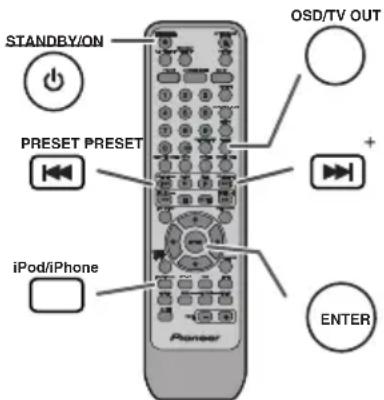

iPod, iPhone and iPad

Listening to the iPod, iPhone or iPad 19-21

DVD playback

DVD playback. 21-22

Basic operation

Basic operation. 22-23

Useful operation

Useful operation 24-26

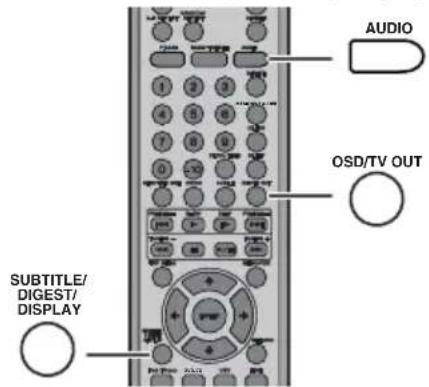

Various settings

Various settings 26-27

CD, CD-R and CD-RW Operation

Video CD and Super Video CD playback 27 - 29

CD playback 29

USB

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video

function) Play back 30-32

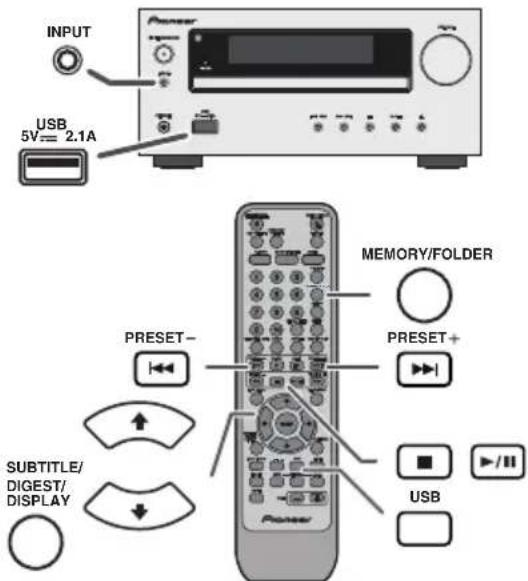

MP3/WMA playback (USB Audio function) 32 - 35

Radio Operation

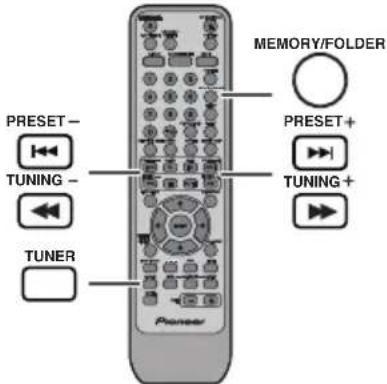

Listening to the radio 36

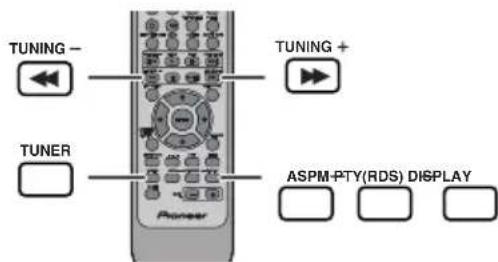

Using the Radio Data System (RDS) 37-39

Advanced Features

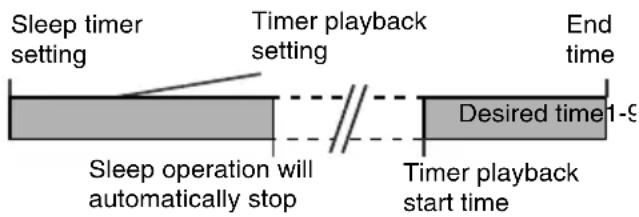

Timer and sleep operation (Remote control only) 40-41

Headphones 41

References

Troubleshooting chart 42-43

Maintenance 43

Specifications 44

Notice 45

General

Use the unit on a firm, level surface free from vibration.
- Place the speakers at least 30cm away from any CRT TV to avoid colour variations across the TV screen. If the variations persist, move the speakers further away from the TV. LCD TV is not prone to such variation.
- Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.
-Do not place anything on top of the unit.
Do not expose the unit to moisture, to temperatures higher than 60^ (140^) or to extremely low temperatures.
If your system does not work properly, disconnect the AC power lead from the wall socket. Plug the AC power lead back in, and then turn on your system.
In case of an electrical storm, unplug the unit for safety.
Hold the AC power plug by the head when removing it from the wall socket, as pulling the lead can damage internal wires.
The AC power plug is used as a disconnect device and shall always remain readily operable.
-Do not remove the outer cover, as this may result in electric shock. Refer internal service to your local PIONEER service facility.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
- Attention should be drawn to the environmental aspects of battery disposal.
The apparatus is designed for use in moderate climates.

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. PIONEER will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Controls and indicators

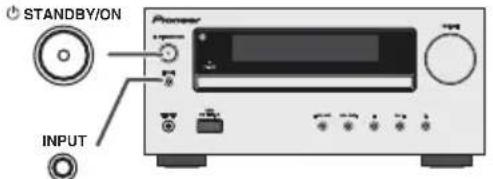

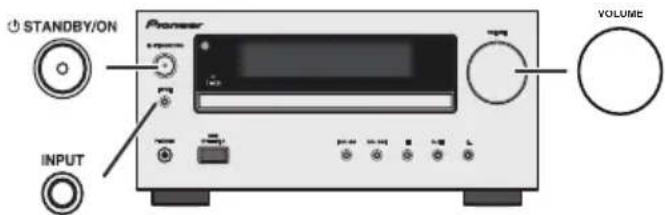

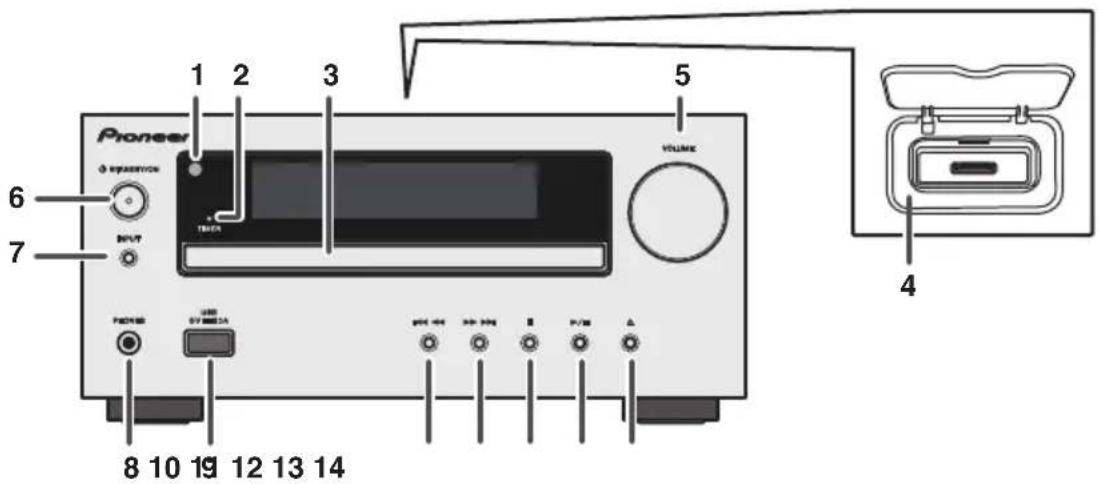

■Front panel

Page

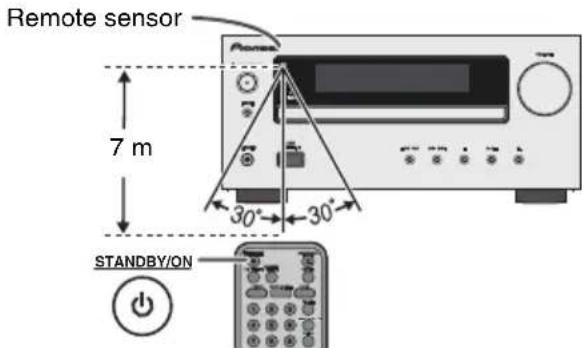

1. Remote sensor 12
2. Timer indicator 40
3. Disc Tray 21
4. Docking Station for iPod or iPhone 19
5. Volume Control 17
   6.STANDBY/ONButton. 17,20,21
6. INPUT Button 17,20
7. Headphone Socket 41
8. USB Terminal 32

Page

1. Tuner Preset Down, CD/USB Track Down, iPod/iPhone Skip Down 21, 34
2. Tuner Preset Up, CD/USB Track Up, iPod/iPhone Skip Up 21,34
3. Disc/USB Stop Button 21,34
4. Disc/USB/iPod/iPhone Play or Pause Button 21, 34
5. Disc Tray Open/Close Button 21

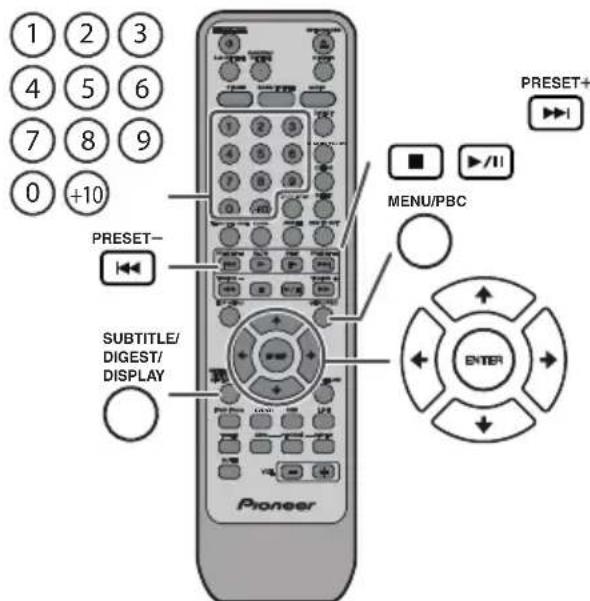

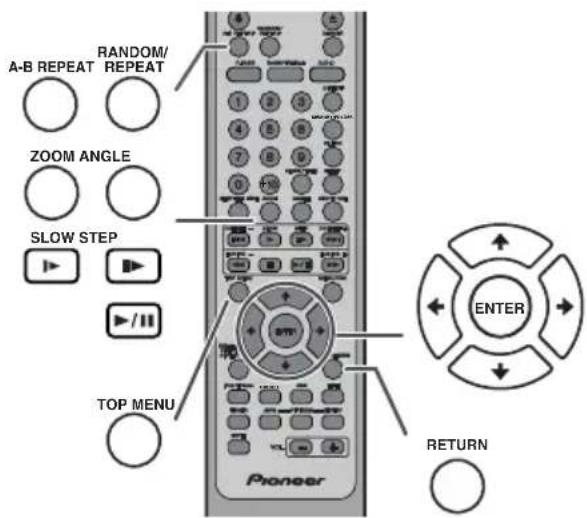

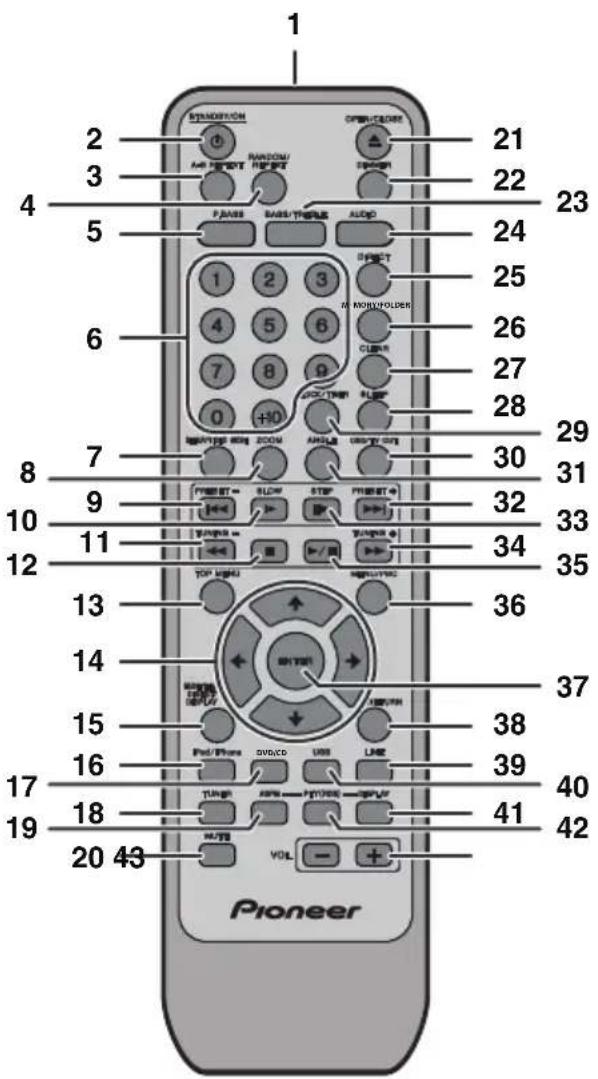

Remote control

Page

1. Remote Control Transmitter 12
2. Standby/On Button 13, 17, 20, 21
   3.A-BRepeatButton 25
   4.Random/RepeatButton 25
   5.P.BassButton. 18
3. Numeric Buttons 28, 29, 34
4. Setup/Video Mode Button 13
5. Zoom Button. 24
6. Chapter (Track) Skip Down or Preset Down Button. 21, 34
7. Slow Button 24
8. Fast Reverse or Tuning Down Button 21, 34
9. Stop Button 21,34
   13.Top Menu Button 25
10. Cursor Button 21
    15.Subtitle/Digest/DisplayButton. 26,28
    16.iPod/iPhone Button 20
    17.DVD/CDButton. 21
    18.Tuner Button. 36
    19.RDS ASPM Button 37
    20.Mute Button 18
11. Open/Close Button 21
12. Dimmer Button 17
    23.Bass/Treble Button 18
13. Audio Button 26

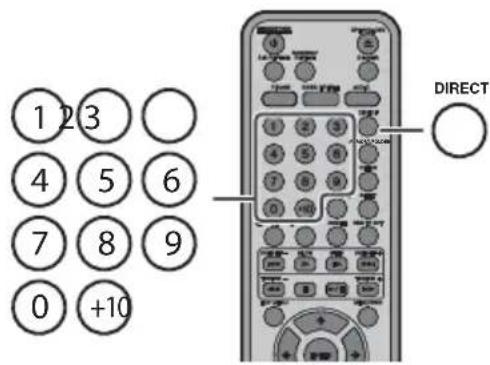

14. Direct Button 28

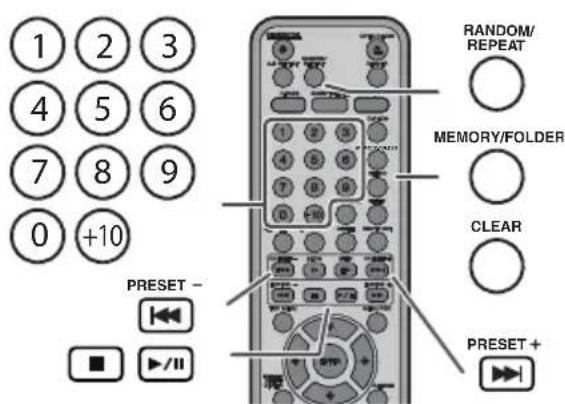

15. Memory/Folder Button 31, 33
    27.ClearButton 36
    28.Sleep Button. 41
16. Clock/Timer Button 18,41
17. OSD/TV OUT Button. 20, 26
18. Angle Button. 24
19. Chapter (Track) Skip Up or Preset Up Button 21, 34
    33.StepButton. 24
20. Fast Forward or Tuning Up Button. 21, 34
21. Play and Pause Button 21, 34
22. Menu/PBC Button. 27
23. Enter Button 13, 21, 34
24. Return Button. 28
25. Line Button 12
26. USB Button. 19, 32
    41.RDS Display Button 37
    42.RDSPTYButton. 38
27. Volume Up and Down Buttons 17

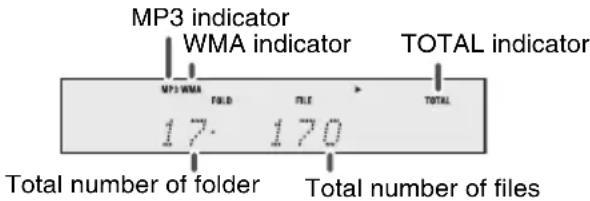

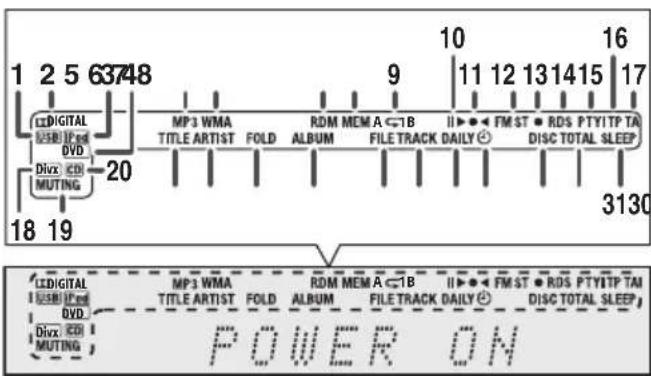

■Display

Page

1. USB Indicator 32
   2.Dolby Digital Signal Indicator 14
2. iPod Indicator 19
   4.DVD Indicator 21
   5.MP3 Indicator 32
   6.WMA Indicator 32
   7.RDM (Random) Indicator 35
3. MEM (Memory) Indicator 35
4. Repeat Play Indicator. 34
5. Play/Pause Indicator 21
   11.Tuning FM/AM Indicator 36
6. FM Stereo Mode Indicator 36
7. Stereo Station Indicator 36
   14.RDS Indicator 37
   15.PTY Indicator 37
8. TP Indicator 37
9. TA Indicator 37
10. Divx Indicator 30
    19.Muting Indicator. 18
    20.CD Indicator 29
11. Title Indicator 33
12. Artist Indicator 33
13. Folder Indicator 33
14. Album Indicator 33
15. File Indicator 33
16. Track Indicator 28
17. Daily Timer Indicator 40
    28.Once Timer Indicator 40
18. Disc Indicator 21
19. Total Indicator 33
20. Sleep Indicator 41

■Speaker system

1. Tweeter
2. Woofer
3. Bass Reflex Duct
4. Speaker Terminal

■Speaker grilles are removable

Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.

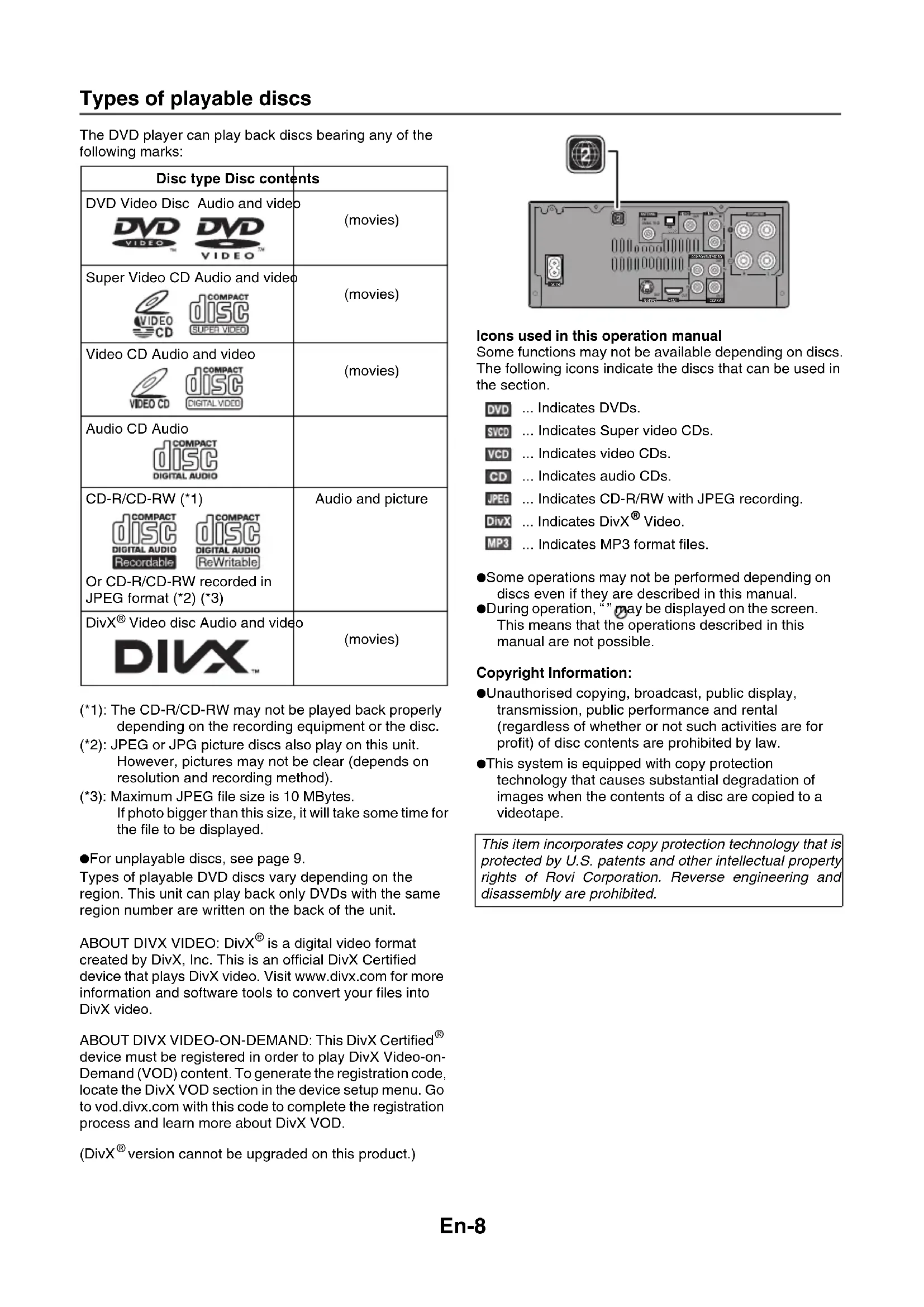

The DVD player can play back discs bearing any of the following marks:

Disc type Disc contents
DVD Video Disc Audio and video DVD VIDEO VIDEO	(movies)
Super Video CD Audio and video VIDEO CD SUPERVIDEO	(movies)
Video CD Audio and video VIDEO CD COMPACT DISC DIGITALVIDEO	(movies)
Audio CD Audio COMPACT DISC DIGITAL AUDIO
CD-R/CD-RW (*1) COMPACT DISC DIGITAL AUDIO Recordable Or CD-R/CD-RW recorded in JPEG format (*2) (*3)	Audio and picture
DivX® Video disc Audio and video DIVX	(movies)

(^1) : The CD-R/CD-RW may not be played back properly depending on the recording equipment or the disc.
(^2) : JPEG or JPG picture discs also play on this unit. However, pictures may not be clear (depends on resolution and recording method).
(^*3) : Maximum JPEG file size is 10 MBytes. If photo bigger than this size, it will take some time for the file to be displayed.

For unplayable discs, see page 9.

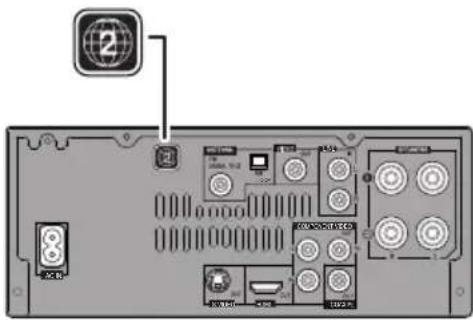

Types of playable DVD discs vary depending on the region. This unit can play back only DVDs with the same region number are written on the back of the unit.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

(DivX^® version cannot be upgraded on this product.)

Icons used in this operation manual

Some functions may not be available depending on discs. The following icons indicate the discs that can be used in the section.

DVD ... Indicates DVDs.
SYCD ... Indicates Super video CDs.
VCD ... Indicates video CDs.
CD ... Indicates audio CDs.
JPEG ... Indicates CD-R/RW with JPEG recording.
DivX ... Indicates DivX® Video.
MP3...Indicates MP3 format files.

Some operations may not be performed depending on discs even if they are described in this manual.
- During operation, " may be displayed on the screen. This means that the operations described in this manual are not possible.

Copyright Information:

Unauthorised copying, broadcast, public display, transmission, public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.
This system is equipped with copy protection technology that causes substantial degradation of images when the contents of a disc are copied to a videotape.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Discs that cannot be played

DVDs without the region number on the disc.

HD DVD

DVDs with SECAM system

CDG

CDV

DVD-ROM

-CD-ROM

DVD-RAM

SACD

DVD-Audio

• Disks recorded in special formats, etc.

Blu-ray Disc

The discs above cannot be played at all, or no sound is heard although images appear on the screen or vice versa.

Incorrect operation may damage the speakers and can have a negative effect on your hearing when played at high volume settings.

• You cannot play illegally produced discs.

Notes:

A disc which has scratches or fingerprints may not play properly. Refer to "Care of compact discs" (page 43) and clean the disc.
Do not play the discs of special shapes (heart or octagon shaped) as they can be ejected whilst rotating and cause injury.

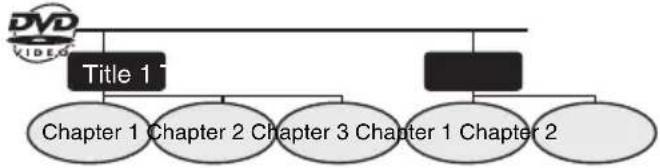

Title, chapter and track

DVDs are divided into "titles" and "chapters". If the disc has more than one movie on it, each movie is a separate "title". "Chapters" are subdivisions of titles.

Audio CDs consist of "tracks".

A "track" is each tune on an audio CD.

Track 1

ack 2 Traq

3 Track 4

（

Track 5

Note:

Title, chapter or track numbers may not be recorded on some discs.

DivX

DivX Certified to play DivX video, including premium content.
DivX is a registered trademark of DivX, Inc., and is used under license.

■Icons used on DVD discs

Check the icons on the DVD case before playing your discs.

Display Description
Region number (playable area number)	DVD discs are programmed with region numbers indicating countries in which they can be played. This system can play discs with region number on the back of the unit.
Format recorded on the DVD	To adopt the video format to the connected TVs ("wide-screen TV" or "4:3 size TV").
4:3	Recorded in 4:3.
16:9 LB	You can enjoy wide images on a wide-screen TV and letterbox size images on the 4:3 size TV.
16:9 PS	You can enjoy wide images on a wide-screen TV and 4:3 images with the side edges cut on the 4:3 size TV.
Type of subtitles recorded 2 LB Example: 1: English 2: French	Recorded subtitle languages. Language can be selected with the SUBTITLE/DIGEST/ DISPLAY button.
Number of camera angles 2	Number of angles recorded on the DVD. Angles can be selected with the ANGLE button.
Number of audio tracks and audio recording systems 2	The number of audio tracks and audio recording systems are indicated. ●The audio recorded on the DVD can be switched by using the AUDIO button. ●The number of audio tracks and recording systems vary depending on the DVD. Check them in the DVD's manual.

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Aerial connection

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 ohms socket and position the FM aerial wire in the direction where the strongest signal can be received.

External FM aerial:

Use an external FM aerial (75 ohms coaxial cable) for better reception. When an external FM aerial is used, disconnect the supplied FM aerial wire.

Supplied AM loop aerial:

Connect the AM loop aerial to the AM terminal. Position the AM loop aerial for optimum reception. Place the AM loop aerial on a shelf, etc., or attach it to a stand or a wall with screws (not supplied).

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

■Speaker connection

Twist exposed wire strands together.
Connect the red wire to the plus (+) terminal, and other wire to the minus (-) terminal.
Use speakers with an impedance of 4 ohms, as lower impedance speakers can damage the unit.
These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of a fall.
-Do not mistake the right and the left channels. The right speaker is the one on the right side when you face the unit.
-Do not let the bare speaker wires touch each other.
-Do not allow any objects to fall into or to be placed in the bass reflex ducts.
Do not stand or sit on the speakers. You may be injured.
Do not connect the supplied speakers with any other amplifier. This may result in malfunction or fire.

Connecting your TV

Photo and video files from iPod, iPhone and DVD videos can be viewed by connecting the system to TV/monitor. If the TV/monitor has a video input, connect it to the VIDEO OUT socket at the back of the unit and set the TV Out on the iPod or iPhone unit to "ON" position.

Notes:

• Please make sure to set iPod unit to either NTSC or PAL to match your TV signal. Please visit Apple's homepage for further information.
• You can also use S-Video, component video, or HDMI cable. (page 11)

AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a prolonged period of time.

Caution:

• Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a replacement.
  Do not use any power cord other than the one supplied with this unit.
  Do not use the supplied power cord for any purpose other than that described above.

Connect your TV (Enjoying DVD or iPod video)

For better quality, you can also connect with S-video using the S-VIDEO OUT jack.

If your TV also has a component video input or HDMI input, you can connect this too.

Using the component video jacks:

Component video should deliver superior picture quality when compared to composite video. A further advantage is progressive-scan video, which delivers a very stable, flicker-free picture. See the manuals that came with your TV to check whether they are compatible with progressive-scan video.

Using HDMI terminal:

If you have an HDMI or DVI (with HDCP) equipped TV, you can connect it to this receiver using a commercially available HDMI cable.

Note:

If the video signal does not appear on your TV, try adjusting the resolution settings on your TV. Note that some video contents have resolutions that may not be displayed. In this case, use a (analog) composite connection.

System Connection (continued)

Connect your TV (For TV audio)

This will allow you to play the sound from the TV's built-in tuner.

• Connect the audio output on your TV to the LINE IN on this receiver.

Use an audio cable.

To select Line In function:

• On main unit: Press INPUT button repeatedly until Line In is displayed.
• On remote control: Press LINE button.

Remote control

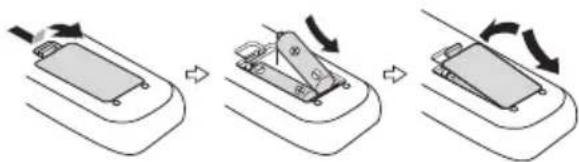

■Battery installation

1 Open the battery cover.
2 Insert the supplied batteries according to the direction indicated in the battery compartment.

When inserting or removing the batteries, push them towards the (-) battery terminals.

3 Close the cover.

WARNING:

• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Caution:

Replace all old batteries with new ones at the same time.
-Do not mix old and new batteries.
- Remove the batteries if the unit will not be used for a long period of time. This will prevent potential damage due to battery leakage.
- Do not use rechargeable batteries (nickel-cadmium battery, etc.).
- Installing the batteries incorrectly may cause the unit to malfunction.

Notes concerning use:

• Replace the batteries if the operating distance is reduced or if the operation becomes erratic. Purchase 2 "AAA" size batteries.
  Periodically clean the transmitter on the remote control and the sensor on the unit with a soft cloth.
• Exposing the sensor on the unit to strong light may interfere with operation. Change the lighting or the direction of the unit if this occurs.
• Keep the remote control away from moisture, heat, shock, and vibrations.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

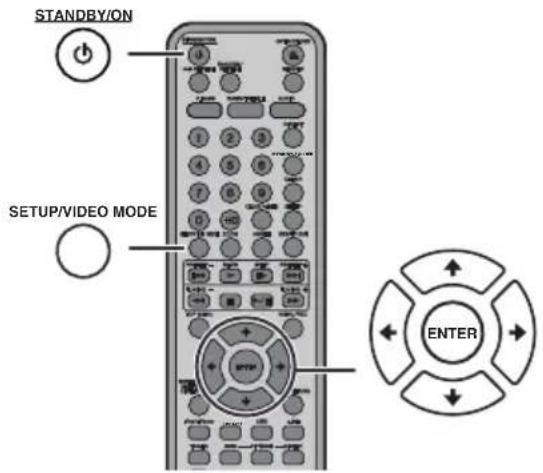

■Test of the remote control

Check the remote control after checking all the connections.

Point the remote control directly at the remote sensor on the unit. The remote control can be used within the range shown below:

Turn on the TV, and switch the input to the "VIDEO 1", "VIDEO 2", etc. accordingly.

1 Press the STANDBY/ON button to turn the power on.

The startup screen appears.

The startup screen does not appear when the input is not set to the disc mode. Press the DVD/CD button on the remote control or INPUT button on main unit repeatedly to select DISC mode.

2 Press the SETUP/VIDEO MODE button.

3 Press the or button to select a menu and press the ENTER button.

See the list on pages 13 - 15 for setup menu.

4 Press the , , ← or → button to change the setting and press the ENTER button.

See the list on pages 13 - 15 for the selectable parameters.

5 Press the SETUP/VIDEO MODE button.

The setting is completed.

To change other settings, begin from step 2.

Notes:

• During playback, "PREFERENCE" settings cannot be changed.

• Settings are stored even if the unit is set to the stand-by mode.

• The backup function protects the stored settings for a few hours should there be a power failure or the AC power lead disconnection.

If the startup screen is blurred, change the TV type in the setup menu.

Setup menu	Selectable parameters (* indicates default setting) Description
GENERAL SETUP PAGE	GENERAL FREEREDLEY VIDEC GENERAL SETUP PAGE TV DISPLAY RS ANGLE MARK ON CHRIAL LANGUAGE TND SCREEN Saver ON LAST MEMORY OFF GO TO GENERAL SETUP PAGE	TV DISPLAY 4:3 PANSCAN* 4:3 LETTERBOX 16:9 WIDE SQUEEZE		The screen mode should be set according to the connected TV type (for details, see page 16).
		ANGLE MARK	ON* OFF
		OSD LANGUAGE	ENGLISH* GERMAN FRENCH ITALIAN SPANISH	You can select the desired OSD (On Screen Display) language for the setup menu or playback control screen.
		SCREEN SAVER	ON* A screen saver appears.
			OFF The screen saver disabled.
		LAST MEMORY	ON* If accidentally push ST	ANDBY/ON or OPEN/ CLOSE button during playback mode, you can resume playback from the point playback is stopped after power on back or you push the OPEN/CLOSE button to close the disc tray.
			OFF Last memory not function.
AUDIO SETUP PAGE	GENERAL AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIOUDIO AUDIENCE	ANALOG AUDIO	DOWNMIX LT/RT STEREO*
		DIGITAL AUDIO	DIGITAL OUT	SPDIF OFF SPDIF/ RAW* SPDIF/PCM	When playing a disc recorded with Dolby Digital or DTS, the corresponding digital signals will be output. ●PCM : Choose this setting if the decoder cannot support Dolby Digital or DTS. ●RAW : Choose this setting if the decoder can support Dolby Digital or DTS.
			LPCM OUT 48KHZ* 96KHZ	Select the sampling frequency at 48 kHz/16 bit or 96 kHz/24 bit capability after you select SPDIF/PCM at SPDIF SETUP.

Setup menu	Selectable parameters (* indicates default setting) Description
DOLBY DIGITAL SETUP	GENERAL AUDIO AUDIOVIDEO PRECISION GENERAL AUDIO AUDIOVIDEO PRECISION GO TO DOLBY DIGITAL SETUP	DUAL MONO	STEREO* L-MONO R-MONO MIX-MONO
		DYNAMIC (*)	FULL Audio with fully compressed dynamic range.
			3/4 1/2 1/4	Audio with partially compressed dynamic range.
			OFF* Audio with uncompressed dynamic range.
VIDEO SETUP PAGE	GENERAL AUDIO AUDIOVIDEO PRECISION VIDEO PRECISION VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT VIDEO OUT	VIDEO OUT	SVIDEO* COMPONENT	●SVIDEO: Choose this setting for S-VIDEO output. ●COMPONENT: Choose this setting for COMPONENT output. ●To set, use the provided video cable. ●Simultaneous outputs from both the S-VIDEO OUT and the COMPONENT Video OUT are not possible. ●Check the VIDEO OUT setting using the provided video cable if there is no output from the S-VIDEO OUT or the COMPONENT Video OUT.
		RESOLUTION	480I 480P 576I 576P 720P(50HZ)* 1080I(50HZ) 1080P(50HZ) 720P(60HZ) 1080I(60HZ) 1080P(60HZ)
		COLOR SETTING	SHARPNESS HIGH MEDIUM* LOW
			BRIGHTNESS -20 -> 0* -> +20
			CONTRAST -16 -> 0* -> +16
			GAMMA HIGH MEDIUM* LOW NONE
			HUE -9 -> 0* -> +9
			SATURATION -9 -> 0* -> +9
			LUMA DELAY 0° 1T
		DivX(R) VOD OK PIONEER provide you the DivX DIVX RVIDUAL COND. MANDO REGISTRHER IN HIB GATORU 20"		registration code that allows you to rent and purchase videos using the DivX service. Please go to www.divx.com/vod for more information.
		HDMI SETUP	HDMI ON* OFF
			AUDIO SOURCE	AUTO*
				PCM

Changing the setup menu (continued)

Setup menu Selectable parameters (* indicates default setting) Description
PREFERENCE PAGE	GENERAL AUDIO/TV/VCR/PREVIEW	TV TYPE PAL	* AUTO NTSC(*2)	Please refer page 16.
	-- PREFERENCE PAGE --
	TV TYPE PAL
	AUDIO/TV/VCR/PREVIEW
	DESCRIPTIONS	PBC ON*	OFF	Please refer page 27.
	DESC MEDIUM ENPG.
	PARENTAL PAWRING
	GOT TO FRETIVE PAGE
		AUDIO ENGL	SH* GERMAN FRENCH ITALIAN SPANISH	Select the language audible from the speakers.
		SUBTITLE ENGL	ENGLISH* GERMAN FRENCH ITALIAN SPANISH OFF	Select the subtitle displayed on the TV screen.
		DISC MENU ENGLISH* GERMAN FRENCH ITALIAN SPANISH
	PARENTAL 1	KID SAFE 2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC 17 8 ADULT*		Set a restriction level for DVD viewing. (For details, see page 17)
	PASSWORD	PASSWORD MODE	ON* OFF	Select the password mode condition.
		PASSWORD	CHANGE $ee page 17 for password setting.
	DEFAULT RESET	SET This resets all setting		(Except for Parental and Password) to factory default.

(^1) Selects the dynamic range compression to fit the individual listening situation of the audience. This function can be used in DVD playback. Depending on the disc, sounds may become too loud or inaudible during playback. Dolby Digital's dynamic range control allows you to adjust the sound range.
(^2) NTSC is default TV TYPE for some countries only.

TV display setting

Indicator Setting
4:3 PANSCAN	When playing a wide image (16:9) disc, the left and right sides of the image are cut (pan scan) to display a natural-looking 4:3 size image. A wide image disc without pan scan is played back in 4:3 letterbox. A 4:3 disc is played in 4:3.
4:3 LETTERBOX	When playing a wide image (16:9) disc, black bands are inserted at the top and bottom and you can enjoy full wide images (16:9) on a 4:3 size TV. A 4:3 disc is played in 4:3.
16:9 A wide image	image (16:9) is displayed when playing a wide image (16:9) disc. ●When playing a 4:3 image disc, the image size depends on the setting of the connected TV. ●If you play back a wide image (16:9) disc with this unit connected to a 4:3 TV, the vertically shrunk image is displayed.
WIDE SQUEEZE	When play 4:3 disc with this unit connected to a 16:9 TV (wide screen TV), the horizontally expended image is displayed. If you use this setting, a natural looking image 4:3 size can be viewed with the black bands are inserted at the left and right of the screen. ●If you playback a wide image (16:9) disc with 4:3 TV, the vertically shrunk image is displayed.

Note:
When playing the disc with a fixed video format, it will not change even if the TV screen size is changed.

TV type setting

Indicator Setting

AUTO Select this mode for the multi-system TV.

NTSC Select this mode for the NTSC TV.

PAL Select this mode for the PAL TV.

■Language setting

Indicator Setting
OSD LANGUAGE	A language for screen display can be set for the setup menu, messages, etc. English French Loading → CARGMENT
AUDIO A language for audio can be set. You can specify a language for conversation and narration. English Thank you Merci
SUBTITLE A language for subtitle can be set. The subtitles are displayed in a specified language. English Thank you Merci
DISC MENU	A language for disc menus can be set. Menu screens are displayed in a specified language. English Thank ACTEURS PERSONNEL

Changing the setup menu (continued)

Parental setting

1 Select "PREFERENCE" on the setup menu screen (see steps 1 - 4 on page 13).
2 After selecting "PARENTAL" in step 4 on page 13, select the parental level and press the ENTER button.
3 Enter a 6-digit password using the Numeric buttons and press the ENTER button.

• If this is the first time, enter "000000".

Indicator Setting
1 KID SAFE O	Only DVD software intended for children can be played back.
2 G to 7 NC-17	Only DVD software intended for general use and children can be played back.
8 ADULT DVD	software of any grade (adult/general/children) can be played back.

Note:

Whilst playing a disc with parental lock, the display may appear requesting a password in order to watch some restricted scenes. In such case, enter the password to temporarily change the parental level.

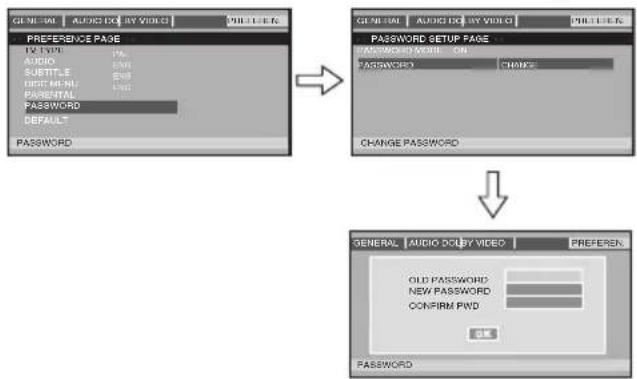

■Password setting

From the setup menu, select "PREFERENCE", "password" and then "CHANGE". A screen appears.

1 Enter the old password using the Numeric buttons. (If this is the first time, enter "000000").
2 Enter the new password using the Numeric buttons.
3 Enter the new password again for confirmation.
4 Press ENTER button again to confirm password changed.

Note:

• When you forget your password, follow below sequence.
• At setup menu, select "PREFERENCE", "password" and then "CHANGE".

1 Enter the old password as "000000" using the Numeric buttons.
2 Enter the new password.
3 Enter the new password again for confirmation.

General control

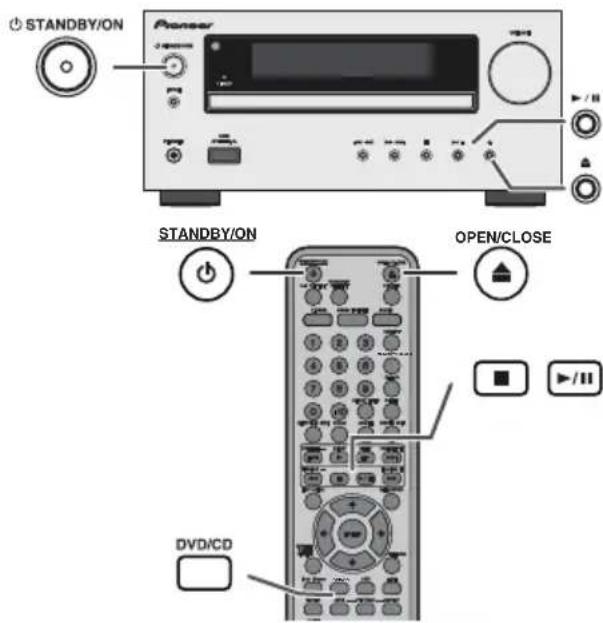

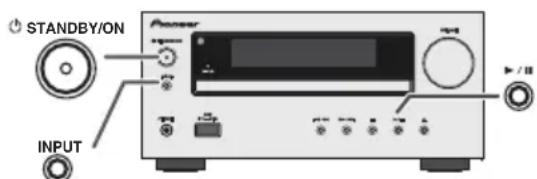

To turn the power on

Press the STANDBY/ON button to turn the power on.

After use:

Press the STANDBY/ON button to enter the power stand-by mode.

Display brightness control

To dim the display brightness, press the DIMMER button on the remote control.

Volume auto set-in

If you turn off and on the main unit with the volume set to 17 or higher, the volume starts at 16.

Volume control

Turn the volume knob towards VOLUME (on main unit) or press VOL + / - (on remote control) to increase or decrease the volume.

Auto power on function

When you press any of the following buttons, the unit turns on.

• iPod/iPhone, DVD/CD, USB, LINE, TUNER on the remote control: Selected function is activated.
• button on the main unit: The unit turns on and playback of the last function will start (DISC, Tuner, USB Audio, USB Video, iPod, Line In).

Auto power off function

The main unit will enter the stand-by mode (when iPod or iPhone is not docked) after 15 minutes of inactivity during: iPod or iPhone: No connection.

Line In: No detection of input signal or very low sound audibility.

DISC/USB Audio/USB Video: In the stop mode.

Note:

However, if iPod or iPhone is docked, the unit will begin charging.

"Charge Mode" will be displayed.

■Muting

The volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.

P.Bass control

When the power is first turned on, the unit will enter P.Bass mode which emphasises the bass frequencies.

To cancel the P.Bass mode, press the P.BASS button on the remote control.

Bass control

1 Press the BASS/TREBLE button to select "BASS".
2 Within 5 seconds, press the VOL (+ or -) button to adjust the bass.

Treble control

1 Press the BASS/TREBLE button to select "TREBLE".
2 Within 5 seconds, press the VOL (+ or -) button to adjust the treble.

Function

When the INPUT button on main unit is pressed, the current function will change to different mode. Press the INPUT button repeatedly to select desired function.

Note:

The backup function will protect the memorised function mode for a few hours should there be a power failure or the AC power lead becomes disconnected.

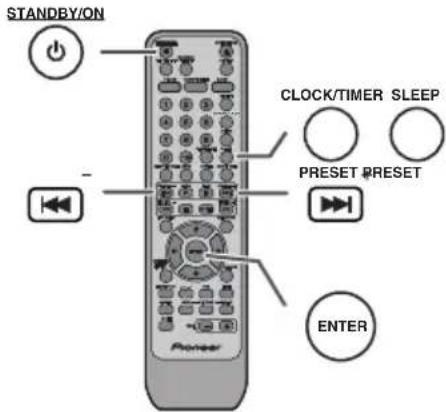

Setting the clock (Remote control only)

In this example, the clock is set for the 24-hour (00:00) display.

1 Press the STANDBY/ON button to turn the power on.
2 Press the CLOCK/TIMER button.
3 Within 10 seconds, press the ENTER button. To adjust the day, press the button and then press the ENTER button.
4 Press the Enter button to select 24-hour or 12-hour display and then press the ENTER button.

5 To adjust the hour, press the or button and then press the ENTER button. Press the or button once to advance the time by 1 hour. Hold it down to advance continuously.
6 To adjust the minutes, press the 山 or button and then press the ENTER button. Press the 山 or button once to advance the time by 1 minute.

To confirm the time display:

Press the CLOCK/TIMER button. The time display will appear for about 5 seconds.

Note:

When power supply is restored after unit is plugged in again or after a power failure, reset the clock (page 42).

To readjust the clock:

Perform "Setting the clock" from step 1. If the "Clock" does not appear in step 2, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to "Factory reset, clearing all memory" on page 43 for details.]
2 Perform "Setting the clock" from step 1 onwards.

Supported iPod, iPhone and iPad models:

iPad
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
iPod touch (4 generation)
iPod touch (3 generation)
iPod touch (2 generation)
iPod touch (1 generation)
- iPod classic
iPod nano (6 generation)
iPod nano (5 generation)
iPod nano (4 generation)
iPod nano (3 generation)
iPod nano (2 generation)

Notes:

This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).
- Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.
The iPad is only supported by the USB terminal.
-Charging terminal for iPod, iPhone and iPad:

Condition	Docking station	USB terminal
USB Audio function	NO YES
Other function YES	NO
Stand-by YES NO

The message "This accessory is not made to work with iPhone" or similar, may appear on the iPhone screen when:

-battery is low.

• the iPhone is not properly docked (eq. slanting).

if this occure, remove and re-dock the iPhone.

• This product is made for iPhone. To prevent random interference when iPod/iPhone is docked, the headphone output is disabled and "HP INVALID" will be displayed.

You may also experience brief audio interference during incoming calls.

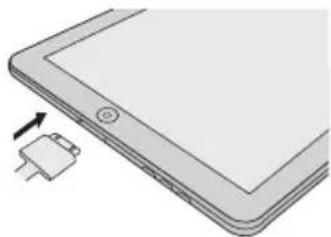

iPad connection (USB Terminal)

1 Insert the connector to the the iPod, iPhone or iPad.

2 Connect the iPad to the unit via USB connector.

Note:

USB connector do not support VIDEO out.

iPod, iPhone or iPad Playback (USB Terminal)

1 Press the STANDBY/ON button to turn the power on.
2 Press the USB button on the remote control or INPUT button repeatedly on the main unit to select USB Audio function.
3 Connect iPod, iPhone or iPad to the unit. "USB/iPod" will appear.
4 Press the / button to start playback.

Note:

Stop button ( is invalid during iPod, iPhone or iPad playback.

■iPhone adaptor connection (Docking Station)

Note:

Please use the adaptor supplied with your iPod or iPhone unit.

iPhone Adaptor No.	iPhone Description	Capacity
12 iPhone	4GB & 8GB & 16GB
15 iPhone	3G, iPhone 3GS	8GB & 16GB & 32GB
19 iPhone	4 16GB & 32GB

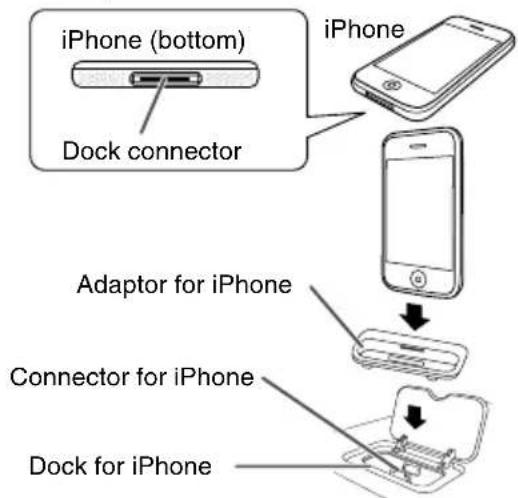

To insert adaptor for iPod or iPhone (Docking Station)

1 Open the docking station for iPod and iPhone by pulling up.

2 Insert the adaptor for iPod and iPhone into unit and connect your iPod or iPhone.

Caution:

Unplug all accessories from the iPod or iPhone before inserting it into the dock.

To remove adaptor for iPod or iPhone (Docking Station)

Insert the tip of a screwdriver ("- " type, small) into the adaptor hole as shown and lift upward to remove.

iPod or iPhone playback

1 Press the STANDBY/ON button to turn the power on.
2 Press the iPod/iPhone button on the remote control or INPUT button repeatedly on the main unit to select iPod function.
3 Insert iPod or iPhone unit in iPod dock of main unit. "Dock Ok" will appear.
4 Press the / button to start playback.

iPhone playback

Sound will only switch from iPhone to the main unit after authentication process is completed in approximately 10 seconds.
- Incoming calls will pause the playback.
-Once the calls are answered, the conversation can only be heard through the built-in iPhone speaker. Turn on the iPhone speaker or undock the iPhone to start conversation.

■To disconnect iPod, iPhone or iPad

Simply remove the iPod or iPhone from the the docking station or iPad from USB terminal. It is safe to do so even during playback.

■Watching videos on a TV connected to iPod or iPhone (Docking Station)

1 Press the OSD/TV OUT button for more than 2 seconds. "TV Display" will appear on display.
2 Press the ENTER button to start playback.

Notes:

If the TV Out setting is already turned on at video menu, the video is automatically displayed on the TV screen when ENTER key is pressed.
- TV out display is not supported through USB terminal. (iPad)
To return to watching video on iPod or iPhone screen, press the ENTER button to enter video menu. Then press the OSD/TV OUT button for more than 2 seconds until "iPod Display" appears.
- During iPod or iPhone video playback, pressing the OSD/TV OUT button will not toggle video out display between iPod and TV.

Caution:

The video images from the iPod and iPhone will only be output from the VIDEO OUT terminal. They will not be output from the S-VIDEO OUT, COMPONENT VIDEO OUT, and the HDMI OUT terminals.
- Unplug all accessories for the iPod or iPhone before inserting it into the iPod docking station.
- Stop button (■) at main unit is invalid during iPod function.

Navigating the iPod, iPhone or iPad menus

1 Press the TOP MENU button to view the menu on iPod, iPhone or iPad unit. Press it again to go back to previous menu.
2 Use the or button to select an item on the menu and then press ENTER button.

Note:

When navigating the iPod, iPhone or iPad menu with remote control, do not operate any of the buttons on the iPod or iPhone unit. The volume level is adjusted by pressing the VOL (+ or -) button on the main unit or the remote control. Adjusting the volume on the iPod, iPhone or iPad units give no effect.

iPod and iPhone operations:

The operations described below depend on the generation of iPod and iPhone you are using.

System on operation:

When the main unit is powered on, iPod, iPhone or iPad units will automatically power on when docked in the unit.

System off (stand-by operation):

When the main unit is turned to stand-by mode, the docked iPod, iPhone or connected iPad unit will automatically turn to stand-by mode.

Listening to the iPod, iPhone or iPad (continued)

■Various iPod, iPhone and iPad functions

Function	Main unit	Remote control		Operation
		Dock USB Audio
Play Press in the			pause mode.
Pause Press in the			playback mode.
Track up/down		PRESET-PRESET	PRESET-PRESET	Press in the playback or pause mode. If you press the button in the pause mode, press the▶/■ butto start the desired track.
Fast forward/reverse		TUNING TUNING +	TUNING TUNING +	Press and hold down in the playback mode. Release the button to resume playback.
Display	—	OSD/TV OUT	—	Press for more than 2 seconds to toggle the video out display between iPod or TV.
Repeat	—	RANDOM/REPEAT	RANDOM/REPEAT	Press to toggle repeat mode.
Shuffle	—	RANDOM/REPEAT	RANDOM/REPEAT	Press and hold down to toggle shuffle mode.
iPod Menu	—	TOP MENU	TOP MENL	Press to view the iPod menu during iPod function.
iPod Enter	—	ENTER	ENTER	Press to confirm the selection.
iPod Cursor Up/Down	—	+ +	+ +	Press to select the iPod menu.

DVD playback

■Playback

DVD SVCD VCD CD JPEG DivX MP3

1 Press the STANDBY/ON button to turn the power on.

2 When the input is not set to the disc mode, press the DVD/CD button on the remote control or INPUT button on the main unit repeatedly to display the startup screen. The startup screen appears.

3 Press the button to open the disc tray.
4 Place the disc on the disc tray, label side up. Be sure to place 8 cm discs in the middle of the disc position.
5 Press the button to close the disc tray. Discs supporting auto start will start to play once you close the disc tray even if you do not press the button.
6 If playback does not start in step 5, press the button.

To interrupt playback:

Press the / button.
To resume playback from the same point, press the / button.
To stop playback completely:
DVD/CD/DivX

Press the button twice. MP3

Press the button. JPEG

To return to the main menu screen whilst playback, press the MENU/PBC button.

When the unit is left unoperated for more than 5 minutes after stopped, a screen saver appears (see page 13 when the screen saver setting is "ON").

Press any button on the main unit or remote control. The startup screen returns.

Caution:

• Close the disc tray when not in use. Otherwise, dust may accumulate inside and cause malfunction.
  The unit gets slightly warm when used for a long time. It does not mean the unit is damaged.
• When attempting to play discs with scratches or of a different region number, or unplayable or restricted (1) discs, an error message will appear on the TV display and the disc will not play.
  (^1) Viewing is prohibited on some DVDs according to the audience age.

Notes:

• Stop positions may be recorded on some discs. When you play such a disc, playback stops there.
  During an operation, " " may appear indicating that the operation is disabled by the disc.

■To resume playback after stopping (resume play)

DVD

You can resume playback from the point playback is stopped.

1 Whilst a disc is playing, press the button. The system stores the point you stopped.
2 To restart play, press the / button. Play resumes from the point you stopped.

To cancel the resume playback:

Press the button twice.

Notes:

The resume playback feature is disabled on some discs.
Depending on the disc, playback may resume from slightly before the stopped position.

DVD mode operation indicators

DVD SYCD VCD

The following are examples of operation indicators that appear during DVD playback.

Operation TV	screen Unit display
When the power is on without a disc.	NO DISC	NO DISC
Disc data is being read.	LOADING	LOADING
Stop	STOP	STOP
Play	01 02 0308	01 02 0308
Pause	01 02=0305=01	01 02=0305=01

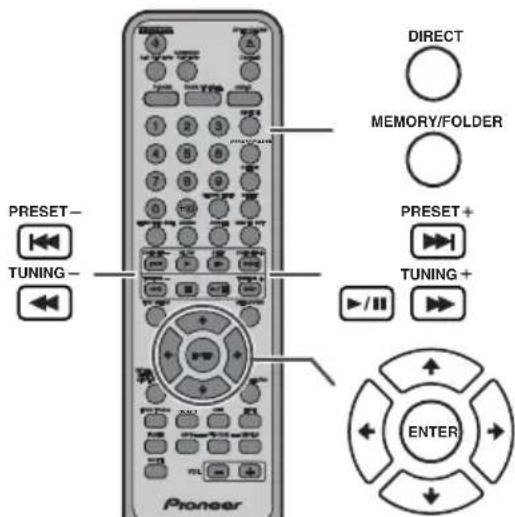

Basic operation

To locate the beginning of a chapter (track) (skip)

DVD SVCD VCD CD DivX JPEG MP3

You can move to other tracks with simple operations. When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 27).

Whilst a disc is playing, press the PRESET + or - (or button.

Use the button to skip to the next chapter (track).
Use the button to skip to the previous chapter (track).
- On SVCD, VCD and Audio CD, press the button to skip to the beginning of the current track. Press the button again (twice) to skip to the beginning of the previous track.

Notes:

Some discs do not display the chapter (track) and the skip feature is disabled.
On a DVD, skip does not operate between titles.

Fast forward/Fast backward (search)

DVD SVCD VCD CD DWX MP3

You can search the desired point as you play the disc.

1 Whilst a disc is playing, press the TUNING + or - (or ) button.

Example: When the button is pressed.

On DVD/DivX/SVCD/VCD/Audio CD/MP3, the speed changes as follows:

PLAY (Normal play) 2X 4X 8X 16X 32X

The disc is forwarded by the button and backward by the button.

2 Press the / button to return to the normal playback.

Notes:

• On some discs, the search function is disabled.
  On a DVD, search does not operate between titles.
  On SVCD, VCD, Audio CD and MP3, the search does not operate between tracks.
• Whilst searching on a DVD, the sound is not heard and the subtitles do not appear.
• Whilst searching on a SVCD or a VCD, the sound is not heard.
• When search is performed during the DVD playback, pictures may not be forwarded or reversed in the search speed specified in this manual, depending on the disc or the scene being played.
  The search does not operate on JPEG discs.

To play in the desired order (programmed play)

DVD CD

You can playback the desired tracks with titles or chapters in a specific order. Maximum of 20 tracks can be programmed.

1 Whilst in the stop or playback mode, press the MEMORY/FOLDER button.

2 Enter title or chapter number or track number with the Numeric buttons.
- If you enter the wrong numbers, press or button to select the concerned track and then reenter the new numbers.
3 Press button to select "Start" and then press ENTER button to start playback the programmed track(s).

To change the programmed contents:

Repeat the above procedures from step 1.

Programmed contents will be cleared when you perform the following operations:

• Change to another function or remove the discs.

-Set to the stand-by mode.

To start playback from the desired point (direct play)

DVD

To select and play the desired title and chapter: In the stop mode

1 Whilst in the stop mode, press the DIRECT button. TV screen

TITLE 01/03 CHAPTER 10/19

2 Within 10 seconds, enter the title number first then only can enter the chapter number by using the Numeric buttons. Press or button for title or chapter selection.

Example:

To select title or chapter 1: Press "1".

To select title or chapter 12: Press “+10” and “2”.

To select title or chapter 22: Press " +10 " twice and "2".

In the playback mode

1 Whilst in the playback mode, press the DIRECT button.

TV screen

2 Select the title or chapter by pressing the or button and press the ENTER button.
3 Enter the title or chapter number using the Numeric buttons.

To select chapter 1: Press "0" and "1".

To select chapter 12: Press "1" and "2".

Playback starts after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of image (standard screen).

Notes:

• Direct play feature is disabled on some discs.
  Some discs may not display the chapter number.
  With DVDs, you can specify the desired point only in the current title and not in another title.

To play by specifying time (time search):

You can playback from the desired point by specifying the time.

1 Whilst in the playback mode, press the DIRECT button.

TV screen

2 Press or button to select "TT Time" then press the ENTER button.
3 Specify the time with the Numeric buttons.

1:23:40

To specify 1 hour 23 minutes and 40 seconds, enter "12340".
-If you enter the wrong number, start over from step 1.
-Playback starts after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of image (standard screen).

Notes:

Some discs cannot play from the specified point.
- Time search feature is disabled on some discs.

■Still picture

DVD SVCD VCD DivX

You can freeze the picture during playback.

1 Whilst a disc is playing, press the / 山 button.
2 The image or picture will freeze on TV screen. "I" appears on the TV screen.
The unit display counter will blink.

Note:

The sound is muted during still picture.

■Step function (Frame by frame advance playback)

DVD SYCD VCD DivX

You can advance frame by frame.

1 Whilst a disc is playing, press the STEP but
Each press of the STEP button advances the frame.
2 Press the / button to return to the normal playback.

Notes:

• Frame playback operates forward only.
• Still picture and frame advance features are disabled on some discs.
  The sound is muted during step function.

Slow-motion play

DVD SVCD VCD DivX

You can slow down the playback speed.

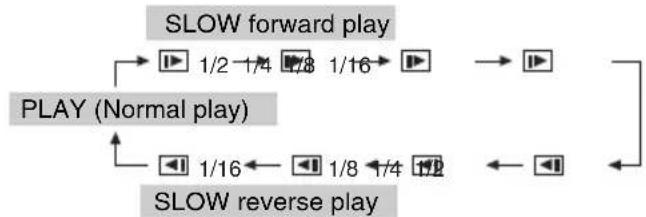

1 Whilst a disc is playing, press the SLOW button repeatedly to select the desired speed. On DVD, the speed changes as follows:

On SVCD/VCD/DivX, only forward play is possible and the speed changes as follows:

2 Press the / button to return to the normal playback.

Note:

On some discs, the slow-motion play functions are disabled.

To change the angle

You can change the angle of view when playing a DVD disc that contains scenes recorded from multiple angles.

When " is displayed in the upper right corner of the TV screen, press the ANGLE button repeatedly to select the desired angle number.

Notes:

The angle number is not displayed if angles are not recorded on the disc.
Refer to the manual of the disc as the operation may vary depending on the disc.

To zoom images (zoom)

DVD SVCD VCD DivX JPEG

You can magnify images during playback.

1 Whilst a disc is playing, press the ZOOM button.

Each press of the ZOOM button cycles through the zoom setting as follows:

$$ 2 X \rightarrow 3 X \rightarrow 4 X \rightarrow 1 / 2 \rightarrow 1 / 3 \rightarrow 1 / 4 \rightarrow O F F $$

JPEG

Each press the or button switches the zoom setting as follows:

$$ 50 \% \leftrightarrow 75 \% \leftrightarrow 100 \% \leftrightarrow 125 \% \leftrightarrow 150 \% \leftrightarrow 200 \% $$

2 To shift the view and display the desired part of a zoomed image, press the or

button repeatedly.

To return to normal view:

Press the ZOOM button repeatedly.

Notes:

Images may become distorted when zoomed.
Subtitles cannot be zoomed.

To play repeatedly (repeat play)

DVD SVCD VCD CD MP3

You can play a chapter (track) or a title repeatedly by specifying it during playback.

When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 27).

1 Whilst a disc is playing, press the RANDOM/rePEAT button.

TV screen

CHAPTER

Each time the button is pressed, the repeat play mode changes in the following order.

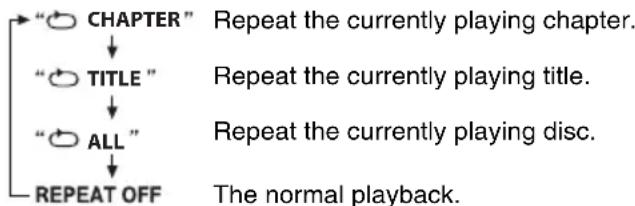

The repeat play mode changes as follows on DVD:

The repeat play mode changes as follows on SVCD/ VCD:

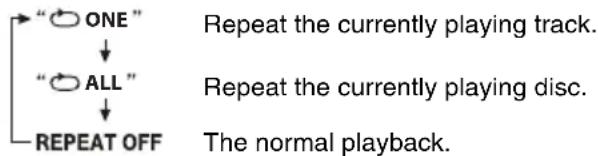

The repeat play mode changes as follows on audio CD:

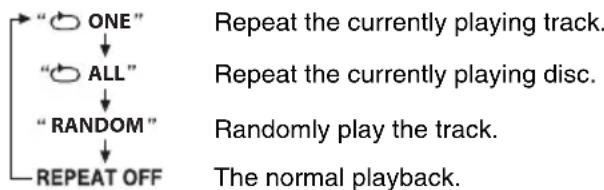

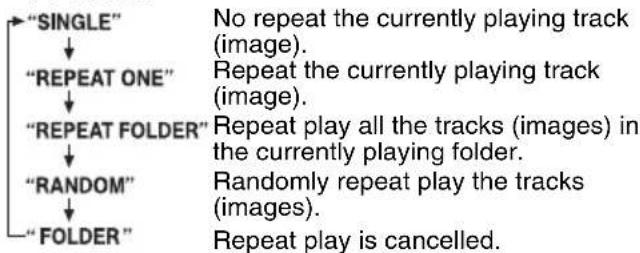

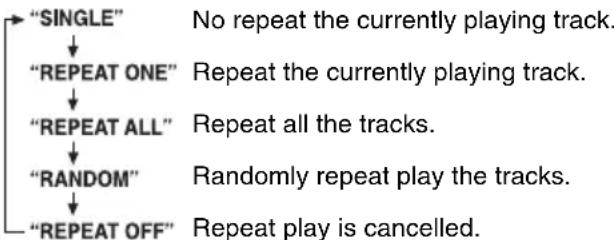

MP3, DivX and JPEG are displayed when menu screen is "ON" (see page 30).

2 To return to the normal playback, press the RANDOM/ REPEAT button repeatedly until no display on TV screen.

Caution:

After performing repeat play, be sure to press the button. Otherwise, the disc will play continuously. Note:

On some discs, the repeat play function is disabled.

To play the contents between the specified points repeatedly (A-B repeat)

DVD SVCD VCD CD

You can play the desired portion repeatedly by specifying it during playback.

1 Whilst a disc is playing, press the A-B REPEAT button.

TV screen

This registers the start point (A).

2 Press the A-B REPEAT button again to enter the end point (B).

TV screen

This starts A-B repeat play from the start point (A) to the end point (B).

3 Press the A-B REPEAT button to return to the normal playback.

Notes:

A-B repeat play is disabled on some discs.
A-B repeat play for DVD is possible only within a title.
A-B repeat play for SVCD/VCD is possible only within a track.
Some scenes on DVD may not allow A-B repeat play.

To select a title from the top menu of the disc

DVD

On a DVD with multiple titles, you can select a title from the top menu.

1 Whilst in the stop or playback mode, press the TOP MENU button to display the title menu.

2 Use the , , or button to select a title, and then press the ENTER button.

The selected title plays.
-Or use the Numeric buttons for some discs.

Note:

The procedure shown here provides only general steps. The actual procedure for using the title menu depends on the disc. See the disc jacket for details.

Useful Operation (continued)

To select a subtitle or audio language from the disc menu

DVD

You can select the desired subtitle or audio language and sound system on your DVD if it has a disc menu.

1 Whilst in the stop or playback mode, press the MENU/PBC button to display the disc menu.

2 Press the , , or button to change the setting and press the ENTER button. Or use the Numeric buttons for some discs.

Note:

The procedure shown here provides only general steps. The actual procedure for using the disc menu depends on the disc. See the disc jacket for details.

Various settings

The subtitle language, audio language and TV type you select during playback are reset each time you set this unit to the stand-by mode or switch the input. To keep your own settings, set them in the Set up menu (see page 13).

To change the subtitle language

DVD

You can change the subtitle language or hide subtitles during playback.

Whilst a disc is playing, press the SUBTITLE/DIGEST/ DISPLAY button repeatedly to select the desired subtitle language.

Notes:

• On some discs, the subtitle language cannot be changed.
  If no subtitles are recorded on the disc, " ^ 串 displayed.
  It may take time to switch the subtitle language to the selected one.
  Subtitles cannot be hidden on some DVDs.

To change the audio channel

DVD SYCDVCD

You can select an audio channel.

Whilst a disc is playing, press the AUDIO button repeatedly to select the desired audio channel.

E.g.: The audio channel changes as follows on DVD:

The audio channel changes as follows on SVCD:

The audio channel changes as follows on VCD:

Note:

The audio channel may not be changed on some discs.

To change the display on TV screen

DVD SVCD VCD CD DivX

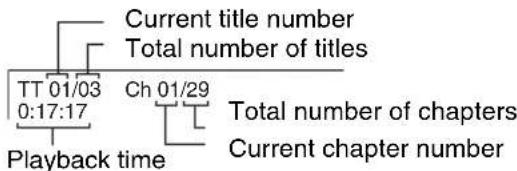

You can display or hide the operation indicators on the TV screen.

Whilst a disc is playing, press the OSD/TV OUT button. (The display is changed at each press.)

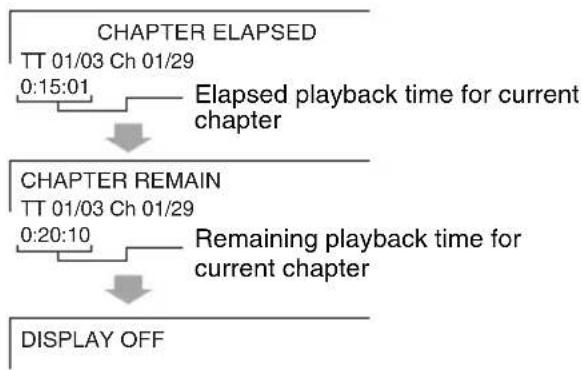

DVD:

TITLE ELAPSED

TT 01/03 Ch 01/29

0:15:01 Elapsed playback time for current title

TITLE REMAIN

TT 01/03 Ch 01/29

1:26:54 Remaining playback time for current title

Various settings (continued)

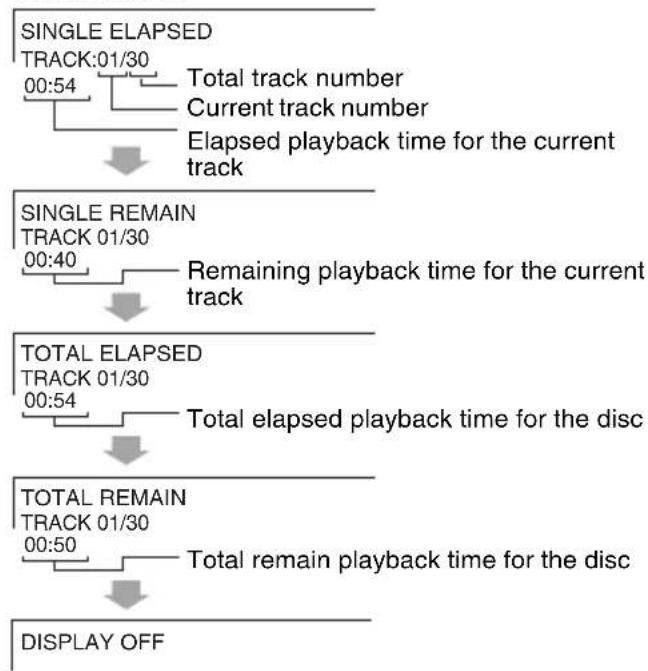

SVCD/VCD/CD:

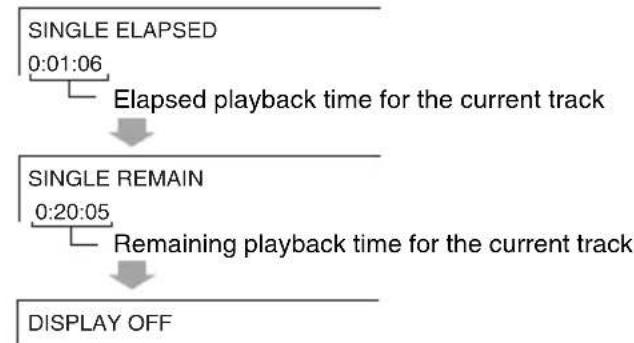

DivX:

Note:

When P.B.C. is set to ON for SVCD or VCD, total elapsed playback time and total remaining playback time do not appear.

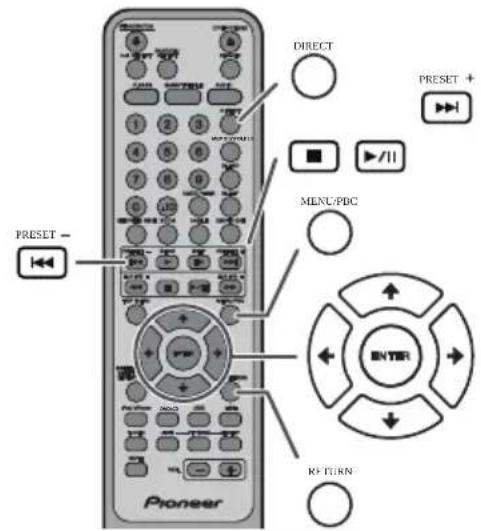

Video CD and Super Video CD playback

The following playback functions are the same as DVD or CD operations.

Page

To locate the beginning of a chapter
tracked (skip) .22
Fast forward/Fast backward (search) .22
Still picture .24
Slow-motion play .24
To zoom images (zoom) .24
To play repeatedly (repeat play) .25
To play the contents between the specified points
repeatedly (A-B repeat) .25
To change the audio channel .26

■Playback of a video CD (super video CD) with P.B.C. ON

SVCD VCD

This unit handles video CDs that support P.B.C. (version 2.0). P.B.C. is an abbreviation of "Playback control". These discs have a menu that is displayed on the TV screen. You can play interactive games and make use of other software with the retrieval function (menu playback).

1 Press the MENU/PBC button with PBC ON.

The menu will appear on the TV and playback will be paused.

2 Select the desired menu number using the Numeric buttons.

-Playback starts.

After playback stops, the menu will reappear. Select the menu number to play.

To interrupt playback:

Press the / button.

To resume playback from the same point, press the button.

To stop playback:

Press the button twice.

To stop the current operation and return to the menu: Press the RETURN button.

The P.B.C. function will not work in the following conditions.

Repeat/programmed/direct play or the skip feature is in operation.

Note:

The menu screen cannot be scrolled on some discs.

To play without activating the playback control function

SVCD VCD

You can play a video CD (super video CD) with P.B.C. without activating the playback control function.

In this case, the menu screen will not appear, and the disc will play in the same way as a video CD (super video CD) without P.B.C.

Whilst in the stop or playback mode, press the MENU/PBC button to cancel the P.B.C. mode.

• TV screen will show "PBC OFF" then playback will start.

Note:

Some video CDs (super video CDs) with P.B.C. cannot be played back when the P.B.C. mode is off.

To start playback from the desired point (direct play)

To play by specifying time (time search): SVCD VCD Cancel the P.B.C. (playback control).

1 During stop, press the DIRECT button.

DISC GO TO: --

2 Specify the time with the Numeric buttons.

-Enter minutes and seconds.
To specify 1 hour 23 minutes and 40 seconds, enter "8340".
If you enter the wrong number, start over from step 1.
-Playback starts (automatically) after you complete enter the number(s).

In the playback mode:

1 Whilst in the playback mode, press the DIRECT button.

2 Press or button to select "Track Time" then press the ENTER button.
3 Specify the time with the Numeric buttons.

Track Time:4d

To specify 1 hour 23 minutes and 40 seconds, enter "12340".
If you enter the wrong number, start over from step 1.
-Playback starts (automatically) after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of image (standard screen).

Notes:

Some discs cannot play from the specified point.
Time search feature is disabled on some discs.
Time search feature is not available on MP3 and JPEG discs.

SVCD VCD

Disc digest selection

You can playback a desired track by selecting one from the 6 displayed tracks on the screen.

1 During stop mode, press the SUBTITLE/DIGEST/DISPLAY button.

Video CD and Super Video CD playback (continued)

2 Select digest type by using cursor or button and then press ENTER button.

Track digest (disc will be divided by tracks).
-Disc Interval (disc will be divided into 10 minutes interval).
Up to 6 tracks will be displayed on the screen.

TV screen

Select Digest Type

→

□1 □2 □3 □4 □5 □6

3 Press the Numeric buttons on the remote control to select the desired track.

Playback will be started from the selected track after pressing the / 山 button.

When there are more than 6 tracks on the video CD: Each press of the button will display the next 6 tracks. Press the button to return to the previous display.

To cancel the disc digest:

Select EXIT and press ENTER button.

■Track digest selection

You can look at the sections and select the scene you want to start watching from. This function is convenient when you want to start from the middle of an undivided track, for example, a movie.

1 During playback, press the SUBTITLE/DIGEST/ DISPLAY button.
2 Select "Track Interval" by using cursor or button and then press ENTER button.

The current track will be divided into 10 minutes interval.

The track being played will be divided into 6 sections and playback will be paused.

TV screen

TV screen

Select Digest Type

→

1 2 3 4 5 6

3 Press the Numeric buttons on the remote control to select the scene you want to watch.

Playback will start from the selected scene after pressing the / button.

To cancel the track digest operation: Select EXIT and press ENTER button.

Notes:

The track digest function works only during playback.
One track is divided into six frames of equal playing time.

CD playback

This system can play back a standard CD, CD-R/RW in the CD format, but cannot record on them.

Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

The following playback functions are the same as DVD operations.

Page

Playback 21

To locate the beginning of a chapter (track) (skip). 22

Fast forward/Fast backward (search) 22

To play in the desired order (programmed play) 23

To play repeatedly (repeat play) 25

To play the contents between the specified points repeatedly (A-B repeat) 25

To change the display on TV screen 26

To start playback from the desired point (direct play)

To select and play the desired track: CD

Whilst in the stop or playback mode, press the Numeric buttons to select the track number. To select track 14: Press ^+ 10 and ^4

TV screen

Unit display

SELECT TRACK 14/30

To play by specifying time (time search): CD

1 During stop or playback mode, press the DIRECT button once and "DISC GO TO" appear on TV screen.

DISC GO TO: ...

2 Specify the time with the Numeric buttons.

• Enter minutes and seconds.
  To specify 1 hour 23 minutes and 40 seconds, enter "8340".
  If you enter the wrong number, start over from step 1.

Notes:

• Direct play feature is disabled on some discs.
  Some disc cannot play from the specified point.
• Time search feature is disabled on some discs.

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video function) Play back

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3.

MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

This system supports MPEG 1 Layer 3 and VBR files.
During VBR file playback, time counter in the display may differ from its actual playback time.
- Bitrate which is supported by MP3 is 32 kbps to 320 kbps.

WMA:

WMA files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• Bitrate which is supported by WMA is 64 kbps to 160 kbps.

The following playback functions are the same as DVD operations.

Page

Playback. 21

To locate the beginning of a chapter (track) (skip) 22

Fast forward/Fast backward (search) 22

To zoom images (zoom) 24

To play repeatedly (repeat play) 25

To change the display on TV screen 26

To start playback from the desired point (direct play)

To play by specifying time (time search): DivX

1 During playback, press the DIRECT button twice.

TV screen

GO TO :

2 Specify the time with the Numeric Buttons.

-Enter minutes and seconds.

To specify 1 hour 23 minutes and 40 seconds, enter "12340".

• If you enter the wrong number, start over from step 1.

• You can check the total playback time of the track by refer to the page 28.

To select and play the desired track: MP3

1 Whilst in the stop or playback mode, press the Numeric Buttons or press DIRECT button and then enter the desired track number(s).

TV screen

If the desired track is 25, press "0", "2" and "5".

2 Playback will start automatically on selected track.

■Playback on the MP3 menu screen

DivX MP3 JPEG

You can play CD-R/RW recorded in the MP3/WMA and JPEG formats.

1 Load a disc containing MP3/WMA, JPEG and DivX files, the menu screen appears.

Indicates folders.
MP3... Indicates MP3 data.
... Indicates JPEG data.
... Indicates DivX data.
Indicates WMA.

2 Press the or button to select a track and press the ENTER or button.

-Playback starts when you select a track.
- When the format is JPEG, the next file is automatically displayed after a whilst.Playback starts when you select a track.
- You can use the or button to rotate the JPEG picture (see page 31).
Using the Numeric Buttons, you can open files or folders directly. Enter the number on the right of the display.

Caution:

If you convert MP3 data to "audio CD" data to record on a CD-R/RW, play it as an audio CD. The MP3 operation cannot be performed.

Notes:

• Up to 20 characters can be displayed for a folder name and a track name. Underlines, asterisks, and spaces may not be displayed.
  This function is only visible when unit is connected to TV.

To play repeatedly (repeat play)

DivX MP3 JPEG

Repeat play on the DivX menu screen:

Whilst a disc is playing, press the RANDOM/REPEAT button. Each time the button is pressed, the repeat play mode changes in the following order.

TV screen

Notes:

• Direct play feature is disabled on some discs.
  Some discs cannot play from the specified point.

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video function) Play back (continued)

Repeat play on the JPEG menu screen:

Condition A

You can play all images in the disc. Playback will stop after complete playback all the images in the disc.

To perform repeat play, press the RANDOM/REPEAT button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

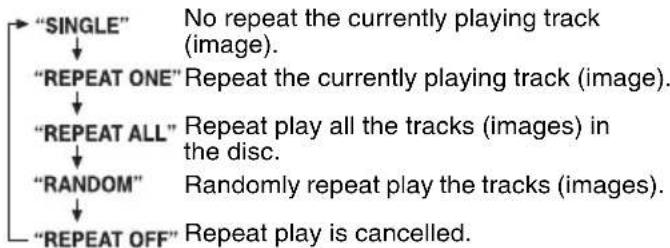

TV screen

Condition B

You can play images after select each folder inside the disc. Whilst in the main menu screen, press the MEMORY/FOLDER button. All the folders will be viewed on the TV screen (folder on). The playback will stop after complete playback all the images in the currently playing folder. To perform repeat play, press the RANDOM/REPEAT button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

TV screen

Notes:

• To view back the file list, press the MEMORY/FOLDER button whilst in the main menu screen.
  To return to the main menu screen whilst playback, press the MENU/PBC button.

Repeat play on the MP3/WMA menu screen: Condition A

You can play all songs in the disc. Playback will stop after complete playback all the songs in the disc.

To perform repeat play, press the RANDOM/REPEAT button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

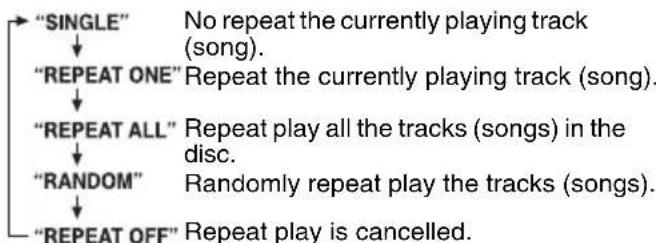

TV screen

Condition B

You can play songs after select each folder inside the disc. Whilst in the main menu screen, press the MEMORY/FOLDER button. All the folders will be viewed on the TV screen (folder on). The playback will stop after complete playback all the songs in the currently playing folder. To perform repeat play, press theRANDOM/REPEAT button whilst in the stop mode. Each time the button is pressed, the play mode changes in the following order:

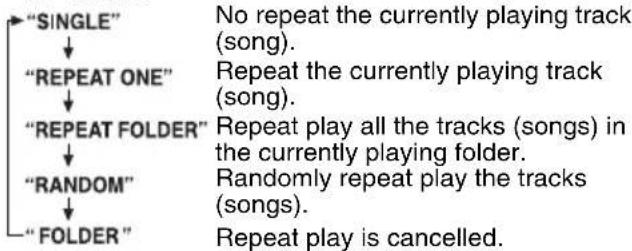

TV screen

Note:

To view back the file list, press the MEMORY/FOLDER button whilst in the main menu screen.

Caution:

After performing repeat or random, be sure to press the button. Otherwise, it will play continuously.

Rotating a picture

You can rotate images.

During playback, press the or button.

The image rotates as shown below.

button: 90^ rotation in a clockwise direction.

button: 90^ rotation in an anti-clockwise direction.

DivX, MP3/WMA (DISC function) and JPEG (DISC/USB Video function) Play back (continued)

Simultaneously playback the MP3 and JPEG

You can enjoy to see images of JPEG files whilst listening to the musics of MP3 at the same time.

1 Playback the desired songs.
2 Select JPEG folder using or button.
3 Select the images or pictures those you want to view.
4 Press the ENTER button.
5 Press MENU/PBC button to return to the main menu.

Notes:

• Whilst playing the images, you can not select the MP3/WMA folder or files.
• JPEG maximum resolution is 10 MBytes of file size.

Random play (Remote control only)

The tracks/images on the disc(s) can be played in random order automatically.

To random play all tracks/images: During stop mode, press the RANDOM/REPEAT button to select "RANDOM" then press /II button to play.

To cancel random playback, press the RANDOM/REPEAT button repeatedly until "REPEAT OFF" / "FOLDER" appear.

Notes:

-Playback will stop after all the tracks is played randomly.
In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
- During random play, repeat function is not possible.
- When in folder mode, the selected playmode can be used for the files in the selected folder only.
This unit only supports "MPEG-1 Audio Layer-3" format. (Sampling Frequency is 32, 44.1, 48kHz).
"MPEG-2 Audio Layer-3", "MPEG-2.5 Audio Layer-3" and MP1, MP2 format are not supported.
- Playback order for MP3 files may differ sometimes depending on the writing software used during file downloading.
- Bitrate which is supported by MP3 is 32 to 320 kbps, WMA is 64 to 160 kbps.
For MP3/WMA files, please put ".MP3"."WMA" extension. Files cannot be played back if there is no MP3/WMA extension.
The display playback time may not be displayed correctly when playing back a variable bitrate file.
Copyright protected WMA files cannot be played back.

MP3/WMA playback (USB Audio function)

Notes:

This USB mass storage device or MP3 player is not compatible with MTP and AAC file systems.
Some external storage devices may not operate with this system.
Operation of external storage devices (USB memory devices, external hard disks, etc.) is not guaranteed.

To play back USB/MP3 player with folder mode off

1 Press the USB button on the remote control or INPUT button repeatedly on main unit to select USB Audio function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.

2 Select desired file to be played back by pressing the or button.
3 Press the button. Playback will start and the file name will be displayed.

-Title, Artist and Album name are displayed if they are recorded in the USB memory device.
-Display content can be changed by pressing the SUBTITLE/DIGEST/DISPLAY button.

Note:

To pause playback:
Press the button.

To play back USB/MP3 player with folder mode on

1 Press the USB button on the remote control or INPUT button repeatedly on main unit to select USB Audio function. Connect the USB memory device that has MP3/WMA format files on the unit. When the USB memory is connected to the main unit, the device information will be displayed.

2 Press the MEMORY/FOLDER button, and press cursor or button to select desired playback folder. To start playback with folder mode on, go to step 4. To change the playback folder, press cursor or button to select another folder.

FOLDER indicator

3 Select desired file to be played back by pressing the or button.
4 Press the button. Playback will start and the file name will be displayed.

-Title, Artist and Album name are displayed if they are recorded in the USB memory device.

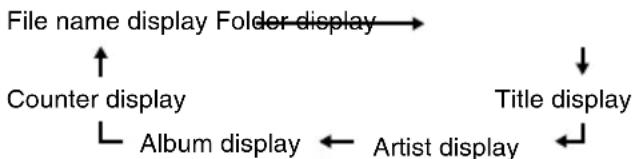

- Display content can be changed by pressing the SUBTITLE/DIGEST/DISPLAY button.

Note:

If "Not Support" is displayed, it means "Copyright protected WMA file" or "Not supported playback file" is selected.

■To remove USB memory device

1 Press the button to stop playback.
2 Disconnect USB memory device from the USB terminal.

Notes:

PIONEER will not be held liable for the loss of data whilst the USB memory device is connected to the audio system.
- Files compressed in MP3 and/or WMA format can be played back when connected to the USB terminal.
This USB memory's format supports FAT 16 or FAT 32.
PIONEER cannot guarantee that all USB memory devices will work on this audio system.
- USB cable is not recommended for use in this audio system to connect to USB memory device. Use of the USB cable will affect the performance of this audio system.
This USB memory cannot be operated via USB hub.
The USB terminal in this unit is not intended for a PC connection but is used for music streaming with a USB memory device.
External HDD-storage cannot be played back via USB terminal.
If the data inside the USB memory is large, it may take longer time for the data to be read.

To play back MP3/WMA (Windows Media Audio) file There are many music sites on the internet that you can download MP3/WMA (Windows Media Audio) music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.

• Your downloaded song/files are for personal use only. Any other usage of the song without owner's permission, is against the law.

■About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically. These folders can be selected by the MEMORY/FOLDER button on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.

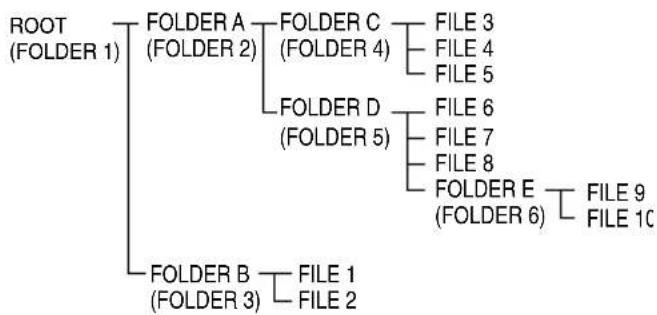

Example: How to set folder number if MP3/WMA format files are recorded as below figure.

1 ROOT folder is set as folder 1.
2 As for folders inside ROOT folder (Folder A and Folder B), the folder which is recorded earlier on the disc will be set as folder 2 and folder 3.
3 As for folder inside Folder A (Folder C and Folder D), the folder which is recorded earlier on the disc will be set as folder 4 and folder 5.
4 Folder E that is inside Folder D will be set as folder 6.

The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.
-For CD MP3/WMA, 255 numbers of folders and files inclusive of the folders which have non playable files can be read.

Folder mode on/off can be operated by the MEMORY/FOLDER button on the remote control. Files that are played when folder mode is set to the on position, may differ from those played back when folder mode is turned off.

■Various functions

Function	Main unit	Remote control	Operation
Play	/ /	/ /	Press in the stop mode.
Stop			Press in the playback mode.
Pause	/ /	/ /	Press in the playback mode. Press the button to resume playback from the paused point.
Track up/down	/ / /	PRESET PRESET	Press in the playback or stop mode. If you press the button in the stop mode, press the / button to start the desired track.
Fast forward/reverse	/ / /	TUNING TUNING	Press and hold down in the playback mode. Release the button to resume playback.

■Direct track search

By using the Numeric buttons, the desired tracks on the current disc can be played.

Use the Numeric buttons on the remote control to select the desired track whilst playing the selected disc.

The Numeric buttons allow you to select up to number 9.
When selecting number 10 or higher, use the +10 button.

A.For example,to choose 13

1 Press the +10 button once.
2 Press the "1" button.
3 Press the "3" button.

Selected track number

B. For example, to choose 130

1 Press the +10 button twice.
2 Press the "1" button.
3 Press the "3" button.
4 Press the "0" button.

Notes:

A track number higher than the number of tracks on the disc cannot be selected.
- During random play, Numeric is not possible.

To stop playback:

Press the button.

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press the RANDOM/REPEAT button repeatedly until "Repeat One" appears. Press the button.

To repeat all tracks:

Press the RANDOM/REPEAT button repeatedly until "Repeat All" appears. Press the button.

To repeat desired tracks:

Perform steps 1 - 5 in "Programmed play" section on page 35 and then press the RANDOM/REPEAT button repeatedly until "Repeat All" appears.

To cancel repeat play:

Press the RANDOM/REPEAT button repeatedly until "Normal" appears and "disappears.

Random play

The tracks on the disc can be played in random order automatically.

To random play all tracks:

Press the RANDOM/REPEAT button on the remote control until "Random" appears. Press the button.

To cancel random play:

Press the RANDOM/REPEAT button until "RDM" indicator disappears.

Notes:

If you press the button during random play, you can move to the track selected next by the random operation. On the other hand, the button does not allow you to move to the previous track. The beginning of the track being played will be located.
In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)

Caution:

After performing repeat play, be sure to press the button. Otherwise, the disc will play continuously.

■Programmed play (MP3/WMA)

1 Whilst in the stop mode, press and hold the MEMORY/FOLDER button to enter the programming save mode.

2 Press cursor or button on the remote control to select the desired folder.

Then press the or button on the remote control to select the desired tracks.

3 Press the MEMORY/FOLDER button to save the folder and track number.
4 Repeat steps 2 - 3 for other folder/tracks. Up to 32 tracks can be programmed.
5 Press the button to start playback.

To cancel the programmed play mode:

During programmed stop mode, press the button. The display will show "Memory Clear" and all the programmed contents will be cleared.

Adding tracks to the programme:

If a programme has been previously stored, the "MEM" indicator will be displayed. Press the MEMORY/FOLDER button repeatedly to go to the last programme memory. Then follow steps 2 - 3 to add tracks. The new tracks will be stored after the last track of the previous programme.

Notes:

• During the programme operation, random play is not possible.
• If USB memory device is not connected, "USB No Media" will be shown on the display.
  This unit only supports "MPEG-1 Audio Layer-3" format. (Sampling Frequency is 32kHz 44.1 kHz, 48 kHz)
  -Playback order for MP3 files may differ depending on the writing software used during file download.
• Bitrate which is supported by MP3 is 32 kbps to 320 kbps, WMA is 64 kbps to 160 kbps.
  For MP3/WMA files, please put ".MP3" ".WMA" extension. Files cannot be played back if there is no MP3/WMA extension.
• Playlists are not supported on this unit.
  This unit can display Folder Name or File Name up to 32 characters.
  Maximum total number of MP3/WMA files is 1024. Maximum total number of folders is 255 inclusive of root directory.
  Total number of folders read is 999 including folder with non-playable file. However, the display shows only folder with MP3 files.
  The display playback time may not be displayed correctly when playing back a variable bitrate file.
  The ID3TAG information supported are TITLE, ARTIST and ALBUM only. Title name, artist name and album name can be displayed by pressing the SUBTITLE/DIGEST/DISPLAY button during file playback or pause mode.
  WMA meta tag also supports title, artist and album name which are recorded in WMA files. Copyright protected WMA files cannot be played back.

■Tuning

1 Press the STANDBY/ON button to turn the power on.
2 Press the TUNER button repeatedly to select the desired frequency band (FM or AM).
3 Press the TUNING - or + button on the remote control to tune in to the desired station.

Manual tuning:

Press the TUNING - or + button repeatedly to tune in to the desired station.

Auto tuning:

When the TUNING - or + button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

• When radio interference occurs, auto scan tuning may stop automatically at that point.
  Auto scan tuning will skip weak signal stations.
  To stop the auto tuning, press the TUNING-or ^+ button again.
• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear.
  Full auto tuning can be achieved for RDS stations "ASPM", see page 37.

To receive an FM stereo transmission:

Press the TUNER button to select stereo mode and "ST" indicator will be displayed. "and " will appear when an FM broadcast is in stereo.
If the FM reception is weak, press the TUNER button to extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.

■Memorising a station

You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)

1 Perform steps 1 - 3 in "Tuning".
2 Press the MEMORY/FOLDER button.

3 Within 30 seconds, press the PRESET - or + button to select the preset channel number. Store the stations in memory, in order, starting with preset channel 1.
4 Within 30 seconds, press the MEMORY/FOLDER button to store that station in memory. If the "MEMORY" and preset number indicators disappear before the station is memorised, repeat the operation from step 2.
5 Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note:

The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.

To recall a memorised station

1 Press the PRESET - or + button for less than 0.5 seconds to select the desired station.

To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press the PRESET - or + button for more than 0.5 seconds. The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.
2 Press the PRESET - or + button again when the desired station is located.

To erase entire preset memory

1 Press the TUNER button on remote control or press the INPUT button on main unit repeatedly to select Tuner function.
2 In Tuner function, press the CLEAR button until "Tuner Clear" appears.

Tuner Clear

RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.

When tuned to an RDS station, "RDS" and the station name will be displayed.

"TP" (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and "TA" (Traffic Announcement) will appear whilst a traffic information is on air.

"PTYI" (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

You can control the RDS by using the buttons on the remote control only.

Information provided by RDS

Each time the RDS DISPLAY button is pressed, the display will switch as follows:

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

Using the Auto Station Programme Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored.

If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press the TUNER button on the remote control or INPUT button repeatedly on the main unit to select TUNER function.
2 Press and hold down the RDS ASPM button on the remote control.

1 After "ASPM" has flashed for about 4 seconds, scanning will start (87.50 - 108.00 MHz).

2 When an RDS station is found, "RDS" will appear for a short time and the station will be stored in memory.

3 After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then "END" will appear for 4 seconds.

To stop the ASPM operation before it is complete: Press the RDS ASPM button whilst it is scanning for stations.

The stations which are already stored in memory will be kept there.

Notes:

Any station which has the same frequency as the one stored in memory will not be stored.
- If 40 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
If no station have been stored in memory, "END" will appear for about 4 seconds.
If the RDS signals are very weak, station names may not be stored in memory.
The same station name can be stored in different channels.
In a certain area or during certain time periods, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

"PS", "NO PS" and a station name appear alternately, and the unit does not operate properly.
If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
- When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

The first 14 characters of the radio text will appear for 4 seconds and then they will scroll across the display.
If you tune in to an RDS station which is not broadcasting any radio text, "NO RT" will be displayed when you switch to the radio text position.
- Whilst radio text data is received or when the text contents change, "RT" will be displayed.

■To recall stations in memory

To specify programmed types and select stations (PTY search):

You can search a station by specifying the programme type (news, sports, traffic programme, etc. ... see page 39) from the stations in memory.

1 Press the TUNER button on the remote control or INPUT button repeatedly on the main unit to select TUNER function.
2 Press the RDS PTY button on the remote control.

"SELECT" and "PTY TI" will appear alternately for about 6 seconds.

3 Within 6 seconds, press the or button to select the programme type.

Each time the button is pressed, the programme type will appear.

4 Whilst the selected programme type is flashing (within 6 seconds), press the RDS PTY button again.

After the selected programme type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.

Notes:

If the display has stopped flashing, start again from step 2. If the unit finds a desired programme type, the corresponding channel number will lit for about 8 seconds, and then the station name will remain it.
If you want to listen to the same programme type of another station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.
If no station can be found, "Not Found" will appear for 4 seconds.

If you select the traffic programme:

If you select the traffic programme (TP) in step 3, "TP" will appear.

(This does not mean that you can listen to the traffic information at that time.)

When the traffic information is broadcast, "TA" will appear.

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement) You can search for and receive the following PTY, TP and TA signals.

NEWS Short accounts of facts, events and publicly expressed views, reportage and actuality.

AFFAIRS Topical programme expanding or enlarging upon the news, generally in different presentation style or concept, including debate, or analysis.

INFO Programs whose purpose is to impart advice in the widest sense.

SPORT Programme concerned with any aspect of sport.

EDUCATE Programs intended primarily to educate, of which the formal element is fundamental.

DRAMA All radio plays and serials.

CULTURE Programs concerned with any aspect of national or regional culture, including language, theatre, etc.

SCIENCE Programmes about the natural sciences and technology.

VARIED Used for mainly speech-based programmes usually of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.

POP M Commercial music, which would generally be considered to be of current popular appeal, often featuring in current or recent record sales charts.

ROCK M Contemporary modern music, usually written and performed by young musicians.

EASY M Current contemporary music considered to be “easy-listening”, as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.

LIGHT M Classical music for general, rather than specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

CLASSICS Performances of major orchestral works, symphonies, chamber music, etc., and including Grand Opera.

OTHER M Musical styles not fitting into any of the other categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.

WEATHER Weather reports and forecasts and meteorological information.

FINANCE Stock Market reports, commerce, trading, etc.

CHILDREN	For programmes targeted at a young audience, primarily for entertainment and interest, rather than where the objective is to educate.
SOCIAL Programmes about people and things that influence them individually or in groups. Includes: sociology, history, geography, psychology and society.
RELIGION Any aspect of beliefs and faiths, involving a God or Gods, the nature of existence and ethics.
PHONE IN Involving members of the public expressing their views either by phone or at a public forum.
TRAVEL	Features and programmes concerned with travel to near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.
LEISURE Programmes concerned with recreational activities in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc.
JAZZ	Polyphonic, syncopated music characterised by improvisation.
COUNTRY	Songs which originate from, or continue the musical tradition of the American Southern States. Characterised by a straightforward melody and narrative story line.
NATION M	Current Popular Music of the Nation or Region in that country's language, as opposed to International "Pop" which is usually US or UK inspired and in English.
OLDIES Music	from the so-called "golden age" of popular music.
FOLK M Music	which has its roots in the musical culture of a particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.
DOCUMENT	Programme concerned with factual matters, presented in an investigative style.
TEST	Broadcast when testing emergency broadcast equipment or receivers.
ALARM	Emergency announcement made under exceptional circumstances to give warning of events causing danger of a general nature.
TP	Broadcasts which carry traffic announcements.
TA	Traffic announcements are being broadcast.

Timer playback:

The unit turns on and plays the desired source (DISC, Tuner, USB Audio, USB Video, iPod, Line In) at a preset time.

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.

Once timer:

Once timer play works for one time only at a preset time. ("indicator").

Daily timer:

Daily timer play works at the same preset time every day that we set. For example, set the timer as a wake-up call every morning.

("DAILY" indicator).

Using the once timer and daily timer in combination:

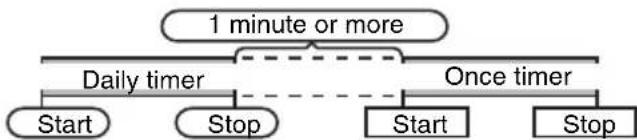

For example, use the once timer to listen to a radio programme, and use the daily timer to wake up.

1 Set the daily timer (page 40 - 41).
2 Set the once timer (page 40 - 41).

Timer playback

Before setting timer:

Check that the clock is set to the correct time (refer to page 18). If it is not set, you cannot use the timer function.
For timer playback: Plug in USB or load discs or dock iPod to be played.

1 Press the STANDBY/ON button to turn the power on.
2 Press and hold the CLOCK/TIMER button.
3 Within 30 seconds, press the or button to select "Once" or "Daily", and press the ENTER button.
4 Within 30 seconds, press the or button to select "Timer set", and press the ENTER button.

5 To select the timer playback source (DISC, Tuner, USB Audio, USB Video, iPod, Line In), press the PRESET + or - button. Press the ENTER button.
When you select the tuner, select a station by pressing the or button, and then press the ENTER button. If a station has not been programmed, "No Preset" will be displayed and timer setting will be cancelled.
6 To adjust the day, press the or button and then press the ENTER button.
7 Press the ENTER button to adjust the hour. Press the or button and then press the ENTER button.
8 To adjust the minutes, press the the button and then press the ENTER button.
9 Set the time to finish as in steps 7 and 8 above.
10Adjust the volume using the VOL + or - button, and then press the ENTER button. Do not turn the volume up too high.
11Press the STANDBY/ON button to enter the power stand-by mode. The "TIMER" indicator lights up and the unit is ready for timer playback.

12 When the preset time is reached, playback will start. The volume will increase gradually until it reaches the preset volume. The timer indicator will blink during timer playback.
13 When the timer end time is reached, the system will enter the power stand-by mode automatically.

Once timer:

The timer will be cancelled.

Daily timer:

The timer operates at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.

Notes:

• When performing timer playback using another unit connected to the USB terminal, select "USB" or "LINE IN" in step 5.
  This unit will turn on or enter the power stand-by mode automatically. However, the connected unit will not turn on or off. To stop the timer playback, follow step "Cancelling the timer setting" of page 41.

Timer and sleep operation (Remote control only) (continued)

Checking the timer setting:

1 Turn the power on and press and hold down the CLOCK/TIMER button.
2 Within 30 seconds, press the or button to select "Once" or "Daily", and press the ENTER button.
3 Within 30 seconds, press the or button to select "Timer Call", and press the ENTER button.

Cancelling the timer setting:

1 Turn the power on and press and hold down the CLOCK/ TIMER button.
2 Within 30 seconds, press the or button to select "Once" or "Daily", and press the ENTER button.
3 Within 30 seconds, press the 口 or button to select "Timer Off", and press the ENTER button. Timer will be cancelled (the setting will not be cancelled).

Reusing the memorised timer setting:

The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.

1 Turn the power on and press and hold down the CLOCK/ TIMER button.
2 Within 30 seconds, press the or button to select "Once" or "Daily", and press the ENTER button.
3 Within 30 seconds, press the or button to select "Timer On", and press the ENTER button.
4 Press the STANDBY/ON button to enter the power stand-by mode.

Sleep operation

The radio, disc, iPod, USB and Line In can all be turned off automatically.

1 Play back the desired sound source.
2 Press the SLEEP button.
3 Within 5 seconds, press the Numeric button to set the time (1 minute - 99 minutes)
4 "SLEEP" will appear.
5 The unit will enter the power stand-by mode automatically after the preset time has elapsed.

To confirm the remaining sleep time:

1 Whilst "SLEEP" is indicated, press the SLEEP button.

To cancel the sleep operation:

Press the STANDBY/ON button whilst "SLEEP" is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.

1 Whilst "SLEEP" is indicated, press the SLEEP button.
2 Within 5 seconds, press the "0" button twice until "SLEEP 00" appears.

To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up to CD in the next morning.

1 Set the sleep time (see above, steps 1 - 5).
2 Whilst the sleep timer is set, set the timer playback (steps 2 - 9, page 40).

Headphones

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
  Before plugging in or unplugging the headphone, reduce the volume.
• Be sure your headphone has a 3.5mm diameter plug and impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.
• Plugging in the headphone disconnects the speakers automatically. Adjust the volume using the VOLUME control.
  Audio from the iPod/iPhone cannot be heard via the headphones connected to the unit. "HP INVALID" will be displayed if you connect the headphones when the iPod/iPhone function is selected.

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician.

If something is wrong with this product, check the following before calling your authorized PIONEER dealer or service centre.

General

Symptom Possible cause

●The clock is not set to the correct time.

●When a button is pressed, the unit does not respond.

●No sound is heard.

DVD/CD Player

Symptom Possible cause
●Playback does not start.●Playback stops in the middle or is not performed properly.	●Is the disc loaded upside down?●Does the disc satisfy the standards?●Is the disc distorted or scratched?
●Playback sounds are skipped, or stopped in the middle of a track.	●Is the unit located near excessive vibrations?●Is the disc very dirty?●Has condensation formed inside the unit?

Remote control

Symptom Possible cause

●The remote control does not operate.●Is the AC power lead of the unit plugged in?●Are the batteries polarity correct?●Are the batteries dead?●Is the distance or angle incorrect?●Does the remote control sensor receive strong light?

■Tuner

Symptom Possible cause

●The radio makes unusual noises continuously. ●Is the unit placed near the TV or computer?●Is the FM aerial or AM loop aerial placed properly? Move the aerial away from the AC power lead if it is located nearby.

USB

Symptom Possible cause
●Device cannot be detected.	●Is there any MP3/WMA file available?●Is the device properly connected?●Is it an MTP device?●Does the device contain AAC file only?
●Playback does not start.	●Is it a copyright protected WMA file?●Is it a false MP3 file?
●Wrong time display.●Wrong file name display.	●Is Variable Bitrate file being played back?●Is the File Name written in Chinese or Japanese characters?

iPod and iPhone

Symptom Possible cause
●No sound is produced.No image appears on the TV/monitor.	●The iPod or iPhone is not playing.The iPod or iPhone is not properly connected to the unit.Is the AC power lead of the unit plugged in?The video cable is not properly connected.The TV/monitor's input selection is not properly set.The iPod TV out feature has not been set to output video.Audio from the iPod/iPhone cannot be heard via the headphones connected to the unit.
●iPod or iPhone will not charge.	●The iPod or iPhone is not making full contact with the connector.Using iPod (3 rd generation).The iPod or iPhone is not supported. Refer to page 19 for compatible models.The iPod or iPhone unit cannot be charged whilst the main unit is in USB mode.
●“This accessory is not made to work with iPhone” or “This accessory is not supported by iPhone” appears on iPhone screen.	●The iPhone battery is low.Please charge the iPhone)iPhone is not properly docked.

Symptom Possible cause
● No picture.	● The VIDEO OUT setting of the setup menu may be wrong. Use the provided video cable and check the VIDEO OUT setting of the setup menu.

Troubleshooting chart (continued)

CHDMI

Symptom Possible cause

● No picture.

● Video signals that are input from the analog video terminal will not output from the HDMI terminal. Signals that are input from the HDMI terminal will not output from the analog video terminal. Be consistent with the type of cable between input and output. ●This receiver is HDCP-compatible. Check that the TV you are connecting are also HDCP-compatible. If they are not, please connect them using the component or composite video jacks. ●If video images do not appear on your TV, try adjusting the resolution, Deep Color or other setting for your component. ●To output signals in Deep Color, use an HDMI cable (High Speed HDMI® Cable) to connect this receiver to TV with the Deep Color feature.

Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.

■If problem occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction. If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit again, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Factory reset, clearing all memory

1 Press the STANDBY/ON button to turn the power on.
2 Press the LINE button on the remote control or INPUT button repeatedly on the main unit to select LINE IN function.
3 In LINE IN function, press the button on the main unit press and hold the button until "RESET" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.

Before transporting the unit

Remove the iPod, USB memory device and disc from the unit. Then, set the unit to the power stand-by mode. Carrying the unit with iPod or USB memory device left docked or discs left inside might damage the unit.

Care of compact discs

Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.

Do not write on either side of the disc, particularly the non-label side from which signals are read. Do not mark this surface.
- Keep your discs away from direct sunlight, heat, and excessive moisture.
Always hold the CDs by the edges. Fingerrprints, dirt, or water on the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

Maintenance

Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

Caution:

-Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may damage the cabinet.
-Do not apply oil to the inside of the unit. It may cause malfunctions.

Specifications

As part of our policy of continuous improvement, PIONEER reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

General

Power source AC	220 V to 240 V, 50 Hz/60 Hz
Power consumption	Power on: 50 W Power stand-by: 0.4 W
Dimensions Width	215 mm Height: 99 mm Depth: 300 mm
Weight 3.9 kg

Amplifier

Output power RMS: 30 W + 30 W (1 kHz, 10 % T.H.D., 4 ohms)
Output terminals	speakers: 4 ohms 20 Hz to 20 kHz Coaxial digital output Headphones: 16 ohms (recommended: 32 ohms)
Input terminals	e in (Analog input): 500 mV/47 k ohms

DVD player

Signal system	PAL/NTSC colour
Supported disc types	DVD (with the same region number on the back of the unit), SVCD, VCD, audio CD, CD-R, CD-RW, JPEG, DivX (version 3.0)
Video signal	Horizontal resolution: 500 lines S/N ratio: 70 dB
Audio signal	Frequency characteristic	Linear PCM DVD: 20 Hz to 20 kHz (sampling rate: 48 kHz) 20 Hz to 20 kHz (sampling rate: 96 kHz) CD: 20 Hz to 20 kHz
	S/N radio CD:	94 dB (1 kHz)
	Dynamic range	Linear PCM DVD: 95 dB CD: 94 dB
	Total harmonic distortion ratio	0.01 % maximum

Video section

Signal level Composite: 1 Vp-p (75 ohms) S-video: Y: 1 Vp-p (75 ohms), C: 0.286 Vp-p (75 ohms) Component Video: Y: 1.0 Vp-p (75 ohms) Pb, Pr: 0.7 Vp-p (75 ohms)

HDMI terminal Type A (19-pin)

USB

USB host interface	● Complies with USB 1.1 (Full Speed)/2.0 Mass Storage Class. ● Support Bulk only and CBI protocol.
Support file	● MPEG 1 Layer 3 ● WMA (Non DRM) ● JPEG (USB Video function only)
Bitrate support	● MP3 (32 kbps to 320 kbps) ● WMA (64 kbps to 160 kbps)
Other	● Maximum total number of MP3/WMA files is 1024. ● Maximum total number of folders is 255 INCLUSIVE of root directory. ● The ID3TAG information supported are TITLE, ARTIST and ALBUM only. ● Supports ID3TAG version 1 and version 2.
File system support	● Support USB devices with Microsoft Windows/DOS/FAT 12/FAT 16/ FAT 32. ● 2 kbyte block length for sector.

Tuner

Frequency range	FM: 87.5 MHz to 108 MHz AM: 522 kHz to 1,620 kHz
Preset	40 (FM and AM station)

■Speaker

Type	2-way type speaker system 5 cm Tweeter 10 cm Woofer
Impedance	4 ohms
Dimensions Width:	132 mm Height: 260 mm Depth: 173 mm
Weight 2.0 kg/each

Copyright Information:

Unauthorised copying, broadcast, public display, transmission, public performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.
This system is equipped with copy protection technology that causes substantial degradation of images when the contents of a disc are copied to a video tape.

Copy Protection:

This unit supports Macrovision copy protection. On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using a VCR, the copy protection code prevents the videotape copy from playing normally.

U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132; and 5,583,936.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DivX, DivX Certified and associated logos are trademarks of DivX, Inc. and are used under license.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

© 2011 PIONEER CORPORATION.

All rights reserved.

IMPORTANT

CLASS 38 VISBE AND INVERE LASER RADIATION WHEN OPEN, ADOX EXPOSURE TO THE BEAM.

RADATIONS LASER VIBLES ET INVISIBLES DE CLASSES 30 QUAND

OUVERT, EVITEZ TOUT EXPOSION AU FASCEAU

KLASSE 38 SYNLG OGC USYNLIG LASERSTRALING VED ABING.

UNDAUOSSETTELSEFORSTRALING

KLASS 38 SYNILICCHOSYNLIGLASERSTRALNNGNARDENNADEL

AR OPPNAD. UNOVK ATT LTSATTADIG FOR STRALEN.

SEIGEOFFNETERABDECKUNGIST SICHTBAREUND UNSICHTBARELASERSTRAHUNGDER

KLASSE SB IM GERATENNEREN VORHANEN, MONT DEM LASERSTRAHLAUSSETZEM

CUANDO SE ABE RAY RADIACION LASER DE CLASE 3B VISIBLE E INVISIBLE. EVITE LA

EXPOSICION A LOS RAYOS LASER.

KLASSE 38 SYNLGOG USYNLG LASERSTRALNG VED ABING

UNDAUSSETTESEFORSTRALNO.

WARNING

KCLASS 38 SYNGO CHOSYING LASERSTRALNNG NARDENNA DEL

AR OOPNAD, UNDNK ATT UTSATTADG FOR STRALEN.

VORSICHT

Control general 17-18

© 2011 PIONEER CORPORATION.

CLASS 28 VISIBLE AND NICKLE LASER RADIATION WHEN OPEN, ASD EXPOSURE TO THE BEAM

ATTENTION

RADATIONS LASER VISEES ET INVISIES DE CLASSE 3B QUAND

ADVARSEL

KLASSE 38 SYNIGO USYNIOLASERSTRALINGVEDABNIO

WARNING

KCLASS 35 SYNLG OCH OSYNLG LASERSTRALNINO NAR DENNA DEI

VORSICHT

BEIGEOPFENTERABDECKUNGIST SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG DER

PRECAUCION

CUANDO SE ABERE HAY RADIATION LASER DE CLASE 3B VISIBLE E INVISIBLE, EVITE LA

VARO!

DVD SVCD VCD CD DWX MP3

© 2011 PIONEER CORPORATION.

KCLASS 38 SYNLIG OCH OSYNLG LASERSTRALING NAR DENNA DEL

PRECAUCION

AR OPINAD, ONSVIK ATT UTSATTAGG FOR STRACEN.

VARO!

BEI GEDFNEER ABENDCKUING BT SCDTARE UNDSCHTARE LASERSTRAHUNG DER 1025684937N TANENKETTEAATNTTNTTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNTNT

CASSS TOW GATIENNENVORANEN, NERT DEM LASESTAPALASSE?ZEN

CUANDO SE ABRE HAY RADIACION LASER DE CLASE 2B VISIBLE E INVISIBLE. EVITE LA

EXPOSIONALOS HAYOS LASER

ANRTTAESSA GLET ALTTINA NAKYVALLE 2NANKYMATTOMMALLE LUOKAN 3B

LASERSATELYLLE. ALA KATSO SATEESEEN.

PRODOTTO LASER DI CLASSE 1

D58-5-2-2b*B1_It

La condensa

© 2011 PIONEER CORPORATION.

KLASSE 1 LASERPRODUCT

D58-5-2-2b*B1_Ni

Over condensvocht

■Aansluiting iPhone-adapter (Docking Station)

Opmerking:

Repeat/Programmed/Direct Play of de Skip-functie is in Werking.

Opmerking:

© 2011 PIONEER CORPORATION.

© 2011 PIONEER CORPORATION.

All rights reserved.

© 2011 PIONEER CORPORATION.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002 B3 En
