Principio FG2125 - Coffee maker MOULINEX - Free user manual and instructions

Brand	Moulinex
Model	Principio FG2125
Product type	Filter coffee maker
Power supply	220-240 V, 50-60 Hz
Power	900-1000 W
Water tank capacity	1 L
Carafe capacity	1 L (glass)
Dimensions (L × P × H)	25 × 18 × 30 cm
Weight	1,5 kg
Color	White
Filter to use	Paper filter No. 4
Main functions	Drip-stop, hot plate, measuring spoon
Control type	On/Off button with indicator light
Safety	Manual stop, do not use without water
Regular maintenance	Clean with damp cloth, filter holder dishwasher safe
Descaling	Every 40 cycles, with descaling solution or white vinegar
Spare parts	Glass carafe, filter holder, measuring spoon
Repairability	Authorized service center, do not disassemble yourself
Warranty	Excludes descaling defect, professional use
Intended use	Household use only
Environmental protection	Appliance recyclable, dispose at collection point

Frequently Asked Questions - Principio FG2125 MOULINEX

How to prepare coffee with the Moulinex Principio FG2125?

Use cold water, a paper filter No. 4, and ground coffee. Pour water into the tank (b) without exceeding the max level. Place the filter in the filter holder (c) and add coffee. Close the filter holder lid. Place the carafe (g) on the hot plate (d). Press the On/Off button (e) to start. The red indicator light turns on. The appliance stops automatically at the end of the cycle.

Why won't my coffee maker turn on?

Check the power connection and that the outlet works. Make sure the On/Off button is pressed (indicator light on). If the problem persists, contact an authorized service center.

How to descale the coffee maker?

Descale every 40 cycles. Use a sachet of descaling solution diluted in 2 large cups of water or 2 large cups of white vinegar. Pour into the tank (b) and start a cycle without coffee. After one cup flows out, stop and let it sit for 1 hour. Resume the cycle to finish. Then rinse by running 2-3 cycles with fresh water.

Can I use the carafe in the microwave or dishwasher?

No, the glass carafe should not be placed in the microwave, dishwasher, or on a stove top. Wash it by hand.

The drip-stop is not working properly, what should I do?

Make sure the carafe is properly in place. The drip-stop activates automatically when the carafe is removed. If coffee is still flowing, check that the filter holder is correctly positioned and that the filter holder lid is closed. Refer to the manual.

How to clean the filter holder?

The filter holder (c) is dishwasher safe. You can also clean it by hand with a damp sponge. Never immerse the appliance.

What is the maximum water level not to exceed?

Do not exceed the max level indicated on the tank (approx. 1 L). Excess could cause overflow.

What to do in case of excessive noise or slow flow?

These symptoms indicate a need for descaling. Perform a complete descaling (see corresponding question). If the problem persists, contact customer service.

The appliance is hot, can I clean it immediately?

No, unplug the appliance and allow it to cool before cleaning. Use a damp cloth, never running water.

Where to find spare parts?

Contact an authorized Moulinex service center or visit the official website. Use only original accessories and spare parts suitable for your model.

USER MANUAL Principio FG2125 MOULINEX

R R FA No D E E P T N

SM_COFFEE-MAKER_CM828_NC00020604_Mise en page 1 17/01/11 13:49 PageC4

图7

fig.2

f

fig.6

fei

Fig 6

Fig.7

INTERNATIONAL GUARANTEE

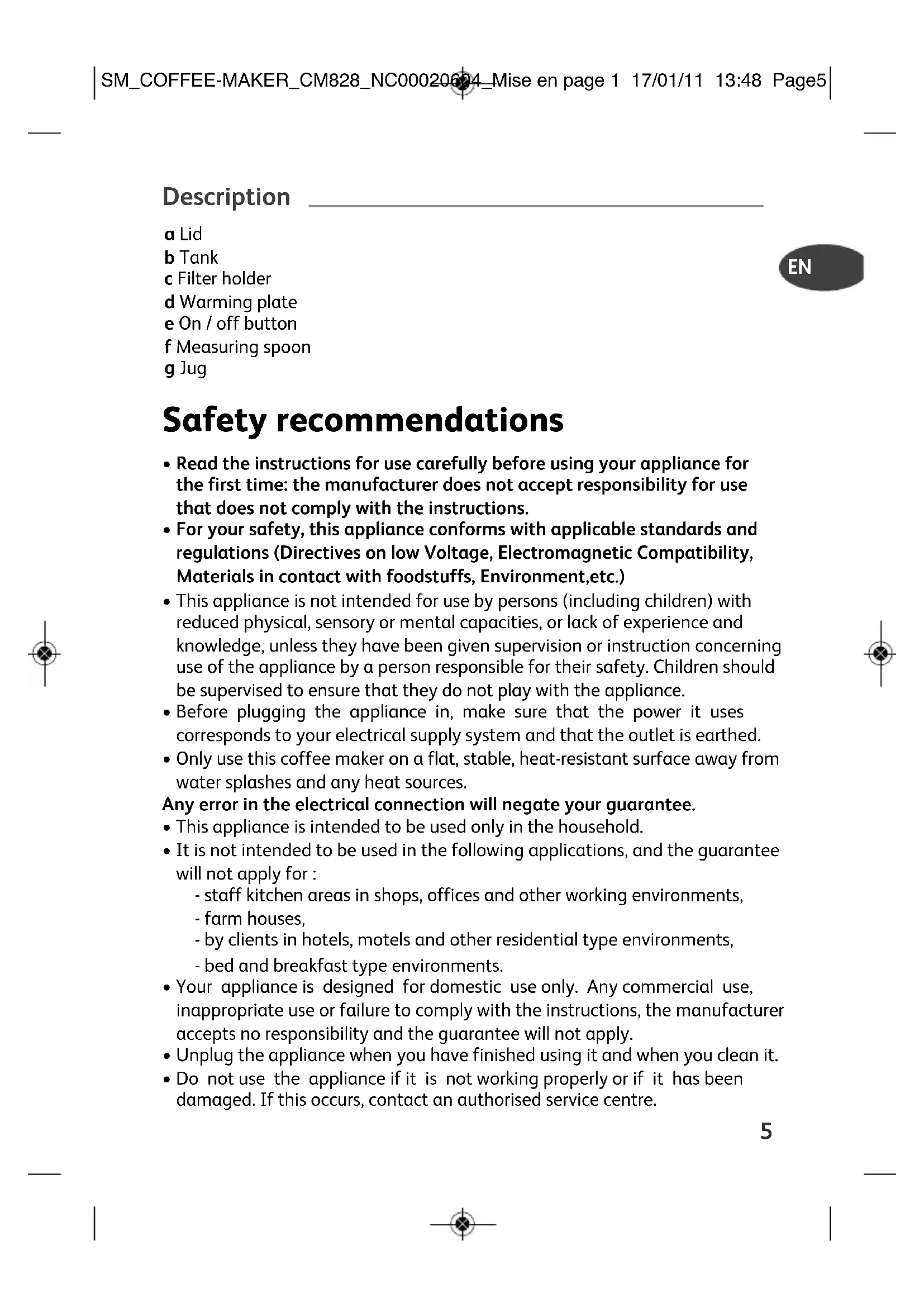

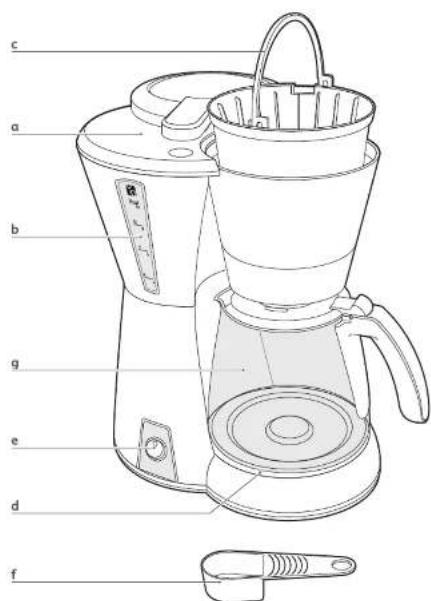

a Lid
bTank
c Filter holder
d Warming plate
e On / off button
f Measuring spoon
gJug

Safety recommendations

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions.
• For your safety, this appliance conforms with applicable standards and regulations (Directives on low Voltage, Electromagnetic Compatibility, Materials in contact with foodstuffs, Environment, etc.)
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Before plugging the appliance in, make sure that the power it uses corresponds to your electrical supply system and that the outlet is earthed.
• Only use this coffee maker on a flat, stable, heat-resistant surface away from water splashes and any heat sources.

Any error in the electrical connection will negate your guarantee.

• This appliance is intended to be used only in the household.

• It is not intended to be used in the following applications, and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments,
  -farm houses,

• by clients in hotels, motels and other residential type environments,

• bed and breakfast type environments.

• Your appliance is designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Unplug the appliance when you have finished using it and when you clean it.

• Do not use the appliance if it is not working properly or if it has been damaged. If this occurs, contact an authorised service centre.

• All interventions other than cleaning and everyday maintenance by the customer must be performed by an authorised service centre.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard
• Do not immerse the appliance, power cord or plug in water or any other liquid.
• Do not leave the power cord within reach of children.
• The power cord must never be close to or in contact with the hot parts of your appliance, near a source of heat or over a sharp edge.
• For your safety, only use the manufacturer's accessories and spare parts designed for your appliance.
• Do not pull on the cord to unplug the appliance.
• Do not use the jug over a flame or on the hob of a cooker.
• Do not pour water into the appliance if it is still hot.
• Always close the lid (a) when running the coffee maker.
• All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
• Never place your jug in a microwave oven, in a dishwasher or on a cooking hob.
• Do not use the jqg without the lid.
• After switching on your coffee maker, never touch the hot plate with your hand when removing the jug from the coffee maker. Whilst in operation, the plate reaches a high temperature and can cause burns.

Before using for the first time

• Run the coffee maker for the first time without coffee, rinsing the circuit with 1 litre of water.

Making coffee

(Follow illustrations 1 to 8)

• Only use cold water and a paper filter n°4.
• Do not exceed the maximum amount of water indicated on the water tank level indicator.
• Close the lid of the filter holder firmly before switching on the coffee maker.
• This coffee maker is equipped with a drip-stop feature so that you can serve a cup of coffee before all the water has finished flowing through. Return the jug to its base quickly to avoid spillage.

Operation:

• Press the red " button; the red indicator light comes on and the coffee maker begins to run.
• Press the " button again to stop operation.

EN

Cleaning

• To dispose of the used coffee grounds, remove the filter holder (c) from the coffee maker.
• Unplug the appliance.
• Do not clean the appliance while hot.
• Clean with a damp cloth or sponge.
• Never put the appliance in water or under running water.
• The filter holder can be washed in the dishwasher.

Dscaling

• Descale your coffee maker after every 40 cycles.

You can use:

• a packet of limescale remover diluted in
  2 large cups of water.
• or 2 cups of white vinegar.
• Pour into the tank (b) and switch the coffee maker on (without coffee).
• Let the equivalent of one cup flow into the jug (g), then switch off.
• Leave to act for one hour.
• Switch the coffee maker back on to run the rest of the liquid through.
• Rinse the coffee maker by running 1 litre of water through it 2 or 3 times.
• The guarantee does not cover coffee makers that do not work properly or do not work at all because they have not been descaled.

Accessory

Glass jug

Practical tip

To remove and put back the filter-holder (c), make sure that the filter-holder is in the right direction and that the handle is correctly positioned for locking it. If it's not it may not be possible to close the lid properly.

Please note: before removing or putting back the filter-holder, remove the pourer from its base.

Troubleshooting

• Check:
  that it is plugged in properly.
• that the switch or the On / off button (red indicator light on) is in the "ON" position.
• So that the filter holder is correctly in place inside the coffee maker and that the lid of the filter holder is correctly positioned above the filter holder. See figure n°7.
• The water flow-through time is too long or makes too much noise: descale your coffee maker.

If your appliance still doesn't work please contact an authorised service centre.

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

016774003-ROI

or consult our web site: www.groupeseb.co.uk
