PV1006 Nescafe Dolce gusto PICCOLO - Coffee maker MOULINEX - Free user manual and instructions

Product Type	Single-serve capsule coffee machine
Brand	Moulinex
Model	PV1006 Nescafe Dolce Gusto PICCOLO
Dimensions (W x D x H)	Approx. 120 x 270 x 310 mm
Weight	Approx. 2.4 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1500 W
Water Tank Capacity	0.8 L
Pump Pressure	15 bar
Capsule System	Dolce Gusto capsules
Functions	Espresso, lungo, cappuccino, latte macchiato, hot water
Beverage Height Adjustment	Adjustable drip tray up to 12 cm
Automatic Shut-off	After 5 minutes of inactivity
Descaling	Manual descaling recommended every 3 months
Cleaning	Removable drip tray and capsule holder; wipe exterior with damp cloth
Safety Features	Automatic shut-off, overheat protection
Spare Parts	Drip tray, capsule container, water tank available
Repairability	Indice de réparabilité: 8.4/10 (France)
Warranty	2 years

Frequently Asked Questions - PV1006 Nescafe Dolce gusto PICCOLO MOULINEX

How do I descale the Moulinex PV1006?

Use a descaling solution suitable for Dolce Gusto machines. Fill the tank with water and descaling agent according to instructions, run a cycle without a capsule, then rinse with fresh water twice.

Can I use any brand of capsules?

No, the machine is designed for Nescafe Dolce Gusto capsules only. Other capsules may not fit or cause damage.

Why is my coffee not hot enough?

Ensure the machine is preheated by running a hot water cycle first. Also, check that the capsule is properly pierced and the water tank has enough water.

How often should I clean the machine?

Empty the drip tray daily, rinse the capsule holder weekly, and descale every 3 months or as indicated by the descaling reminder light.

What does the blinking red light mean?

A blinking red light usually indicates a need for descaling or a water tank error. Refer to the manual for specific codes.

Can I make hot water without a capsule?

Yes, lift the lever without inserting a capsule and press the button. The machine will dispense hot water for tea or other uses.

How do I adjust the cup size?

The machine has preset volumes for espresso (40ml) and lungo (110ml). To adjust, hold the button for 3 seconds during brewing to start programming, then press again to stop at desired volume.

Is the machine compatible with reusable capsules?

While some third-party reusable capsules exist, they may not ensure proper pressure or sealing. Use only compatible reusable capsules designed for Dolce Gusto.

What should I do if the machine leaks?

Check that the drip tray is correctly inserted, the capsule holder is closed properly, and no capsule is stuck. If leaks persist, contact support.

How do I replace the water filter?

The PV1006 does not have an internal water filter. Use filtered or bottled water to reduce scale buildup.

USER MANUAL PV1006 Nescafe Dolce gusto PICCOLO MOULINEX

Exterior view of a Moulinex coffee maker with control panel and side grilles (no visible text or symbols)

Illustration of a steam purifier with cooling fan and stove (no text or symbols)

ES Vista general
EN Overview

NESCAFÉ. Dolce Gusto.

Argentina, Paraguay, Uruguay Peru

220 V\~ 50 Hz 1340 W 220 V\~ 60 Hz 1340 W

máx./max. 15 bar

600 ml

2.4 kg

5^ C-45^ C 41^ F-113^ F

A = 15.9 cm
B = 28.7 cm
C = 22.0 cm

Caffè Lungo 120 ml

CAPPUCCINO

Two white and black product containers, labeled ① and ② (no text or symbols on the containers themselves)

CHOCOCINO

Two identical white and gray cylindrical containers labeled ① and ②, with no visible text or symbols on the containers themselves.

LATTE MACCHIATO

Two white and black objects with circular markers, no visible text or symbols

Bebida fría Cold Beverage

NESTEA PEACH

Nestea Peach 200 ml

Close-up of a plug plugged into a wall socket (no text or symbols visible)

STOP – Please read before using

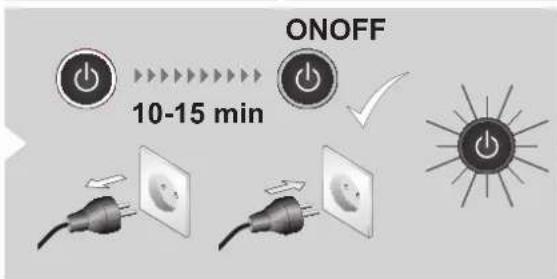

Your NESCAFÉ® Dolce Gusto™ machine has an auto shut-off function which will automatically turn off the machine after 5 minutes if it is not used. This feature helps you save electricity by reducing the amount of power the machine draws while it is not in use and helps protect the life of your machine.

However you can disable this function should you prefer that your machine stays on until you turn it off.

When the machine is off, press and hold the power button for 30 seconds until the machine turns off again (ignore light signals and wait until power button is no longer illuminated).

The auto shut-off function is now disabled and the machine will stay on when you next press the power button. You can turn off the machine simply by pressing the power button again.

Unplugging the machine will restore the auto shut-off function.

Stylized illustration of a steaming cup with steam inside, against a black background (no text or symbols)

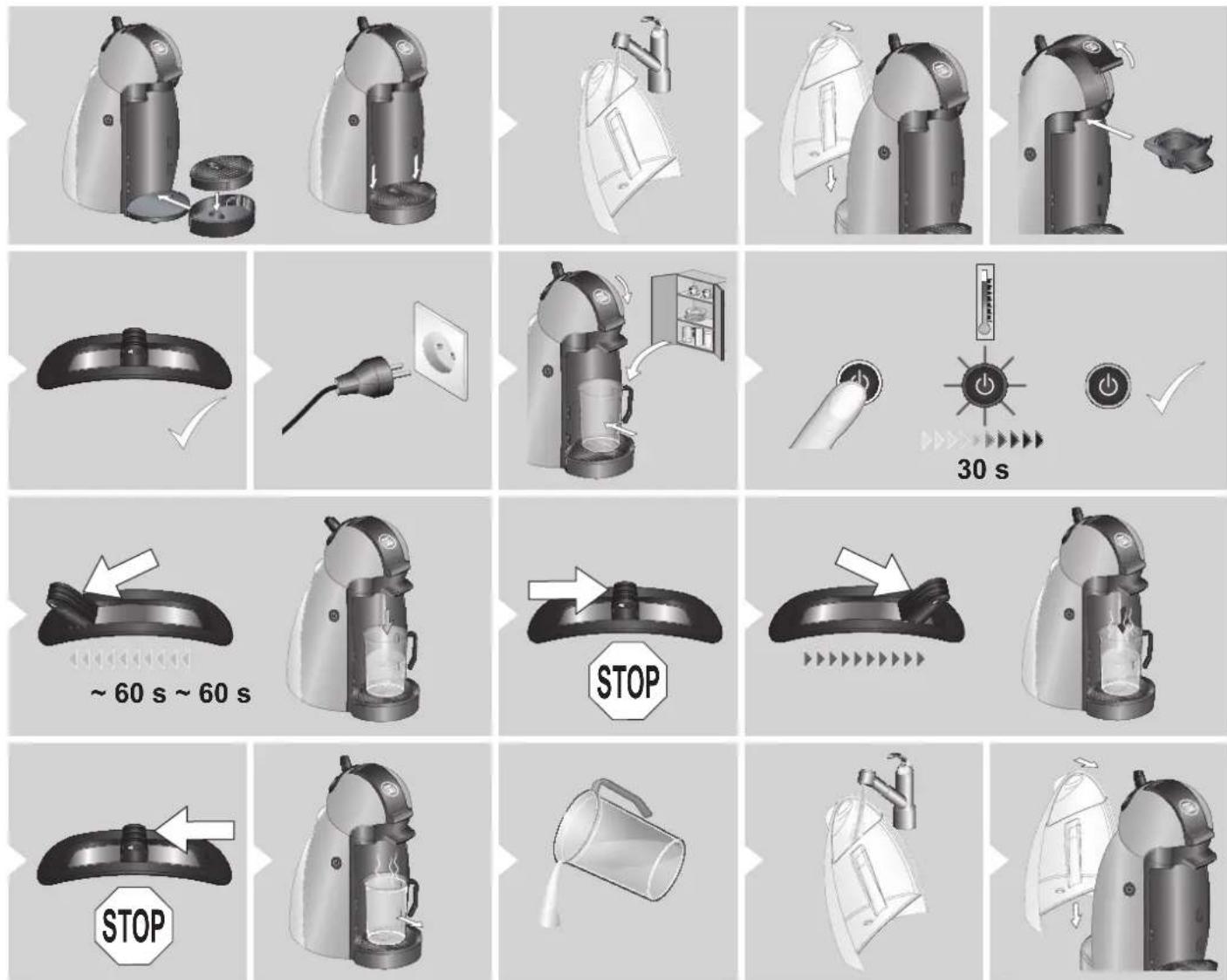

EN Preparing a beverage

NESCAFÉ Dolce Gusto

3D rendered image of a modern hand mixer device (no text or symbols visible)

3D rendering of a modern coffee maker with a white cup and black lid (no text or symbols visible)

3D rendering of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Exterior view of a modern coffee maker with a cup and side arm (no visible text or symbols)

Close-up of a mechanical component with a knob and curved arrow indicating rotation (no text or symbols)

Two grayscale illustrations: a small bowl with an arrow pointing to the side and a modern coffee maker with a cup (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

Illustration of a coffee maker with a coffee cup and a small tray, no visible text or symbols

3D illustration of a trash bin with an arrow indicating waste or disposal (no text or symbols)

Two 3D illustrations of robotic arms performing a valve lift operation, showing fluid flow and mechanical components (no text or symbols)

3D rendering of a coffee maker with a side arm and coffee cup (no visible text or labels)

3D rendering of a modern coffee maker with a cup and lid (no visible text or symbols)

Illustration of a steaming cup with a checkmark beside it (no text or symbols)

Illustration of a medical device with a thermometer and cross symbol (no text or labels)

Illustration of a robotic device with a spool and a warning symbol, no visible text or symbols

Illustration of a coffee maker using a hand mixer with a fork, showing the cup and tray (no text or symbols)

Illustration of a hand using a crossed tool to press a steaming cylindrical object (no text or symbols visible)

Person cleaning a spray bottle from a handheld device (no text or symbols visible)

ES Limpieza

EN Cleaning

NESCAFÉ Dolce Gusto

Illustration of a mechanical device with a drop and a warning sign (no text or symbols on the device itself)

Illustration of a robotic arm with water spray and a mechanical component, showing a step-by-step process (no text or symbols)

White plastic electrical plug with a black prohibition symbol (no text or labels)

3D rendered illustration of a bathroom sink with faucet and bathtub (no text or symbols)

3D rendered mechanical component with a curved top and internal structure, shown from an angle (no text or symbols visible)

Close-up of a hand pressing down on a curved mechanical component (no text or symbols visible)

3D rendered mechanical component with a highlighted section showing a small component (no text or symbols visible)

3D rendered mechanical component with no visible text or symbols

Close-up of a mechanical device with a knob and curved arrow indicating rotation (no text or symbols visible)

Exterior view of a modern kitchen blender with a glass cup and handle (no text or symbols visible)

Close-up of a metallic tool tip with a circular head and a separate icon showing a sun, no text or symbols visible.

Pure electrical control icons without any text or symbols

Close-up of a black plastic object with an arrow pointing to a small feature, labeled ~10 seconds below (no other text or symbols)

Exterior view of a modern kitchen blender with a glass cup and handle (no text or symbols visible)

Simple 3D illustration of a bucket with a handle and spout (no text or symbols)

Illustration of a hand holding a small appliance next to a cylindrical device (no text or symbols visible)

Two robotic devices with arrows indicating motion, one emitting smoke or vapor, the other pouring liquid (no text or symbols)

ES Si no sale líquido... EN If no liquid comes out...

1

2

Turn selection lever to neutral position.

Illustration of a hand operating a washing machine with a water dispenser (no text or symbols visible)

Check if there is water in water tank: if not, refill and move lever again to hot/cold position to continue preparation; if yes proceed as follows: Check if locking handle can be lifted easily: NO - see position A / YES - see position B

A

Illustration of a hand mixer with a circular inset showing its internal components (no text or symbols)

20 min

The capsule may be blocked and under pressure.

Do not use force to lift the locking handle.

Wait for 20 minutes to reduce the pressure.

3D rendering of a white and gray industrial machine with a small inset device (no visible text or symbols)

Then lift the locking handle and remove the capsule holder.

Illustration of a trash bin with an arrow pointing to a bucket and a separate container (no text or symbols)

Deseche la cápsula.

Throw away the capsule.

B

Illustration of a robotic arm with a magnified inset showing a droplet symbol (no text or labels)

The injector may be blocked.

Close-up of a robotic arm with a small mechanical component attached (no visible text or symbols)

Lift the locking handle and remove the capsule holder.

Illustration of a ballot box being lifted by a handbag, with a separate 3D model below (no text or symbols)

Deseche la cápsula.

Throw away the capsule.

3D rendered mechanical component with a highlighted section showing internal components (no text or symbols)

Remove the water tank and take out the cleaning needle.

3D rendered image of a handheld device with a curved arrow indicating rotation (no text or symbols)

For better access to injector tilt machine.

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Unblock the injector with the cleaning needle.

Illustration of a coffee maker with a side view showing its glass and a thermometer (no text or symbols present)

3D rendering of a coffee maker with handle and spout, no visible text or symbols

Mechanical device with eye and adjustment knob (no text or symbols visible)

Hand holding a device with a curved handle and arrow indicator (no text or symbols)

Product image of a robotic device with no visible text or symbols on the device itself

Illustration of a water dispenser pouring liquid into a glass pitcher with a handle, labeled '600 ml' below (no other text or symbols)

3D rendered illustration of a mechanical device with a handle and internal components (no text or symbols)

Product photo of a coffee maker with open lid and side arm (no visible text or labels)

Close-up of a mechanical component with a circular emblem and arrow indicating rotation (no text or symbols)

Close-up of a finger pressing a button with a power symbol (no text or labels visible)

3D rendering of a modern coffee maker with a glass cup and lid (no visible text or symbols)

3D rendered object with a white arrow pointing to a curved surface, labeled '45 s' below (no other text or symbols)

Illustration of a coffee maker with a glass cup and lid (no text or symbols visible)

Illustration of a hand mixer with a question mark symbol nearby (no text or labels)

ES Resolución de problemas
EN Troubleshooting

NESCAFÉ Dolce Gusto

Simple diagram of a crosshair target with no text or symbols

Illustration of a plug with a question mark and lightning bolt symbol (no text or labels)

Simple diagram with a central circle and two crosshairs, no text or symbols present.

Illustration of a hand mixer device with a white top and black handle, emitting powder from a glass bowl (no text or symbols visible)

Illustration of a mechanical device with a flame-like top and pointer, mounted on a base (no text or symbols visible)

Illustration of a container with liquid being poured into a larger container (no text or symbols visible)

3D rendering of a mechanical component with a downward arrow indicating force or motion (no text or symbols)

Exterior view of a modern coffee maker with a side arm (no visible text or symbols)

Illustration of a hand washing machine with a glass cup and a thermometer (no text or symbols on the device itself)

3D rendered illustration of a showerhead mounted on a surface, no text or symbols present

Medical illustration showing a human eye and shoulder anatomy with a magnified circular detail highlighting a specific region (no text or labels present)

This appliance may become a safety hazard if these instructions and safety precautions are ignored. Keep this instruction manual.

In case of an emergency remove plug from power socket immediately.

This product has been designed for domestic use only. In case of any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarant will not apply. Use only NESCAFÉ DOLCE GUSTO capsules. If away for prolonge periods, on holiday, etc. the appliance must be emptied, cleaned and unplugged.

Mains voltage must be the same as details on the rating plate. Connect the appliance to power sockets with an earth connection. The use of incorrect connective voids guarantee.

Always use the appliance on a flat, stable, heat resistant surface away from sources of heat or water splashes. Do not place power cord close to heat, sharp edges, etc. Do not allow mains cord to dangle (risk of tripping up). Never touch cord with wet hands. Do not unplug by pulling the cord. In case of damage, do not use the appliance. In der to avoid danger, arrange repairs and/or replacement of power cord by NESCAI DOLCE GUSTO Hotline only.

Do not place the appliance on a hot surface (e.g. heating plate) and never use it close to an open flame.

Do not use the machine if it is not operating perfectly or if there is evidence of damage. In such cases inform the NESCAFÉ DOLCE GUSTO Hotline.

For health reasons, always fill the water tank with fresh potable tap water. ways close extraction head with capsu holder, and never open during operation clocks, hearing aids and loud speakers. The appliance will not work if no capsule holder is inserted. Do not pull up lever before ON/OFF switch stops flashing red.

Do not put fingers under outlet during beverage preparation. To avoid injury, do not touch the needle of the head. Never leave the appliance while making a beverage. Do not use the appliance without drip tray and drip grid, except when a very tall mug is used. Do not use the appliance for hot water preparation. Do not overfill the water tank. Keep the appliance / cord / capsule holder out of reach of children.

Do not dismantle the appliance and do not put anything into openings. Any operation, cleaning and care other than normal must be undertaken by after-sales service centres approved by the NESCAFÉ DOL-CE GUSTO Hotline.

In case of infinitensives used with blowdown sufficient cooling time, the appliance will stop functioning temporarily with the red indicator light blinking. This is to protect your appliance from overheating Switch the appliance off for 30 minutes to let it cool down.

This appliance is not intended for use by: children; persons who may be sufficient a mental and/or physical impairment—unless they are adequately supervised printis

operation and use. Persons who have limited or no understanding of the operation and use of this appliance must file read and fully understand the contents of this user manual, and where appropriate seek additional guidance on its operation and use from the person responsible for their safety.

The capsule holder is equipped with a permanent magnet. Avoid placing the capsule holder near appliances and objects that can be damaged by magnetism, e.

credit cards, diskettes and other data devices, video tapes, television and computer monitors with picture tubes, mechanical

^on clocks, hearing aids and loud speakers.

sule

©

-

Patients with pacemakers or defibrillators: Do not hold capsule holder directly over a pacemaker or defibrillator.

.Before cleaning/care unplug the appliance and let it cool down. Empty and clean drip tray and capsule bin daily. Never clean/wet or immerse plug, cord or appliance in any fluid. Never clean the appliance with running water, do not hose it down and do not dip it into water. Never use detergents to clean the appliance.

Clean the appliance only using soft sponges/brushes. The water tank must be cleaned with a baby bottle brush.

After descaling rinse the water tank and clean the machine to avoid any residual descaling agent.

After use of the appliance always remove the capsule and clean the head according to the cleaning procedure. Users allergic to dairy products: Rinse head according to the cleaning procedure (see page 9). Dispose of used capsules along with general household refuse.

Packaging is made of recyclable materials. from Contact your local council/authority for further information on recycling.

e Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. This appli-tionance is labelled in accordance with Eu-foepean Directive 2002/96 EC concerning used electrical and electronic appliances

equipment - WEEE). The directive determines the framework for the return and recycling of used appliances as applicable throughout the EU.

NESCAFÉ

Dolce

Gusto

NESCAFÉ

Dolce

Gusto

NESCAFÉ. Dolce Gusto

Moulinex®

Hotline

NESCAFÉ DOLCE GUSTO

www.dolce-gusto.com.ar www.dolce-gusto.pe

Argentina

0800-999-8100

Paraguay

0800-112121

Uruguay

0800-2122

Peru

0800-1-0210
