Subito FG1114 - Coffee maker MOULINEX - Free user manual and instructions

Product type	Drip coffee maker
Brand	Moulinex
Model	Subito FG1114
Dimensions (L x W x H)	Approx. 25 x 20 x 30 cm
Weight	Approx. 1.5 kg
Power supply	220-240 V, 50-60 Hz
Power	Approx. 800 W
Carafe capacity	Approx. 1.25 L (10 cups)
Filter type	Paper filter size 2 or 4, or permanent filter
Drip-stop system	Yes
Aroma selector	Yes (strength adjustment)
Optional thermal carafe	Yes (keeps warm up to 4 h)
Carafe material	Glass (no metal parts) for dishwasher safe
Recommended descaling	Every 40 cycles
Cleaning	Removable filter holder and glass carafe dishwasher safe
Safety	Auto-off not specified, but safety instructions include turning off after use
Included accessories	Glass carafe, permanent filter (depending on version)
Repairability	Spare parts available from manufacturer
Use	Indoor household use only

Frequently Asked Questions - Subito FG1114 MOULINEX

How to use the Subito FG1114 coffee maker for the first time?

Before first use, run the coffee maker without coffee with a carafe of cold water to rinse the appliance. Follow illustrations 1 to 9 in the manual to prepare coffee.

What type of filter to use with the Subito FG1114?

You can use a paper filter size 2 or 4, or the permanent filter provided (depending on version). Place the filter in the removable filter holder.

How to dose ground coffee?

Use a level measuring spoon of ground coffee per large cup. Do not exceed the maximum water level indicated on the reservoir.

Can I pour a coffee before the cycle ends?

Yes, the coffee maker is equipped with a drip-stop system. Replace the carafe or thermal pot after serving to avoid overflow.

How to adjust coffee strength?

Turn the aroma selector (fig.7) towards the black cup for a stronger coffee, or towards the white cup for a milder coffee.

Can I use the thermal pot in the microwave or dishwasher?

No, the thermal pot should not be placed in the microwave or dishwasher. To clean it, use warm water with a little dish soap and rinse thoroughly.

How to descale the Subito FG1114 coffee maker?

Descale every 40 cycles. Use a sachet of descaling powder diluted in 2 large cups of water or 2 large cups of white vinegar. Pour into the reservoir, let one cup run, stop, let sit for 1 hour, then finish the cycle. Rinse 2 to 3 times with fresh water.

Is the glass carafe dishwasher safe?

Yes, if the carafe is made of glass without metal parts (e.g., steel rim), it can go in the dishwasher. Remove the lid before placing it.

What to do if the coffee maker no longer heats?

Check that the appliance is properly plugged in and the outlet works. If the problem persists, contact an approved service center. Regular descaling is essential for proper operation.

Where to find spare parts for the Subito FG1114?

Spare parts (carafe, thermal pot, permanent filter, etc.) are available from the manufacturer Moulinex or its approved service centers.

USER MANUAL Subito FG1114 MOULINEX

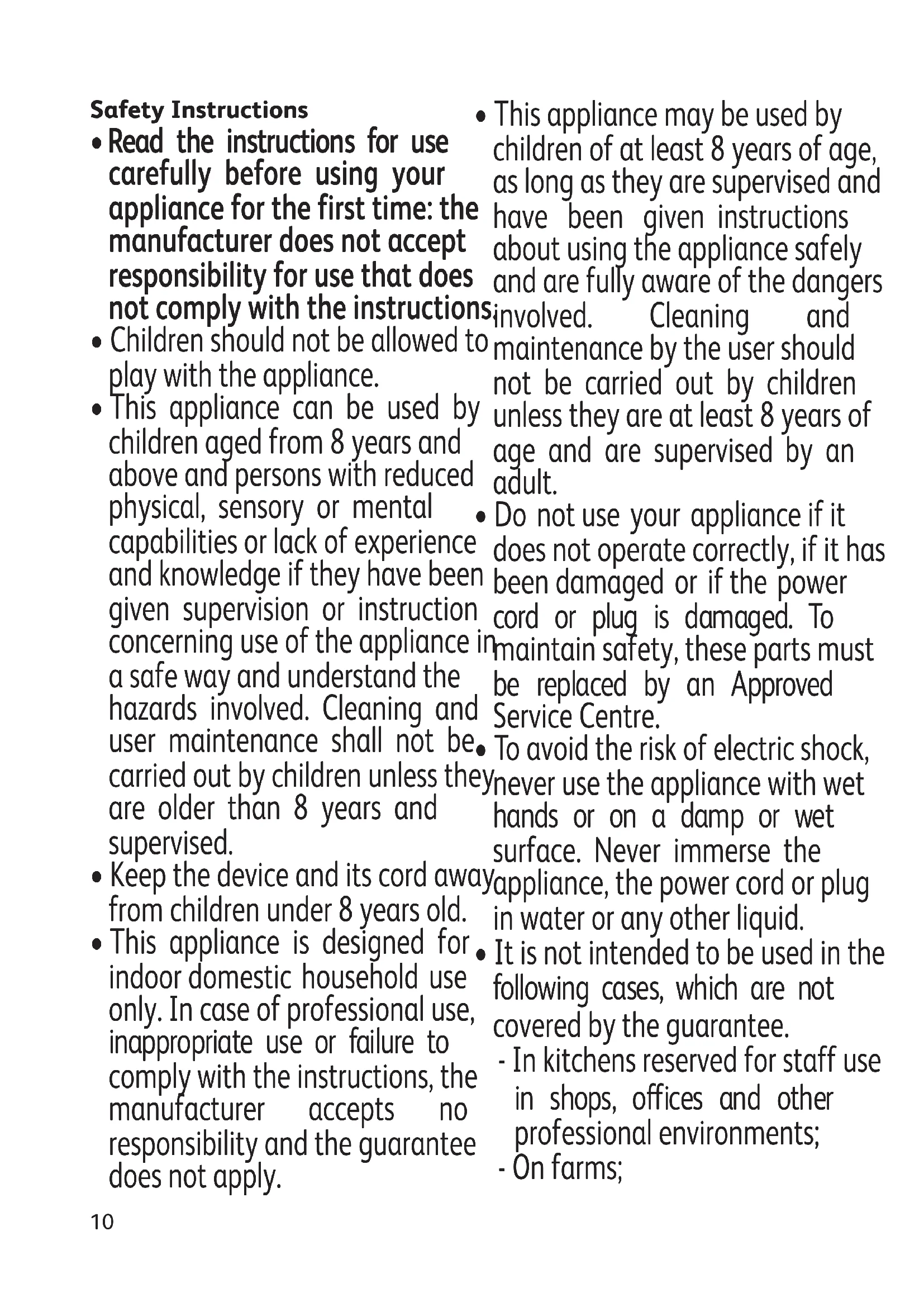

• Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions.
  Children should not be allowed to play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.
• Keep the device and its cord away from children under 8 years old.

• This appliance is designed for, indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and maintenance by the user should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

• Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• To avoid the risk of electric shock, never use the appliance with wet hands or on a damp or wet surface. Never immerse the appliance, the power cord or plug in water or any other liquid.

• It is not intended to be used in the following cases, which are not covered by the guarantee.

• In kitchens reserved for staff use in shops, offices and other professional environments;

• On farms;

• By hotel or motel clients, or on other residential premises;

• In bed and breakfast accommodation and other similar environments.

• For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).

• This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.
• Any connection error will invalidate your guarantee.
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.
• Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.
• This appliance is not intended to function using an external time-switch or a separate remote control system.
• Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.
• Do not let the power cord hang where children may reach it.
• Switch off and disconnect the appliance from the power supply before carrying out cleaning & maintenance or when not in use.
• Never disconnect the plug by pulling on the power cord.
• Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.
  The warming plate is very hot when the appliance is in use.
• Never place your hand on the warming plate while the coffee maker is in operation.

Allow the appliance to cool down completely before you clean and store it.

• Never insert your hand inside the thermal pot.
• Do not use the jug or thermal pot without their lids.
• Do not use the jug or thermal pot on a flame or electric hob.
• Do not put water into the appliance when it is still warm.
  Always close the lid (a) when the coffeemaker is in operation.
• All appliances are subject to rigorous quality inspection. Practical tests using appliances taken at random are conducted and this may explain any possible traces of use.
• The glass jug without a metal part is microwave and dishwasher safe (ATTENTION: the thermal pot must not be placed in the microwave or dishwasher).
• The power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Never place the appliance close to a wall or below a wall cupboard. The steam could cause damage.
• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• After switching on your coffee maker, never put your hand on the warming plate when you are removing the jug from the coffee maker. While in operation, this plate has a very high temperature, which could cause burns.

Before using for the first time

• Use your filter coffee maker without coffee the first time using the equivalent of a jug of water to rinse your coffee maker.

Preparing the coffee

(Follow figures 1 to 9)

• Use only cold water and filter paper n^2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.

• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.

• Ground Coffee: Use one measuring spoon of ground coffee per large cup.

• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot*

• Do not use the thermal pot without its lid.
• The thermal pot lid must be closed tightly all the way to the right to prepare the coffee and keep it warm.
• To serve the coffee, press the lever on the lid of the thermal pot downwards or unscrew the lid half a turn to the left*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better.
• The thermal pot keeps your coffee warm for four hours maximum.

Aroma selector* (see figure n°7)

The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
- For a stronger coffee, turn the aroma selector to the black cup.

Reheating the coffee

• Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
- Unplug and let the coffee maker cool down.
- Clean with a cloth or wet sponge.
- Do not clean the appliance when it is still hot.
- Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).

• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.

• In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Dscaling

• Descale your coffee maker every 40 uses. You can use:

• a sachet of descending agent diluted in two large cups of water;

• or two large cups of commercially available white vinegar.

• Pour into the tank (b) and turn on the coffee maker (without coffee).

• Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop.
• Allow to act for one hour.
• Restart the coffee maker to stop the flow.
• Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

Accessories*

Glass jug
Thermal pot
Permanent filter

Think of the environment!

i Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.

(Seguir as ilustracoes de 1 a 9)
