Red Cafe Torino 242103 - Coffee machine PRINCESS - Free user manual and instructions

Product type	Coffee machine (electric coffee maker)
Brand	Princess
Model	Red Cafe Torino 242103
Capacity	4 to 14 cups (approx. 1.2 L)
Anti-drip system	Yes, allows removing the carafe before the end of the cycle
Hot plate	Keeps coffee warm
Permanent control	For permanent filter, allows adjusting coffee strength
White permanent filter included	Yes, also compatible with paper filters
Power supply	220-240 V, 50-60 Hz, 900 W (estimated)
Dimensions (approx.)	30 x 20 x 35 cm
Weight (approx.)	2 kg
Materials	Plastic, glass (carafe)
Cleaning	Clean with a damp cloth and mild detergent; do not immerse
Descaling	Use a suitable descaling agent; follow the product instructions
Safety	Do not use outdoors; unplug after use; do not touch hot surfaces

Frequently Asked Questions - Red Cafe Torino 242103 PRINCESS

What is the capacity of the Princess Red Cafe Torino 242103 coffee maker?

The coffee maker can prepare 4 to 14 cups of coffee, depending on the water level in the reservoir.

Can I use paper filters with this machine?

Yes, you can use standard paper filters. In this case, the permanent control is not necessary. The supplied white permanent filter can also be used.

How to clean the machine?

Turn off and unplug the appliance. Clean the filter holder and permanent filter with hot water and a little dish detergent. Clean the exterior with a soft damp cloth. Never immerse the appliance in water.

What to do if the machine no longer heats up?

First check that the outlet works and the cord is not damaged. If the problem persists, contact customer service for repair. Do not attempt to repair yourself.

How to descale the coffee maker?

Use a suitable descaling agent following the product instructions. Regular descaling is recommended in hard water areas. Problems due to scale are not covered by the warranty.

Can I leave the coffee maker running unattended?

It is not recommended to leave the appliance unattended. Always turn off and unplug after use. The hot plate remains hot even after turning off.

Is the carafe dishwasher safe?

The manual recommends washing the carafe by hand with hot water and mild detergent. It is not specified if it is dishwasher safe; therefore, it is advised to wash by hand to avoid damage.

How to adjust the permanent control?

The permanent control allows adjusting the coffee strength when using the permanent filter. No specific adjustment is described; it is probably an integrated system that works automatically depending on the filter type.

Is the appliance under warranty?

The warranty is mentioned in the manual. Problems due to scale are excluded. For any repair, contact a qualified technician or Princess customer service.

Where to find the complete user manual?

The user manual is available for free download in PDF format on notice-facile.com. You can also request it by email in your language.

USER MANUAL Red Cafe Torino 242103 PRINCESS

Grand Cafe Torino Article 242111 Mirror Coffeemaker Limited Edition Article 241111 Red Cafe Torino Limited Edition Article 242103

• Gebruiksaanwizig - User's Instructions - Mode d'emploi
• Bedienungsansleitung - Instrucciones de uso - Istruzione per l'uso
• Bruksanvising - Brugsanvising - Bruksanvising - Käytöohje
• Instruções de uso - Ödnyiec xprnncs

Nederlands 1

English 5
François 9
Deutsch	13
Espanol	17
Italiano 21
Svenska	25
Dansk	29
Norsk	33
Suomi	37
Portugues 41
Ελληνικα 45
διαίαι	49

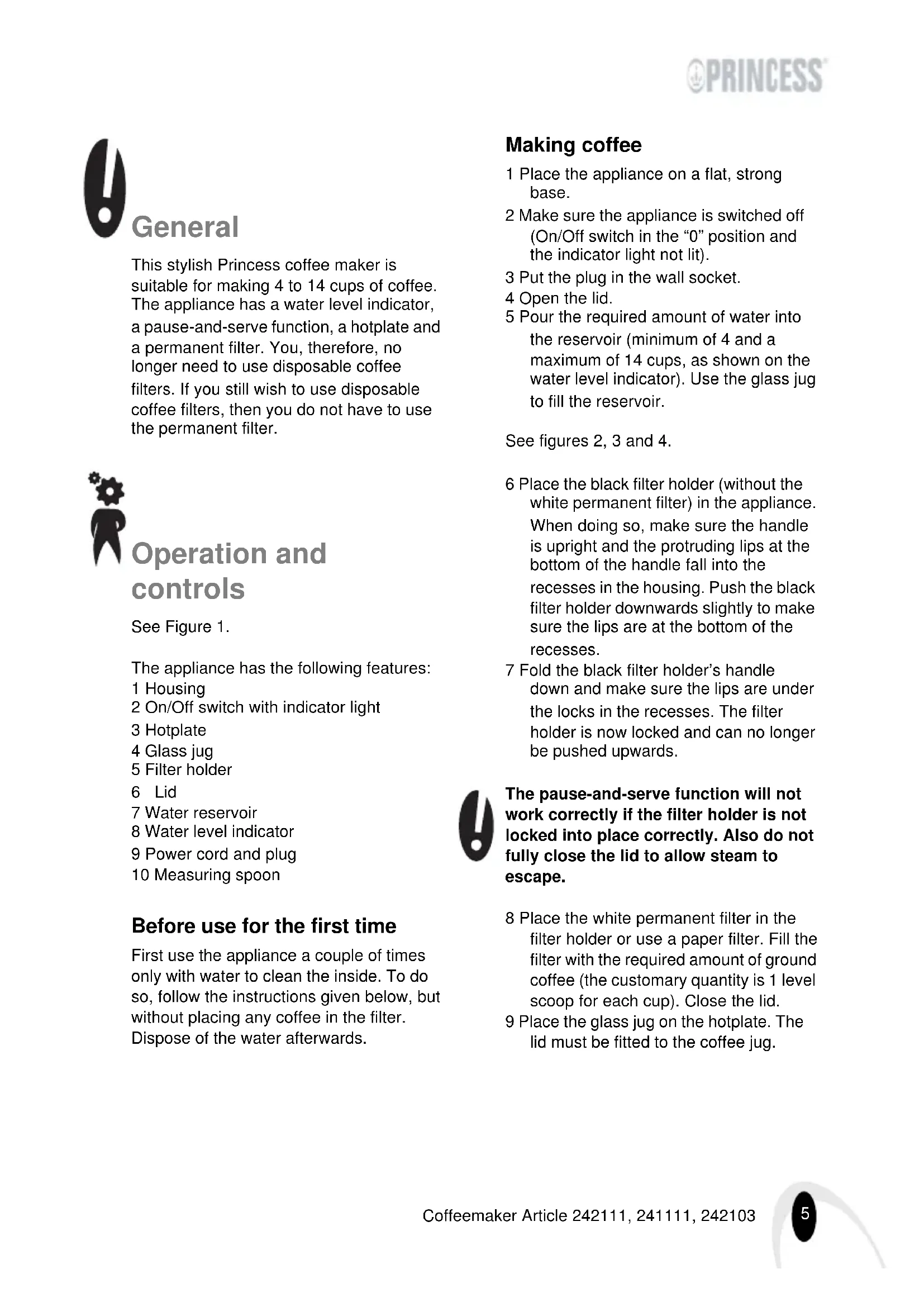

Algemeen

This stylish Princess coffee maker is suitable for making 4 to 14 cups of coffee. The appliance has a water level indicator, a pause-and-serve function, a hotplate and a permanent filter. You, therefore, no longer need to use disposable coffee filters. If you still wish to use disposable coffee filters, then you do not have to use the permanent filter.

Operation and controls

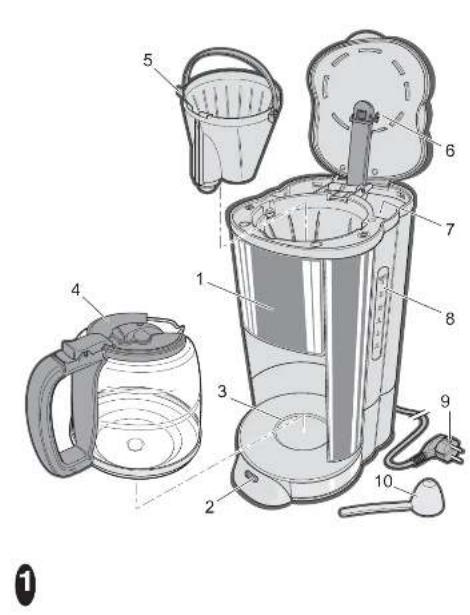

See Figure 1.

The appliance has the following features:

1 Housing
2 On/Off switch with indicator light
3 Hotplate
4 Glass jug
5 Filter holder
6 Lid
7 Water reservoir
8 Water level indicator
9 Power cord and plug
10 Measuring spoon

Before use for the first time

First use the appliance a couple of times only with water to clean the inside. To do so, follow the instructions given below, but without placing any coffee in the filter. Dispose of the water afterwards.

Making coffee

1 Place the appliance on a flat, strong base.
2 Make sure the appliance is switched off (On/Off switch in the "0" position and the indicator light not lit).
3 Put the plug in the wall socket.
4 Open the lid.
5 Pour the required amount of water into the reservoir (minimum of 4 and a maximum of 14 cups, as shown on the water level indicator). Use the glass jug to fill the reservoir.

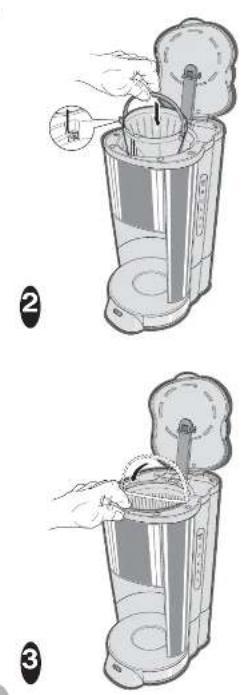

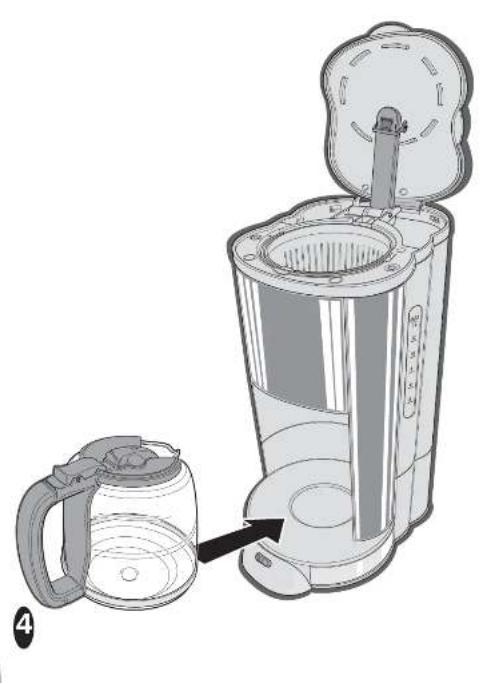

See figures 2, 3 and 4.

6 Place the black filter holder (without the white permanent filter) in the appliance. When doing so, make sure the handle is upright and the protruding lips at the bottom of the handle fall into the recesses in the housing. Push the black filter holder downwards slightly to make sure the lips are at the bottom of the recesses.
7 Fold the black filter holder's handle down and make sure the lips are under the locks in the recesses. The filter holder is now locked and can no longer be pushed upwards.

The pause-and-serve function will not work correctly if the filter holder is not locked into place correctly. Also do not fully close the lid to allow steam to escape.

8 Place the white permanent filter in the filter holder or use a paper filter. Fill the filter with the required amount of ground coffee (the customary quantity is 1 level scoop for each cup). Close the lid.
9 Place the glass jug on the hotplate. The lid must be fitted to the coffee jug.

10 Turn the appliance on (On/Off switch in the "1" position). The On/Off indicator will be lit. The coffee will now be made. The hotplate will keep the coffee hot.
11 Remove the glass jug from the hotplate to pour a cup of coffee. The appliance has a pause-and-serve function. It is, therefore, not necessary for all the water to have passed before removing the jug from the hotplate.
12 Switch the appliance off after use (turn the On/Off switch to the "0" position) and remove the plug from the wall socket.

Maintenance and cleaning

• Never move the appliance whilst it is switched on or is still hot. Switch off the appliance, and wait until it has cooled down before you move it.
• Make sure that no damp gets into the appliance except for the dedicated water reservoir.
• Never immerse the appliance in water, or in other liquids. If this was to happen, do not use the appliance again and dispose of the appliance for safety reasons.
• Never use corrosive or scouring cleaning agents.

1 Make sure the appliance is switched off (On/Off switch in the "0" position and the indicator light is not lit).
2 Remove the plug from the plug socket and allow the appliance to cool down completely.
3 Remove the black filter holder from the appliance. Remove the filter and clean the filter holder with warm soapy water.
4 If you have used a paper filter, dispose of it together with the coffee grounds. If you have used the white permanent

filter, dispose of the coffee grounds and clean the filter with warm soapy water.

5 Dispose of any coffee that remains in the glass jug. Clean the inside of the jug with warm soapy water.
6 Clean the exterior of the appliance with a soft, damp cloth.

Dscaling

Scale can result in a decrease in the performance of the appliance. Scale often occurs in areas with hard water. We advise you to use a suitable descaling agent when scale occurs. Always follow the instructions on the descaling agent. Less scale will form if you use a water purification appliance.

Complaints or problems as a result of furring or scale are not covered by the warranty.

Safety

General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance only in accordance with the instructions.
• This appliance is intended solely for domestic use.
• Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.
• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.
• Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Plug the appliance into an earthed wall socket.
  Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Never pull on the power cord to move the appliance or remove the plug from the wall socket.
• Do not use the appliance any longer if the power cord or the appliance has been damaged. To avoid risks, send the appliance to our service department. A damaged power cord can be replaced solely by our service department, who have the special tools required for the repair.
• Make sure that the appliance and the power cord do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the cord and the plug do not come in contact with water.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.

During use

• Never use the appliance outdoors.
• Place the appliance on a stable and flat surface where it cannot fall over.
• Do not let the cord hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Never use the appliance in humid rooms.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Make sure that small children cannot reach the appliance.
• Do not use the appliance near another heat source. Make sure that the hot parts of the appliance do not come into contact with flammable fabrics, such as tea towels.
• Certain parts of the appliance can become hot; To avoid being scalded, do not touch the hot parts of the appliance. Only hold the glass jug by the handle.
• Do not switch on the appliance before you have filled the water reservoir. Fill only with cold water.
• Never fill above the maximum water level indicator.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.

• Clean the appliance thoroughly after use (see 'Cleaning and maintenance'). Let the appliance cool down fully before you store it away, maintain and/or clean it.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The Environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair.

When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area.
