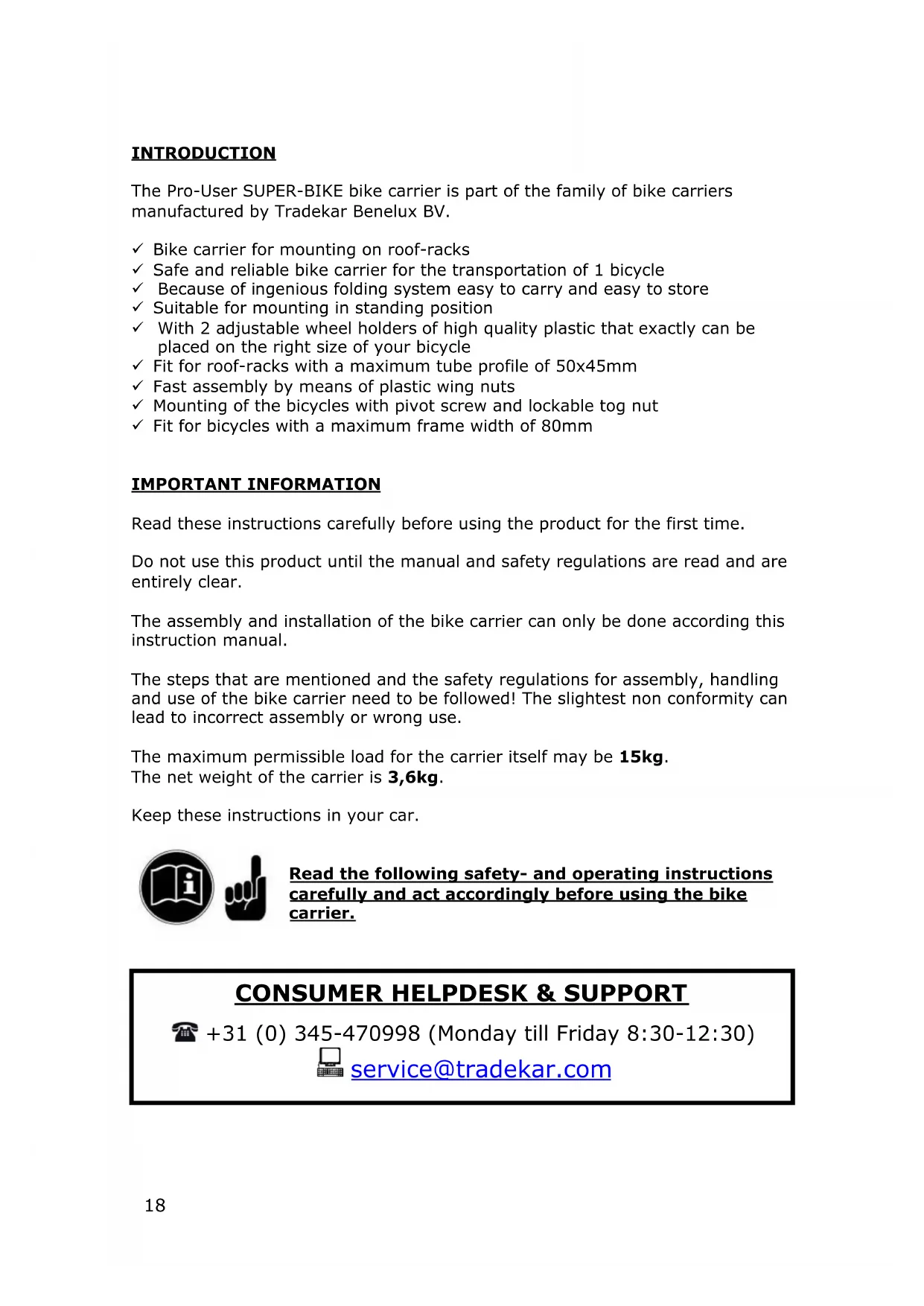

The Pro-User SUPER-BIKE bike carrier is part of the family of bike carriers manufactured by Tradekar Benelux BV.

Bike carrier for mounting on roof-racks
✓ Safe and reliable bike carrier for the transportation of 1 bicycle
Because of ingenious folding system easy to carry and easy to store
Suitable for mounting in standing position
With 2 adjustable wheel holders of high quality plastic that exactly can be placed on the right size of your bicycle
Fit for roof-racks with a maximum tube profile of 50× 45mm
Fast assembly by means of plastic wing nuts
Mounting of the bicycles with pivot screw and lockable tog nut
Fit for bicycles with a maximum frame width of 80mm

IMPORTANT INFORMATION

Read these instructions carefully before using the product for the first time.

Do not use this product until the manual and safety regulations are read and are entirely clear.

The assembly and installation of the bike carrier can only be done according this instruction manual.

The steps that are mentioned and the safety regulations for assembly, handling and use of the bike carrier need to be followed! The slightest non conformity can lead to incorrect assembly or wrong use.

The maximum permissible load for the carrier itself may be 15kg

The net weight of the carrier is 3,6kg

Keep these instructions in your car.

Read the following safety- and operating instructions carefully and act accordingly before using the bike carrier.

CONSUMER HELPDESK & SUPPORT

[phone] (Monday till Friday 8:30-12:30)

[e-mail]

MOUNTING THE BIKE CARRIER

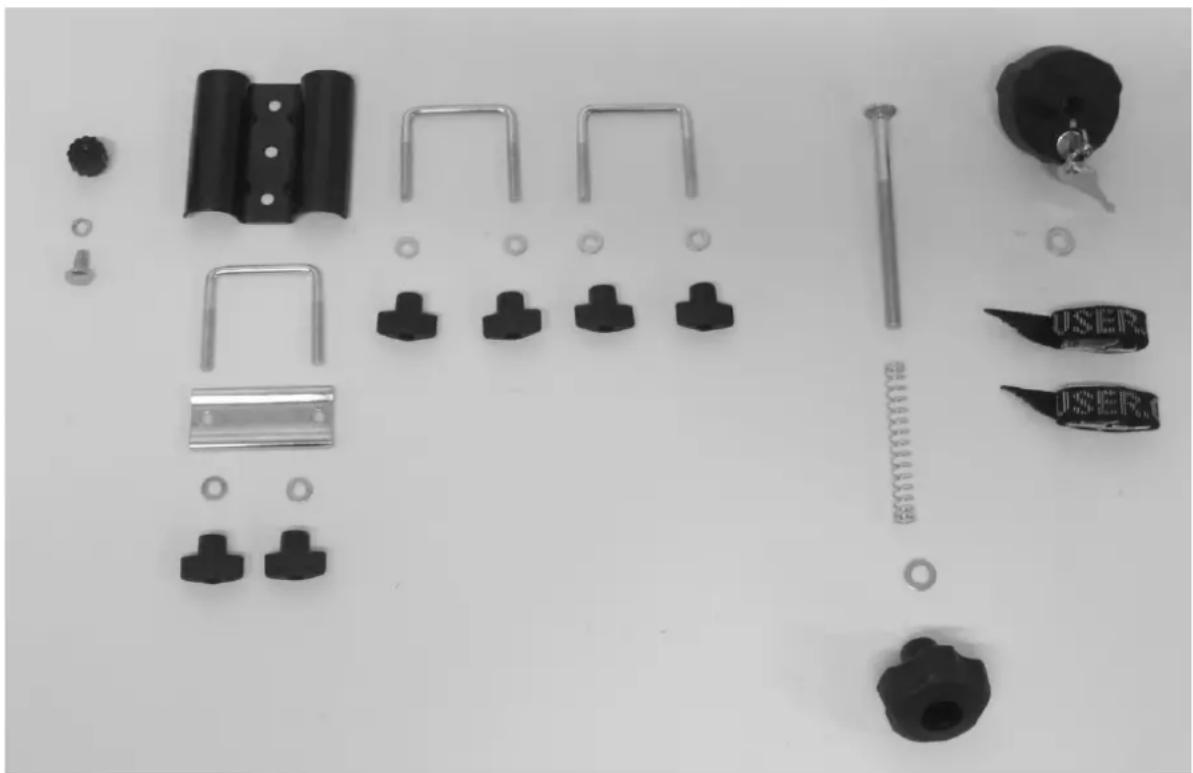

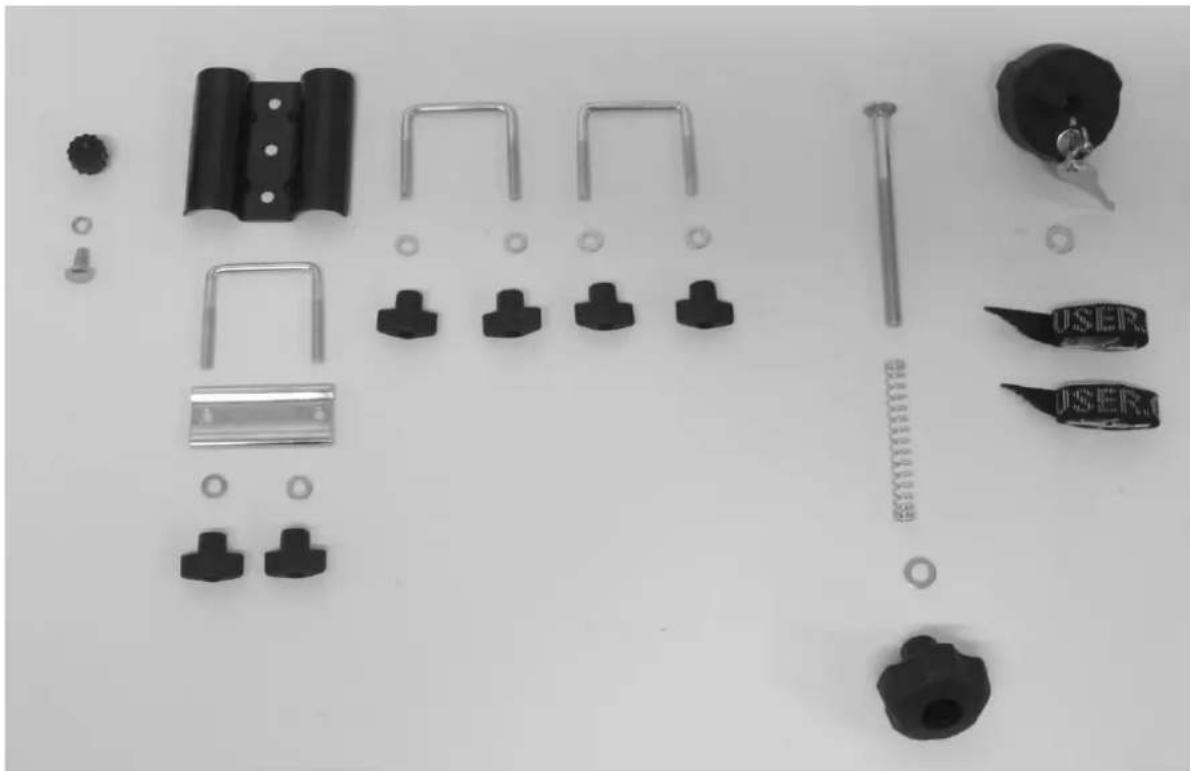

Parts:

Assembly:

Step 1

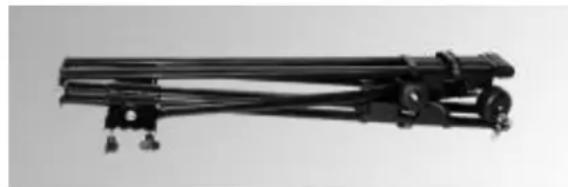

Unfold the folded bike carrier and lock the hinge-point with the M6 carriage bolt, spring washer and small plastic knob. Please make sure that the plastic knob is very well tightened.

Step 2

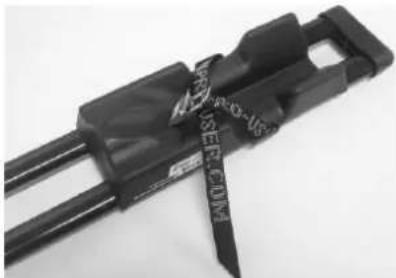

Slide the two short, black straps through the little slots in the plastic wheel holder. You need these straps later for to fix the wheels of your bike.

Step 3

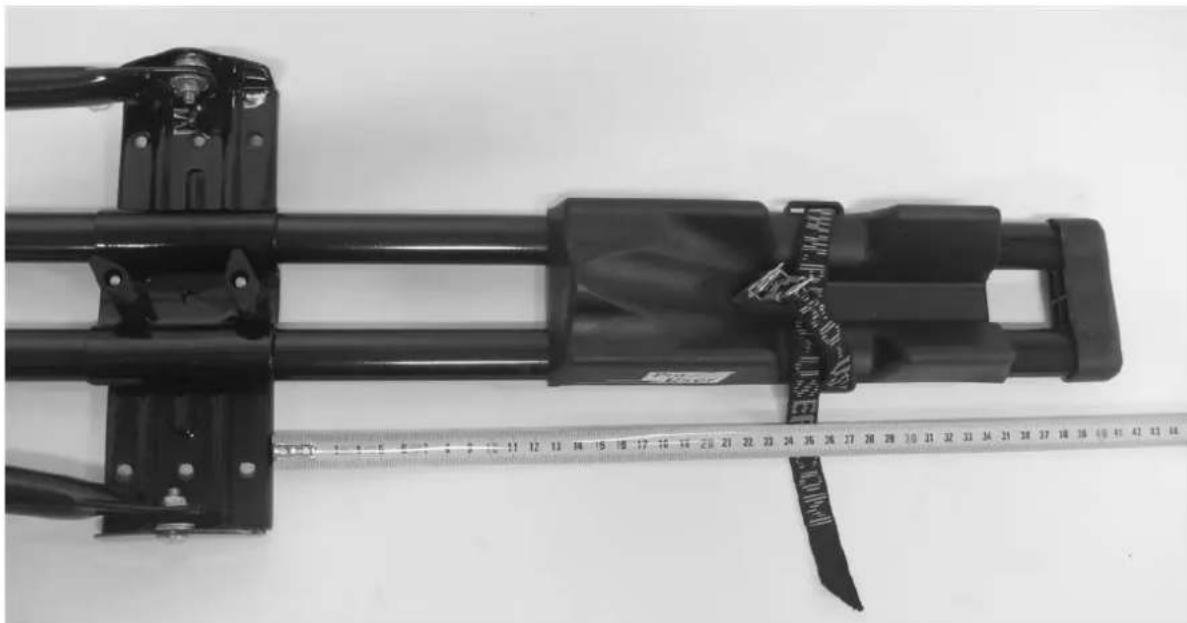

Move the fixation-frame (Bracket with two "arms") on the mainframe so there is 40cm between the fixation-frame and the end of the mainframe (see picture). If necessary firstly loosen the two plastic wing nuts of the fixation-frame. Please make sure that afterwards the these plastic wing nuts are well tightened again.

Step 4

Mount the black plastic rotary knob with the long screw and spring on the mounting frame, through the pre-drilled holes (photo 1-3).

Then mount the lockable tog nut on the pivot screw on top of the mounting frame (photo 4).

The bike carrier is now ready for fixing the roof bar of the car.

FIXING OF THE BIKE CARRIER ON THE ROOF BAR OF THE CAR

Step 1

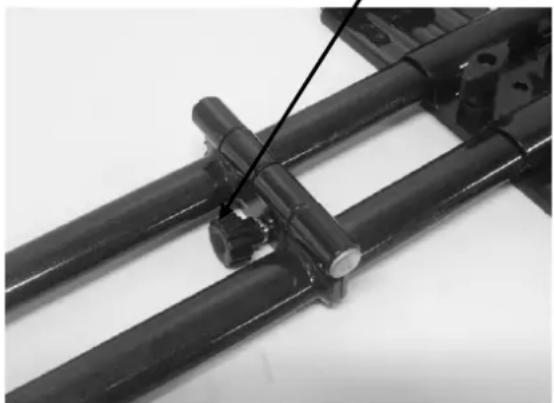

Put the bike carrier on the roof bar of the car. Make sure that the fixation-frame (Bracket with two "arms") is right above the first (front) tube. Place the two double slide screws from bottom to top over the tube of the roof bar and through the holes of the fixation-frame. Put washer and plastic wing nuts on each screw and tighten them so the bike carrier can not move on the tube anymore

Step 2

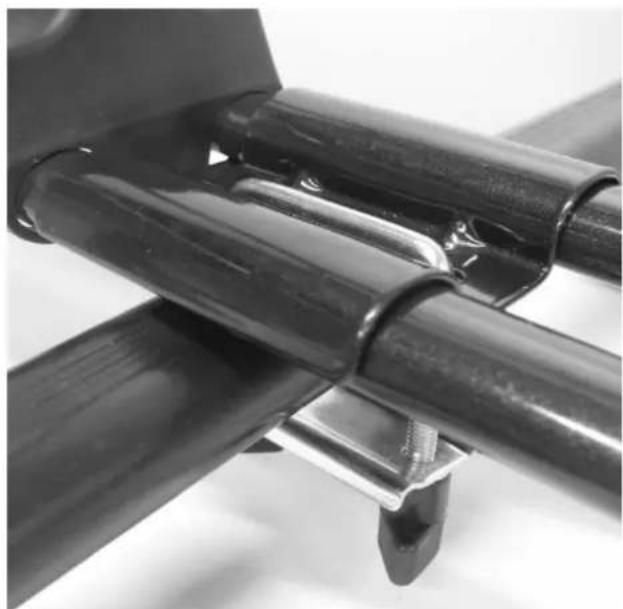

Right above the rear tube, you put the special assembly plate (pre-shaped for the two tubes of the bike carrier). Place the double slide screw from top to bottom through the holes of the assembly plate.

Mount the bottom plate against the bottom of the tube and place the screws through the pre-mounted holes of the bottom plate. Put washer and plastic wing nuts on each screw and tighten them so the bike carrier can not move on the tube anymore

Important:

Please make sure that all wing nuts have been well tightened and the bike carrier can not move on the roof bar.

The bike carrier is now ready for use!

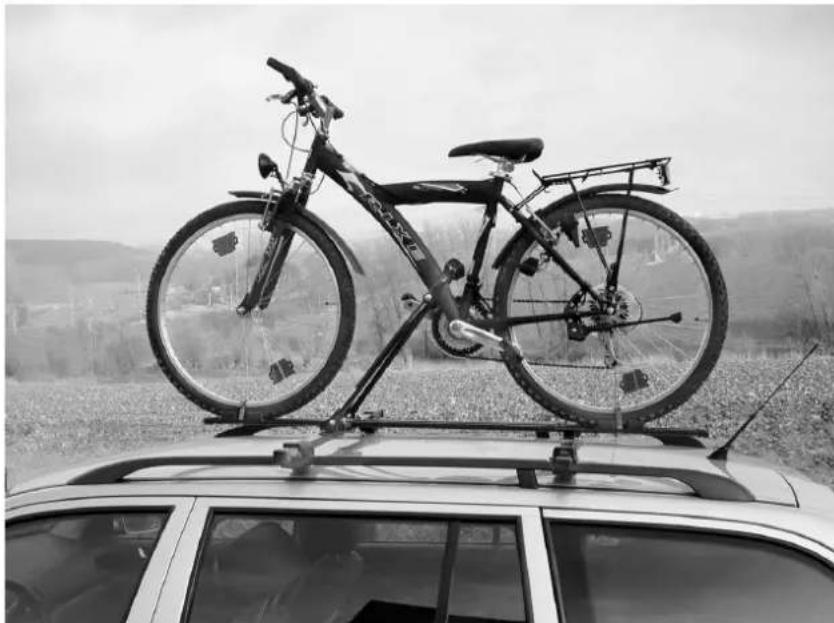

MOUNTING OF THE BIKE ON THE BIKE CARRIER

Step 1

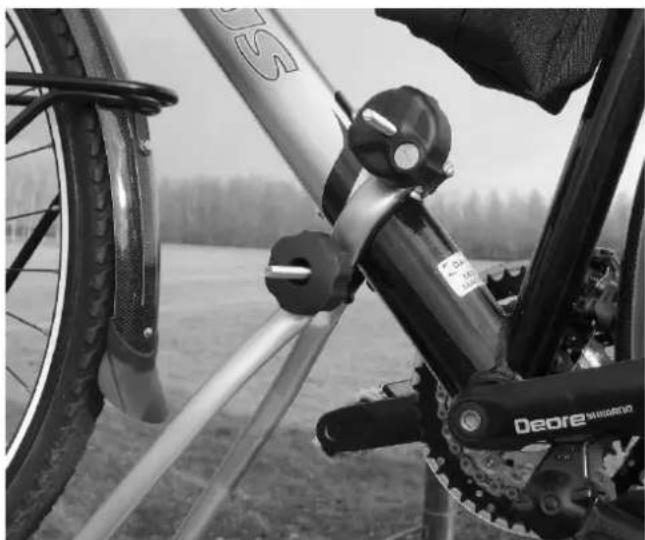

Lift your bike with the front wheel towards the front onto the rail of the bike carrier and tilt the mounting frame upwards so you can attach the frame clamp around the frame tube of your bike. Fasten the plastic rotary knob. Tilt the pivot screw over the frame and fasten the lockable tog nut. Lock the clamp with the key and keep it somewhere safe.

Step 2

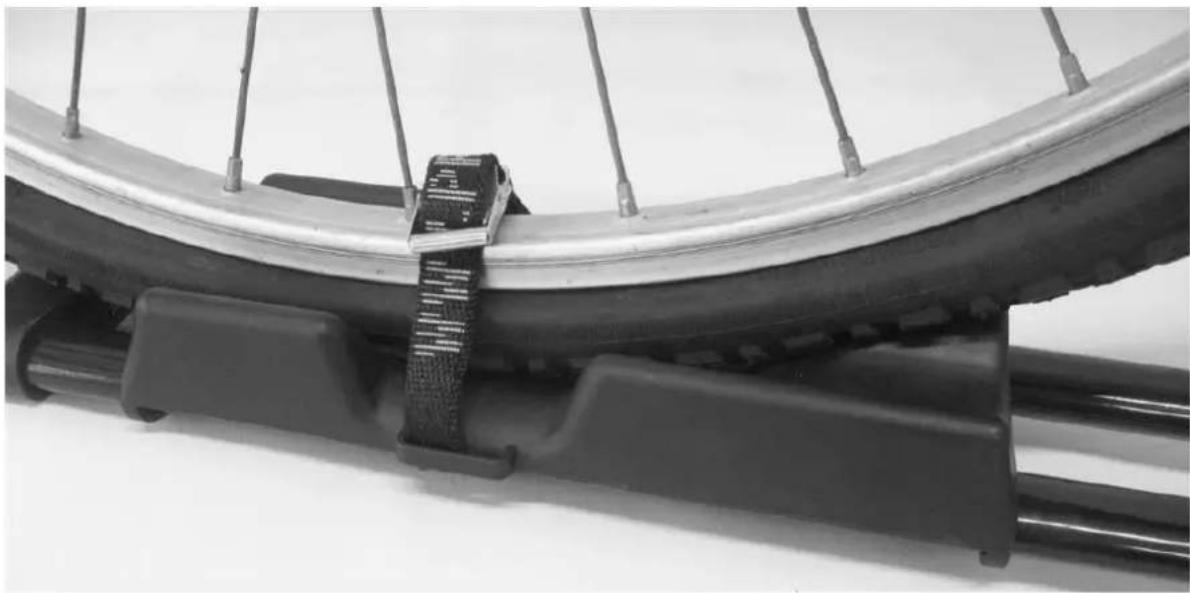

Make sure that the two wheels of your bike are well blocked by the stoppers (and the bike cannot easily drive in the wheel holder). Slide the plastic wheel holders so they press against the tire (see picture)

Fix the wheels of your bike with the previous mounted black straps.

SAFETY REGULATIONS

The first time you start driving with the bike carrier on your roof, check all the connections carefully after a short distance of driving. Keep checking the connections every time you drive with the bike carrier.

Every time before you start driving, make sure you mounted the bike carrier the proper way and ALWAYS use all the straps around the wheels.

Driving with a bike carrier on the roof of a car will influence the behaviour of the car. So adapt your speed (max 120km/h) and try to avoid sudden extreme movements with your steering wheel or brakes. Also keep in mind that the driving behaviour of your car will also change at side winds and curves.

ATTENTION: Watch the extra height of your car when driving into parking garages, tunnels etc.

Mind the instructions of your car dealer and dealer of your roof-rack carefully and always follow them through. Especially mind the maximum carrying weight of the roof of your car, given to you by your car dealer.

No parts of the bicycle, like steering wheel or pedals, should stick out over the roof.

Make sure that no parts of the bike can get lost during driving (batteries, pumps, basket, saddlebags, etc.). Always remove these before driving!

Dismount the bike carrier in case you don't use it. This for the safety of other traffic participants as well as for the savings of energy.

Dismount the bike carrier before using the carwash.

The bike carrier is not suitable for "off road" use.

In case of defects or problems please contact your Pro-User supplier.

Weight of the bike carrier: 3,6kg.

Maximum carrying weight of the bike carrier: 15kg

MAINTENANCE

Always store the bike carrier clean and dry after use. If necessary spray with the water hose to remove mud and other filthy stuff.

Check the bike carrier regular if there is any damage. Damaged or worn parts need to be replaced immediately. Use only original replacement parts.

The nuts and bolts of the bike carrier need to be checked regular, if necessary tighten them again.

If there is a damage on the powder coating of the bike carrier this needs to be treated with paint immediately.

Rotating and moving parts need to be oiled regularly.

GUARANTEE

This product is covered by a 2 year warranty. Please note that our guarantee covers reasonable use of the bike carrier, it does NOT cover any damage caused by misuse. This also applies to a malfunction or failure of the bike carrier that has been caused by poor or incorrect installation. To ensure the validity of the guarantee please carry out maintenance in accordance with the maintenance section. Warranty claim without proof of purchase is not possible. We reserve the right to make a call out and/or repair charge for any work required to be undertaken to rectify faults that are outside of the company's control i.e. incorrect or poor fitting, misuse, accidental damage, etc.
