USER MANUAL Comfort C2000 CASO

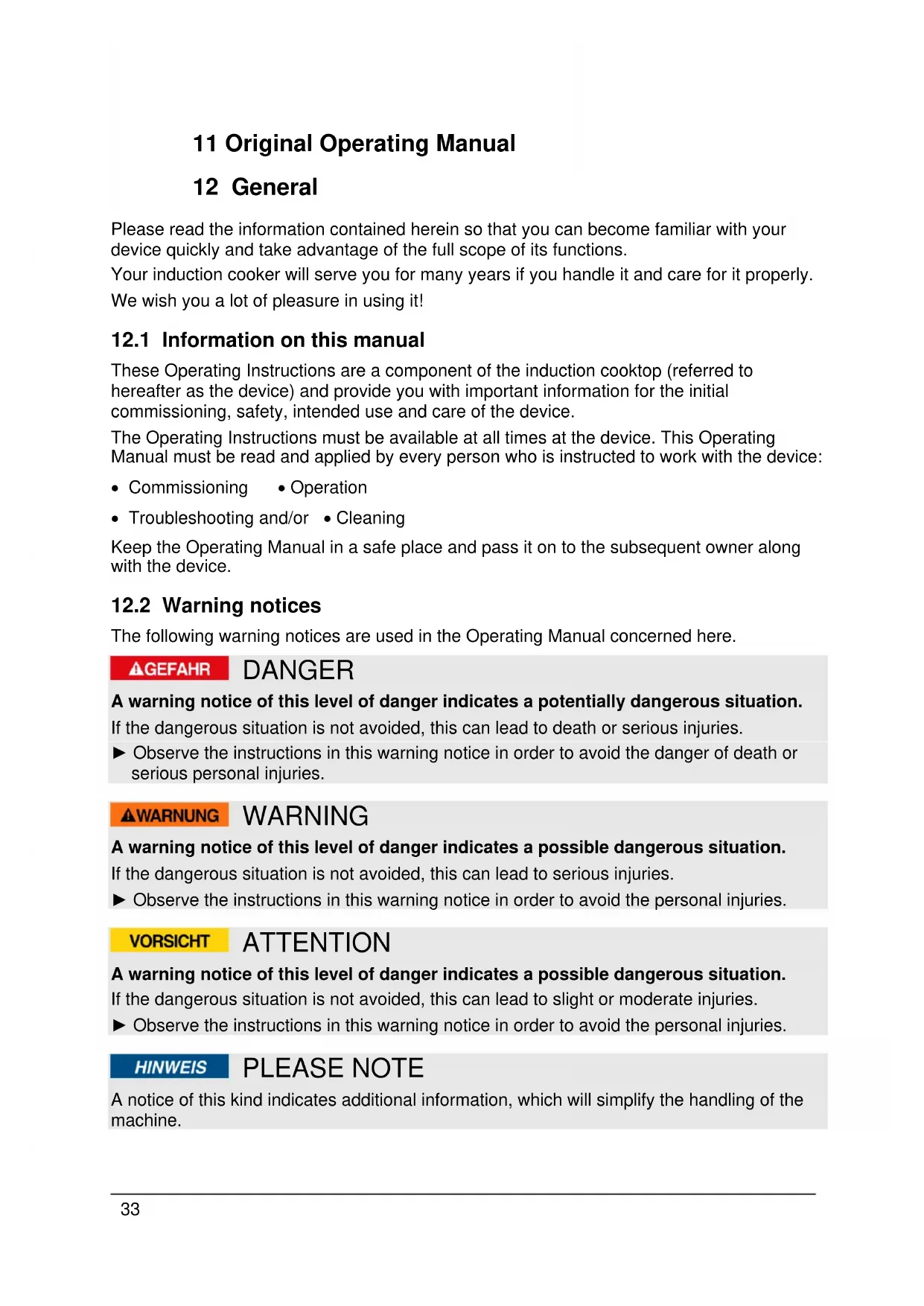

Item No. 200633 11 Original Operating Manual 12 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your induction cooker will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.1 Information on this manual

These Operating Instructions are a component of the induction cooktop (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation

• Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

12.2 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.34

12.3 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: • Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.4 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 13 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for warming up, cooking and roasting foods. The cooking pots used for the induction hob surface must be suitable for induction cooking. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.35

13.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Do not leave the device unsupervised when it is in operation. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Never move the device by pulling on the power cable.36 Please note ► Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot. ► Device is not intended to be operated by means of an external timer or separate remote-control system.

13.3 Sources of danger

13.3.1 Danger due to Electromagnetic Field

WARNING The magnetic fields generated during operation of the appliance may lead to adverse effects. Adhere to the following safety instructions: ► People with elevated electrical sensitivity should not remain in the immediate vicinity of the appliance for longer than is necessary. ► Scientific tests have proven that induction hotplates do not pose a risk. However, persons with a pacemaker should keep a minimum distance of 60 cm to the device while it is in operation. In addition, persons with a pacemaker should clear with their doctor whether to take care of some special handling advises.Do not place any magnetisable objects, e.g. credit cards, data carriers or cassettes on or in the immediate vicinity of the appliance. ► Place cooking utensils in the middle of the hob, so that the base of the pot covers as much of the electromagnetic field as possible. ► Do not remove any coverings on the appliance.37

13.3.2 Danger of Burning

WARNING The items cooked on this appliance as well as the cooking utensils used and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others: ► Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar. ► Do not place any metal cooking utensils, pot or pan lids, knives or other metal objects on the hob. When the appliance is switched on, these items can become very hot. ► Do not touch the hot surface of the ceramic hob. The induction cooker itself does not produce any heat during the cooking process, but the temperature of the cooking utensils heats the hot plate.

13.3.3 Danger of Explosion

WARNING Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced. Adhere to the following safety instructions in order to prevent a danger of explosion: ► Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressure generated. A can is best heated by opening it an placing it in a pot filled with a little water.38

13.3.4 Danger of Fire

WARNING There is a risk of fire if the appliance is used incorrectly. Adhere to the following safety instructions in order to avoid a risk of fire: ► During operation remove all easily inflammable items (e.g. detergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance. ► Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly. ► Do not place any empty cookware on the cooking area. Please note If a fire should occur on the cooking hob, proceed as follows: ◆ Switch the appliance off (if necessary, switch off the fuse). ◆ Smother the flames with a large pot lid, plate or a moist dish cloth. NEVER EXTINGUISH WITH WATER! ◆ After the fire has been extinguished allow cooking utensils and the appliance to cool down and ensure that there is a sufficient flow of fresh air.

13.3.5 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Only qualified electricians, may carry out the installation! ► If the surface is cracked, switch off the appliance and switch off the fuse to avoid the possibility of electric shock.39 Danger ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not touch the appliance or the mains plug with wet hands. ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. ► Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage- carrying connections. ► Do not connect the device to the same outlet with other devices. 14 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

14.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

14.2 Delivery scope and transport inspection

As a rule, the Comfort C 2000 is delivered with the following components:

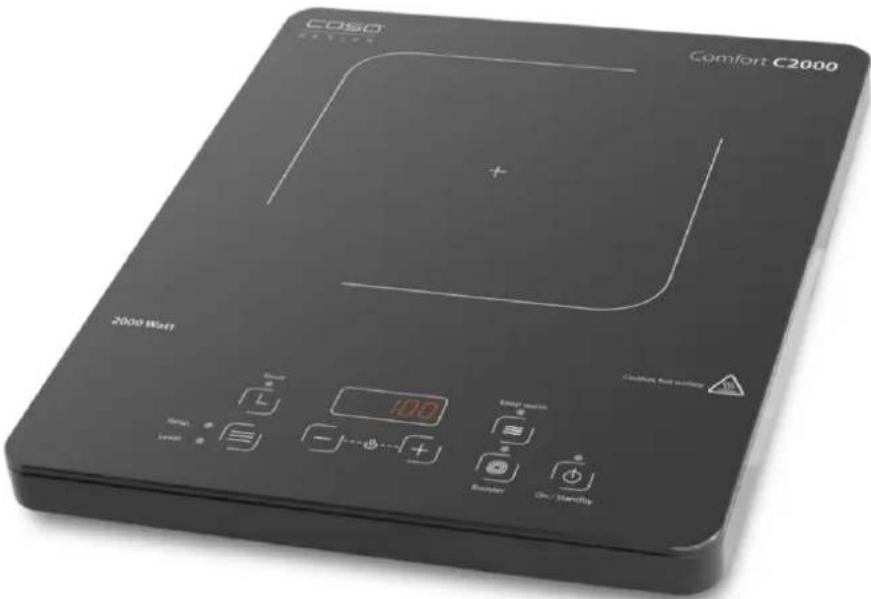

• Single Induction cooker Comfort C 2000 Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.40

To unpack the device, remove the device out of the carton and remove the packaging material.

14.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

14.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents.

• The induction cooktop must not be operated on a base with an iron or steel content, as this can heat up considerably.

• Select an installation location where children cannot reach the appliance’s hot surface.

• The appliance is not intended as a built-in appliance.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Do not set up the induction cooktop in the vicinity of appliance and objects which react sensitively to magnetic fields (e.g.: Radios, televisions, cassette recorders, etc.).

• To operate correctly, the appliance requires a sufficient flow of air. Leave a 10 cm gap on all sides when setting up the appliance.

• The cool air is drawn in by the underside of the appliance. Do not cover or block any of the appliance’s openings.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.41

14.5.2 Preventing Radio interference

The appliance can cause interference to radios, televisions or similar devices. Interference can be removed or reduced using the following measures:

• Place the radio, television etc. as far away from the appliance as possible.

• Connect the appliance to a different socket, so that different electric circuits are being used for the appliance and the receiver experiencing interference.

• Use a correctly installed aerial for the receiver in order to ensure good reception.

14.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

15 Design and Function This chapter provides you with important safety notices on the design and function of the device.42

15.1.1 Details on the device

This instruction is a warning that the ceramic hob may still be hot. Although the induction cooker itself does not generate any heat during the cooking process, the temperature of the cooking utensil does heat the hob! Adhere to the following safety instructions in order to avoid being burnt by the hot appliance: ATTENTION Risk of burning due to hot surface! ► Do not touch the surface of the ceramic hob while it is still hot (“H” is displayed) ► Do not place any objects on the hot ceramic hob.

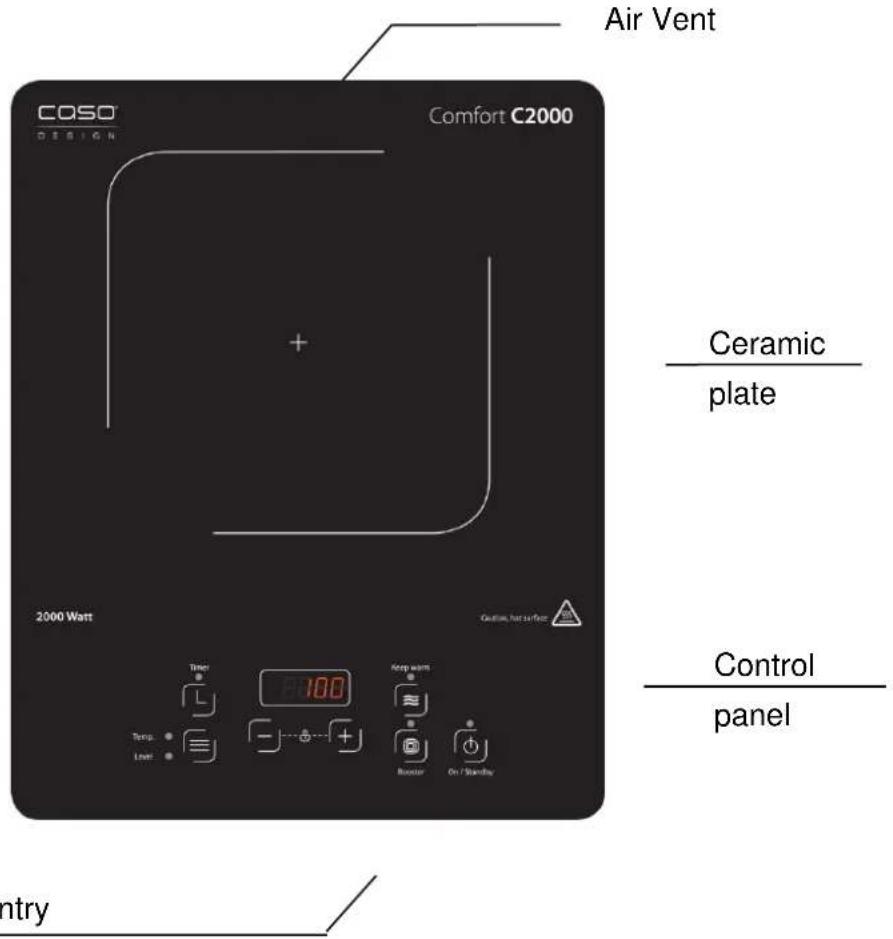

Air entry Ceramic plate Control panel Air Vent43

The appliance emits an acoustic signal after being switched on and in the event of a fault.

15.2.2 Overheating Protection Facility

The appliance is equipped with an overheating protection facility. If the temperature of the appliance exceeds the critical limit the appropriate error message is displayed and an acoustic signal sounds. For safety reasons the appliance shuts off further power supply. After the cooling-down phase the appliance can be switched on again. ► Do not place any empty cookware on the cooking area. Heating an empty pot or pan activates the overheating protection and the device turns off automatically.

15.2.3 Automatic shutdown protection

The device is equipped with an auto shut down safety protection function. If ever you forgot to turn off your hotplate, it shuts down automatically. Power level automatic shutdown after 1~10 2 hours

The rating plate with the connection and performance data can be founded on the back of the device.44 16 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

16.1 Functioning and Advantages of Induction cooktops

With an induction cooktop the heat is not transferred by a heating element via the cooking utensil to the food to be cooked, but rather the necessary heat is generated directly in the cooking pot with the aid of induction currents. An induction coil underneath the ceramic glass hob generates an alternating electromagnetic field, which penetrates the ceramic glass hob and induces the heat- generating current in the base of the cookware. Advantages of the Induction Hob

• Energy-saving cooking due to direct energy transfer to the pot.

• Enhanced safety since energy is only transferred when a pot is placed on the hob.

• Energy transfer between the induction cooking zone and the base of the pot with high degree of efficiency.

• Low risk of burning, since the cooking surface is only heated by the base of the pot.

• Boiling over pot contents does not burn onto the hob.

• Rapid, fine-tuned control of the input power.

16.2 Instructions on Cookware

The cooking pot used for the induction cooking surface must be made of metal, have magnetic characteristics and have a sufficient, flat bottom surface. Here is how to decide if the pot is suitable: Ensure that the pot bears an inscription stating its suitability for cooking with induction current, or perform the following magnet test: ◆ Place a magnet (e.g. a magnet from a magnetic board) close to the base of your cooking pot. If it is strongly attracted then you can use the cooking pot on the induction cooktop.45 The table below serves as a guide to help you choose the correct cooking utensils: Suitable Cookware Unsuitable Cookware Cookware with magnetic bottom (ferreous). Pots made of copper, aluminium, heat- resistant glass and other non-metallic pots Enamel-coated steel pots with thick bases Pots made of stainless steel without a magnet iron core Cast-iron pots with enamel-coated bases Pots that do not sit flat on the hob Pots made of stainless steel, multi-layered steel, stainless steel ferrite steel or aluminium with special base Pots with a base diameter of less than 12 cm or more than 22 cm Please note ► Using the induction-compatible pots of some manufacturers can lead to the occurrence of noises that are due to the design of these pots. Attention Please also adhere to the following instructions for using suitable cookware: ► Only use pots with an induction-compatible base. ► The maximum permissible weight of the pot plus its contents must not exceed 6 kg. ► Be careful when using hollow-walled simmer pots. Pots of this type can boil dry unnoticed. This leads to damage to the pot and hob.

16.3 Safety Instructions

Warning ► Do not leave the appliance unattended during operation, so that you can intervene quickly in the event of danger. ► Do not move the appliance during operation or with hot cookware on the hot plate. ► Ensure that the cookware is properly centred on the hob. It must not be positioned on the control panel or on the frame. ► In order to prevent overheating do not place any aluminium foil or metal panels on the appliance surface. ► Do not touch the hot surface of the ceramic hob. Although the induction cooktop itself does not produce any heat during the cooking process, the temperature of the cookware does heat up the hob. ► Keep the hob and the underside of the pot clean and dry at all times. If liquid gets between the base of the pot and the hob, this liquid can vaporise and the resulting pressure can cause the pot to jump into the air, with a resulting risk of injury.46 Please note ► Switch the appliance off after use. This avoids unnecessary use of energy, and ensures your safety. ► If the appliance is unused for extended periods of time, we recommend that the appliance be unplugged from the mains.

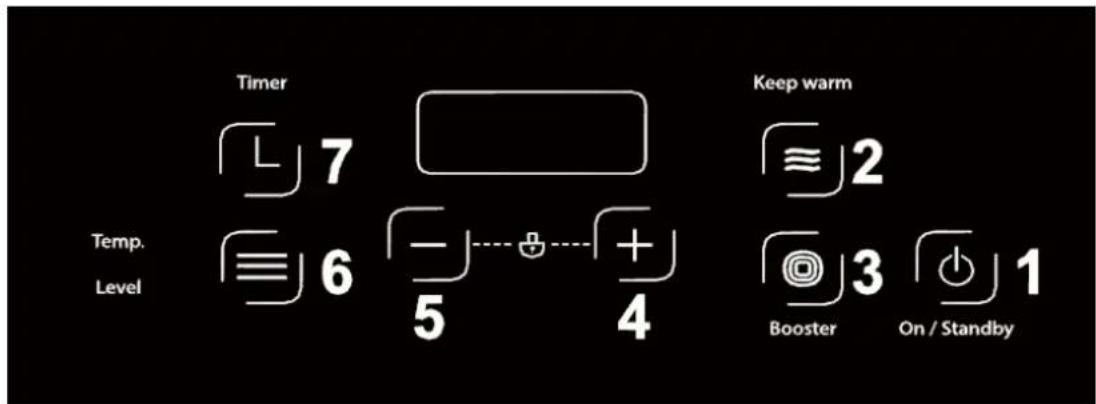

The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered. Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

• Plug the power plug into a suitable outlet.

• The temperature of the cooker plate surface displayed: is the temperature of the surface of the induction cooker lower than 50°C, the display shows „L“. When the temperature of the cooker plate surface is over 50 °C, it is displaying „H“. An acoustic signal sounds. Now the device is in standby mode.

• Place a suitable cooking pot with its contents on the centre on the hob (Ø 150 mm - 220 mm).

• Press the ON/Standby button once. When you have done that an acoustic signal sounds. Please note ► If no further input occurs within 10 seconds of the device switching on, the device will switch off.

• Chose power mode with function button (6), then you can see 1600 in the display.

• With the +/- buttons you can choose between 10 levels (200, 400, 600, 800, 1000, 1200, 1400, 1600, 1800, 2000 W). The choosed power is shown in the display.

16.4.4 Temperature Mode

• Chose temperature mode with function button (6), then you can see 140 in the display.

• With the +/- buttons you can choose between the temperature levels which will then be shown in the display. You can set temperatures between 60°C and 200°C (60, 80, 100, 120, 140, 160, 170, 180, 190, 200).47 Please note ► Especially during roasting with very little fat, the temperature at the pot bottom rises very rapidly and the limit of 150-170 °C is reached quickly, so you should switch to the temperature mode when roasting. Here, the maximum temperature is 200°C. ► If the pot is removed the device will stop heating immediately. For 30 seconds a buzzer sounds, after this the device will go into standby mode automatically.

16.4.5 Keep Warm Function:

Press keep warm button (2). In this setting the device keeps warm the food gently up to round about 60 °C. The display shows “----“. Please note ► In this setting you cannot change functions power and temperature.

Select the desired power level or temperature. Press button timer (7) until “0:00” is shown in the display. With the + / - keys, you can now select the operating time in 1-minute intervals (up to max. 3 hours). The choosen time lights up in the display and the timer counts down. The choosen function and timer are alternately shown in the display. Once the time is up, an acoustic signal sounds and the device automatically turns off. Please note ► During timer operation, you can change the duration at any time with the + / - keys. With the memory function of the device, the function stage remain unchanged here. ► When you change between power and temperature mode you have to reset the timer. ► During the cooking process the power level and timer can be readjusted as you wish.

16.4.1 Lock function (children lock key)

Activation of Lock function: Press the buttons + and – until the signal lamp over the key symbol turns on. All keys will be blocked except Master On/Standby (1), to avoid mal-operation. After locking, induction hotplate continue to heat in the preset power stage. Also the timer continues counting. De-activation of Lock function: Press the buttons + and – until the signal lamp over the key symbol turns off.48

16.4.2 Switching Off

The complete appliance is switched off using the Master On/Standby switch (1). Please note ► Note that the appliance’s fan continues to operate for a while after the appliance has been switched off in order to dissipate the heat that has built up in the appliance. 17 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

17.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. ► The hob can be hot after use. There is a danger of burning! Wait until the appliance has cooled down. ► Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not immerse the appliance, its cables and the plug in water or other liquids, and do not put it in the dishwasher. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

◆ Ceramic hob, Housing and Operating Panel

• Clean the hob, the housing of the device and the operating panel with a soft, slightly damp cloth or a mild detergent. If there are accumulations of dirt (at ceramic hob), apply white vinegar to the polluted zone.49 Attention ► In order not to damage the plastic components, do not use any solvent-based cleaning detergents such as, for example, petrol. ► Do not use any flammable, acidy or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration when the device is turned on. 18 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

18.2 Causes and rectification of faults

In the event of a fault, an error code will appear in the display; it describes the cause of the fault. The following table assists in localizing and rectifying minor faults. Fault To Rectify E1 E2 E4 E5 Eb Please send the device to customer service. E3 E6 Let the device cool down. Switch off and on the device to reset the fault. E7 E8 Power fluctuations. Switch off and on the device to reset the fault.

Please note ► If error messages continue to be displayed after an extended waiting period or after restarting the appliance, then it must be sent to Customer Service to be examined. ► If you are unable to solve the problem with the steps shown above, please contact Customer Service. 19 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment.50 Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 20 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 21 Technical Data Device Induction cooker Name Comfort C 2000 Item No.:
