USER MANUAL Master E4 Slide CASO

13.2 Delivery scope and transport inspection .................... 51

15.1 Functioning and Advantages of Induction Cookers .. 59

15.4.8 Setting the timer to turn one or more cooking zones off65

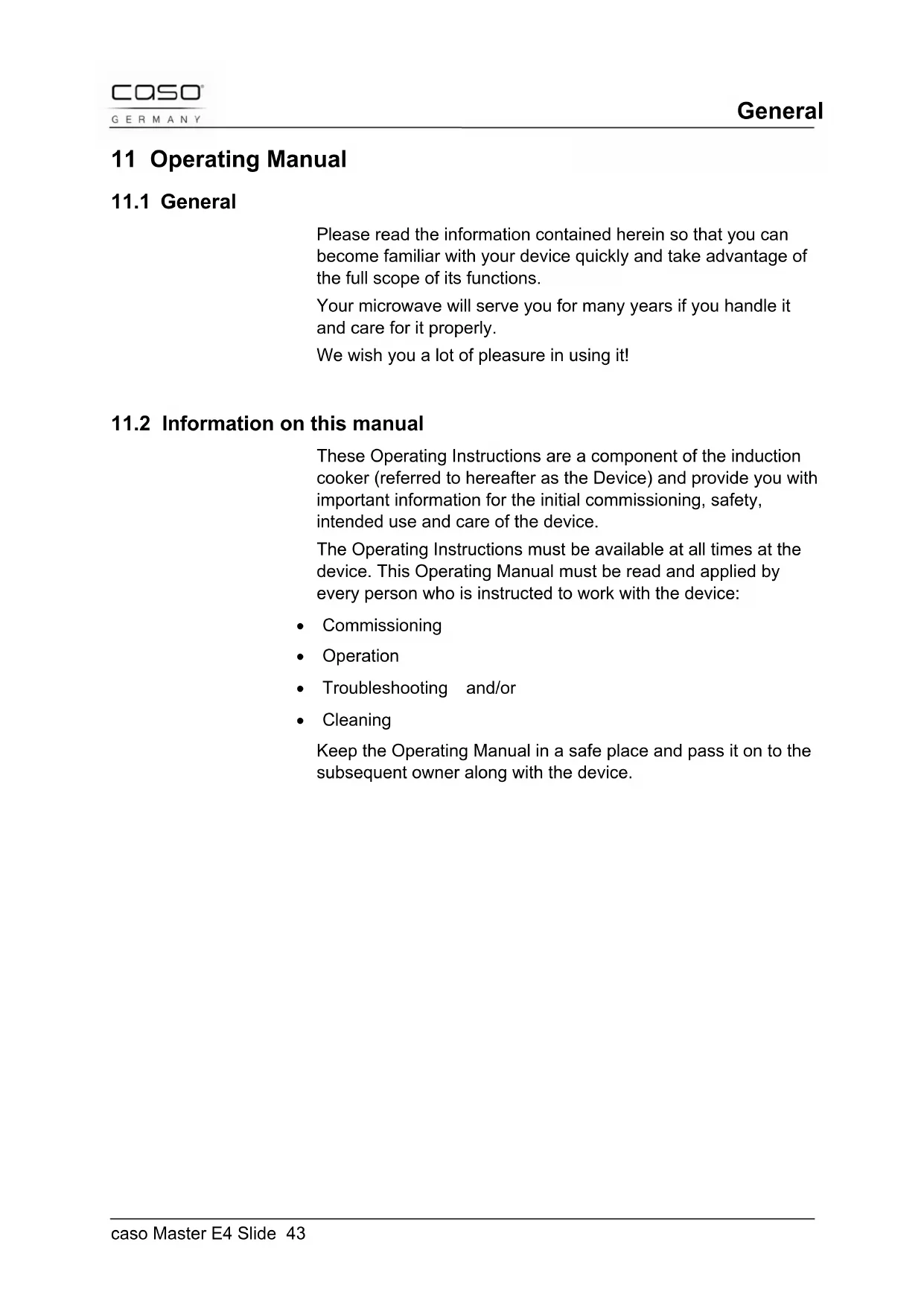

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your microwave will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the induction cooker (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Troubleshooting and/or

• Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.General caso Master E4 Slide 44

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.General caso Master E4 Slide 45

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

• Technical alterations

• Use of unauthorized spare parts All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.Safety caso Master E4 Slide 46 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for warming up, cooking and roasting foods. The cooking pots used for the induction hob surface must be suitable for induction cooking. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.Safety caso Master E4 Slide 47

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Only qualified electricians, may carry out the installation! ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. ► Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person. ► Do not permit children to use the device, unless they are supervised. ► Children being supervised not to play with the appliance. ► Do not leave the device unsupervised when it is in operation. ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.Safety caso Master E4 Slide 48

12.3 Sources of danger

12.3.1 Danger due to Electromagnetic Field

WARNING The magnetic fields generated during operation of the appliance may lead to adverse effects. Adhere to the following safety instructions: ► People with elevated electrical sensitivity should not remain in the immediate vicinity of the appliance for longer than is necessary. ► If in any doubt, people with pacemakers or implanted medication pumps should consult their doctor about the harmlessness of using the appliance. ► Do not place any magnetisable objects, e.g. credit cards, data carriers or cassettes on or in the immediate vicinity of the appliance. ► Place cooking utensils in the middle of the hob, so that the base of the pot covers as much of the electromagnetic field as possible. ► Do not remove any coverings on the appliance.

WARNING The items cooked on this appliance as well as the cooking utensils used and the surface of the appliance can become very hot. Adhere to the following safety instructions in order to avoid burning or scalding yourself or others: ► Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar. ► Do not place any metal cooking utensils, pot or pan lids, knives or other metal objects on the hob. When the appliance is switched on, these items can become very hot. ► Do not touch the hot surface of the ceramic hob. The induction cooker itself does not produce any heat during the cooking process, but the temperature of the cooking utensils heats the hob.Safety caso Master E4 Slide 49

12.3.3 Danger of Explosion

WARNING Incorrect use of the appliance incurs a danger of explosion due to the overpressure produced. Adhere to the following safety instructions in order to prevent a danger of explosion: ► Never heat food or liquids in sealed containers such as, for example, cans. The container can burst due to the overpressure generated. A can is best heated by opening it an placing it in a pot filled with a little water.

12.3.4 Danger of Fire

WARNING There is a risk of fire if the appliance is used incorrectly. Adhere to the following safety instructions in order to avoid a risk of fire: ► During operation remove all easily inflammable items (e.g. detergents, aerosol cans, oven, cloths and dishcloths, etc.) from the immediate vicinity of the appliance. ► Avoid overheating oils and fats for extended periods. Overheated oil and fat can ignite rapidly. ► Do not place any empty cookware on the cooking area. Please note If a fire should occur on the cooking hob, proceed as follows: Switch the appliance off (if necessary, switch off the fuse). Smother the flames with a large pot lid, plate or a moist dish cloth. NEVER EXTINGUISH WITH WATER! After the fire has been extinguished allow cooking utensils and the appliance to cool down and ensure that there is a sufficient flow of fresh air.Safety caso Master E4 Slide 50

12.3.5 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Only qualified electricians, may carry out the installation! ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. ► If the surface is cracked, switch off the appliance and switch off the fuse to avoid the possibility of electric shock. ► Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not touch the appliance or the mains plug with wet hands. ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. ► Do not insert objects into the openings of the appliance. There is a risk of electrocution if contact is made with voltage- carrying connections.Commissioning caso Master E4 Slide 51 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

• As a rule, the Master E4 Slide is delivered with the following components:

• Induction cooker with 4 hobs for assembly (Master E4 Slide)

• 4 brackets and 4 screws for assembly

• Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance withCommissioning caso Master E4 Slide 52 environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

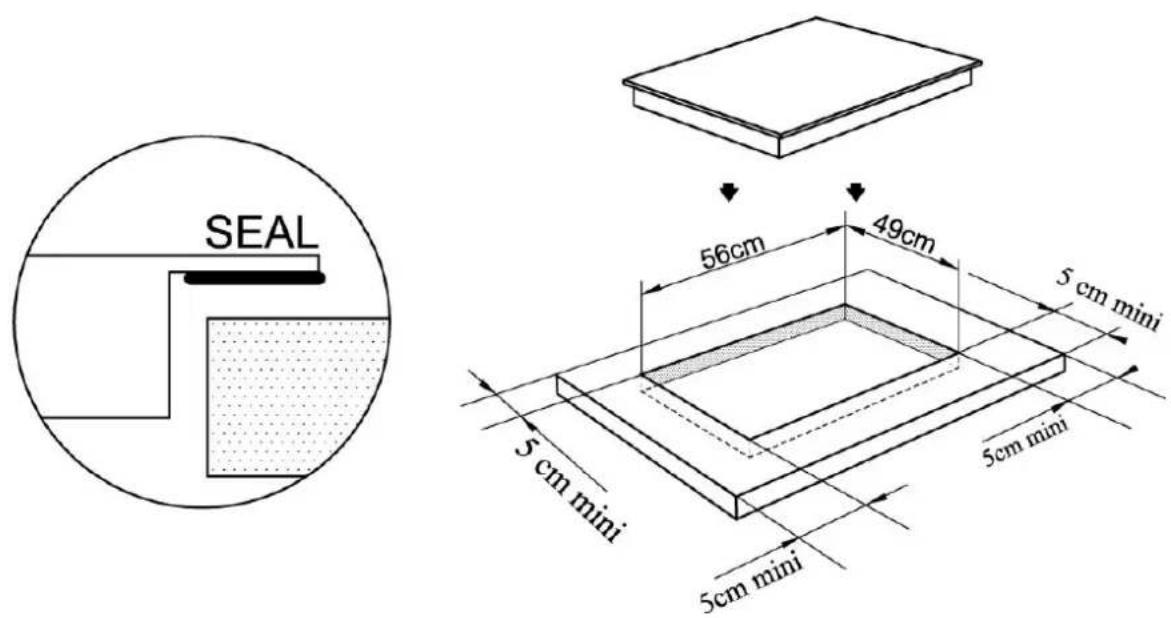

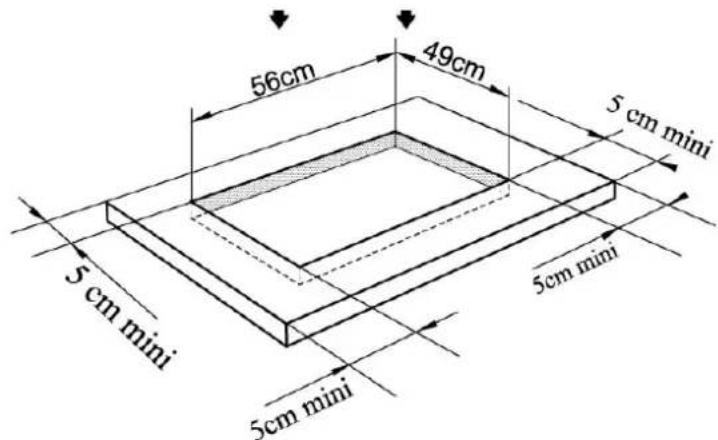

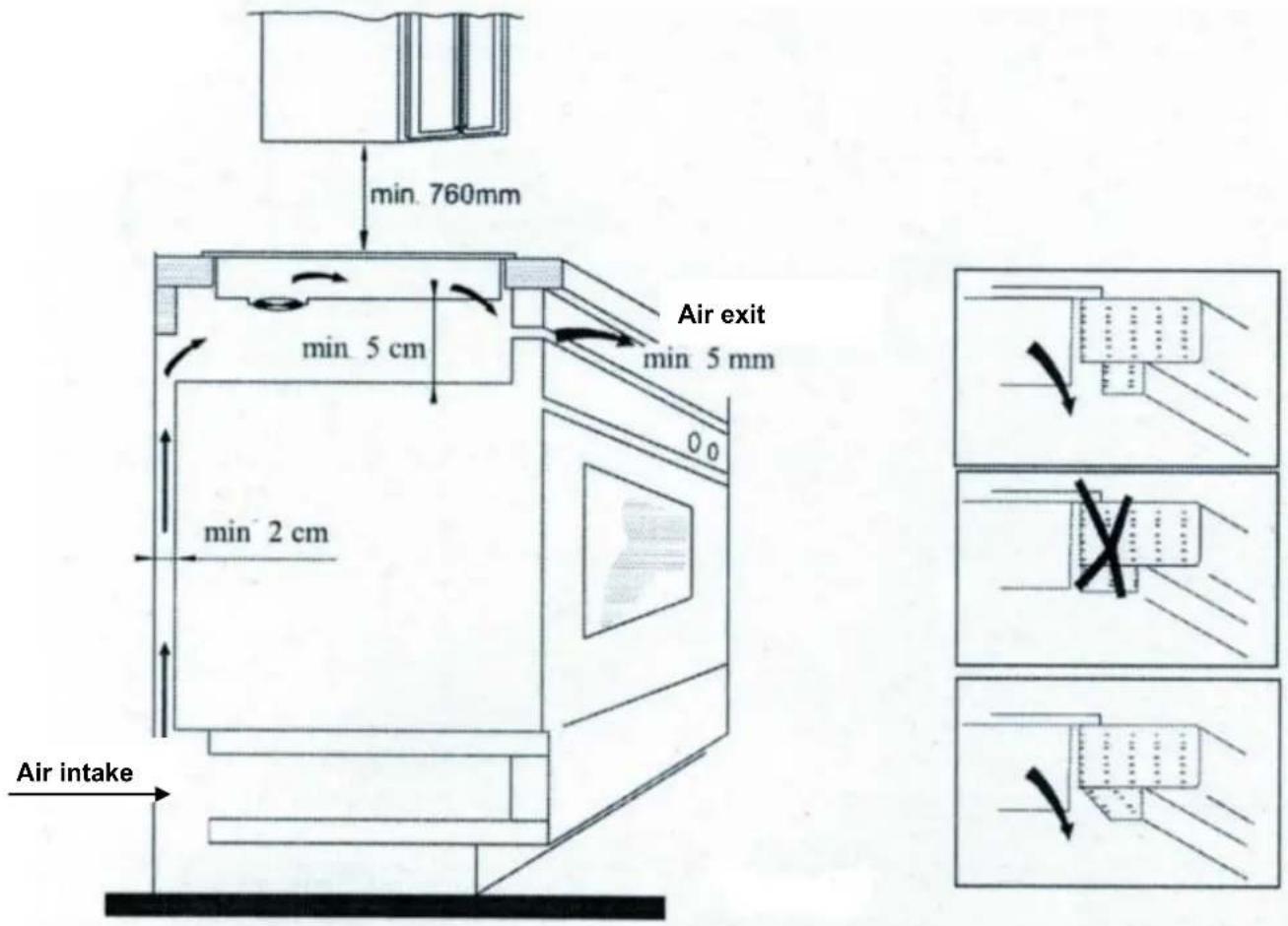

13.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The appliance is designated for assembly.

• The wall and induced heating zone above the table surface shall withstand heat. The safety distance between the hotplate and cupboard above should be at least 760 mm.

• The appliance must be positioned on a solid, even, horizontal and heat-resistant base with sufficient load-supporting capacity for the appliance itself plus the heaviest anticipated cooking contents. The thickness of the table surface is at least 30 mm.

• The induction cooker must not be operated on a base with an iron or steel content, as this can heat up considerably.

• Select an installation location where children cannot reach the appliance’s hot surface.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Do not set up the induction cooker in the vicinity of appliance and objects which react sensitively to magnetic fields (e.g.: cooling equipment, dishwashers, rotary dryers, radios, televisions, cassette recorders, etc.).

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.Commissioning caso Master E4 Slide 53

• To operate correctly, the appliance requires a sufficient flow of air. Leave a 50 mm gap on all sides when setting up the appliance.

• The cool air is drawn in by the underside of the appliance. Do not cover or block any of the air openings (air intake and air exit). Air intake Air exitCommissioning caso Master E4 Slide 54

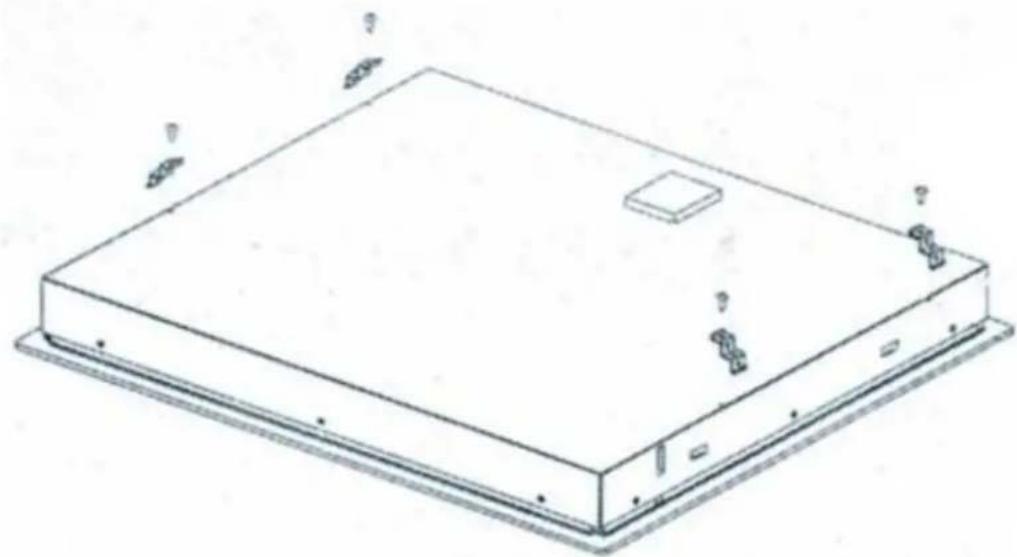

• Fix the hob on the table by screwing 4 brackets on the bottom of the hob after installation.

• Adjust the bracket position to suit for different table top thickness

The appliance can cause interference to radios, televisions or similar devices. Interference can be removed or reduced using the following measures:

• Place the radio, television etc. as far away from the appliance as possible.

• Connect the appliance to a different socket, so that different electric circuits are being used for the appliance and the receiver experiencing interference.

• Use a correctly installed aerial for the receiver in order to ensure good reception.Commissioning caso Master E4 Slide 55

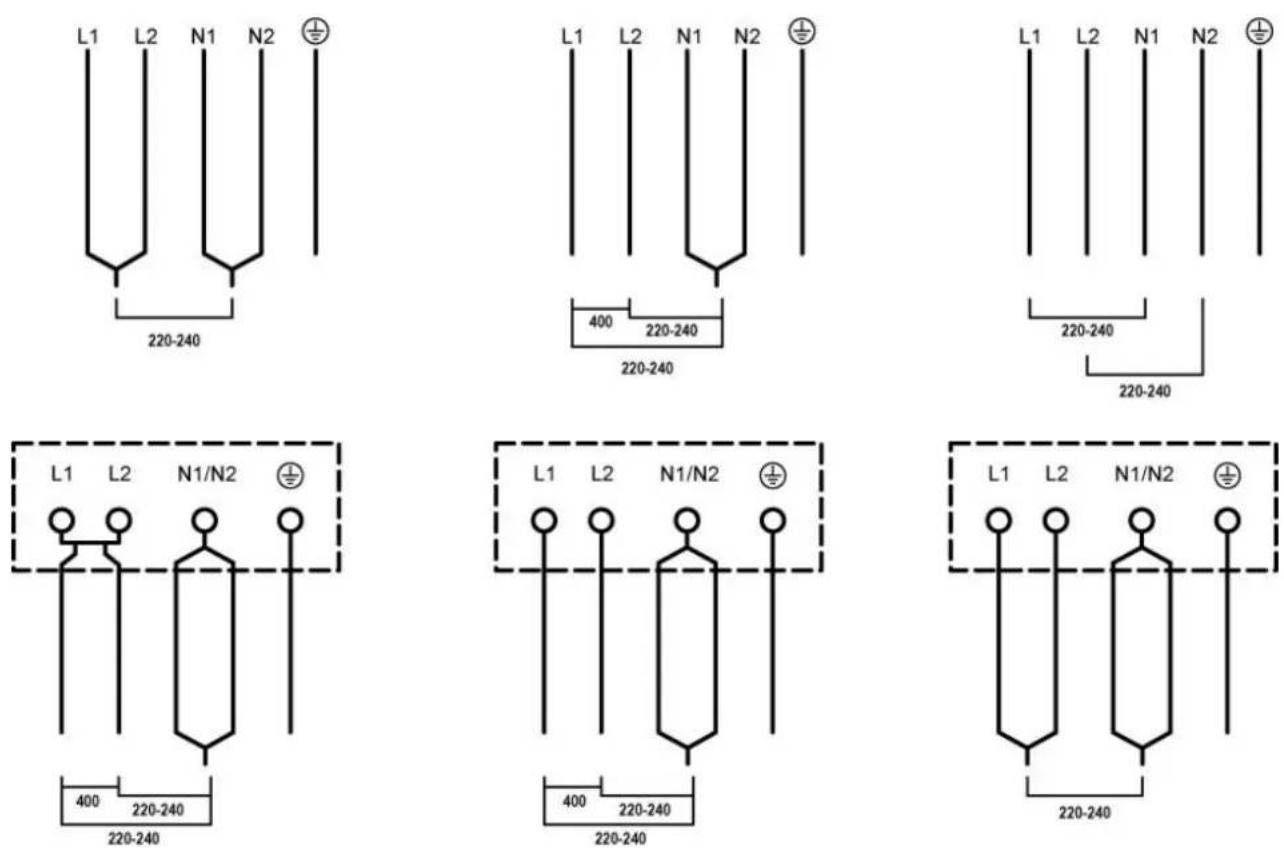

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Only qualified electricians, may carry out the installation!Design and Function caso Master E4 Slide 56 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.

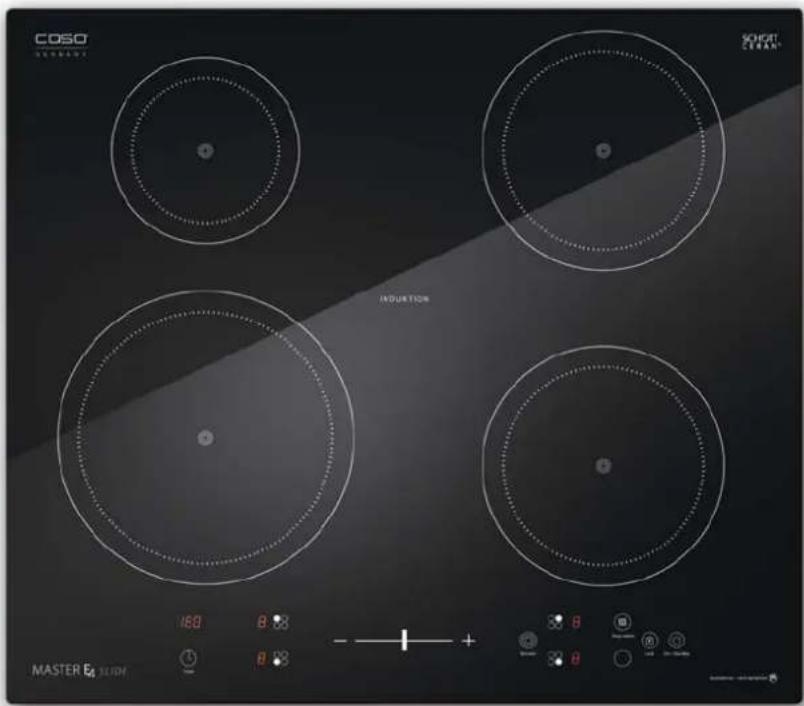

The induction cooker has 4 hobs which can be used separately. Therefore you have 4 operating panels. As the boost function is activated for one hob, the corresponding hob is limited under power level 2 automatically (1 and 3, or 2 and 4). hob Max. power normal Max. power with booster 1 1500 Watt 2000 Watt 2 2200 Watt 2900 Watt 3 2200 Watt 2900 Watt 4 1500 Watt 2000 Watt

14.2.1 Details on the device

This instruction and when “H” is displayed, is to warn that the ceramic hob may still be hot. Although the induction cooker itself does not generate any heat during the cooking process, the temperature of the cooking utensil does heat the hob! Adhere to the following safety instructions in order to avoid being burnt by the hot appliance: ATTENTION Risk of burning due to hot surface! ► Do not touch the surface of the ceramic hob while it is still hot (“H” is displayed) ► Do not place any objects on the hot ceramic hob.

14.3 Operating elements and displays

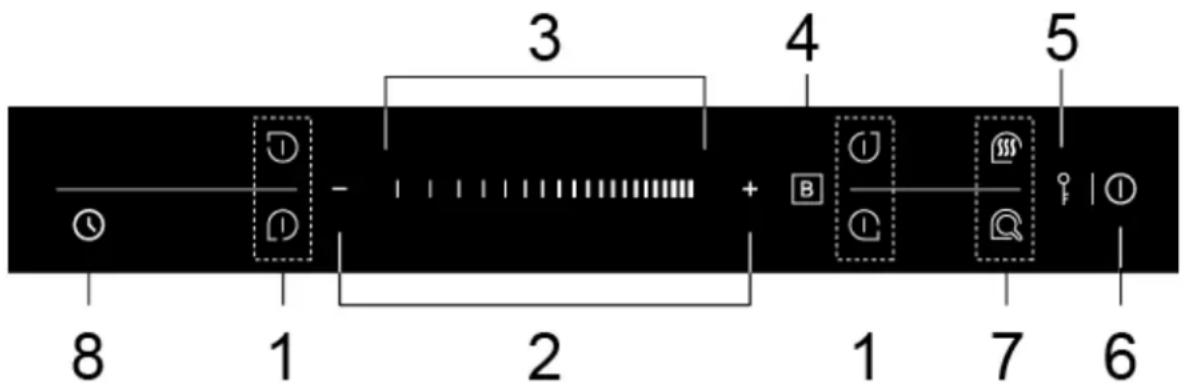

14.3.1 Operating panels and Displays

1. cooking zone selection and display

2. Selection buttons (+/-) for power level and timer

3. Slide control to select for power level and timer

4. Booster button (press directly after chosen the power stage)

5. Lock function (setting protection / child safety lock

The appliance emits an acoustic signal after being switched on and in the event of a fault.Design and Function caso Master E4 Slide 58

14.3.3 Overheating Protection Facility

The appliance is equipped with an overheating protection facility. If the temperature of the appliance exceeds the critical limit the appropriate error message is displayed and an acoustic signal sounds. For safety reasons the appliance shuts off further power supply. After the cooling-down phase the appliance can be switched on again. ► Do not place any empty cookware on the cooking area. Heating an empty pot or pan activates the overheating protection and the device turns off automatically.

14.3.4 Automatic shutdown protection

The device is equipped with an auto shut down safety protection function. If ever you forgot to turn off your hotplate, it shuts down automatically. The default working times for various power levels are: Power level automatic shutdown after 1~3 8 hours 4~6 4 hours 7~9 2 hours

The rating plate with the connection and performance data can be founded on the back of the device.Operation and Handling caso Master E4 Slide 59 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Functioning and Advantages of Induction Cookers

With an induction cooker the heat is not transferred by a heating element via the cooking utensil to the food to be cooked, but rather the necessary heat is generated directly in the cooking pot with the aid of induction currents. An induction coil underneath the ceramic glass hob generates an alternating electromagnetic field, which penetrates the ceramic glass hob and induces the heat-generating current in the base of the cookware. Advantages of the Induction Hob

• Energy-saving cooking due to direct energy transfer to the pot.

• Enhanced safety since energy is only transferred when a pot is placed on the hob.

• Energy transfer between the induction cooking zone and the base of the pot with high degree of efficiency.

• Low risk of burning, since the cooking surface is only heated by the base of the pot.

• Boiling over pot contents does not burn onto the hob.

• Rapid, fine-tuned control of the input power.Operation and Handling caso Master E4 Slide 60

15.2 Instructions on Cookware

The cooking pot used for the induction cooking surface must be made of metal, have magnetic characteristics and have a sufficient, flat bottom surface. Here is how to decide if the pot is suitable: Ensure that the pot bears an inscription stating its suitability for cooking with induction current, or perform the following magnet test: Place a magnet (e.g. a magnet from a magnetic board) close to the base of your cooking pot. If it is strongly attracted then you can use the cooking pot on the induction hob. The table below serves as a guide to help you choose the correct cooking utensils: Suitable Cookware Unsuitable Cookware

Enamel-coated steel pots with thick bases Pots made of copper, aluminium, heat-resistant glass and other non-metallic pots Cast-iron pots with enamel-coated bases Pots made of stainless steel without a magnet iron core Pots made of stainless steel, multi-layered steel, stainless steel ferrite steel or aluminium with special base Pots that do not sit flat on the hob Pots with a base diameter of less than 12 cm or more than 26 cm Please note ► Using the induction-compatible pots of some manufacturers can lead to the occurrence of noises that are due to the design of these pots.Operation and Handling caso Master E4 Slide 61

Attention Please also adhere to the following instructions for using suitable cookware: ► Only use pots with an induction-compatible base. ► The maximum permissible weight of all pots plus its contents must not exceed 24 kg. ► Be careful when using hollow-walled simmer pots. Pots of this type can boil dry unnoticed. This leads to damage to the pot and hob. ► Make sure that the bottom of the cookware does not scrape across the surface of the ceramic field, although a scratched surface does not impair the use of the device.

15.3 Safety Instructions

Warning ► Do not leave the appliance unattended during operation, so that you can intervene quickly in the event of danger. ► Do not move the appliance during operation or with hot cookware on the hob. ► Ensure that the cookware is properly centred on the hob. It must not be positioned on the control panel or on the frame. ► In order to prevent overheating do not place any aluminium foil or metal panels on the appliance surface. ► Do not touch the hot surface of the ceramic hob. Although the induction cooker itself does not produce any heat during the cooking process, the temperature of the cookware does heat up the hob. ► Keep the hob and the underside of the pot clean and dry at all times. If liquid gets between the base of the pot and the hob, this liquid can vaporise and the resulting pressure can cause the pot to jump into the air, with a resulting risk of injury.

► Switch the appliance off after use. This avoids unnecessary use of energy, and ensures your safety.Operation and Handling caso Master E4 Slide 62 ► If the appliance is unused for extended periods of time, we recommend that the appliance be unplugged from the mains.

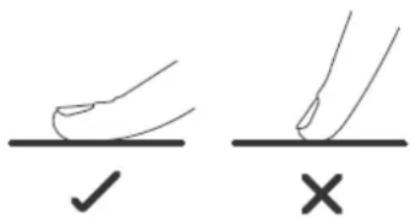

• The controls respond to touch, so you don’t need to apply any pressure.

• Use the ball of your finger, not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

15.4.2 Switching Off

The complete appliance is switched off using the Master On/Off switch (6).

Each hob is switched off by using the cooking zone selection button (1), or you touch the key “+” and “-“ (2) simultaneously or choose power level “0” with the Slide control.

Please note ► Note that the appliance’s fan continues to operate for a while after the appliance has been switched off in order to dissipate the heat that has built up in the appliance.Operation and Handling caso Master E4 Slide 63

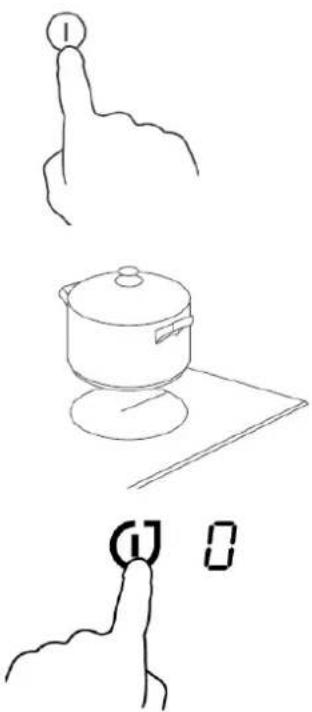

Press the Master On/Off switch (6), the keys light up “-“ or “- -“ and an acoustic signal sounds. Now the device is in standby mode.

Place a suitable cooking pot with its contents to be cooked on the centre on the hob (Ø 120 mm - 260 mm).

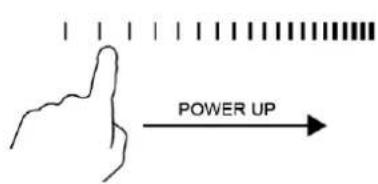

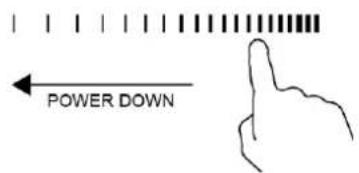

Press the selection key +/- (2) as long as necessary to select the power stage (Indicator lamp showing correct power stage) or use the Slide control. (3). You can change the settings at any time in a range from 1 – 9.Operation and Handling caso Master E4 Slide 64

To reach the desired temperature very fast, press directly Booster (4), after selecting the power level. The display shows “b” and within the next 5 minutes additional booster power is reached. Afterwards the hob switches back to the pre-selected power level. As the boost function is activated for one hob, the corresponding hob is limited under power level 2 automatically (1 and 3, or 2 and 4). For de-activation of booster press again Booster (4) or”-“(2) the hob switches back to the pre-selected power level.

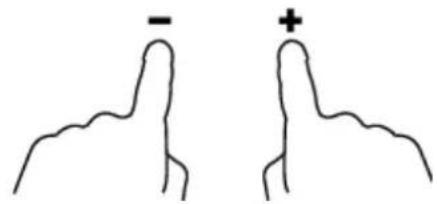

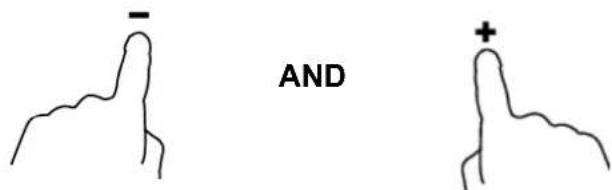

Touching “-“ and “+” control together. the cooking zone switch off and the boost function cancel automatically

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

• You can set the timer for one or more cooking zones simultaneously

• You can set the timer for up to 9:59 minutes.

15.4.7 Using the Timer as a Minute Minder

Press the Master On/Off switch (6), to switch the appliance on, than choose “Timer” (8). With the + / - keys (2) or the Slide Control (3) you can now select the operating time in 1-minute intervals (up to max. 9 hours and 59 minutes). Once the time is up, an acoustic signal sounds and the device automatically goes into standby modeOperation and Handling caso Master E4 Slide 65 Hint: Touch the “+” control once to increase by 1 minute. Hold the ”+” control to increase by 10 minutes. When the time exceeds 1 hour, hold down the "+" control to increase the timer by 30 minutes Touch the “-” control once to decrease by 1 minute. Hold the ”-” control to decrease by 10 minutes. When the time exceeds 2 hours, hold down the "-" control to decrease the timer by 30 minutes Touching the “-“ and “+” together, the timer is cancelled, and the “0:00”will show in the minute display.

When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds. Buzzer will bips for 30 seconds and the timer indicator shows “--- “ when the setting time finished.

15.4.8 Setting the timer to turn one or more cooking zones off

If the timer is set on one zone: Touch the heating zone selection control that you want to set the timer for. (e.g. zone 3#)

Touch timer control, the timer indicator will start flashing and will show”0:10”in the minute display. Set the time by touching the”-“ or “+”controlOperation and Handling caso Master E4 Slide 66 When the time is set, it will begin to count down immediately. The display will show the remaining time and the minute display flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. When cooking timer expires, the corresponding cooking zone will be switch off automatically. If the timer is set on more than one zones: When you set the time for several cooking zones simultaneously, several dots of the relevant cooking zones are on.The minute display shows the min. timer. The dot of the corresponding zone flashes. (set to 30 minutes) (set to 15 minutes)

Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

Please note ► During timer operation, you can change the duration at any time with the + / - keys (2) or the slide Control (3). With the memory function of the device, the power stage remain unchanged here. ► During the cooking process the power level and timer can be readjusted as you wish.Operation and Handling caso Master E4 Slide 67

15.4.9 Lock function (children lock key)

Activation of Lock function: Press the Lock key (5) until the timer shows “Loc”. All keys will be blocked except Master On/Off (6), to avoid mal-operation. After locking, induction hotplates continue to heat in the preset power stage. Also the timer continues counting. De-activation of Lock function: Press the Lock key (5) for ca. 2 sec. until all keys are free to use again.

Keep Warm funvtion: You can use this function to keep food warm. The function can be used for cooking zone 1 or 2. The indicator shows "A", then the cooking zone starts warm function.

Fry Function This function is used to fry steaks and other meat. The function ca n be used on cooking zone 3 and 4.

The display shows "F" and starts the fry function.Operation and Handling caso Master E4 Slide 68

15.5 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

15.6 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. ► The hob can be hot after use. There is a danger of burning! Wait until the appliance has cooled down. ► Clean the hob after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not immerse the appliance, its cables and the plug in water or other liquids, and do not put it in the dishwasher. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

Ceramic hob, Housing and Operating Panel Clean the hob, the housing of the device and the operating panel with a soft, slightly damp cloth or a mild detergent. If thereOperation and Handling caso Master E4 Slide 69 are accumulations of dirt, apply white vinegar to the polluted zone. Attention ► In order not to damage the plastic components, do not use any solvent-based cleaning detergents such as, for example, petrol. ► Do not use any flammable, acidy or alkaline materials or substances near the device, as this may reduce the service life of the device and lead to deflagration when the device is turned on.

16 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

16.2 Causes and rectification of faults

In the event of a fault, an error code will appear in the display; it describes the cause of the fault. The following table assists in localizing and rectifying minor faults. Fault Possible Cause To Rectify The induction hob cannot be turned on. No power. Make sure the induction hob is connected to the power supply and that it is switched on. Check whether there is a power outa

our home orOperation and Handling caso Master E4 Slide 70 area.

you’ve checked everything and the problem persists, call a qualified technician. The touch controls are unresponsive. The controls are locked. Unlock the controls. See section ‘Using your induction cooktop’ for instructions. The touch controls are difficult to operate. There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls. Make sure the touch control area is dry and use the ball of your finger when touching the controls. The glass is being scratched. Rough-edged cookware.

cleaning products being used. Use cookware with flat and smooth bases. See ‘Choosing the right cookware’. See ‘Care and cleaning’. Some pans make crackling or clicking noises. This may be caused by the construction of your cookware (layers of different metals vibrating differently). This is normal for cookware and does not indicate a fault. The induction hob makes a low humming noise when used on a high heat setting. This is caused by the technology of induction cooking. This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting. Fan noise coming from the induction hob. A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you’ve turned the induction hob off. This is normal and needs no action. Do not switch the power to the induction hob off at the wall while the fan is running.Operation and Handling caso Master E4 Slide 71 Pans do not become hot and appears in the display. The induction hob cannot detect the pan because it is not suitable for induction cooking. The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centred on it. Use cookware suitable for induction cooking. See section ‘Choosing the right cookware’. Centre the pan and make sure that its base matches the size of the cooking zone. The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display). Technical fault. Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact

qualified technician.

Fault Possible Cause To Rectify E1/E2 Abnormal supply voltage. ► Make sure the appliance is connected to the voltage indicated E3/E4 Abnormal temperature ► Please inspect the pot E5/E6 Bad hotplate heat radiation ► Please restart after hotplate has cooled down F0/F1/F2 Fan failure ► Please send back to customer serivce. F3-F8 F9-FE Temperature sensor failure ► Please send back to customer serivce. Please noteOperation and Handling caso Master E4 Slide 72 ► If error messages continue to be displayed after an extended waiting period or after restarting the appliance, then it must be sent to Customer Service to be examined. ► If you are unable to solve the problem with the steps shown above, please contact Customer Service.

17 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non- recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.

18 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels.Operation and Handling caso Master E4 Slide 73 Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
